MERCEDES-BENZ C350 4MATIC 2006 W203 Service Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2006, Model line: C350 4MATIC, Model: MERCEDES-BENZ C350 4MATIC 2006 W203Pages: 474
Page 41 of 474

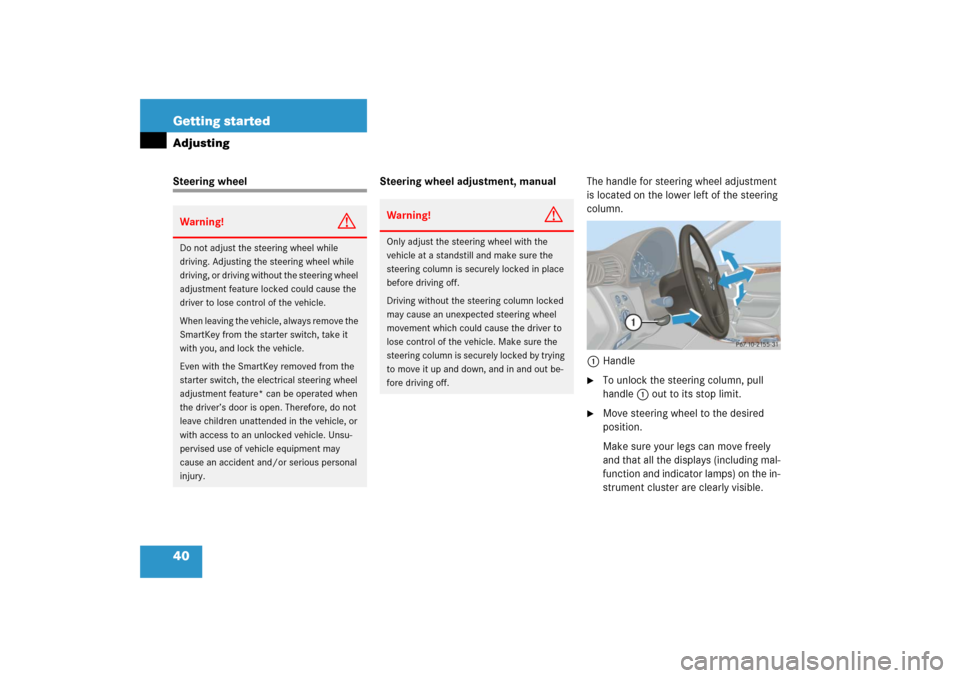

40 Getting startedAdjustingSteering wheel Steering wheel adjustment, manualThe handle for steering wheel adjustment
is located on the lower left of the steering
column.
1Handle
To unlock the steering column, pull
handle1 out to its stop limit.
Move steering wheel to the desired
position.
Make sure your legs can move freely
and that all the displays (including mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
Warning!
G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving, or driving without the steering wheel
adjustment feature locked could cause the
driver to lose control of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Only adjust the steering wheel with the
vehicle at a standstill and make sure the
steering column is securely locked in place
before driving off.
Driving without the steering column locked
may cause an unexpected steering wheel
movement which could cause the driver to
lose control of the vehicle. Make sure the
steering column is securely locked by trying
to move it up and down, and in and out be-
fore driving off.
Page 42 of 474
41 Getting started
Adjusting
To lock the steering column, push
handle1 all the way in until it
engages.
The steering wheel is locked into posi-
tion again.
Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.Steering wheel adjustment, electrical*
The lever for the electrical steering wheel
adjustment is located on the lower left of
the steering column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (
page 33).
or
Open the driver’s door.Adjusting steering column in or out
Move the lever in direction of
arrows1 until a comfortable steering
wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down
Move the lever in direction of
arrows2.
Make sure your legs can move freely
and that all the displays (including mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
!Do not drive the vehicle until you have
properly locked the steering column.
iThe memory function* (
page 115)
lets you store the settings for the pow-
er seat*, the steering wheel adjust-
ment (electrical*) and the exterior rear
view mirrors.
Page 43 of 474
42 Getting startedAdjustingEasy-entry/exit feature*
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be activat-
ed or deactivated in the
Convenience
sub-
menu of the control system (
page 153).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:
close the driver’s door with the ignition
switched on,
or
insert the SmartKey into the starter
switch with the driver’s door closed.With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you:
remove the SmartKey from the starter
switch,
or
open the driver’s door with the
SmartKey in starter switch position0
or1.
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To cancel steering wheel movement, do one
of the following:
Move steering column stalk*
(page 41).
Press memory position switch*
(page 116).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.iThe last set steering wheel position is
stored when
the ignition is switched off
the position is stored in memory
(page 115)
iIf the current position for the steering
wheel is in the uppermost tilt position,
the steering wheel will no longer be
able to move upward when the
easy-entry/exit feature is activated.
The adjustment procedure is briefly in-
terrupted when the engine is started.
Page 44 of 474
43 Getting started
Adjusting
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 170).
Exterior rear view mirrors
Warning!
G
Let the system complete the adjustment
procedure before setting the vehicle in mo-
tion. All steering wheel adjustments must be
completed before setting the vehicle in mo-
tion. Driving off with the steering wheel still
adjusting could cause the driver to lose con-
trol of the vehicle.
Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.
Page 45 of 474
44 Getting startedAdjusting
The buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger-side exterior rear view
mirror button
3Driver’s side exterior rear view mirror
button
Switch on the ignition (
page 33).
Press button3 for the driver’s side
exterior rear view mirror or button2
for passenger-side exterior rear view
mirror.
Press adjustment button1 up, down,
left, or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 170).
!If an exterior rear view mirror housing
is forcibly pushed forward (hit from the
rear) or rearward (hit from the front),
reposition it by applying firm pressure
until it snaps into place. The exterior
rear view mirror housing is now proper-
ly positioned and you can adjust the
mirror normally.iThe memory function* (
page 115)
lets you store the settings for the pow-
er seat*, the steering wheel adjust-
ment (electrical*) and the exterior rear
view mirrors.
iAt low ambient temperatures, the
exterior rear view mirrors will be
heated automatically.
Page 46 of 474
45 Getting started
Driving
Driving

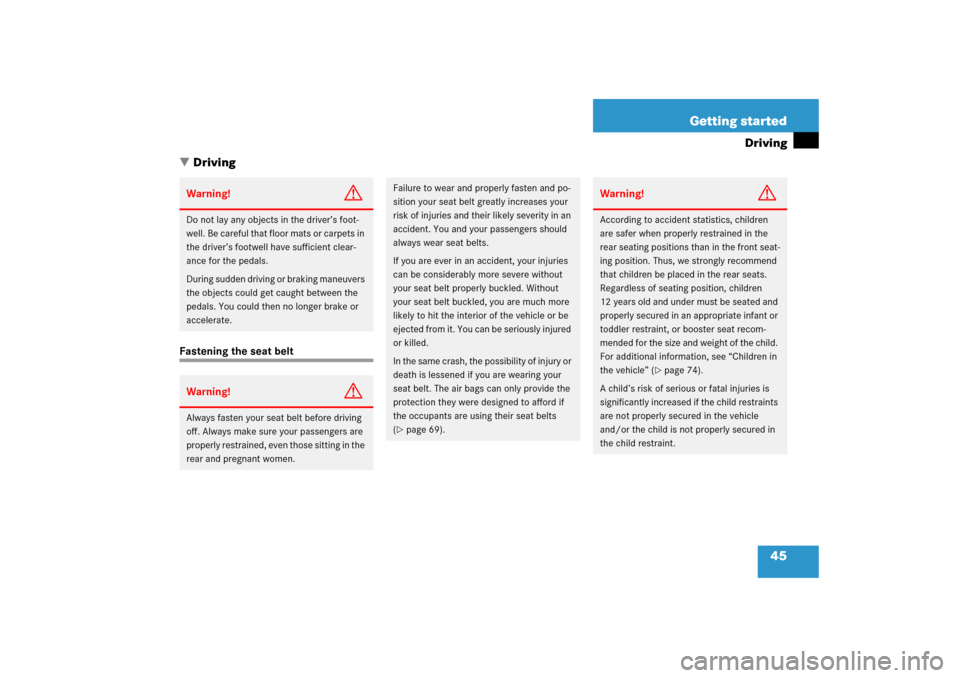

Fastening the seat beltWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 69).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 74).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Page 47 of 474

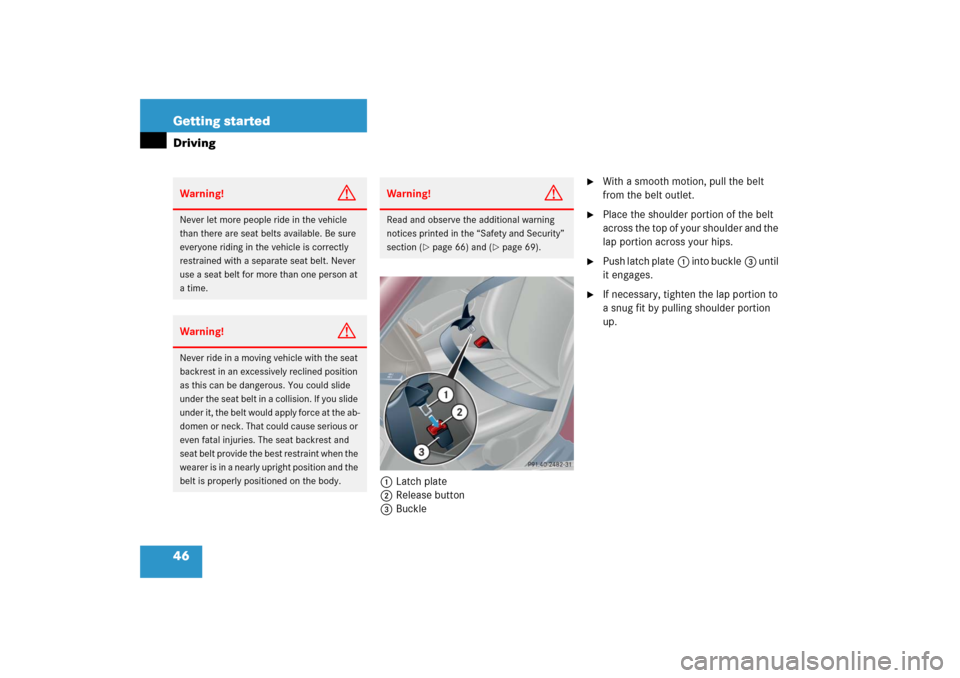

46 Getting startedDriving
1Latch plate
2Release button
3Buckle
With a smooth motion, pull the belt
from the belt outlet.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate1 into buckle3 until
it engages.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Read and observe the additional warning
notices printed in the “Safety and Security”
section (
page 66) and (
page 69).
Page 48 of 474
47 Getting started
Driving

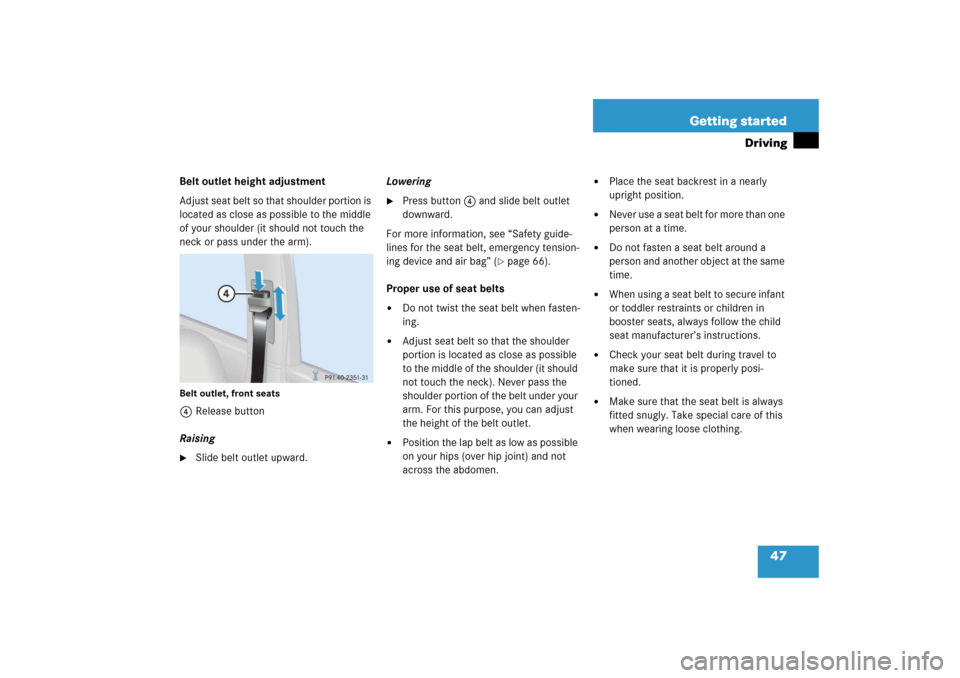

Belt outlet height adjustment
Adjust seat belt so that shoulder portion is
located as close as possible to the middle
of your shoulder (it should not touch the
neck or pass under the arm).Belt outlet, front seats4Release button
Raising
Slide belt outlet upward.Lowering
Press button4 and slide belt outlet
downward.
For more information, see “Safety guide-
lines for the seat belt, emergency tension-
ing device and air bag” (
page 66).
Proper use of seat belts
Do not twist the seat belt when fasten-
ing.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time.
When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.
Check your seat belt during travel to
make sure that it is properly posi-
tioned.
Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.
Page 49 of 474
48 Getting startedDriving
Starting the engine Manual transmission

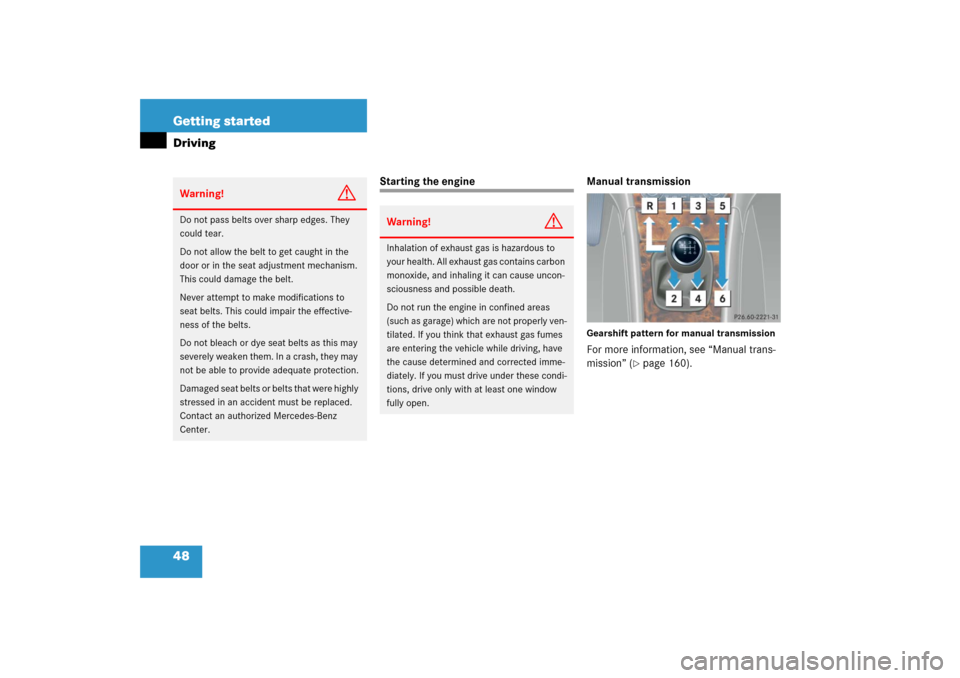

Gearshift pattern for manual transmissionFor more information, see “Manual trans-
mission” (
page 160).
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and possible death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.
Page 50 of 474
49 Getting started
Driving
Starting
Depress brake pedal.
Make sure the gearshift lever is in
neutral position (no gear selected).
Fully depress clutch pedal.
Otherwise the engine cannot be
started due to the integrated safety
interlock.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 33) and hold until
the engine starts.
For information on turning off the engine,
see “Turning off engine” (
page 59).Automatic transmission*

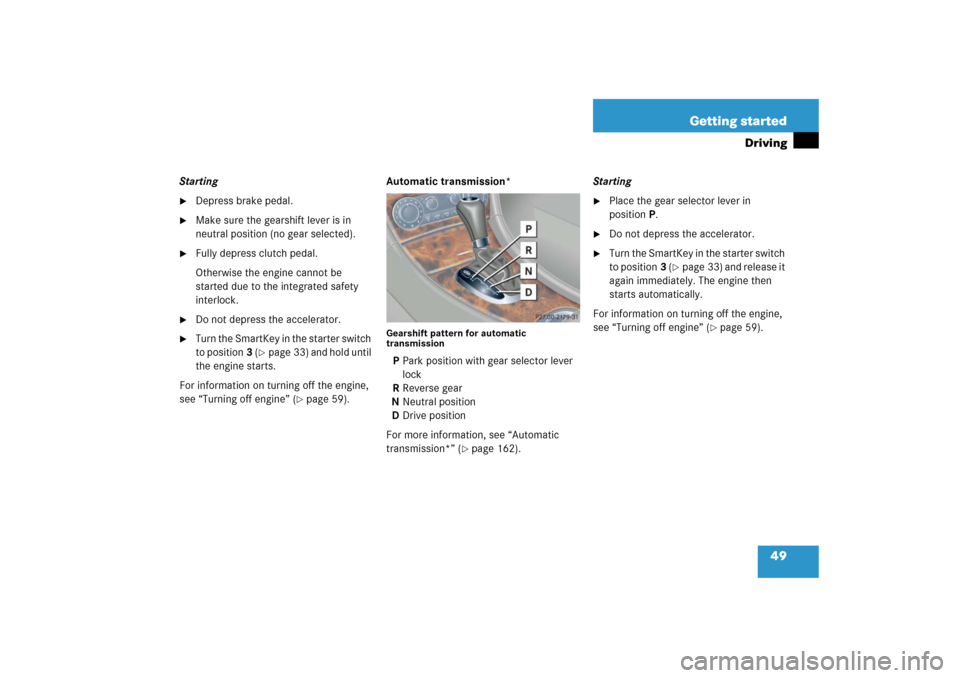

Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral position
DDrive position
For more information, see “Automatic
transmission*” (
page 162).Starting
Place the gear selector lever in
positionP.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 33) and release it
again immediately. The engine then
starts automatically.
For information on turning off the engine,
see “Turning off engine” (
page 59).
