60 Getting startedParking and lockingLocking

Exit the vehicle and close all doors.

Press the lock button‹ on the
SmartKey (
page 32).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs in the doors
move down.
The anti-theft alarm system* is armed.
For more information, see “Locking and
unlocking” (
page 98).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.
The message
Switch off lights
ap-
pears in the multifunction display.

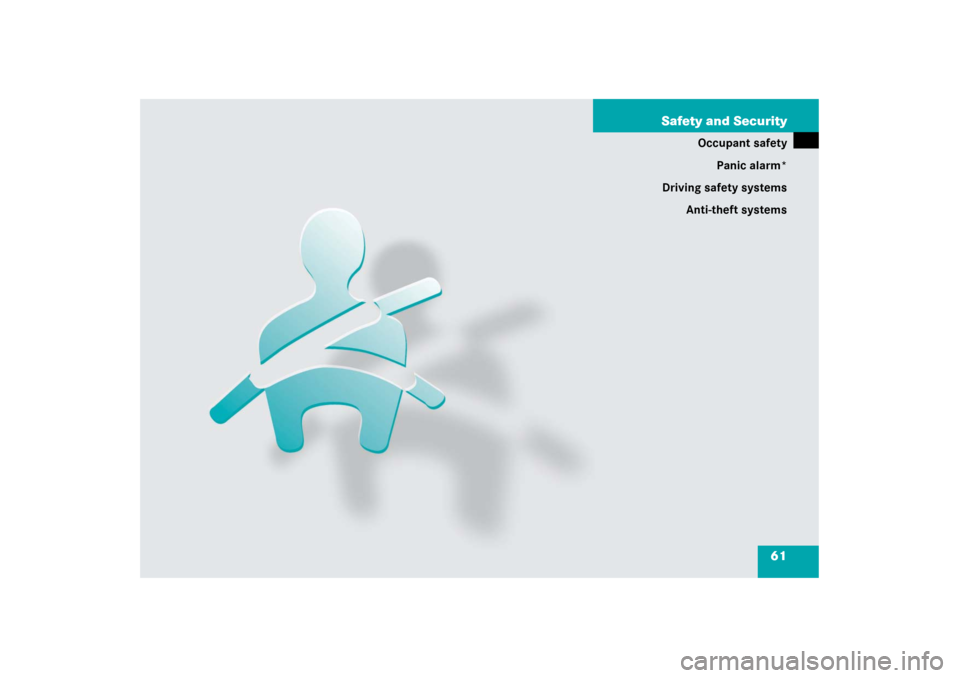

61 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems

62 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint system
components of the vehicle.
Restraint system with

Seat belts (
page 69)


Child restraints (
page 82)


Lower anchors and tethers for children
(LATCH) (
page 83)
Supplemental Restraint System (SRS) with


Air bags (
page 63)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD) for
seat belts (
page 72)Air bag system components with


56indicator lamp (
page 80)


Front passenger seat with Occupant
Classification System (OCS)
(page 77)
As independent systems, their protective
effects work in conjunction with each
other. The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The 1indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:


fails to go out after approximately
4 seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving.
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 74).

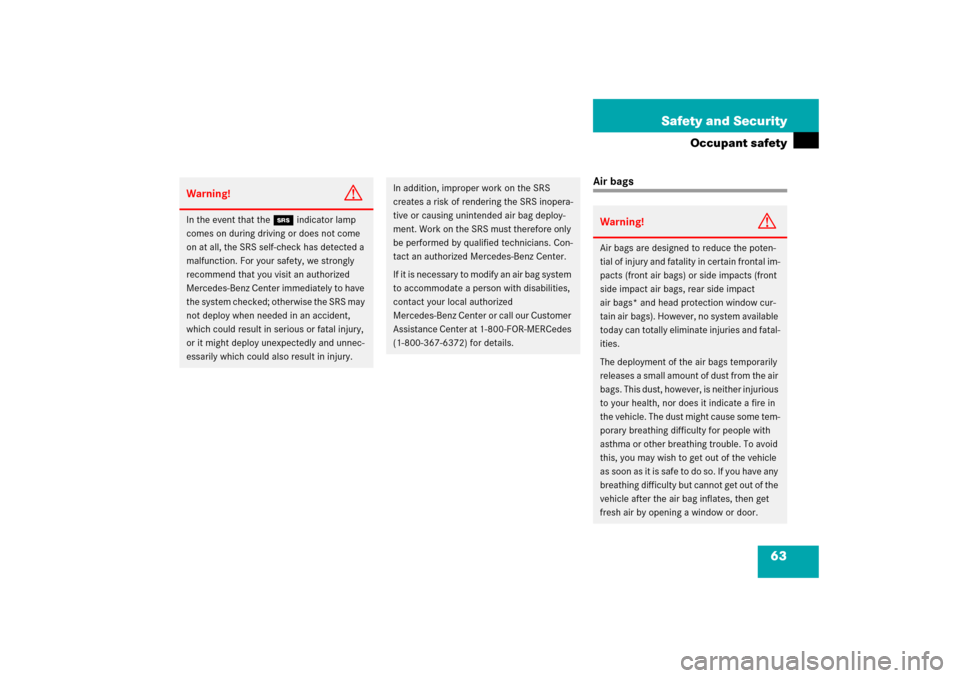

63 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags) or side impacts (front
side impact air bags, rear side impact
air bags* and head protection window cur-
tain air bags). However, no system available
today can totally eliminate injuries and fatal-
ities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.

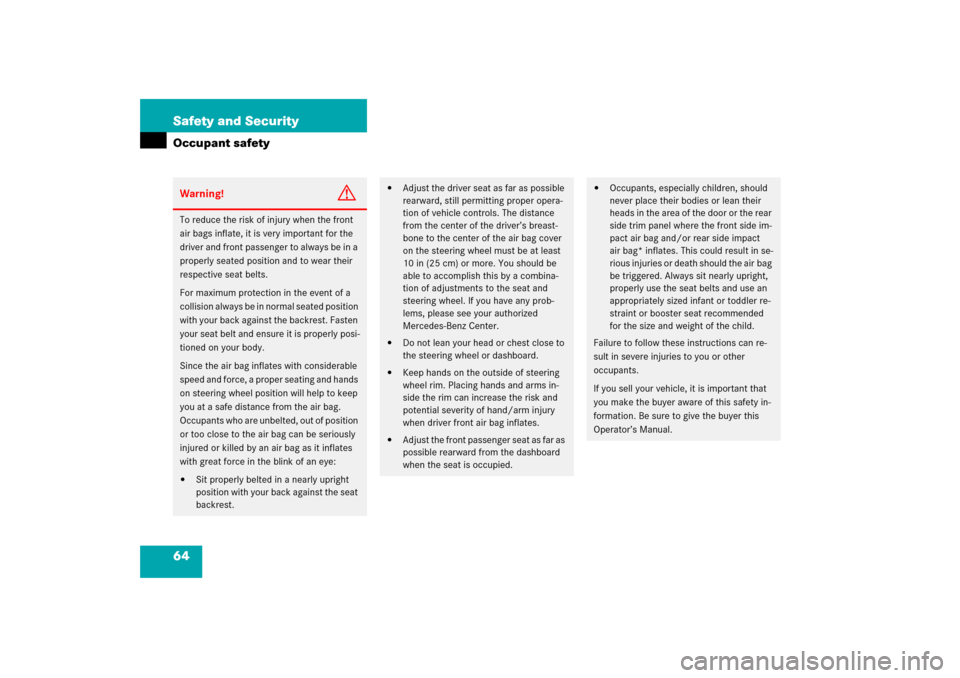

64 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and ensure it is properly posi-
tioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 in (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the front side im-
pact air bag and/or rear side impact
air bag* inflates. This could result in se-
rious injuries or death should the air bag
be triggered. Always sit nearly upright,
properly use the seat belts and use an
appropriately sized infant or toddler re-
straint or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this
Operator’s Manual.

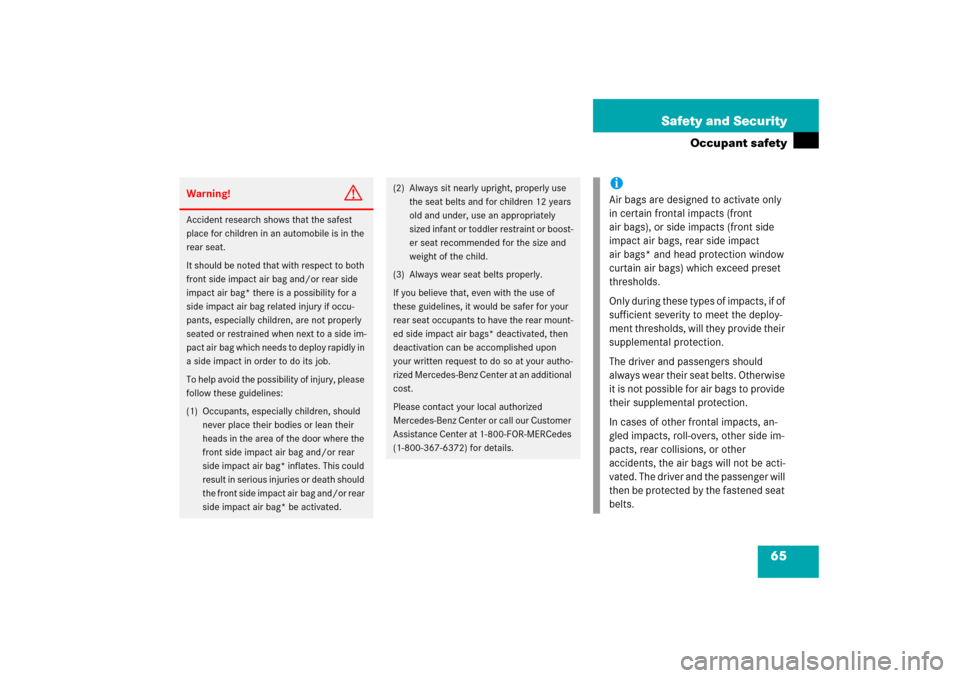

65 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
front side impact air bag and/or rear side
impact air bag* there is a possibility for a
side impact air bag related injury if occu-
pants, especially children, are not properly
seated or restrained when next to a side im-
pact air bag which needs to deploy rapidly in
a side impact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
front side impact air bag and/or rear
side impact air bag* inflates. This could
result in serious injuries or death should
the front side impact air bag and/or rear
side impact air bag* be activated.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags* deactivated, then
deactivation can be accomplished upon
your written request to do so at your autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAir bags are designed to activate only
in certain frontal impacts (front
air bags), or side impacts (front side
impact air bags, rear side impact
air bags* and head protection window
curtain air bags) which exceed preset
thresholds.
Only during these types of impacts, if of
sufficient severity to meet the deploy-
ment thresholds, will they provide their
supplemental protection.
The driver and passengers should
always wear their seat belts. Otherwise
it is not possible for air bags to provide
their supplemental protection.
In cases of other frontal impacts, an-
gled impacts, roll-overs, other side im-
pacts, rear collisions, or other
accidents, the air bags will not be acti-
vated. The driver and the passenger will
then be protected by the fastened seat
belts.

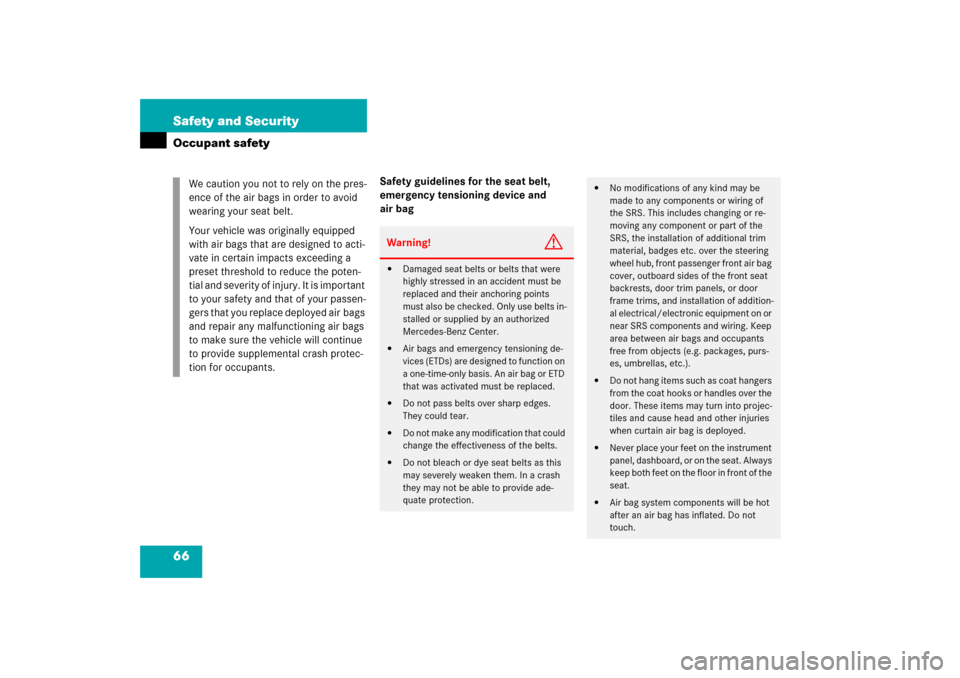

66 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag We caution you not to rely on the pres-
ence of the air bags in order to avoid
wearing your seat belt.
Your vehicle was originally equipped
with air bags that are designed to acti-
vate in certain impacts exceeding a
preset threshold to reduce the poten-
tial and severity of injury. It is important
to your safety and that of your passen-
gers that you replace deployed air bags
and repair any malfunctioning air bags
to make sure the vehicle will continue
to provide supplemental crash protec-
tion for occupants.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Air bags and emergency tensioning de-
vices (ETDs) are designed to function on
a one-time-only basis. An air bag or ETD
that was activated must be replaced.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the front seat
backrests, door trim panels, or door
frame trims, and installation of addition-
al electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.

67 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in

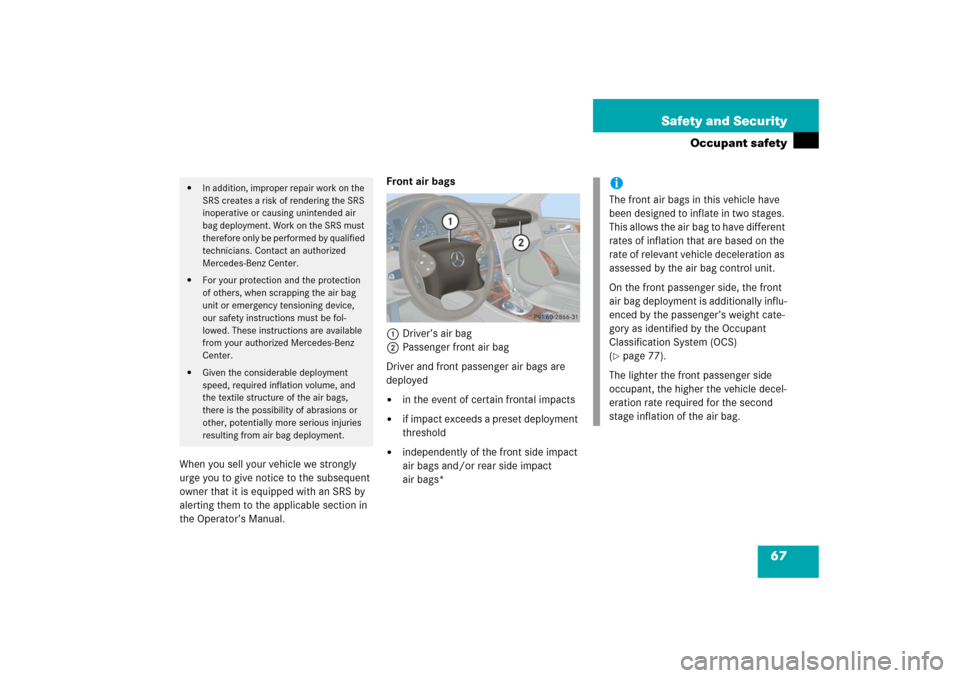

the Operator’s Manual.Front air bags
1Driver’s air bag
2Passenger front air bag
Driver and front passenger air bags are
deployed


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the front side impact
air bags and/or rear side impact
air bags*


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.
iThe front air bags in this vehicle have
been designed to inflate in two stages.
This allows the air bag to have different
rates of inflation that are based on the
rate of relevant vehicle deceleration as
assessed by the air bag control unit.
On the front passenger side, the front
air bag deployment is additionally influ-
enced by the passenger’s weight cate-
gory as identified by the Occupant
Classification System (OCS)
(page 77).
The lighter the front passenger side
occupant, the higher the vehicle decel-
eration rate required for the second
stage inflation of the air bag.

68 Safety and SecurityOccupant safetyThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The passenger front air bag will only be
deployed if

the system, based on OCS weight sen-
sor readings, senses that the front pas-
senger seat is occupied


the 56 indicator lamp in the
center console is not lit (
page 80)


the impact exceeds a preset deploy-

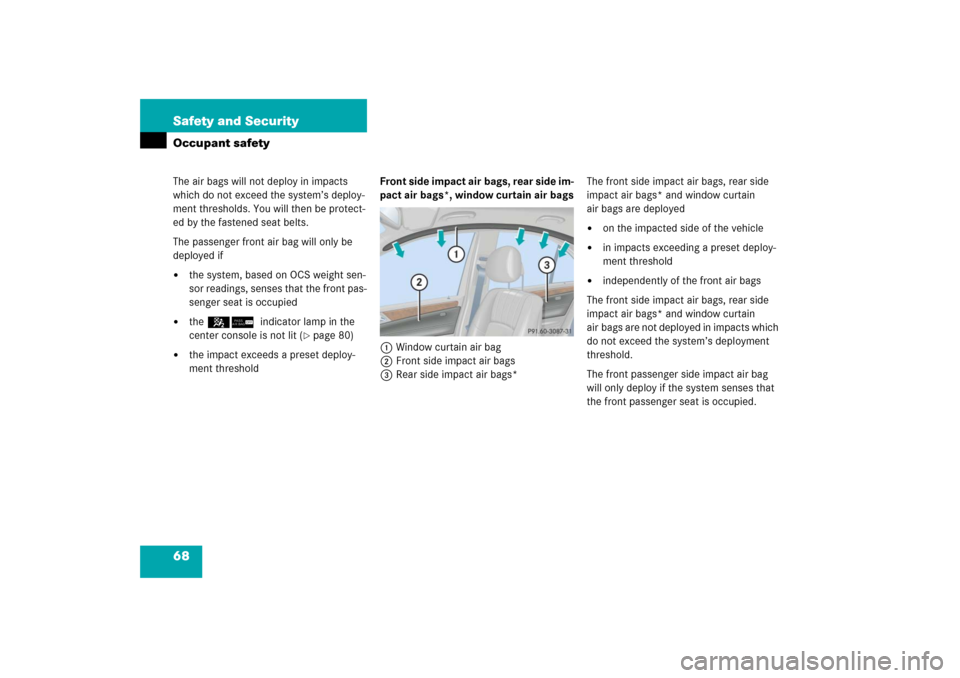

ment thresholdFront side impact air bags, rear side im-
pact air bags*, window curtain air bags
1Window curtain air bag
2Front side impact air bags
3Rear side impact air bags*The front side impact air bags, rear side
impact air bags* and window curtain
air bags are deployed


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front air bags
The front side impact air bags, rear side
impact air bags* and window curtain
air bags are not deployed in impacts which
do not exceed the system’s deployment
threshold.
The front passenger side impact air bag
will only deploy if the system senses that
the front passenger seat is occupied.

69 Safety and Security
Occupant safety
Seat belts
Always wear your seat belt. All vehicle
occupants always need to have their seat
belts fastened and wear them properly.
In addition, applicable motor vehicle safety
laws require you to wear seat belts. Even
where this is not the case, we strongly
recommend that all vehicle occupants
have their seat belts fastened and wear
them properly.
For more information, see “Fastening the
seat belt” (
page 45).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 74).

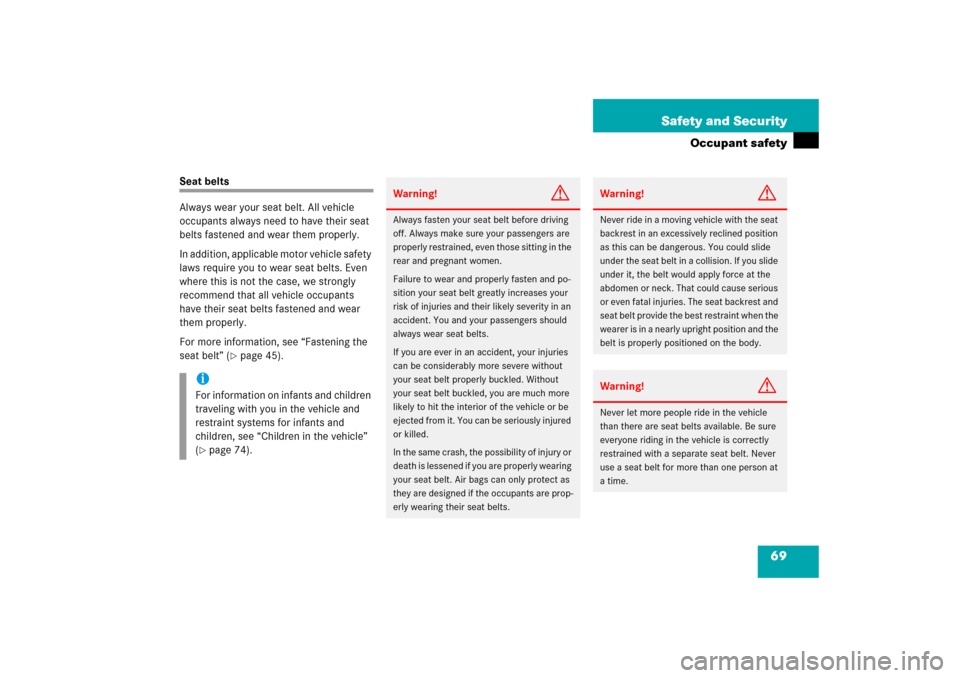

Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
