MERCEDES-BENZ C350 4MATIC 2007 W203 Owners Manual

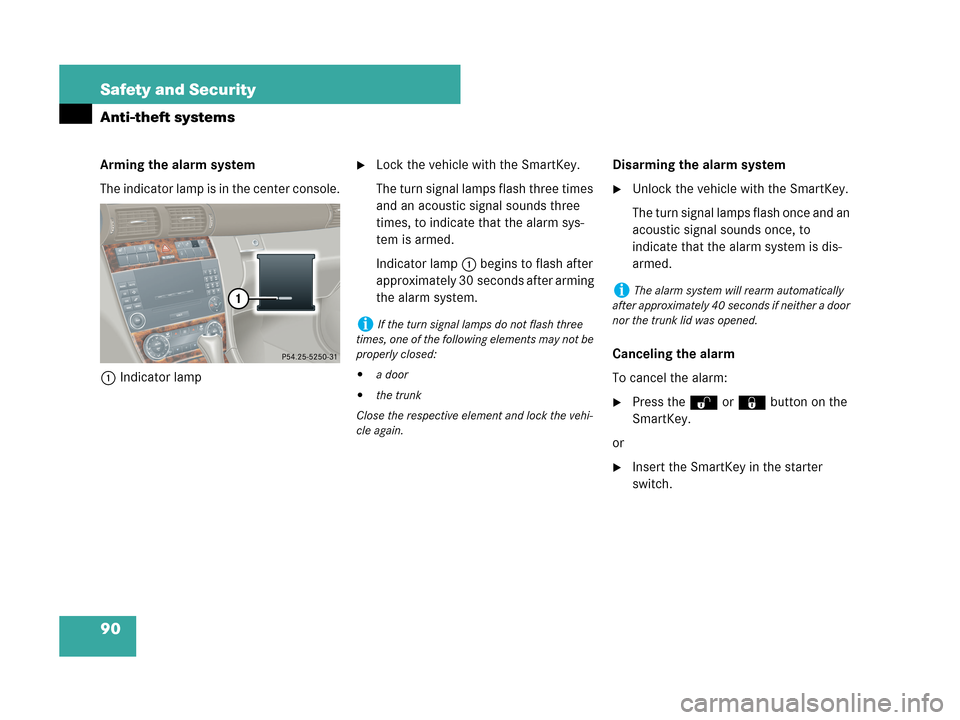

90 Safety and Security
Anti-theft systems
Arming the alarm system
The indicator lamp is in the center console.
1Indicator lampLock the vehicle with the SmartKey.
The turn signal lamps flash three times
and an acoustic signal sounds three
times, to indicate that the alarm sys-
tem is armed.
Indicator lamp1 begins to flash after
approximately 30 seconds after arming
the alarm system.Disarming the alarm system
Unlock the vehicle with the SmartKey.
The turn signal lamps flash once and an
acoustic signal sounds once, to
indicate that the alarm system is dis-
armed.
Canceling the alarm
To cancel the alarm:
Press theŒ or‹ button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.
iIf the turn signal lamps do not flash three
times, one of the following elements may not be
properly closed:

a door

the trunk
Close the respective element and lock the vehi-
cle again.
iThe alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the trunk lid was opened.

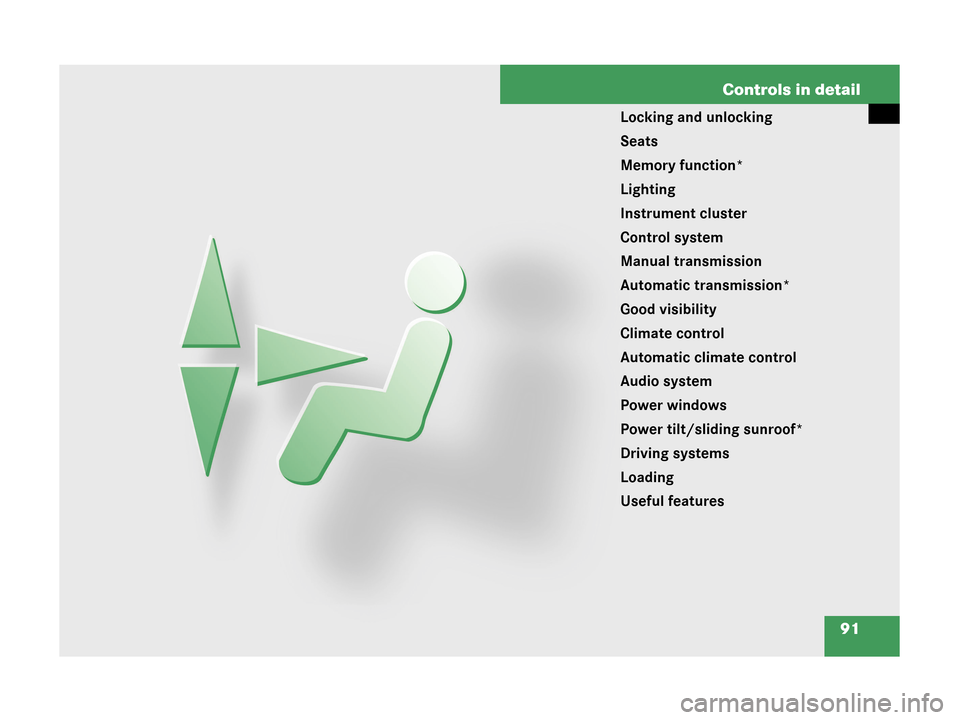

91 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Manual transmission
Automatic transmission*
Good visibility
Climate control
Automatic climate control
Audio system
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features

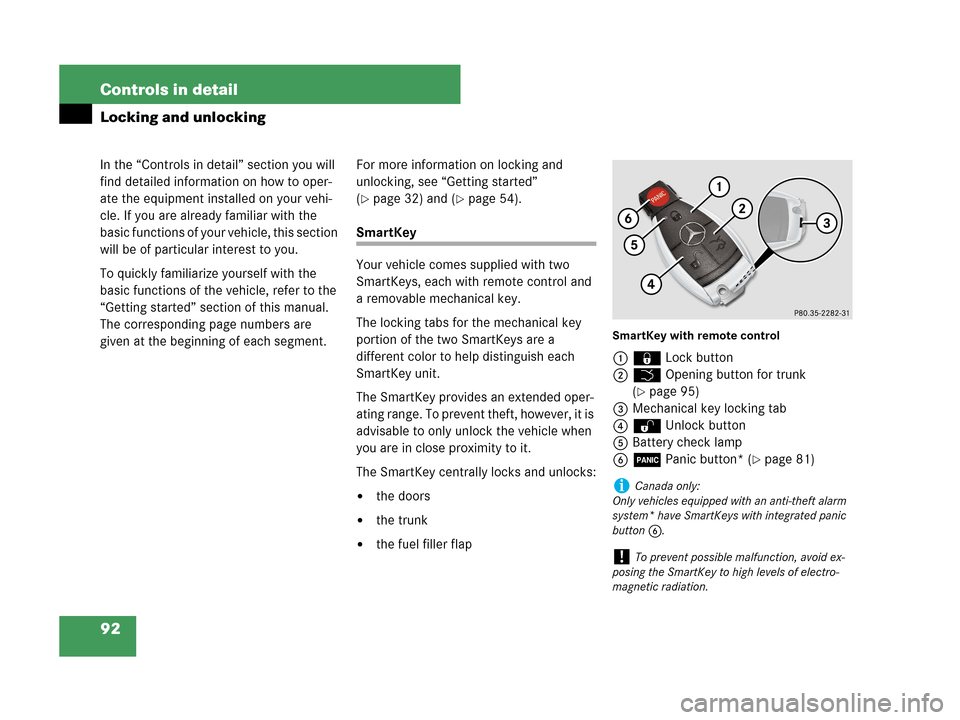

92 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the
basic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
Locking and unlocking
For more information on locking and
unlocking, see “Getting started”
(
page 32) and (page 54).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a
different color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the trunk

the fuel filler flap
SmartKey with remote control
1‹ Lock button
2Š Opening button for trunk
(
page 95)
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button* (
page 81)
iCanada only:
Only vehicles equipped with an anti-theft alarm
system* have SmartKeys with integrated panic
button6.
!To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.

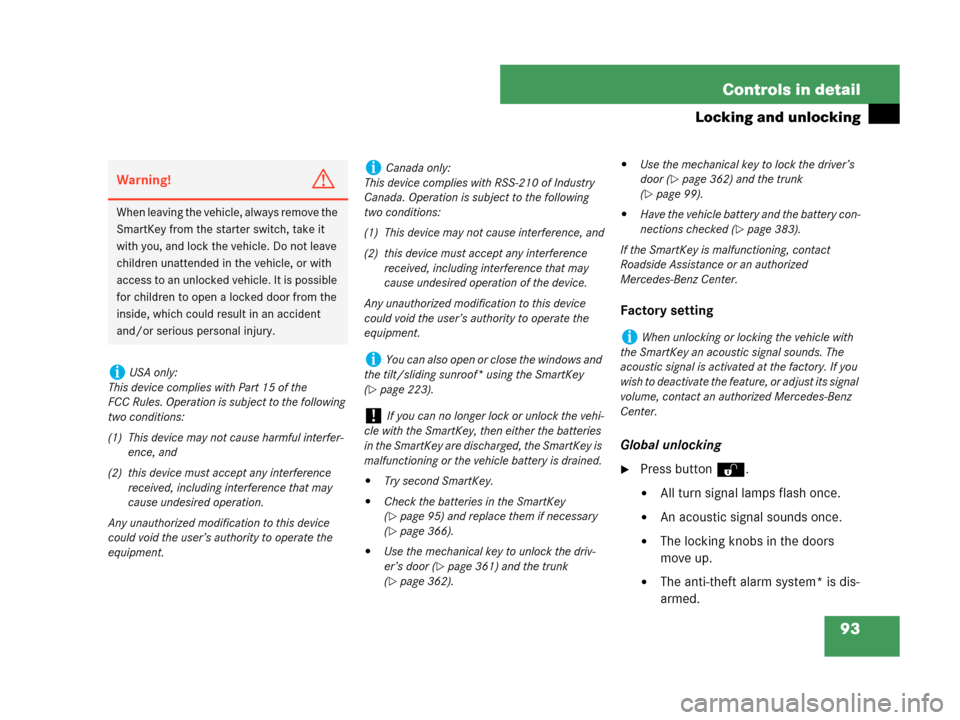

93 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press buttonŒ.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system* is dis-
armed.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open or close the windows and
the tilt/sliding sunroof* using the SmartKey
(
page 223).
!If you can no longer lock or unlock the vehi-
cle with the SmartKey, then either the batteries
in the SmartKey are discharged, the SmartKey is
malfunctioning or the vehicle battery is drained.

Try second SmartKey.

Check the batteries in the SmartKey
(
page 95) and replace them if necessary
(
page 366).

Use the mechanical key to unlock the driv-
er’s door (
page 361) and the trunk
(
page 362).

Use the mechanical key to lock the driver’s
door (
page 362) and the trunk
(
page 99).

Have the vehicle battery and the battery con-
nections checked (
page 383).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Center.
iWhen unlocking or locking the vehicle with
the SmartKey an acoustic signal sounds. The
acoustic signal is activated at the factory. If you
wish to deactivate the feature, or adjust its signal
volume, contact an authorized Mercedes-Benz
Center.

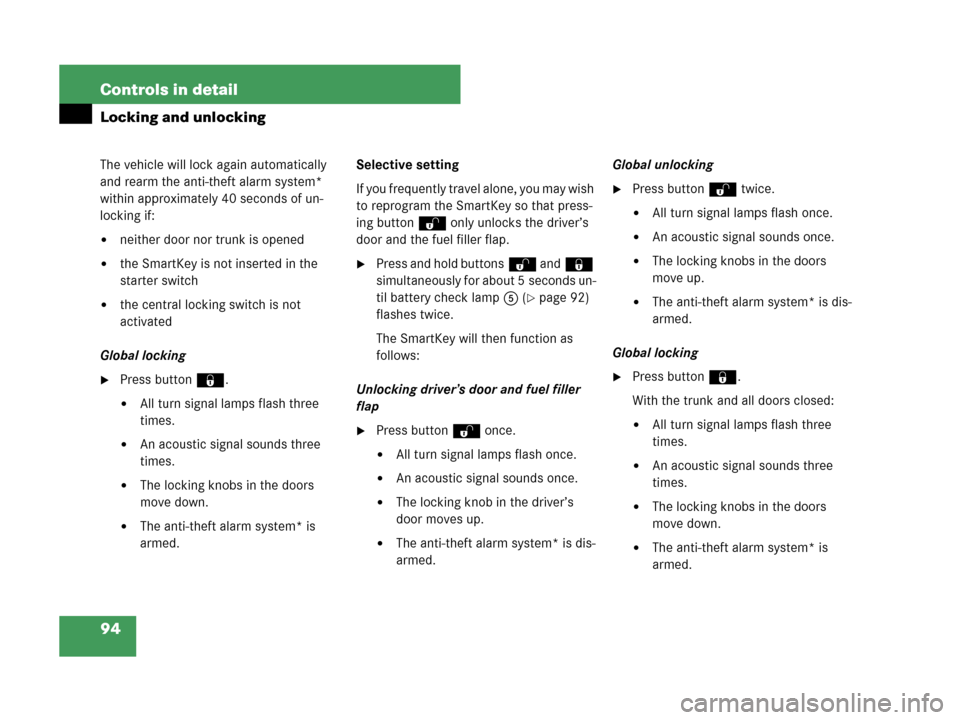

94 Controls in detail
Locking and unlocking
The vehicle will lock again automatically
and rearm the anti-theft alarm system*
within approximately 40 seconds of un-
locking if:

neither door nor trunk is opened

the SmartKey is not inserted in the
starter switch

the central locking switch is not
activated
Global locking
Press button‹.

All turn signal lamps flash three
times.

An acoustic signal sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system* is
armed.Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing buttonŒ only unlocks the driver’s
door and the fuel filler flap.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 92)
flashes twice.
The SmartKey will then function as
follows:
Unlocking driver’s door and fuel filler
flap
Press buttonΠonce.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knob in the driver’s
door moves up.

The anti-theft alarm system* is dis-
armed.Global unlocking
Press buttonΠtwice.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system* is dis-
armed.
Global locking
Press button‹.
With the trunk and all doors closed:

All turn signal lamps flash three
times.

An acoustic signal sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system* is
armed.

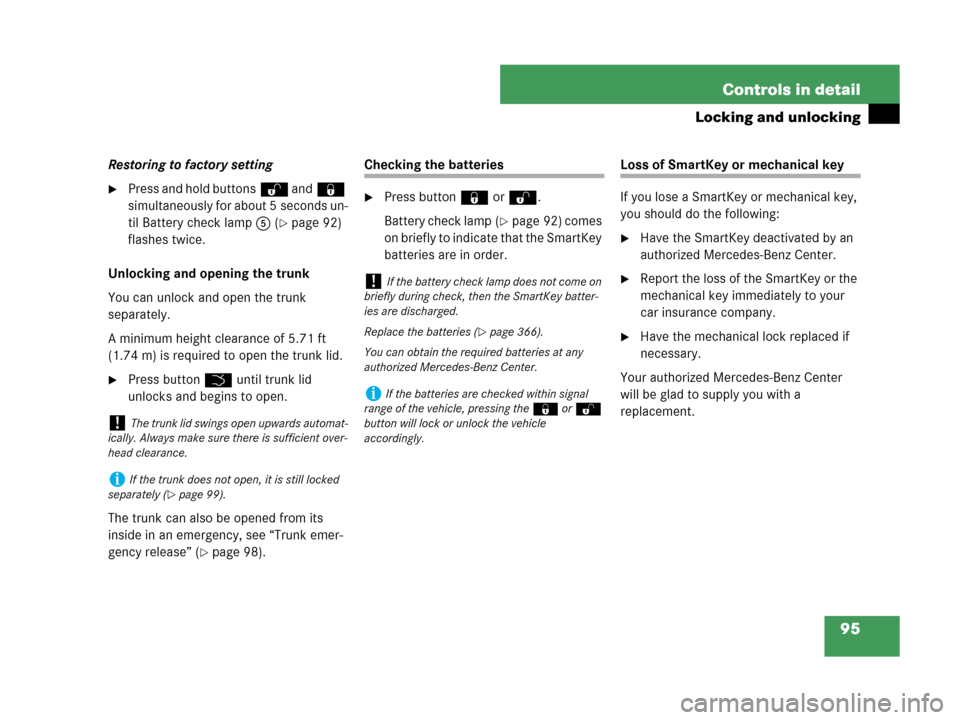

95 Controls in detail
Locking and unlocking
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til Battery check lamp5 (
page 92)
flashes twice.
Unlocking and opening the trunk
You can unlock and open the trunk
separately.
A minimum height clearance of 5.71 ft
(1.74 m) is required to open the trunk lid.
Press buttonŠ until trunk lid
unlocks and begins to open.
The trunk can also be opened from its
inside in an emergency, see “Trunk emer-
gency release” (
page 98).
Checking the batteries
Press button‹ orŒ.
Battery check lamp (
page 92) comes
on briefly to indicate that the SmartKey
batteries are in order.
Loss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:
Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.
Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.
Have the mechanical lock replaced if
necessary.
Your authorized Mercedes-Benz Center
will be glad to supply you with a
replacement.
!The trunk lid swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.
iIf the trunk does not open, it is still locked
separately (
page 99).
!If the battery check lamp does not come on
briefly during check, then the SmartKey batter-
ies are discharged.
Replace the batteries (
page 366).
You can obtain the required batteries at any
authorized Mercedes-Benz Center.
iIf the batteries are checked within signal
range of the vehicle, pressing the‹ orŒ
button will lock or unlock the vehicle
accordingly.

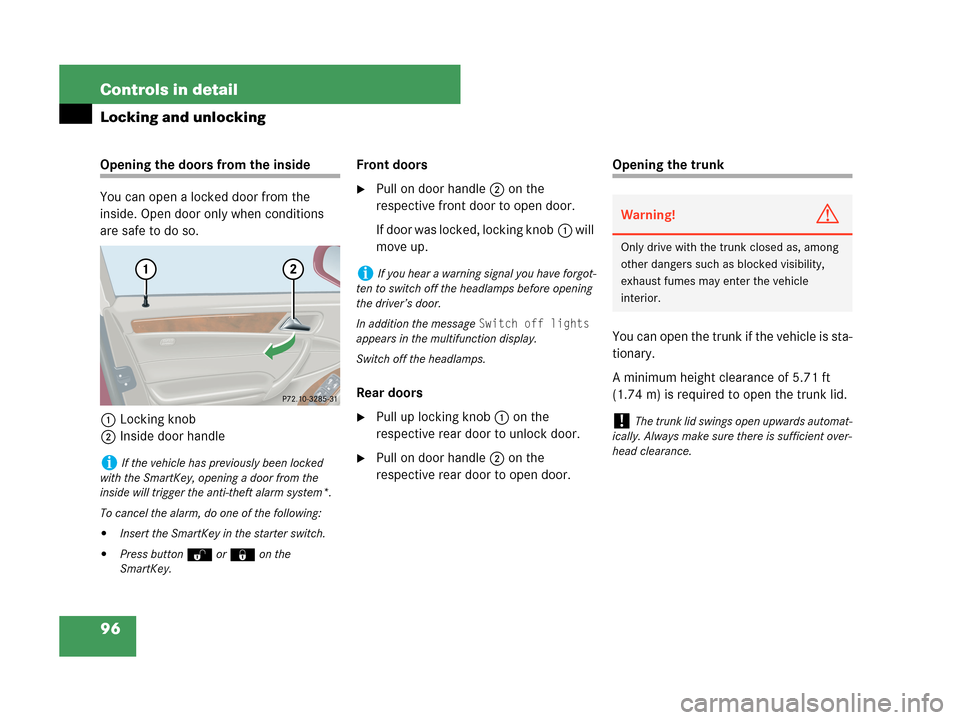

96 Controls in detail
Locking and unlocking
Opening the doors from the inside
You can open a locked door from the
inside. Open door only when conditions
are safe to do so.
1Locking knob
2Inside door handleFront doors
Pull on door handle2 on the
respective front door to open door.
If door was locked, locking knob1 will
move up.
Rear doors
Pull up locking knob1 on the
respective rear door to unlock door.
Pull on door handle2 on the
respective rear door to open door.
Opening the trunk
You can open the trunk if the vehicle is sta-
tionary.
A minimum height clearance of 5.71 ft
(1.74 m) is required to open the trunk lid.
iIf the vehicle has previously been locked
with the SmartKey, opening a door from the
inside will trigger the anti-theft alarm system*.
To cancel the alarm, do one of the following:

Insert the SmartKey in the starter switch.

Press buttonŒ or‹ on the
SmartKey.
iIf you hear a warning signal you have forgot-
ten to switch off the headlamps before opening
the driver’s door.
In addition the message
Switch off lights
appears in the multifunction display.
Switch off the headlamps.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.
!The trunk lid swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.

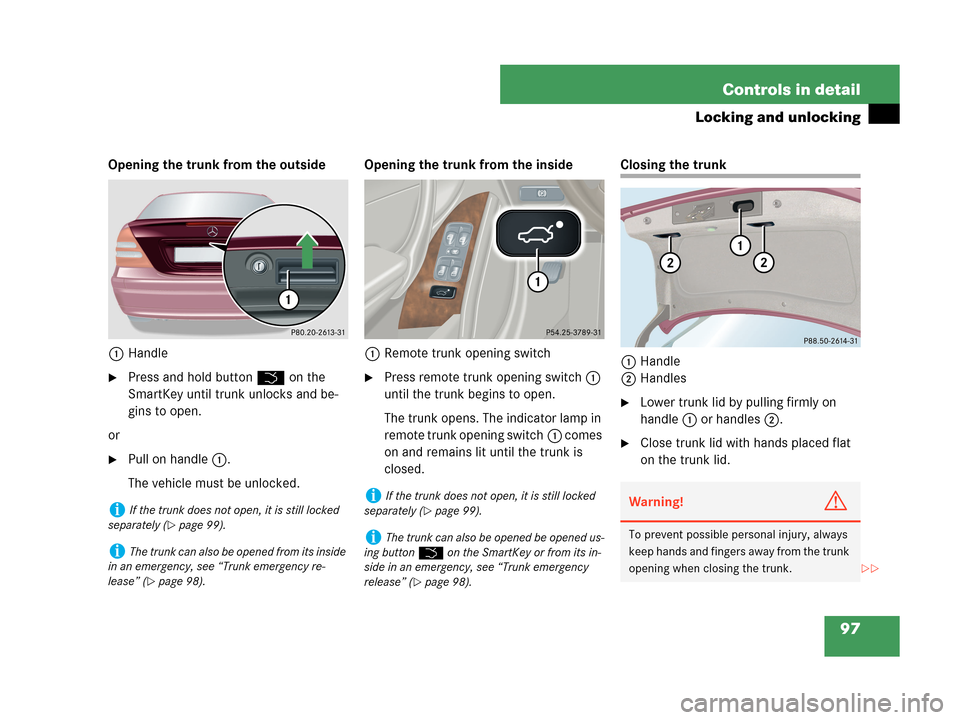

97 Controls in detail
Locking and unlocking
Opening the trunk from the outside
1Handle
Press and hold button Š on the
SmartKey until trunk unlocks and be-
gins to open.
or
Pull on handle1.
The vehicle must be unlocked.Opening the trunk from the inside
1Remote trunk opening switch
Press remote trunk opening switch1
until the trunk begins to open.
The trunk opens. The indicator lamp in
remote trunk opening switch1 comes
on and remains lit until the trunk is
closed.
Closing the trunk
1Handle
2Handles
Lower trunk lid by pulling firmly on
handle1 or handles2.
Close trunk lid with hands placed flat
on the trunk lid.
iIf the trunk does not open, it is still locked
separately (
page 99).
iThe trunk can also be opened from its inside
in an emergency, see “Trunk emergency re-
lease” (
page 98).
iIf the trunk does not open, it is still locked
separately (
page 99).
iThe trunk can also be opened be opened us-
ing buttonŠ on the SmartKey or from its in-
side in an emergency, see “Trunk emergency
release” (
page 98).
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
opening when closing the trunk.

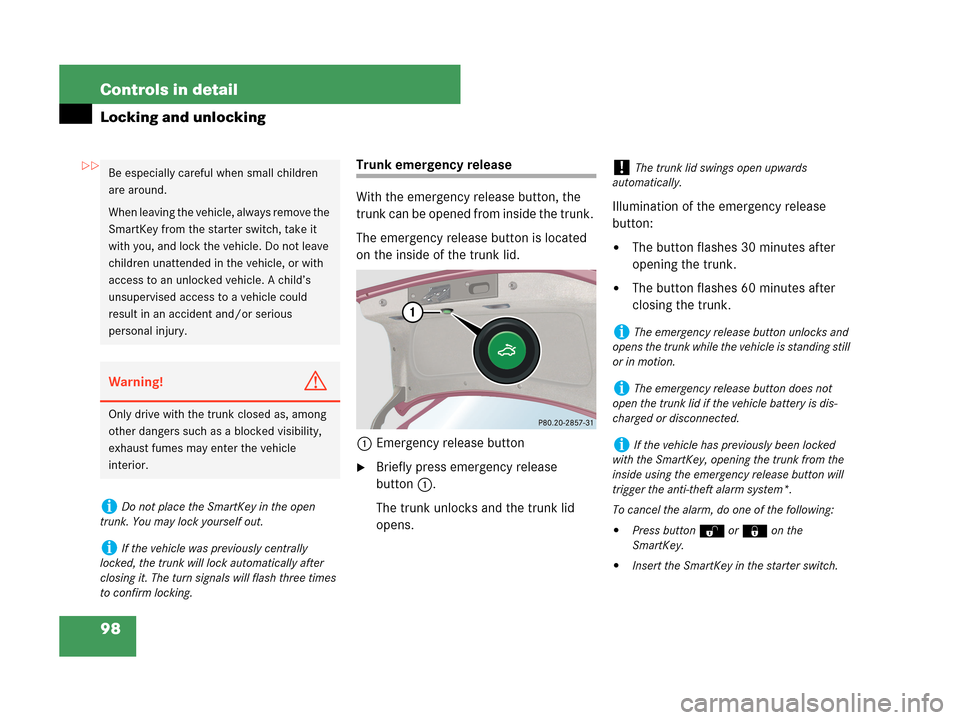

98 Controls in detail
Locking and unlocking
Trunk emergency release
With the emergency release button, the
trunk can be opened from inside the trunk.
The emergency release button is located
on the inside of the trunk lid.
1Emergency release button
Briefly press emergency release
button1.
The trunk unlocks and the trunk lid
opens.Illumination of the emergency release
button:

The button flashes 30 minutes after
opening the trunk.

The button flashes 60 minutes after
closing the trunk.
Be especially careful when small children
are around.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as a blocked visibility,
exhaust fumes may enter the vehicle
interior.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
iIf the vehicle was previously centrally
locked, the trunk will lock automatically after
closing it. The turn signals will flash three times
to confirm locking.
!The trunk lid swings open upwards
automatically.
iThe emergency release button unlocks and
opens the trunk while the vehicle is standing still
or in motion.
iThe emergency release button does not
open the trunk lid if the vehicle battery is dis-
charged or disconnected.
iIf the vehicle has previously been locked
with the SmartKey, opening the trunk from the
inside using the emergency release button will
trigger the anti-theft alarm system*.
To cancel the alarm, do one of the following:

Press buttonŒ or‹ on the
SmartKey.

Insert the SmartKey in the starter switch.


99 Controls in detail
Locking and unlocking
Valet locking
The lock is located next to the handle
above the rear license plate recess.
1Neutral position
2Locked
Close the trunk (page 97).
Pull the mechanical key out of the
SmartKey (
page 361).
Insert the mechanical key in the trunk
lid lock.
Turn the mechanical key clockwise to
position2 and remove the mechani-
cal key in that position to lock the
trunk.
The trunk remains locked even when the
vehicle is centrally unlocked.
Insert the mechanical key in the trunk
lid lock.
Turn the mechanical key counterclock-
wise to neutral position1 and remove
the mechanical key in that position to
unlock the trunk.
You can now open the trunk
(
page 96).
Automatic central locking
The doors and the trunk automatically lock
when the ignition is switched on and the
wheels are turning at vehicle speeds of
approximately 9 mph (15 km/h) or more.
You can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic locking
mode using the control system, see “Set-
ting automatic locking” (
page 143).
iTo deny any unauthorized person access to
the trunk, lock it separately with the mechanical
key. Leave only the SmartKey less its mechani-
cal key with the vehicle.
iYou can only cancel the separate trunk lock-
ing mode by means of the mechanical key.
iThe doors unlock automatically after an ac-
cident if the force of the impact exceeds a preset
threshold.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking when
the vehicle

is pushed or towed

is on a test stand
