MERCEDES-BENZ C350 4MATIC 2007 W203 Manual PDF

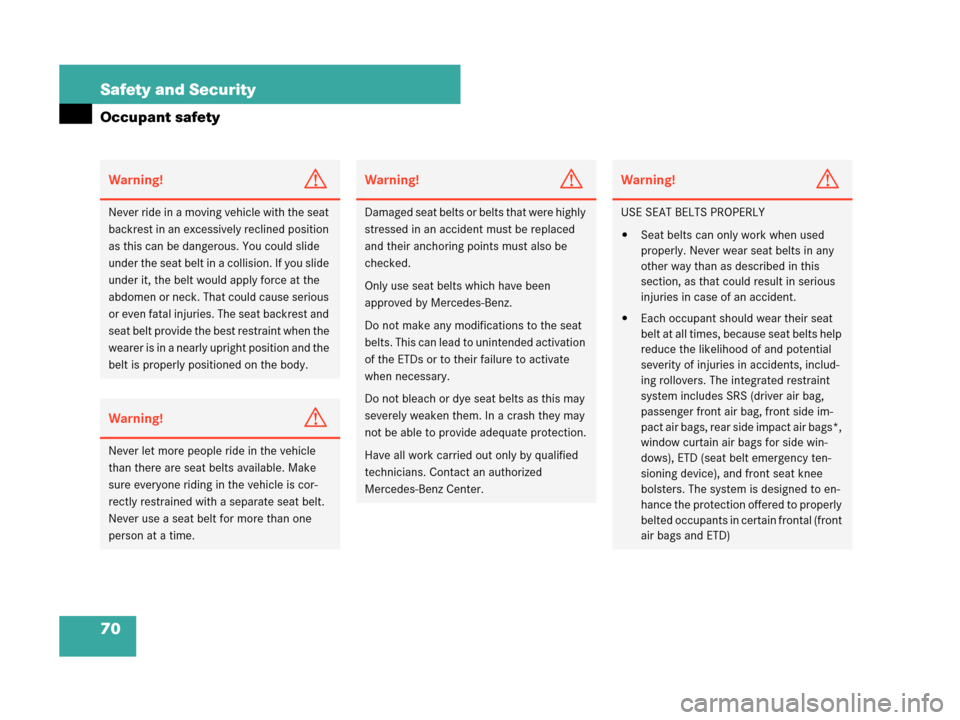

70 Safety and Security
Occupant safety
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one
person at a time.
Warning!G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to their failure to activate
when necessary.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this
section, as that could result in serious
injuries in case of an accident.

Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, front side im-
pact air bags, rear side impact air bags*,
window curtain air bags for side win-
dows), ETD (seat belt emergency ten-
sioning device), and front seat knee
bolsters. The system is designed to en-
hance the protection offered to properly
belted occupants in certain frontal (front
air bags and ETD)

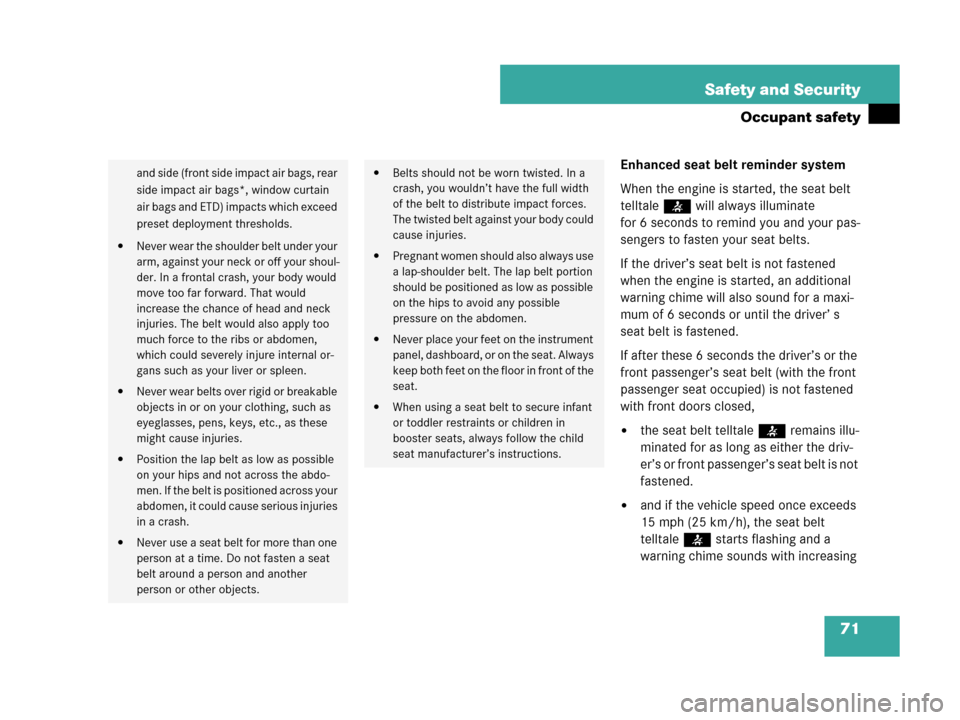

71 Safety and Security
Occupant safety
Enhanced seat belt reminder system
When the engine is started, the seat belt
telltale< will always illuminate
for 6 seconds to remind you and your pas-
sengers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’ s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with front doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened.

and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
and side (front side impact air bags, rear
side impact air bags*, window curtain
air bags and ETD) impacts which exceed
preset deployment thresholds.

Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would
increase the chance of head and neck
injuries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.

Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.

Position the lap belt as low as possible
on your hips and not across the abdo-
m e n . I f t h e b e l t i s p o s i t i o n e d a c r o s s y o u r
abdomen, it could cause serious injuries
in a crash.

Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another
person or other objects.

Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.

Pregnant women should also always use
a lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible
pressure on the abdomen.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.

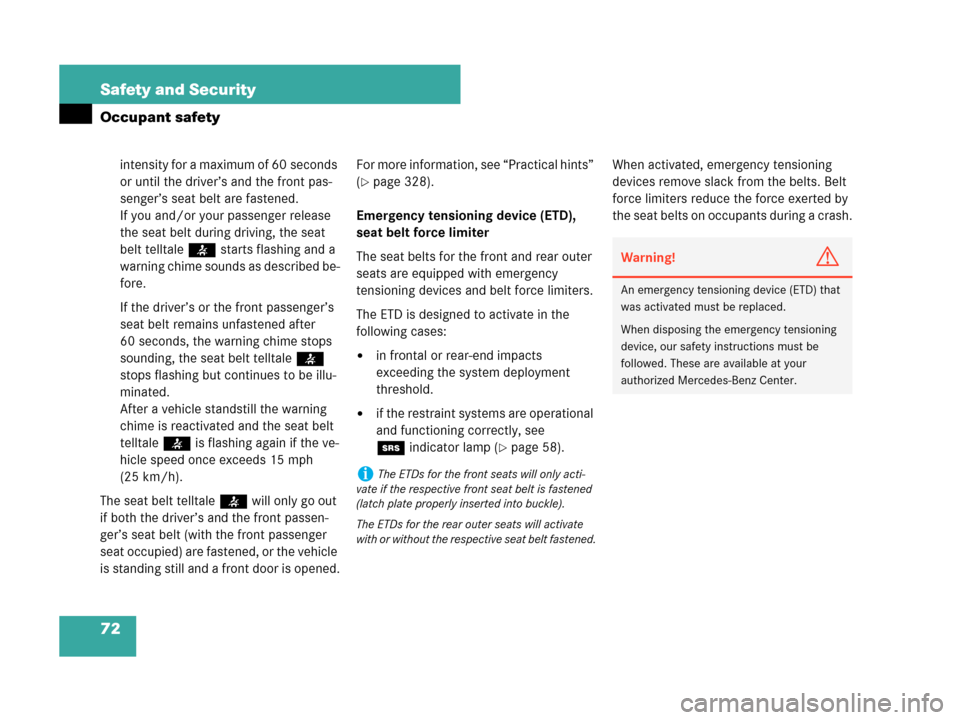

72 Safety and Security
Occupant safety
intensity for a maximum of 60 seconds
or until the driver’s and the front pas-
senger’s seat belt are fastened.
If you and/or your passenger release
the seat belt during driving, the seat
belt telltale < starts flashing and a
warning chime sounds as described be-
fore.
If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
After a vehicle standstill the warning
chime is reactivated and the seat belt
telltale < is flashing again if the ve-
hicle speed once exceeds 15 mph
(25 km/h).
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a front door is opened.For more information, see “Practical hints”
(
page 328).
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency
tensioning devices and belt force limiters.
The ETD is designed to activate in the
following cases:

in frontal or rear-end impacts
exceeding the system deployment
threshold.

if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 58).When activated, emergency tensioning
devices remove slack from the belts. Belt
force limiters reduce the force exerted by
the seat belts on occupants during a crash.
iThe ETDs for the front seats will only acti-
vate if the respective front seat belt is fastened
(latch plate properly inserted into buckle).
The ETDs for the rear outer seats will activate
with or without the respective seat belt fastened.
Warning!G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing the emergency tensioning
device, our safety instructions must be
followed. These are available at your
authorized Mercedes-Benz Center.

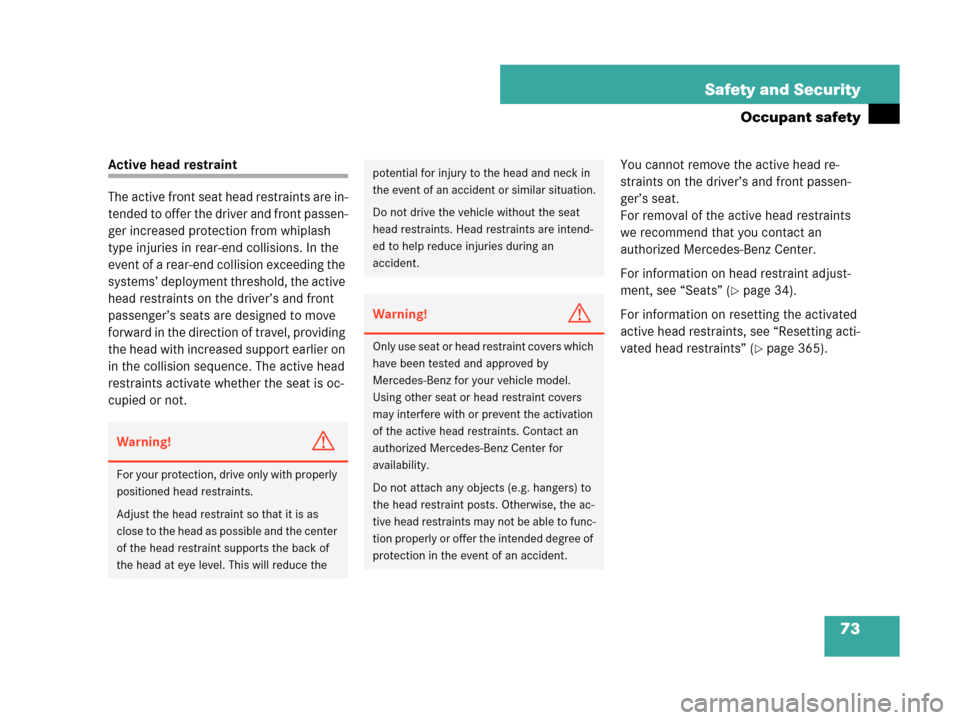

73 Safety and Security
Occupant safety
Active head restraint
The active front seat head restraints are in-
tended to offer the driver and front passen-
ger increased protection from whiplash
type injuries in rear-end collisions. In the
event of a rear-end collision exceeding the
systems’ deployment threshold, the active
head restraints on the driver’s and front
passenger’s seats are designed to move
forward in the direction of travel, providing
the head with increased support earlier on
in the collision sequence. The active head
restraints activate whether the seat is oc-
cupied or not.You cannot remove the active head re-
straints on the driver’s and front passen-
ger’s seat.
For removal of the active head restraints
we recommend that you contact an
authorized Mercedes-Benz Center.
For information on head restraint adjust-
ment, see “Seats” (
page 34).
For information on resetting the activated
active head restraints, see “Resetting acti-
vated head restraints” (
page 365).
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the
potential for injury to the head and neck in
the event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.
Warning!G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat or head restraint covers
may interfere with or prevent the activation
of the active head restraints. Contact an
authorized Mercedes-Benz Center for
availability.
Do not attach any objects (e.g. hangers) to
the head restraint posts. Otherwise, the ac-
tive head restraints may not be able to func-
tion properly or offer the intended degree of
protection in the event of an accident.

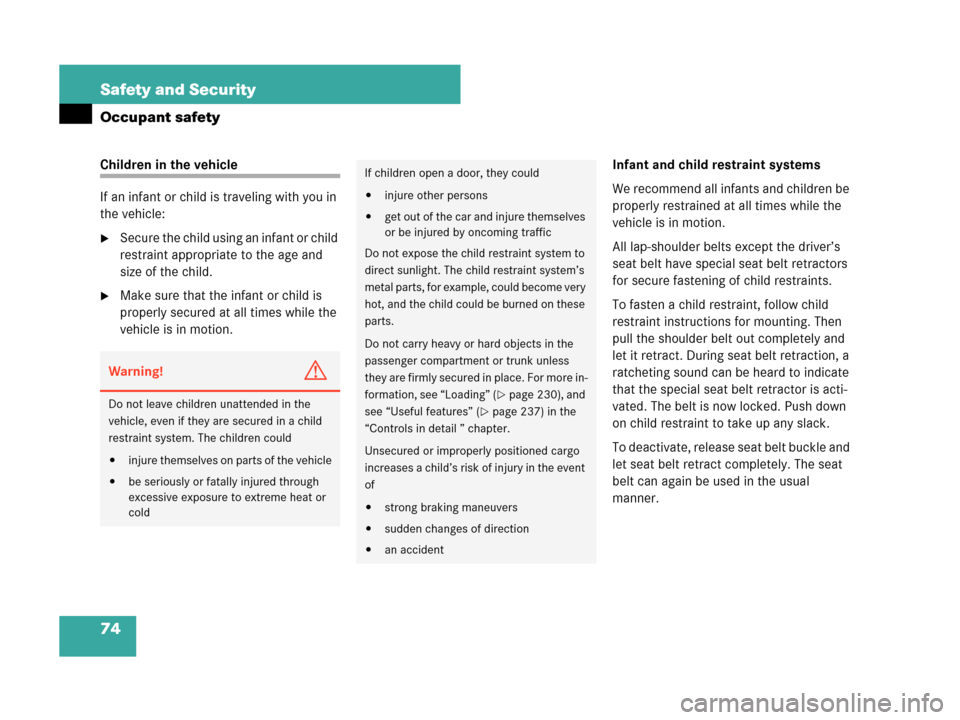

74 Safety and Security
Occupant safety
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate to the age and
size of the child.
Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.Infant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child
restraint instructions for mounting. Then
pull the shoulder belt out completely and
let it retract. During seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual
manner.
Warning!G
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system. The children could

injure themselves on parts of the vehicle

be seriously or fatally injured through
excessive exposure to extreme heat or
cold
If children open a door, they could

injure other persons

get out of the car and injure themselves
or be injured by oncoming traffic
Do not expose the child restraint system to
direct sunlight. The child restraint system’s
metal parts, for example, could become very
hot, and the child could be burned on these
parts.
Do not carry heavy or hard objects in the
passenger compartment or trunk unless
they are firmly secured in place. For more in-
formation, see “Loading” (
page 230), and
see “Useful features” (
page 237) in the
“Controls in detail ” chapter.
Unsecured or improperly positioned cargo
increases a child’s risk of injury in the event
of

strong braking maneuvers

sudden changes of direction

an accident

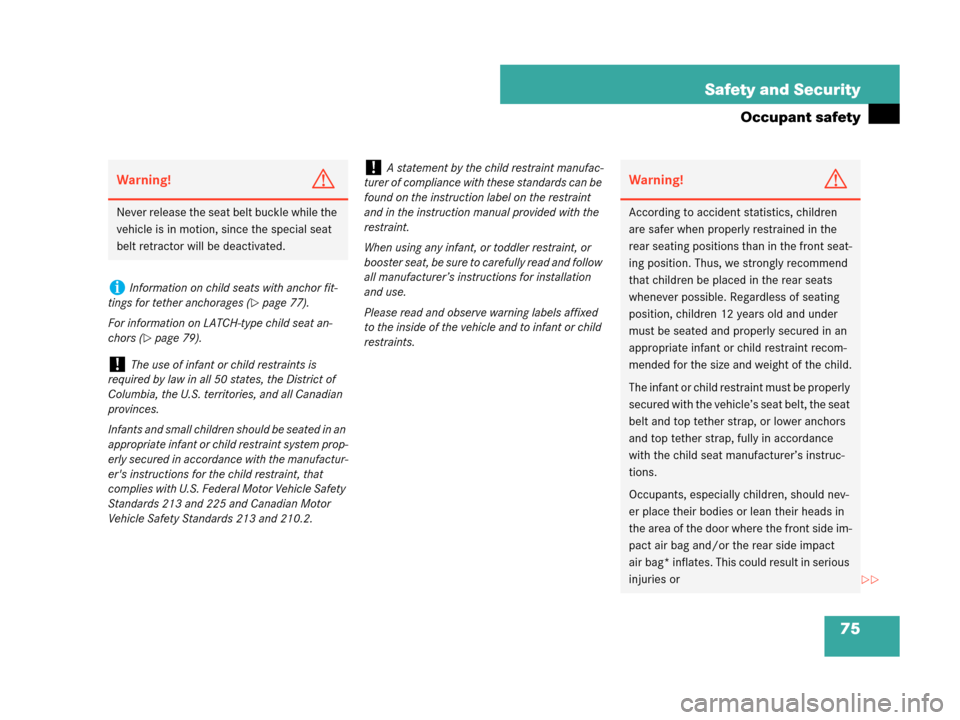

75 Safety and Security
Occupant safety
Warning!G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.
iInformation on child seats with anchor fit-
tings for tether anchorages (
page 77).
For information on LATCH-type child seat an-
chors (
page 79).
!The use of infant or child restraints is
required by law in all 50 states, the District of
Columbia, the U.S. territories, and all Canadian
provinces.
Infants and small children should be seated in an
appropriate infant or child restraint system prop-
erly secured in accordance with the manufactur-
er's instructions for the child restraint, that
complies with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian Motor
Vehicle Safety Standards 213 and 210.2.
!A statement by the child restraint manufac-
turer of compliance with these standards can be
found on the instruction label on the restraint
and in the instruction manual provided with the
restraint.
When using any infant, or toddler restraint, or
booster seat, be sure to carefully read and follow
all manufacturer’s instructions for installation
and use.
Please read and observe warning labels affixed
to the inside of the vehicle and to infant or child
restraints.Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Occupants, especially children, should nev-
er place their bodies or lean their heads in
the area of the door where the front side im-
pact air bag and/or the rear side impact
air bag* inflates. This could result in serious
injuries or


76 Safety and Security
Occupant safety

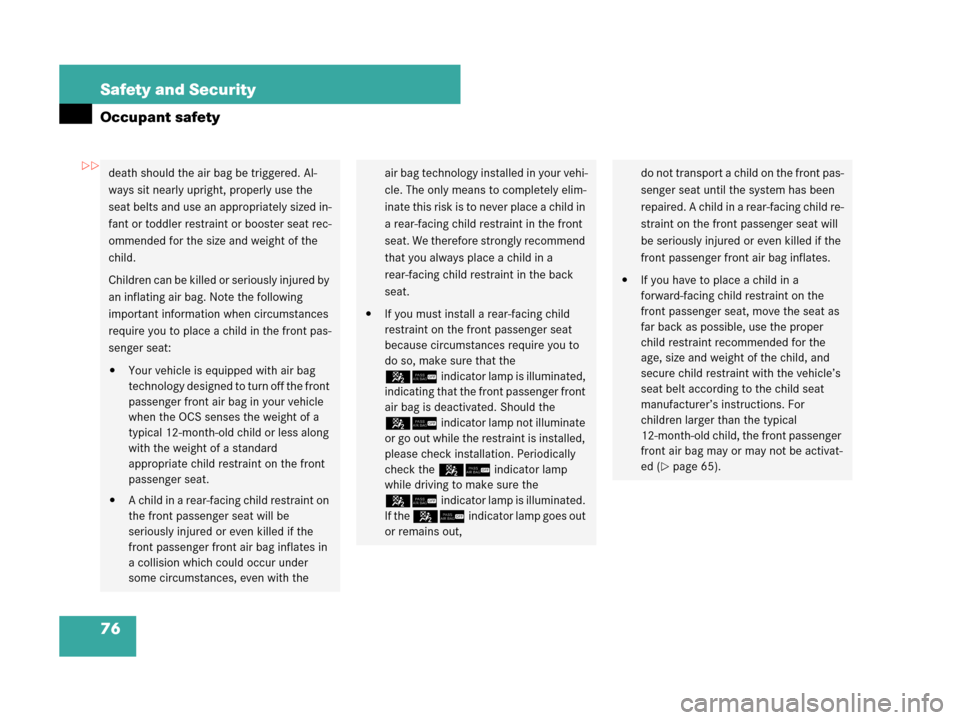

death should the air bag be triggered. Al-
ways sit nearly upright, properly use the
seat belts and use an appropriately sized in-
fant or toddler restraint or booster seat rec-
ommended for the size and weight of the
child.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when circumstances
require you to place a child in the front pas-
senger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the OCS senses the weight of a
typical 12-month-old child or less along
with the weight of a standard
appropriate child restraint on the front
passenger seat.

A child in a rear-facing child restraint on
the front passenger seat will be
seriously injured or even killed if the
front passenger front air bag inflates in
a collision which could occur under
some circumstances, even with the
air bag technology installed in your vehi-
cle. The only means to completely elim-
inate this risk is to never place a child in
a rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a
rear-facing child restraint in the back
seat.

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
56indicator lamp is illuminated,
indicating that the front passenger front
air bag is deactivated. Should the
56indicator lamp not illuminate
or go out while the restraint is installed,
please check installation. Periodically
check the 56indicator lamp
while driving to make sure the
56indicator lamp is illuminated.
If the 56indicator lamp goes out
or remains out,
do not transport a child on the front pas-
senger seat until the system has been
repaired. A child in a rear-facing child re-
straint on the front passenger seat will
be seriously injured or even killed if the
front passenger front air bag inflates.

If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and
secure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be activat-
ed (
page 65).


77 Safety and Security
Occupant safety

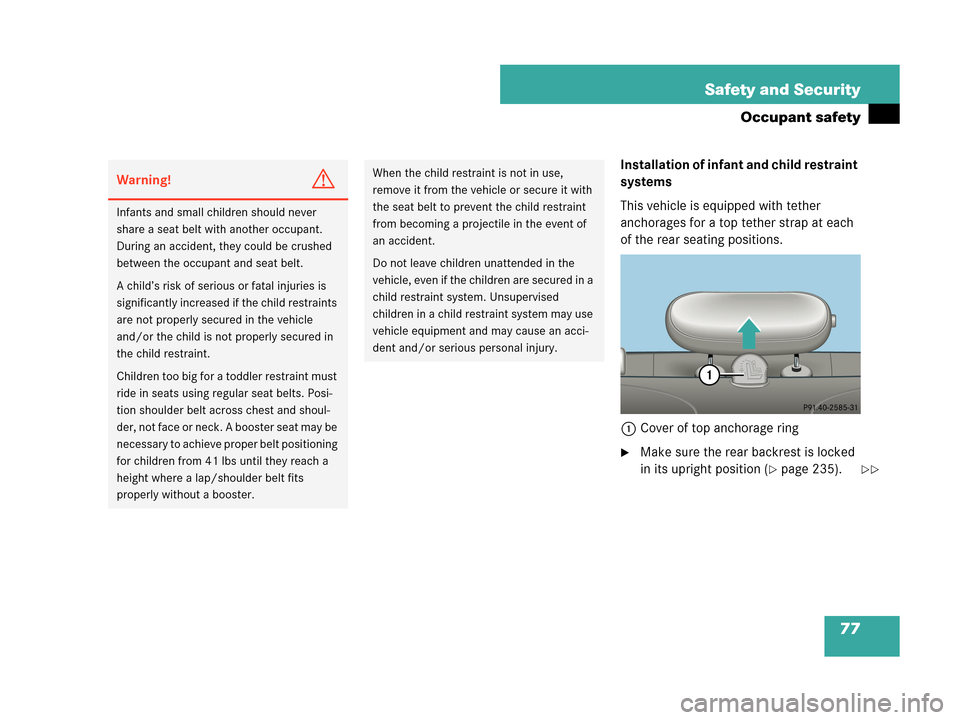

Installation of infant and child restraint
systems
This vehicle is equipped with tether
anchorages for a top tether strap at each
of the rear seating positions.
1Cover of top anchorage ring
Make sure the rear backrest is locked
in its upright position (
page 235).
Warning!G
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children from 41 lbs until they reach a
height where a lap/shoulder belt fits
properly without a booster.
When the child restraint is not in use,
remove it from the vehicle or secure it with
the seat belt to prevent the child restraint
from becoming a projectile in the event of
an accident.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system. Unsupervised
children in a child restraint system may use
vehicle equipment and may cause an acci-
dent and/or serious personal injury.


78 Safety and Security
Occupant safety

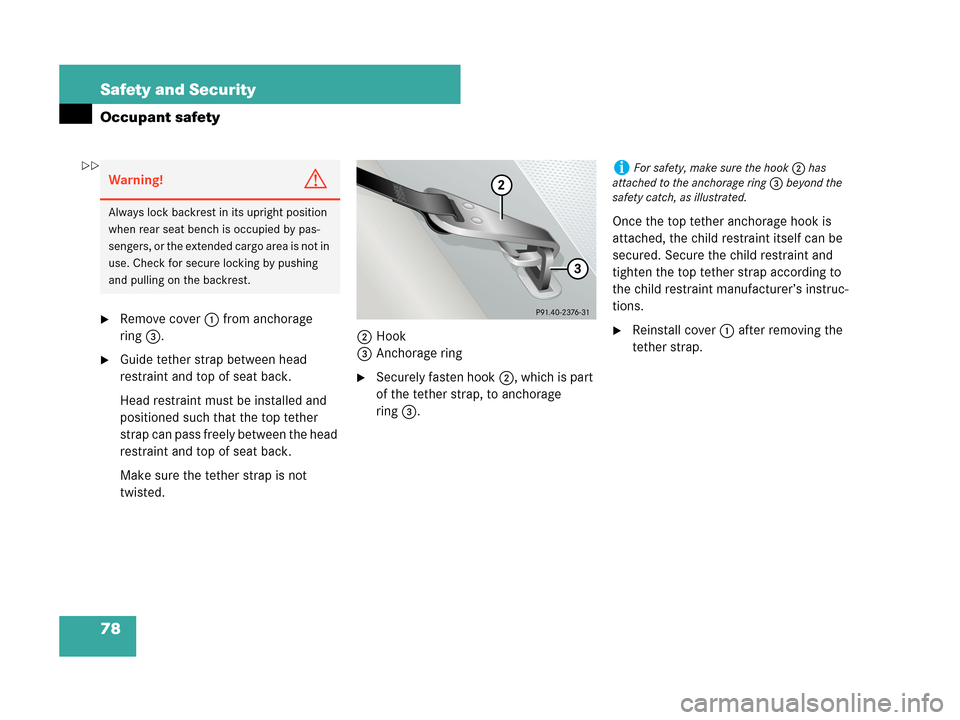

Remove cover1 from anchorage
ring3.
Guide tether strap between head
restraint and top of seat back.
Head restraint must be installed and
positioned such that the top tether
strap can pass freely between the head
restraint and top of seat back.
Make sure the tether strap is not
twisted.2Hook
3Anchorage ring
Securely fasten hook2, which is part
of the tether strap, to anchorage
ring3.Once the top tether anchorage hook is
attached, the child restraint itself can be
secured. Secure the child restraint and
tighten the top tether strap according to
the child restraint manufacturer’s instruc-
tions.
Reinstall cover1 after removing the
tether strap.
Warning!G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.
iFor safety, make sure the hook2 has
attached to the anchorage ring3 beyond the
safety catch, as illustrated.

79 Safety and Security
Occupant safety

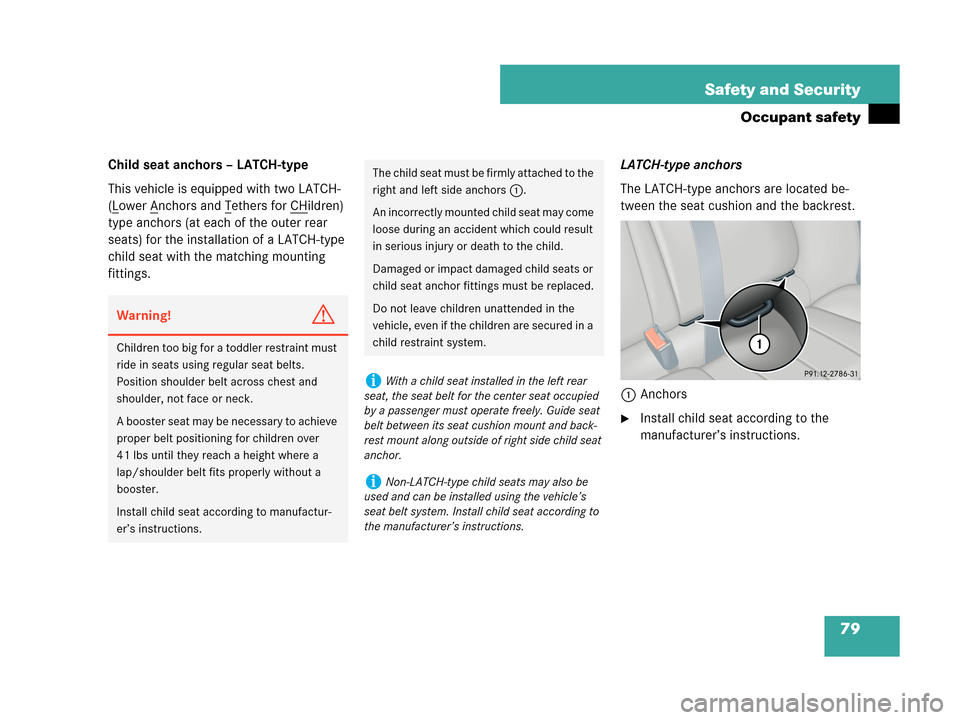

Child seat anchors – LATCH-type
This vehicle is equipped with two LATCH-
(L
ower Anchors and Tethers for CHildren)
type anchors (at each of the outer rear
seats) for the installation of a LATCH-type
child seat with the matching mounting
fittings.LATCH-type anchors
The LATCH-type anchors are located be-
tween the seat cushion and the backrest.
1Anchors
Install child seat according to the
manufacturer’s instructions.
Warning!G
Children too big for a toddler restraint must
ride in seats using regular seat belts.
Position shoulder belt across chest and
shoulder, not face or neck.
A booster seat may be necessary to achieve
proper belt positioning for children over
41 lbs until they reach a height where a
lap/shoulder belt fits properly without a
booster.
Install child seat according to manufactur-
er’s instructions.
The child seat must be firmly attached to the
right and left side anchors1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat anchor fittings must be replaced.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system.
iWith a child seat installed in the left rear
seat, the seat belt for the center seat occupied
by a passenger must operate freely. Guide seat
belt between its seat cushion mount and back-
rest mount along outside of right side child seat
anchor.
iNon-LATCH-type child seats may also be
used and can be installed using the vehicle’s
seat belt system. Install child seat according to
the manufacturer’s instructions.
