MERCEDES-BENZ C55AMG 2006 W203 Owner's Manual

150 Controls in detail
Control system
Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available:Fuel consumption statistics after start
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the message
After start appears
in the multifunction display.
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since start
FunctionPage
Fuel consumption statistics after
start150
Fuel consumption statistics
since last reset151
Distance to empty151
i
All statistics stored since the last
engine start will be reset approximately
4 hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2
within this time period.

151 Controls in detail
Control system
Fuel consumption since last reset
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the message
After reset appears
in the multifunction display.
1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last
resetResetting fuel consumption statistics
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the reading that you want to reset
appears in the multifunction display.
Press and hold the reset button in the
instrument cluster (
page 122) until
the value is reset to
0.Distance to empty
Switch on the ignition (page 33).
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the message
Distance appears in
the multifunction display.
The calculated range based on the
current fuel tank level appears in the
multifunction display.

152 Controls in detail
Control system
TEL menu*
You can use the functions in the
TEL menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.
Switch on the telephone and Audio or
COMAND*.
Press buttonÿ orè on the
steering wheel repeatedly until the
message
TEL appears in the
multifunction display.
Which messages will appear in the
multifunction display depends on whether
your telephone is switched on or off:

If the telephone is off, the message
PHONE OFF appears in the multifunction
display.

If the telephone is on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network, the message
READY appears in
the multifunction display.
This standby message indicates that your
telephone is ready for use and you can
operate it using the control system.
Warning!G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call. If you choose to use the
telephone while driving, please use the
hands-free device and only use the
telephone when weather, road and traffic
conditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a
vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system,
possibly resulting in an accident and
personal injury.

153 Controls in detail
Control system
Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will then see
the message:
Press buttons.
You have answered the call. The
duration of the call appears in the
multifunction display.Ending a call
Press buttont.
You have ended the call. The standby
message appears in the multifunction
display.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonÿ orè repeatedly
until the message
TEL appears in the
multifunction display.
Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take several minutes. The
message
Please wait appears in the
multifunction display.
When the message
Please wait
disappears, the phone book has been
loaded.
Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
The stored names are displayed in
ascending or descending alphabetical
order.
1Name from the phone book
i
If you do not wish to accept a call,
press buttont.


154 Controls in detail
Control system
Press buttons.
The system dials the selected phone
number.

If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the multifunction display.

If no connection is made, the
control system stores the dialed
number in the redial memory.Redialing
The control system stores the most
recently dialed phone numbers. This
eliminates the need to search through your
entire phone book.
Press buttonÿ orè repeatedly
until the message
TEL appears in the
multifunction display.
Press buttons.
The first number in the redial memory
appears in the multifunction display.
Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
Press buttons.
The control system dials the selected
phone number.
i
If you press and hold buttonj
ork for longer than 1 second, the
system scrolls rapidly through the list
of names until you release the button
again.
Cancel the quick search mode by
pressing buttont.


155 Controls in detail
Automatic transmission
Automatic transmission
For more information on driving with an
automatic transmission see “Automatic
transmission” (
page 45).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its shift program.
Gearshift pattern for automatic
transmission
The automatic transmission selects indi-
vidual gears automatically, depending on:

the gear selector lever
positionD(
page 157) with
gear ranges4,3,2,1 (
page 160)

the selected program mode (M/C/S)
(
page 161) and (page 165)

the position of the accelerator pedal
(
page 158)

the vehicle speed
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
i
During the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.

156 Controls in detail
Automatic transmission
1Current gear range/gear selector lever
position
2Current program mode
The current gear range/gear selector lever
position and program mode (
M/C/S)
appear in the multifunction display.An additional indication of the current gear
selector lever position can be found on the
cover of the shifting-gate.
The indicators come on when you activate
a switch (e.g. unlocking the vehicle or
opening a door) and go out after approxi-
mately 15 minutes.
When the gear selector lever is in
positionD, you can influence transmission
shifting by:

limiting the gear range

changing gears manually
Warning!G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
!
Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or parking
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.

157 Controls in detail
Automatic transmission

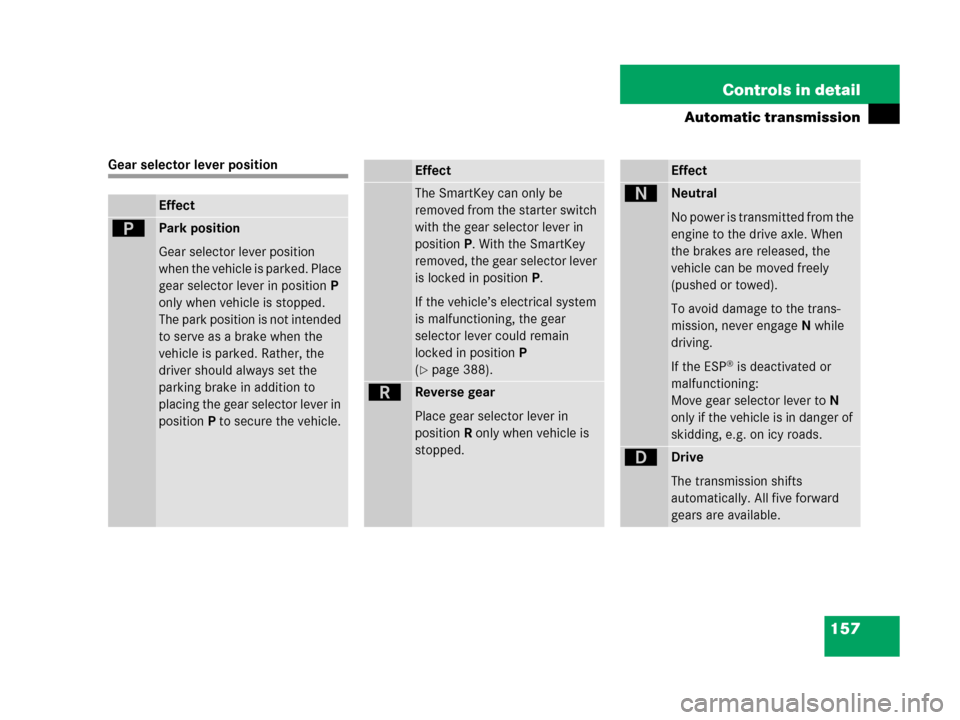

Gear selector lever position
Effect
ìPark position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in positionP
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
positionP to secure the vehicle.
Effect
The SmartKey can only be
removed from the starter switch
with the gear selector lever in
positionP. With the SmartKey
removed, the gear selector lever
is locked in positionP.
If the vehicle’s electrical system
is malfunctioning, the gear
selector lever could remain
locked in positionP
(
page 388).
íReverse gear
Place gear selector lever in
positionR only when vehicle is
stopped.
Effect
ëNeutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never engageN while
driving.
If the ESP
® is deactivated or
malfunctioning:
Move gear selector lever toN
only if the vehicle is in danger of
skidding, e.g. on icy roads.
êDrive
The transmission shifts
automatically. All five forward
gears are available.

158 Controls in detail
Automatic transmission
Driving tips
Accelerator position
Your driving style influences the
transmission’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.
Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.
!
Coasting the vehicle, or driving for any
other reason with gear selector lever
inN can result in transmission damage
that is not covered by the
Mercedes-Benz Limited Warranty.
Warning!G
Getting out of your vehicle with the gear
selector lever not fully engaged in positionP
is dangerous. Also, positionP alone is not
intended to or capable of preventing your
vehicle from moving, possibly hitting people
or objects.
Always set the parking brake in addition to
shifting to positionP (
page 54).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where
combustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could move the gear selector lever from
positionP, which could result in an accident
and/or serious personal injury.

159 Controls in detail
Automatic transmission
Stopping
When you stop briefly, e.g. at traffic lights:
Leave the transmission in gear.
Hold the vehicle with the brake.
When you stop longer with the engine
idling and/or on an hill:
Set the parking brake.
Move the gear selector lever to
positionP.Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:
Control the vehicle speed by gradually
releasing the brakes.
Accelerate gently.
Never abruptly step on the accelerator.Working on the vehicle
Warning!G
When working on the vehicle, set the
parking brake and move gear selector lever
to positionP. Otherwise the vehicle could
roll away.
