21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Page 23 of 473

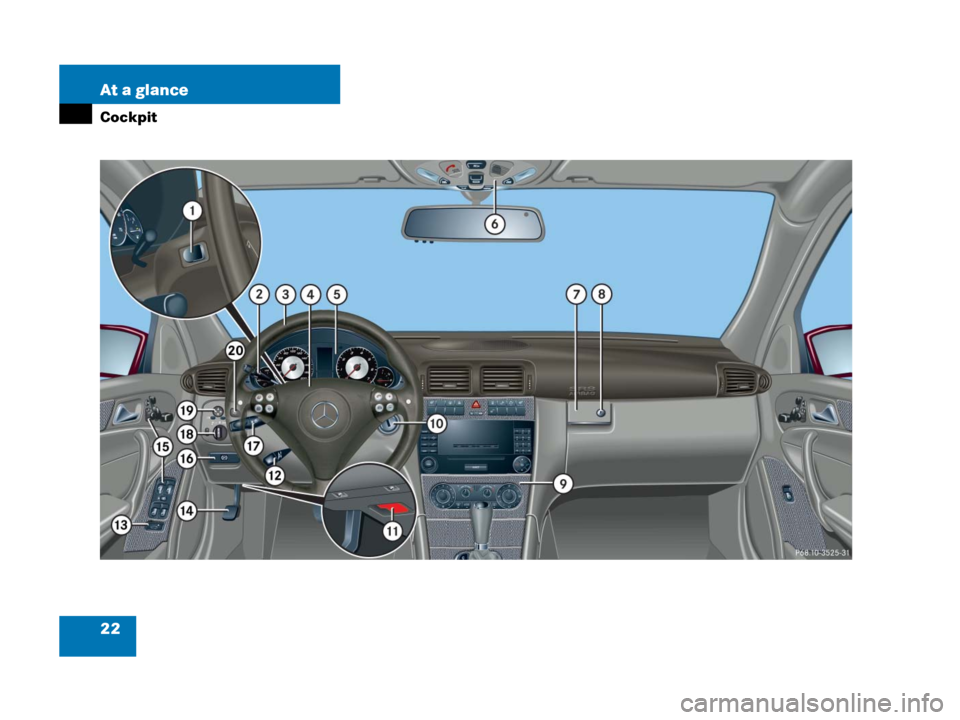

22 At a glance
Cockpit
Page 24 of 473
23 At a glance

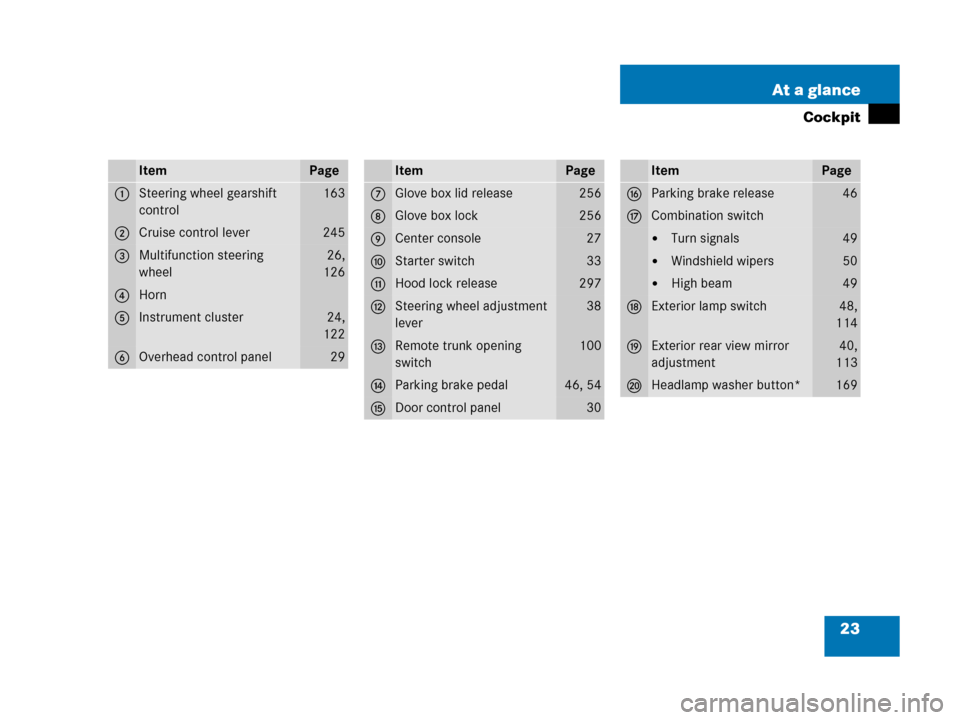

Cockpit
ItemPage
1Steering wheel gearshift
control163
2Cruise control lever245
3Multifunction steering
wheel26,
126
4Horn
5Instrument cluster24,
122
6Overhead control panel29
ItemPage
7Glove box lid release256
8Glove box lock256
9Center console27
aStarter switch33
bHood lock release297
cSteering wheel adjustment
lever38
dRemote trunk opening
switch100
eParking brake pedal46, 54
fDoor control panel30
ItemPage
gParking brake release46
hCombination switch
Turn signals49
Windshield wipers50
High beam49
jExterior lamp switch48,
114
kExterior rear view mirror
adjustment40,
113
lHeadlamp washer button*169
Page 25 of 473
24 At a glance

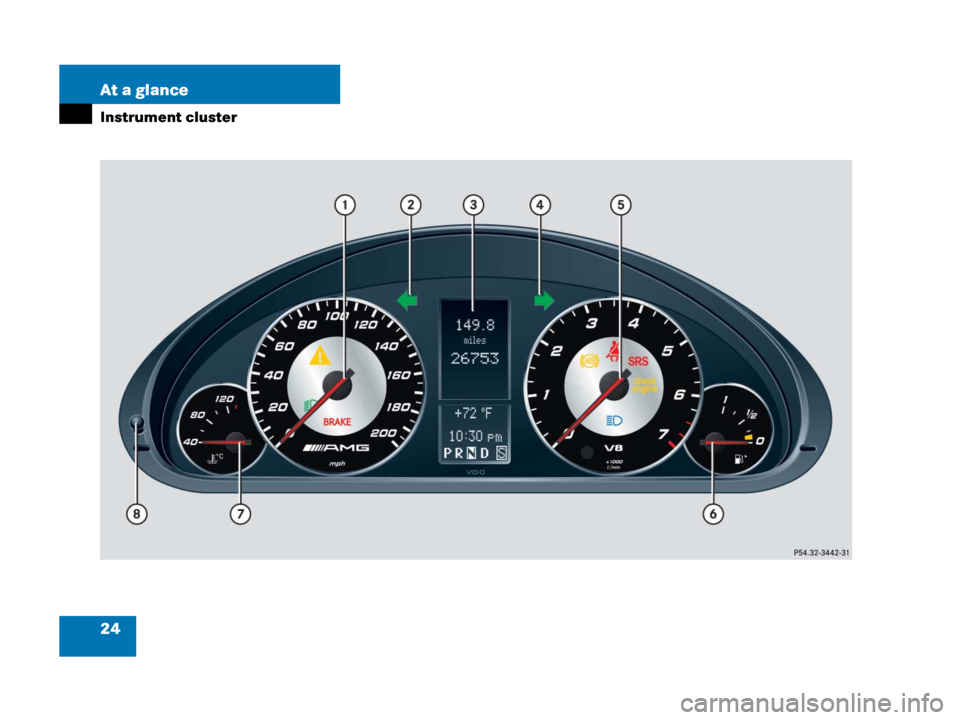

Instrument cluster
Page 26 of 473
25 At a glance

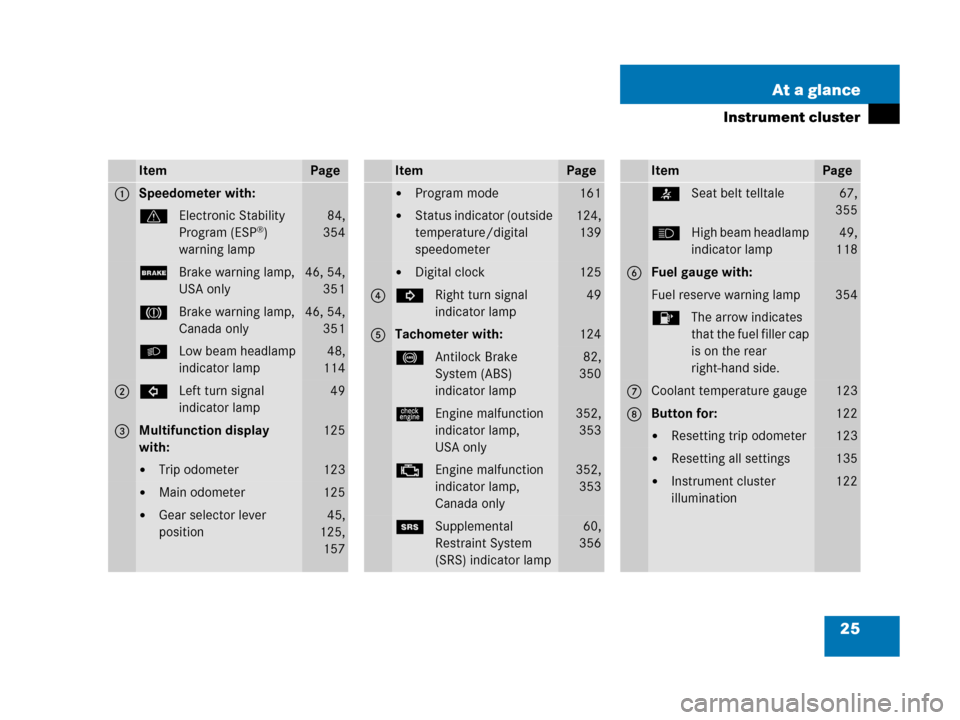

Instrument cluster
ItemPage
1Speedometer with:
vElectronic Stability
Program (ESP®)
warning lamp
84,
354
;Brake warning lamp,
USA only46, 54,
351
3Brake warning lamp,
Canada only46, 54,
351
BLow beam headlamp
indicator lamp48,
114
2LLeft turn signal
indicator lamp49
3Multifunction display
with:125
Trip odometer123
Main odometer125
Gear selector lever
position45,
125,
157
ItemPage
Program mode161
Status indicator (outside
temperature/digital
speedometer124,
139
Digital clock125
4KRight turn signal
indicator lamp49
5Tachometer with:124
-Antilock Brake
System (ABS)
indicator lamp82,
350
úEngine malfunction
indicator lamp,
USA only352,
353
±Engine malfunction
indicator lamp,
Canada only352,
353
1Supplemental
Restraint System
(SRS) indicator lamp60,
356
ItemPage
AHigh beam headlamp
indicator lamp49,
118
6Fuel gauge with:
Fuel reserve warning lamp354
4The arrow indicates
that the fuel filler cap
is on the rear
right-hand side.
7Coolant temperature gauge123
8Button for:122
Resetting trip odometer123
Resetting all settings135
Instrument cluster
illumination122
Page 27 of 473
26 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display125
Operating control system126
2Telephone*:
Press button
sto take a call
to dial a call
tto end a call
to reject an incoming
call
3Selecting the submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display
Page 28 of 473
27 At a glance

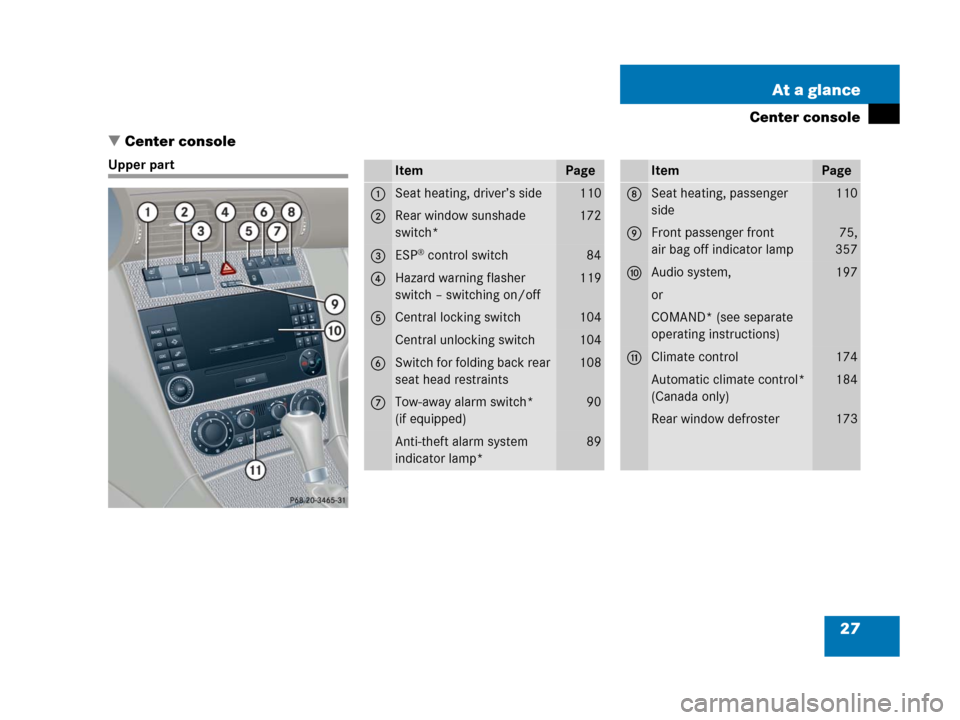

Center console
Center console
Upper partItemPage
1Seat heating, driver’s side110
2Rear window sunshade
switch*172
3ESP® control switch84
4Hazard warning flasher
switch – switching on/off119
5Central locking switch104
Central unlocking switch104
6Switch for folding back rear
seat head restraints108
7Tow-away alarm switch*
(if equipped)90
Anti-theft alarm system
indicator lamp*89
ItemPage
8Seat heating, passenger
side110
9Front passenger front
air bag off indicator lamp75,
357
aAudio system,197
or
COMAND* (see separate
operating instructions)
bClimate control174
Automatic climate control*
(Canada only)184
Rear window defroster173
Page 29 of 473
28 At a glance
Center console

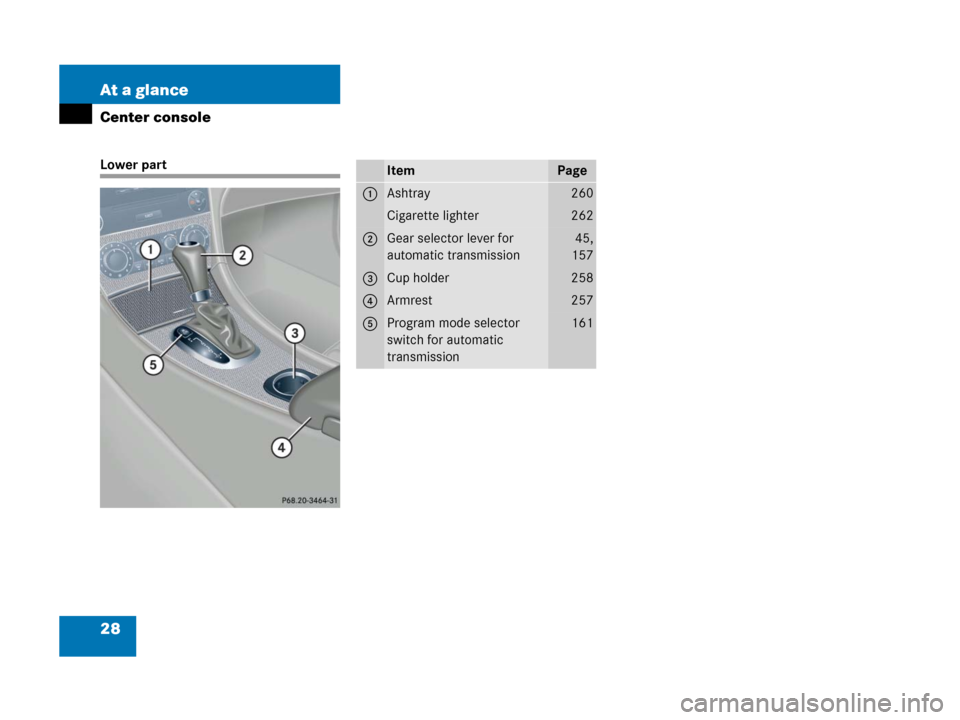

Lower partItemPage
1Ashtray260
Cigarette lighter262
2Gear selector lever for
automatic transmission45,
157
3Cup holder258
4Armrest257
5Program mode selector
switch for automatic
transmission161
Page 30 of 473
29 At a glance

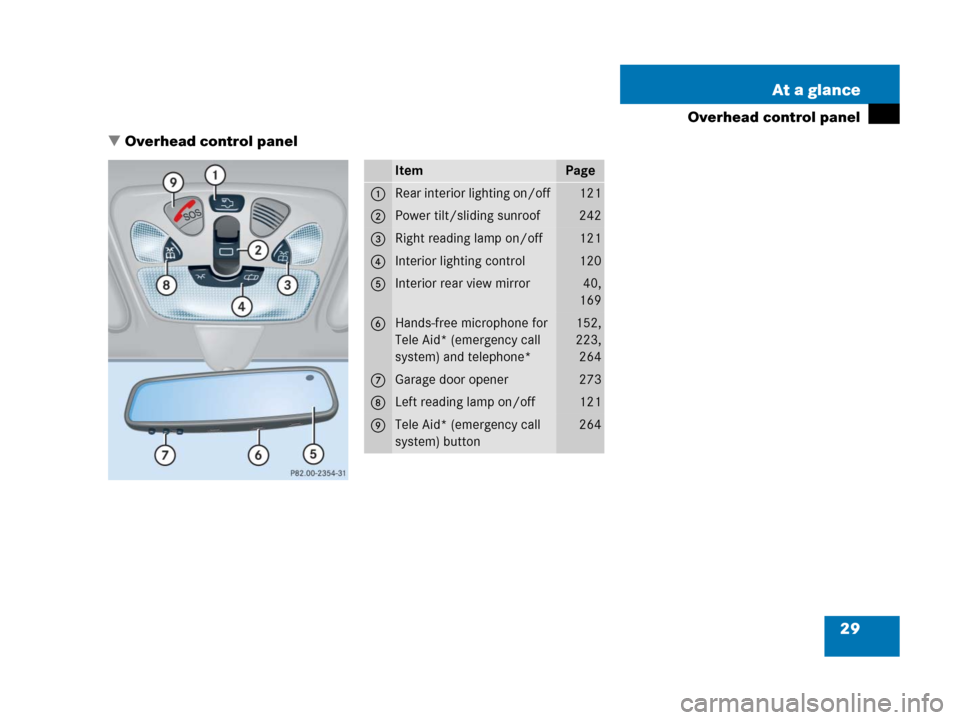

Overhead control panel
Overhead control panel
ItemPage
1Rear interior lighting on/off 121
2Power tilt/sliding sunroof242
3Right reading lamp on/off121
4Interior lighting control120
5Interior rear view mirror40,
169
6Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*152,
223,
264
7Garage door opener273
8Left reading lamp on/off121
9Tele Aid* (emergency call
system) button264
