MERCEDES-BENZ C55AMG 2006 W203 Owner's Guide
Manufacturer: MERCEDES-BENZ, Model Year: 2006, Model line: C55AMG, Model: MERCEDES-BENZ C55AMG 2006 W203Pages: 473, PDF Size: 10.86 MB
Page 31 of 473
30 At a glance

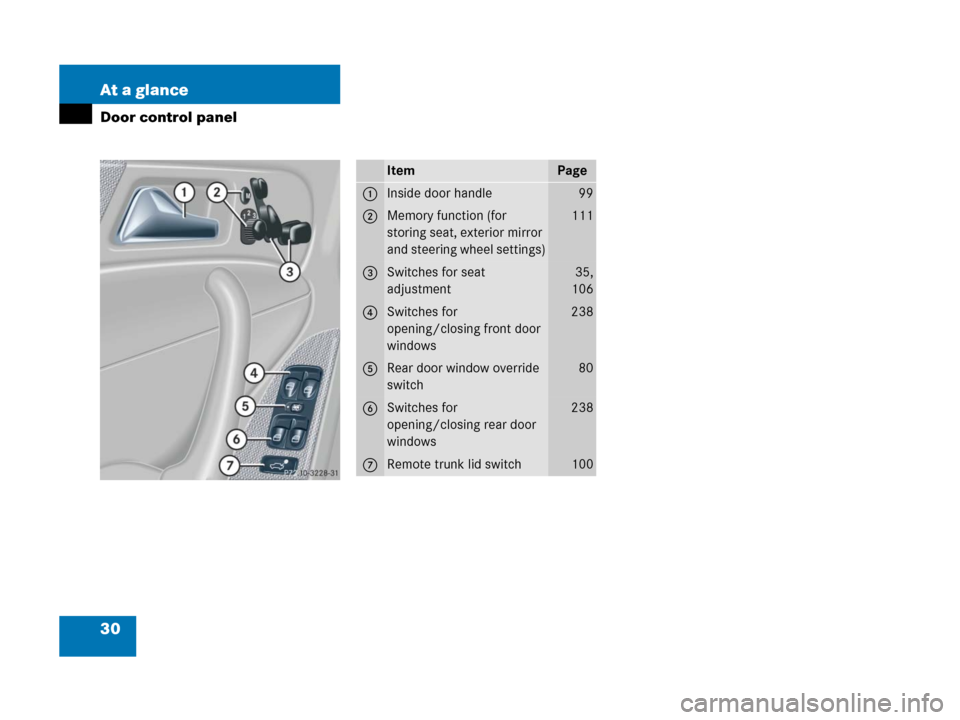

Door control panel
ItemPage
1Inside door handle99
2Memory function (for
storing seat, exterior mirror
and steering wheel settings)111
3Switches for seat
adjustment35,
106
4Switches for
opening/closing front door
windows238
5Rear door window override
switch80
6Switches for
opening/closing rear door
windows238
7Remote trunk lid switch100
Page 32 of 473
31 Getting started
Unlocking
Adjusting
Driving
Parking and locking
Page 33 of 473
32 Getting started
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section (
page 94) will provide you
with further information. The correspond-
ing page references are located at the end
of each segment.
Unlocking
Unlocking with the SmartKey
SmartKey with remote control
1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic button* (
page 81)
Press unlock buttonŒ on the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system* is dis-
armed.
Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 94).
i
Canada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button4.
Page 34 of 473
33 Getting started
Unlocking

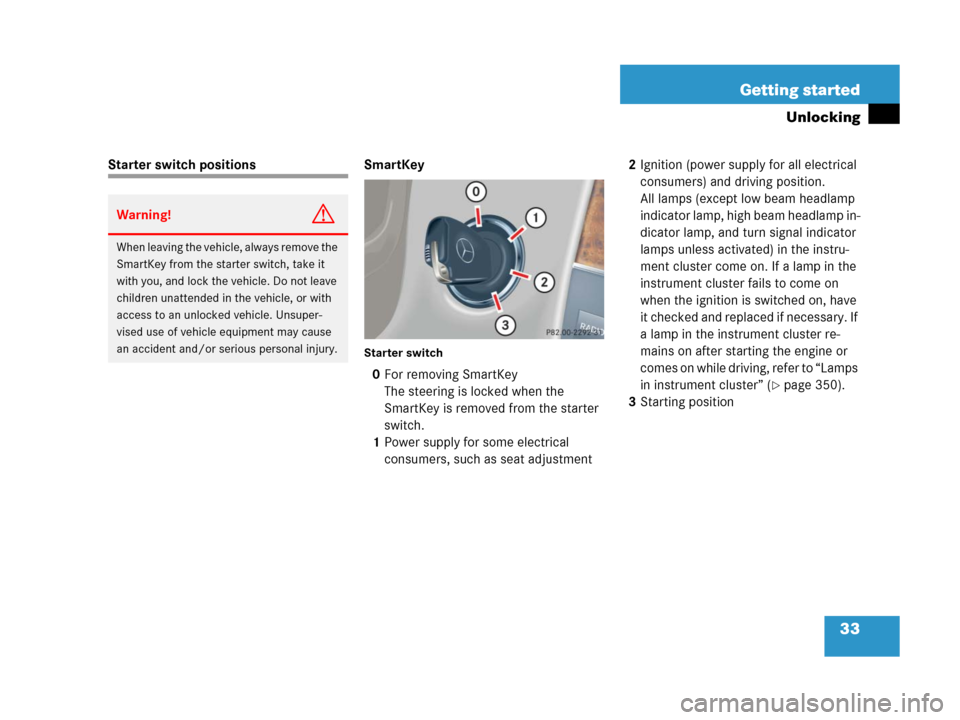

Starter switch positions SmartKey
Starter switch
0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch.
1Power supply for some electrical
consumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except low beam headlamp
indicator lamp, high beam headlamp in-
dicator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (page 350).
3Starting position
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Page 35 of 473
34 Getting started
Unlocking
i
When you switch on ignition, the
indicator and warning lamps (except
low beam headlamp indicator lamp,
high beam headlamp indicator lamp,
and turn signal indicator lamps unless
activated) in the instrument cluster
come on. The indicator and warning
lamps (except low beam headlamp in-
dicator lamp, high beam headlamp indi-
cator lamp, and turn signal indicator
lamps if activated) will go out when the
engine is running. This indicates that
the respective systems are operational.
i
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!
If the SmartKey cannot be turned in the
starter switch, the battery may not be
sufficiently charged.
Check the battery and charge it if
necessary (
page 411).
Get a jump start (page 415).
To prevent accelerated vehicle battery
discharge or a completely discharged
battery, always remove the SmartKey
from the starter switch when the en-
gine is not in operation.
Page 36 of 473
35 Getting started
Adjusting
Adjusting
Seats
The seats can be adjusted electrically.
For more information, see “Seats”
(
page 106).
Warning!G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 42).
Never place hands under the seat or near
any moving parts while a seat is being
adjusted.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the power seats* can be
operated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Page 37 of 473
36 Getting started
Adjusting

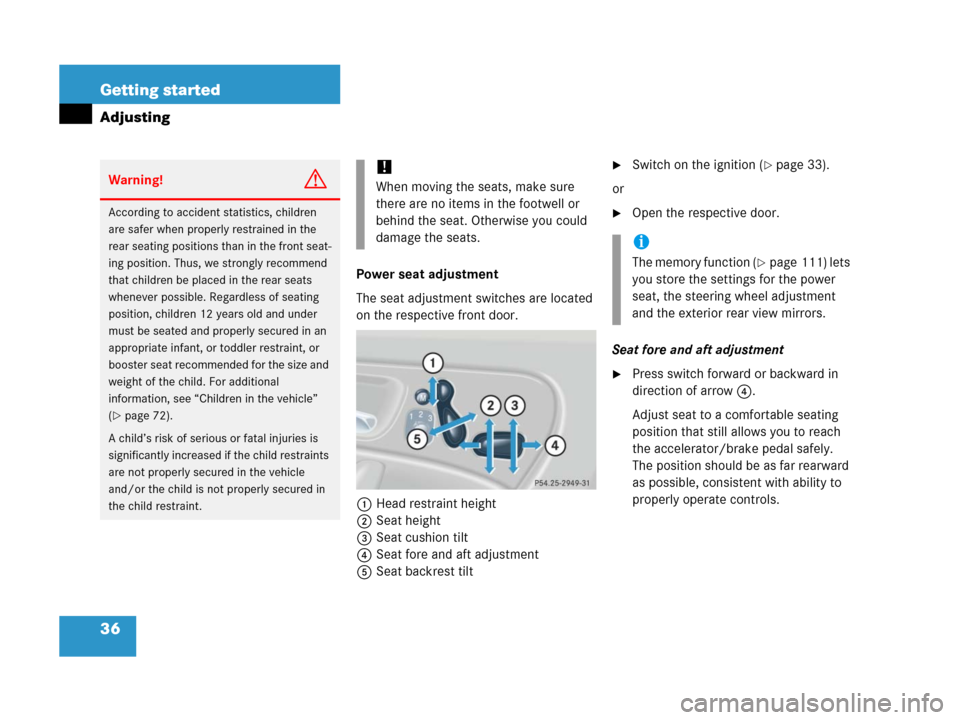

Power seat adjustment
The seat adjustment switches are located
on the respective front door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Seat backrest tilt
Switch on the ignition (page 33).
or
Open the respective door.
Seat fore and aft adjustment
Press switch forward or backward in
direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far rearward
as possible, consistent with ability to
properly operate controls.
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(
page 72).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
!
When moving the seats, make sure
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seats.
i
The memory function (page 111) lets
you store the settings for the power
seat, the steering wheel adjustment
and the exterior rear view mirrors.
Page 38 of 473
37 Getting started
Adjusting
Seat cushion tilt
Press switch up or down in direction of
arrow3 until your upper legs are
lightly supported.
Seat backrest tilt
Press switch forward or backward in
direction of arrow5 until your arms
are slightly angled when holding the
steering wheel.
Seat height
Press switch up or down in direction of
arrow2.
Head restraint height
Press switch up or down in direction of

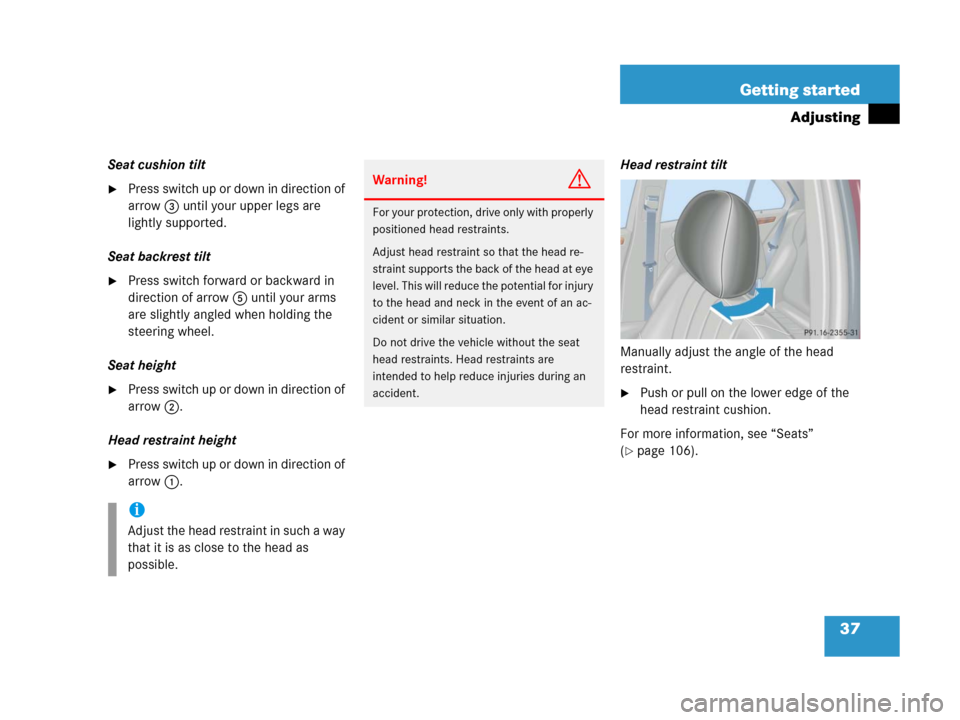

arrow1.Head restraint tilt
Manually adjust the angle of the head
restraint.
Push or pull on the lower edge of the
head restraint cushion.
For more information, see “Seats”
(
page 106).
i
Adjust the head restraint in such a way
that it is as close to the head as
possible.
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are
intended to help reduce injuries during an
accident.
Page 39 of 473
38 Getting started
Adjusting

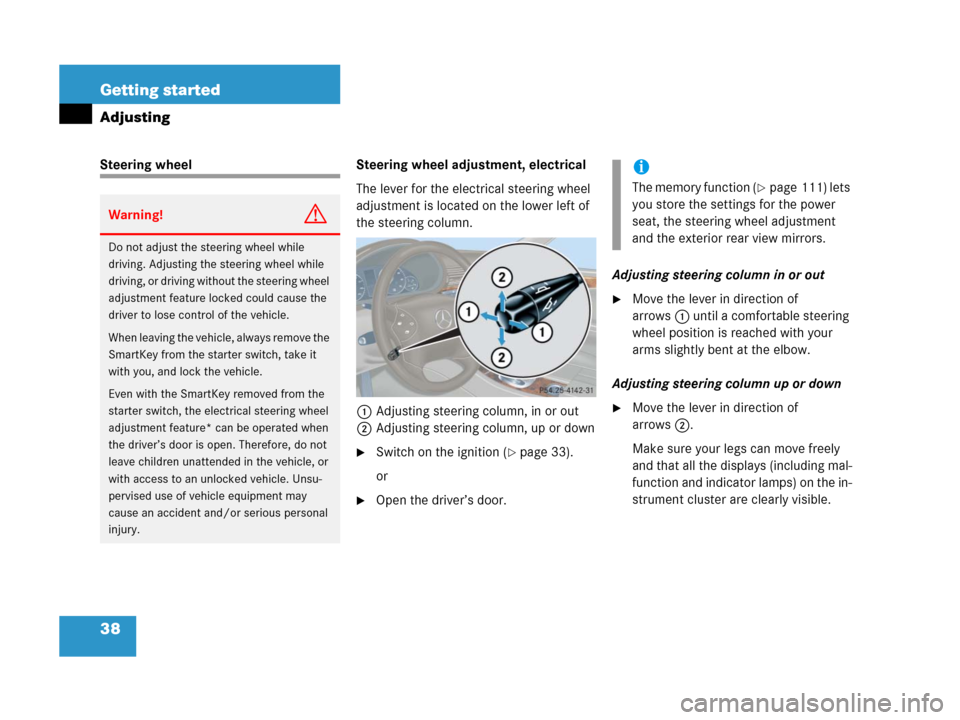

Steering wheel Steering wheel adjustment, electrical
The lever for the electrical steering wheel
adjustment is located on the lower left of
the steering column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (page 33).
or
Open the driver’s door.Adjusting steering column in or out
Move the lever in direction of
arrows1 until a comfortable steering
wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down
Move the lever in direction of
arrows2.
Make sure your legs can move freely
and that all the displays (including mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
Warning!G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving, or driving without the steering wheel
adjustment feature locked could cause the
driver to lose control of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
i
The memory function (page 111) lets
you store the settings for the power
seat, the steering wheel adjustment
and the exterior rear view mirrors.
Page 40 of 473
39 Getting started
Adjusting
Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be activat-
ed or deactivated in the
Convenience sub-
menu of the control system (
page 148).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:
close the driver’s door with the ignition
switched on,
or
insert the SmartKey into the starter
switch with the driver’s door closed. With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you:
remove the SmartKey from the starter
switch,
or
open the driver’s door with the
SmartKey in starter switch position0
or1.
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To cancel steering wheel movement, do one
of the following:
Move steering column stalk
(
page 38).
Press memory position switch
(
page 112).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
i
The last set steering wheel position is
stored when
the ignition is switched off
the position is stored in memory
(
page 112)
i
If the current position for the steering
wheel is in the uppermost tilt position,
the steering wheel will no longer be
able to move upward when the
easy-entry/exit feature is activated.
The adjustment procedure is briefly in-
terrupted when the engine is started.
