Basic setting – automatic mode
There are three basic settings for the automatic mode:
•Automatic air volume control
•Automatic air outlet control, left and right
•Automatic air outlet control, center, see page 165
We recommend these settings to be used all year round.Air volume and distribution are controlled
automatically.
Set the temperature switches on the left and right to
72°F (22°C). This provides for comfortable conditions in
the vehicle.
Automatic airf low regulation:
Press the A on the air volume switch. The display
shows “AUTO”.
Automatic air distribution:
Press on both Uknobs until they click in. Theh,
jand ksymbols will no longer be visible.
The economy mode and air recirculation functions will
be switched off. The automatic blower will be activated
at the same time.
ProCarManuals.com

169 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Special settings
(use only for short duration)
Air distribution, manual:
Press Ubutton. The button pops out, theh, j
andk symbols are visible. Turn the button to select
the air distribution desired.
hAir from the center, side and door air outlets.
jAir from the center, side, door and windshield air
outlets.
kAir from the center, side, door and footwell air
outlets.
To return to automatic mode:
Press the Ubutton until it clicks in. Theh, j
and ksymbols will no longer be visible.Air volume, manual
Press the air volume switch up or down. Seven blower
speeds can be selected.

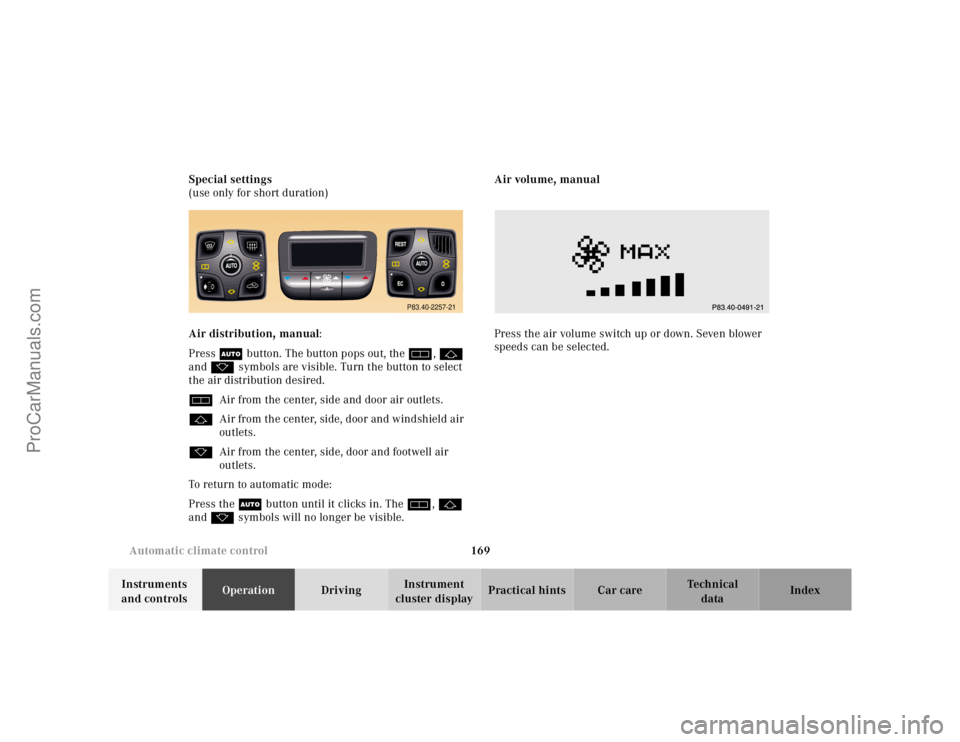

P83.40-2257-21
ProCarManuals.com

170 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Defrosting
Press the Pbutton. The display showsP.
The fan is set to a higher speed and the warm air is
directed to the defroster and windshield air outlets.
Pressing the switch again returns the system to the
previous setting.Windows fogged on the inside
Switch off the economy mode, if selected: Press
buttonS. The indicator lamp in the button will go
out.
Switch off air recirculation, if selected: Press
buttonO. The indicator lamp in the button will go
out.
Adjust left and right air outlets upwards.
Set blower to the maximum blower speed.
Increase temperature setting.
Open the side air outlets and direct them onto the side
windows.
P83.40-2009-21
ProCarManuals.com

171 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Windshield fogged on the outside
Switch on the windshield wiper.
Press on both U buttons until they click in.
Theh, jand ksymbols will no longer be
visible.
Air recirculation
Select air recirculation:
The indicator lamp in the Obutton is off.
Press buttonO briefly. The indicator lamp in the
button illuminates.
To switch off the air recirculation:
The indicator lamp in the Obutton is on.
Press buttonO briefly. The indicator lamp in the
button will go out. The system automatically switches from air
recirculation to fresh air:
•after 30 minutes if the outside temperature is above
about 40°F(5°C),
•after 5 minutes if the outside temperature is below
about 40°F(5°C),
•after 5 minutes if economy modeS is selected.
The system switches automatically to air recirculation at
high outside temperatures. A quantity of outside air is
added after about 30 minutes.
Important!
If the windows should fog up from the inside, switch
from recirculated air back to fresh air.
ProCarManuals.com

172 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Activated charcoal filter
An activated charcoal filter markedly reduces bad odors
and removes pollutants from air entering the passenger
compartment.
To select, press ebutton. The indicator lamp in the
button illuminates.
To cancel, press ebutton. The indicator lamp in the
button goes out.The system switches automatically to the air
recirculation mode, if the carbon monoxide (CO) or
nitrogen oxides (NO
X) concentration of the outside air
increases beyond a predetermined level.
The automatic air recirculation mode does not function
if economy modeS is selected or if the outside
temperature has fallen below 40°F(5°C).
The activated charcoal filter should be switched off
when windows fog up on the inside, or if the passenger
compartment needs to be quickly heated or cooled
down.
ProCarManuals.com

173 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Economy mode
The function of this setting corresponds to the
automatic mode. However, because the air conditioning
compressor will not engage (fuel savings), it is not
possible to air condition in this setting.Press Sbutton to activate. The indicator lamp in the
button illuminates.
Press Sbutton once again to return to the previous
setting.
Important!
In the Smode the windows could fog up on the
inside. Switch off Smode.
ProCarManuals.com

174 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Residual engine heat utilization
With the engine switched off, it is possible to continue
to heat or ventilate the interior for a short while. Air
volume and distribution are controlled automatically.
To s elec t:
Turn the electronic key in starter switch to position 1
or 0 or remove it altogether.
Press buttonT. The display shows “REST”.
This function selection will not activate if the battery
level is insufficient. The function switches off automatically:
•if the electronic key in starter switch is turned to
position 2,
•after approximately 30 minutes,
•if the battery voltage drops.
Note:
The battery symbol# will appear in the automatic
climate control display some time before the residual
engine heat utilization is switched off if the battery
voltage drops.
ProCarManuals.com

175 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Switching the automatic climate control on and off
To s wi tch o f f:
Press button0. The display shows “0”.
The fresh air supply to the vehicle interior is shut off.
While driving, use this setting only temporarily,
otherwise the windshield could fog up.
To s wi tch o n :
Press button0 orP or at least one of the U
buttons so that it pops out and then click it back in. Front center console storage compartment
ventilation
The front center console compartment has its own air
outlet.
To open: Slide the lever up.
To close: Slide the lever down.
The air volume is dependent on the setting of:
•air distribution control,
•air volume control,
•air outlets in the dashboard.
The air temperature is about the same as that of the
dashboard air outlets. It cannot be regulated separately.
Notes:
The compartment can get very warm due to its confined
space. When storing heat sensitive objects in the
compartment, close the air outlet while heating the
passenger compartment.
Do not allow articles to obstruct the air outlet in the
storage compartment.
ProCarManuals.com

176 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Rear window defroster
Turn the electronic key in starter switch to position 2.
To s elec t:
Press the Fbutton in the control panel of the
automatic air conditioner. The indicator lamp in the
button illuminates.
To ca nc el:
Press the Fbutton in the control panel of the
automatic air conditioner. The indicator lamp in the
button goes out.
Notes:
Heavy accumulation of snow and ice should be removed
before activating the defroster. The rear window defroster uses a large amount of power.
To keep the battery drain to a minimum, turn off the
defroster as soon as the rear window is clear.
The defroster is automatically turned off after
approximately 6–17 minutes of operation depending on
the outside temperature and vehicle speed.
If several power consumers are turned on
simultaneously, or the battery is only partially charged,
it is possible that the defroster will automatically turn
itself off. When this happens, the indicator lamp inside
the switch starts blinking.
As soon as the battery has sufficient voltage, the
defroster automatically turns itself back on.
ProCarManuals.com

177 Automatic climate control
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Rear passenger compartment adjustable air outlets 1Center air outlet, left
2Center air outlet, right
3Air volume control for center air outlets
To open: Turn the wheel to the left.
P83.00-2014-26
1
2
3
