navigation system MERCEDES-BENZ CL-Class 2001 C215 Comand Manual

180
Introduction Audio Telephone
Navigation
Index Info Services and
system settings
Route guidance
Displaying the current destination
Use the rotary/pushbutton
to highlight the menu
field “Current destination” in the menu (page 176) and
press it to confirm.Press
to return to symbol display or the map.
P82.85-6109-26

181
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Route guidanceRequesting the route mode
Turn the rotary/pushbutton
to menu field “Options”
(page 176) and press to confirm.17Indicates settings for the route calculation mode
selected for the current route
Selecting the route calculation mode, page 171
Selecting a detour during route guidance, page 196
Marking a way point, page 193
Press
to return to the symbol display or the map.
The screen will return to this display automatically
after 15 seconds.
P82.85-6110-26
17

182
Introduction Audio Telephone
Navigation
Index Info Services and
system settings
Route guidance
Activating the route map
Turn the rotary/pushbutton
to menu field “Route
map” (page 176) and press to confirm.
The route map shows the general view for the whole
route.18Current vehicle position
19Route displayed as a blue line
20Destination
The map scale selected depends on the route. The route
map faces north.
Press
to return to the symbol display or the map.
P82.85-6111-26
18
19
20

183
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Route guidanceDisplaying a stop-over
Use the rotary/pushbutton
to highlight the menu
field “Stop” in the menu (page 176) and press it to
confirm.21Stop-over
Place, type of stop-over and name
Note:
A stop-over will be displayed if this was previously
selected.
P82.85-6122-26
21

184
Introduction Audio Telephone
Navigation
Index Info Services and
system settings
Route guidance
Voice output during route guidance
During the trip, along with the visual information –
symbol or map displays – COMAND also provides all of
the necessary spoken route information via voice
output.
Warning!
Voice output is intended to direct you while driving
without diverting your attention from the road and
driving. Please always use this feature instead of
consulting the screen symbols or map for
directions while driving which may cause you to
divert your attention from driving which can
increase your risk of accident.
Spoken recommendations are given:
• when route guidance begins,
• after the route has been calculated,
• before and during a change in the driving direction,
• when the destination or a way point has been
reached.
If an audio source is switched on, e.g. the radio, the

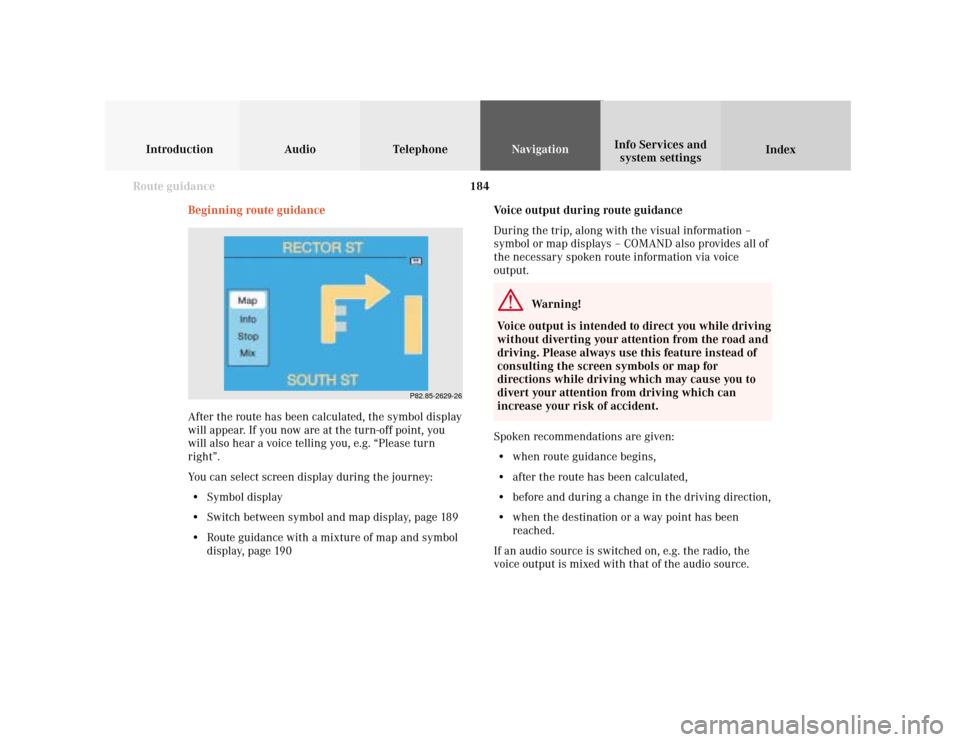

voice output is mixed with that of the audio source. Beginning route guidance
After the route has been calculated, the symbol display
will appear. If you now are at the turn-off point, you
will also hear a voice telling you, e.g. “Please turn
right”.
You can select screen display during the journey:
• Symbol display
• Switch between symbol and map display, page 189
• Route guidance with a mixture of map and symbol
display, page 190
P82.85-2629-26

185
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Route guidanceThe audio volume differential between Voice output/
Audio source can be set individually, page 83. During
telephone/Tele Aid operation, navigation voice outputs
are muted.
To repeat the current spoken recommendation:
Press
.
To mute the current spoken recommendation:
Press briefly during a voice output. The next
announcement will be heard normally.
Switching the voice output on/off
Press longer than 2 seconds during a voice
output.
The following message will appear on the screen:
“Voice output is muted.”
The voice output will remain muted for the duration of
the current route guidance.
Switch the voice output on again:
• Press
• Automatically at the end of the current route
guidanceSelect the language for voice output, see the chapter on
Info Services and system settings.
Altering the voice output volume
While you are listening to a spoken recommendation,
alter its volume by pressing
/
on the rocker
switch.
This setting will then affect all of following voice
outputs.
Note:
During a voice output you can alter the sound level
with the steering wheel keys as well:
– Increase volume– Decrease volume
The minimum sound level depends on the current
audio volume.

186
Introduction Audio Telephone
Navigation
Index Info Services and
system settings
Route guidance
P82.85-2630-26
4
7
6
5
Turning onto a street
132
P82.85-2190-26
Traffic situation and voice output:
1“Prepare to turn right.”
2“Turn right after one quarter mile.”
3“Please turn right.”
Manual recall of the current voice instruction:
Press
.Warning of right turn:
4Name of the street you are to turn onto
5Arrow indicating the driving direction
6Name of the street you are travelling on
7Distance in miles to right turn
Note:
In special situations, e.g. when turning quickly several
times in succession or traveling at high speeds, there may
be deviations in the accuracy of the voice instructions.

187
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Route guidanceFollowing the course of the road
P82.85-2631-26
11
10
8
9
P82.85-2632-26
4
3
21
1Distance in miles to destination
2Arrow indicating driving direction
3Name of the street you are currently driving on
4Distance in miles to next turn Just before a right turn:
8Name of the street you will turn onto
9Right-turn arrow
10Name of the street you are now driving on
11Distance graph to turning point, is reduced as you
approach the intersection

188
Introduction Audio Telephone
Navigation
Index Info Services and
system settings
Route guidance
P82.85-2633-26
4
3
2
1
Driving through an intersection
1Name of the street onto which the vehicle is to be
driven
2Intersection
3Name of the street you are now driving on
4Distance graph to turning pointBefore you drive through a intersection you will be
informed of the continued route, e.g.
“Prepare to bear left”
“Bear left after one quarter mile”
“Please bear left”.
Notes:
In contrast to actually making a turn onto a street
(page 186), the spoken recommendation, e.g. “bear left”
will indicate that the course of the road will soon
change, or the current road intersects another major
road.
In the symbol display the road turn-off (2) indicates the
part of the road which is not to be followed.

189
Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Route guidanceChanging to map display during route guidance
P82.85-2634-26
1
P82.85-2635-26
5
4
32
1Activate map display
Confirm the menu field “Map” by pressing the rotary/
pushbutton
. The map is activated in last scale you
selected.2Last scale selected
Altering the map scale, page 164
3Return to symbol display
When you activate the map, this menu field is
highlighted automatically, activate symbol display by
pressing the rotary/pushbutton
.
4Actual vehicle location
5Name of the street you will turn onto
After 6 seconds, the left-hand menu bar will disappear
except for the scale. To recall the menu bar to the screen,
press the rotary/pushbutton
.
