Telephone
Telephone91
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings
Contents – Telephone
TelephoneTelephone .......................................... 92
Before you use the telephone ...... 92
Multifunction steering wheel,
Multifunction display ................... 94
Overview of the
Multifunction displays ................. 95
Quick reference – Telephone ....... 96
Menu overview – Telephone ....... 98
Switching telephone
operation on ................................. 100Incoming calls .............................. 102
Outgoing calls .............................. 106
Dialing a telephone number ...... 106
Dialing a number from the
phone book ................................... 109
Redial ............................................. 116
Dialing from calls list ................. 120
Speed-dialing (only with
COMAND) ..................................... 121Quick-dialing (for the first 10
memory locations) ...................... 123
Notebook ....................................... 124
Editing the phone book .............. 125
SMS function ................................ 132
Emergency call ............................ 136
Service numbers ......................... 139
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 91

92 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Before you use the telephone
Warning!
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so
could lead to a malfunction of the vehicle’s elec-
tronic systems, possibly resulting in an accident
and personal injury.
Radio transmitters, such as a portable telephone or a
citizens band unit should only be used inside the
vehicle if they are connected to an antenna that is
installed on the outside of the vehicle.
• Please read this section first before attempting to
operate your telephone.
• Always drive with extreme caution when you
operate the telephone hands-free.• Do not stop or park in no-parking areas to use the
telephone.
• Close the windows and reduce all outside noise as
much as possible when you use hands-free opera-
tion.
• If the signal strength is very weak (display in the
symbol field of all main menus) you should not
make telephone calls. Wait until reception im-
proves.
• A brief disconnection from the cellular network
is not a malfunction, as this can occur when the
network switches areas.
• If you are required to enter the unlock code when
you switch the COMAND operating unit on, enter it
to be able to use all of the telephone functions.
Enter the unlock code, see page 100.
• If a telephone menu other than the telephone menu
is displayed on the COMAND screen, the display
will change if an outgoing call is sent out via the
multifunction steering wheel. Notes
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 92

Telephone
Telephone93
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings In the following situations, it is not possible or not yet
possible to use the telephone:
• The telephone is already unlocked but is not (yet)
registered in the network. The message “No
Service” is displayed. The telephone will try to
register into the network. If the network is avail-
able, the telephone will be ready for use. The above
message also appears if the network is no longer
available due to weak signals.
The message “No Service” is displayed for 8 sec-
onds if you try to make a call.
• The message “Telephone is being activated. Please
wait” appears. The phone is being initialized for
use. Select other equipment functions by pressing
the corresponding button or wait until the phone is
active.
• The message “Error: Phone not connected” is
displayed. Please connect the telephone.
• The message “Error: Phone defective” appears. The
telephone cannot work because an error has
occured. Please contact a Mercedes-Benz Center.In the following situation, it is not yet possible to use
the functions “Dial number from phone book” or
“Speed-dial”.
• The mobile telephone has been plugged into its
holder correctly the COMAND operating unit has
been switched on and the telephone function
download function has been actuated (see
telephone section in operator’s manual).
In the following situations it is not possible to make a
call and following messages appear:
• “System busy, redial?” – dialing has failed because
system is busy.
• “No Service, redial?” – dialing has failed because
network cannot be received.
• “Phone off” – Tele Aid is active, the telephone
function will switch on automatically after Tele Aid
is ended.
Notes08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 93

94 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Multifunction steering wheel, Multifunction display
1Multifunction display
2Multifunction steering wheelTurn the electronic key in the steering lock to
position 1 or 2.
3
Activates next system
4Activates previous system
5Pages backwards through the phone book
6Pages forwards through the phone book
7Raises telephone volume of dial tone/idle
tone
8Lowers telephone volume of dial tone/idle tone
9Accepts incoming calls, page 102
Activates the redial memory, page 116
Starts dialing after the selection of a number,
page 110, 114
10Ends telephone call, page 102
Refuse call, page 102
Interrupts dialing, the message READY will
appear, page 110
If the telephone menu is displayed on at the
multifunction display and the telephone operation is
switched on at COMAND, changes in COMAND affect
the multifunction display.
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 94

Telephone
Telephone95
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Overview of the Multifunction displays 1The telephone is switched on,
Telephone operation is activated, page 100
2The system is searching for the corresponding
telephone network
3The telephone is ready for use
4The vehicle is currently outside the transmission or
reception range
5Phone book is empty and/or has not been loaded
into the COMAND telephone memory
6A number selected from the phone book
7Dialing begins
8Dialing is completed and the number is displayed.
The display will remain until you end the call
9Number of the memory location and the name
stored here
P82.85-6148-27
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 95

96 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Quick reference – Telephone
7
65
1
P82.85-6119-29
52
4
3
8
9
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 96

Telephone
Telephone97
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings 1Switching the telephone on and off, page 100
2Entering the unlock code, page 100
Entering a telephone number, page 106
Speed-dialing (only at COMAND):
Activates number stored in the phone book with a
maximum of 2 digits, page 121
Quick-dialing (for the first ten memory locations),
page 123
Enter the emergency call, page 123
3Subsequent dialing, page 108
4Subsequent dialing, page 108
5Sets the volume for hands-free operation of the
telephone (during a call), page 104
6Turn to highlight a menu field, a list entry, or a
symbolPress to activate a sub-menu,
Confirms an entry/selection,
Starts dialing when “Send” is highlighted,
Ends the call when “End” is highlighted,
Switches off the microphone of the hands-free
telephone when “Mute” is highlighted
7Activates previous menu
Entering a telephone number:
Press
briefly – the last digit will be deleted
Press for longer than two seconds – the whole
number will be deleted
8Switching the COMAND on and off, page 13
9Color screen with main telephone menu
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 97

98 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Menu overview - Telephone
16
6
5
4
3
2
1
P82.85-6443-29
1715
111012
14
13
7
8
9
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 98

Telephone
Telephone99
Introduction
AudioTelephone
Navigation
Index Info Services and

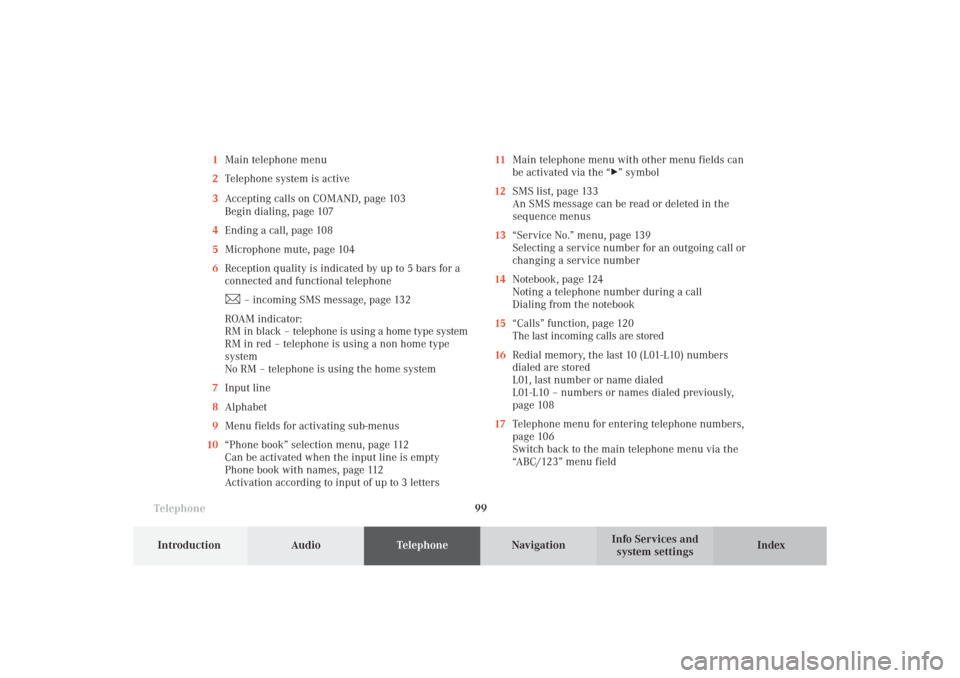

system settings 11Main telephone menu with other menu fields can
be activated via the “
” symbol
12SMS list, page 133
An SMS message can be read or deleted in the
sequence menus
13“Service No.” menu, page 139
Selecting a service number for an outgoing call or
changing a service number
14Notebook, page 124
Noting a telephone number during a call
Dialing from the notebook
15“Calls” function, page 120
The last incoming calls are stored
16Redial memory, the last 10 (L01-L10) numbers
dialed are stored
L01, last number or name dialed
L01-L10 – numbers or names dialed previously,
page 108
17Telephone menu for entering telephone numbers,
page 106
Switch back to the main telephone menu via the
“ABC/123” menu field 1Main telephone menu
2Telephone system is active
3Accepting calls on COMAND, page 103
Begin dialing, page 107
4Ending a call, page 108
5Microphone mute, page 104
6Reception quality is indicated by up to 5 bars for a
connected and functional telephone
– incoming SMS message, page 132
ROAM indicator:
RM in black – telephone is using a home type system
RM in red – telephone is using a non home type
system
No RM – telephone is using the home system
7Input line
8Alphabet
9Menu fields for activating sub-menus
10“Phone book” selection menu, page 112
Can be activated when the input line is empty
Phone book with names, page 112
Activation according to input of up to 3 letters
08-TELEFON-25-US.pm509.07.2004, 14:20 Uhr 99

100 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Switching telephone operation on
1Status line, telephone not yet logged onto network
2Input line for unlock code
Press
, the menu for entering the unlock code will
appear.
Entering the unlock code
Use the number keys
through
to enter the
unlock code. Asterisks will appear in place of the digits
in the input line.If entered code is correct and the phone is registered in
a network, the phone is ready for use.
Notes:
Your unlock code prevents unauthorized persons from
using your telephone. Be sure to memorize this code, a
three digit number, carefully.
If you enter an incorrect code, the systems returns to
the menu for entering the unlock code.
The unlock code must be entered when the telephone is
switched on for the first time (if phone is in locked
mode), but not if you switch to it from another system
(i.e. navigation).
“No Service” – This message will appear in case the
phone is not registered in a network or the network is
no longer available due to weak signal conditions.
Switching telephone operation off
The phone can be switched by pressing the
button
(when connected to the coiled cord) or the button
(when in portable mode).
P82.85-6059-26
2
1
