MERCEDES-BENZ CL-CLASS 2007 Owners Manual

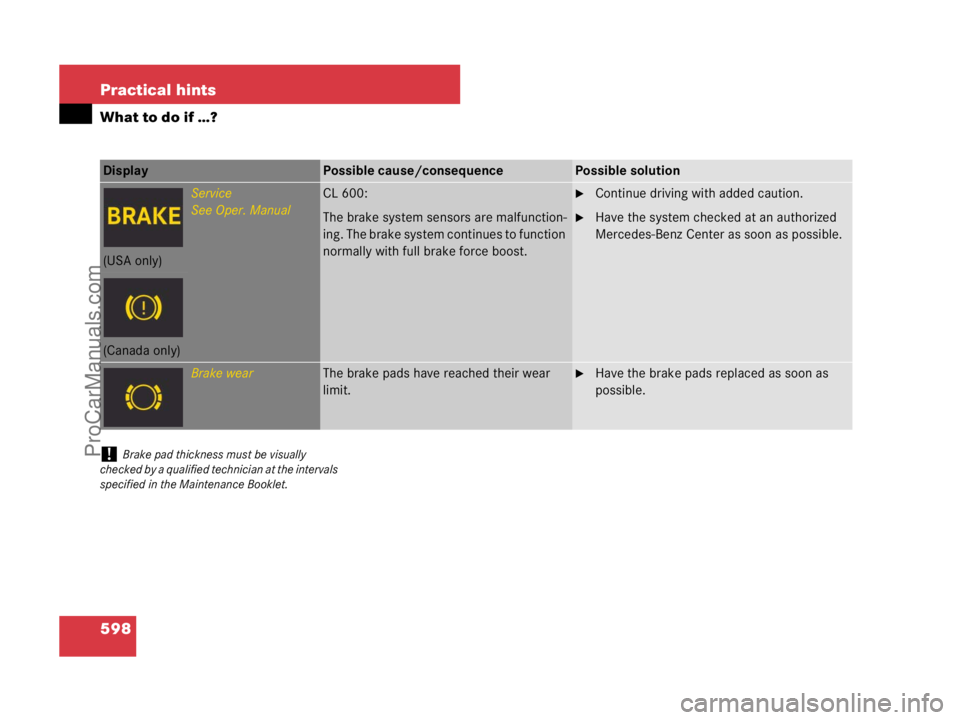

598 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Service
See Oper. ManualCL 600:
The brake system sensors are malfunction-
ing. The brake system continues to function
normally with full brake force boost.Continue driving with added caution.
Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
(USA only)
(Canada only)
Brake wearThe brake pads have reached their wear
limit.Have the brake pads replaced as soon as
possible.
!Brake pad thickness must be visually
checked by a qualified technician at the intervals
specified in the Maintenance Booklet.
ProCarManuals.com

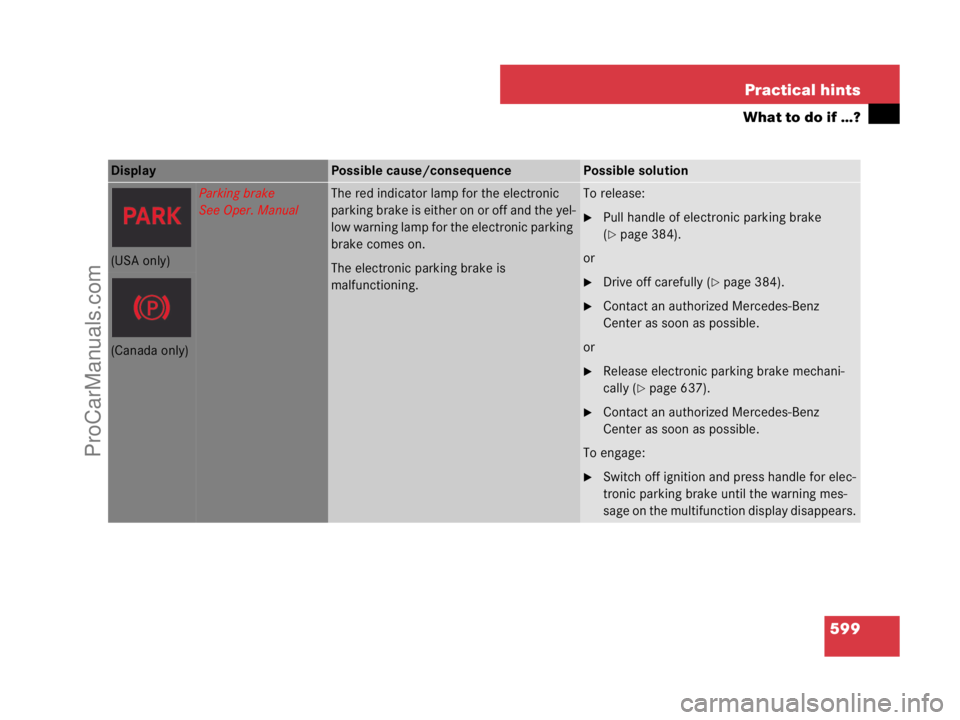

599 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Parking brake
See Oper. ManualThe red indicator lamp for the electronic
parking brake is either on or off and the yel-
low warning lamp for the electronic parking
brake comes on.
The electronic parking brake is
malfunctioning.To release:
Pull handle of electronic parking brake
(
page 384).
or
Drive off carefully (page 384).
Contact an authorized Mercedes-Benz
Center as soon as possible.
or
Release electronic parking brake mechani-
cally (
page 637).
Contact an authorized Mercedes-Benz
Center as soon as possible.
To engage:
Switch off ignition and press handle for elec-
tronic parking brake until the warning mes-
sage on the multifunction display disappears.
(USA only)
(Canada only)
ProCarManuals.com

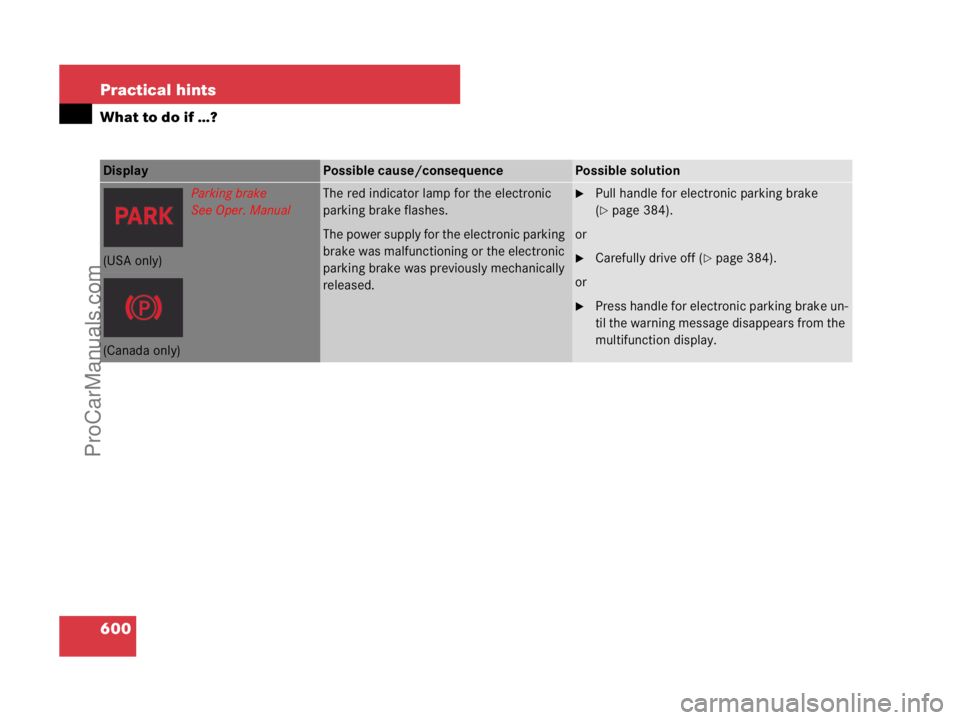

600 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Parking brake
See Oper. ManualThe red indicator lamp for the electronic
parking brake flashes.
The power supply for the electronic parking
brake was malfunctioning or the electronic
parking brake was previously mechanically
released.Pull handle for electronic parking brake
(
page 384).
or
Carefully drive off (page 384).
or
Press handle for electronic parking brake un-
til the warning message disappears from the
multifunction display.
(USA only)
(Canada only)
ProCarManuals.com

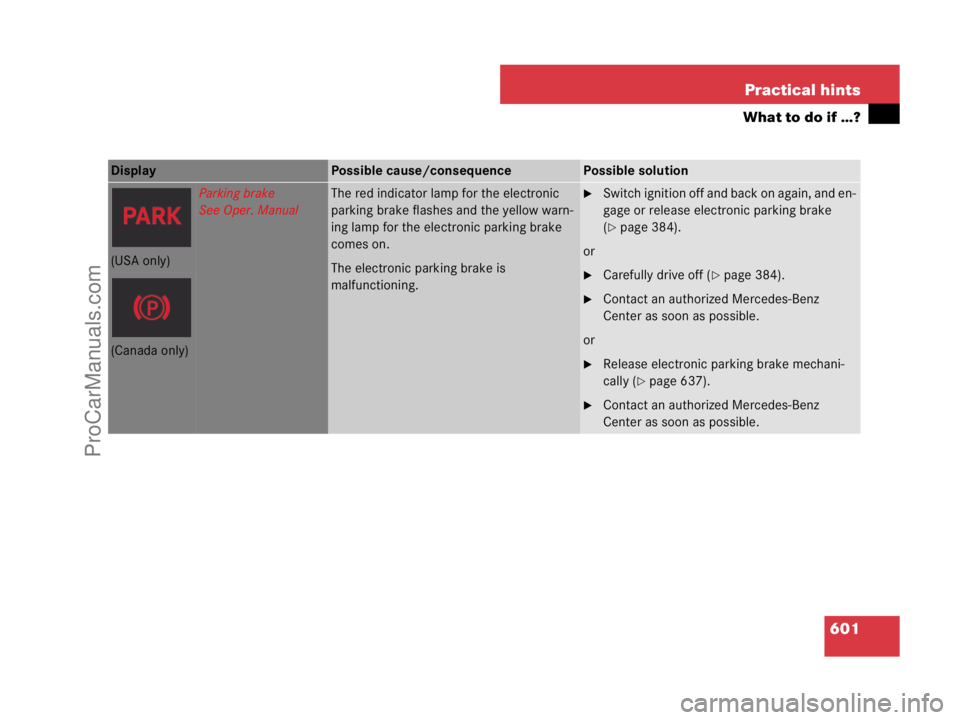

601 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Parking brake
See Oper. ManualThe red indicator lamp for the electronic
parking brake flashes and the yellow warn-
ing lamp for the electronic parking brake
comes on.
The electronic parking brake is
malfunctioning.Switch ignition off and back on again, and en-
gage or release electronic parking brake
(
page 384).
or
Carefully drive off (page 384).
Contact an authorized Mercedes-Benz
Center as soon as possible.
or
Release electronic parking brake mechani-
cally (
page 637).
Contact an authorized Mercedes-Benz
Center as soon as possible.
(USA only)
(Canada only)
ProCarManuals.com

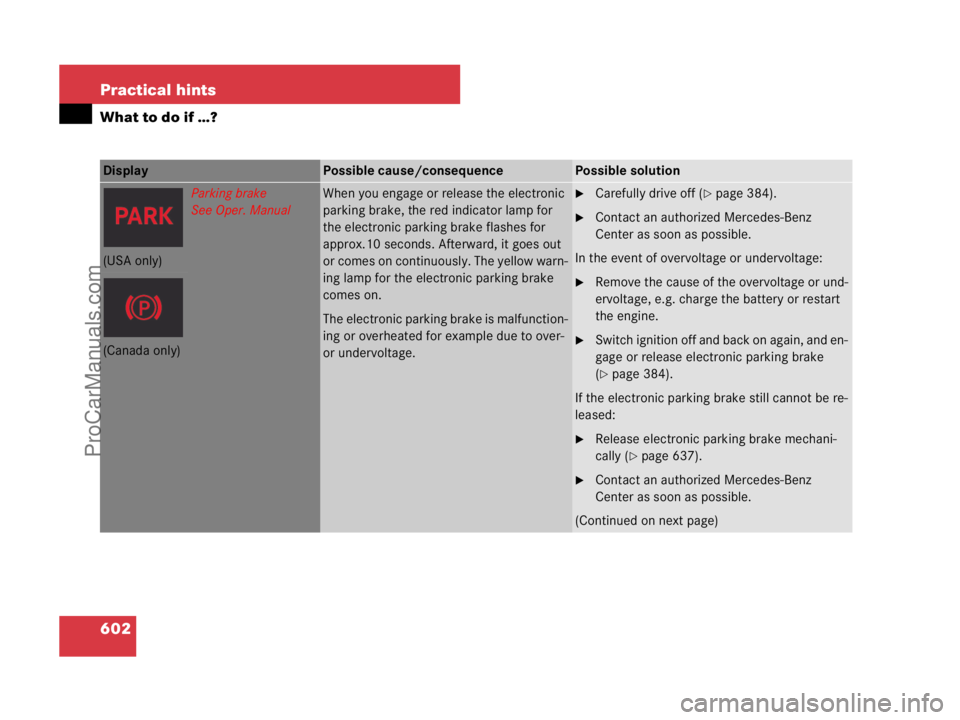

602 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Parking brake
See Oper. ManualWhen you engage or release the electronic
parking brake, the red indicator lamp for
the electronic parking brake flashes for
approx.10 seconds. Afterward, it goes out
or comes on continuously. The yellow warn-
ing lamp for the electronic parking brake
comes on.
The electronic parking brake is malfunction-
ing or overheated for example due to over-
or undervoltage.Carefully drive off (page 384).
Contact an authorized Mercedes-Benz
Center as soon as possible.
In the event of overvoltage or undervoltage:
Remove the cause of the overvoltage or und-
ervoltage, e.g. charge the battery or restart
the engine.
Switch ignition off and back on again, and en-
gage or release electronic parking brake
(
page 384).
If the electronic parking brake still cannot be re-
leased:
Release electronic parking brake mechani-
cally (
page 637).
Contact an authorized Mercedes-Benz
Center as soon as possible.
(Continued on next page)
(USA only)
(Canada only)
ProCarManuals.com

603 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Parking brake
See Oper. ManualIf overheated:
Let vehicle cool down, and do not engage
electronic parking brake during this time.
or
Switch ignition off and back on again, and en-
gage or release electronic parking brake.
(USA only)
(Canada only)Parking brake
inoperativeWhen you engage or release the electronic
parking brake, the red indicator lamp for
the electronic parking brake flashes and
goes out after approx. 10 seconds. The yel-
low warning lamp for the electronic parking
brake comes on.
The electronic parking brake is
malfunctioning.Switch ignition off and back on again, and en-
gage electronic parking brake (
page 384).
If the electronic parking brake cannot be en-
gaged:
Shift the automatic transmission to P
(
page 389).
Protect vehicle from rolling away while
parked by using a chock from the vehicle tool
kit (
page 634).
Contact an authorized Mercedes-Benz
Center as soon as possible.
ProCarManuals.com

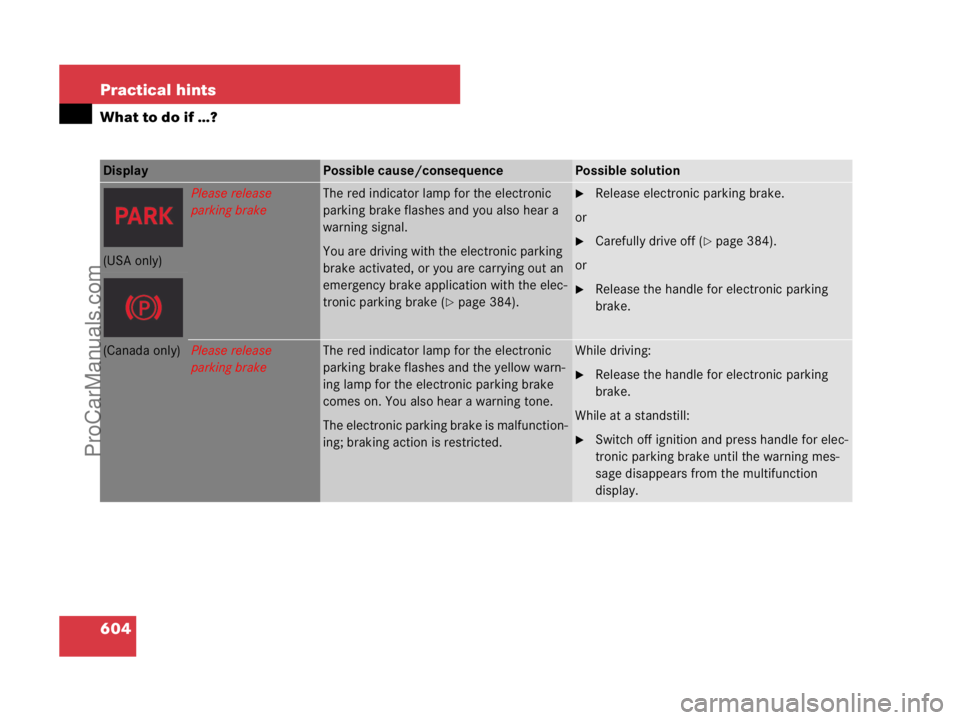

604 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Please release
parking brakeThe red indicator lamp for the electronic
parking brake flashes and you also hear a
warning signal.
You are driving with the electronic parking
brake activated, or you are carrying out an
emergency brake application with the elec-
tronic parking brake (
page 384).
Release electronic parking brake.
or
Carefully drive off (page 384).
or
Release the handle for electronic parking
brake.
(USA only)
(Canada only)Please release
parking brakeThe red indicator lamp for the electronic
parking brake flashes and the yellow warn-
ing lamp for the electronic parking brake
comes on. You also hear a warning tone.
The electronic parking brake is malfunction-
ing; braking action is restricted.While driving:
Release the handle for electronic parking
brake.
While at a standstill:
Switch off ignition and press handle for elec-
tronic parking brake until the warning mes-
sage disappears from the multifunction
display.
ProCarManuals.com

605 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Turn on the ignition
to release the
parking brakeThe yellow indicator lamp for the electronic
parking brake comes on.
You have tried to release the electronic
parking brake, but the ignition was not
switched on.Switch on the ignition (page 336).
(USA only)
(Canada only)
Inoperative
See Oper. ManualESP® as well as PRE-SAFE® are switched off
due to a malfunction. In addition, the v
warning lamp in the instrument cluster
comes on.
The ABS may not be operational.Continue driving with added caution.
Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases the
risk of an accident.
ProCarManuals.com

606 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Inoperative
See Oper. ManualCL 600 only:
ESP
® a s w e l l a s P R E - S A F E® are switched off
due to a malfunction. In addition, the v
and ; (USA only) or 3(Canada only)
warning lamps come on in the instrument
cluster.
Brake force assistance is impaired and is
sustained through an electric substitute
function as long as the engine is running.
The brake system continues to function
normally. You will feel a pulsating effect at
the brake pedal while braking.
BAS Plus* and PRE-SAFE
® Brake* are also
not available.
Continue driving with added caution.
Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases the
risk of an accident.
ProCarManuals.com

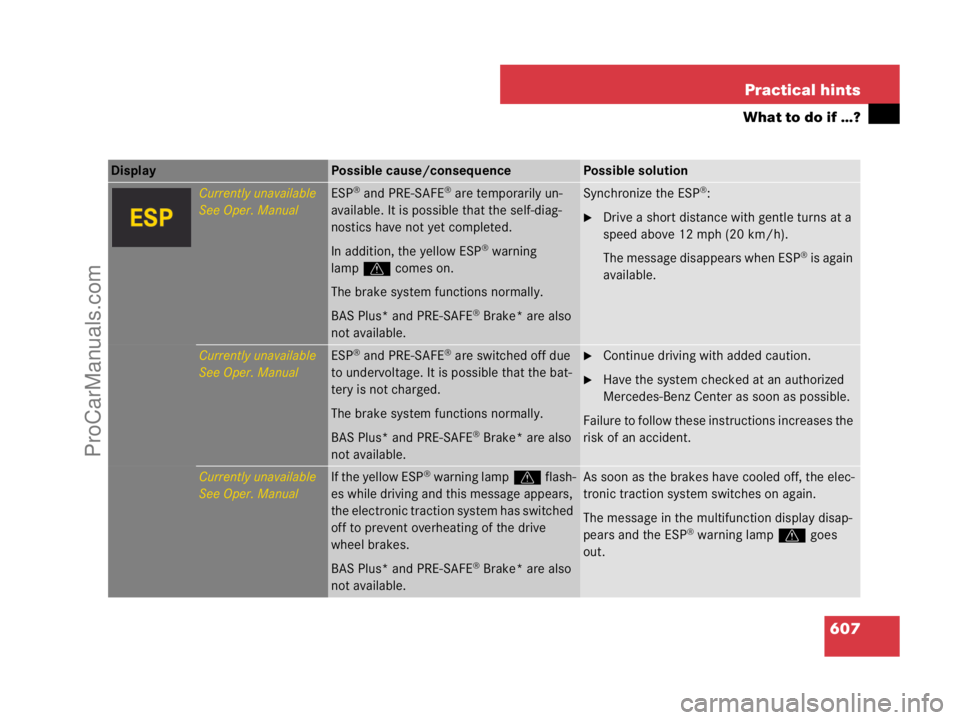

607 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
Currently unavailable
See Oper. ManualESP® and PRE-SAFE® are temporarily un-
available. It is possible that the self-diag-
nostics have not yet completed.
In addition, the yellow ESP
® warning
lampv comes on.
The brake system functions normally.
BAS Plus* and PRE-SAFE
® Brake* are also
not available.
Synchronize the ESP®:
Drive a short distance with gentle turns at a
speed above 12 mph (20 km/h).
The message disappears when ESP
® is again
available.
Currently unavailable
See Oper. ManualESP® and PRE-SAFE® are switched off due
to undervoltage. It is possible that the bat-
tery is not charged.
The brake system functions normally.
BAS Plus* and PRE-SAFE
® Brake* are also
not available.
Continue driving with added caution.
Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases the
risk of an accident.
Currently unavailable
See Oper. ManualIf the yellow ESP® warning lampv flash-
es while driving and this message appears,
the electronic traction system has switched
off to prevent overheating of the drive
wheel brakes.
BAS Plus* and PRE-SAFE
® Brake* are also
not available.
As soon as the brakes have cooled off, the elec-
tronic traction system switches on again.
The message in the multifunction display disap-
pears and the ESP
® warning lampv goes
out.
