MERCEDES-BENZ CL-Class 2008 C216 Comand Manual

30 At a glanceInstrument cluster

31 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
435
2
Fuel gauge with:
Fuel tank reserve warning
lamp
AHigh beam headlamp
indicator lamp
-ABS indicator lamp
=SRS indicator lamp
660
395
608
617
3
Parktronic*/Park Assist*
warning indicator for left
front area
465,
470
4
Multifunction display with:Speedometer0
USA only
!
Canada only
Electronic
parking brake
warning or indi-
cator lamps
610
Item
Page
;
USA only
3
Canada only
Brake warning
lamp
609
615
HCombination low tire
pressure/TPMS mal-
function telltale, USA
only
Low tire pressure tell-
tale, Canada only
618
LLeft turn signal
indicator lamp
410
KRight turn signal
indicator lamp
410
vESP
® warning lamp
614
lDistance warning
lamp*
1
76,
446,
614
1Vehicles without DISTRONIC Plus*: Warning lamp
without function. It illuminates when the ignition is
on. It should go out when the engine is running.
Item
Page
5
Parktronic*/Park Assist*
warning indicator for right
front area
465,
470
6
Gear position/range
indicator
426
7
Tachometer with:±Engine malfunction
indicator lamp
612
8
Selected program mode
indicator
427
9
Main menu for control sys-
tem, multifunction display
282
a
Outside temperature
436
b
Display with:Additional speedometer
301
:PRE-SAFE
® Brake*
indicator
298

32 At a glanceControl systems

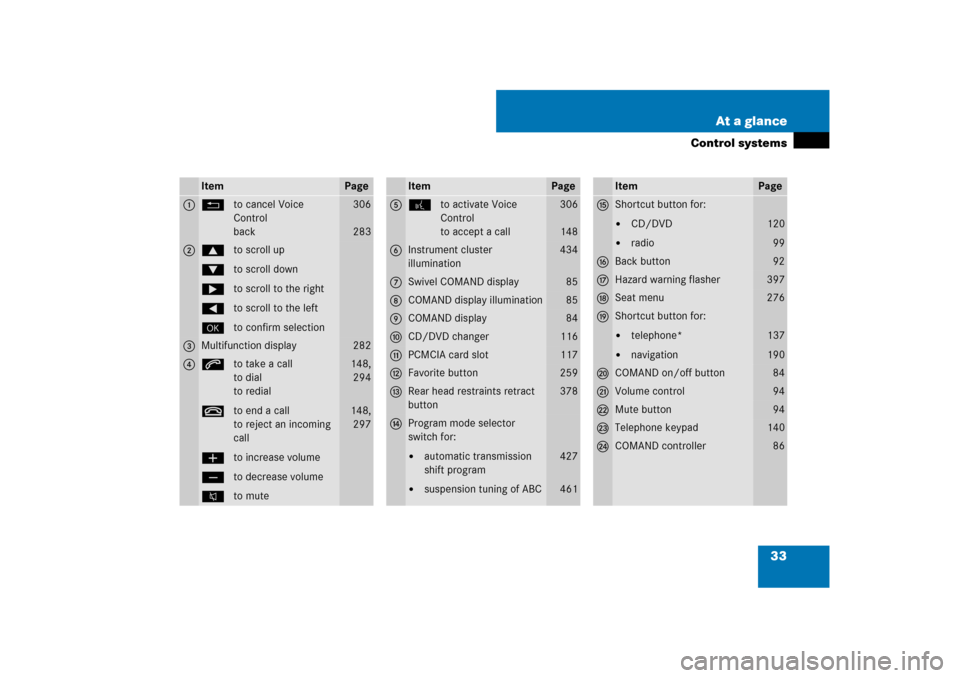

33 At a glance
Control systems
Item
Page
1
Lto cancel Voice
Control
back
306
283
2
$to scroll up
%to scroll down
&to scroll to the right
(to scroll to the left
#to confirm selection
3
Multifunction display
282
4
sto take a call
to dial
to redial
tto end a call
to reject an incoming
call
æto increase volume
çto decrease volume
Fto mute
148,
294
148,
297
Item
Page
5
!to activate Voice
Control
to accept a call
306
148
6
Instrument cluster
illumination
434
7
Swivel COMAND display
85
8
COMAND display illumination
85
9
COMAND display
84
a
CD/DVD changer
116
b
PCMCIA card slot
117
c
Favorite button
259
d
Rear head restraints retract
button
378
e
Program mode selector
switch for:

automatic transmission
shift program


suspension tuning of ABC
427
461
Item
Page
f
Shortcut button for:

CD/DVD


radio
120
99
g
Back button
92
h
Hazard warning flasher
397
j
Seat menu
276
k
Shortcut button for:

telephone*


navigation
137
190
l
COMAND on/off button
84
m
Volume control
94
n
Mute button
94
o
Telephone keypad
140
p
COMAND controller
86

34 At a glanceStorage compartments

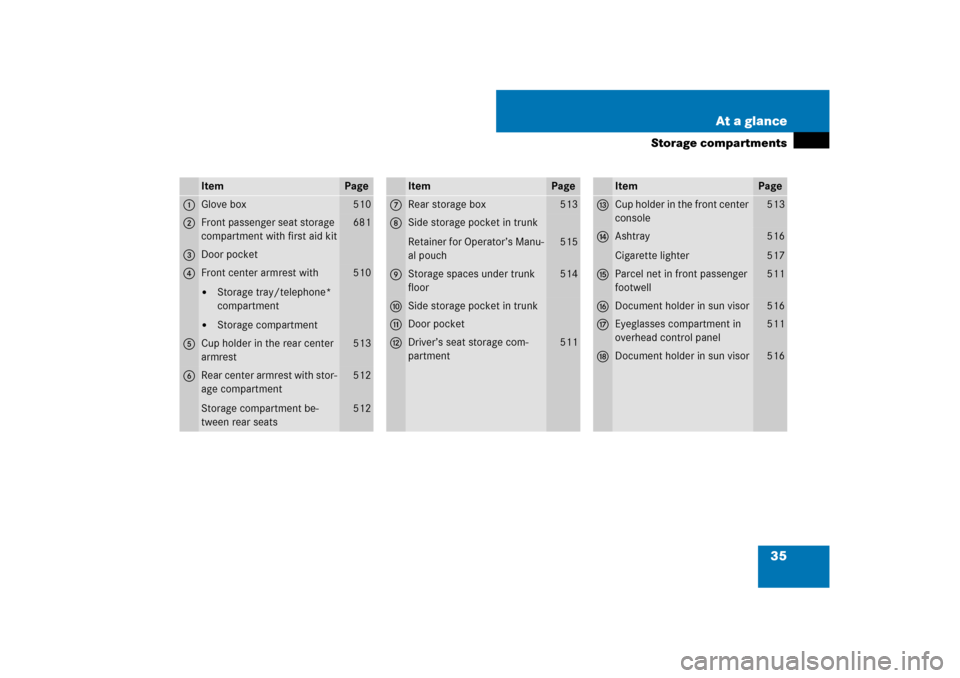

35 At a glance
Storage compartments
Item
Page
1
Glove box
510
2
Front passenger seat storage
compartment with first aid kit
681
3
Door pocket
4
Front center armrest with

Storage tray/telephone*
compartment


Storage compartment
510
5
Cup holder in the rear center
armrest
513
6
Rear center armrest with stor-
age compartment
Storage compartment be-
tween rear seats
512
512
Item
Page
7
Rear storage box
513
8
Side storage pocket in trunk
Retainer for Operator’s Manu-
al pouch
515
9
Storage spaces under trunk
floor
514
a
Side storage pocket in trunk
b
Door pocket
c
Driver’s seat storage com-
partment
511
Item
Page
d
Cup holder in the front center
console
513
e
Ashtray
Cigarette lighter
516
517
f
Parcel net in front passenger
footwell
511
g
Document holder in sun visor
516
h
Eyeglasses compartment in
overhead control panel
511
j
Document holder in sun visor
516

36 At a glanceCenter console
Item
Page
1
Thumbwheel for air volume
control for left center air vent
490
2
Thumbwheel for air volume
control for right center air
vent
490
3
AUTO mode for air distribu-
tion and volume, left
493
4
Temperature control, left
494
5
Manual fan speed adjust-
ment, left
494
6
Front defroster
494
7
Air recirculation
496
8
Climate control on/off
493
9
Residual engine heat and
ventilation (REST)
498
a
Rear window defroster
496
Item
Page
b
Manual fan speed adjust-
ment, right
494
c
Temperature control, right
494
d
AUTO mode for air distribu-
tion and volume, right
493
e
Alarm system indicator lamp
80
f
Cup holder
513
g
Cover of compartment with:

Ashtray


Lighter
516
517
h
Cover of compartment with

CD/DVD changer


PCMCIA card slot
116
117

37 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Eyeglasses compartment
511
2
Left reading lamp on/off
398
3
Rear interior lighting on/off
398
4
Front interior lighting on/off
398
5
Power tilt/sliding sunroof
switch
506
6
Tele Aid (emergency call sys-
tem) button
522
7
Interior lighting control
398
Item
Page
8
Right reading lamp on/off
398
9
Rear view mirror
381
a
Garage door opener
530
b
Hands-free microphone for

Tele Aid (emergency call
system)


Telephone*


Voice Control
522
519
303

38 At a glanceDriver’s door control panel
Item
Page
1
Inside door handle
362
2
Central unlocking switch
362
3
Central locking switch
362
4
Memory function (for storing
seat, exterior mirror, and
steering wheel settings)
385
5
Selector button for front
passenger seat
370
6
Seat heating
Seat ventilation*
375
376
7
Seat adjustment
368
Item
Page
8
Exterior rear view mirror
adjustment
Mirror folding function
381
382
9
Switches for opening/ closing
side windows
402
a
Remote trunk opening/clos-
ing switch
500
b
Rear window override switch
63

39 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems
