Display messages
Possible causes/consequences and
X SolutionsÁ Night
View
Assist
Lights ON
or AUTO,
Not in R
Gear You have tried to switch on Night View Assist, but the exterior
lamp switch is not set to c or L.
In addition, the automatic transmission is in reverse gear
R.
X Turn the exterior lamp switch to c or L
(Y page 275).
X Shift the automatic transmission to park position P, neutral
position N or drive position D (Y page 291). Á Night
View
Assist
Only When
It Is Dark You have tried to switch on Night View Assist by daylight.
You can only switch on Night View Assist when it is dark.
Vehicle
Display messages
Possible causes/consequences and
X Solutions: The trunk is open.
X
Close the trunk (Y page 258). M You are driving with the hood open.
X
Stop the vehicle in a safe location as soon as it is safe to
do so.
X Close the hood ( Y page 369).
There is otherwise danger of an accident. C You are driving with at least one door open.
The display symbol shows you which doors are open.
X
Close all doors. _ Lock Seat
Backrest
Front Left
or
Lock Seat
Backrest
Front
Right The driver or front passenger seat backrest is not engaged.
The
driver’s
or front passenger’s seat belt can not secure the
driver or passenger.
X Fold back and push the seat backrest until the seat cushion
and seat
backrest audibly engage into the driving position. Vehicle status messages in the multifunction display
439
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 439 Z
Page 442 of 500
Display messages
Possible causes/consequences and
X SolutionsE Shift to P You have attempted to turn off the engine with the KEYLESS-
GO start/stop button and opened the driver’s door with the
automatic transmission not shift to park position
P.
X Shift the automatic transmission to park position P
(Y page 291).
or
X Close the driver’s door. Â Key
Detected
In Vehicle A SmartKey with KEYLESS-GO left in the vehicle was
recognized while trying to lock the vehicle from the outside.
X
Take the SmartKey out of the vehicle. Â Don’t
Forget
Your Key This message appears for a maximum of 60 seconds if the
driver’s door is opened with the engine turned off and no
SmartKey in the starter switch. This message is only a
reminder.
X
Take the SmartKey with you when leaving the vehicle. Â Take Your
Key From
Ignition You have forgotten to remove the SmartKey.
X
Remove the SmartKey from the starter switch. Â Obtain a
New Key The SmartKey with KEYLESS-GO must be replaced.
X
Contact an authorized Mercedes-Benz Center. Â Close
Doors to
Lock
Vehicle You tried to lock the vehicle but not all doors were closed.
X
Close doors and lock the vehicle again. Â Key Does
Not
Belong to
Vehicle The SmartKey in the starter switch does not belong to the
vehicle.
X
Remove the SmartKey from the starter switch. Â Replace
Key
Battery The batteries in the SmartKey with KEYLESS-GO are
discharged.
X
Replace the batteries ( Y page 461).440
Vehicle status messages in the multifunction displayPractical hints
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 440
Page 443 of 500
Display messages
Possible causes/consequences and
X Solutions Key Not
Detected
(message
appears in
red) The SmartKey with KEYLESS-GO is not detected while the
engine
is
running because the SmartKey is not in the vehicle.
X Stop the vehicle as soon as it is safe to do so.
X Engage the electronic parking brake.
X Search for the SmartKey.
The vehicle cannot be locked centrally nor can the engine
be started again after the engine is stopped. Â Key Not
Detected
(message
appears in
red) The SmartKey with KEYLESS-GO is not detected while the
engine is running because there is strong radio-frequency
interference.
X
Stop the vehicle as soon as it is safe to do so.
X Engage the electronic parking brake.
X Remove the KEYLESS-GO button from the starter switch
(Y page 263).
X Operate the vehicle with the SmartKey in the starter switch. Â Key Not
Detected
(message
appears in
red) The SmartKey with KEYLESS-GO is momentarily not detected.
X
Change the position of the SmartKey in the vehicle.
X If necessary, remove the KEYLESS-GO button from the
starter switch ( Y page 263).
X Operate the vehicle with the SmartKey in the starter switch. Â Key Not
Detected
(message
appears in
white) The SmartKey with KEYLESS-GO is momentarily not detected.
X
Change the position of the SmartKey in the vehicle.
X If necessary, remove the KEYLESS-GO button from the
starter switch ( Y page 263).
X Operate the vehicle with the SmartKey in the starter switch. Â Key Being
Initialize
d… Please
Wait The SmartKey with KEYLESS-GO is being initialized in the
vehicle.
X
Wait until the message disappears from the multifunction
display. Â Remove
'Start'
Button
and
Insert Key The KEYLESS-GO system is malfunctioning.
X
Remove the KEYLESS-GO button from the starter switch
(Y page 263).
X Operate the vehicle with the SmartKey in the starter switch. ¥ Check
Washer
Fluid The water level has dropped to approximately 1.1 US qts
(1.0 l).
X
Add washer fluid ( Y page 372). Vehicle status messages in the multifunction display
441
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 441 Z
Page 444 of 500

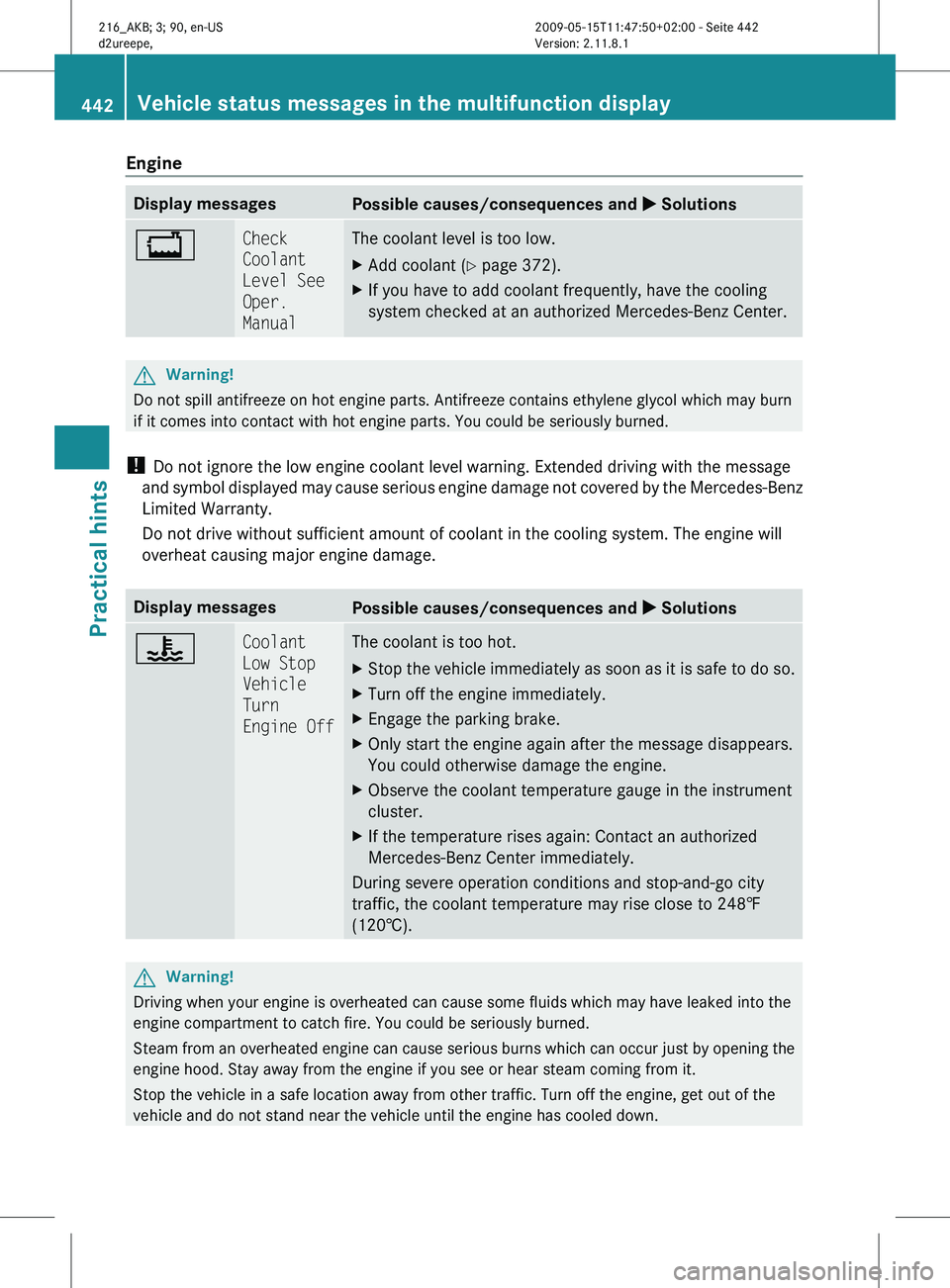

Engine
Display messages
Possible causes/consequences and
X Solutions+ Check
Coolant
Level See
Oper.
Manual The coolant level is too low.
X
Add coolant (Y page 372).
X If you have to add coolant frequently, have the cooling
system checked at an authorized Mercedes-Benz Center. G
Warning!
Do not spill antifreeze on hot engine parts. Antifreeze contains ethylene glycol which may burn
if it comes into contact with hot engine parts. You could be seriously burned.
! Do not ignore the low engine coolant level warning. Extended driving with the message
and symbol
displayed may cause serious engine damage not covered by the Mercedes-Benz
Limited Warranty.
Do not drive without sufficient amount of coolant in the cooling system. The engine will
overheat causing major engine damage. Display messages
Possible causes/consequences and
X Solutions? Coolant
Low Stop
Vehicle
Turn
Engine Off The coolant is too hot.
X
Stop the vehicle immediately as soon as it is safe to do so.
X Turn off the engine immediately.
X Engage the parking brake.
X Only start the engine again after the message disappears.
You could otherwise damage the engine.
X Observe the coolant temperature gauge in the instrument
cluster.
X If the temperature rises again: Contact an authorized
Mercedes-Benz Center immediately.
During severe operation conditions and stop-and-go city
traffic, the coolant temperature may rise close to 248‡
(120†). G
Warning!
Driving when your engine is overheated can cause some fluids which may have leaked into the
engine compartment to catch fire. You could be seriously burned.
Steam from
an overheated engine can cause serious burns which can occur just by opening the
engine hood. Stay away from the engine if you see or hear steam coming from it.
Stop the vehicle in a safe location away from other traffic. Turn off the engine, get out of the
vehicle and do not stand near the vehicle until the engine has cooled down. 442
Vehicle status messages in the multifunction display
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 442
Page 445 of 500
!

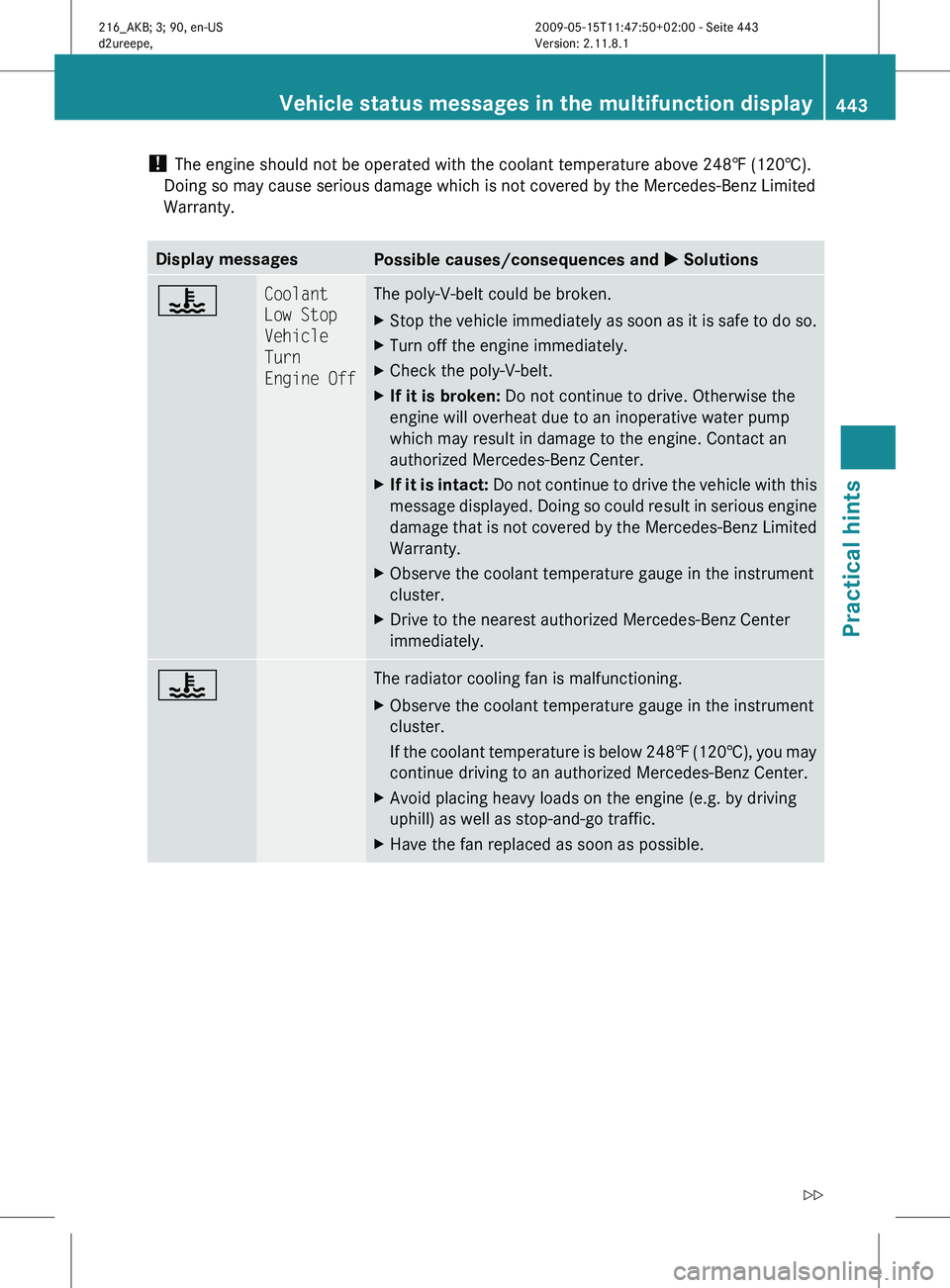

The engine should not be operated with the coolant temperature above 248‡
(120†).
Doing so may cause serious damage which is not covered by the Mercedes-Benz Limited
Warranty. Display messages
Possible causes/consequences and
X Solutions? Coolant
Low Stop
Vehicle
Turn
Engine Off The poly-V-belt could be broken.
X
Stop the vehicle immediately as soon as it is safe to do so.
X Turn off the engine immediately.
X Check the poly-V-belt.
X If it is broken: Do not continue to drive. Otherwise the
engine will overheat due to an inoperative water pump
which may result in damage to the engine. Contact an
authorized Mercedes-Benz Center.
X If it is intact: Do
not continue to drive the vehicle with this
message displayed. Doing so could result in serious engine
damage that is not covered by the Mercedes-Benz Limited
Warranty.
X Observe the coolant temperature gauge in the instrument
cluster.
X Drive to the nearest authorized Mercedes-Benz Center
immediately. ? The radiator cooling fan is malfunctioning.
X
Observe the coolant temperature gauge in the instrument
cluster.
If the
coolant temperature is below 248‡ (120†), you may
continue driving to an authorized Mercedes-Benz Center.
X Avoid placing heavy loads on the engine (e.g. by driving
uphill) as well as stop-and-go traffic.
X Have the fan replaced as soon as possible. Vehicle status messages in the multifunction display
443
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 443 Z
Page 446 of 500
Display messages
Possible causes/consequences and
X Solutions# The battery is no longer charging.
Possible causes:
R
alternator malfunctioning
R broken poly-V-belt
R a malfunction in the electronic system
X Stop immediately in a safe location or as soon as it is safe
to do so and check the poly-V-belt.
X If it is broken: Do not continue to drive. Otherwise the
engine will overheat due to an inoperative water pump
which may result in damage to the engine. Contact an
authorized Mercedes-Benz Center.
X If it is intact: Drive to the nearest authorized Mercedes-
Benz Center immediately. Adjust driving to be consistent
with reduced braking responsiveness. 4 Check
Engine
Oil at
Next
Refueling CL 550 4MATIC and CL 63 AMG only:
The engine oil level has dropped to approximately the
minimum level.
X
Check the engine oil level ( Y page 369) and add engine oil
as required (Y page 371).
X If you must add engine oil frequently, have the engine
checked for possible leaks. 4 Check
Engine
Oil Level
(Add 1
quart)
(USA only)
Check
Engine
Oil Level
(Add 1
Liter)
(Canada
only) CL 600 and CL 65 AMG only:
The engine oil level is too low.
X
Add engine oil ( Y page 371) and check the engine oil level
(
Y page 369).
X If you must add engine oil frequently, have the engine
checked for possible leaks. If the message
Check Engine
Oil at Next
Refueling (CL 550 4MATIC and CL 63 AMG
only) or Check Engine Oil Level (Add 1
quart) (Canada: 1 Liter) (CL 600 and CL
65 AMG) appears while the engine is running
and at operating temperature, the engine oil level has dropped to approximately the
minimum level.
The message will be stored in the vehicle
status message memory after you have
cleared it from the multifunction display.444
Vehicle status messages in the multifunction display
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 444
Page 447 of 500

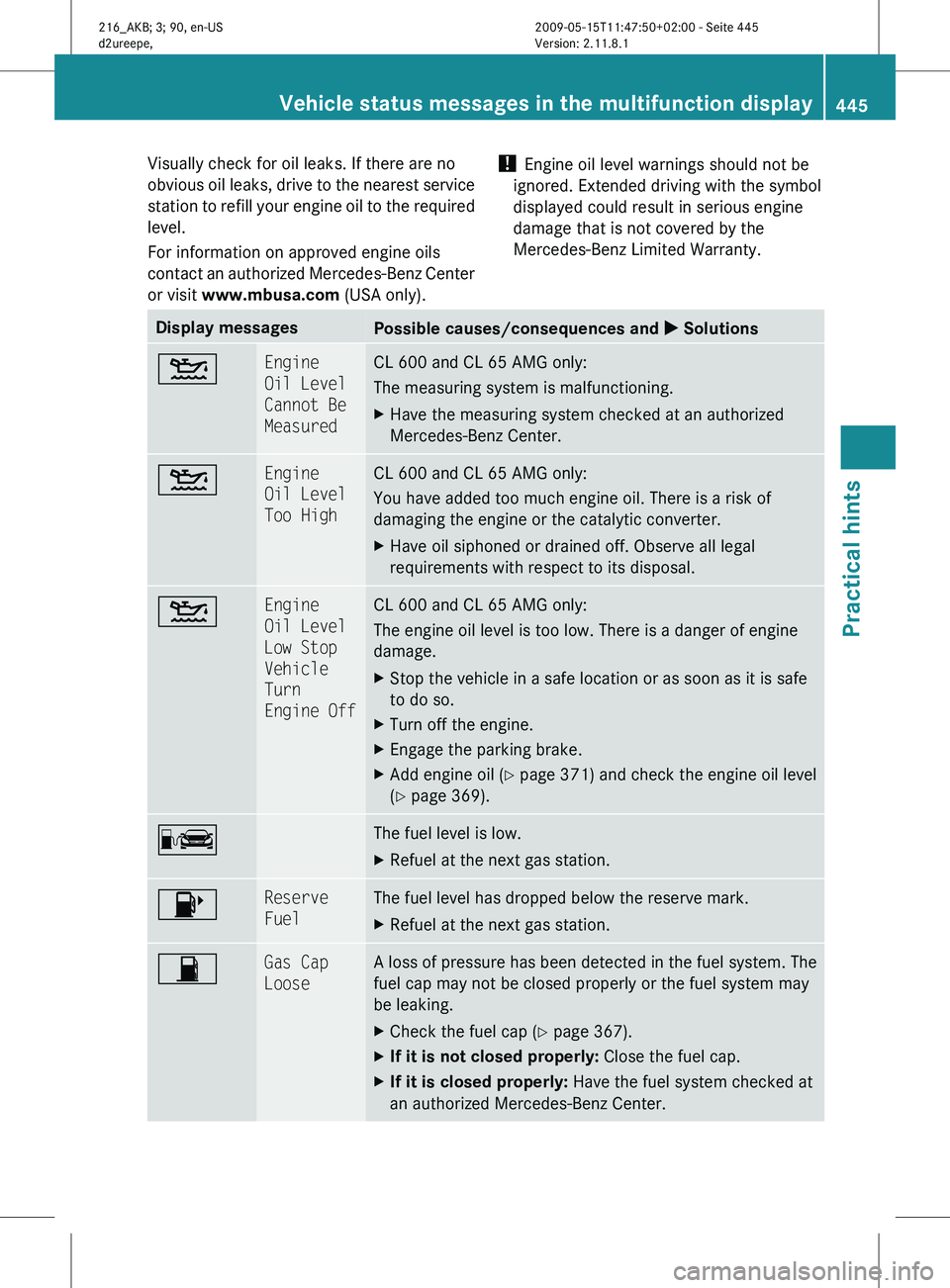

Visually check for oil leaks. If there are no
obvious
oil
leaks, drive to the nearest service
station to refill your engine oil to the required
level.
For information on approved engine oils
contact an authorized Mercedes-Benz Center
or visit www.mbusa.com (USA only). !
Engine oil level warnings should not be
ignored. Extended driving with the symbol
displayed could result in serious engine
damage that is not covered by the
Mercedes-Benz Limited Warranty. Display messages
Possible causes/consequences and
X Solutions4 Engine
Oil Level
Cannot Be
Measured CL 600 and CL 65 AMG only:
The measuring system is malfunctioning.
X
Have the measuring system checked at an authorized
Mercedes-Benz Center. 4 Engine
Oil Level
Too High CL 600 and CL 65 AMG only:
You have added too much engine oil. There is a risk of
damaging the engine or the catalytic converter.
X
Have oil siphoned or drained off. Observe all legal
requirements with respect to its disposal. 4 Engine
Oil Level
Low Stop
Vehicle
Turn
Engine Off CL 600 and CL 65 AMG only:
The engine oil level is too low. There is a danger of engine
damage.
X
Stop the vehicle in a safe location or as soon as it is safe
to do so.
X Turn off the engine.
X Engage the parking brake.
X Add engine oil ( Y page 371) and check the engine oil level
(
Y page 369). C The fuel level is low.
X
Refuel at the next gas station. 8 Reserve
Fuel The fuel level has dropped below the reserve mark.
X
Refuel at the next gas station. 7 Gas Cap
Loose A loss of pressure has been detected in the fuel system. The
fuel cap may not be closed properly or the fuel system may
be leaking.
X
Check the fuel cap ( Y page 367).
X If it is not closed properly: Close the fuel cap.
X If it is closed properly: Have the fuel system checked at
an authorized Mercedes-Benz Center. Vehicle status messages in the multifunction display
445
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 445 Z
Page 448 of 500

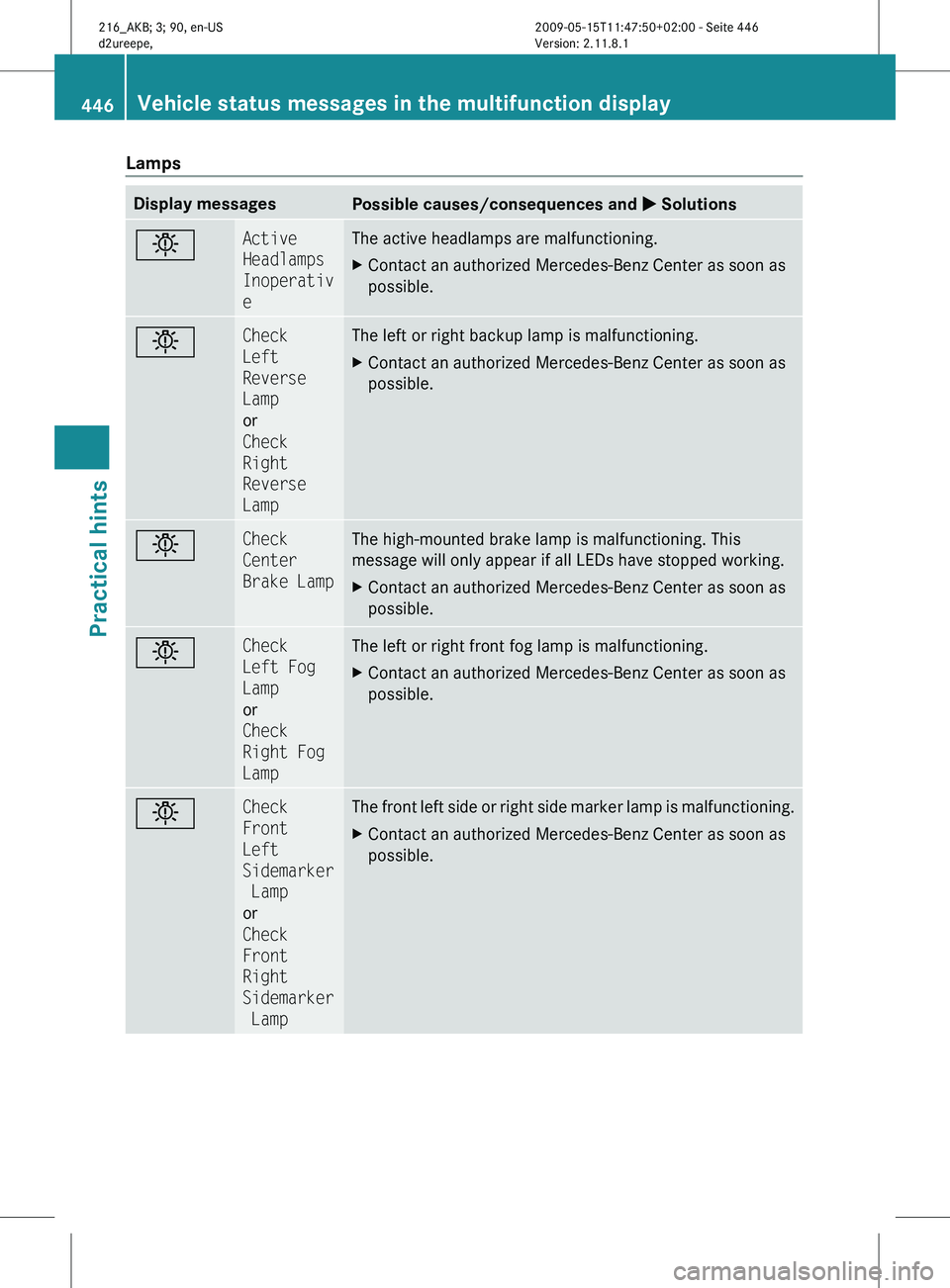

Lamps
Display messages
Possible causes/consequences and
X Solutionsb Active
Headlamps
Inoperativ
e The active headlamps are malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Left
Reverse
Lamp
or
Check
Right
Reverse
Lamp The left or right backup lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Center
Brake Lamp The high-mounted brake lamp is malfunctioning. This
message will only appear if all LEDs have stopped working.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Left Fog
Lamp
or
Check
Right Fog
Lamp The left or right front fog lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Front
Left
Sidemarker
Lamp
or
Check
Front
Right
Sidemarker
Lamp The front left side or right side marker lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. 446
Vehicle status messages in the multifunction displayPractical hints
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 446
Page 449 of 500

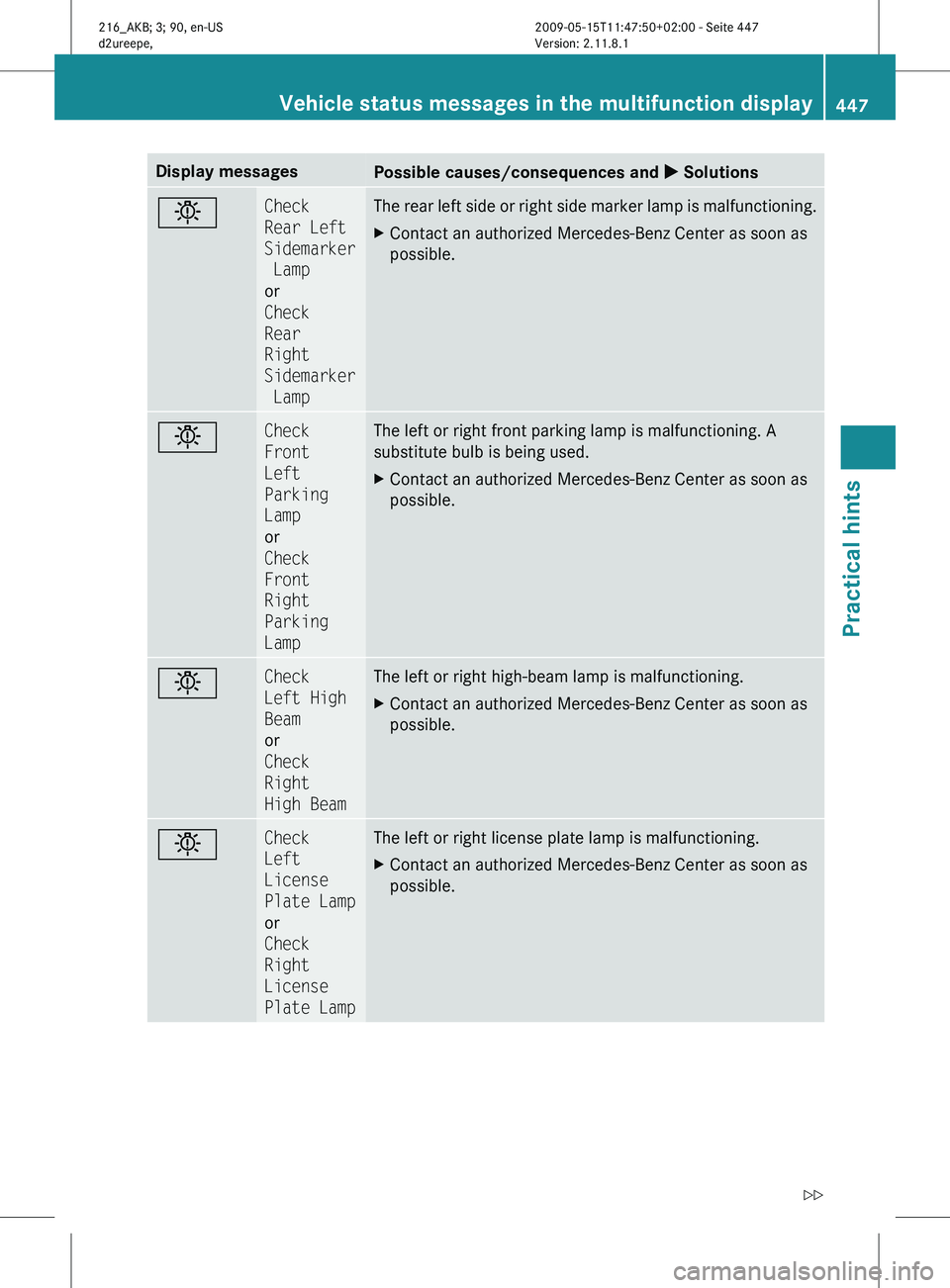

Display messages
Possible causes/consequences and
X Solutionsb Check
Rear Left
Sidemarker
Lamp
or
Check
Rear
Right
Sidemarker
Lamp The rear left side or right side marker lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Front
Left
Parking
Lamp
or
Check
Front
Right
Parking
Lamp The left or right front parking lamp is malfunctioning. A
substitute bulb is being used.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Left High
Beam
or
Check
Right
High Beam The left or right high-beam lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Left
License
Plate Lamp
or
Check
Right
License
Plate Lamp The left or right license plate lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. Vehicle status messages in the multifunction display
447Practical hints
216_AKB; 3; 90, en-US
d2ureepe,Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 447 Z
Page 450 of 500
Display messages
Possible causes/consequences and
X Solutionsb Auto Lamp
Function
Inoperativ
e The light sensor is malfunctioning. The headlamps come on
automatically.
X
Contact an authorized Mercedes-Benz Center as soon as
possible.
To switch off the headlamps (U.S. vehicles only):
X Switch off the daytime running lamp mode in the instrument
cluster control system ( Y page 215).
X Switch off the headlamps using the exterior lamp switch
(Y page 275). b Check
Left Low
Beam
or
Check
Right Low
Beam The left or right low-beam lamp is malfunctioning.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Check
Rear Left
Fog Lamp The rear fog lamp is malfunctioning. A substitute bulb is being
used.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. b Please
Switch
Off Lights You have removed the SmartKey from the starter switch,
opened the driver’s door and left the headlamps on or
removed the SmartKey with KEYLESS-GO from the vehicle
and left the headlamps on.
X
Turn the exterior lamp switch to $ or c
(Y page 275).
or
X With the rear fog lamp switched on: Push in the exterior
lamp switch to its stop. b Check
Left Tail
and Brake
Lamp
or
Check
Right
Tail and
Brake Lamp The left or right tail lamp/brake lamp is malfunctioning. This
message will only appear if a critical number of LEDs have
stopped working. A substitute bulb is being used.
X
Contact an authorized Mercedes-Benz Center as soon as
possible. 448
Vehicle status messages in the multifunction display
Practical hints
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 448
