Vehicle equipment ............................
480
Parts service ..................................... 480
Warranty coverage ...........................480
Identification labels ..........................480
Vehicle specification CL 550
4MATIC (216.386) .............................483
Vehicle specification CL 600
(216.376) ........................................... 483
Vehicle specification CL 63 AMG
(216.377) ........................................... 484
Vehicle specification CL 65 AMG
(216.379) ........................................... 485
Rims and tires ................................... 486
Fuels, coolants, lubricants, etc. ......490 479Technical data
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 479

Vehicle equipment
i This Operator’s Manual describes all
features, standard or optional, potentially
available for your vehicle at the time of
purchase. Please be aware that your
vehicle might not be equipped with all
features described in this manual. Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine Mercedes-Benz
Parts required for maintenance and repair
work. In addition, strategically located parts
distribution centers provide quick and
reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subjected
to stringent quality inspections. Each part has
been specifically developed, manufactured or
selected for and adapted to Mercedes-Benz
vehicles.
Therefore, Genuine Mercedes-Benz Parts
should be installed.
! Do not use non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz. Doing so could damage
the vehicle, which is not covered by the
Mercedes-Benz Limited Warranty. Also, it
could compromise the vehicle’s durability
or safety. Warranty coverage
Your vehicle is covered under the terms of the
warranties printed in the Service and
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties: R
New Vehicle Limited Warranty
R Emission System Warranty
R Emission Performance Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island, and Vermont Emission
Control Systems Warranty
R State Warranty Enforcement Laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which are
available at any authorized Mercedes-Benz
Center. Loss of Service and Warranty
Information booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you. Identification labels480
Identification labelsTechnical data
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 480

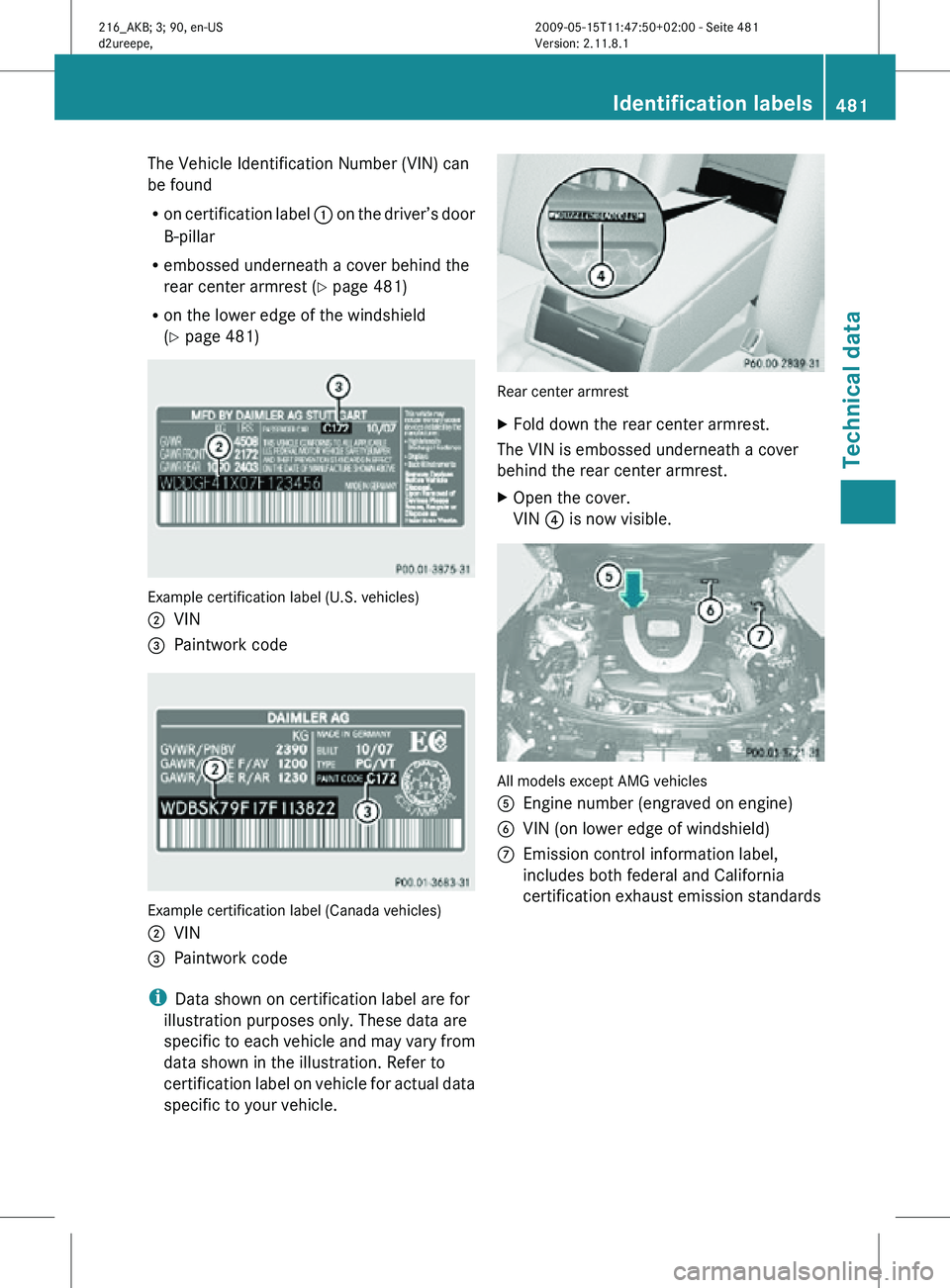

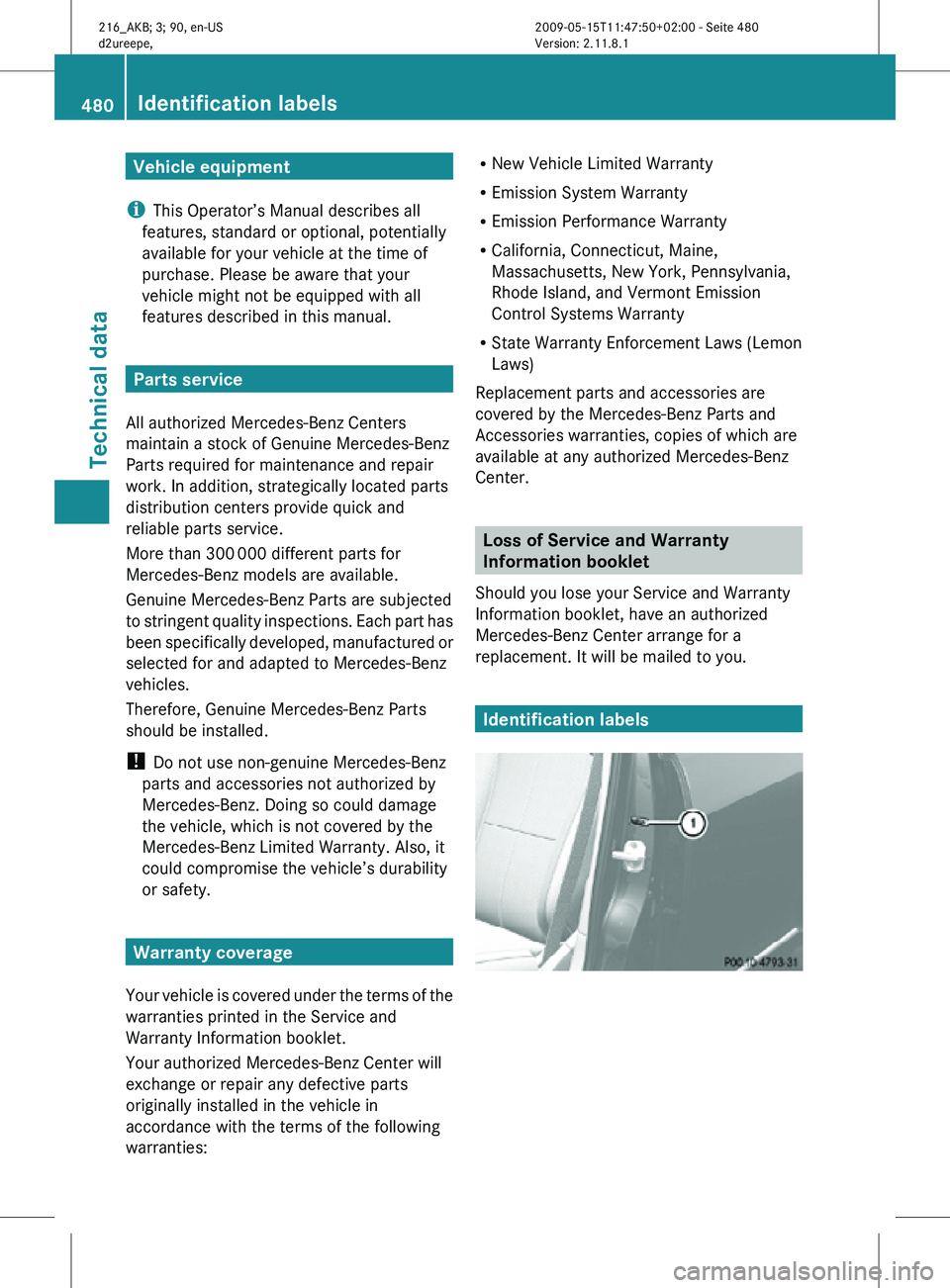

The Vehicle Identification Number (VIN) can
be found
R
on certification label : on the driver’s door
B-pillar
R embossed underneath a cover behind the
rear center armrest (Y page 481)
R on the lower edge of the windshield
(Y page 481) Example certification label (U.S. vehicles)
;
VIN
= Paintwork code Example certification label (Canada vehicles)
;
VIN
= Paintwork code
i Data shown on certification label are for
illustration purposes only. These data are
specific to each vehicle and may vary from
data shown in the illustration. Refer to
certification label on vehicle for actual data
specific to your vehicle. Rear center armrest
X
Fold down the rear center armrest.
The VIN is embossed underneath a cover
behind the rear center armrest.
X Open the cover.
VIN ? is now visible. All models except AMG vehicles
A
Engine number (engraved on engine)
B VIN (on lower edge of windshield)
C Emission control information label,
includes both federal and California
certification exhaust emission standards Identification labels
481Technical data
216_AKB; 3; 90, en-US
d2ureepe, Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 481 Z

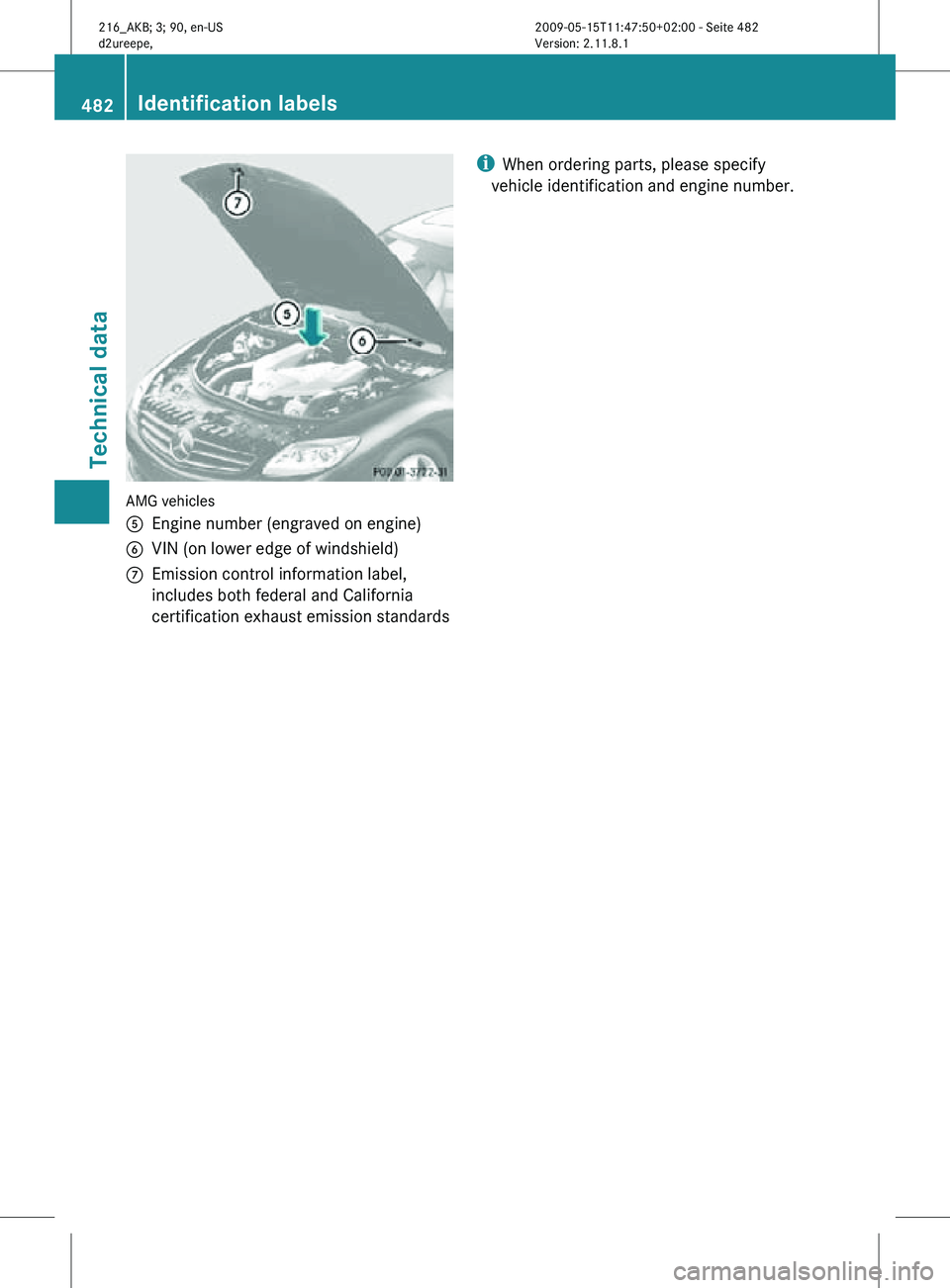

AMG vehicles
A
Engine number (engraved on engine)
B VIN (on lower edge of windshield)
C Emission control information label,
includes both federal and California
certification exhaust emission standards i
When ordering parts, please specify
vehicle identification and engine number. 482
Identification labelsTechnical data
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 482

Vehicle specification CL 550 4MATIC
(216.386)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center
for the corresponding data of all
special bodies and special equipment. Engine CL 550 4MATIC
Engine, type
273
Mode of operation
4-stroke engine,
gasoline injection No. of cylinders
8
Bore
3.86 in (98.00 mm)
Stroke
3.56 in (90.50 mm)
Total piston
displacement
333.3 cu in
(5 461 cm 3
) Compression
ratio
10.7:1
Output acc. to
SAE J 1349
36 382 hp/6
000 rpm
(285 kW/6 000 rpm) Maximum torque
acc.
to

SAE J 1349 391 lb-ft/
2 800 - 4 800 rpm
(530 Nm/
2 800 - 4 800 rpm) Maximum engine
speed
6 500 rpm
Firing order
1-5-4-2-6-3-7-8
Poly-V-belt
2 404 mm
Electrical system CL 550 4MATIC
Alternator
14 V/180 A
Starter motor
12 V/1.7 kW
Battery
12 V/95 Ah Electrical system CL 550 4MATIC
Spark plugs, type
NGK PLKR 7A
Bosch Y 7 MPP33
Spark plugs,
electrode gap
0.031 in (0.8 mm)
Spark plugs,
tightening torque
15 - 18 lb-ft
(20 - 25 Nm) Main dimensions CL 550 4MATIC
Overall vehicle
length
199.7 in (5
071 mm) Overall vehicle
width
37 84.2 in (2
139 mm) Overall vehicle
height
55.8 in (1
418 mm) Wheelbase
116.3 in (2
955 mm) Track, front
63.0 in (1
601 mm) Track, rear
63.3 in (1
607 mm) Turning circle
38.1 ft (11.6 m)
Weights CL 550 4MATIC
Trunk load
max. 220 lb (100 kg)
Vehicle specification CL 600
(216.376)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center

for the corresponding data of all
special bodies and special equipment.
36 Premium fuel required. Performance may vary with fuel octane rating.
37 Exterior rear view mirrors folded out. Vehicle specification CL 600 (216.376)
483
Technical data
216_AKB; 3; 90, en-US
d2ureepe, Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 483 Z

Engine CL 600
Engine, type
275
Mode of operation
4-stroke engine,
gasoline injection No. of cylinders
12
Bore
3.23 in (82.00 mm)
Stroke
3.43 in (87.00 mm)
Total piston
displacement
336.4 cu in
(5 513 cm 3
) Compression
ratio
9.0:1
Output acc. to
SAE J 1349
38 510 hp/5
000 rpm
(380 kW/5 000 rpm) Maximum torque
acc.
to
SAE J 1349 612 lb-ft/
1 800 - 3 500 rpm
(830 Nm/
1 800 - 3 500 rpm) Maximum engine
speed
5 950 rpm
Firing order
1-12-5-8-3-10-
6-7-2-11-4-9 Poly-V-belt
2 370 mm
Electrical system CL 600
Alternator
14 V/220 A
Starter motor
12 V/2.0 kW
Battery
12 V/95 Ah
Spark plugs, type
NGK IFR 6Q-G
Spark plugs,
electrode gap
0.028 in (0.7 mm)
Spark plugs,
tightening torque
15 - 22 lb-ft
(20 - 30 Nm) Main dimensions CL 600
Overall vehicle
length
199.7 in (5
071 mm) Overall vehicle
width
39 84.2 in (2
139 mm) Overall vehicle
height
55.9 in (1
419 mm) Wheelbase
116.3 in (2
955 mm) Track, front
63.0 in (1
601 mm) Track, rear
63.3 in (1
607 mm) Turning circle
38.1 ft (11.6 m)
Weights CL 600
Trunk load
max. 220 lb (100 kg)
Vehicle specification CL 63 AMG
(216.377)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center

for the corresponding data of all
special bodies and special equipment. Engine CL 63 AMG
Engine, type
156
Mode of operation
4-stroke engine,
gasoline injection No. of cylinders
8
Bore
4.02 in (102.20 mm)
Stroke
3.72 in (94.60 mm)
Total piston
displacement
378.8 cu in
(6 208 cm 3
) 38
Premium fuel required. Performance may vary with fuel octane rating.
39 Exterior rear view mirrors folded out. 484
Vehicle specification CL 63 AMG (216.377)
Technical data
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 484

Engine CL 63 AMG
Compression
ratio
11.3:1
Output acc. to
SAE J 1349
40 518 hp/6
800 rpm
(386 kW/6 800 rpm) Maximum torque
acc. to
SAE J 1349 465 lb-ft/5
200 rpm
(630 Nm/5 200
rpm) Maximum engine
speed
7 200 rpm
Firing order
1-5-4-2-6-3-7-8
Poly-V-belt
2 360 mm
Electrical system CL 63 AMG
Alternator
14 V/220 A
Starter motor
12 V/2.1 kW
Battery
12 V/95 Ah
Spark plugs, type
NGK ILZKAR 7A10
Spark plugs,
electrode gap
0.039 in (1.0 mm)
Spark plugs,
tightening torque
18 - 22 lb-ft
(25 - 30 Nm) Main dimensions CL 63 AMG
Overall vehicle
length
200.4 in (5
090 mm) Overall vehicle
width
41 84.2 in (2
139 mm) Overall vehicle
height
56.1 in (1
426 mm) 42 56.2 in (1
428 mm) 43 Wheelbase
116.3 in (2
955 mm) Main dimensions CL 63 AMG
Track, front
63.0 in (1
601 mm) Track, rear
63.3 in (1
607 mm) Turning circle
38.1 ft (11.6 m)
Weights CL 63 AMG
Trunk load
max. 220 lb (100 kg)
Vehicle specification CL 65 AMG
(216.379)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center

for the corresponding data of all
special bodies and special equipment. Engine CL 65 AMG
Engine, type
275
Mode of operation
4-stroke engine,
gasoline injection No. of cylinders
12
Bore
3.25 in (82.60 mm)
Stroke
3.66 in (93.00 mm)
Total piston
displacement
364.9 cu in
(5 980 cm 3
) Compression
ratio
9.0:1
Output acc. to
SAE J 1349
44 603 hp/
4 800 - 5 100 rpm
(450 kW/
4 800 - 5 100 rpm) 40
Premium fuel required. Performance may vary with fuel octane rating.
41 Exterior rear view mirrors folded out.
42 Vehicles with 19 in rims.
43 Vehicles with 20 in rims.
44 Premium fuel required. Performance may vary with fuel octane rating. Vehicle specification CL 65 AMG (216.379)
485
Technical data
216_AKB; 3; 90, en-US
d2ureepe,Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 485 Z

Engine CL 65 AMG
Maximum torque
acc.
to
SAE J 1349 738 lb-ft/
2 000 - 4 000 rpm
(1 000 Nm/
2 000 - 4 000 rpm) Maximum engine
speed
5 950 rpm
Firing order
1-12-5-8-3-10-
6-7-2-11-4-9 Poly-V-belt
2 370 mm
Electrical system CL 65 AMG
Alternator
14 V/220 A
Starter motor
12 V/1.7 kW
Battery
12 V/95 Ah
Spark plugs, type
NGK IFR 6Q-G
Spark plugs,
electrode gap
0.028 in (0.7 mm)
Spark plugs,
tightening torque
15 - 22 lb-ft
(20 - 30 Nm) Main dimensions CL 65 AMG
Overall vehicle
length
200.4 in (5
090 mm) Overall vehicle
width
45 84.2 in (2
139 mm) Overall vehicle
height
56.1 in (1
426 mm) 46 56.2 in (1
428 mm) 47 Wheelbase
116.3 in (2
955 mm) Track, front
63.0 in (1
601 mm) Track, rear
63.3 in (1
607 mm) Turning circle
38.1 ft (11.6 m) Weights CL 65 AMG
Trunk load
max. 220 lb (100 kg)
Rims and tires
Notes
! Only use

tires which have been tested and
approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are developed
to provide best possible performance in
conjunction with the driving safety systems
on your vehicle such as the ABS or the ESC.
Tires specially developed for your vehicle
and tested and approved by Mercedes-
Benz can be identified by finding the
following on the tire’s sidewall:
R MO = Mercedes-Benz Original
equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that
is not covered by the Mercedes-Benz
Limited Warranty.
! Using tires other than those approved by
Mercedes-Benz can have detrimental
effects, such as
R poor handling characteristics
R increased noise
R increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit
dimensional variations and different tire
deformation characteristics that could
cause them to come into contact with the
vehicle body or axle parts. Damage to the
tires or the vehicle may be the result.
i Further information on tires and rims is
available at

any authorized Mercedes-Benz
Center. The Tire and Loading Information
45 Exterior rear view mirrors folded out.
46 Vehicles with 19 in rims.
47 Vehicles with 20 in rims. 486
Rims and tires
Technical data
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 486

placard with the recommended tire
inflation pressures for cold tires is located
on the driver’s door B-pillar. Supplemental
tire inflation pressure information for
driving at high speeds or for vehicle loads
less than the maximum loaded vehicle
condition
can
be found on the tire inflation
pressure label. The tire inflation pressure
label is located on the inside of the fuel filler
flap. The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance
recommendation included with the vehicle.
For information on recommended tire
inflation pressure and supplemental tire
inflation pressure information for special
driving situations, see ( Y page 374).
i Please keep in mind that the vehicle must
be equipped
R with wheels of identical dimensions on
each axle (left and right)
R with tires of identical characteristics all
around, i.e. summer tires, winter tires, or
all-season tires etc.
i The following pages also list the approved
rim and tire sizes for equipping your vehicle
with winter tires. Winter tires are not
available as standard or optional factory
equipment, but can be purchased from an
authorized Mercedes-Benz Center.
Equipping your vehicle with winter tires
approved for your vehicle model may
require the purchase of rims of the
recommended size for use with these
winter tires. This depends on vehicle model
and the standard or optional factory-
equipped wheel rim/tire configuration on
your vehicle. For more information contact
an authorized Mercedes-Benz Center. Rims and tires
487
Technical data
216_AKB; 3; 90, en-US
d2ureepe, Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 487 Z

Same size tires
CL 550 4MATIC
18" wheels Rims (light alloy)
Wheel offset
8.5 J x 18 H2
1.69 in (43 mm)
All-season tires
48,49,50 255/45 R18 99H M+S
Winter tires
48,49,51 255/45 R18 99V M+S
i CL 550 4MATIC (Sport Package)
CL 550 4MATIC (AMG Sport Package)
CL 600
CL 600 (Sport Package)
18" wheels Rims (light alloy)
Wheel offset
8.5 J x 18 H2
1.69 in (43 mm)
Winter tires
48,49,51 255/45 R18 99V M+S
i CL 550 4MATIC
19" wheels Rims (light alloy)
Wheel offset
8.5 J x 19 H2
1.69 in (43 mm)
All-season tires
48,52 255/40 R19 100V XL (Extra Load) M+S
CL 550 4MATIC (AMG Sport Package)
19" wheels AMG rims (light alloy)
Wheel offset
8.5 J x 19 H2
1.69 in (43 mm)
All-season tires
48 255/40 R19 100V XL (Extra Load) M+S
CL 63 AMG
CL 63 AMG (Performance Package)
CL 65 AMG
19" wheels AMG rims (light alloy)
Wheel offset
8.5 J x 19 H2
1.69 in (43 mm)
Winter tires
48,49,51 255/40 R19 100V XL (Extra Load) M+S
i48
Radial-ply tires.
49 For use with snow chains contact an authorized Mercedes-Benz Center.
50 USA only.
51 Not available as factory equipment.
52 Must not be used with snow chains. 488
Rims and tiresTechnical data
216_AKB; 3; 90, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-15T11:47:50+02:00 - Seite 488
