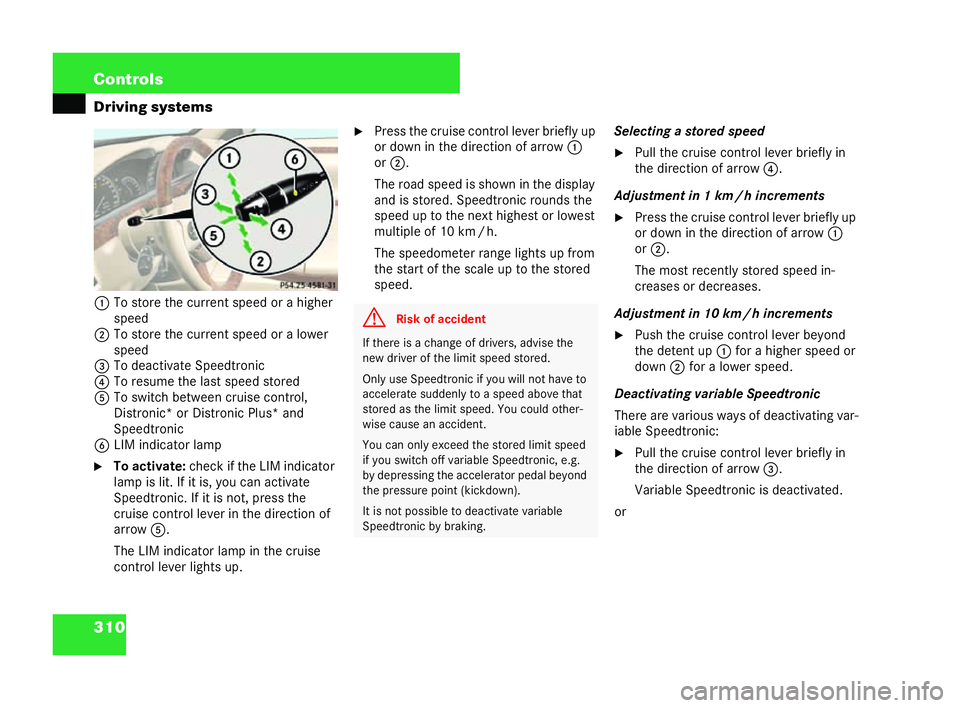

MERCEDES-BENZ CL COUPE 2006 Owners Manual

310 Con
trols
Driving systems
1 To st oreth ecu rre ntspeed orahigher
sp eed
2 To st oreth ecu rre ntspeed oralo wer
sp eed
3 Todeactiv ateSp eedtron ic
4 To resume the last spee dstor ed
5 To swi tchbe twe encruise contr ol,
Distroni c*or Dis troni cPlu s* and
Sp eedtr onic
6 LIM indic ator la mp
6 To activ ate:check ifthe LI Mindi cator
la mp is lit. If it is ,yo uc an acti vate
Sp eedtr onic. If it is not,pr ess the
cr uise co ntro l le verin thed irection of
ar row 5.
Th eLIM in dica tor lamp in the cruise
co ntrol leve rlight sup. 6
Press the cruise contro lle ve rbriefly up
or down in th edirec tion of arrow 1
or 2 .
The road sp eed is sh owninthe disp lay
an d is stored. Speedtron icrou ndsthe
speed up to thene xt highest orlowe st
mult iple of 10 km /h.
The speedo meter ra nge li ghts upfrom
the star t of the scale up to th estored
speed. Sel
ecting astored speed
6 Pullthe cruise co ntro lle ve r brief lyin
the directi onof arrow 4.
Adjust mentin1k m/ h increments
6 Pres st he cruise contr olleve rb riefly up
or down inthe dire ction of arrow 1
or 2 .
Th emo strecen tly st or ed speed in-
cr eases ordecrea ses.
Adjustment in10 km /hincrements
6 Push the cru ise control leve rbe yond
the de tent up 1 fora hi gher speed or
down 2for a lowe rspeed.
De activating variable Speed tron ic
Th ereare variou swa ysof de activating var-
iable Speedtroni c:
6 Pullthe cruise co ntro lle ve r brief lyin
the directi onof arrow 3.
Va riable Spe edtroni cis dea ctivated.
or
P5
4.25- 4581-31 G
Risk of accident If
there is a chang eofdriver s, ad vise the
ne w driver ofthe limi ts pe ed stor ed.
Only useSpeedtron ic if yo uwill noth aveto
accel eratesu dde nlyto a sp eeda bove that
stor edas the limit spee d. You could ot her-
wi se ca usean ac cide nt.
You can on lyex ce ed thes tore dlimit speed
if you switch off variable Speedtron ic,e .g.
by depr essing theac cel erator peda lbeyond
the pres su re point(ki ckdo wn ).
It is not possi ble to deactivate va riab le
Speedt ronicby br aking. 216_
RE_2006-12a.book Seit e310 Montag, 2. Oktob er2006 12:06 12

311
Con
trols
Driving sys tems
6 Push the cruise co ntro lle ve r in the di-
re ction of arrow 5.
Th eLIM indic ator la mpgoes out.
Cr uise contr olor Distr onic* is se lect-
ed.
Va riabl eSpeedtroni cis deacti vated auto-
mat ical ly if you depress the acce lerat or
pe dal beyond thepressure point (kick-
do wn )an d yo urcurre ntdriven spee ddif-
fe rs from thest ored spee d by lessthan
20 km /h.
i The last speed saved is deleted when you
sw itch offth e en gine. Per
manent Speedt ronic 1
Yo uca nuse the on-board comp ute r to per-
man ently li mit the speed to avalue of
16 0 km /hor mor e,e.g. for driving on win-
ter tyr es.
Pe rmane ntSp eedtronic rem ains activ e,
ev en if variabl eSpeedtroni cis de activated.
Yo uca nn ot even ex ceed the set limit
sp eed by depressing th eac celerator pedal
be yond the pressur epoint (kickdo wn). 6
Makesure the key is inpos ition 2in the
ig ni tion lock.
6 Press (or& tosele ct the
"Settings" menu (
=pa ge 286).
6 Press %or$ tosele ct
"SP EEDT RO NIC" .
6 Press #.
6 Press #again.
6 Press %or$ toadjust perma-
ne nt Speedt ronic in in cremen tsof
10 km /h (240km/ hto 160k m/ h).
Pe rmane ntSpeedtronic is deactiv ated
with the "Off" setting.
6 Press #again. HOL
D relieves the stra inon thed river:
! when pullin gaw ay,e specially onsteep
sl op es
! when man oeuvring on stee pslop es
! when wai ting intra ffic
Th evehicl eis kept stat iona ry without the
driver having to depress th ebrake pedal.
The braking effec tis ca ncelle dan d HOLD
deactivated wh enyou depress the ac celer-
at or pedal to pul law ay. Ge
neral activatio nco nd itions
You can activate HOLD whe n:
! the vehicle is stati onary
! the engine isrunning
! theelec tric park ing br ak eis released
! the autom atic tr ansmission is inpo si-
tion R, N orD.Th e boot lid mustbe
clo sedifthe automa tic tra nsmi ssion
is in po sition R.
! thebo nnet isclo sed
! your seat belt is fast ened or, if yo uare
driving faster th an3 km /h,the driver ’s
door isno longe ropen 1N
otavail ab leinall coun trie s. P54.32-3380-31 HOLD
==216_R
E_2006-12a.book Seit e311 Montag, 2. Oktob er2006 12:06 12

312 Con
trols
Driving systems

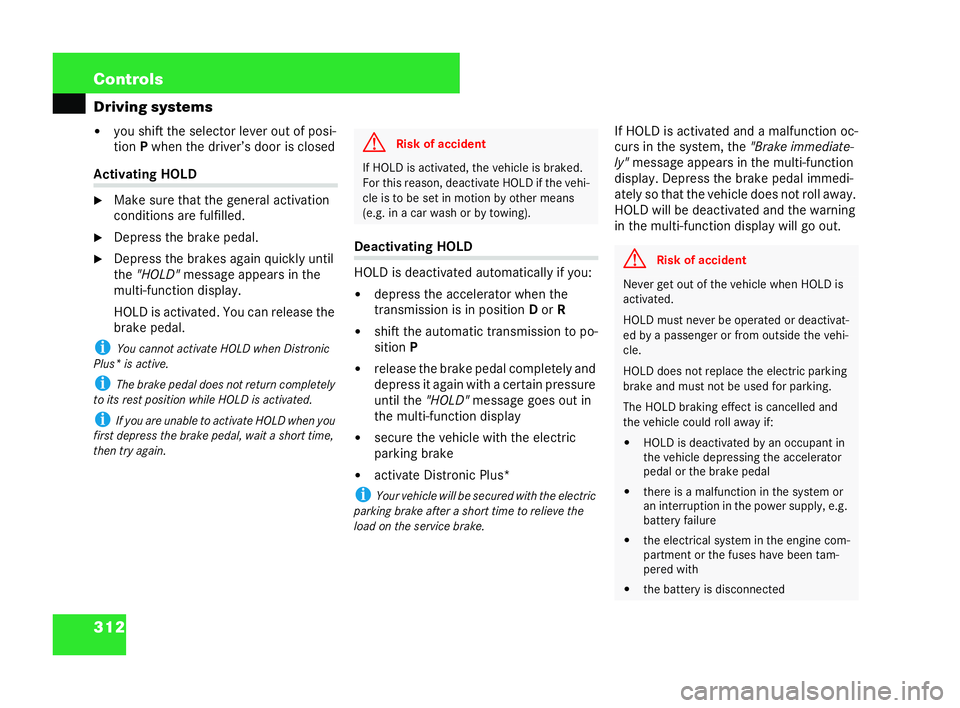

! you shi ftthe sele ctor lever out of pos i-
tion Pwhen th edrive r’s door isclosed Ac
tivatin gHOLD
6 Make sure that the general activation
co nd itio ns arefulfille d.
6 Depr essthebrake pedal.
6 Depress th ebrakes again quickly until
the "HO LD" message appears in the
mu lti-fu nc tio ndisplay.
HOLD isac tiv ated .Yo u can rel easethe
brake ped al.
i Youc annot activ ateHO LD when Dis tronic
Pl us *is ac tive.
i Thebrake pedal doe snot re turn comple tely
to its res tposi tion while HOLD is ac tiva ted.
i Ifyo u are unable toactiva te HO LDwhen you
firs tdepress the bra kepedal, wait a short time,
th en try again. Dea
ctivating HOLD
HO LD is dea ctivated autom atical ly if yo u:
! depress th eac cel erator whe nthe
tra nsmi ssi on isin po sition Dor R
! shiftthe autom atic tr ansm ission to po-
sition P
! release th ebrake pedal comp letely and
depress it agai nwith ace rtain pressure
unt ilthe "HO LD" messag ego es ou tin
the multi-f un ction display
! secure the vehicle with theelectric
parkin g brake
! activate Distronic Pl us*
i Your vehiclew ill be secured with th e elec tric
parking brakeafter a short time toreliev ethe
load on the servic ebrake. If
HO LD isac tiv ated andama lfun ction oc-
cu rs inthesyst em, the"Br ake im mediate-
ly" messag eap pe arsin the mul ti-f un ction
displ ay. Dep resstheb rake pedal im medi-
at elyso that the vehi cle doe snot rol lawa y.
HO LD willbe deactivated and th ewarning
in the multi-fu nc tio ndispl aywillgo out. G
Risk of accident If
HOLD isac tivate d,thev ehic leisbrak ed .
Fo r this reason, deactivate HOLD if the vehi-
cl ei stob eset in moti onbyother me ans
(e .g. in a car wash orby towing ). G
Risk of accident Nev
er ge tou tof the vehi clew henH OLDis
ac tiva ted.
HOLD must ne ver be operated ordeacti vat-
ed by apa ssen geror from outsid eth e veh i-
cl e.
HOLD does notreplac ethe electric parking
br ak ean dmu stno tb eused for pa rking.
Th eHOLD brak ing effect iscancel led an d
th ev ehicle cou ldrol laway if:
! HOLD isdeact ivat ed byan occ upantin
th ev ehicle depr essing thea ccelera tor
peda lor thebr ak e pedal
! there isa malfunction in the system or
an in terrup tion in the power su pply,e .g.
batter yfailure
! theelec tricalsyst emin th e engine com-
par tmentor the fu ses have been tam-
per ed wi th
! the battery isdiscon nected 216_R
E_2006-12a.book Seit e312 Montag, 2. Oktob er2006 12:06 12

313
Con
trols
Driving sys tems Vehicle
level

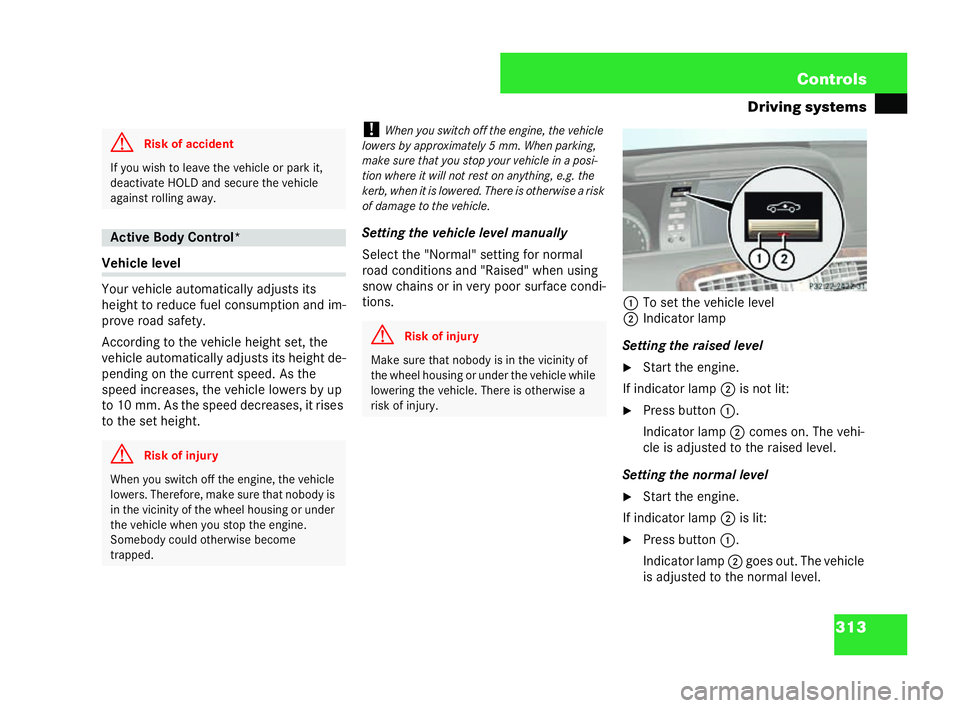

Yo ur vehicle autom atical ly ad justs its
he igh tto reduc efuelco nsumpt ion an d im-
pr ove road safety.
Accord ing to thevehicl eheig htset, the
ve hicle auto matically adjusts its height de-
pe ndi ng on th ecurrent spee d. As the
sp eed incr eas es,the vehicle lo wersby up
to 10 mm. Asthe sp eedd ecreas es ,it rises
to the set he ight. !
When you switch offthe engine, theve hicle
low ers by approximately 5mm. Wh enparking,
ma ke sure that you stop your vehic lein a posi-
ti on where it willno trest on any thing, e.g. the
ke rb, when it islow ered .There isothe rwise a risk
of damage tothev ehicle.
Se ttin g th evehi cle le velm anua lly
Se lect the "Norm al"settingf ornorm al
ro ad cond itions and "Raise d" when using
sn ow chains or invery poor surface cond i-
tion s.
1To se t the vehicle level
2 Indicat orlamp
Settin gthe raised level
6 Startthe engine.
If in dica torlamp 2isno tlit:
6 Pressbutton 1.
Indicat orlamp 2comes on. The vehi-
cle isad justed to th era ised leve l.
Settin gthe norm allev el
6 Startthe engine.
If in dica torlamp 2is lit:
6 Pressbutton 1.
Indicat orlamp 2goes out.The vehicle
is ad justed to the norm allevel. G
Risk of accide nt If
yo u wish to leave the vehicle or park it ,
de activa te HOLD an dse cu re the ve hicle
agains t rollinga way. Ac
tive Bo dyContro l* G
Risk of inju ry When you
switch offth eengi ne,th eve hicle
lo wer s.Th erefor e, ma kesure th atnob odyis
in the vicini tyof the wh eelhousingor under
th ev ehicle when you stoptheengine .
Somebod ycou ldotherw ise become
trap ped. G
Risk ofinju ry Make su
re thatnobod yis in the vicin ity of
th ew heelhous ingo rund erthe vehic lewhile
loweri ngthe vehi cle. There is otherw isea
risk ofinjury. P32.22-2422-31216_R
E_2006-12a.book Seit e313 Montag, 2. Oktob er2006 12:06 12

314 Con
trols
Driving systems
i Theve hicle lev elsetting is also stored aft er
th e engine is res tarted. Su
spens ion tuning

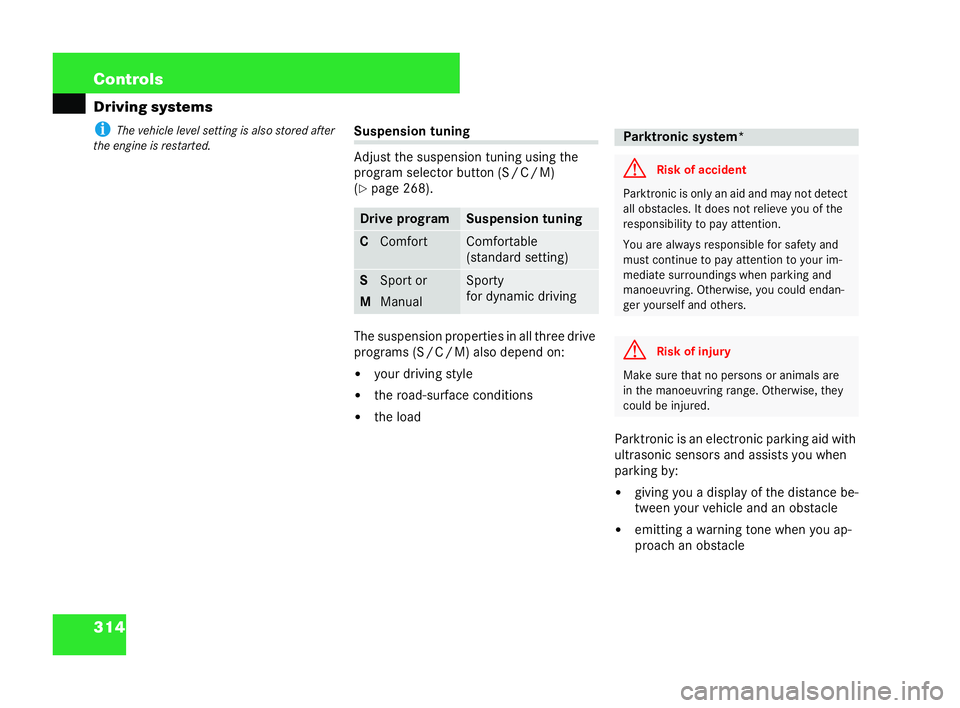

Adju stthesusp ension tuning using the
prog ram select or button (S/C /M )
( = page 268).
Th esuspension prop erties inallthree dri ve
program s(S /C /M )also depend on:
! your driving style
! thero ad -sur face co nditio ns
! the load
Parktronic is an electronicparking aid with
ultr asoni cse nsor san da ssists youwh en
parkin g by:
! giving youa disp layof the dist an ce be-
twe enyour vehicl ean da n ob stac le
! emitting awarning tone when yo uap-
proach an obs tacle Drive progr
am Sus
pensiontun ing C
Com fort Co
mfortable
(s tandard setting) S
Sport or
M Manual Spor
ty
fo r dynam icdri ving Par
ktro nicsyst em* G
Risk of accident Pa
rktroni cis on ly an ai dan dma y no tde tect
all obst acles. Itdo es not relieveyou ofthe
re sp onsibil ity to pay attention.
Yo uar ealways responsible for saf ety and
mus tcont inue topayat tentio nto your im-
med iatesurroundings when parking and
mano euvring. Otherwise, youcould en da n-
ger yoursel fan dot he rs. G
Risk of inju ry Make su
rethat no pe rsons or animals are
in the ma noeuvring ra nge. Ot herwis e,they
co uld be injur ed. 216_R
E_2006-12a.book Seit e314 Montag, 2. Oktob er2006 12:06 12

315
Con
trols
Driving sys tems

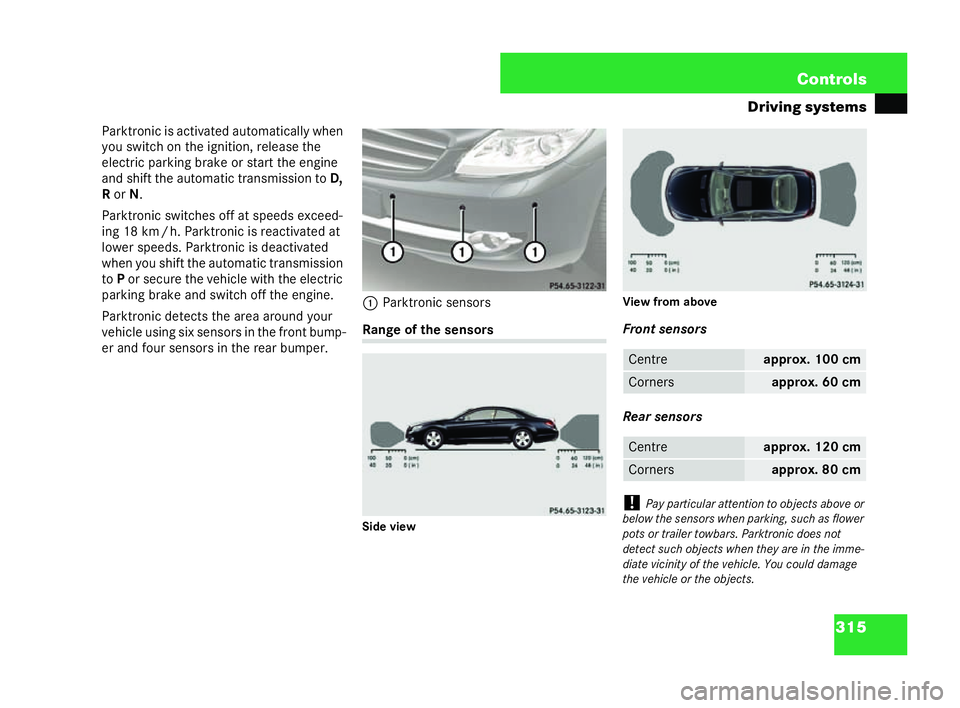

Parktroni cis ac tiva tedau tom atically when
yo u switch on the ignition, releas et he
elec tric park ing br ak eor star t th een gine
an d shi ftthe autom atic tr ansmission to D,
R or N.
Pa rktro nicsw itcheso ffat speeds exceed-
in g 18 km /h.Par ktro nicis reac tiva ted at
lo wer speeds. Pa rktronic is deactiv ated
whe nyou shift th e automatic tr ansm ission
to Por secur eth eve hicle with th e elect ric
pa rki ng brake andsw itcho fftheengine.
Parktroni cdetects th ear ea around your
ve hicleu sing six sens ors in the fr ont bump-
er and four sens ors in there ar bumper. 1

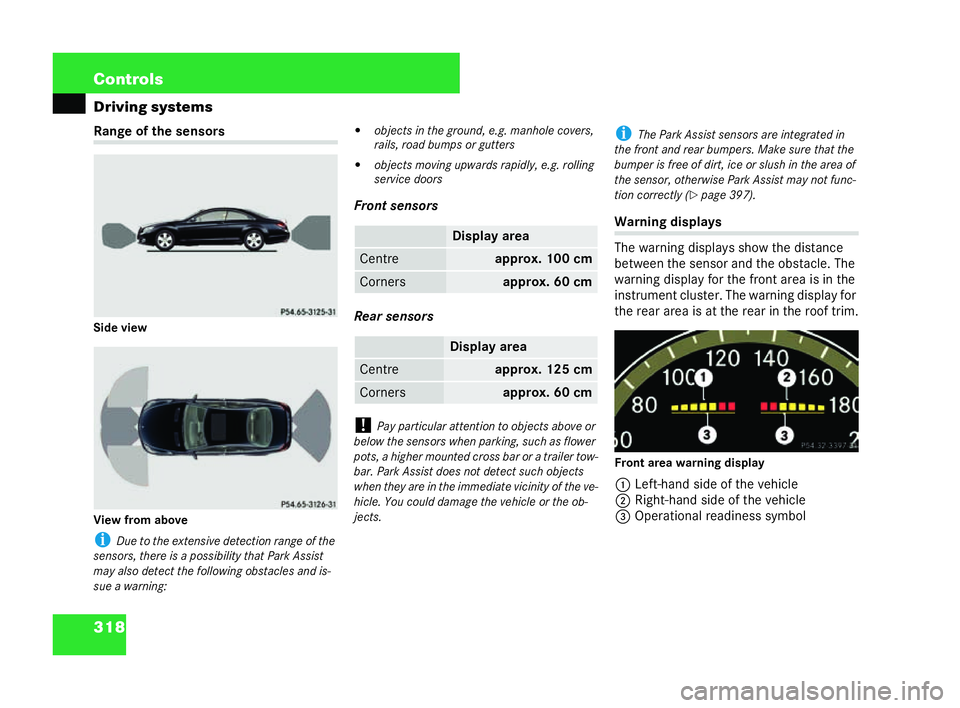

Parktroni cse nsors Range of the
sensors
Side view Vi
ew from above
Fro ntsen sors
Rear se nsors
! Pay par ticular at tent ion toobj ects above or
be low thesensors when parking ,suc has flower
pot sor trail er towb ars.Pa rktronic does not
det ectsu ch obj ects when they are in the im me-
diate vic inity of theve hicle. Yo ucould dam age
th eve hicle or theo bjec ts.
P54.65-3122-31
P54.65-3123-31 Centre approx.
100cm Cor
ners ap
prox. 60 cm Centre app
rox. 120 cm Cor
ners ap
prox. 80 cm P5
4.65-3124-31 216_
RE_2006-12a.book Seit e315 Montag, 2. Oktob er2006 12:06 12

316 Con
trols
Driving systems
Ul trason icsou rces such as a lorry ’scom-
pres sed-air brake s,apneu matic drill oran aut o-
mat iccar was hco uld cau sePar ktronic to
malfun ction.
i The se nsors mustbe freefrom dirt ,ice and
slu sh,ot he rwise they are not abl eto work prop-
erly .Clean thesenso rs regularl y,taking care not
to sc ratch or da mage them.
Mi nimum dist an ce
Al lwa rnin g displays light upandawa rning
tone sound sif th erei san obsta clew ithin
this ra nge.Ifyo ur vehicle’ sdis tanc ef alls
below the minim umdista nce, it sco nti nued
ap proa chwillno longer beshown. Warning
displays
The warnin g displays sh owthedist an ce
between the bump erand the obsta cle. Th e
wa rning display fo rthe fr ontarea is inthe
ins trumen tcl us ter. The warni ngdisplay for
th e rea rareais at the re arin the roof trim. Fr
ont area warni ng display
1 Left-h an dside of the ve hicle
2 Righ t-ha ndside of th evehicle
3 Oper ationa lre adin ess sy mbol
Th ewarn ingdi sp layfo r ea chside of the ve-
hicl eisdivided into five yellow and two red
segments. Parktro nicis op era tion alif yel-
lo w info rm ation displ ays3 under the seg-
ments li ghtu p.
Th etra nsmi ssion pos itio n de termines
whic hwarning displ ayisac tive: One
ormo resegm ents ligh tupas thev ehi-
cl ea pproaches an obstacle, depending on
the vehicle’ sdista nc efrom the obstacle.
Wh en the firs tre dse gm entlight sup,
yo uw illhe ar an inte rmitten twa rnin gsignal
fo ra pproxi mately two se conds. After the
se co nd red segm ent lights up, you wil lhear
a co ntinuo us warning sig nal.Yo uha ve
rea che d th eminim um dista nce. Centre ap
prox. 20 cm Cor
ners ap
prox. 15 cm P54.32-3397-31 Autom
atic
tr an sm is-
si on in Wa
rnin gdi splay D Fr
ont area activated R Fr
ont and rear areas act i-
va ted N Wi
th the el ectric parki ng
brake applied: no areas
ac tiv ated.
Wi th the el ectric parki ng
brake released: front and
re ar ar easact ivat ed P No
areas activat ed 216_R
E_2006-12a.book Seit e316 Montag, 2. Oktob er2006 12:06 12

317
Con
trols
Driving sys tems Deactivating
/activa ting
1 Toswitch Parktroni con or off
2 Indic ator la mp
6 Press button 1.
Pa rktroni cis deacti vated if ind icat or
lamp 2islit.
!Youm ustdeac tivatetheradar sens or sys-
te m in certain count riesand near radio ast ro-
nomic alins talla tions (
=pag e287).
Par k As sist is an electro nic park ing aid
with radar sens orsan d assists you wh en
parki ngby: !
giving youadi splay ofthe di stan ce be-
twe en yo urvehicl ean dan obs tacle
! giving youa wa rning tone whenyouap-
proach anobs tacle
Pa rk Ass isti sau tom atically activa ted
when th een gine isrunning and yous hift
the autom atic tr ansmission selector lever
to D, R orN.
Pa rk Ass isti sde activated atspee dsex-
ceed ing 18 km /h.Pa rk Assist is reac tiva t-
ed at lowe rsp eeds.
Park Assist is also deact ivat ed when you
shi ftthe autom atic tr ansm ission to Por
swit ch off theen gine.
Wh enthe tra nsmi ssioni sin po sition N,
Pa rkAss isti sdeactivated when you se cure
the vehicle usingthe electri cparki ng
brake.
Park Assist detectsth ear ea around your
ve hicle using four sensor s inthef ront
bu mp erand two sensor sinthe rear bu mp-
er.
P5
4.65-3230-31 Pa
rk Assist * G
Risk ofaccide nt Pa
rkAs sis tis only an ai dand ma y no tde tect
all obstacl es.Pa rk Assist may not be abl eto
de tect an object cor rectly ne ar corn ers or
ve ry sm ooth su rfac es.Pa rk Assist does not
reli eve youo fthe res ponsibilit yto pa yatten-
tion.
Yo uare always responsib lefor safety and
mu st continu eto pay attentio nto your im-
medi atesu rroundi ngswh en pa rking an d
ma noe uvring .O therwi se ,yo ucou lden da n-
ger yoursel fan dot hers. G
Risk ofinju ry Make su
re thatno pe rsons or ani mals are
in the manoe uvring rang e. Ot herw ise, they
cou ldbe inju re d. 216_
RE_2006-12a.book Seit e317 Montag, 2. Oktob er2006 12:06 12

318 Con
trols
Driving systems Ra
ngeof the sensors
Side view
Vi ew from above
i Dueto the extensive de tection ra nge of the
sen sors, there is a possibili tythat Park Assist
may also det ectth efo llowing obstacles and is-
su e a warnin g: !
objects intheg round, e.g. manhole covers,
rail s,road bumps or gut ters
! object sm oving upwards rapidly ,e.g. rolling
service doors
Fro ntsen sors
Rear sens ors
! Pay par ticular at tent ion toobj ects above or
belo wthe sensors when parkin g,suc has flower
pot s,ah ighe rmo unte dcr os sba ro ratr ailer tow-
bar. Park Assist does notdetec tsuc hobje cts
when they are in theimme diate vic inity of the ve-
hi cle. You could dam ageth e ve hicle or the ob-
jects. i
ThePark Assist sensors are inte grated in
th ef ront and rear bump ers. Ma kesure that the
bumper isfree ofdirt ,ice or slush in thear ea of
the senso r,otherwise Park Assis tma yno t fu nc-
ti on corre ctly (
=page 397). Warn
ingdi sp lays
Th ewa rning di splays show thedist an ce
betwee nthe sensor and the obsta cle. The
wa rning displ ayfor the front area isin the
in st rum entcl uste r.Th ewarning dis play for
th ere ar ar eaisat the re arin th eroof trim.
Fr ont area warning disp lay
1 Left-h an d side of the veh icle
2 Right-h andside ofthev ehicle
3 Operationa lre adin ess sy mbol
P54.65-3125-31
P54.65-3126-31 Display
area Centre approx.
100cm Cor
ners ap
prox. 60 cm Display
area Centre approx.
125cm Cor
ners ap
prox. 60 cm P54.32-3397-31216_R
E_2006-12a.book Seit e318 Montag, 2. Oktob er2006 12:06 12

319
Con
trols
Driving sys tems
Th e war ning disp layforea ch sideof th eve-
hicl e is divid ed into five yell ow and two red
se gm ents. Park Assis tis op era tiona lif ye l-
lo w info rmationdi sp lays 3underth ese g-
men tslight up.
Th e tra nsmi ssio npositio ndeter mines
wh ich wa rning display is activ e:One or
moresegm ents light upasthe veh i-
cl e ap proa chesan obst acle, depending on
the vehicle’ sdis tanc efro mthe obsta cle.
Wh en the first red seg ment lights up,
yo uw illhe ar an inte rmitten twarning sign al
fo rap proxim atelytwo seconds .After the
se co nd red segment lights up, you will hear
a co ntinuous warning sign al.Yo uha ve
re ac hed the minimum di stanc e.
i The warning display sand warningto nes may
be triggered as a result of heavy rain, e.g .by wa-
ter running of fin the area around thesenso rs. Collision
warning
Par kAs sist ca ndetect object sfrom aco n-
si derable dista nce. If you reverse towards
an obsta cle, youwi llhe ar awa rning. You
mu stthen brake to avoid acollision .The
co llisio nwarning does notso und if yo uare
ver yclo seto the ob stac le.Yo u will th en
hear the relevant warning tone fort he
wa rning display inther earar ea.
i Aco llision war ning ma ybetriggered as a re-
sult of heavyrain, e.g. by water running off in the
area arou ndthes ensors. De
acti vatin g/activa ting
1 Todeactiv ate/ activ ate Park Ass ist
2 Indicat orlamp
6 Pressbutton 1.
Park Ass isti sde activated if ind icat or
la mp 2islit. Aut
omatic
tran smis-
sion in Warning
display D Fr
ont area activ ated R Fr
ont and re arareas acti-
vated N Wi
th the electri cparking
brake appli ed:no areas
ac tivated.
Wi th the electri cparking
brake rel eased:front and
rear area sa ctivat ed P No
area sa ctivat ed P5
4.65-3230-31 216_
RE_2006-12a.book Seit e319 Montag, 2. Oktob er2006 12:06 12
