388 Cleaning and care of the vehicle
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar careIndex
Seat belts
The webbing must not be treated with chemical
cleaning agents. Use only clear, lukewarm water and
soap. Do not dry the webbing at temperatures above
176
°F (80
°C) or in direct sunlight.
Headliner and shelf below rear window
Clean with soft bristle brush, or use a dry-shampoo
cleaner in case of excessive dirt.Leather upholstery
Using aftermarket seat covers or wearing clothing that
have the tendency to give off coloring (e.g. when wet
etc.) may cause the upholstery to become permanently
discolored. By lining the seats with a proper
intermediate cover, contact-discoloration will be
prevented.
Wipe leather upholstery with a damp cloth and dry
thoroughly or clean with Mercedes-Benz approved
Leather Care. Exercise particular care when cleaning
perforated leather as its underside should not become
wet.
Hard plastic trim items
Pour Mercedes-Benz approved Interior Care onto soft
lint-free cloth and apply with light pressure.
Plastic and rubber parts
Do not use oil or wax on these parts.
Wa r n i n g !
Do not bleach or dye seat belts as this may severely
weaken them. In a crash they may not be able to
provide adequate protection.
J_OM_215.book Seite 388 Mittwoch, 30. Mai 2001 2:01 14

389 Contents - Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Technical dataSpare parts service ........................390
Warranty coverage .........................390
Identification labels ....................... 391
Layout of poly-V-belt drive ............393
Technical data ................................394
Fuels, coolants,
lubricants etc. - capacities .......399
Engine oils ...................................... 401Engine oil additives ...................... 401
Air conditioner
refrigerant ................................. 401
Brake fluid ...................................... 401
Premium unleaded
gasoline ...................................... 402
Fuel requirements ........................ 402
Gasoline additives ......................... 403
Coolants .......................................... 403
Consumer information ................. 405
J_OM_215.book Seite 389 Mittwoch, 30. Mai 2001 2:01 14

390 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
which damage is not covered by the Mercedes-Benz
Limited Warranty or compromise its durability or safety.Wa r r a n t y c o v e r a g e
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission system warranty
3. Emission performance warranty
4. California, Massachusetts, and Vermont emission
control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information Booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.
J_OM_215.book Seite 390 Mittwoch, 30. Mai 2001 2:01 14

391 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Identification labels

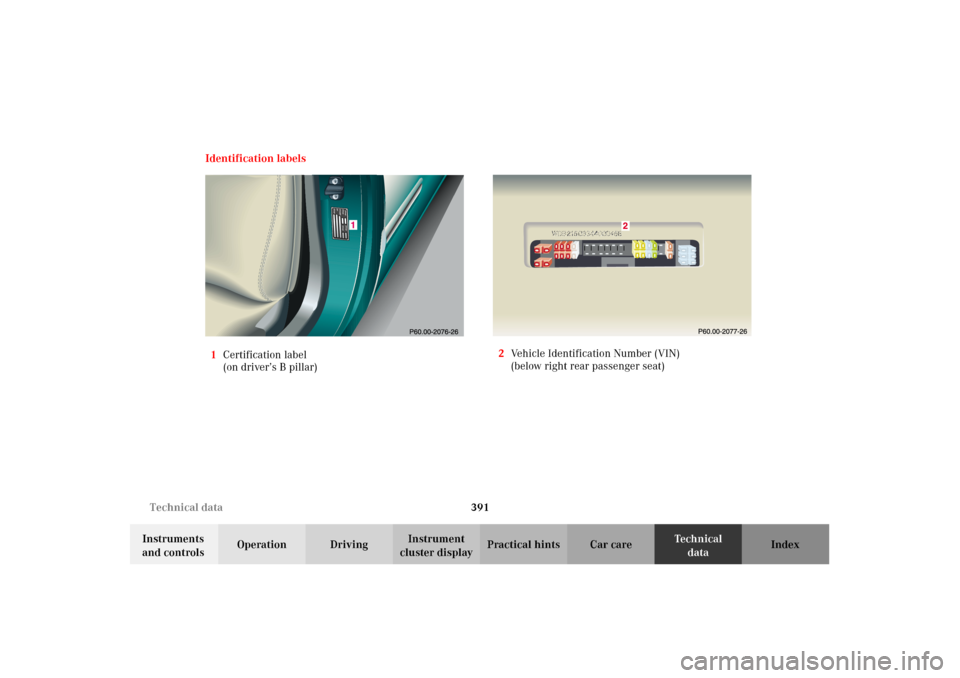

1Certification label
(on driver’s B pillar)2Vehicle Identification Number (VIN)
(below right rear passenger seat)
J_OM_215.book Seite 391 Mittwoch, 30. Mai 2001 2:01 14

392 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

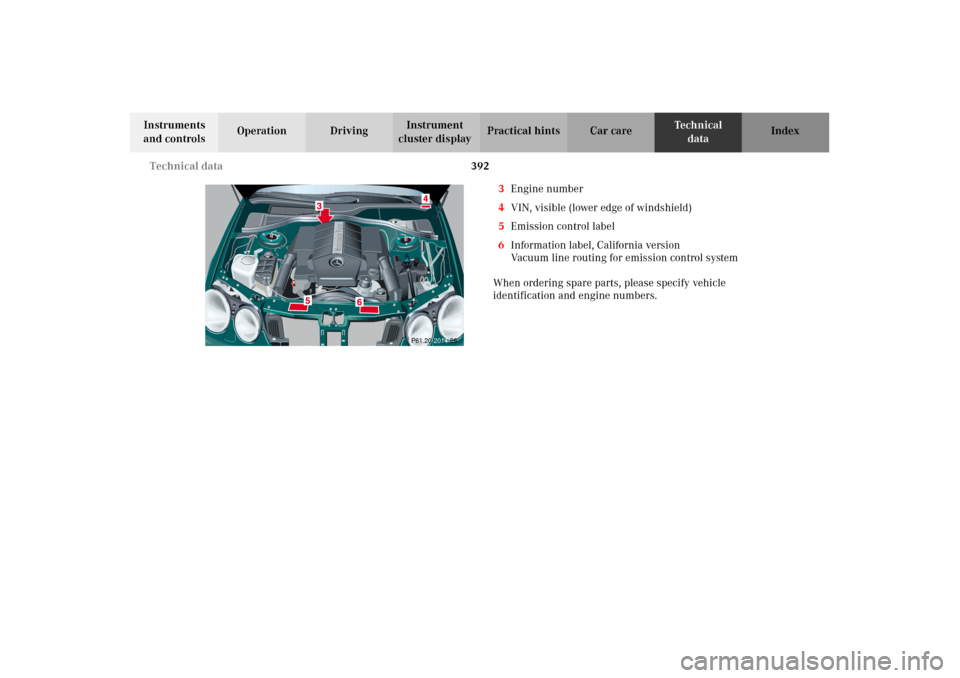

3Engine number
4VIN, visible (lower edge of windshield)
5Emission control label
6Information label, California version
Vacuum line routing for emission control system
When ordering spare parts, please specify vehicle
identification and engine numbers.
P61.20-2014-26
J_OM_215.book Seite 392 Mittwoch, 30. Mai 2001 2:01 14

393 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Layout of poly-V-belt drive

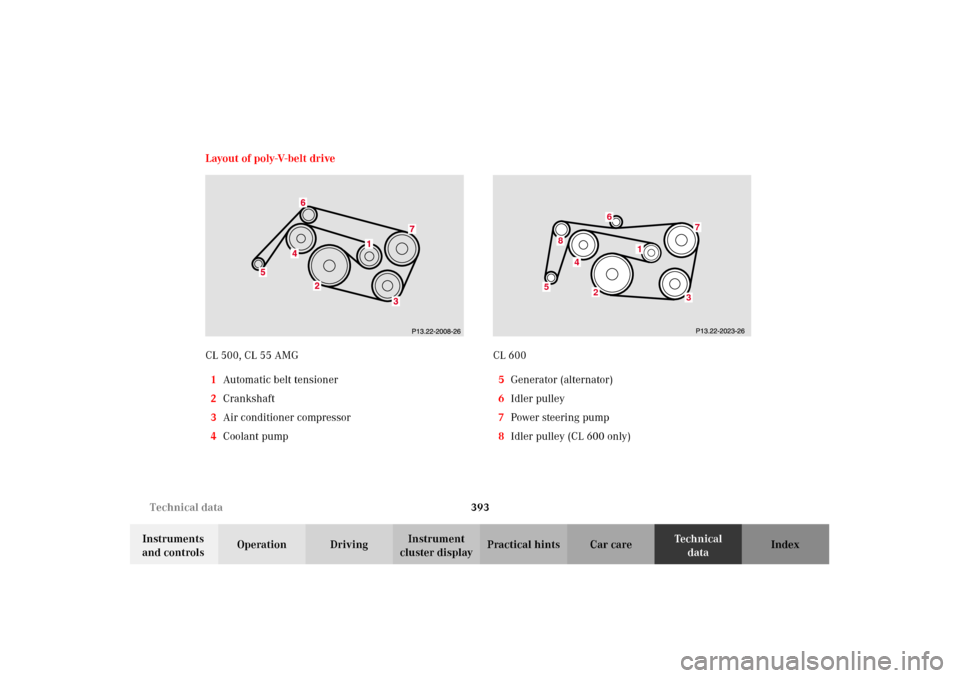

CL 500, CL 55 AMG
1Automatic belt tensioner
2Crankshaft
3Air conditioner compressor
4Coolant pumpCL 600
5Generator (alternator)
6Idler pulley
7Power steering pump
8Idler pulley (CL 600 only)
8
5
1
2
3
6
7
4
J_OM_215.book Seite 393 Mittwoch, 30. Mai 2001 2:01 14

394 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Te ch n i c a l d a t a
Model CL 500 (215.375
1)CL 55 AMG (215.373
1)CL 600 (215.378
1)
Engine 113 113 137
Mode of operation 4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection
No. of cylinders8812
Bore 3.82 in (97.00 mm) 3.82 in (97.00 mm) 3.31 in (84.00 mm)
Stroke 3.31 in (84.00 mm) 3.60 in (92.00 mm) 3.43 in (87.00 mm)
Total piston displacement 303.5 cu.in. (4966 cm
3) 332.0 cu.in. (5439 cm
3) 353.6 cu.in. (5786 cm
3)
Compression ratio 10:1 10.5:1 10:1
Output acc.
to SAE J 1349302 hp/5500 rpm
(225 kW/5500 rpm)355 hp/5500 rpm
(265 kW/5500 rpm)362 hp/5500 rpm
(270 kW/5500 rpm)
Maximum torque acc.
to SAE J 1349339 ft-lb/2700 rpm
(460 Nm/2700 rpm)390 ft.lb/3150 rpm
(530 Nm/3150 rpm)391 ft-lb/4100 rpm
(530 Nm/4100 rpm)
Maximum engine speed 6000 rpm 6000 rpm 6000 rpm
Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8 1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt 2390 mm 2390 mm 2335 mm
