99 Controls in detail
Locking and unlocking

Pull remote trunk lid switch2 until
trunk begins to open.
The trunk lid opens. The indicator
lamp1 comes on and remains lit until
the trunk is closed.The trunk can also be opened using the
SmartKey (
page 90) or from its inside in
an emergency, see “Trunk lid emergency
release” (
page 103).
Limiting opening height of trunk lid
The trunk lid opening height can be limited
when transporting goods on a roof rack
(e.g. presence of an MB sport luggage con-
tainer*). When activated, the trunk lid
opens to approximately the height of the
roof edge.
You can activate the limiting opening
height of trunk lid using the control system
(
page 153).
Closing from the inside

Press remote trunk lid switch2
(page 98) until the indicator lamp1
goes out and trunk lid is closed.
To interrupt the closing procedure:

Release remote trunk lid switch2.If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high) in the upper motion
sequence, the closing procedure is
stopped and the trunk reopens slightly.
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.
To stop the opening procedure, press
or pull the remote trunk lid switch.iIf the trunk lid does not open, it is still
locked separately (if applicable)
(page 104).
If the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally when closed (
page 98). The
turn signal will flash three times to con-
firm locking.
Warning!
G
Maintain sight of trunk area while operating
the door mounted switch. Monitor the clos-
ing procedure carefully to ensure that no
one is in danger of being injured.
To interrupt the closing procedure, release
the door mounted remote trunk lid switch.
Even with the SmartKey removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the remote trunk lid switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.

219 Controls in detail
Loading
Loading
Roof rack* Preparing roof rack installation

Open trim at the trim strips in the roof.

Secure the roof rack according to man-
ufacturer’s instructions for installation.
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the vehicle capacity weight as
indicated on the corresponding label locat-
ed on the driver’s door pillar.
Warning!
G
Use only roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle. Follow manu-
facturer’s installation instructions.
!Load the roof rack in such a way that
the vehicle cannot be damaged while
driving.
Make sure

you can fully raise the sliding /
pop-up roof


you can fully open the trunk

247 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures.


Remove unnecessary loads.


Remove roof rack when not in use.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the Service
Booklet and as required by the FSS.
Contact an authorized Mercedes-Benz
Center.
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips and in hilly country.
Drinking and driving
PedalsPower assistance
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgement.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Keep driver’s foot area clear at all times. Ob-
jects stored in this area may impair pedal
movement.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.

371 Technical data

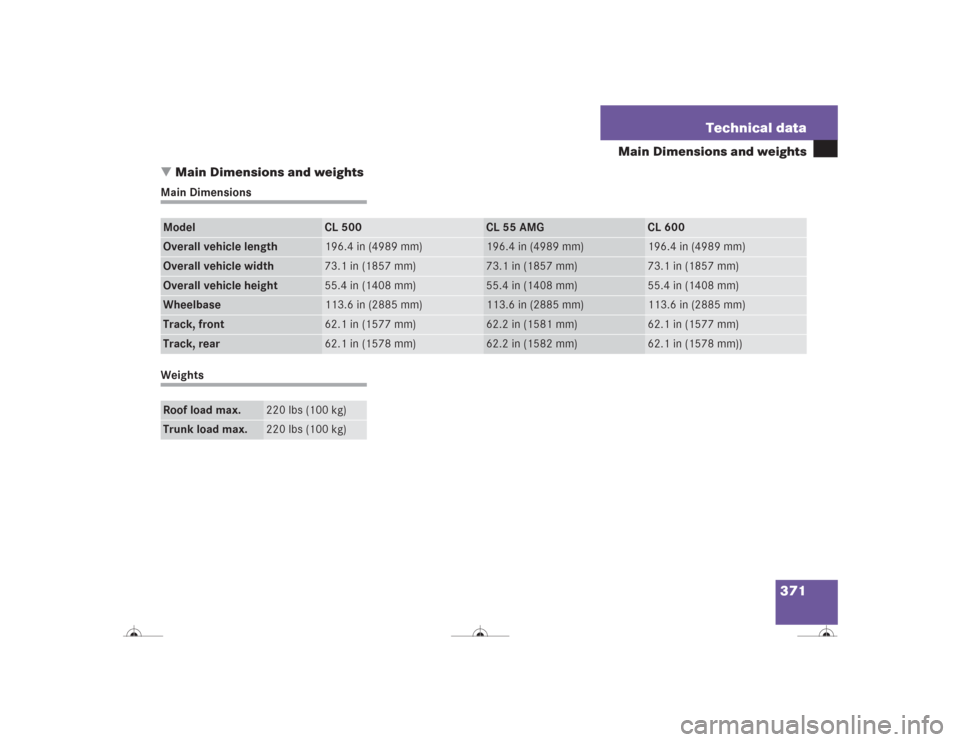

Main Dimensions and weights
Main Dimensions and weights
Main DimensionsWeightsModel
CL 500
CL 55 AMG
CL 600
Overall vehicle length
196.4 in (4989 mm)
196.4 in (4989 mm)
196.4 in (4989 mm)
Overall vehicle width
73.1 in (1857 mm)
73.1 in (1857 mm)
73.1 in (1857 mm)
Overall vehicle height
55.4 in (1408 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
Wheelbase
113.6 in (2885 mm)
113.6 in (2885 mm)
113.6 in (2885 mm)
Track, front
62.1 in (1577 mm)
62.2 in (1581 mm)
62.1 in (1577 mm)
Track, rear
62.1 in (1578 mm)
62.2 in (1582 mm)
62.1 in (1578 mm))
Roof load max.
220 lbs (100 kg)
Trunk load max.
220 lbs (100 kg)
