MERCEDES-BENZ CL500 2007 C216 Owner's Manual

200 Control systems
COMAND navigation system (route guidance)
During route guidance, the display is divid-
ed. On the right-hand side you will see the
direction arrow showing the compass
heading to the destination.
On the left-hand side of the display you will
see the map with the suggested route. The
suggested route is highlighted blue. How-
ever, it may not be possible to follow the
suggested route because, for example, the
road is closed or not open for car traffic.
If, during route guidance, COMAND leads
you back into a fully digitalized area, route
guidance will simply continue in the usual
manner.Off-road and off-map
Route guidance to an off-road destina-
tion
COMAND can guide you to destinations
within the area covered by the digital map,
even if a destination is not located at a
road known to the system.These destinations are shown as off-road
destinations, which you can enter using
the map, for example.
In these cases, COMAND guides you for as
long as possible with navigation announce-
ments and displays on roads known to the
system.
Shortly before you reach the last known
the point to leave the digitized road net-
work, you will hear the announcement “The
destination is nearby. Follow the arrow on
the display”.
You will then see an arrow that indicates
the direction to the off-road destination.
When the off-road destination is close to
the road, “Area of dest. reached” appears
in addition below the arrow.
The section of the route from the last
known point on the map to the off-road
destination is indicated with a dashed line
after a certain length. It simply shows the
direction to the off-road destination with-
out taking account of any type of obstacles
in the way.
Warning!G
The COMAND navigation system may direct
you to off-road routes that your vehicle may
not be capable of traversing through without
damaging your tires, wheels or vehicle. It is
the driver’s sole responsibility to determine
the suitability of the route. Off-road routes
may be of varying conditions and their ap-
propriateness for use may be affected by
various factors such as time of day, time of
year and immediate weather conditions that
cannot be judged or taken into consider-
ation by the COMAND system.

201 Control systems
COMAND navigation system (route guidance)
1Current vehicle position; the triangle in-
dicates the vehicle’s direction of travel
2Off-road section of the route
3Off-road destination
4Direction arrow, shows compass head-
ing to destination
On the off-road section of the route, direc-
tion arrows showing the compass heading
to the destination guide you. You will also
see the “Direction to destination” display.Route guidance from an off-road loca-
tion to a destination
If there is no road available on map at cur-
rent position of the car, vehicle is off road.
C O M A N D i s a l s o a b l e t o g u i d e y o u t o a d e s -
tination from such a location.
At the start of the route guidance, you will
see the “Off Road” message and a direc-
tion arrow. The direction arrow shows the
compass heading to the actual destina-
tion.
The route is highlighted blue from the near-
est road known to the system.
As soon as the vehicle is back on a road
known to the system, route guidance con-
tinues in the usual way.
Route guidance from an off-map loca-
tion to a destination
If the vehicle position is outside the area
covered by the digital map, then the vehi-
cle is in an off-map location.
C O M A N D i s a l s o a b l e t o g u i d e y o u t o a d e s -
tination from such a location.At the start of the route guidance, you will
see the “Off Map” message and a direction
arrow. The direction arrow shows the com-
pass heading to the actual destination.
The route is highlighted blue from the near-
est road known to the system.
As soon as the vehicle is back on a road
known to the system, route guidance con-
tinues in the usual way.
Off-road during route guidance
The road layout may differ from the data on
the digital map, due to road construction
measures, for example.
In such cases, the system cannot allocate
the vehicle’s position to the digital map
and the vehicle is therefore in an off-road
position.
The “Off Road” message and an arrow
showing the compass heading to the desti-
nation appear on the display.
As soon as the system can allocate the ve-
hicle position’s to the map again, route
guidance continues in the usual way.

202 Control systems
COMAND navigation system (route guidance)
Navigation announcements
Route guidance is already active.Calling up a current announcement:
Select “Navi”
6.
or
Press P favorite button if the button
has been programmed with this func-
tion (
page 231).
Canceling navigation message:
Briefly press F shortcut button dur-
ing an announcement.
Switching off navigation messages:
Press and hold F during an an-
nouncement until the announcement is
switched off.
You will see the message “The driving
instructions have been muted.” for a
short while.
Switching navigation announce-
ments back on manually:
Select “Navi”
6.
Adjusting volume of the messages:
Adjust the volume during an automatic
announcement (
page 91).
or
Call up an announcement manually us-
ing “Navi”
6 and adjust the vol-
ume (
page 91).
Warning!G
Navigation announcements are intended to
direct you while driving without diverting
your attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Consulting the symbols or map display for
directions may cause you to divert your at-
tention from driving and increase your risk
of an accident.
iIf Russian or Chinese is set as the system
language, the navigation announcements are in
English. You will find how to set the system lan-
guage on (
page 231).
Navigation announcements are muted during
telephone calls. You can, however, call up a cur-
rent announcement at any time. You can also
call up a current announcement at any time if
you have missed an announcement.
iYou will find the button programming on
(
page 231).
iThe announcements remain switched off
even if you start a new route guidance or if
COMAND is switched off/on with theo but-
ton.
If you switch COMAND off by removing the
SmartKey from the starter switch and then
switch the ignition back on after more than
3 minutes, the announcements are automatical-
ly switched back on.

203 Control systems
COMAND navigation system (during route guidance)
COMAND navigation system (during route guidance)
Cancel route guidance
Select “Destination”
“Cancel Route
Guidance” in map view with the menu
system displayed (
page 157).
Continuing cancelled route guidance
Select “Destination”
“Continue
Route Guidance” in map view with the
menu system displayed (
page 157).
COMAND calculates the route.
Route browser
Select “Route”
“Route Browser” in
map view with the menu system dis-
played (
page 157).
The route browser appears.
1Highlighted route section
2Current vehicle position; the triangle in-
dicates the vehicle’s direction of travel
3Information about the highlighted route
section
Displaying next or previous route
section: Select “Next” or “Previous”.
Increasing or reducing size of the
map: Select; or :.
Closing route browser:
Select “Back”.
iThe route browser shows an overview of the
route. You can use the route browser to move
along the route section by section and view infor-
mation about and details of each section of the
route.
iThe information 3 about the marked route
section shows the street name and the length of
the route section. Marked route section 1 is al-
ways highlighted in white and outlined in red.

204 Control systems
COMAND navigation system (during route guidance)
Displaying route information
Select “Route”
“Route Info” in map
view with the menu system displayed
(
page 157).
The route information appears.

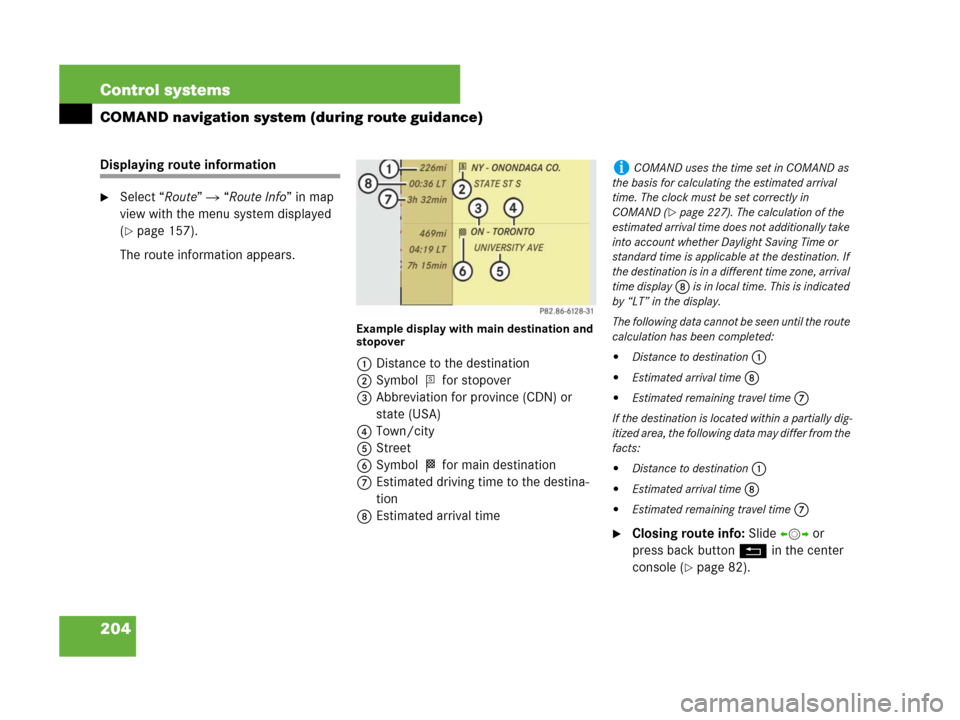

Example display with main destination and
stopover
1Distance to the destination
2Symbol = for stopover
3Abbreviation for province (CDN) or
state (USA)
4Town/city
5Street
6Symbol < for main destination
7Estimated driving time to the destina-
tion
8Estimated arrival time
Closing route info: Slide omp or
press back button L in the center
console (
page 82).
iCOMAND uses the time set in COMAND as
the basis for calculating the estimated arrival
time. The clock must be set correctly in
COMAND (
page 227). The calculation of the
estimated arrival time does not additionally take
into account whether Daylight Saving Time or
standard time is applicable at the destination. If
the destination is in a different time zone, arrival
time display
8 is in local time. This is indicated
by “LT” in the display.
The following data cannot be seen until the route
calculation has been completed:

Distance to destination 1

Estimated arrival time 8

Estimated remaining travel time 7
If the destination is located within a partially dig-
itized area, the following data may differ from the
facts:

Distance to destination 1

Estimated arrival time 8

Estimated remaining travel time 7

205 Control systems
COMAND navigation system (during route guidance)
Detour function
Select “Route”
“Detour” in map view
with the menu system displayed
(
page 157).
The detour function display appears.
Setting length of the blockage:
Select “More” or “Less” until the de-

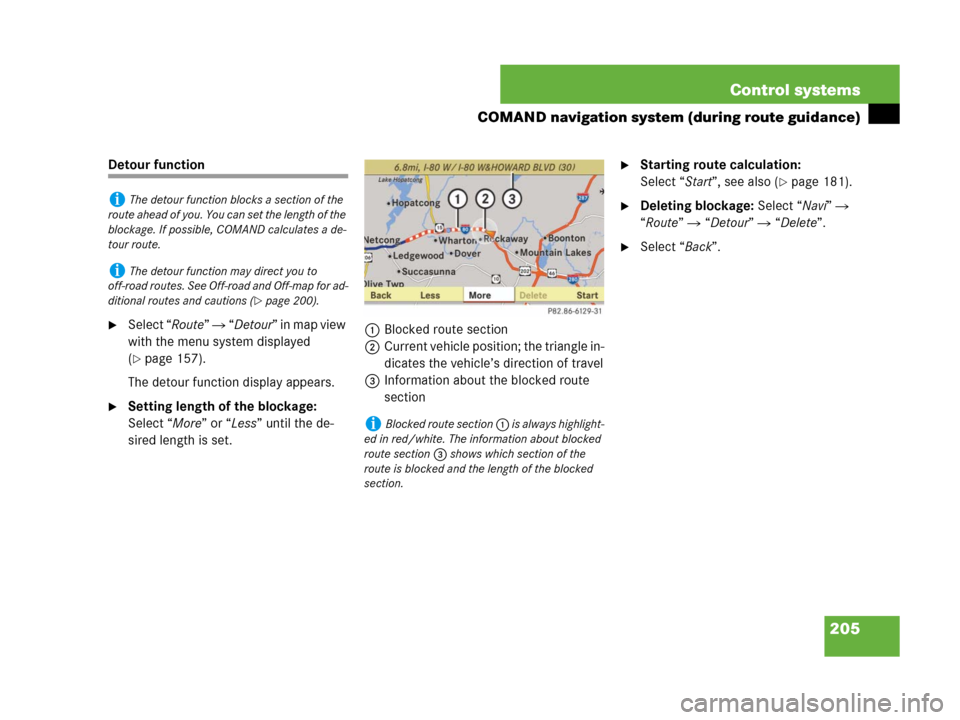

sired length is set.1Blocked route section
2Current vehicle position; the triangle in-
dicates the vehicle’s direction of travel
3Information about the blocked route
section
Starting route calculation:
Select “Start”, see also (
page 181).
Deleting blockage: Select “Navi”

“Route”
“Detour”
“Delete”.
Select “Back”.
iThe detour function blocks a section of the
route ahead of you. You can set the length of the
blockage. If possible, COMAND calculates a de-
tour route.
iThe detour function may direct you to
off-road routes. See Off-road and Off-map for ad-
ditional routes and cautions (
page 200).
iBlocked route section 1 is always highlight-
ed in red/white. The information about blocked
route section 3 shows which section of the
route is blocked and the length of the blocked
section.

206 Control systems
COMAND navigation system (destination memory)
Saving a destination in the destination
memory
Saving after the address has been en-
tered
Select “Save” after entering the ad-
dress (
page 162).
You can now select save options.
Saving during route guidance
Select “Destination”
“Save Destina-
tion” during route guidance.
You can now select save options.Saving a destination from the list of last
destinations
Select “Navi”
“Destination”

“From Last Destinations”.
The list of last destinations appears.
Select desired destination.
The address of the destination is dis-
played.
Select “Save”.
You can now select save options.Selecting save options
Saving a destination without a name
Select “Save Without Name”.
COMAND saves the destination in the
destination memory and uses the ad-
dress as the destination name.
or
Select “Save as ‘My Address’.”
Select desired category, e.g. “Home”.
COMAND saves the destination in the
destination memory as your own ad-
dress.
Saving a destination with a name
Select “Save new entry”.
Select desired category, e.g. “Home”.
The input menu appears with the data
fields and the input characters.
iThis function also saves the destination in
the address book. There COMAND creates an
address book entry containing complete, naviga-
ble address data. You can then select this entry
in the address book and start navigation to the
address.

207 Control systems
COMAND navigation system (destination memory)

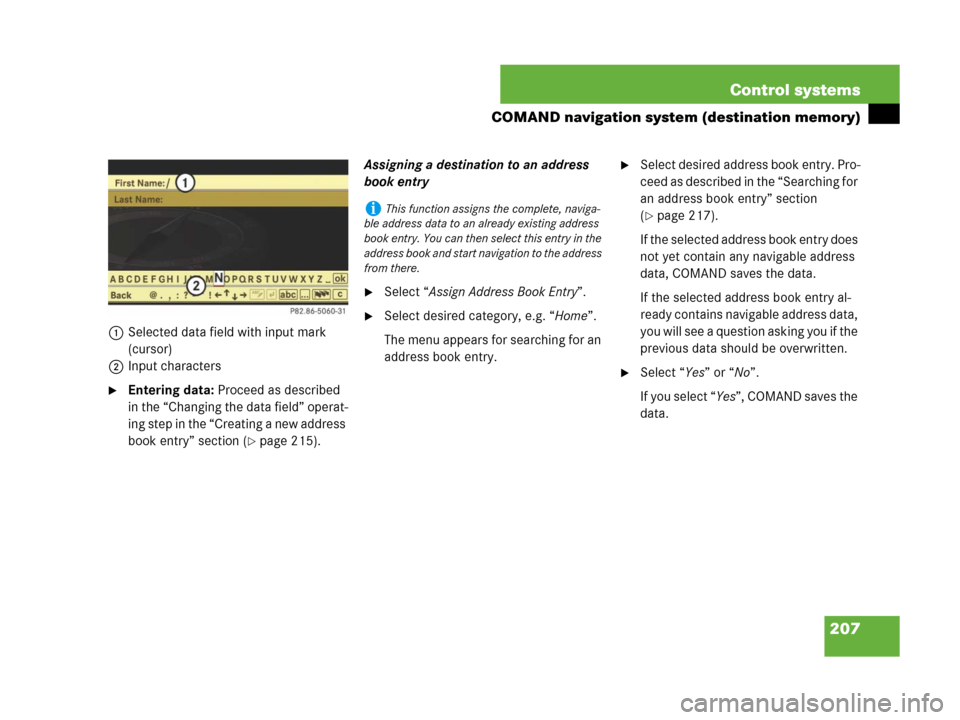

1Selected data field with input mark
(cursor)
2Input characters
Entering data: Proceed as described
in the “Changing the data field” operat-
ing step in the “Creating a new address
book entry” section (
page 215).Assigning a destination to an address
book entry
Select “Assign Address Book Entry”.
Select desired category, e.g. “Home”.
The menu appears for searching for an
address book entry.
Select desired address book entry. Pro-
ceed as described in the “Searching for
an address book entry” section
(
page 217).
If the selected address book entry does
not yet contain any navigable address
data, COMAND saves the data.
If the selected address book entry al-
ready contains navigable address data,
you will see a question asking you if the
previous data should be overwritten.
Select “Yes” or “No”.
If you select “Yes”, COMAND saves the
data.
iThis function assigns the complete, naviga-
ble address data to an already existing address
book entry. You can then select this entry in the
address book and start navigation to the address
from there.

208 Control systems
COMAND navigation system (destination memory)
Deleting a destination from the destina-
tion memory
Select “Navi”
“Destination”

“From Memory”.
Depending on the number of entries in
the destination memory, you will see
the destination memory list with or
without input characters.

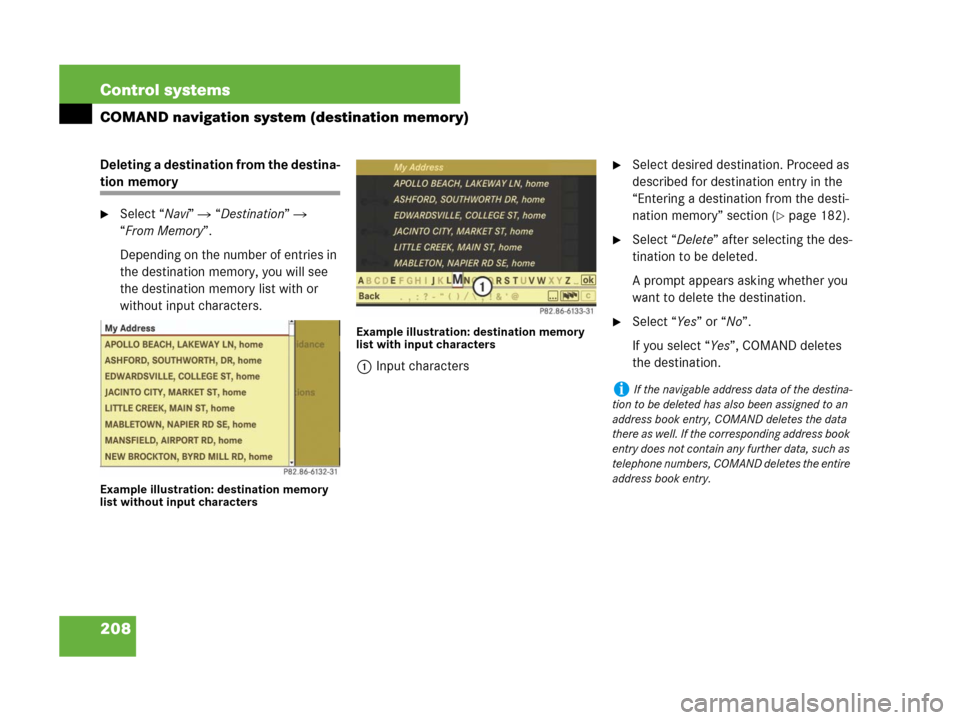

Example illustration: destination memory
list without input charactersExample illustration: destination memory
list with input characters
1Input characters
Select desired destination. Proceed as
described for destination entry in the
“Entering a destination from the desti-
nation memory” section (
page 182).
Select “Delete” after selecting the des-
tination to be deleted.
A prompt appears asking whether you
want to delete the destination.
Select “Yes” or “No”.
If you select “Yes”, COMAND deletes
the destination.
iIf the navigable address data of the destina-
tion to be deleted has also been assigned to an
address book entry, COMAND deletes the data
there as well. If the corresponding address book
entry does not contain any further data, such as
telephone numbers, COMAND deletes the entire
address book entry.

209 Control systems
COMAND navigation system (destination memory)
Own address
Assigning your address for the first
time or changing your own address
Assigning and/or changing your own ad-
dress
Select “Navi”
“Destination”

“From Memory”.
Depending on the number of entries in
the destination memory, you will see
the destination memory list with or
without input characters.

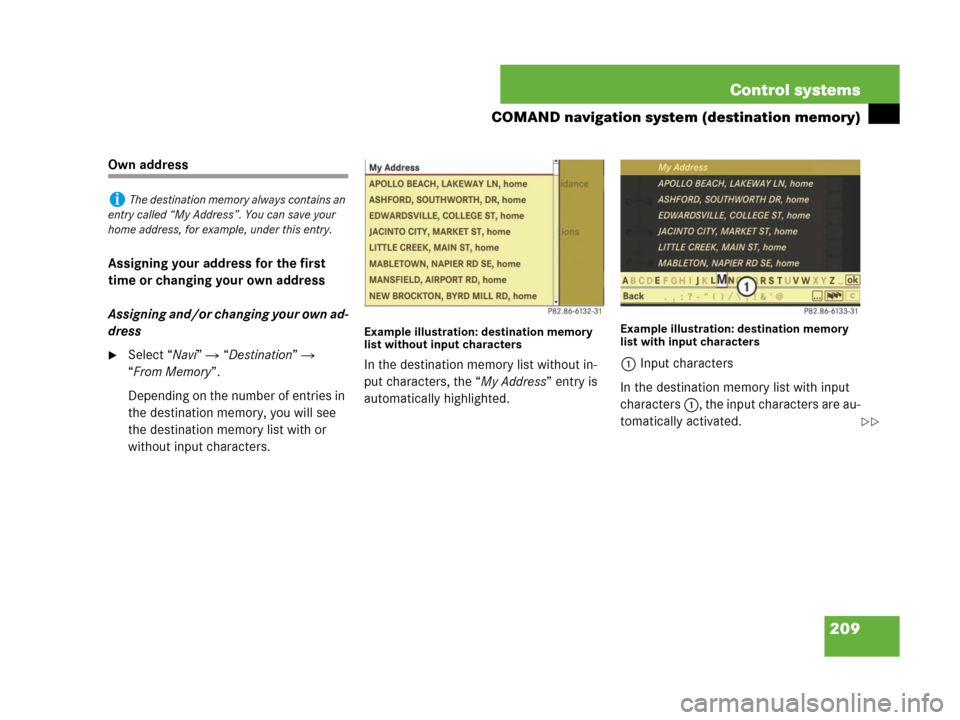

Example illustration: destination memory
list without input characters
In the destination memory list without in-
put characters, the “My Address” entry is
automatically highlighted.
Example illustration: destination memory
list with input characters
1Input characters
In the destination memory list with input
characters 1, the input characters are au-
tomatically activated.
iThe destination memory always contains an
entry called “My Address”. You can save your
home address, for example, under this entry.
