270 Control systems
Instrument cluster control system
Calling up vehicle malfunction, warning
and system status messages stored in
memory
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the sys-
tem. Such messages appear in the multi-
function display and are based on
conditions or system status the vehicle’s
system has recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
Press ( or & to select the
“Service” menu.
If conditions have occurred causing
status messages to be recorded, the
number of messages appears in the
multifunction display: “2 Messages”.
Press % or $ to select the mes-
sage.
Press # to confirm.Checking tire inflation pressure
For information about checking tire infla-
tion pressure (
page 531).
Calling up the maintenance service in-
dicator display
For information about calling up the main-
tenance service indicator display
(
page 551).
Checking engine oil level (CL 600)
For information about checking engine oil
level (
page 514).
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 580).
iSee the “Practical hints” section for mal-
function and warning messages (
page 580).
iIf you turn the SmartKey in the starter
switch to position0 and then back to position2,
all messages will be deleted from the message
memory.

271 Control systems
Instrument cluster control system
Settings menu
In the “Settings” menu, you can:

switch the daytime running lamps on or
off (USA only)

switch the additional speedometer on
or off

switch the radar sensors* on or off
(USA only)
Setting daytime running lamp mode
(USA only)
Press ( or & to select the “Set-
tings” menu.
Press % or $ to select the “Day-
time driving lamps” function.
Press #.
Press # again if you would like to
change the current status.
Depending on the previous status, the
daytime running lamps will be switched
on or off.
With “Daytime driving lamps” mode select-
ed and the exterior lamp switch at position
M or *, the low beam headlamps
are switched on when the engine is run-
ning.
In low ambient light conditions the follow-
ing lamps will switch on additionally:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps
For more information on the daytime run-
ning lamp mode (
page 365).Showing or hiding additional speedom-
eter
You can have an additional digital speed-
ometer shown on the multifunction dis-
play. The speed is shown in the unit of
kilometers/hour (USA) or miles/hour
(Canada).
Press ( or & to select the “Set-
tings” menu.
Press % or $ to select the “Add.
speedometer” function.
Press #.
Press # again if you would like to
change the current status.
Depending on the previous status, the
additional speedometer will be
switched on or off.
iThe menu overview can be found on
(
page 258).
iThis function is not available in countries
where the daytime running lamp mode is manda-
tory and therefore in a constant mode.
iIf you turn the exterior lamp switch to anoth-
er position, the corresponding lamp(s) will
switch on.
iMake sure that the light switch is set
toB or * when you switch off the day-
time running lamps while driving at night.

272 Control systems
Instrument cluster control system
Switching radar sensors* on/off
If your vehicle is equipped with DISTRONIC
Plus*, BAS Plus*, or Park Assist* it is
equipped with a radar sensor system
which you can switch on and off.
When travelling in Canada in a vehicle not
registered in Canada, you must switch off
the radar sensor system. Canadian law
does not permit the use of the radar sensor
system for vehicles from outside of Cana-
da. When you switch off the radar sensor
system, the following functions are
deactivated:

BAS Plus* (page 67)

DISTRONIC Plus* (page 411)

Park Assist* (page 435)

PRE-SAFE® Brake* (page 73)
Press ( or & to select the “Set-
tings” menu.
Press % or $ to select the “Ra-
dar sensor” function.
Press #.
Press # again if you would like to
change the current status.
Depending on the previous status, the
radar sensors will be switched on or
off.
iUSA only:
This device has been approved by the FCC as a
“Vehicular Radar System”. The radar sensor is
intended for use in an automotive radar system
only. Removal, tampering, or altering of the de-
vice will void any warranties, and is not permitted
by the FCC. Do not tamper with, alter, or use in
any non-approved way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Removal, tampering, or altering of the device will
void any warranties, and is not permitted. Do not
tamper with, alter, or use in any non-approved
way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iThe selected status of the radar sensors re-
mains stored in memory even if the engine is
turned off and restarted.
iThe following message appears in the multi-
function display if the radar sensors are
switched off and you attempt to activate
DISTRONIC Plus*, Park Assist* or PRE-SAFE
®
Brake*:
“Radar sensor
deactivated
See Oper. Manual”

273 Control systems
Voice Control
Voice Control
Operating safety
Warning!G
Please devote your attention first and fore-
most to the traffic situation you are in. While
the system permits hands-free phone oper-
ation, attention to traffic may be diverted
not only by physical operation of a phone,
but also by the distraction of a phone con-
versation while driving. As such, for safety
reasons, we encourage the driver to stop the
vehicle in a safe place before answering or
placing a phone call.
For safety reasons, you should only select a
destination when the vehicle is stationary.
While the navigation system provides direc-
tional assistance, the driver must remain fo-
cused on safe driving behavior, especially
attention to traffic and street signs, and
should utilize the system’s audio cues while
driving.
The navigation system does not supply any
information on stop signs, yield signs, traffic
regulations or traffic safety rules. Their ob-
servance always remains in the driver’s per-
sonal responsibility. DVD maps do not cover
all areas nor all routes within an area.
Traffic regulations always have priority over
any route recommendations given.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 13.5 m) every second.Warning!G
Navigation announcements are intended to
direct you while driving without diverting
your attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Consulting the symbols or map display for
directions may cause you to divert your at-
tention from driving and increase your risk
of an accident.
Warning!G
Please do not use the Voice Control System
in an emergency, as the tone of your voice
may change in a stressful situation. This
could cause a delay in completing your
phone call in a timely manner. This could
distract you in an emergency situation and
cause you to be involved in an accident.

274 Control systems
Voice Control introduction
The Voice Control System gives you the ca-
pability to control the following systems on
your vehicle using spoken commands:

Telephone* (page 278)

Navigation (page 285)

Address book (page 295)

Audio (page 299) (AM/FM radio,
CD/DVD changer, MP3 player)You control these systems using spoken
commands. Moreover, controls such as
the buttons on the multifunction steering
wheel (
page 276) allow you to keep your
hands on the steering wheel.
The command vocabulary consists of
approximately 300 ready to use phrases.
The Voice Control System recognizes com-
mands and number sequences, irrespec-
tive of the speaker. To optimize speech
recognition for your voice follow the indi-
vidualization process (
page 320).
You can use the Voice Control System to
call up all of COMAND’s main menu items,
with the exception of the main menus for
“Vehicle” and “Navi”.The commands and digit sequences can be
spoken without pausing between the indi-
vidual words. If an unavailable or incorrect
command is used, the Voice Control Sys-
tem will prompt you for a new command by
asking “Please repeat” or “Please repeat
your entry”.
In order to provide for a safe and comfort-
able dialog, the Voice Control System ac-
knowledges important commands.

275 Control systems
Voice Control introduction
Spelling
You may not need to spell the entire name
(street, intersection, city or point of inter-
est) especially if the name is lengthy. Spell-
ing the first three to five characters of the
name should be sufficient for the system
to recognize the name provided it is avail-
able on the navigation DVD.
The selection appearing on the COMAND
display is sorted based on your recognized
voice input and a matching algorithm.
You can use the commands “Next page” or
“ Previ ous p ag e” t o sc roll up or down in the
list.
Use the command “Correction” to start
over by again spelling the name.
Speak each character as clearly as you
can, especially when they sound very simi-
lar (d or e).Command types
The Voice Control System commands can
be categorized as:

General Commands
These are commands always available
to you as soon as the Voice Control
System is activated (for example
“Help” commands).

Local Commands
These are commands specific to the
currently active system shown in the
COMAND display (for example com-
mands to control the CD changer).
For a complete list of commands
(
page 305).
Active System
The active system is the system currently
shown in the COMAND display.
If, for example, you listen to the radio while
the telephone system is active on the
COMAND display, you have to switch to
the radio using the command “Radio” be-
fore you can operate the radio.
iDuring Voice Control System operation visu-
al help windows also appear in the COMAND dis-
play (
page 277).

276 Control systems
Voice Control introduction
Controls
Operation via the multifunction steer-
ing wheelActivating Voice Control
Switch on COMAND (page 81).
Press !.
An audible tone (beep) confirms the
activation of the system.
Speak a command.
Cancelling Voice Control
Press L.
or
Speak the command “Cancel”
(except for speaking voice entries,
entering a town or city or carrying out
individualization).
or
Press any COMAND button.
Item
1!to activate Voice Control
to accept a call
2Lto cancel Voice Control
3æto increase volume
çto decrease volume
sto take a call
to dial
to redial
tto end a call
to reject an incoming call
iVoice Control can be cancelled at any time,
even during a dialog. Please note that if the Voice
Control System is cancelled during a dialog, then
the complete procedure is stopped and Voice
Control is cancelled.

277 Control systems
Voice Control introduction
Setting volume level
Activate Voice Control.
Speak a command, for example “Help”.
Pressæ orç. The volume is in-
creased or decreased during voice out-
put.
or
Set volume for voice output using the
COMAND volume thumbwheel on the
lower part of the front central console
(
page 91).
Displays
COMAND Display
In addition to the acoustic help function,
a visual help function (
page 229) is avail-
able on the COMAND display.
Upon activating the Voice Control, the
most important available commands for
the currently active system appear on the
COMAND display.When the Voice Control System requires
additional information from the user, a se-
lection list is shown on the COMAND dis-
play in the address book and navigation
system.
1COMAND display
Multifunction display
For example: telephone numbers are
shown on the multifunction display while
dialing when the main “Telephone” menu
is selected in the instrument cluster con-
trol system.1Multifunction display
Symbols
The following symbols are found in follow-
ing Voice Control System pages:
sThis symbol stands for commands
and voice entries you are speaking.
tThis symbol stands for voice output
by the system.
uThis symbol indicates that informa-
tion is available on the COMAND
display.

278 Control systems
Voice Control telephone
Telephone operation
The Voice Control System gives you the
following capabilities:

Enter a telephone unlock code

Dial a phone number by speaking the
telephone number

Store names and numbers in the
COMAND address book

Dial a phone number by speaking the
name of an COMAND address book en-
try

Delete an address book entry from the
address book

Have the system read out the phone
book of the address book entry by en-
try

Manage and access an automated an-
swering system/voice mail box

Redial names and numbers

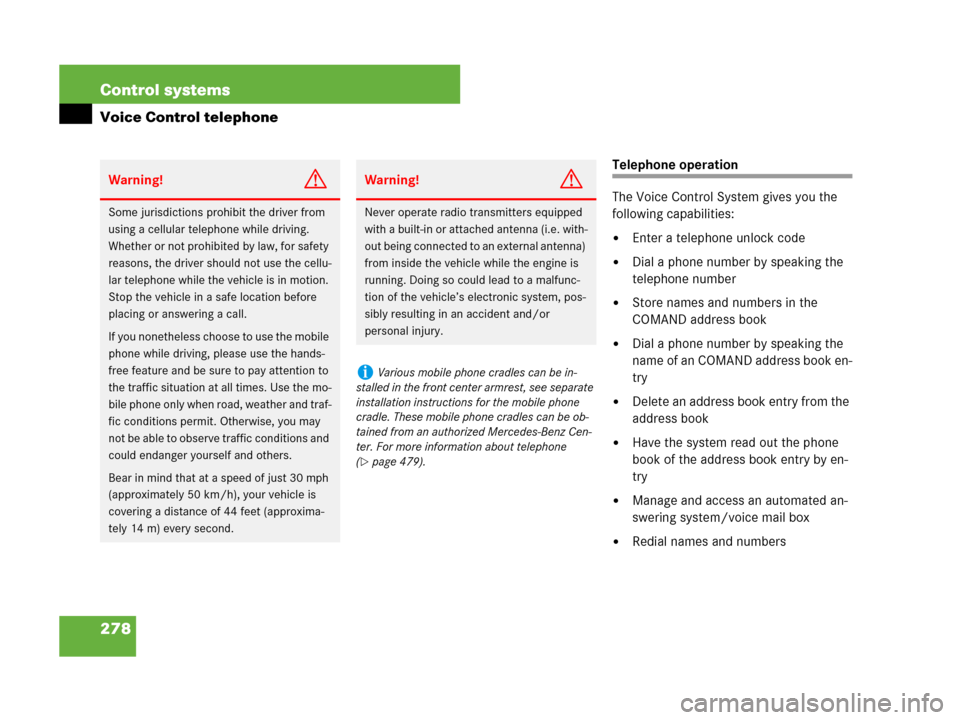

Warning!G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving.
Whether or not prohibited by law, for safety
reasons, the driver should not use the cellu-
lar telephone while the vehicle is in motion.
Stop the vehicle in a safe location before
placing or answering a call.
If you nonetheless choose to use the mobile
phone while driving, please use the hands-
free feature and be sure to pay attention to
the traffic situation at all times. Use the mo-
bile phone only when road, weather and traf-
fic conditions permit. Otherwise, you may
not be able to observe traffic conditions and
could endanger yourself and others.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approxima-
tely 14 m) every second.
Warning!G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
iVarious mobile phone cradles can be in-
stalled in the front center armrest, see separate
installation instructions for the mobile phone
cradle. These mobile phone cradles can be ob-
tained from an authorized Mercedes-Benz Cen-
ter. For more information about telephone
(
page 479).

279 Control systems
Voice Control telephone
The Voice Control System detects whether

your telephone is switched on

the corresponding mobile network is
logged in

it is possible to dial
If dialing is not possible, the Voice Control
System will advise you accordingly.
Before you can operate the telephone us-
ing the Voice Control System, you have to
activate the Voice Control (
page 276).
Telephone commands
For a complete list of commands
(
page 305).
“Telephone”
Use the command “Telephone” to activate
the telephone main menu. Use this com-
mand if you want the digits you are enter-
ing to appear on the COMAND display.
“Help telephone”
The Voice Control System features a com-
prehensive help function.
Use the command “Help telephone” and
the Voice Control System will read out an
option list of available functions and com-
mands that can be used in conjunction
with the telephone (
page 229).
“Enter PIN”Use the command “Enter PIN” to input the
code to unlock your telephone. After
speaking the command, you are prompted
to enter the code.
Speak the code

as a continuously spoken string of dig-
its, or

in digit blocks of three to five digits.
Digits from “Zero” to “Nine” may be used.
After each digit block (separate the digit
blocks by using an approximately
0.5 second pause), the Voice Control Sys-
tem repeats the recognized digits and
waits until you continue speaking.
Sample dialog:
sEnter PIN
tPlease say the PIN
sZero zero one one
tZero zero one one
sOK
iYou can continue operating your mobile
phone using the telephone keypad or keypad on
your phone.
iThe PIN (only GSM mobile phones) prompt
starts automatically whenever the phone is
locked and you wish to use it.
