MERCEDES-BENZ CL500 2007 C216 Owner's Manual

450 Controls in detail
Air vents

451 Controls in detail
Air vents
Please comply with the following instruc-
tions in order for the automatic climate
control to function optimally:

Keep the air intake grille in front of the
windshield free of snow, leaves, sticks,
and any other debris.

Always keep all air vents and grilles in
the passenger compartment free from
obstruction.

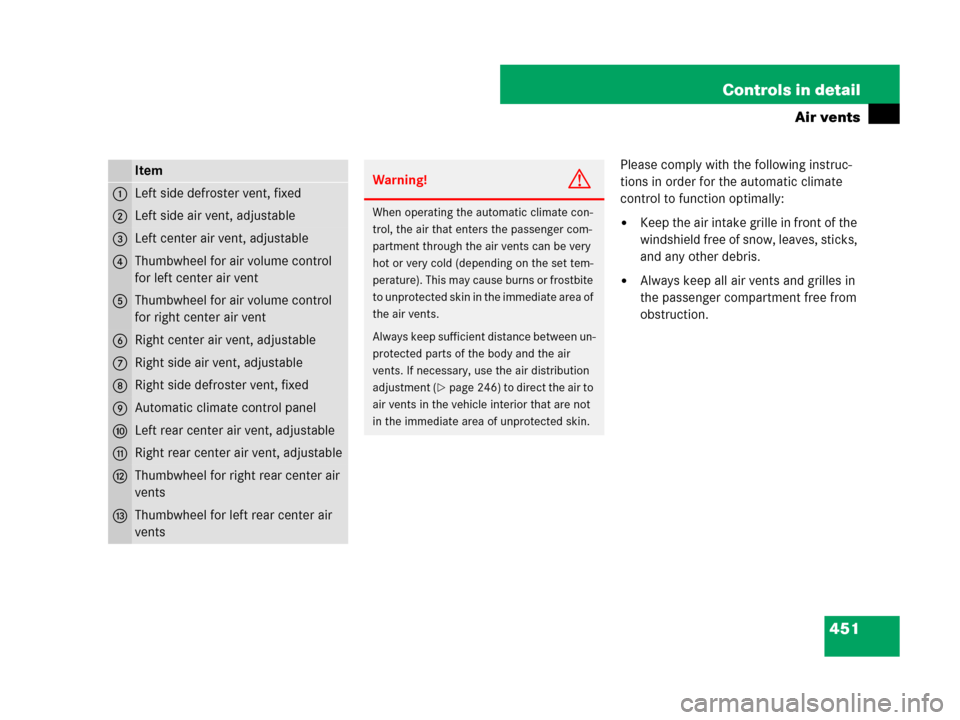

Item
1Left side defroster vent, fixed
2Left side air vent, adjustable
3Left center air vent, adjustable
4Thumbwheel for air volume control
for left center air vent
5Thumbwheel for air volume control
for right center air vent
6Right center air vent, adjustable
7Right side air vent, adjustable
8Right side defroster vent, fixed
9Automatic climate control panel
aLeft rear center air vent, adjustable
bRight rear center air vent, adjustable
cThumbwheel for right rear center air
vents
dThumbwheel for left rear center air
vents
Warning!G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
to unprotected skin in the immediate area of
the air vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
adjustment (
page 246) to direct the air to
air vents in the vehicle interior that are not
in the immediate area of unprotected skin.

452 Controls in detail
Air vents
Opening and closing air vents
Center air vents
Opening: Turn thumbwheels 4
and5 upward (
page 450).
Closing: Turn thumbwheels 4 and 5
downward.
Side air vents
Opening: Turn thumbwheels next to
side air vents2 and7 upward
(
page 450).
Closing: Turn thumbwheels down-
ward.
Rear center console air vents
Increasing/decreasing air volume:
Turn thumbwheelc or d to the left
or right (
page 450).
Ventilated storage compartment
The storage compartment under the front
armrest can be ventilated when the auto-
matic climate control is switched on.

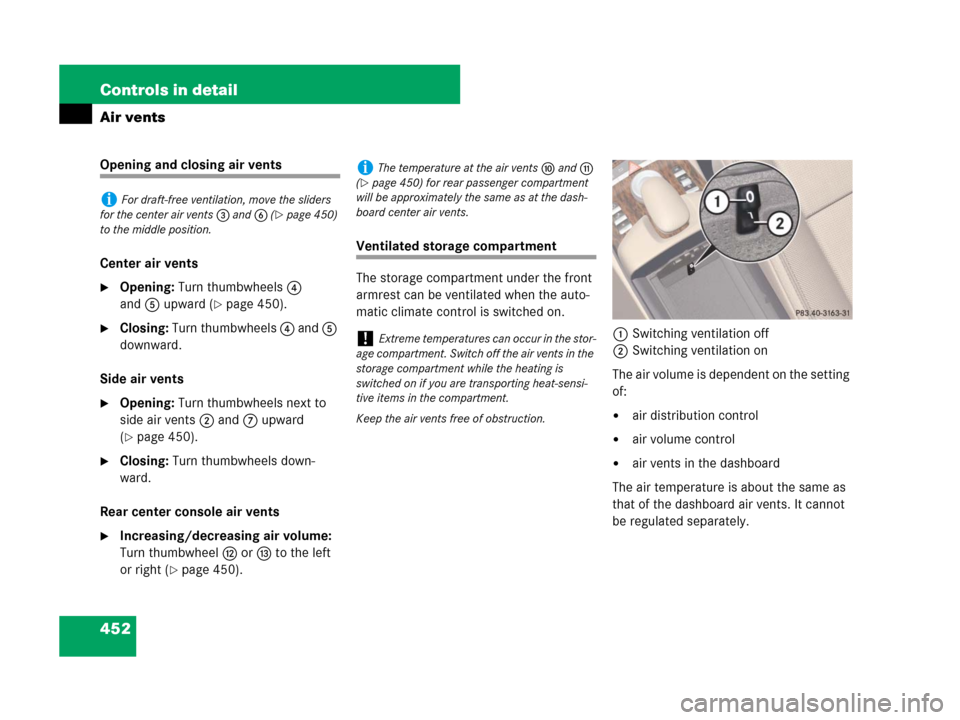

1Switching ventilation off
2Switching ventilation on
The air volume is dependent on the setting
of:

air distribution control

air volume control

air vents in the dashboard
The air temperature is about the same as
that of the dashboard air vents. It cannot
be regulated separately.
iFor draft-free ventilation, move the sliders
for the center air vents 3 and 6 (
page 450)
to the middle position.
iThe temperature at the air ventsa andb
(
page 450) for rear passenger compartment
will be approximately the same as at the dash-
board center air vents.
!Extreme temperatures can occur in the stor-
age compartment. Switch off the air vents in the
storage compartment while the heating is
switched on if you are transporting heat-sensi-
tive items in the compartment.
Keep the air vents free of obstruction.

453 Controls in detail
Automatic climate control
Automatic climate control
Automatic climate control panel

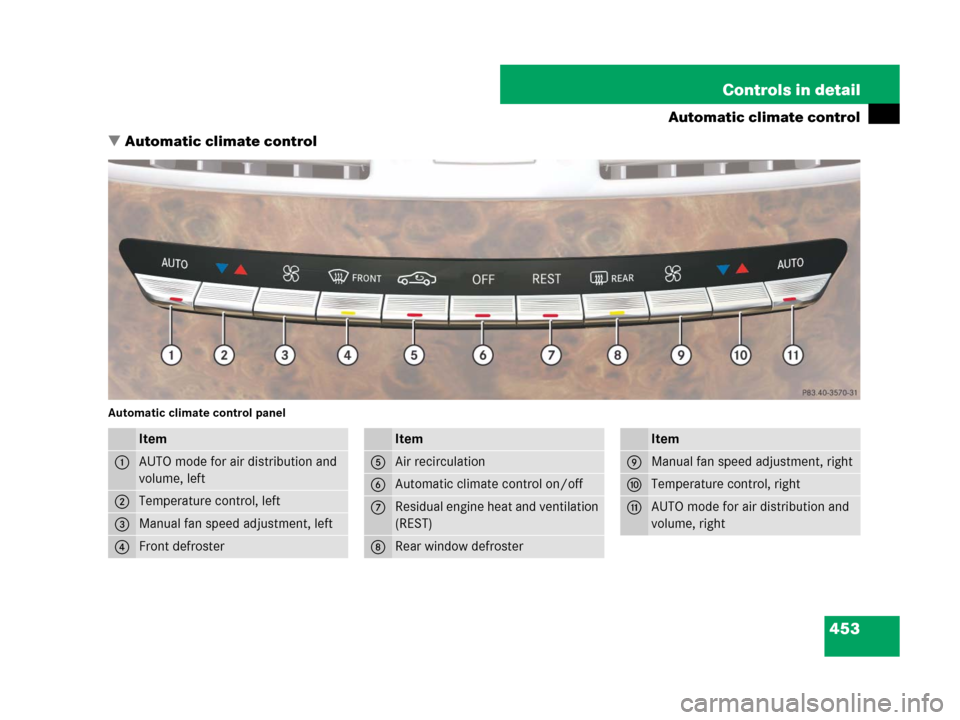

Item
1AUTO mode for air distribution and
volume, left
2Temperature control, left
3Manual fan speed adjustment, left
4Front defroster
Item
5Air recirculation
6Automatic climate control on/off
7Residual engine heat and ventilation
(REST)
8Rear window defroster
Item
9Manual fan speed adjustment, right
aTemperature control, right
bAUTO mode for air distribution and
volume, right

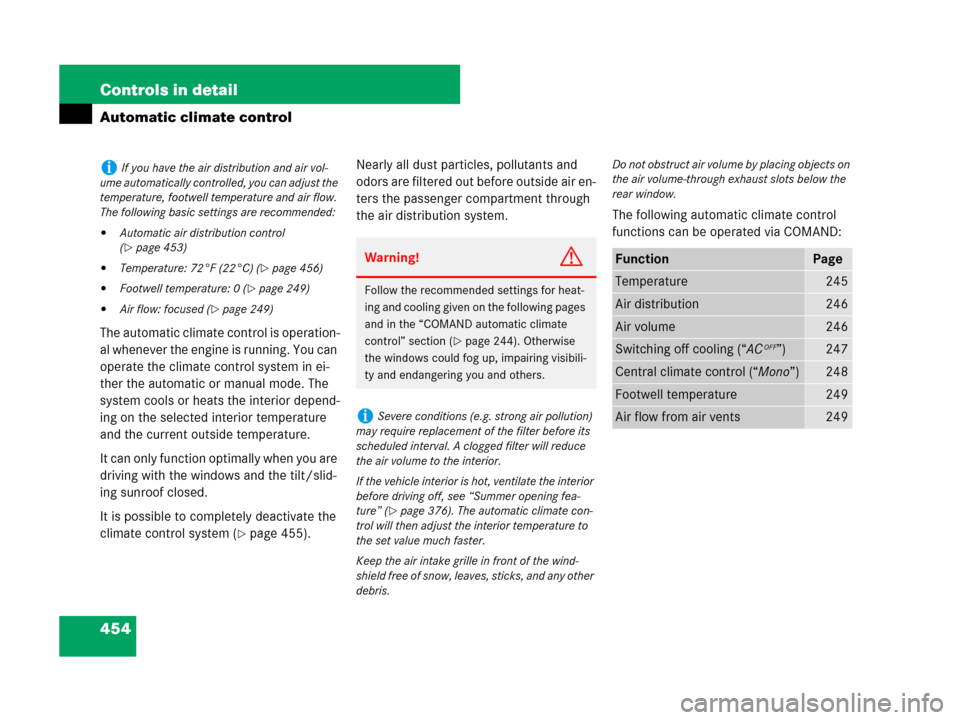

454 Controls in detail
Automatic climate control
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
It can only function optimally when you are
driving with the windows and the tilt/slid-
ing sunroof closed.
It is possible to completely deactivate the
climate control system (
page 455). Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.The following automatic climate control
functions can be operated via COMAND:
iIf you have the air distribution and air vol-
ume automatically controlled, you can adjust the
temperature, footwell temperature and air flow.
The following basic settings are recommended:

Automatic air distribution control
(
page 453)

Temperature: 72°F (22°C) (page 456)

Footwell temperature: 0 (page 249)

Air flow: focused (page 249)
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pages
and in the “COMAND automatic climate
control” section (
page 244). Otherwise
the windows could fog up, impairing visibili-
ty and endangering you and others.
iSevere conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (
page 376). The automatic climate con-
trol will then adjust the interior temperature to
the set value much faster.
Keep the air intake grille in front of the wind-
shield free of snow, leaves, sticks, and any other
debris.
Do not obstruct air volume by placing objects on
the air volume-through exhaust slots below the
rear window.
FunctionPage
Temperature245
Air distribution246
Air volume246
Switching off cooling (“ACOFF”)247
Central climate control (“Mono”)248
Footwell temperature249
Air flow from air vents249

455 Controls in detail
Automatic climate control
Deactivating climate control system
Deactivating: Press button´
(
page 453) up or down.
The indicator lamp on the button
comes on. You will see “Climate Con-
trol OFF” in the COMAND display.
Reactivating: Press button´
(
page 453) up or down.
The indicator lamp on the button goes
out. You will see the previous settings
in the COMAND display.Operating climate control system in
automatic mode
Air distribution and air volume is adjusted
automatically by the automatic climate
control system. You can also adjust the
settings for air distribution and air volume
manually.
Activating
Press buttonU (page 453) up or
down.
The indicator lamp on the button
comes on.Deactivating
Press buttonU (page 453) up or
down.
or
Adjust air distribution (page 246).
or
Adjust air volume (page 456).
The indicator lamp on buttonU
goes out. The automatic function is
switched off.
You can adjust the air distribution
(
page 246) or air volume
(
page 456) manually.

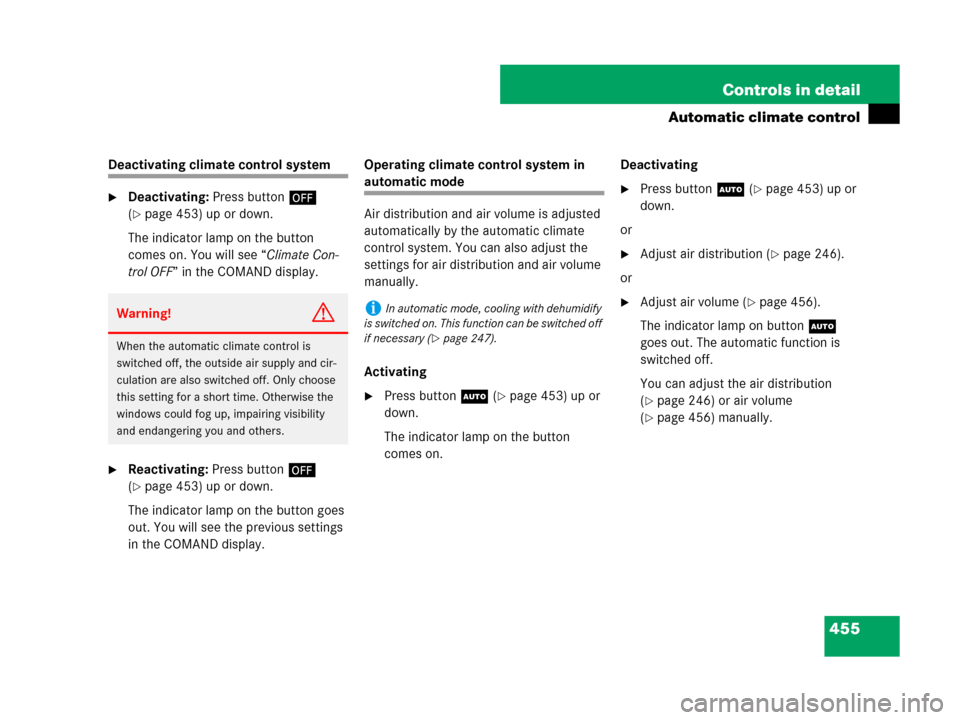

Warning!G
When the automatic climate control is
switched off, the outside air supply and cir-
culation are also switched off. Only choose
this setting for a short time. Otherwise the
windows could fog up, impairing visibility
and endangering you and others.
iIn automatic mode, cooling with dehumidify
is switched on. This function can be switched off
if necessary (
page 247).

456 Controls in detail
Automatic climate control
Setting temperature
Use temperature controls %$
2anda (
page 453) in the center con-
sole or COMAND (
page 245) to sepa-
rately adjust the air temperature on each
side of the passenger compartment. You
should raise or lower the temperature set-
ting in small increments, preferably start-
ing at 72°F (22°C). The automatic climate
control will adjust to the set temperature
as fast as possible.
Press temperature control %$
2and/ora (
page 453) upward or
downward.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Adjusting air volume
Use buttonsQ (
page 453) in the cen-
ter console or COMAND to separately ad-
just the air volume on each side of the
passenger compartment.
Press buttonQ up to increase or
down to decrease air volume.
The indicator lamps on buttonsU
(
page 453) goes out.
The automatic function is switched off.
The air volume is adjusted correspond-
ing to the set blower speed.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up. You
can also defog the windshield and the side
windows.Activating
Press button; (page 453) up or
down.
The indicator lamp on the button
comes on.
The air conditioning switches to the follow-
ing functions automatically:

most efficient blower speed and heat-
ing power, depending on outside tem-
perature

air flows onto the windshield and the
front side windows

the air conditioning compressor
switches on at outside temperatures
above approximately 41°F (5°C) for
air-drying

the air recirculation mode is switched
off
iKeep this setting selected only until the
windshield is clear again.

457 Controls in detail
Automatic climate control
Adjustments
Depending on vehicle production date, you
can adjust the air volume and the temper-
ature when the front defroster is switched
on. The air flow will remain on the wind-
shield and door windows.
Press buttonQ up or down to in-
crease or decrease air volume to the
desired level.
The air volume increases/decreases to
the next higher/lower blower speed
and heating switches to the tempera-
ture that was set before the front de-
froster was switched on.
The indicator lamp on button;
goes out.
or
Press temperature control %$
2and/ora (
page 453) upward or
downward.
Heating switches to the temperature
that was set before the front defroster
was switched on.The indicator lamp on button; goes
out.
Deactivating
Press button; (page 453) up or
down.
The indicator lamp on the button goes
out.
The previous settings are once again in
effect, except air recirculation mode
stays off.
Windshield fogged on the outside
Switch the windshield wipers on
(
page 372).
Press buttonU (page 453) up or
down.
The indicator lamp on the button
comes on.
Rear window defroster
Activating
Switch on the ignition (page 336).
Press button< (page 453) up or
down.
The indicator lamp on the button
comes on.
Deactivating
Press button< (page 453) up or
down.
The indicator lamp on the button goes
out.
iThe air conditioning compressor remains on
even with the indicator lamp on button;
goes out. This helps to prevent windshield from
fogging.
!The rear window defroster uses a large
amount of power. To keep battery drain to a min-
imum, switch off the defroster as soon as the
rear window is clear.
iThe defroster is automatically deactivated
after some time of operation depending on the
outside temperature.

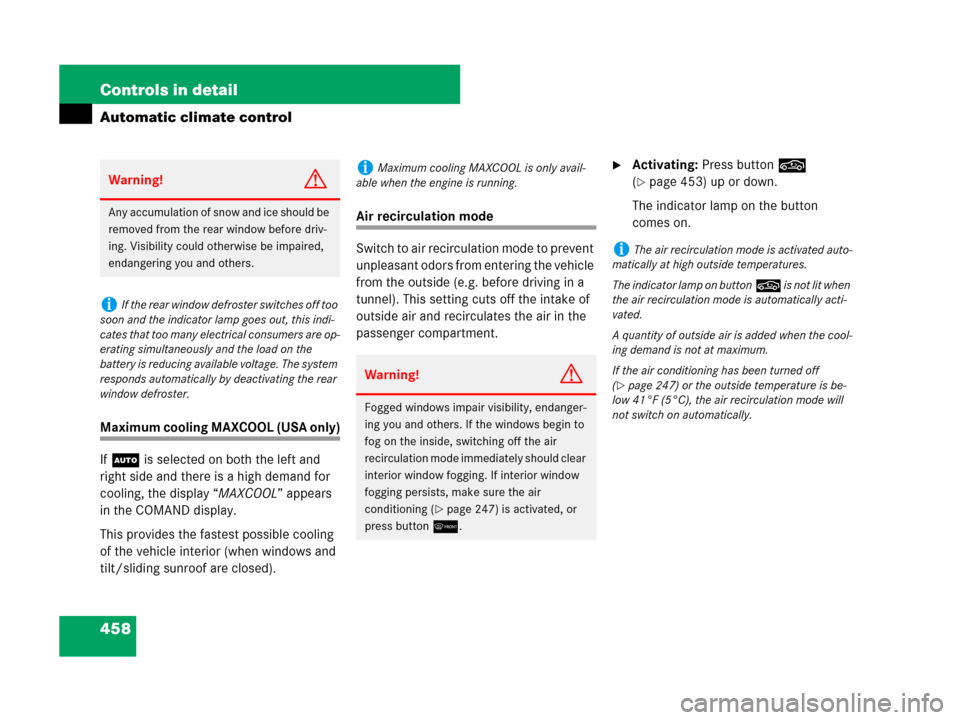

458 Controls in detail
Automatic climate control
Maximum cooling MAXCOOL (USA only)
If U is selected on both the left and
right side and there is a high demand for
cooling, the display “MAXCOOL” appears
in the COMAND display.
This provides the fastest possible cooling
of the vehicle interior (when windows and
tilt/sliding sunroof are closed).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving in a
tunnel). This setting cuts off the intake of
outside air and recirculates the air in the
passenger compartment.
Activating: Press button,
(
page 453) up or down.
The indicator lamp on the button
comes on.Warning!G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
iIf the rear window defroster switches off too
soon and the indicator lamp goes out, this indi-
cates that too many electrical consumers are op-
erating simultaneously and the load on the
battery is reducing available voltage. The system
responds automatically by deactivating the rear
window defroster.
iMaximum cooling MAXCOOL is only avail-
able when the engine is running.
Warning!G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 247) is activated, or
press button;.
iThe air recirculation mode is activated auto-
matically at high outside temperatures.
The indicator lamp on button, is not lit when
the air recirculation mode is automatically acti-
vated.
A quantity of outside air is added when the cool-
ing demand is not at maximum.
If the air conditioning has been turned off
(
page 247) or the outside temperature is be-
low 41°F (5°C), the air recirculation mode will
not switch on automatically.

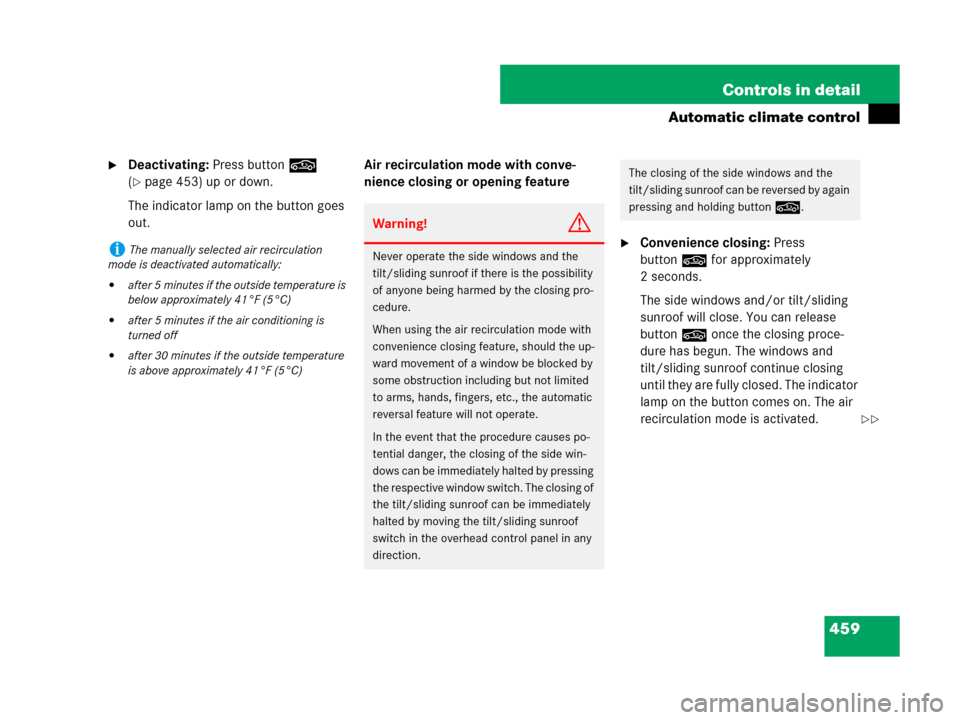

459 Controls in detail
Automatic climate control
Deactivating: Press button,
(
page 453) up or down.
The indicator lamp on the button goes
out.Air recirculation mode with conve-
nience closing or opening feature
Convenience closing: Press
button
, for approximately
2 seconds.
The side windows and/or tilt/sliding
sunroof will close. You can release
button
, once the closing proce-
dure has begun. The windows and
tilt/sliding sunroof continue closing
until they are fully closed. The indicator
lamp on the button comes on. The air
recirculation mode is activated.
iThe manually selected air recirculation
mode is deactivated automatically:

after 5 minutes if the outside temperature is
below approximately 41°F (5°C)

after 5 minutes if the air conditioning is
turned off

after 30 minutes if the outside temperature
is above approximately 41°F (5°C)
Warning!G
Never operate the side windows and the
tilt/sliding sunroof if there is the possibility
of anyone being harmed by the closing pro-
cedure.
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstruction including but not limited
to arms, hands, fingers, etc., the automatic
reversal feature will not operate.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by pressing
the respective window switch. The closing of
the tilt/sliding sunroof can be immediately
halted by moving the tilt/sliding sunroof
switch in the overhead control panel in any
direction.
The closing of the side windows and the
tilt/sliding sunroof can be reversed by again
pressing and holding button,.
