18 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Instruments and controls
3

19 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 1Door control panel, see page 20
2Overhead control panel, see page 213Dashboard, see page 22
4Center console, see page 24

20 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Door control panel1Door handle, pull to open, see page 48
2Memory function (for storing seat, steering wheel,
rear view mirror and exterior mirror settings),
seepage111
3Seat heater, see page 76
Seat ventilation, see page 79
4Front seat adjustment, see page 67
5Exterior mirror adjustment, see page 107
Exterior mirrors, electrically folding, see page 109
6Power wind ows, see pag e 178
7Sw itch for re ar door w ind ow ove rrid e, see pages 178
and 180
8Trunk lid release switch, see page 57
Trunk lid opening/closing system switch, see
page 58
P72.10-2072-27
1
4
2
5
38
76
6

21 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Overhead control panel1Interior lighting, see page 184
2Sliding/pop-up roof, see page 181
3Tele Aid (emergency call system), see page 210
4Hands-free microphone for Tele Aid, telephone and
voice recognition system
5Rear view mirror, seepage106
6Garage door opener, see page 202
P82.00-2030-27
123
456

22 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Dashboard
3
8
76423
1
9
13
12
11
10
15
1718
1718
19
21
2016
14
2223
5
P68.10-2434-29

23 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 1Left front parktronic warning indicator,
see page 281
2Side air outlet, adjustable
3Air volume control for side air outlet
4Exterior lamp switch, see page 156
5Headlamp washer button, see page 159
6Parking brake release, see page 238
7Hood lock release, see page 328
8Parking brake pedal, see page 238
9Easy-entry/exit feature, see page 66
Steering wheel adjustment, see page 105
10Combination switch, see page 160
11Cruise control switch, see page 250, or
Distronic (DTR) switch, see page 253
12Multifunction steering wheel, see page 120
Driver airbag, see page 92,
Horn (with electronic key in starter switch
position 1 or 2)13Instrument cluster, see page 114
14Voice recognition system switch, see separate
operating instructions
15Starter switch, see page 222
16Right front parktronic warning indicator,
seepage281
17Fixed air outlets
18Center air outlets, adjustable
19Air volume control for left center air outlet
20Air temperature control for center air outlets
21Air volume control for right center air outlet
22Glove box lock, see page 189
23Glove box lid release, see page 189

24 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

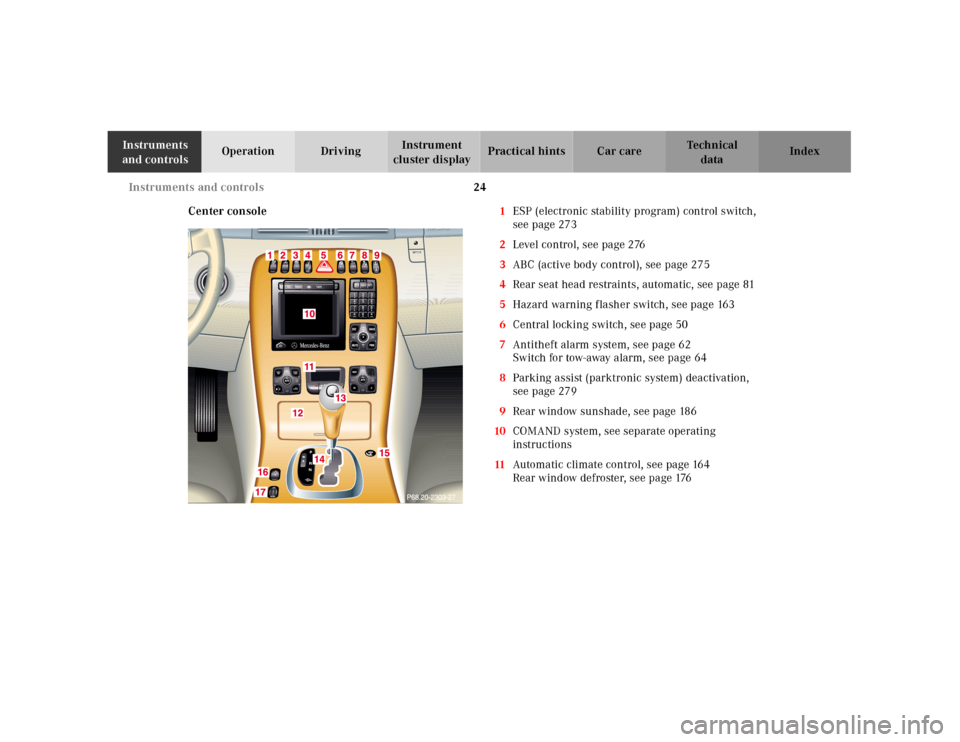

Center console1ESP (electronic stability program) control switch,
seepage273
2Level control, see page 276
3ABC (active body control), see page 275
4Rear seat head restraints, automatic, see page 81
5Hazard warning flasher switch, see page 163
6Central locking switch, see page 50
7Antitheft alarm system, see page 62
Switch for tow-away alarm, see page 64
8Parking assist (parktronic system) deactivation,
seepage279
9Rear window sunshade, see page 186
10COMAND system, see separate operating
instructions
11Automatic climate control, see page 164
Rear window defroster, see page 176

25 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 12Ashtray, see page 196
Lighter, see page 198
13Start-/Stop button
Starter switch for KEYLESS-GO only, see page 224
14Automatic transmission, see page 22915AIRBAG OFF indicator lamp, see page 296
16Distronic (DTR) – switch for distance notification
function, see page 265
17Distronic (DTR) – thumbwheel for setting distance,
seepage265
