MERCEDES-BENZ CL55AMG 2003 C215 Owner's Manual

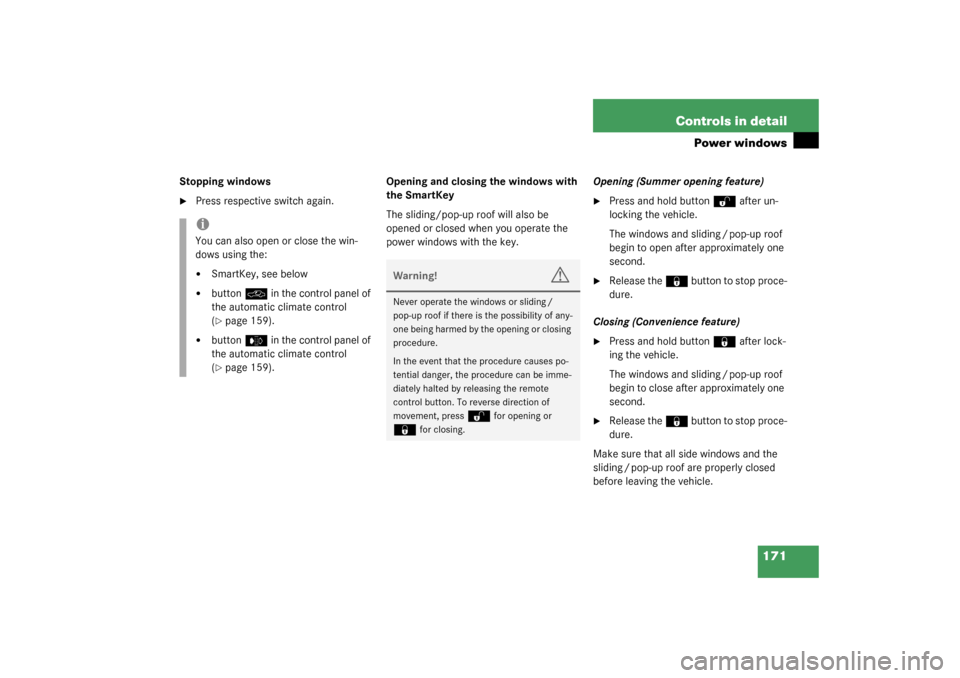

171 Controls in detail
Power windows
Stopping windows
Press respective switch again.Opening and closing the windows with
the SmartKey
The sliding/pop-up roof will also be
opened or closed when you operate the
power windows with the key.Opening (Summer opening feature)

Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding / pop-up roof
begin to open after approximately one
second.

Release the
‹
button to stop proce-
dure.
Closing (Convenience feature)

Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding / pop-up roof
begin to close after approximately one
second.

Release the
‹
button to stop proce-
dure.
Make sure that all side windows and the
sliding / pop-up roof are properly closed
before leaving the vehicle.
iYou can also open or close the win-
dows using the:

SmartKey, see below


button
O
in the control panel of
the automatic climate control
(
page 159).


button
e
in the control panel of
the automatic climate control
(
page 159).
Warning!
G
Never operate the windows or sliding /
pop-up roof if there is the possibility of any-
one being harmed by the opening or closing
procedure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the remote
control button. To reverse direction of
movement, press
Œ
for opening or
‹
for closing.

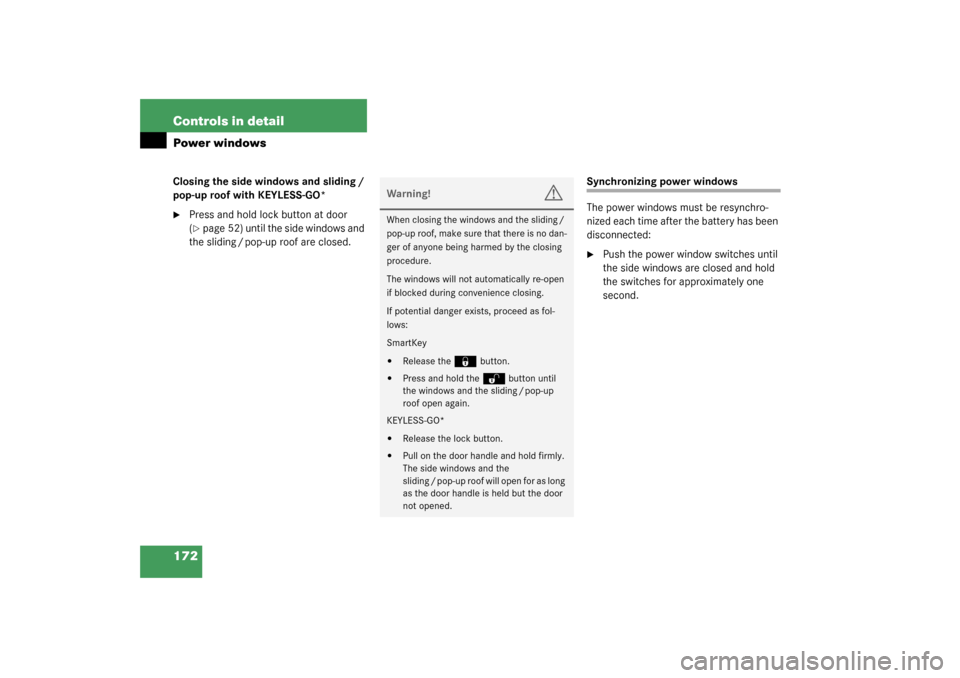

172 Controls in detailPower windowsClosing the side windows and sliding /
pop-up roof with KEYLESS-GO*
Press and hold lock button at door
(page 52) until the side windows and
the sliding / pop-up roof are closed.
Synchronizing power windows
The power windows must be resynchro-
nized each time after the battery has been
disconnected:
Push the power window switches until
the side windows are closed and hold
the switches for approximately one
second.
Warning!
G
When closing the windows and the sliding /
pop-up roof, make sure that there is no dan-
ger of anyone being harmed by the closing
procedure.
The windows will not automatically re-open
if blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:
SmartKey

Release the
‹
button.


Press and hold the
Œ
button until
the windows and the sliding / pop-up
roof open again.
KEYLESS-GO*


Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the
sliding / pop-up roof will open for as long
as the door handle is held but the door
not opened.

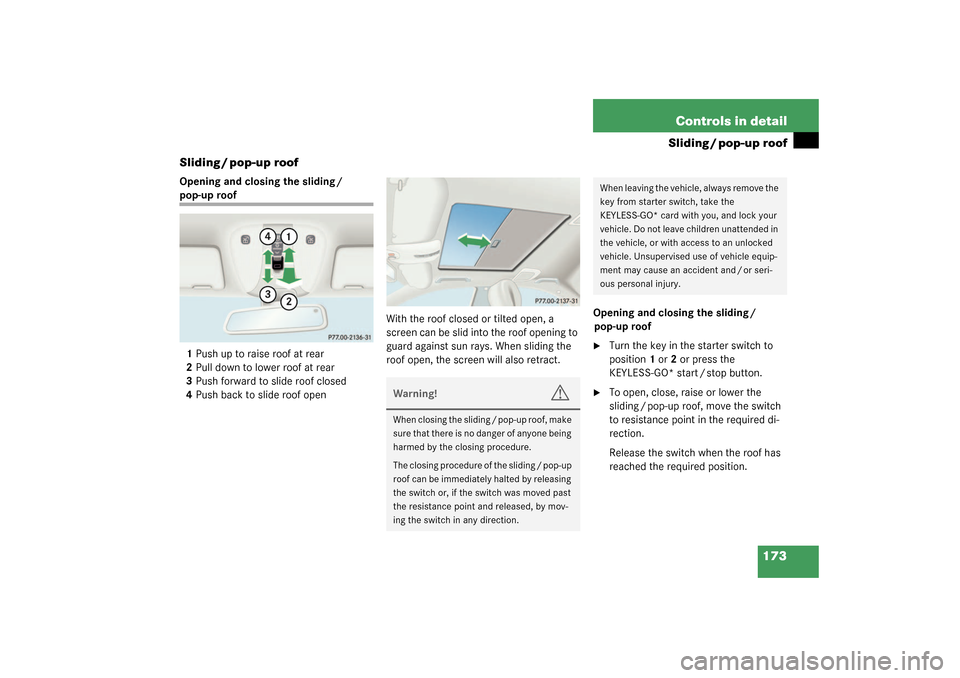

173 Controls in detail
Sliding / pop-up roof
Sliding / pop-up roof
Opening and closing the sliding / pop-up roof
1Push up to raise roof at rear
2Pull down to lower roof at rear
3Push forward to slide roof closed
4Push back to slide roof openWith the roof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
roof open, the screen will also retract.Opening and closing the sliding /
pop-up roof

Turn the key in the starter switch to
position1 or2 or press the
KEYLESS-GO* start / stop button.

To open, close, raise or lower the
sliding / pop-up roof, move the switch
to resistance point in the required di-
rection.
Release the switch when the roof has
reached the required position.
Warning!
G
When closing the sliding / pop-up roof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The closing procedure of the sliding / pop-up
roof can be immediately halted by releasing
the switch or, if the switch was moved past
the resistance point and released, by mov-
ing the switch in any direction.
When leaving the vehicle, always remove the
key from starter switch, take the
KEYLESS-GO* card with you, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and / or seri-
ous personal injury.

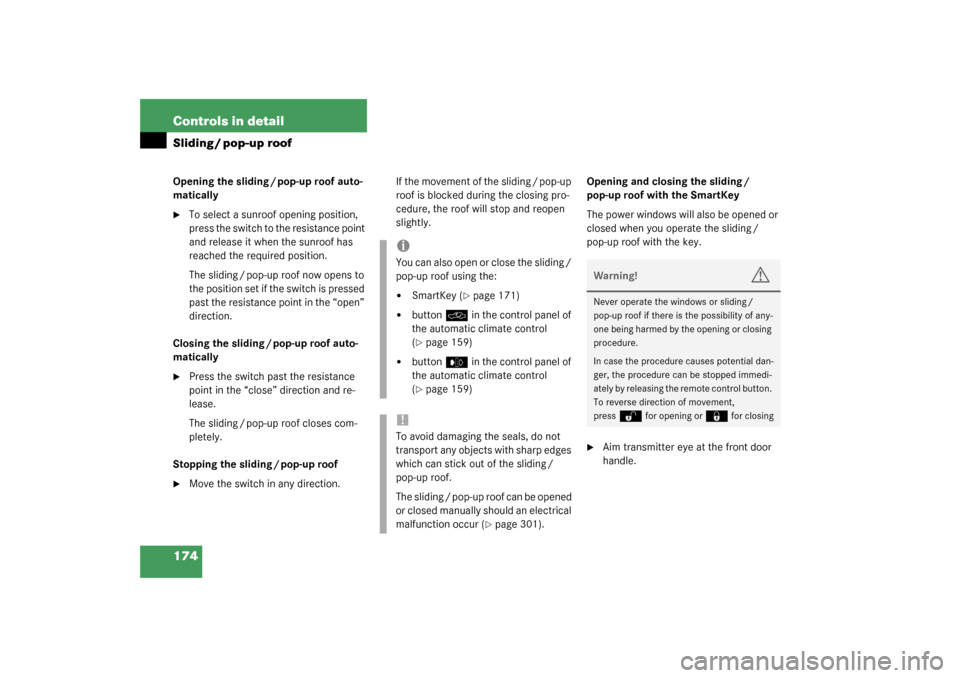

174 Controls in detailSliding / pop-up roofOpening the sliding / pop-up roof auto-
matically
To select a sunroof opening position,
press the switch to the resistance point
and release it when the sunroof has
reached the required position.
The sliding / pop-up roof now opens to
the position set if the switch is pressed
past the resistance point in the “open”
direction.
Closing the sliding / pop-up roof auto-
matically

Press the switch past the resistance
point in the “close” direction and re-
lease.
The sliding / pop-up roof closes com-
pletely.
Stopping the sliding / pop-up roof

Move the switch in any direction.If the movement of the sliding / pop-up
roof is blocked during the closing pro-
cedure, the roof will stop and reopen
slightly.Opening and closing the sliding /
pop-up roof with the SmartKey
The power windows will also be opened or
closed when you operate the sliding /
pop-up roof with the key.

Aim transmitter eye at the front door
handle.
iYou can also open or close the sliding /
pop-up roof using the:

SmartKey (
page 171)


button
O
in the control panel of
the automatic climate control
(
page 159)


button
e
in the control panel of
the automatic climate control
(
page 159)
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the sliding /
pop-up roof.
The sliding / pop-up roof can be opened
or closed manually should an electrical
malfunction occur (
page 301).
Warning!
G
Never operate the windows or sliding /
pop-up roof if there is the possibility of any-
one being harmed by the opening or closing
procedure.
In case the procedure causes potential dan-
ger, the procedure can be stopped immedi-
ately by releasing the remote control button.
To reverse direction of movement,
press
Œ
for opening or
‹
for closing

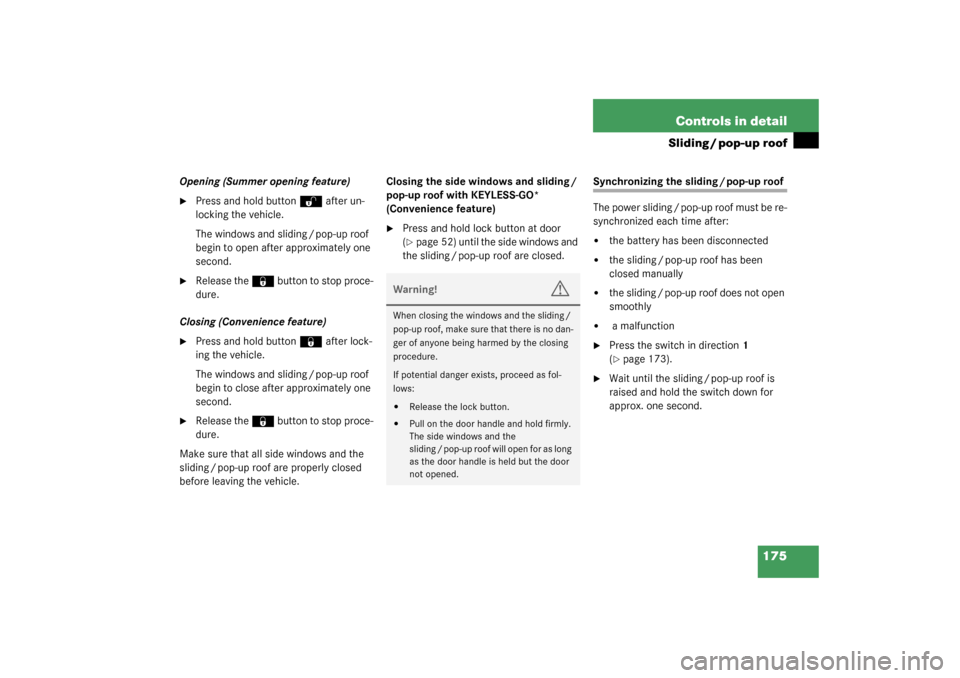

175 Controls in detail
Sliding / pop-up roof
Opening (Summer opening feature)
Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding / pop-up roof
begin to open after approximately one
second.

Release the
‹
button to stop proce-
dure.
Closing (Convenience feature)

Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding / pop-up roof
begin to close after approximately one
second.

Release the
‹
button to stop proce-
dure.
Make sure that all side windows and the
sliding / pop-up roof are properly closed
before leaving the vehicle.Closing the side windows and sliding /
pop-up roof with KEYLESS-GO*
(Convenience feature)

Press and hold lock button at door
(page 52) until the side windows and
the sliding / pop-up roof are closed.
Synchronizing the sliding / pop-up roof
The power sliding / pop-up roof must be re-
synchronized each time after:

the battery has been disconnected


the sliding / pop-up roof has been
closed manually


the sliding / pop-up roof does not open
smoothly


a malfunction

Press the switch in direction1
(page 173).

Wait until the sliding / pop-up roof is
raised and hold the switch down for
approx. one second.
Warning!
G
When closing the windows and the sliding /
pop-up roof, make sure that there is no dan-
ger of anyone being harmed by the closing
procedure.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the
sliding / pop-up roof will open for as long
as the door handle is held but the door
not opened.

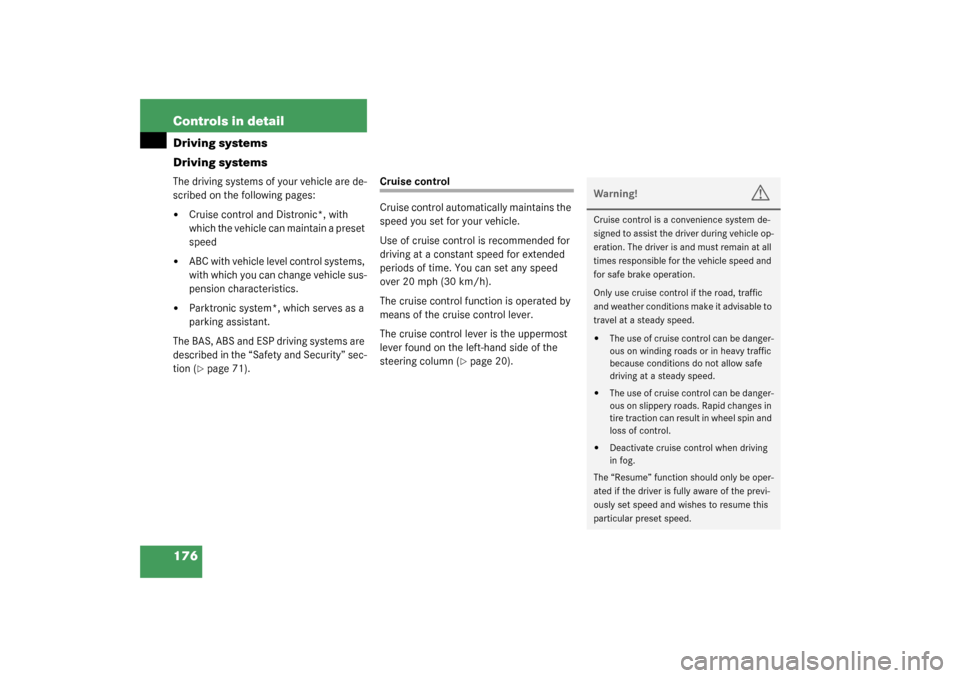

176 Controls in detailDriving systems
Driving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


ABC with vehicle level control systems,
with which you can change vehicle sus-
pension characteristics.


Parktronic system*, which serves as a
parking assistant.
The BAS, ABS and ESP driving systems are
described in the “Safety and Security” sec-
tion (page 71).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set any speed
over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 20).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

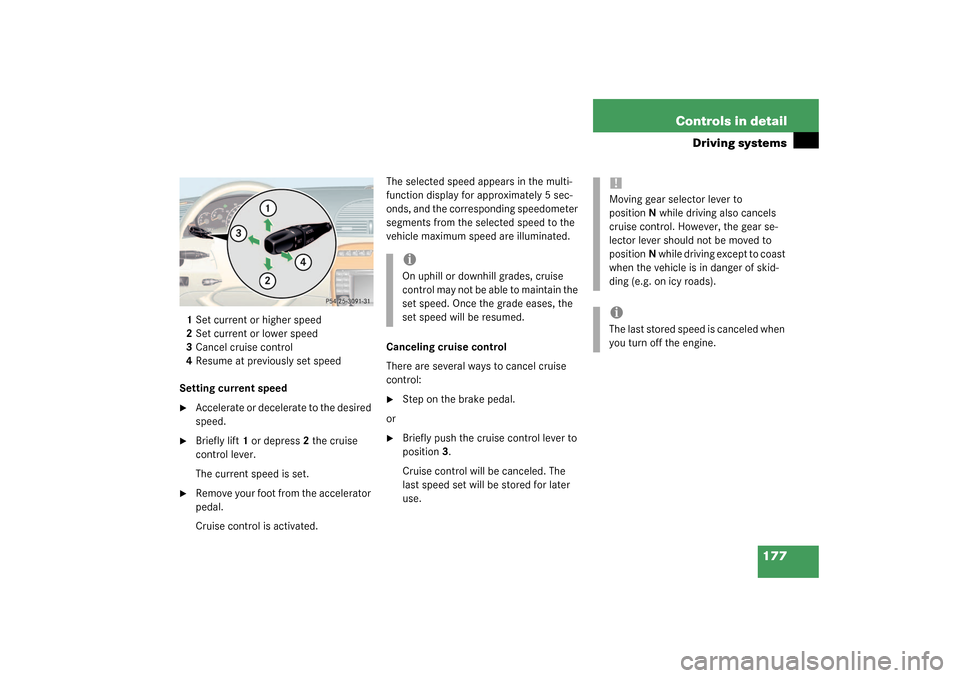

177 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume at previously set speed
Setting current speed
Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.The selected speed appears in the multi-
function display for approximately 5 sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated.
Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
or

Briefly push the cruise control lever to
position3.
Cruise control will be canceled. The
last speed set will be stored for later
use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Moving gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).iThe last stored speed is canceled when
you turn off the engine.

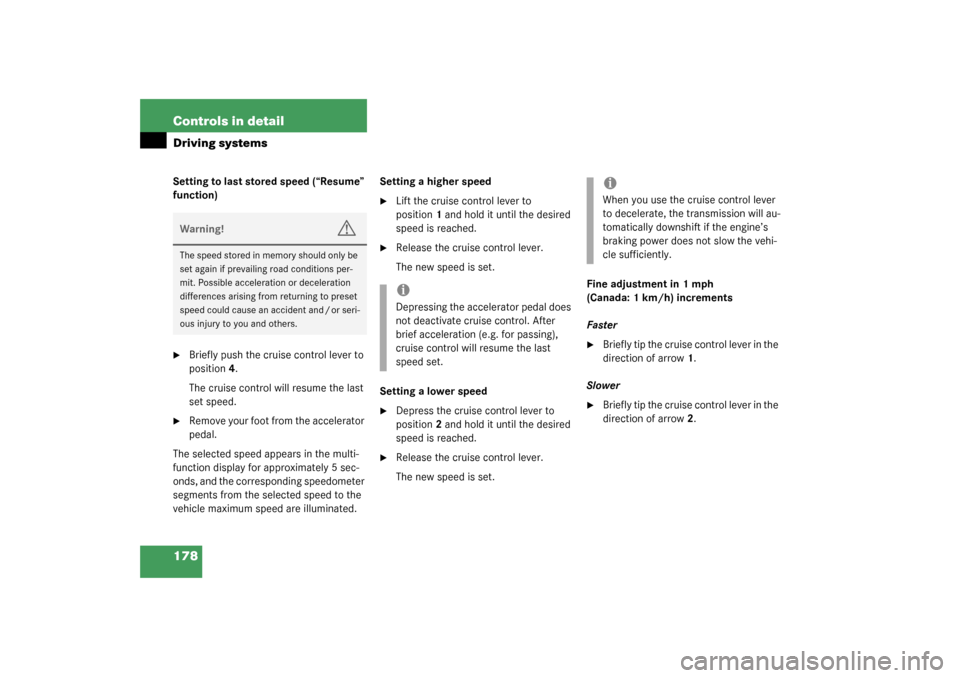

178 Controls in detailDriving systemsSetting to last stored speed (“Resume”
function)
Briefly push the cruise control lever to
position4.
The cruise control will resume the last
set speed.

Remove your foot from the accelerator
pedal.
The selected speed appears in the multi-
function display for approximately 5 sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated.Setting a higher speed

Lift the cruise control lever to
position1 and hold it until the desired
speed is reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control lever to
position2 and hold it until the desired
speed is reached.

Release the cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow1.
Slower

Briefly tip the cruise control lever in the
direction of arrow2.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and / or seri-
ous injury to you and others.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not slow the vehi-
cle sufficiently.

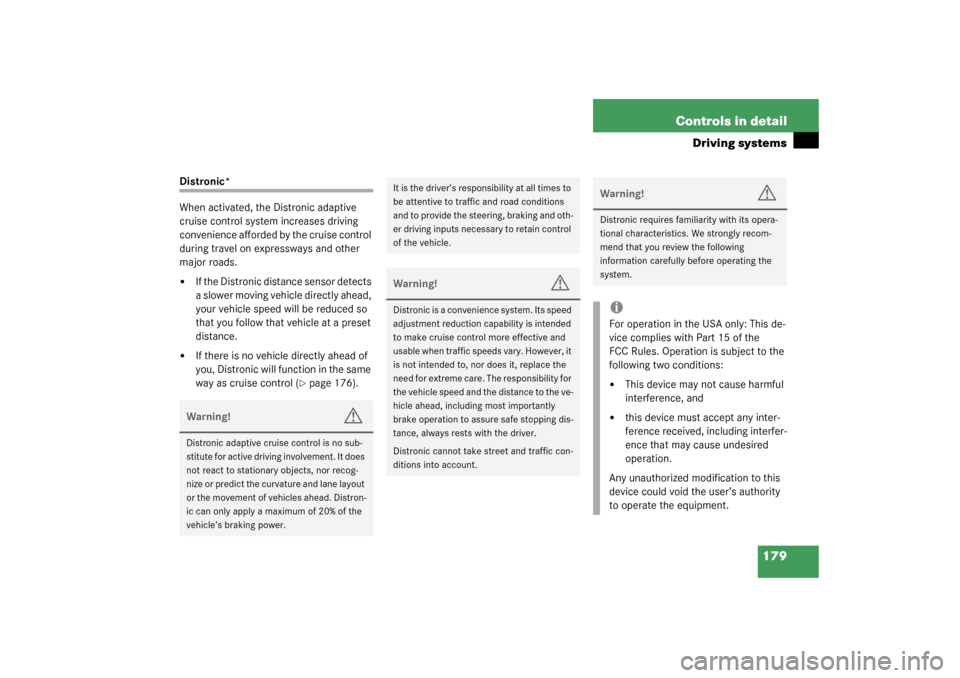

179 Controls in detail
Driving systems
Distronic*
When activated, the Distronic adaptive
cruise control system increases driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 176).
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor recog-
nize or predict the curvature and lane layout
or the movement of vehicles ahead. Distron-
ic can only apply a maximum of 20% of the
vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to traffic and road conditions
and to provide the steering, braking and oth-
er driving inputs necessary to retain control
of the vehicle.Warning!
G
Distronic is a convenience system. Its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. However, it
is not intended to, nor does it, replace the
need for extreme care. The responsibility for
the vehicle speed and the distance to the ve-
hicle ahead, including most importantly
brake operation to assure safe stopping dis-
tance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

This device may not cause harmful
interference, and


this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

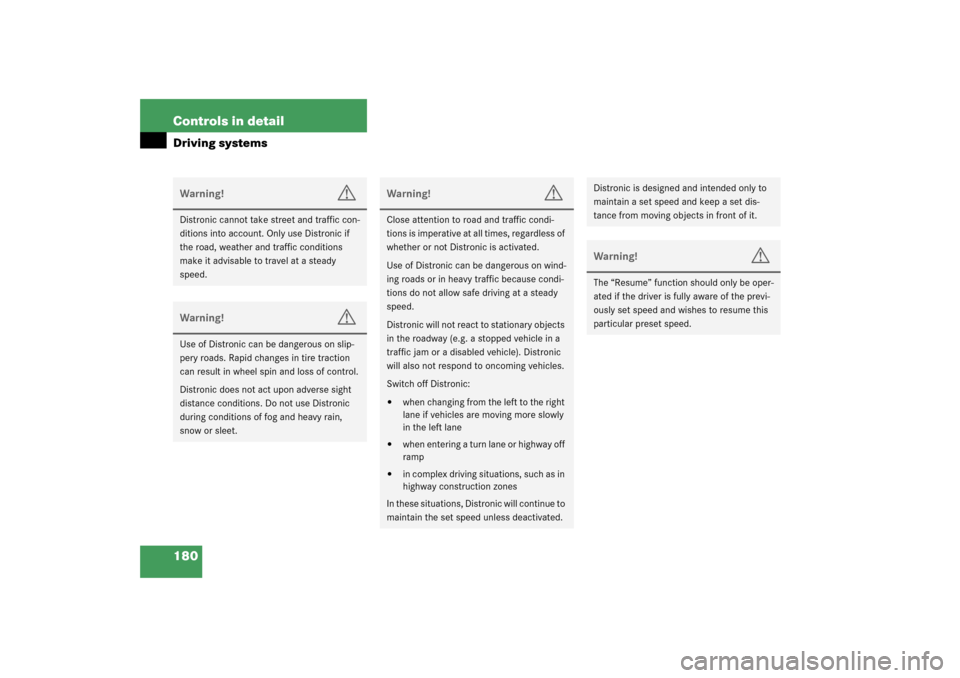

180 Controls in detailDriving systemsWarning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the road, weather and traffic conditions
make it advisable to travel at a steady
speed.Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.
Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
