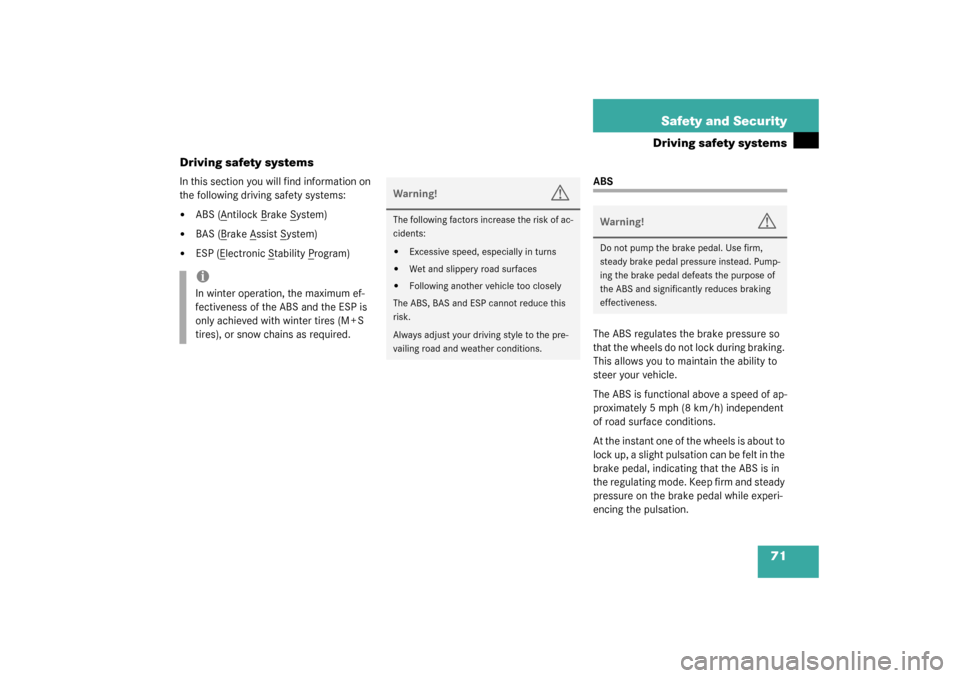

71 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)
ABS
The ABS regulates the brake pressure so
that the wheels do not lock during braking.
This allows you to maintain the ability to
steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode. Keep firm and steady
pressure on the brake pedal while experi-
encing the pulsation.
iIn winter operation, the maximum ef-
fectiveness of the ABS and the ESP is
only achieved with winter tires (M + S
tires), or snow chains as required.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS and ESP cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

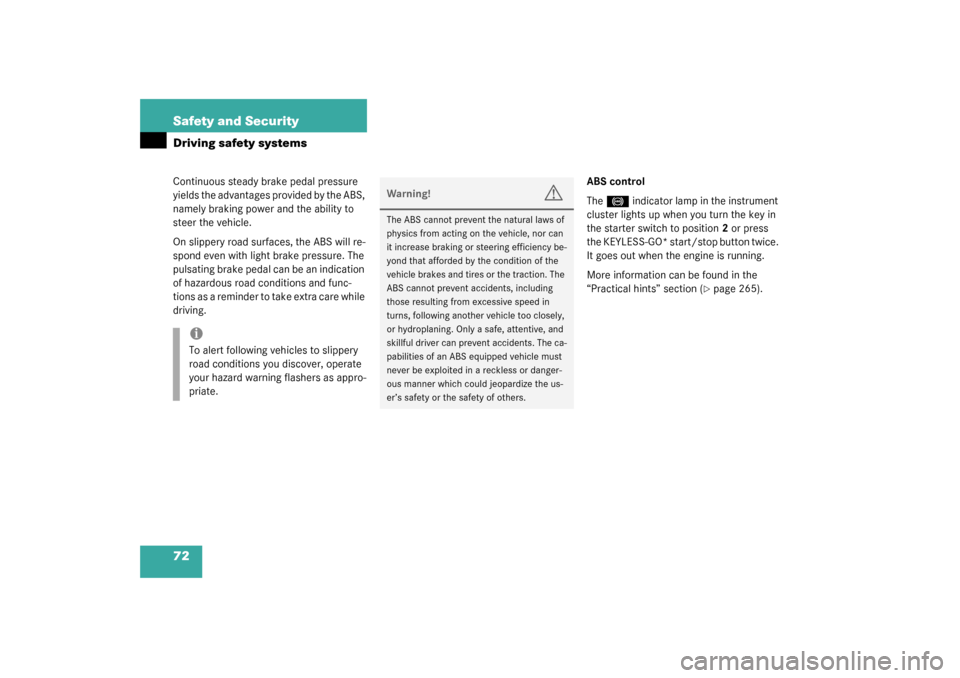

72 Safety and SecurityDriving safety systemsContinuous steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
On slippery road surfaces, the ABS will re-
spond even with light brake pressure. The
pulsating brake pedal can be an indication
of hazardous road conditions and func-
tions as a reminder to take extra care while
driving.ABS control
The
-
indicator lamp in the instrument
cluster lights up when you turn the key in
the starter switch to position2 or press
the KEYLESS-GO* start/stop button twice.
It goes out when the engine is running.
More information can be found in the
“Practical hints” section (
page 265).
iTo alert following vehicles to slippery
road conditions you discover, operate
your hazard warning flashers as appro-
priate.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction. The
ABS cannot prevent accidents, including
those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ABS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.

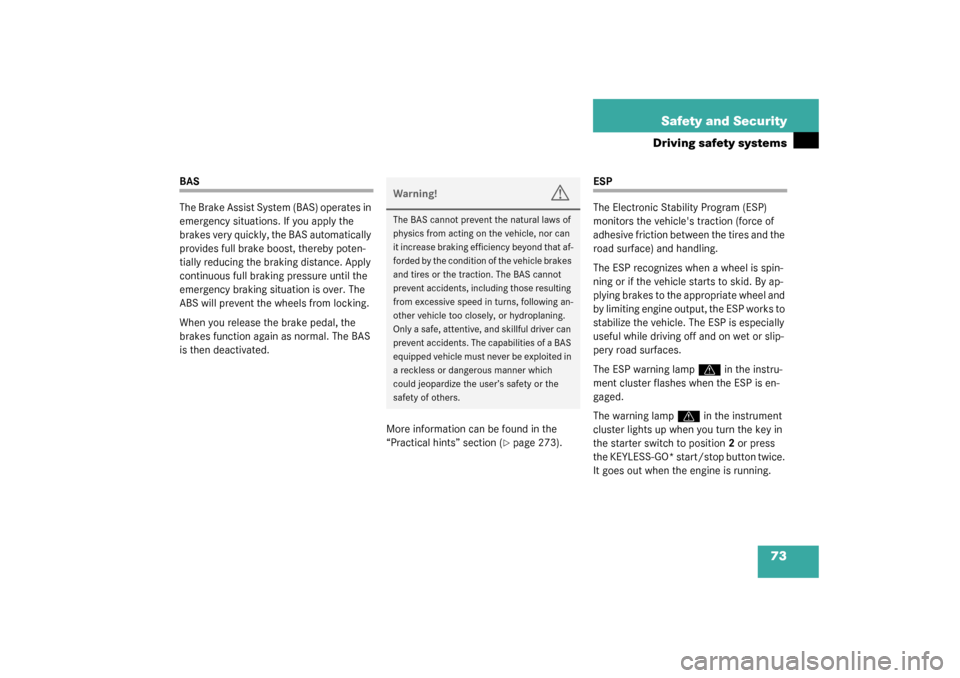

73 Safety and Security
Driving safety systems
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
More information can be found in the
“Practical hints” section (
page 273).
ESP
The Electronic Stability Program (ESP)
monitors the vehicle's traction (force of
adhesive friction between the tires and the
road surface) and handling.
The ESP recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying brakes to the appropriate wheel and
by limiting engine output, the ESP works to
stabilize the vehicle. The ESP is especially
useful while driving off and on wet or slip-
pery road surfaces.
The ESP warning lamp
v
in the instru-
ment cluster flashes when the ESP is en-
gaged.
The warning lamp
v
in the instrument
cluster lights up when you turn the key in
the starter switch to position2 or press
the KEYLESS-GO* start/stop button twice.
It goes out when the engine is running.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction. The BAS cannot
prevent accidents, including those resulting
from excessive speed in turns, following an-
other vehicle too closely, or hydroplaning.
Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of a BAS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.

74 Safety and SecurityDriving safety systems
More information can be found in the
“Practical hints” section (
page 264).
Warning!
G
Never switch off the ESP when you see the
ESP warning lamp
v
flashing in the in-
s tr ume nt cl us te r. I n th i s c a se pr o c eed a s f ol -
lows:


While driving off, apply as little throttle
as possible


While driving ease up on the accelerator


Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.iDistronic* is switched off when ESP is
activated.
!Because of the ESP’s automatic opera-
t i o n , t h e e n g i n e m u s t b e s h u t o f f ( k e y i n
starter switch position0 or1) when

the parking brake is being tested on
a brake test dynamometer


the vehicle is being towed with the
front / rear axle raised.
Active braking action through the ESP
may otherwise seriously damage the
brake system.
The ESP will only function properly if
you use wheels of the recommended
tire size (
page 331).

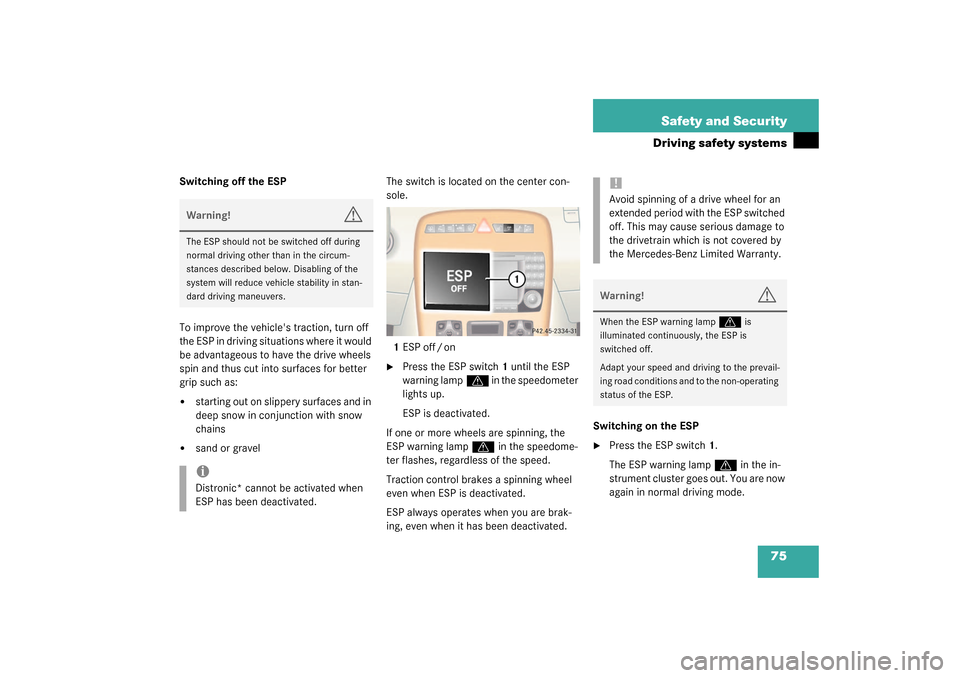

75 Safety and Security
Driving safety systems
Switching off the ESP
To improve the vehicle's traction, turn off
the ESP in driving situations where it would
be advantageous to have the drive wheels
spin and thus cut into surfaces for better
grip such as:

starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


sand or gravelThe switch is located on the center con-
sole.
1ESP off / on

Press the ESP switch1 until the ESP
warning lamp
v
in the speedometer
lights up.
ESP is deactivated.
If one or more wheels are spinning, the
ESP warning lamp
v
in the speedome-
ter flashes, regardless of the speed.
Traction control brakes a spinning wheel
even when ESP is deactivated.
ESP always operates when you are brak-
ing, even when it has been deactivated.Switching on the ESP

Press the ESP switch1.
The ESP warning lamp
v
in the in-
strument cluster goes out. You are now
again in normal driving mode.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.iDistronic* cannot be activated when
ESP has been deactivated.
!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drivetrain which is not covered by
the Mercedes-Benz Limited Warranty.Warning!
G
When the ESP warning lamp
v
is
illuminated continuously, the ESP is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.

76 Safety and SecurityAnti-theft systems
Anti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

With the SmartKey: Removing the key
from the starter switch activates the
immobilizer.


With KEYLESS-GO*: Turning off the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever activates the immobilizer.Deactivating


With the SmartKey: Inserting the key in
the starter switch deactivates the im-
mobilizer.


With KEYLESS-GO*: Starting the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever deactivates the immobilizer.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).

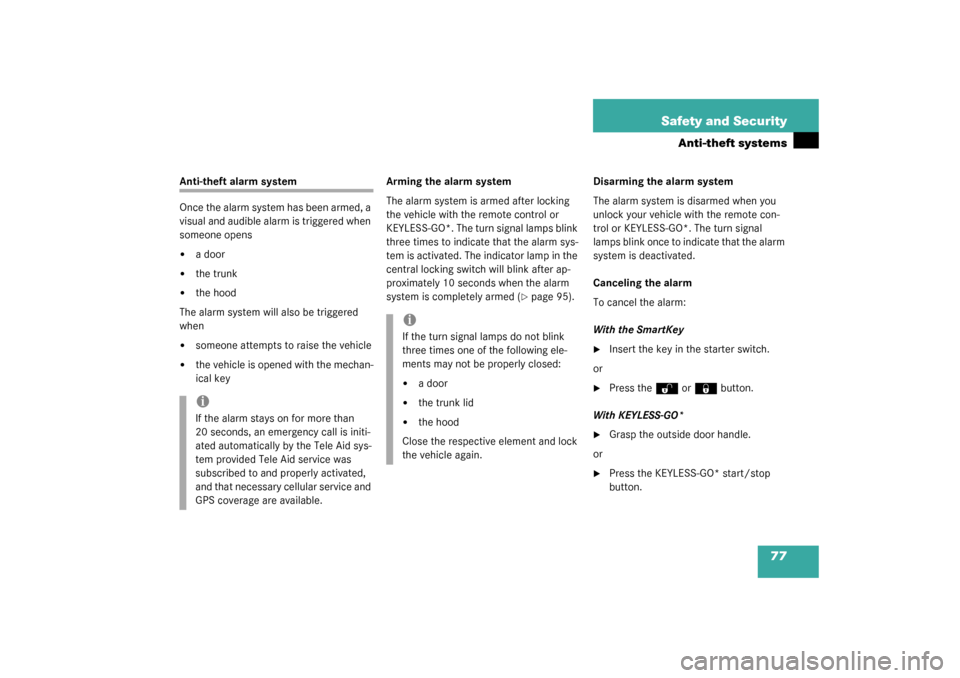

77 Safety and Security
Anti-theft systems
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk


the hood
The alarm system will also be triggered
when


someone attempts to raise the vehicle


the vehicle is opened with the mechan-
ical keyArming the alarm system
The alarm system is armed after locking
the vehicle with the remote control or
KEYLESS-GO*. The turn signal lamps blink
three times to indicate that the alarm sys-
tem is activated. The indicator lamp in the
central locking switch will blink after ap-
proximately 10 seconds when the alarm
system is completely armed (
page 95).Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol or KEYLESS-GO*. The turn signal
lamps blink once to indicate that the alarm
system is deactivated.
Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the key in the starter switch.
or

Press the
Œ
or
‹
button.
With KEYLESS-GO*

Grasp the outside door handle.
or

Press the KEYLESS-GO* start/stop
button.
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem provided Tele Aid service was
subscribed to and properly activated,
and that necessary cellular service and
GPS coverage are available.
iIf the turn signal lamps do not blink
three times one of the following ele-
ments may not be properly closed:

a door


the trunk lid


the hood
Close the respective element and lock
the vehicle again.

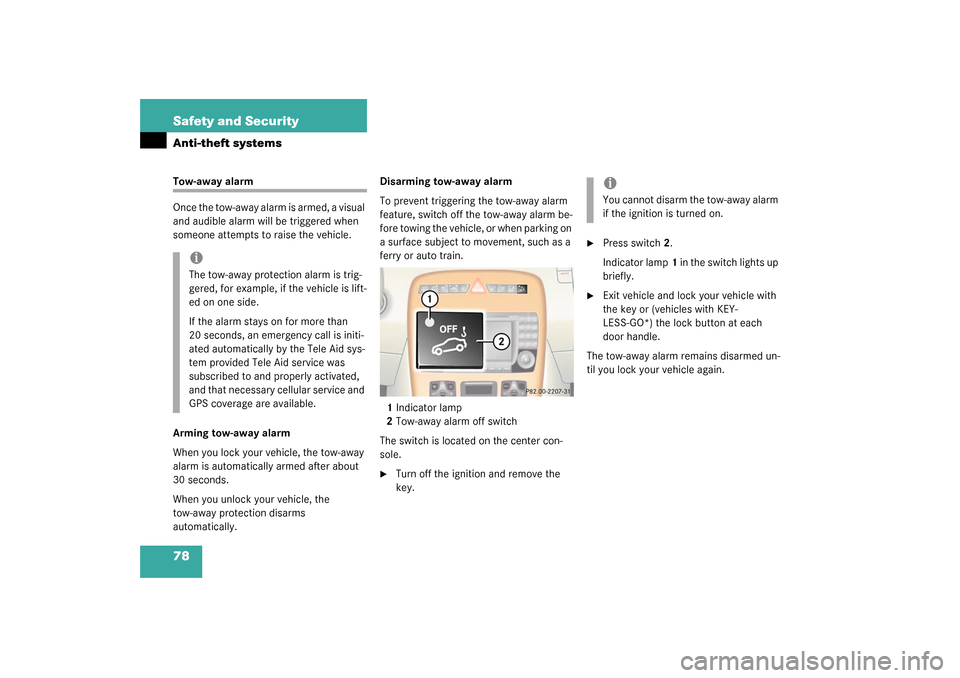

78 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms
automatically.Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
1Indicator lamp
2Tow-away alarm off switch
The switch is located on the center con-
sole.

Turn off the ignition and remove the
key.

Press switch2.
Indicator lamp1 in the switch lights up
briefly.

Exit vehicle and lock your vehicle with
the key or (vehicles with KEY-
LESS-GO*) the lock button at each
door handle.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem provided Tele Aid service was
subscribed to and properly activated,
and that necessary cellular service and
GPS coverage are available.
iYou cannot disarm the tow-away alarm
if the ignition is turned on.

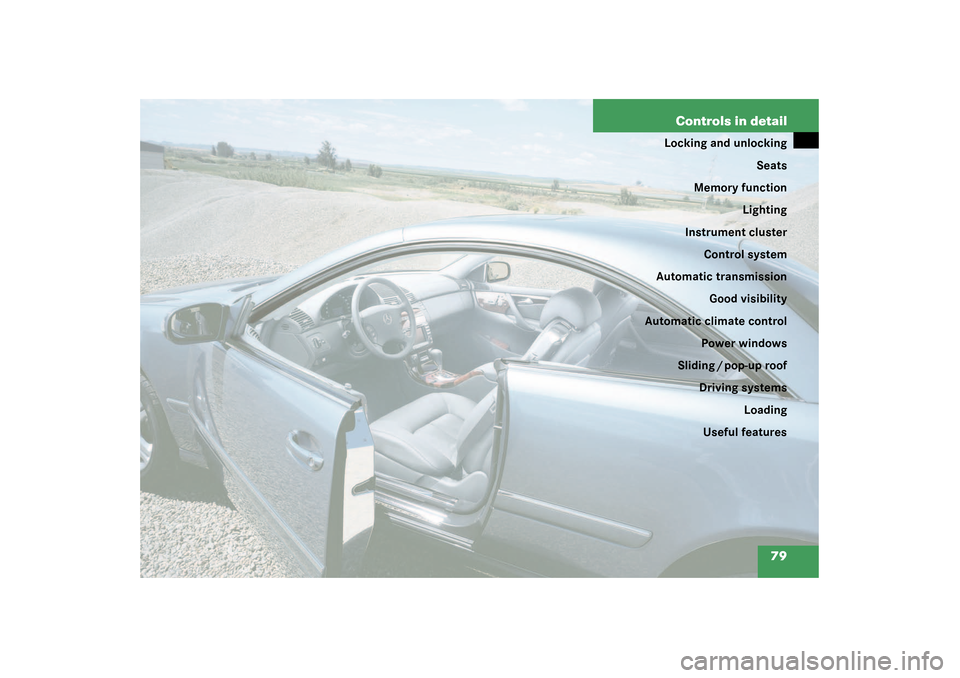

79 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Automatic climate control
Power windows
Sliding / pop-up roof
Driving systems
Loading
Useful features

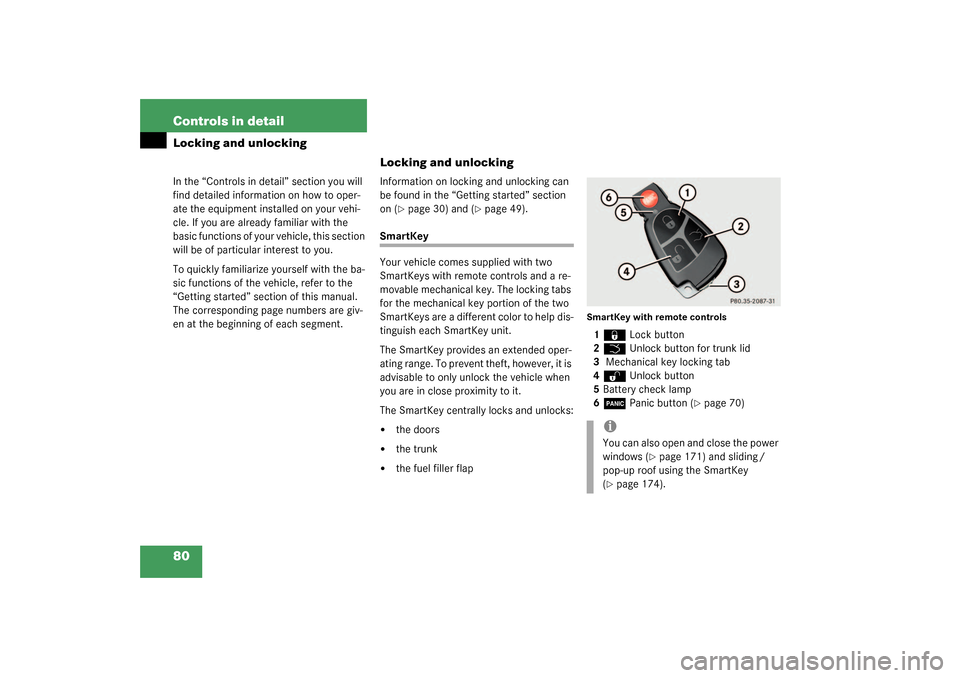

80 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlockingInformation on locking and unlocking can
be found in the “Getting started” section
on (
page 30) and (
page 49).
SmartKey
Your vehicle comes supplied with two
SmartKeys with remote controls and a re-
movable mechanical key. The locking tabs
for the mechanical key portion of the two
SmartKeys are a different color to help dis-
tinguish each SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote controls1‹
Lock button
2
Š
Unlock button for trunk lid
3 Mechanical key locking tab
4
Œ
Unlock button
5Battery check lamp
6
Â
Panic button (
page 70)
iYou can also open and close the power
windows (
page 171) and sliding /
pop-up roof using the SmartKey
(
page 174).
