wiper blades MERCEDES-BENZ CL600 2004 C215 Owner's Manual

Contents
Maintenance ...................................... 282
Clearing the service indicator ...... 282
Service term exceeded ................ 282
Calling up the service indicator .... 283
Resetting the service indicator..... 283
Vehicle care ....................................... 284
Cleaning and care of vehicle ........ 284
Practical hints.................................. 291
What to do if …? ................................. 292
Lamps in instrument cluster ......... 292
Lamp in center console................. 298
Messages in the display ................ 299
Where will I find...? ............................. 329
First aid kit .................................... 329
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ............ 329
Unlocking/locking in an emergency... 331
Unlocking the vehicle.................... 331
Locking the vehicle ....................... 332
Replacing batteries in
the SmartKey/ SmartKey with
KEYLESS-GO* ............................... 332
Fuel filler flap ................................ 334
Opening/closing in an emergency ..... 335
Sliding/pop-up roof ...................... 335
Replacing bulbs .................................. 336
Bulbs ............................................. 336
Replacing bulbs for front lamps .... 338
Replacing bulbs for rear lamps ..... 340Replacing wiper blades ...................... 341
Removing wiper blades ................. 341
Installing wiper blades .................. 342
Flat tire............................................... 343
Preparing the vehicle .................... 343
Mounting the spare wheel ............ 343
Battery ............................................... 348
Disconnecting the battery ............ 349
Removing the battery ................... 349
Charging and reinstalling the
battery .......................................... 349
Reconnecting the battery ............. 350
Jump starting...................................... 351
Towing the vehicle.............................. 353
Installing towing eye bolt .............. 355
Fuses.................................................. 356
Fuse boxes in passenger
compartment ................................ 356
Fuse boxes in engine
compartment ................................ 357
Emergency engine shut-down ....... 358

50 Getting startedDrivingWindshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure the ignition is switched on.
All the lamps in the instrument cluster
come on.Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping (interval depen-
dent on wetness of windshield)
IINormal wiper speed
IIIFast wiper speed iThe intermittent wiping interval is de-
pendent on wetness of the windshield.
Wiping will not occur with a door open.
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Wipers will operate in
the presence of water sprayed on the
windshield, and wipers may be dam-
aged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and/or damage the wiper blades
when wiping occurs on a dry wind-
shield.

170 Controls in detailGood visibilityWindshield wipers
For more information on the windshield
wipers, see “Windshield wipers”
(page 50).
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.

Switch on ignition.

Set wiper switch to position I
(page 50).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1Headlamp washer switch
Switch on ignition.

Press switch1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 269).
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a door
is opened.
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Wipers will operate in
the presence of water sprayed on the
windshield, and wipers may be dam-
aged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and/or damage the wiper blades
when wiping occurs on a dry wind-
shield.

260OperationEngine compartment
Engine compartmentHood
Opening
The hood lock release lever is located in
the driver’s footwell to the left of the park-
ing brake pedal.
1Release lever

Pull release lever 1 in direction of ar-
row.
The hood is unlocked and handle 2
will extend out of the radiator grille.
2Handle for opening the hood

Pull handle 2 to its stop out of radiator
grille.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.

287 Operation
Vehicle care
Cleaning the Distronic* system sensor
cover
1Distronic* system sensor cover
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Sham-
poo, with plenty of water to clean sen-
sor cover1.
To prevent scratches, never apply strong
force and use only a soft, non-scratchy
cloth when cleaning the sensor cover. Do
not attempt to wipe dirty sensors with a
dry cloth or sponge.Cleaning the Parktronic system
sensors
1Parktronic* sensors

Use a mild car wash detergent, such as
Mercedes-Benz approved Car Sham-
poo with plenty of water to to clean
sensors1.
When using a steam cleaner or power
washer, aim nozzle only briefly from
a minimum distance of 4 in (10 cm) at
sensors1.To prevent scratches, never apply strong
force and use only a soft, non-scratchy
cloth when cleaning the sensor. Do not at-
tempt to wipe dirty sensors with a dry cloth
or sponge.
Wiper blades

Turn on the wipers and place it in a ver-
tical position.
For information on placing the wipers to a
vertical position, see “Replacing wiper
blades” (
page 341).
!Fold the windshield wiper arms away
from the windshield to a vertical posi-
tion only. They could otherwise dam-
age the hood.

288OperationVehicle care
Clean the wiper blade inserts with a
clean cloth and detergent solution.Window cleaning

Turn on the wipers and place it in a ver-
tical position.
For information on placing the wipers to a
vertical position, see “Replacing wiper
blades” (
page 341).

Use a window cleaning solution on all
glass surfaces.
An automotive glass cleaner is recom-
mended.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch before
cleaning the wiper blades, otherwise the
wiper motor might suddenly turn on and
cause injury.!Fold the windshield wiper arms back
onto the windshield before turning the
SmartKey in the starter switch.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
!Fold the windshield wiper arms away
from the windshield in a vertical posi-
tion only. They could otherwise dam-
age the hood. Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch before
cleaning the windshield, otherwise the wiper
motor might suddenly turn on and cause in-
jury.
!Fold the windshield wiper arms back
onto the windshield before turning the
SmartKey in the starter switch.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.

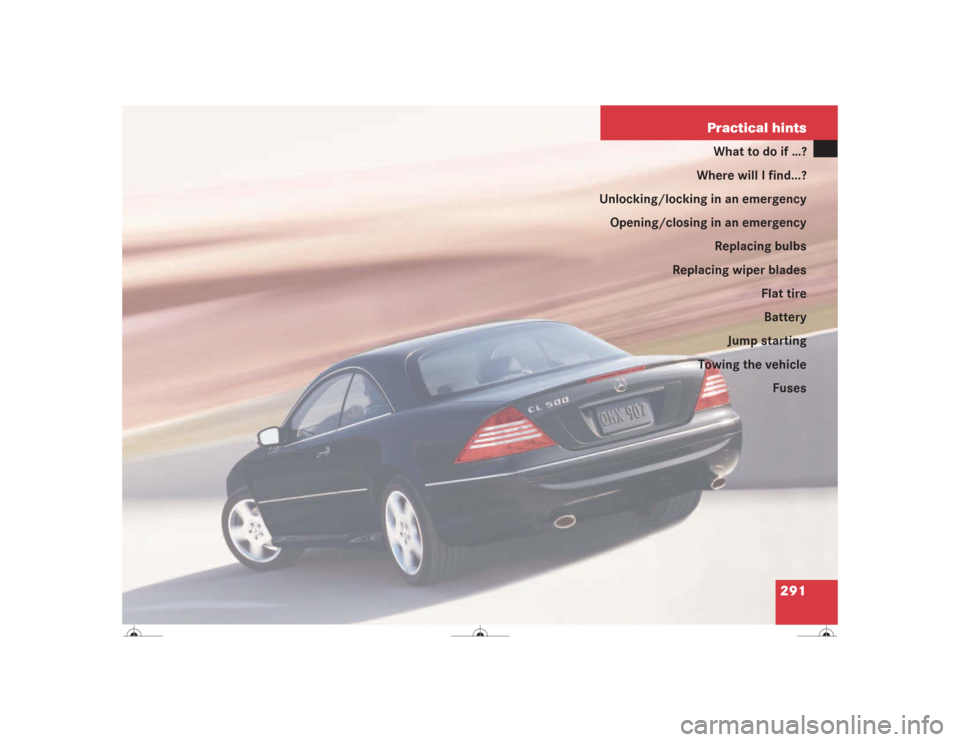

291 Practical hints
What to do if …?
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

341 Practical hints
Replacing wiper blades
Replacing wiper blades
Wiper blades in vertcal position
Removing wiper blades
Turn SmartKey in starter switch to
position1.

Turn combination switch to wiper
settingII (
page 50).

With wiper arm in vertical position, turn
SmartKey in starter switch to
position0.

Fold the wiper arm forward until it
snaps into place.

Turn the wiper blade at a right angle to
wiper arm (arrow 1).

Slide the wiper blade sideways out of
the retainer in the direction of
arrow2.
!To avoid damage to the hood, the wiper
arms should only be folded forward
when in the vertical position.
Warning!
G
For safety reasons, remove SmartKey from
starter switch before replacing a wiper
blade. Otherwise the motor could suddenly
turn on and cause injury.

342 Practical hintsReplacing wiper bladesInstalling wiper blades
Slide the wiper blade onto wiper arm
until it locks in place.

Rotate the wiper blade into position
parallel to wiper arm.

Fold the wiper arm backward to rest on
the windshield. Make sure you hold
onto the wiper when folding the wiper
arm back.
!Never open the hood when the wiper
arm is folded forward.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.

393 Index
Child safety switch see Blocking of rear
window operation 75
Cigarette lighter 228
CL 55 AMG Kompressor
MANUAL shift program mode 164
Cleaning
Cup holder 289
Distronic* system sensor cover 287
Gear selector lever 289
Hard plastic trim items 289
Headlamps 170
Headliner and shelf below rear
window 289
Instrument cluster 289
Leather upholstery 290
Light alloy wheels 289
Nubuck leather upholstery 290
Parktronic* system sensor 287
Plastic and rubber parts 290
Seat belts 289
Steering wheel 289
Upholstery 290
Windows 288Windshield 51
Wiper blades 287
Wood trims 290
Clock 23
Closing
Cup holder 226
Glove box 221
Hood 261
Power window with
KEYLESS-GO* 189
Power window with SmartKey 188
Side windows 187, 188
Sliding/pop-up roof 191, 335
With SmartKey 193
Sliding/pop-up roof with
KEYLESS-GO* 194
Trunk 98
Windows 186
Closing sliding/pop-up roof
In an emergency 335
Cockpit 20, 383
Cockpit management and data system
(COMAND) 384COMAND 384
COMAND see separate operating instruc-
tions
Combination switch 123
High beam flasher 49, 123
Turn signals 49
Windshield wipers 50
Consumer information 380
Control and operation of radio
transmitters 254
Control system 129, 384
AUDIO menu 134
Checking oil level 262
Convenience submenu 154
Display digital speedometer 134
Distronic* menu 142
Functions 131, 133
Instrument cluster submenu 148
Lighting submenu 149
Malfunction memory menu 144
Menus 132, 133
Multifunction display 129
Multifunction steering wheel 130
