MERCEDES-BENZ CL600 2005 C215 Owner's Manual

359 Practical hints
What to do if …?
Display
Possible cause
Possible solution
H
TIRE PRES., LF
CAUTION, TIRE PRES.
The left front tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRES., LF
CHECK TIRES!
The left front tire inflation pressure is low.

Carefully bring the vehicle to a halt.

Check and correct the tire inflation pres-
sure (
page 294).

If necessary, change the wheel
(page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

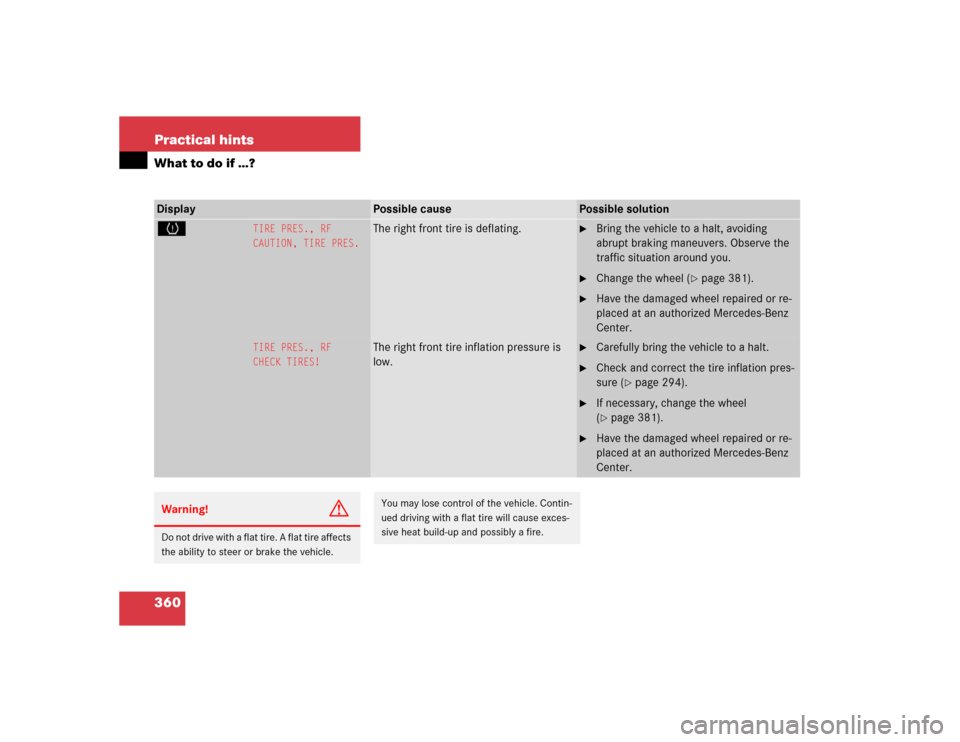

360 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
H
TIRE PRES., RF
CAUTION, TIRE PRES.
The right front tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRES., RF
CHECK TIRES!
The right front tire inflation pressure is
low.

Carefully bring the vehicle to a halt.

Check and correct the tire inflation pres-
sure (
page 294).

If necessary, change the wheel
(page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

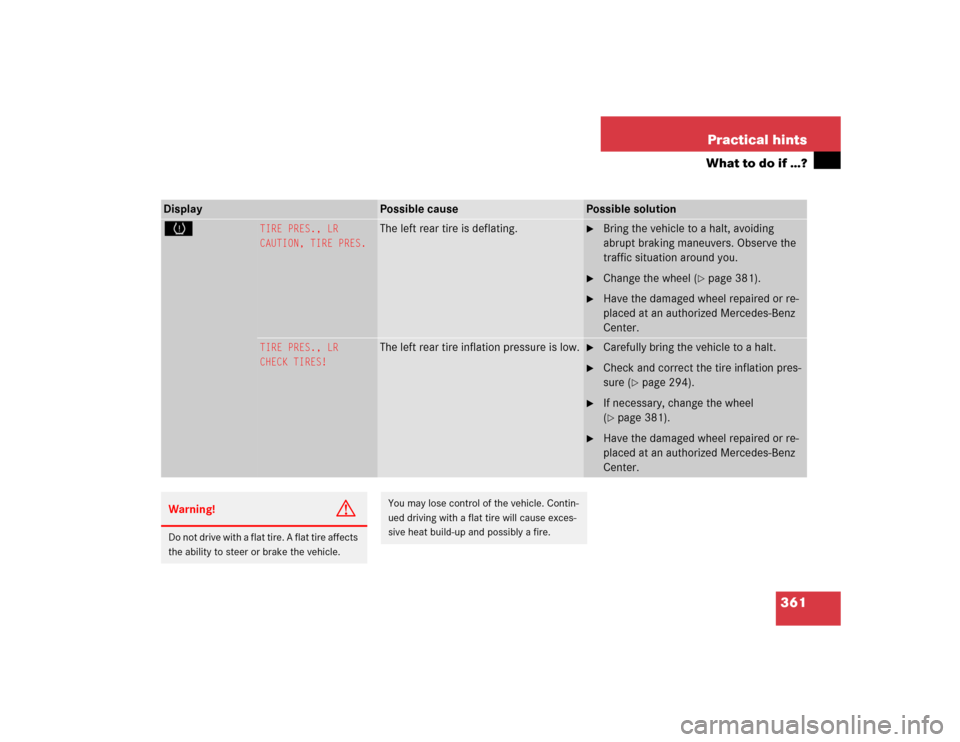

361 Practical hints
What to do if …?
Display
Possible cause
Possible solution
H
TIRE PRES., LR
CAUTION, TIRE PRES.
The left rear tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRES., LR
CHECK TIRES!
The left rear tire inflation pressure is low.

Carefully bring the vehicle to a halt.

Check and correct the tire inflation pres-
sure (
page 294).

If necessary, change the wheel
(page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

362 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
H
TIRE PRES., RR
CAUTION, TIRE PRES.
The right rear tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRES., RR
CHECK TIRES!
The right rear tire inflation pressure is
low.

Carefully bring the vehicle to a halt.

Check and correct the tire inflation pres-
sure (
page 294).

If necessary, change the wheel
(page 381).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

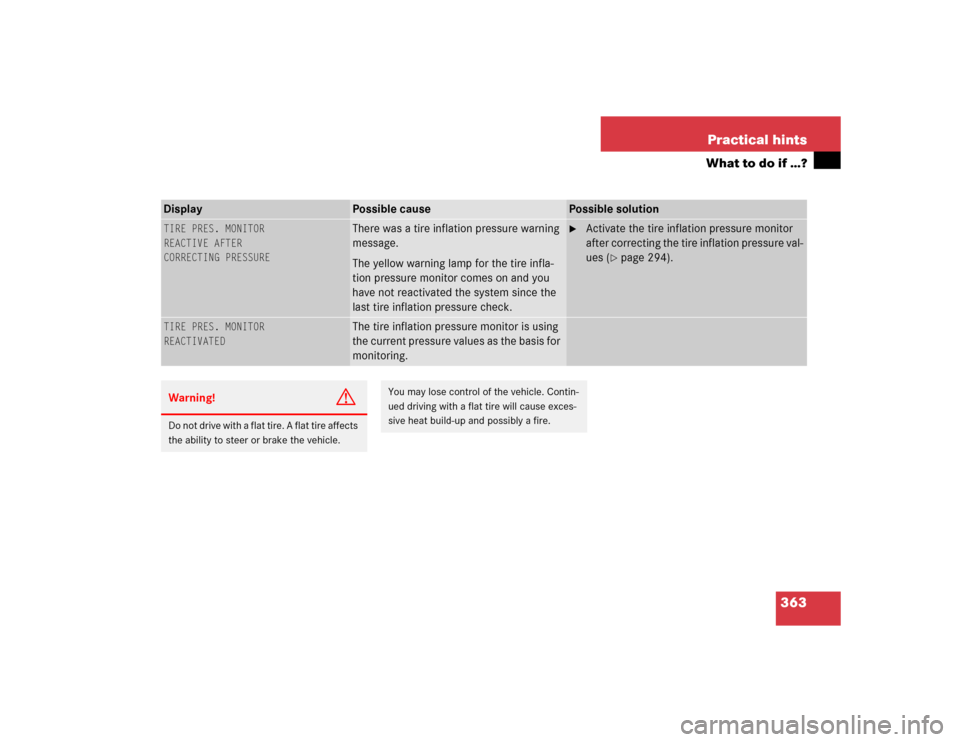

363 Practical hints
What to do if …?
Display
Possible cause
Possible solution
TIRE PRES. MONITOR
REACTIVE AFTER
CORRECTING PRESSURE
There was a tire inflation pressure warning
message.
The yellow warning lamp for the tire infla-
tion pressure monitor comes on and you
have not reactivated the system since the
last tire inflation pressure check.

Activate the tire inflation pressure monitor
after correcting the tire inflation pressure val-
ues (
page 294).
TIRE PRES. MONITOR
REACTIVATED
The tire inflation pressure monitor is using
the current pressure values as the basis for
monitoring.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

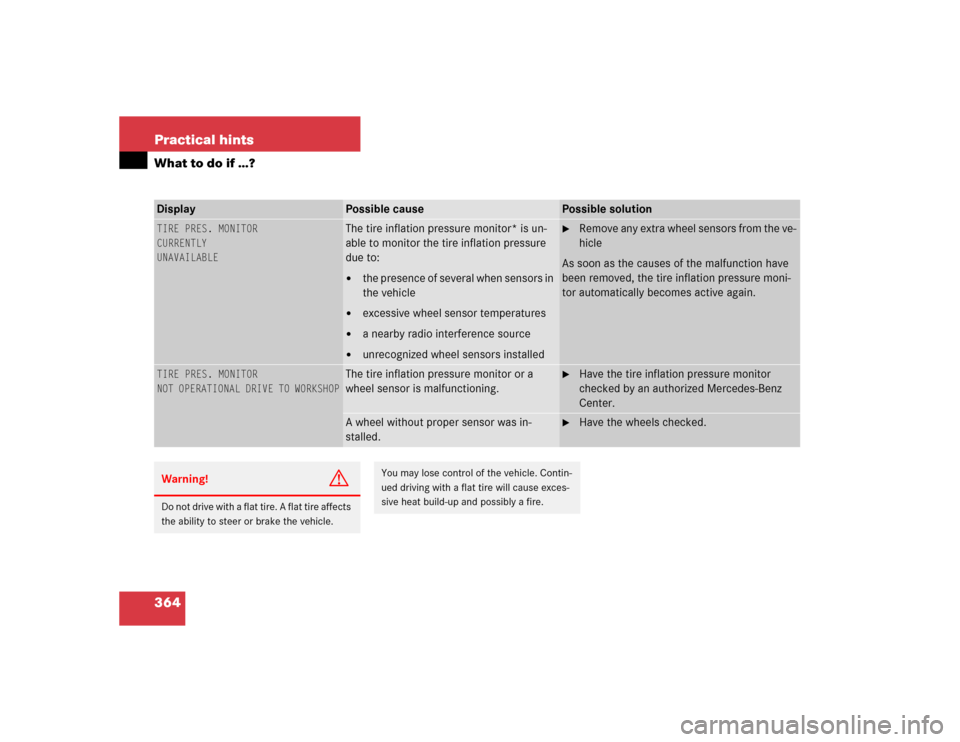

364 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
TIRE PRES. MONITOR
CURRENTLY
UNAVAILABLE
The tire inflation pressure monitor* is un-
able to monitor the tire inflation pressure
due to:

the presence of several when sensors in
the vehicle


excessive wheel sensor temperatures


a nearby radio interference source


unrecognized wheel sensors installed

Remove any extra wheel sensors from the ve-
hicle
As soon as the causes of the malfunction have
been removed, the tire inflation pressure moni-
tor automatically becomes active again.
TIRE PRES. MONITOR
NOT OPERATIONAL DRIVE TO WORKSHOP
The tire inflation pressure monitor or a
wheel sensor is malfunctioning.

Have the tire inflation pressure monitor
checked by an authorized Mercedes-Benz
Center.
A wheel without proper sensor was in-
stalled.

Have the wheels checked.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

365 Practical hints
Where will I find...?
Where will I find...?
First aid kit
The first aid kit is stored in the rear center
armrest.
1Arm rest
2Lid
Fold rear arm rest down1.

Press handle upwards.

Fold lid2 up.

Remove first aid kit.Vehicle jack, vehicle tool kit, luggage
bowl, spare wheel
The spare wheel, the vehicle tool kit and
the luggage bowl are stored in the com-
partment underneath the trunk floor.
1Vehicle jack
2Vehicle tool kit
3Luggage bowl
4Spare wheel

Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
You can now remove the tools and ac-
cessories.
The vehicle tool kit includes:


One interchangeable slot/Phillips
screwdriver


One towing eye bolt


One wheel bolt wrench with socket
wrench


One alignment bolt


One pair of gloves


One fuse extractor


One fuse chart for the main fuse box


Spare fuses
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.
!To prevent damage, always disengage
trunk floor handle from trunk edge and
lower trunk floor before closing the
trunk lid.

366 Practical hintsWhere will I find...?Vehicle jack
To prepare the vehicle jack for use
Remove the vehicle jack from the spare
wheel well under the trunk floor.

Push the crank handle up.

Turn the crank handle clockwise until it
engages (operational position).
Storing the vehicle jack in the trunk

Retract the vehicle jack arm to the
base of the vehicle jack.

Push the crank handle up.

Turn the crank handle counterclock-
wise to the end of the stop (storage po-
sition).Spare wheel
Removing the spare wheel

Take out vehicle tool kit tray 2.

Turn the luggage bowl 3 counter-
clockwise.

Remove the spare wheel 4.
Storing the spare wheel

Place spare wheel 4 in wheel well and
secure it with luggage bowl 3.

Turn the luggage bowl 3 clockwise to
its stop.

Place vehicle tool kit tray 2 in luggage
bowl 3.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

367 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the me-
chanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of ar-
row.

Slide the mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the driv-
er’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position 1.
The driver’s door is unlocked.
iUnlocking the driver’s door and/or the
trunk with the mechanical key will trig-
ger the anti-theft alarm system.
To cancel the alarm, insert the
SmartKey or SmartKey with
KEYLESS-GO* in the starter switch.

368 Practical hintsUnlocking/locking in an emergencyUnlocking the trunk
A minimum height clearance of 6.3 ft
(1.90 m) is required to open the trunk lid.
The trunk lid lock is located next to the
handle above the rear license plate recess.
1Unlocking and opening
2Trunk lid lock
Insert the mechanical key into the
trunk lid lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The trunk unlocks and opens.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey or the SmartKey with
KEYLESS-GO*, do the following:
Close the passenger doors and the
trunk lid.

Press the central locking switch in the
center console (
page 111).

Check to see whether the locking
knobs on the passenger doors have
moved down.

If necessary push them down manually.
Except for the driver's door, the vehicle
should now be locked.1Unlocking

Remove the mechanical key out of the
SmartKey (
page 367).

Insert the mechanical key into the driv-
er’s door lock until it stops.

Turn the mechanical key clockwise to
position 1.
The driver’s door is locked.
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.
