MERCEDES-BENZ CL600 2005 C215 Owner's Manual

399 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any Mercedes-Benz Cen-
ter.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

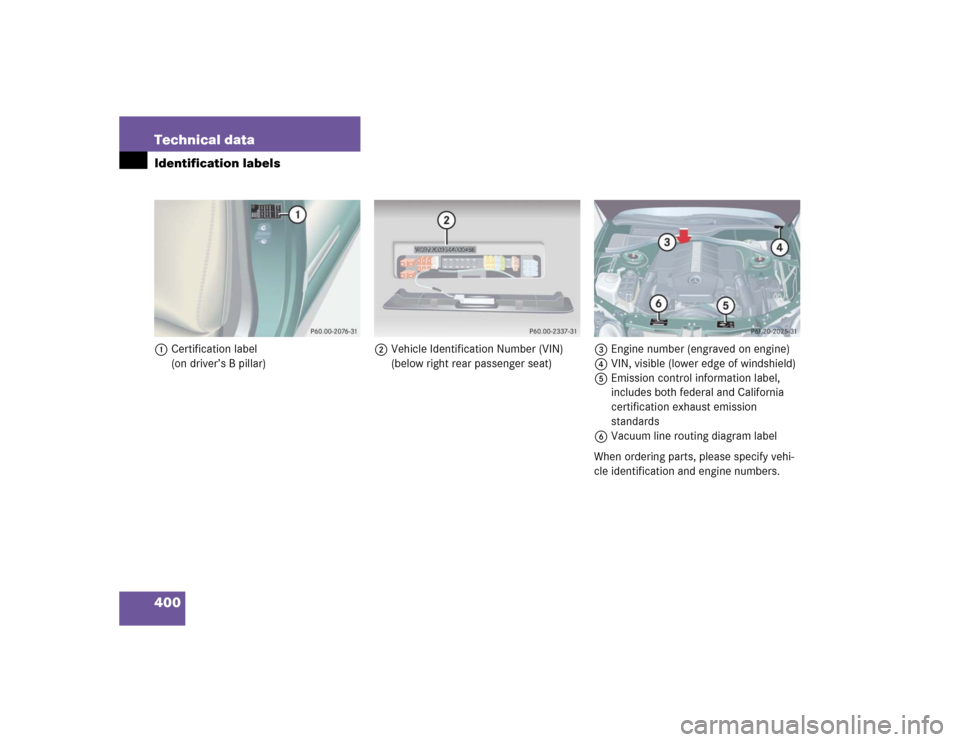

400 Technical dataIdentification labels1Certification label
(on driver’s B pillar)2Vehicle Identification Number (VIN)
(below right rear passenger seat)3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Emission control information label,
includes both federal and California
certification exhaust emission
standards
6Vacuum line routing diagram label
When ordering parts, please specify vehi-
cle identification and engine numbers.

401 Technical data

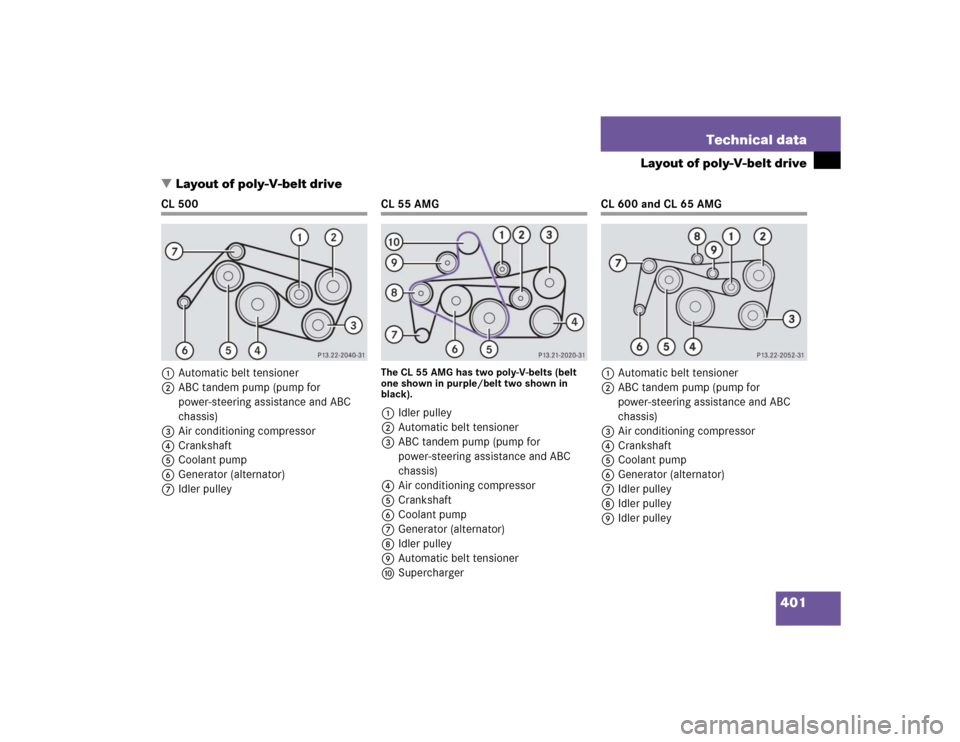

Layout of poly-V-belt drive
Layout of poly-V-belt drive
CL 500
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
CL 55 AMG The CL 55 AMG has two poly-V-belts (belt
one shown in purple/belt two shown in
black).1Idler pulley
2Automatic belt tensioner
3ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger
CL 600 and CL 65 AMG
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley

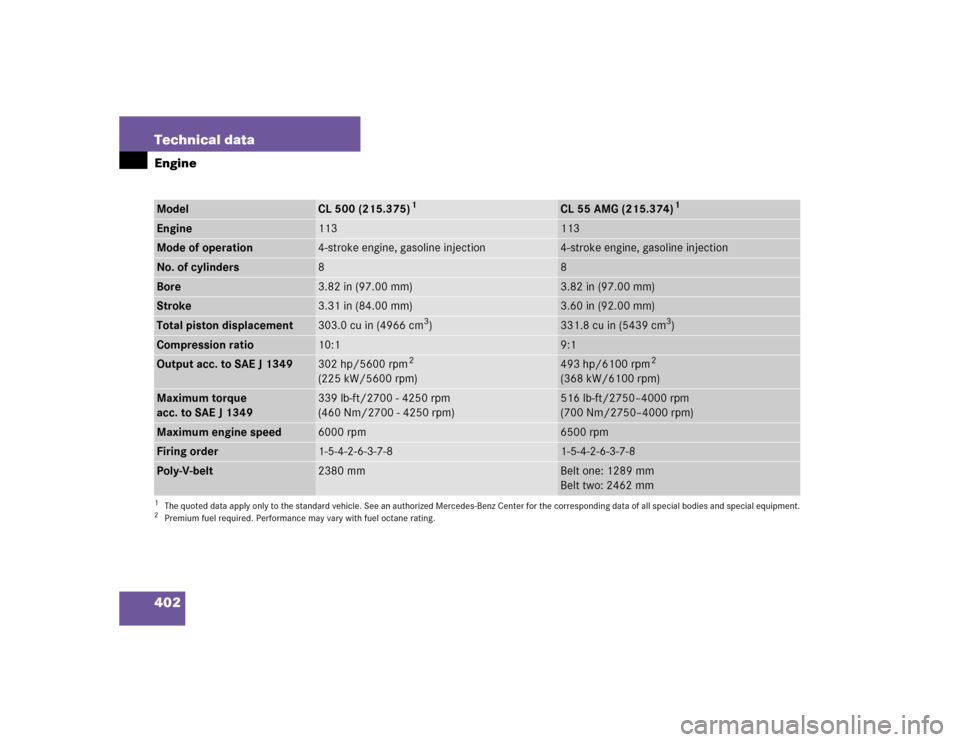

402 Technical dataEngineModel
CL 500 (215.375)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CL 55 AMG (215.374)
1
Engine
113
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.60 in (92.00 mm)
Total piston displacement
303.0 cu in (4966 cm
3)
331.8 cu in (5439 cm
3)
Compression ratio
10:1
9:1
Output acc. to SAE J 1349
302 hp/5600 rpm
2
(225 kW/5600 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
493 hp/6100 rpm
2
(368 kW/6100 rpm)
Maximum torque
acc. to SAE J 1349
339 lb-ft/2700 - 4250 rpm
(460 Nm/2700 - 4250 rpm)
516 lb-ft/2750–4000 rpm
(700 Nm/2750–4000 rpm)
Maximum engine speed
6000 rpm
6500 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2380 mm
Belt one: 1289 mm
Belt two: 2462 mm

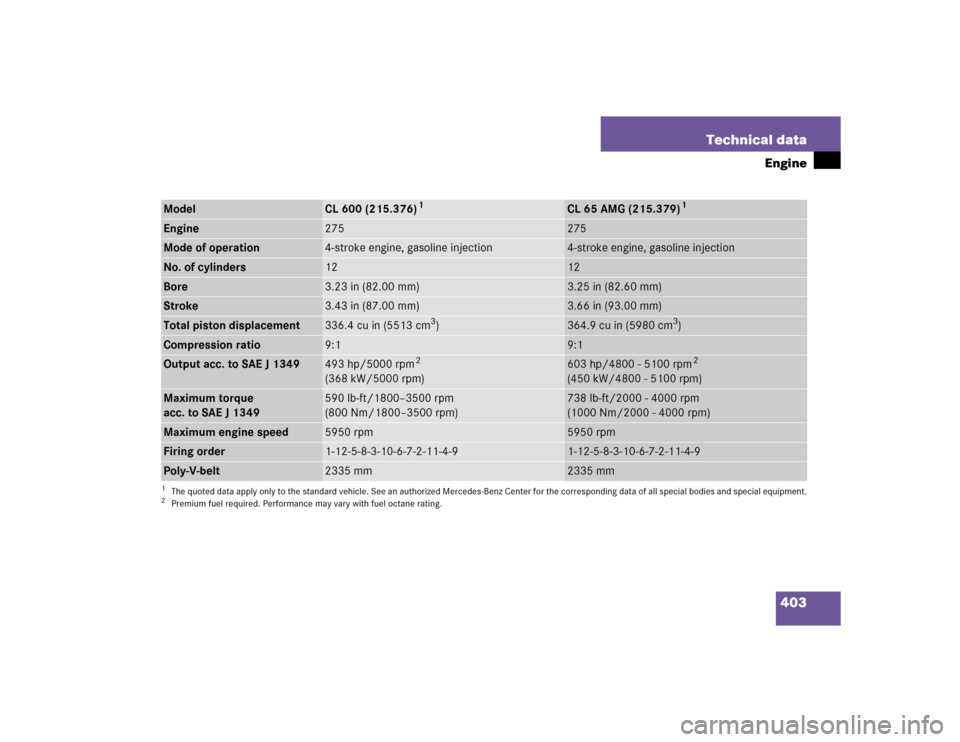

403 Technical data
Engine
Model
CL 600 (215.376)
1
CL 65 AMG (215.379)
1
Engine
275
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
12
12
Bore
3.23 in (82.00 mm)
3.25 in (82.60 mm)
Stroke
3.43 in (87.00 mm)
3.66 in (93.00 mm)
Total piston displacement
336.4 cu in (5513 cm
3)
364.9 cu in (5980 cm
3)
Compression ratio
9:1
9:1
Output acc. to SAE J 1349
493 hp/5000 rpm
2
(368 kW/5000 rpm)
603 hp/4800 - 5100 rpm
2
(450 kW/4800 - 5100 rpm)
Maximum torque
acc. to SAE J 1349
590 lb-ft/1800–3500 rpm
(800 Nm/1800–3500 rpm)
738 lb-ft/2000 - 4000 rpm
(1000 Nm/2000 - 4000 rpm)
Maximum engine speed
5950 rpm
5950 rpm
Firing order
1-12-5-8-3-10-6-7-2-11-4-9
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2335 mm
2335 mm
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.2Premium fuel required. Performance may vary with fuel octane rating.

404 Technical dataRims and TiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver's door
B-pillar. Some vehicles may have sup-
plemental tire pressure information for
driving at high speeds (
page 293) or
for vehicle loads less than the maxi-
mum loaded vehicle condition. If such
information is provided, it can be found
on the placard located on the inside of
the fuel filler flap. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

405 Technical data
Rims and Tires

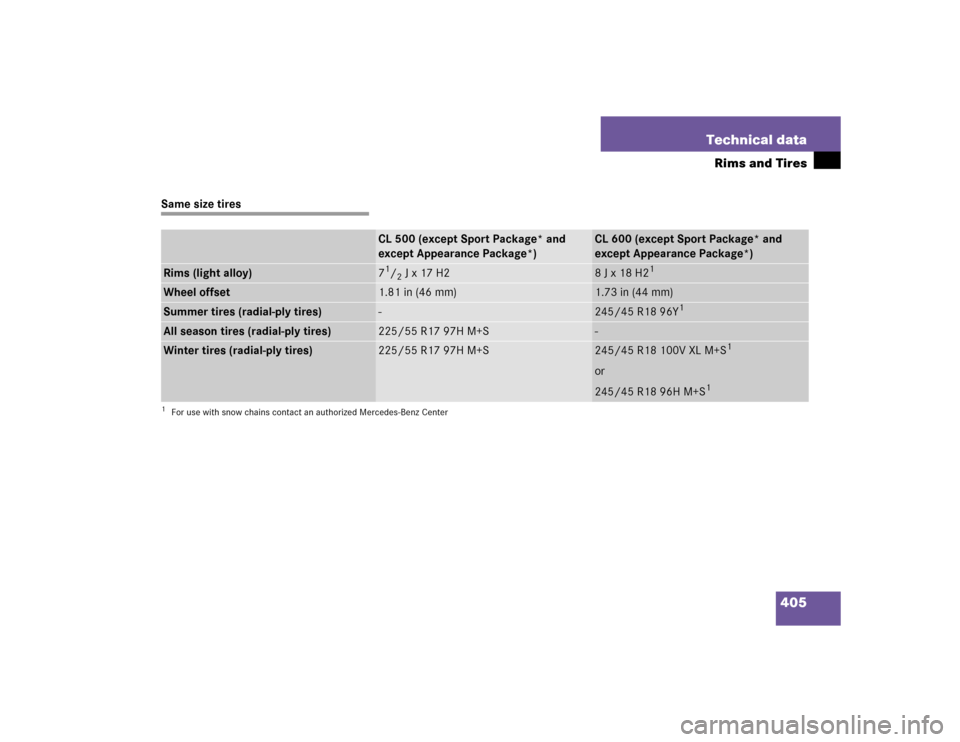

Same size tires
CL 500 (except Sport Package* and
except Appearance Package*)
CL 600 (except Sport Package* and
except Appearance Package*)
Rims (light alloy)
71/2Jx17H2
8Jx18H2
1
1For use with snow chains contact an authorized Mercedes-Benz CenterWheel offset
1.81 in (46 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
-
245/45 R18 96Y
1
All season tires (radial-ply tires)
225/55 R17 97H M+S
-
Winter tires (radial-ply tires)
225/55 R17 97H M+S
245/45 R18 100V XL M+S
1
or
245/45 R18 96H M+S
1

406 Technical dataRims and Tires

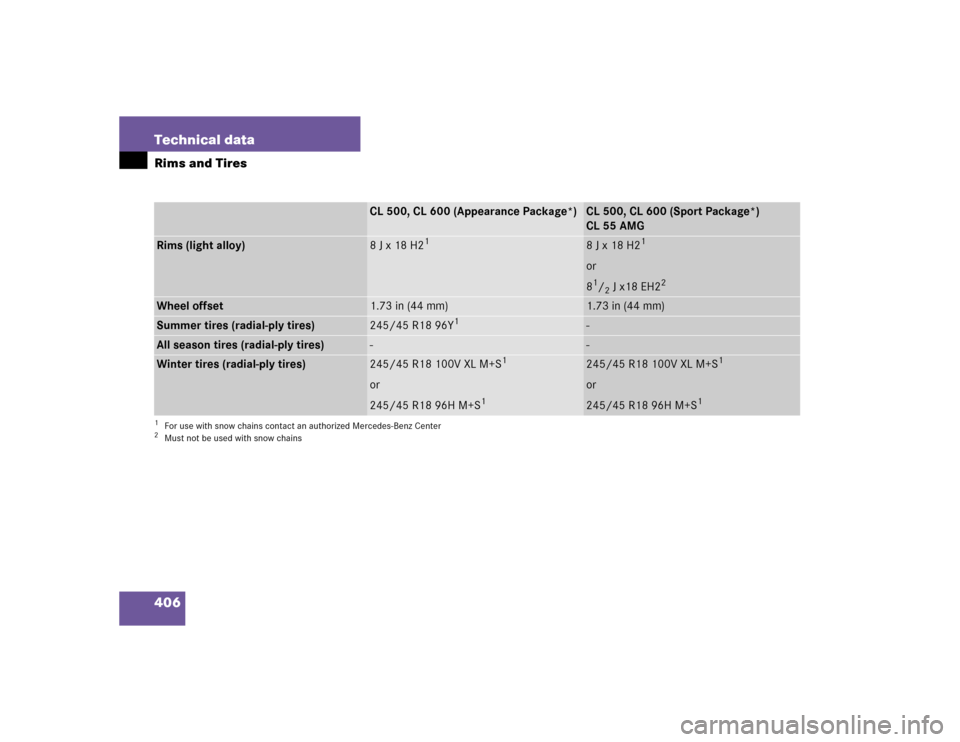

CL 500, CL 600 (Appearance Package*)
CL 500, CL 600 (Sport Package*)
CL 55 AMG
Rims (light alloy)
8Jx18H2
1
8Jx18H2
1
or
81/2 J x18 EH2
2
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
245/45 R18 96Y
1
-
All season tires (radial-ply tires)
-
-
Winter tires (radial-ply tires)
245/45 R18 100V XL M+S
1
or
245/45 R18 96H M+S
1
245/45 R18 100V XL M+S
1
or
245/45 R18 96H M+S
1
1For use with snow chains contact an authorized Mercedes-Benz Center2Must not be used with snow chains

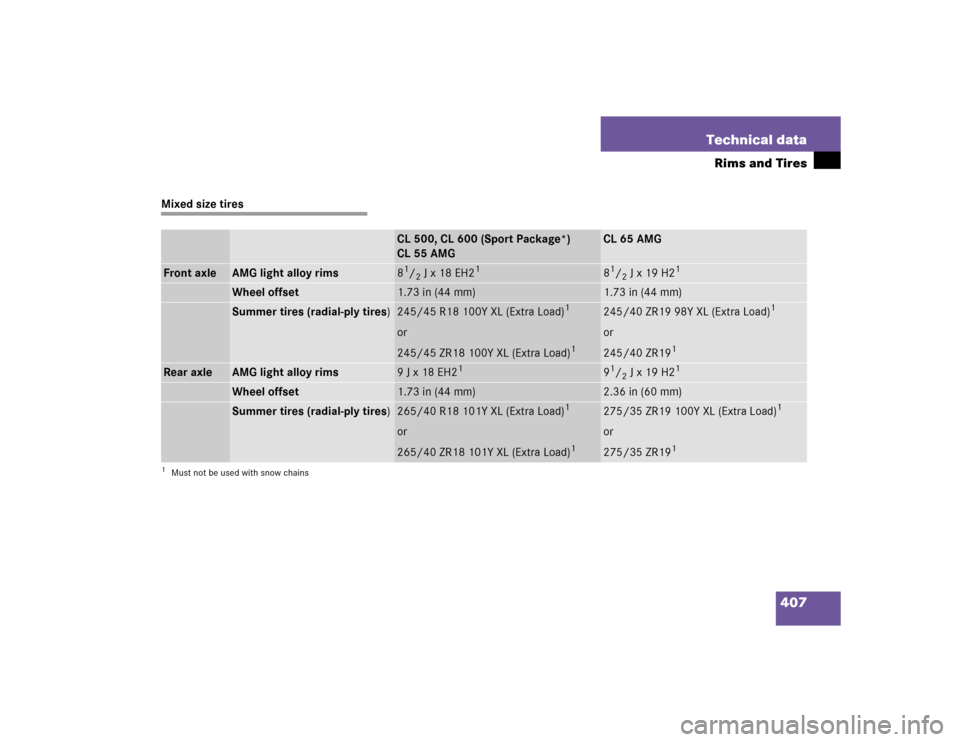

407 Technical data
Rims and Tires
Mixed size tires
CL 500, CL 600 (Sport Package*)
CL 55 AMG
CL 65 AMG
Front axle
AMG light alloy rims
81/2 J x 18 EH2
1
1Must not be used with snow chains
81/2 J x 19 H2
1
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
245/45 R18 100Y XL (Extra Load)
1
or
245/45 ZR18 100Y XL (Extra Load)
1
245/40 ZR19 98Y XL (Extra Load)
1
or
245/40 ZR19
1
Rear axle
AMG light alloy rims
9 J x 18 EH2
1
91/2 J x 19 H2
1
Wheel offset
1.73 in (44 mm)
2.36 in (60 mm)
Summer tires (radial-ply tires)
265/40 R18 101Y XL (Extra Load)
1
or
265/40 ZR18 101Y XL (Extra Load)
1
275/35 ZR19 100Y XL (Extra Load)
1
or
275/35 ZR19
1

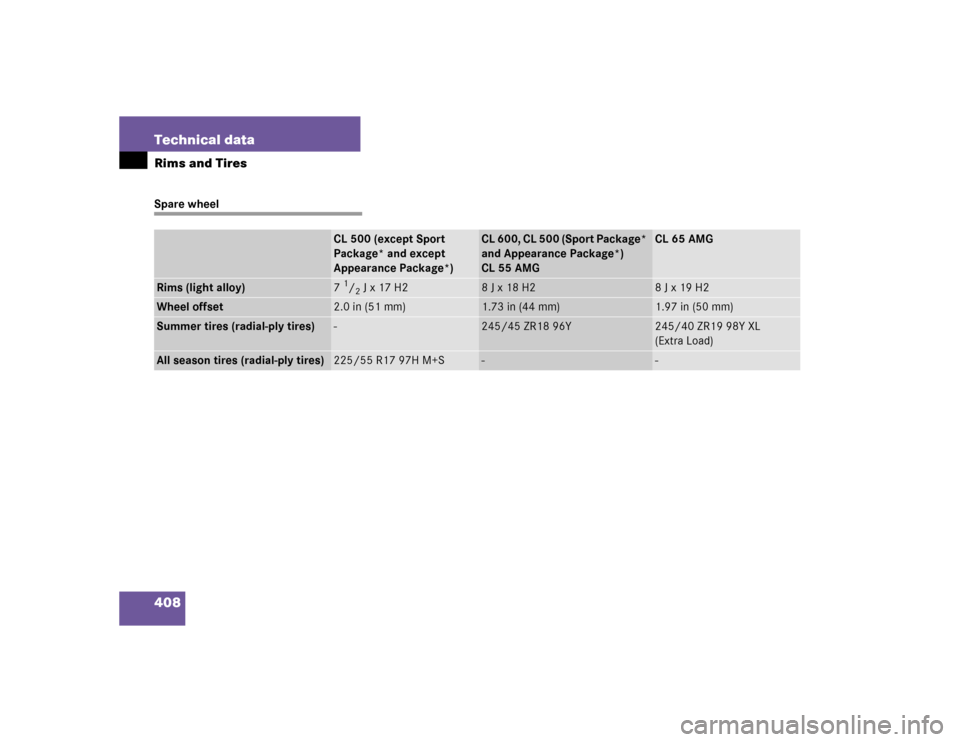

408 Technical dataRims and TiresSpare wheel
CL 500 (except Sport
Package* and except
Appearance Package*)
CL 600, CL 500 (Sport Package*
and Appearance Package*)
CL 55 AMG
CL 65 AMG
Rims (light alloy)
71/2Jx17H2
8Jx18H2
8Jx19 H2
Wheel offset
2.0 in (51 mm)
1.73 in (44 mm)
1.97 in (50 mm)
Summer tires (radial-ply tires)
-
245/45 ZR18 96Y
245/40 ZR19 98Y XL
(Extra Load)
All season tires (radial-ply tires)
225/55 R17 97H M+S
-
-
