MERCEDES-BENZ CL600 2005 C215 Owner's Manual

409 Technical data
Electrical system
Electrical system
Model
CL 500
CL 55 AMG
CL 600
CL 65 AMG
Generator (alterna-
tor)
14 V/150 A
14 V/180 A
14 V/180 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
Spark plugs
Bosch F 8 DPP332
NGK PFR 5 R-11
NGK ILFR 6 A
NGK NFR 6Q G
NGK NFR 6Q G
Electrode gap
0.039 in (1.0 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
0.028 in (0.7 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
18 – 22 lb-ft (25 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

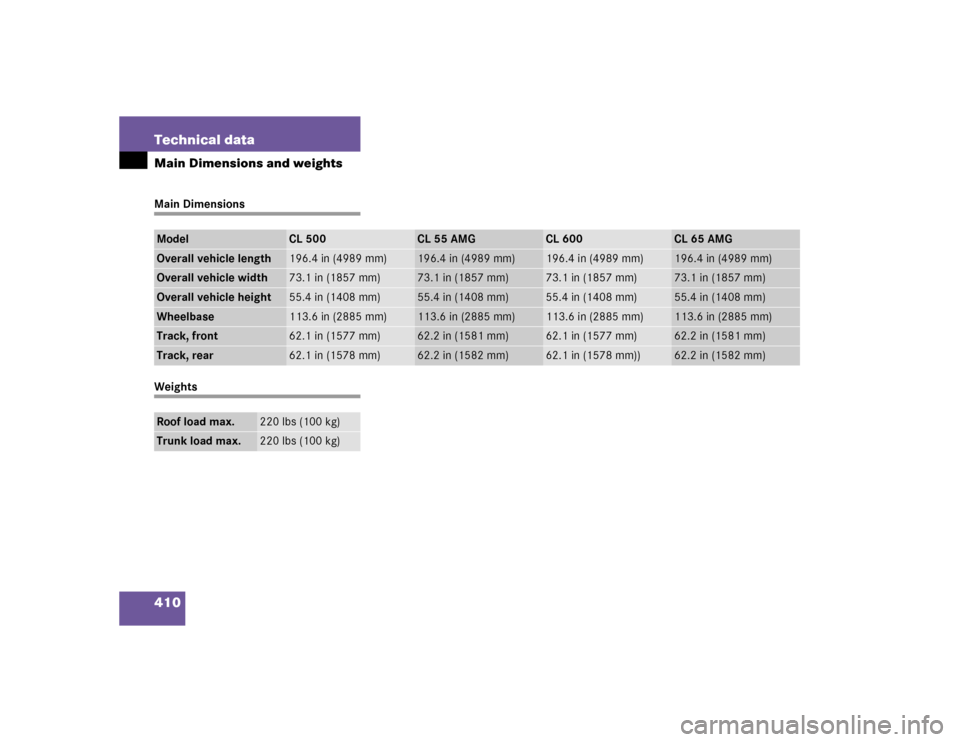

410 Technical dataMain Dimensions and weightsMain DimensionsWeightsModel
CL 500
CL 55 AMG
CL 600
CL 65 AMG
Overall vehicle length
196.4 in (4989 mm)
196.4 in (4989 mm)
196.4 in (4989 mm)
196.4 in (4989 mm)
Overall vehicle width
73.1 in (1857 mm)
73.1 in (1857 mm)
73.1 in (1857 mm)
73.1 in (1857 mm)
Overall vehicle height
55.4 in (1408 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
Wheelbase
113.6 in (2885 mm)
113.6 in (2885 mm)
113.6 in (2885 mm)
113.6 in (2885 mm)
Track, front
62.1 in (1577 mm)
62.2 in (1581 mm)
62.1 in (1577 mm)
62.2 in (1581 mm)
Track, rear
62.1 in (1578 mm)
62.2 in (1582 mm)
62.1 in (1578 mm))
62.2 in (1582 mm)
Roof load max.
220 lbs (100 kg)
Trunk load max.
220 lbs (100 kg)

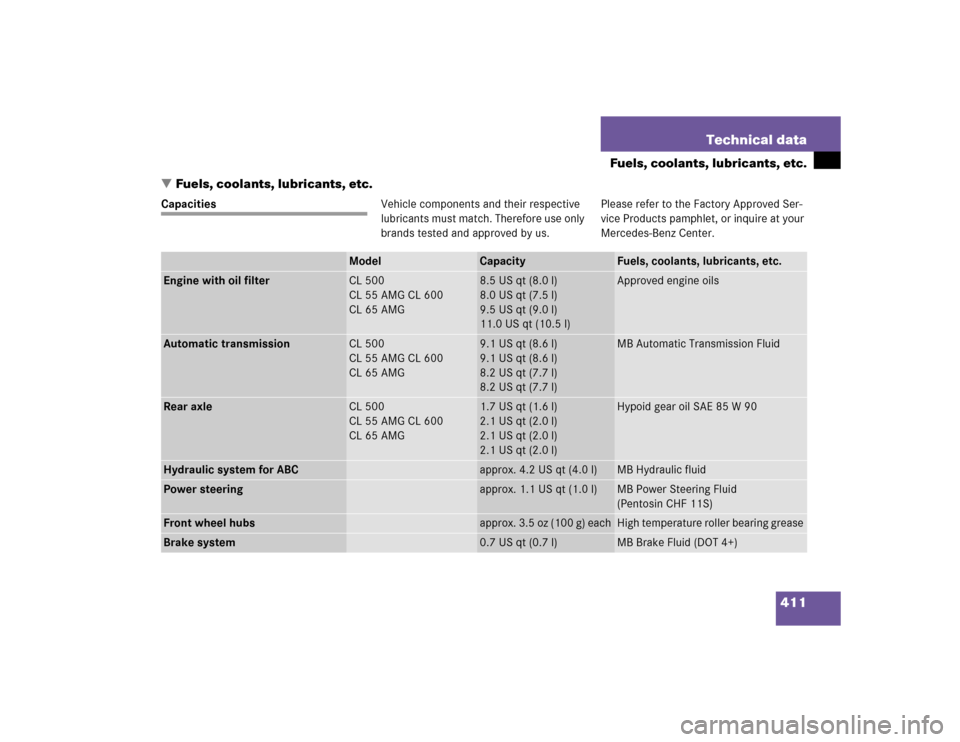

411 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and approved by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CL 500
CL 55 AMG CL 600
CL 65 AMG
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
9.5 US qt (9.0 l)
11.0 US qt (10.5 l)
Approved engine oils
Automatic transmission
CL 500
CL 55 AMG CL 600
CL 65 AMG
9.1 US qt (8.6 l)
9.1 US qt (8.6 l)
8.2 US qt (7.7 l)
8.2 US qt (7.7 l)
MB Automatic Transmission Fluid
Rear axle
CL 500
CL 55 AMG CL 600
CL 65 AMG
1.7 US qt (1.6 l)
2.1 US qt (2.0 l)
2.1 US qt (2.0 l)
2.1 US qt (2.0 l)
Hypoid gear oil SAE 85 W 90
Hydraulic system for ABC
approx. 4.2 US qt (4.0 l)
MB Hydraulic fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid
(Pentosin CHF 11S)
Front wheel hubs
approx. 3.5 oz (100 g) each
High temperature roller bearing grease
Brake system
0.7 US qt (0.7 l)
MB Brake Fluid (DOT 4+)

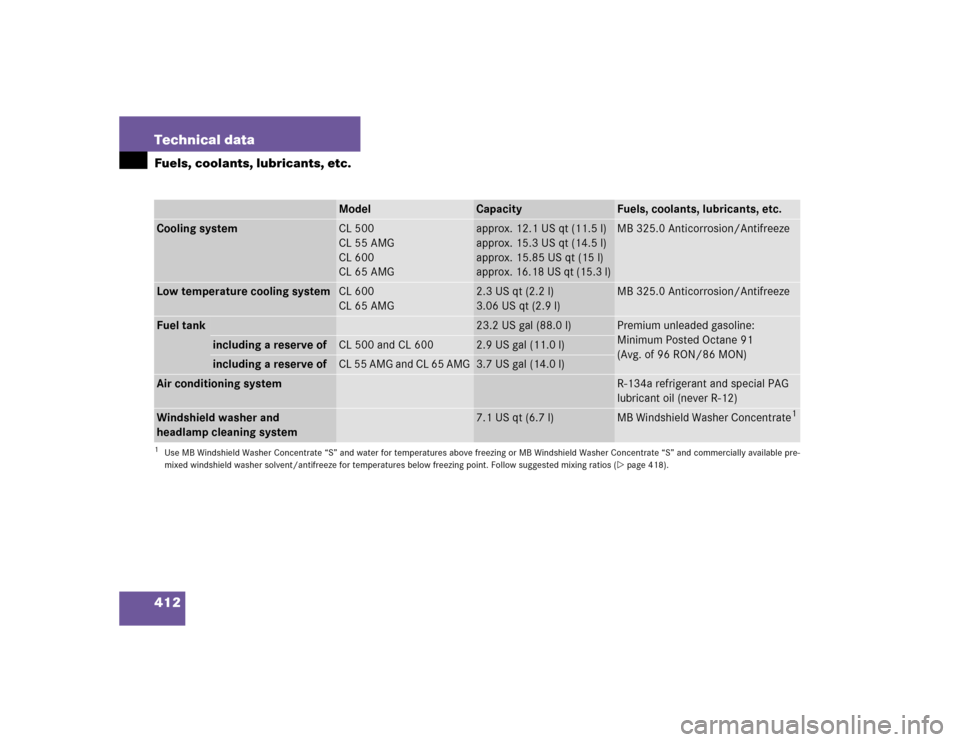

412 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
CL 500
CL 55 AMG
CL 600
CL 65 AMG
approx. 12.1 US qt (11.5 l)
approx. 15.3 US qt (14.5 l)
approx. 15.85 US qt (15 l)
approx. 16.18 US qt (15.3 l)
MB 325.0 Anticorrosion/Antifreeze
Low temperature cooling system
CL 600
CL 65 AMG
2.3 US qt (2.2 l)
3.06 US qt (2.9 l)
MB 325.0 Anticorrosion/Antifreeze
Fuel tank
23.2 US gal (88.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
including a reserve of
CL 500 and CL 600
2.9 US gal (11.0 l)
including a reserve of
CL 55 AMG and CL 65 AMG
3.7 US gal (14.0 l)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer and
headlamp cleaning system
7.1 US qt (6.7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 418).

413 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet, or
contact an authorized Mercedes-Benz
Center.
Using engine oils and oil filters of
specification other than those expressly
required for the Maintenance System
(U.S. vehicles) or FSS (Canada vehicles), or
changing of oil and oil filter at change
intervals longer than those called for by
the Maintenance System (U.S. vehicles) or
FSS (Canada Vehicles) will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehicles)
recommendations for scheduled oil
changes. Failure to do so will result in
engine damage not covered by the
Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.

414 Technical dataFuels, coolants, lubricants, etc.Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded fuel:

The octane number (posted at the
pu mp ) m us t be 91 m in. It i s a n a ver age
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M)/2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as Ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of Methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of Ethanol and Methanol is
not allowed. Gasohol, which contains
10% Ethanol and 90% unleaded gasoline,
can be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed 2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.

415 Technical data
Fuels, coolants, lubricants, etc.
Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build-up of carbon depos-
its.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to en-
gine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking/pinging


Misfire


Power lossIn areas where carbon deposits may be en-
countered due to lack of availability of gas-
olines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on Mer-
cedes-Benz vehicles. Refer to Factory Ap-
proved Service Products Pamphlet for a
listing of approved product(s). Follow di-
rections on product label.
Do not blend any specific fuel additives
with fuel. This only results in unnecessary
cost and may be harmful to the engine op-
eration.
Damage or malfunction resulting from
poor fuel quality or from blending addition-
al fuel additives other than those tested
and approved by us for use on Mer-
cedes-Benz vehicles listed in the Factory
Approved Service Products Pamphlet are
not covered by the Mercedes-Benz Limited
Warranty.
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which pro-
vides:

Corrosion protection


Freeze protection


Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately –22°F (–30°C) and cor-
rosion protection.
If the antifreeze mixture is effective to
–22°F (–30°C), the boiling point of the
coolant in the pressurized cooling system
is reached at approximately 266°F
(130°C).
The coolant solution must be used
year-round to provide the necessary corro-
sion protection and increase boil-over pro-
tection. Refer to Maintenance Booklet for
replacement interval.

416 Technical dataFuels, coolants, lubricants, etc.Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance Booklet is only applicable if
MB 325.0 anticorrosion/antifreeze solu-
tion or other Mercedes-Benz approved
products of equal specification (see
Factory Approved Service Products pam-
phlet) are used to renew the coolant con-
centration or bring it back up to the proper
level.
To provide important corrosion protection,
the solution must be at least 45% anticor-
rosion/antifreeze [equivalent to freeze
protection to approx. –22°F (–30°C)]. If
you use a solution that is more than 55%
anticorrosion/antifreeze [freeze protec-
tion to approx. –49°F (–45°C)], the engine
temperature will increase due to the lower
heat transfer capability of the solution.
Therefore, do not use more than this
amount of anticorrosion/antifreeze.If the coolant level is low, water and
MB 325.0 anticorrosion/antifreeze should
be used to bring it up to the proper level
(have cooling system checked for signs of
leakage). Please make sure the mixture is
in accordance with label instructions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality, con-
sult an authorized Mercedes-Benz Center.Anticorrosion/antifreeze
Your vehicle contains a number of alumi-
num parts. The use of aluminum compo-
nents in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be specifical-
ly formulated to protect the aluminum
parts. (Failure to use such anticorrosion/
antifreeze coolant will result in a signifi-
cantly shortened service life.)
Therefore, the following product is strongly
recommended for use in your vehicle:
Mercedes-Benz 325.0 Anticorrosion/Anti-
freeze Agent.
Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to an authorized Mercedes-Benz
Center for service.

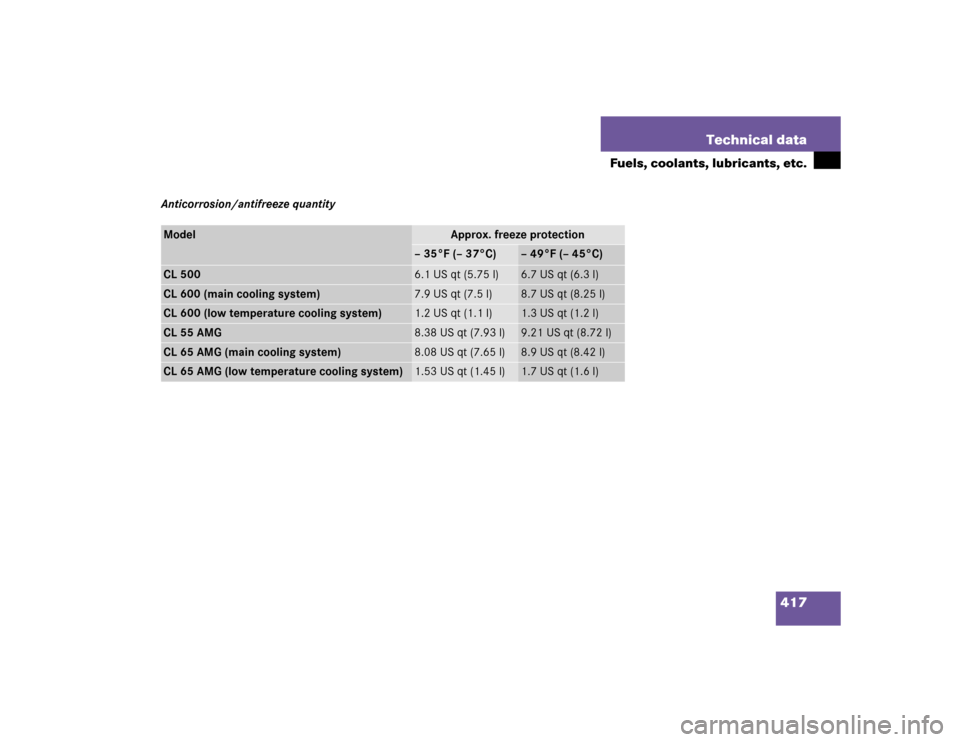

417 Technical data
Fuels, coolants, lubricants, etc.
Anticorrosion/antifreeze quantityModel
Approx. freeze protection
– 35°F (– 37°C)
– 49°F (– 45°C)
CL 500
6.1 US qt (5.75 l)
6.7 US qt (6.3 l)
CL 600 (main cooling system)
7.9 US qt (7.5 l)
8.7 US qt (8.25 l)
CL 600 (low temperature cooling system)
1.2 US qt (1.1 l)
1.3 US qt (1.2 l)
CL 55 AMG
8.38 US qt (7.93 l)
9.21 US qt (8.72 l)
CL 65 AMG (main cooling system)
8.08 US qt (7.65 l)
8.9 US qt (8.42 l)
CL 65 AMG (low temperature cooling system)
1.53 US qt (1.45 l)
1.7 US qt (1.6 l)

418 Technical dataFuels, coolants, lubricants, etc.Windshield and headlamp washer system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The windshield and headlamp washer fluid
reservoir has a capacity of approx.
7.1 US qt (6.7 l).

Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer solvent/
antifreeze, depending on ambient tem-
peratures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing point, use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water].
For temperatures below freezing point, use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent/antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent].
Warning
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
