jump start MERCEDES-BENZ CL65AMG 2008 C216 Owner's Manual

Contents
Flat tire .............................................. 696
Preparing the vehicle ................... 696
Mounting the spare wheel............ 696
Batteries ............................................ 702
Disconnecting starter battery ...... 704
Removing starter battery ............. 705
Charging battery .......................... 705
Reinstalling starter battery........... 706
Reconnecting starter battery ....... 706
Jump starting ..................................... 707
Towing the vehicle ............................. 710
Towing with front wheels raised ... 711
Towing with all wheels on the
ground.......................................... 712
Installing towing eye bolt ............. 713
Fuses ................................................. 714
Fuse boxes in
engine compartment .................... 715
Fuse boxes in
passenger compartment .............. 716
Emergency engine shut-down ...... 717
Technical data.................................. 719
Parts service....................................... 720
Warranty coverage ............................. 721
Loss of Service and Warranty
Information Booklet ...................... 721
Identification labels ............................ 722
Layout of poly-V-belt drive .................. 724
CL 550 .......................................... 724
CL 600 and CL 65 AMG ................ 724
CL 63 AMG ................................... 724
Engine ................................................ 725
Rims and tires .................................... 727
Same size tires ............................. 728
Mixed size tires ............................. 729
Spare wheel .................................. 730
Electrical system ................................ 731
Main dimensions and weights ............ 732
Main dimensions........................... 732
Weights ......................................... 732
Fuels, coolants, lubricants, etc. .......... 733
Capacities ..................................... 733
Engine oils .................................... 736
Engine oil additives ....................... 736Air conditioning refrigerant ........... 736
Brake fluid .................................... 736
Premium unleaded gasoline.......... 737
Fuel requirements......................... 737
Gasoline additives......................... 738
Coolants ....................................... 738
Windshield washer system and
headlamp cleaning system ........... 741
Index................................................. 743

365 Controls in detail
Starter switch positions
Starter switch positions
SmartKeyStarter switch
0For removing SmartKey
1Power supply for some electrical con-
sumers
2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.
If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 608).
3Starting position
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 407).
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
i
When you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
!
If you turn off the engine using the
SmartKey and


remove the SmartKey from the starter
switch
or


open a door
the transmission will shift to park positionP
automatically.
Keep in mind that turning off the engine with the
SmartKey alone only will automatically shift the
transmission to neutral positionN.
!
If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.


Check the battery and charge it if necessary
(page 702).


Have the vehicle jump-started (
page 707).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

409 Controls in detail
Driving and parking
The engine does not start. You cannot
hear the starter.
The battery may not be sufficiently
charged.
Have the vehicle jump-started
(page 707).
If the engine will not start despite a jump
start:

Call Roadside Assistance.

Contact an authorized Mercedes-Benz
Center or call Roadside Assistance.
Driving off
Depress the brake pedal.
The gear selector lever can now be
used.

Shift the automatic transmission to
drive positionD or reverse gearR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
The electronic parking brake is auto-
matically released (
page 412).
The red brake warning lamp 0
(USA only) or ! (Canada only) in the
instrument cluster goes out.After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
i
Wait for the gear selection process to com-
plete before setting the vehicle in motion.
i
Shifting from park position P to reverse
gearR, neutral positionN, or drive positionD is
only possible with the brake pedal depressed.
Without the brake pedal depressed, the gear se-
lector lever can be moved, but the parking pawl
remains engaged, not allowing shifting to occur.
!
If you hear a warning signal, the red indica-
tor lamp 0 (USA only) or ! (Canada only)
in the instrument cluster flashes and the mes-
sage “Please Release Parking Brake” appears in
the multifunction display when driving off, you
are driving with the electronic parking brake en-
gaged, or you are carrying out an emergency
brake application with the electronic parking
brake.
Release the electronic parking brake
(
page 412).
i
Once the vehicle is in motion, the automatic
central locking system engages and the locking
knobs in the doors move down.
The automatic door lock feature can be deacti-
vated (page 263).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.


526 Controls in detailUseful featuresRoadside Assistance button•
Press and hold Roadside Assistance
button • (for longer than
2 seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message:

“Connecting Call” appears in the
multifunction display


“Roadside Assistance Activated”
appears in the COMAND display
and the audio system is muted.
When the connection is established, the
message:


“Call Connected” appears in the multi-
function display


“Roadside Assistance Activated”
appears in the COMAND display The Tele Aid system will transmit data gen-
erating the vehicle identification number,
model, color and location (subject to avail-
ability of cellular and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance Man-
ual for more information.
These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
i
The indicator lamp in the Roadside Assis-
tance button• remains illuminated in red for
approximately 10 seconds during the system
self-check after switching on the ignition (togeth-
er with the SOS button and the Information
button¡).
See system self-check (
page 523) if the indi-
cator lamp does not come on in red or stays on
longer than approximately 10 seconds.
If the indicator lamp in the Roadside Assistance
button• is flashing continuously and no
voice connection to the Response Center was
established, the Tele Aid system could not ini-
tiate a Roadside Assistance call (e.g. the relevant
mobile phone network is not available). The mes-
sage:


“Call Failed” appears in the multifunction
display for approximately 10 seconds


“Call could not be connected!” appears in
the COMAND display. Confirm the message
pressing
n
(page 86).
Roadside Assistance calls can be terminated us-
ing button t on the multifunction steering
wheel or COMAND (page 137).

607 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Batteries
Jump starting
Towing the vehicle
Fuses

707 Practical hints
Jump starting
Jump starting
If the starter battery is discharged, the en-
gine can be started with jumper cables and
the battery of another vehicle. Observe the
following:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only use 12-volt battery to jump start
your vehicle. Jump starting with a high-
er voltage battery could damage the ve-
hicle’s electrical system, which will not
be covered by the Mercedes-Benz Lim-
ited Warranty.


Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!
Do not tow-start the vehicle.
!
Jump starting should only be performed on
the starter battery installed in the engine com-
partment.
Avoid repeated and lengthy starting attempts.
Do not attempt to start the engine using a bat-
tery quick charge unit.
If engine does not run after several unsuccessful
starting attempts, have it checked at the nearest
authorized Mercedes-Benz Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter and may present a fire risk.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.

708 Practical hintsJump startingJump starting should only be performed on
the starter battery. The starter battery is
located in the engine compartment on the
passenger side (
page 704).

Make sure the two vehicles do not
touch.

Secure vehicle in place with electronic
parking brake (
page 412).

Shift the automatic transmission to
park positionP (
page 417).

Turn off all electrical consumers, ex-
cept hazard warning flashers or work
lights.

Open the hood (
page 553).

Start the engine of the vehicle with the

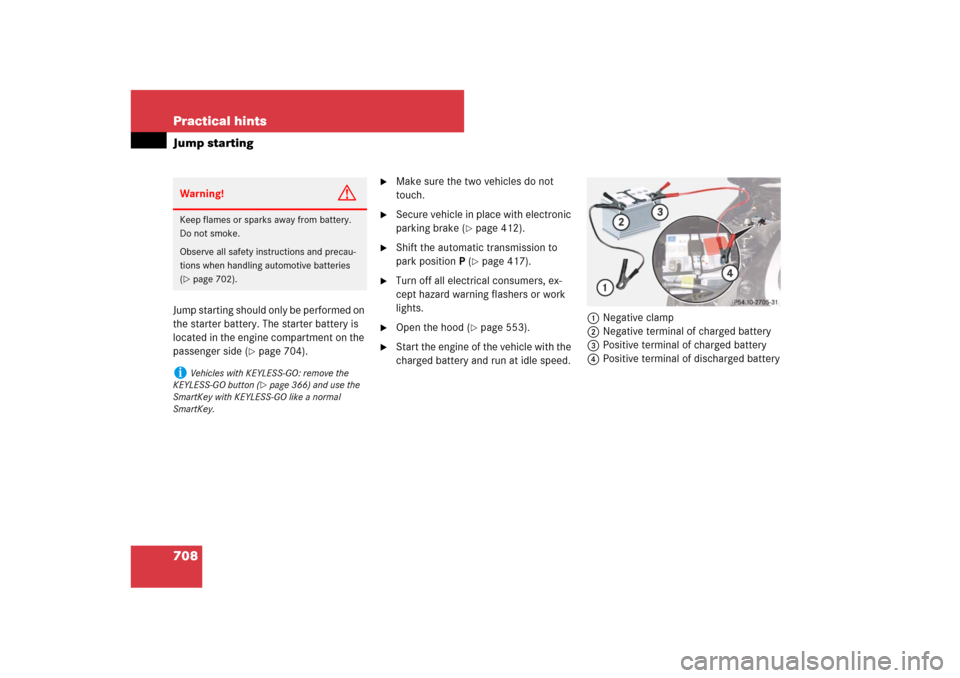

charged battery and run at idle speed.1Negative clamp
2Negative terminal of charged battery
3Positive terminal of charged battery
4Positive terminal of discharged battery
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 702).
i
Vehicles with KEYLESS-GO: remove the
KEYLESS-GO button (
page 366) and use the
SmartKey with KEYLESS-GO like a normal
SmartKey.

709 Practical hints
Jump starting

Remove red cover from positive
terminal4.

Connect positive terminal3 of the
charged battery with positive
terminal4 of the discharged battery
with the jumper cable. Clamp cable to
charged battery3 first.

Connect negative terminal2 of
charged battery to jumper cables and
attach other end of the jumper cable
with the negative clamp1 to a suit-
able ground point on the vehicle.

Get into vehicle and start engine within
30 seconds.
If the starting attempt does not suc-
ceed:
Turn the SmartKey in starter switch
to position 0.

Take out the SmartKey.

Turn off engine of donor vehicle, re-
start it and let it run at idle speed
for several minutes.

Disconnect the jumper cable during
this time.

Reconnect jumper cable as de-
scribed before.

Restart engine.

While the engine is running, switch off
several electrical consumers such as
the blower.

Disconnect jumper cables first nega-
tive clamp1 from ground point and
negative terminal2, then from posi-
tive terminals4 and3.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
!
Never invert the terminal connections.

710 Practical hintsTowing the vehicleMercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.
When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front axle raised only so far
as necessary to have the vehicle moved to
a safe location where the recommended
towing methods can be employed.!
To prevent damage during transport, do not
tie down vehicle by its chassis or suspension
parts.
!
Before towing the vehicle observe the fol-
lowing instructions:


Do not tow-start the vehicle.


Use flatbed or wheel lift/dolly equipment
with the ignition switched off.


Do not tow with sling-type equipment. Tow-
ing with sling-type equipment over bumpy
roads will damage radiator and supports.


Towing of the vehicle should only be done
using the properly installed towing eye bolt.
Never attach a tow cable, tow rope or tow
rod to the vehicle chassis, frame or suspen-
sion parts. For more information see “Install-
ing towing eye bolt” (
page 713).
i
If the battery is disconnected or discharged


the SmartKey will not turn in the starter
switch


the automatic transmission will remain
locked in park positionP.
For more information see “Batteries”
(
page 702) or “Jump starting” (
page 707).

744 IndexAudio AUX (COMAND) 125
Audio DVD
Fast forward/rewind (COMAND) 123
Menu overview (COMAND) 119
Pause function (COMAND) 121
Stop function (COMAND) 121
Auto-dimming, Rear view mirrors 383
Automatic climate control 491
Adjusting air distribution
(COMAND) 271
Adjusting air flow from air vents
(COMAND) 275
Adjusting air volume (COMAND) 271
Adjusting the footwell temperature
(COMAND) 274
Air recirculation mode 496
Central climate control menu
(COMAND) 272
Defrosting 494
Operating via COMAND 269
Rear window defroster 496
Selecting Mono mode
(COMAND) 273
Setting temperature (COMAND) 270
Setting the temperature 494Switching cooling on or off
(COMAND) 272
Automatic headlamp mode 301, 392
Automatic lighting control, Interior
lighting 398
Automatic locking when driving 363
Automatic shift program 427
Automatic transmission
Accelerator position 424
Automatic shift program 427
Emergency operation
(Limp-Home Mode) 433
Fluid 733
Fluid level 558
Gear ranges 426
Gear selector lever 417
Gear shifting malfunctions 433
Hill start assist system 425
Kickdown 424
Kickdown, manual shift program
(CL 63 AMG and CL 65 AMG) 432
Manual shift program mode
(CL 63 AMG and CL 65 AMG) 430
Program mode selector switch 427
Shifting procedure 420Starting the engine 406
Steering wheel gearshift control 428
Transmission fluid 558
Transmission positions 421
AUX
Audio 125
Video 126
AUX jacks 125
B
Backup lamps
Replacing bulbs 689
Bar 586
BAS 67
Batteries, SmartKey
Checking battery condition 361
Replacing 686
Batteries, SmartKey with KEYLESS-GO*
Checking battery condition 361
Replacing 686
Batteries, vehicle 702
Charging 705
Discharged, Jump starting 707
Disconnecting 704
For electrical consumers 702
For starter 702
