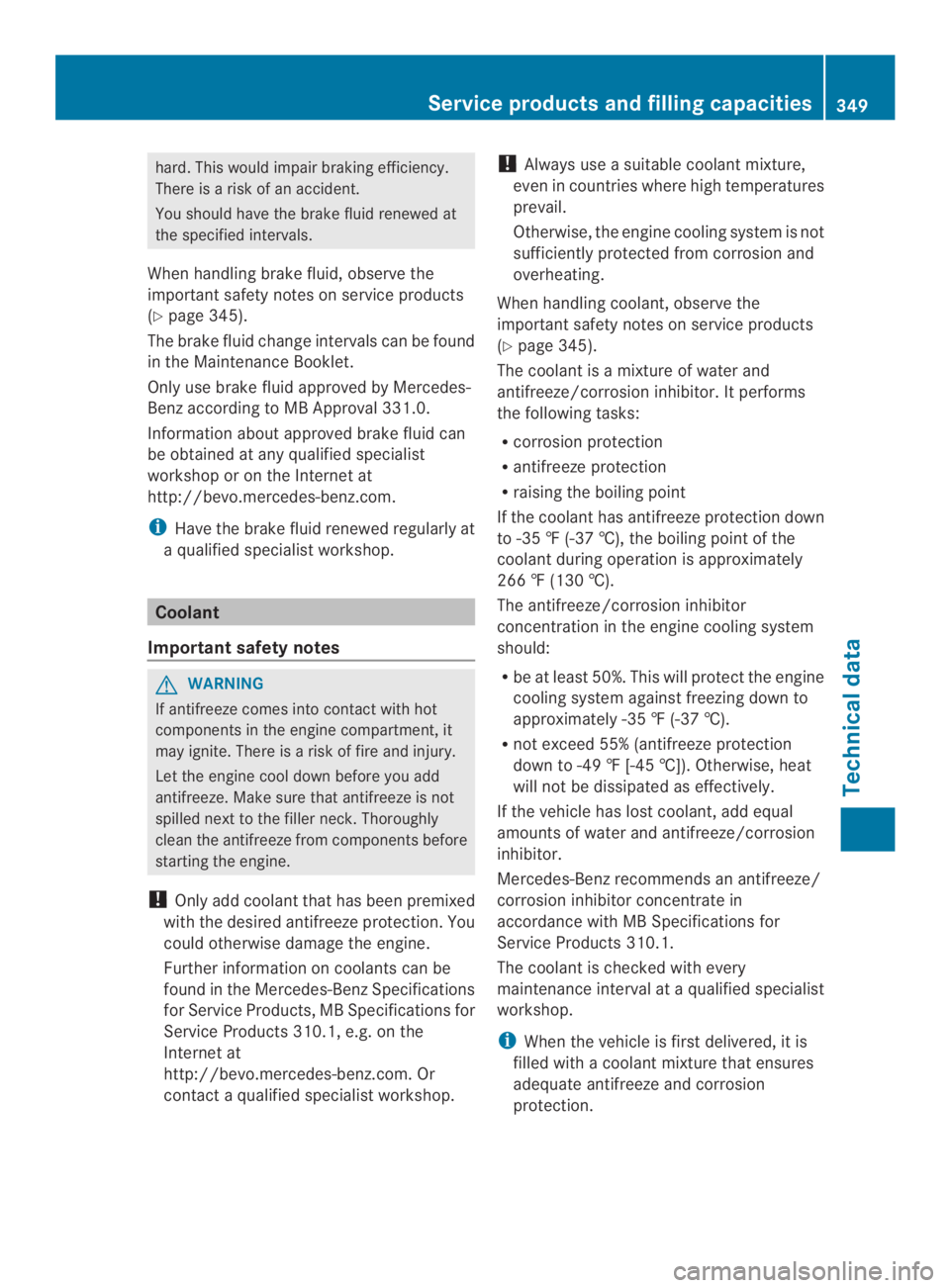

hard. This would impair braking efficiency.
There is a risk of an accident.
You should have the brake fluid renewed at
the specified intervals.
When handling brake fluid, observe the
important safety notes on service products
(Ypage 345).
The brake fluid change intervals can be found
in the Maintenance Booklet.
Only use brake fluid approved by Mercedes-
Benz according to MB Approval 331.0.
Information about approved brake fluid can
be obtained at any qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com.
iHave the brake fluid renewed regularly at
a qualified specialist workshop.
Coolant
Important safety notes
GWARNING
If antifreeze comes into contact with hot
components in the engine compartment, it
may ignite. There is a risk of fire and injury.
Let the engine cool down before you add
antifreeze. Make sure that antifreeze is not
spilled next to the filler neck.Thoroughly
clean the antifreeze from components before
starting the engine.
!Only add coolant that has been premixed
with the desired antifreezeprotection. You
could otherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com. Or
contact a qualified specialist workshop.
!Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
When handling coolant, observe the
important safety notes on service products
(Ypage 345).
The coolant is a mixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
Rcorrosionprotection
Rantifreeze protection
Rraising the boiling point
If the coolant has antifreeze protection down
to -35 ‡ (-37†),the boiling point of the
coolant during operationis approximately
266 ‡ (130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
Rbe at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 †).
Rnot exceed 55% (antifreeze protection
down to -49 ‡ [-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in
accordance with MB Specifications for
Service Products 310.1.
The coolant is checked with every
maintenance interval at a qualified specialist
workshop.
iWhen the vehicle is first delivered, it is
filled with a coolant mixture that ensures
adequate antifreeze and corrosion
protection.
Service products and filling capacities349
Technical data
Z

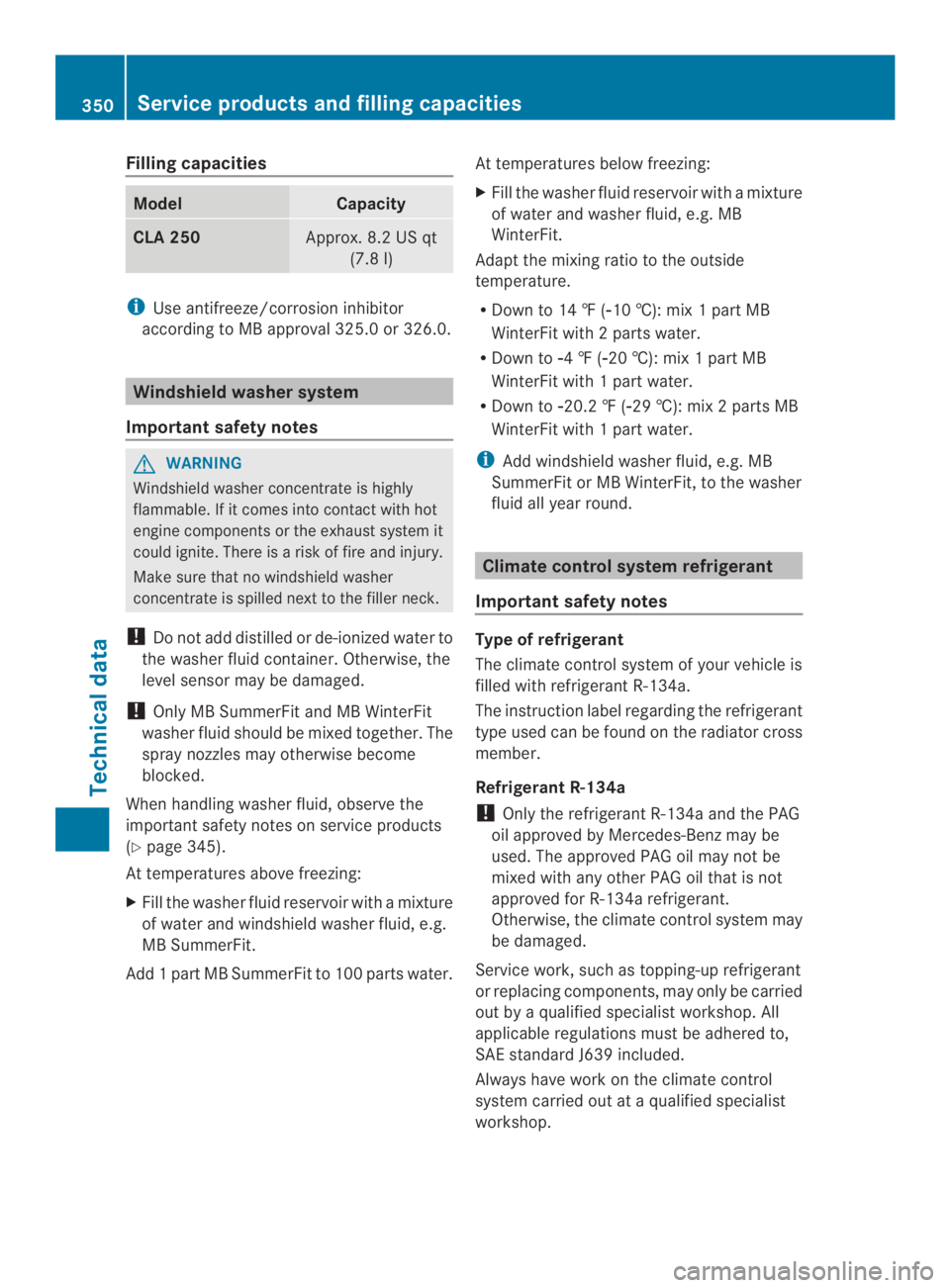

Filling capacities
ModelCapacity
CLA 250Approx. 8.2 US qt
(7.8 l)
iUse antifreeze/corrosioninhibitor
according to MB approval 325.0 or 326.0.
Windshieldwasher system
Important safety notes
GWARNING
Windshield washer concentrate is highly
flammable. If it comes into contact with hot
engine components or the exhaust system it
could ignite. There is a risk of fire and injury.
Make sure that no windshield washer
concentrate is spilled next to the filler neck.
!Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
!Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
When handling washer fluid, observe the
important safety notes on service products
(Ypage 345).
At temperatures above freezing:
XFill the washer fluid reservoir with a mixture
of water and windshield washer fluid, e.g.
MB SummerFit.
Add 1 part MB SummerFit to 100 parts water.
At temperatures below freezing:
XFill the washer fluid reservoir with a mixture
of water and washer fluid, e.g. MB
WinterFit.
Adaptthe mixing ratio to the outside
temperature.
RDown to 14 ‡ (10 †): mix 1 part MB
WinterFit with 2 parts water.
RDown to4 ‡ (20 †): mix 1 part MB
WinterFit with 1 part water.
RDown to20.2 ‡ (29 †): mix 2 parts MB
WinterFit with 1 part water.
iAdd windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Climate control system refrigerant
Important safety notes
Type of refrigerant
The climate control system of your vehicle is
filled with refrigerant R-134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
Refrigerant R-134a
!Only the refrigerant R-134a and the PAG
oil approved by Mercedes-Benzmay be
used. The approved PAG oil may notbe
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-up refrigerant
or replacing components, may only be carried
out by a qualified specialist workshop.All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control
system carried out at a qualified specialist
workshop.
350Service products and filling capacities
Technical data

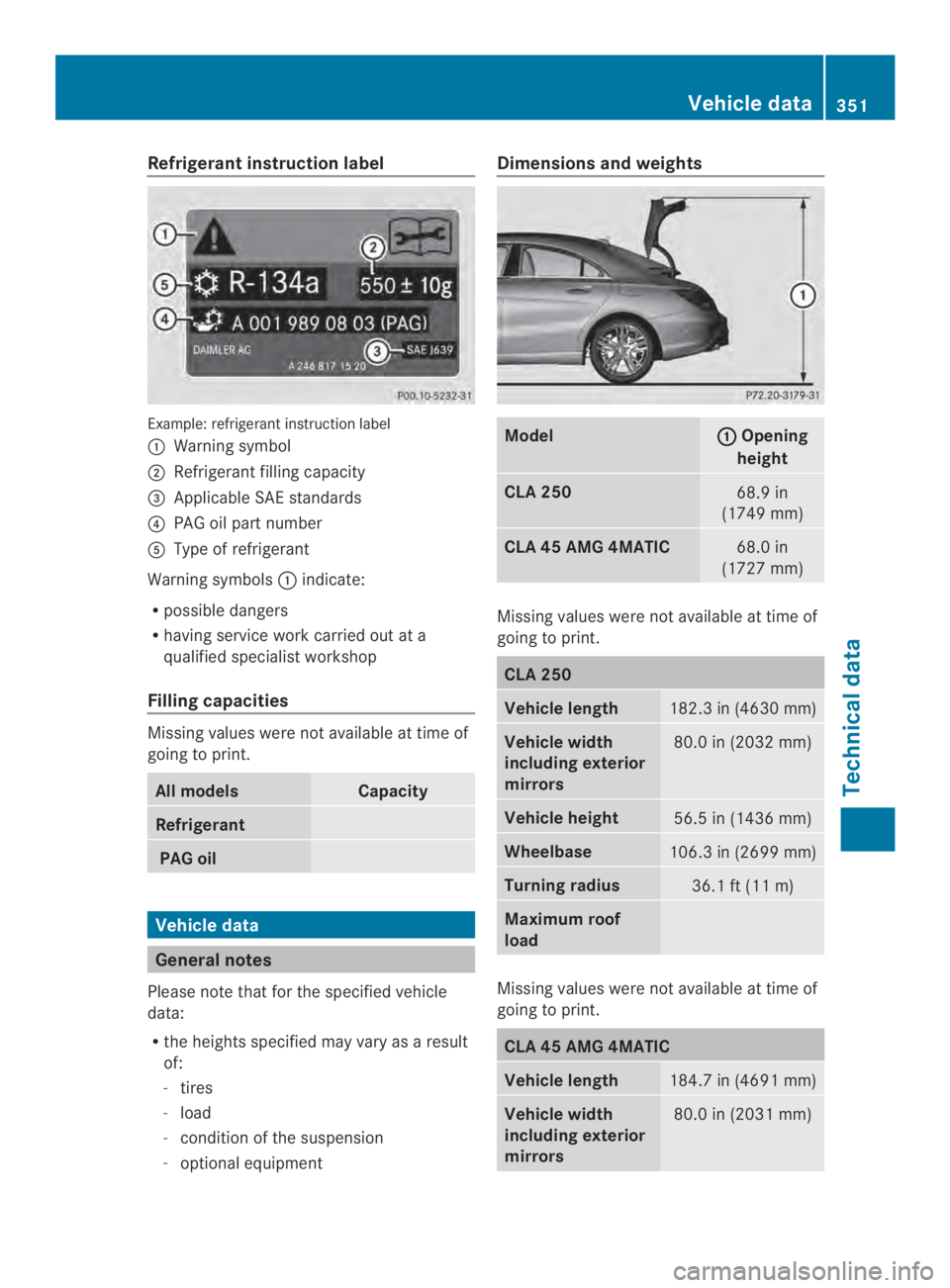

Refrigerant instruction label
Example: refrigerant instruction label
Warning symbol
Refrigerant filling capacity
"Applicable SAE standards
!PAG oil part number
Type of refrigerant
Warning symbolsindicate:
Rpossible dangers
Rhaving service work carried out at a
qualified specialist workshop
Filling capacities
Missing values were not available at time of
going to print.
All modelsCapacity
Refrigerant
PAGoil
Vehicle data
General notes
Please note that for the specified vehicle
data:
Rthe heights specified may vary as a result
of:
-tires
-load
-condition of the suspension
-optional equipment
Dimensions and weights
ModelOpening
height
CLA 25068.9 in
(1749 mm)
CLA 45 AMG 4MATIC68.0 in
(1727 mm)
Missing values were not available at time of
going to print.
CLA 250
Vehicle length182.3 in (4630 mm)
Vehicle width
including exterior
mirrors
80.0 in (2032 mm)
Vehicle height56.5 in (1436 mm)
Wheelbase106.3 in (2699 mm)
Turning radius36.1 ft (11 m)
Maximum roof
load
Missing values were not available at time of
going to print.
CLA 45 AMG 4MATIC
Vehicle length184.7 in (4691 mm)
Vehicle width
including exterior
mirrors
80.0 in (2031 mm)
Vehicle data351
Technical data
Z

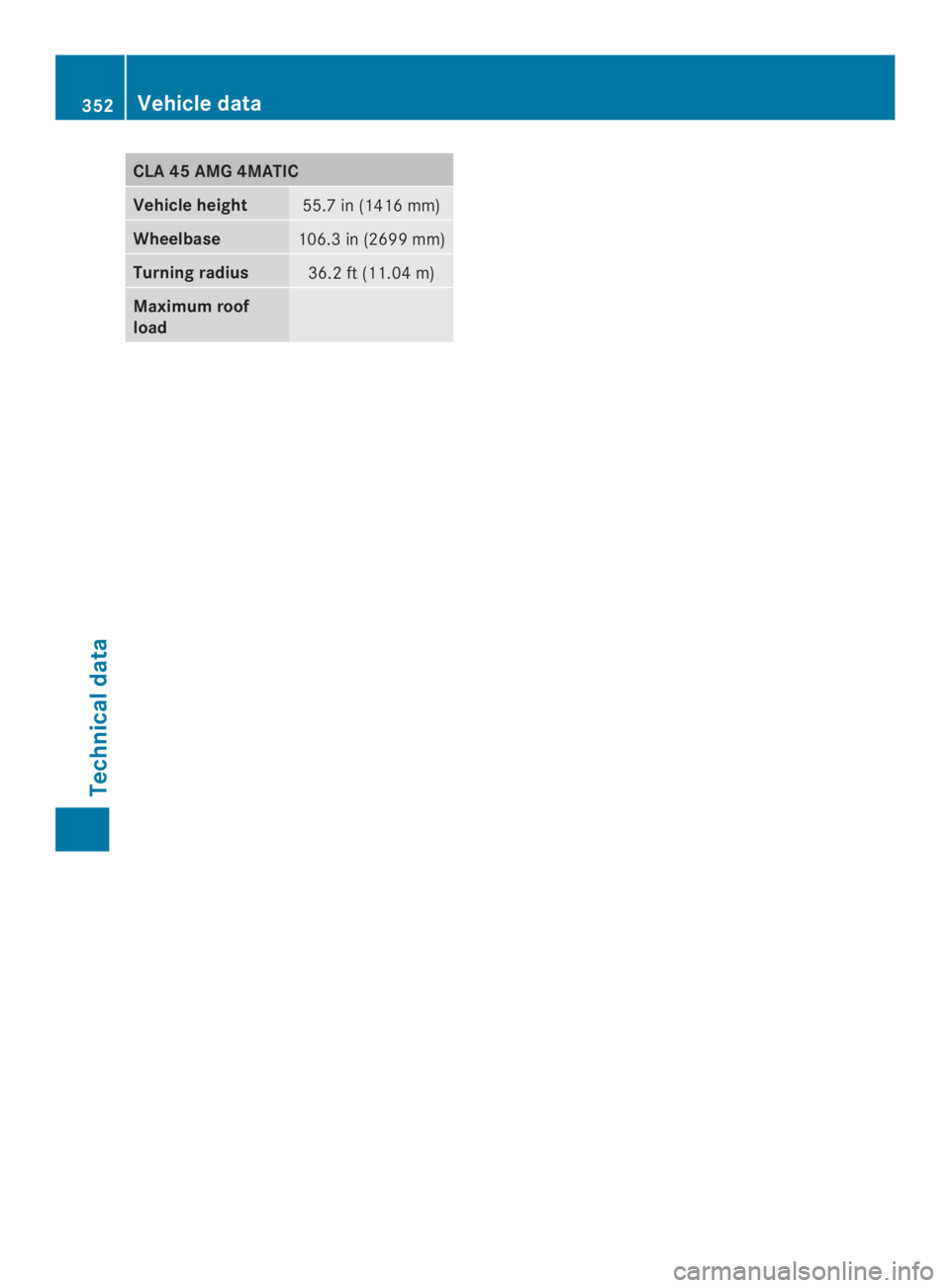

CLA 45 AMG 4MATIC
Vehicle height55.7 in (1416 mm)
Wheelbase106.3 in (2699 mm)
Turning radius36.2 ft (11.04 m)
Maximum roof
load
