Vehicles with a rain sensor: if the wind-
shield becomes dirty in dry weather condi-
tions, the windshield wipers may be activa- ted inadvertently. This could then damage
the windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Vehicles with a rain sensor: in the0062or
0063 position, the appropriate wiping fre-
quency is automatically set according to the
intensity of the rain. In the 0063position, the
rain sensor is more sensitive than in the 0062
position, causing the windshield wipers to
wipe more frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic condi-
tions. Replacing the wiper blades
Important safety notes G
WARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could be trapped by the wiper arm. There is a risk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
! To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
! Never open the hood if a windshield wiper
arm has been folded away from the wind-
shield.
Never fold a windshield wiper arm without a
wiper blade back onto the windshield.
Hold the windshield wiper arm firmly when you change the wiper blade. If you release
the windshield wiper arm without a wiper
blade and it falls onto the windshield, the windshield may be damaged by the force of
the impact.
Mercedes-Benz recommends that you have the wiper blades changed at a qualified
specialist workshop.
Changing the windshield wiper blades Removing the wiper blades
X Remove the SmartKey from the ignition
lock.
X Fold the wiper arm away from the wind-
shield. X
Press both release clips 0044.
X Fold wiper blade 0043in the direction of
arrow 0087away from wiper arm 0085.
X Remove wiper blade 0043in the direction of
arrow 0083.

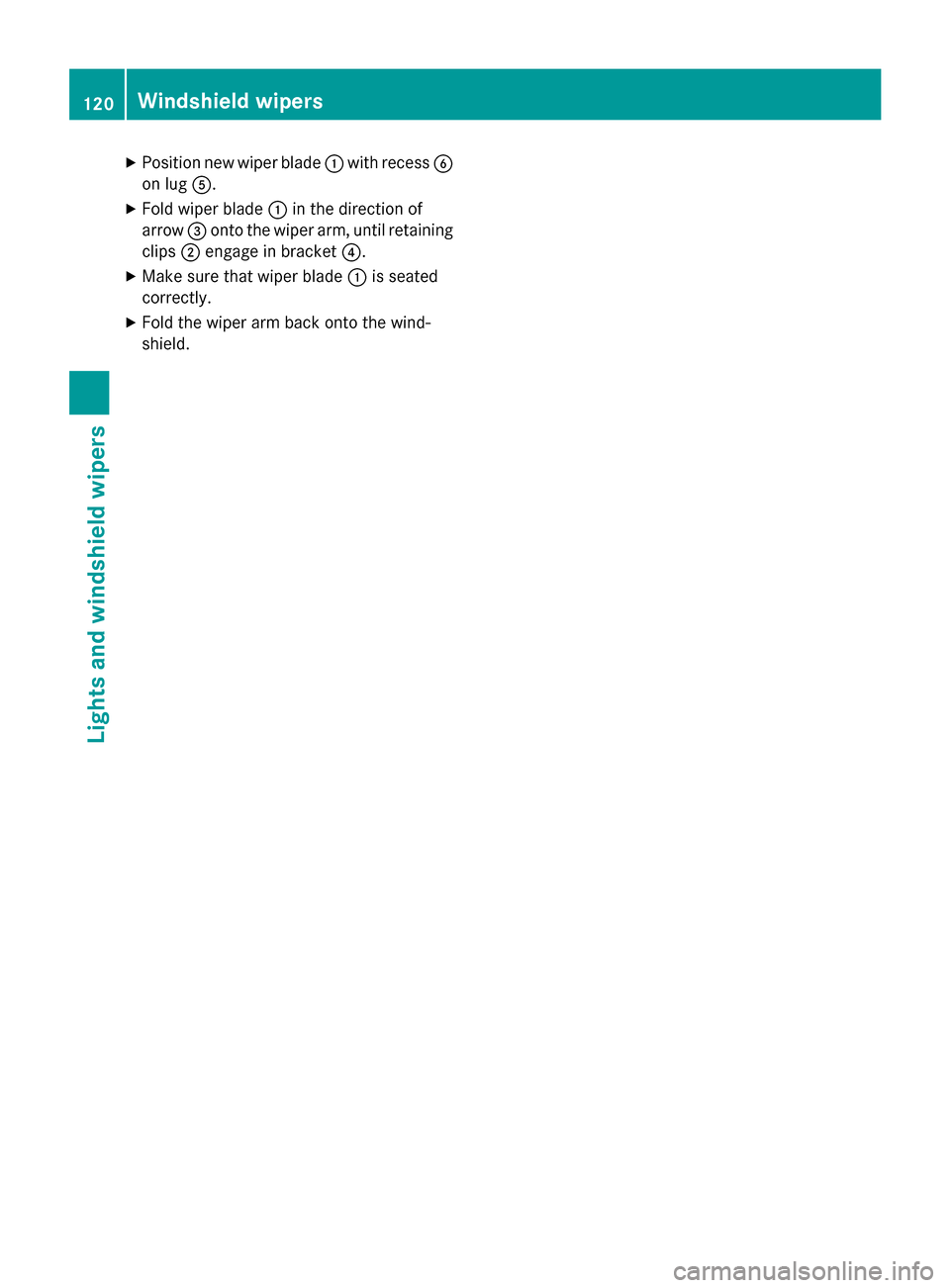

Installing the wiper blades Windshield wipers
119Lights and windshield wipers Z

X
Position new wiper blade 0043with recess 0084
on lug 0083.
X Fold wiper blade 0043in the direction of
arrow 0087onto the wiper arm, until retaining
clips 0044engage in bracket 0085.
X Make sure that wiper blade 0043is seated
correctly.
X Fold the wiper arm back onto the wind-
shield. 120
Windshield wipersLights and windshield wipers

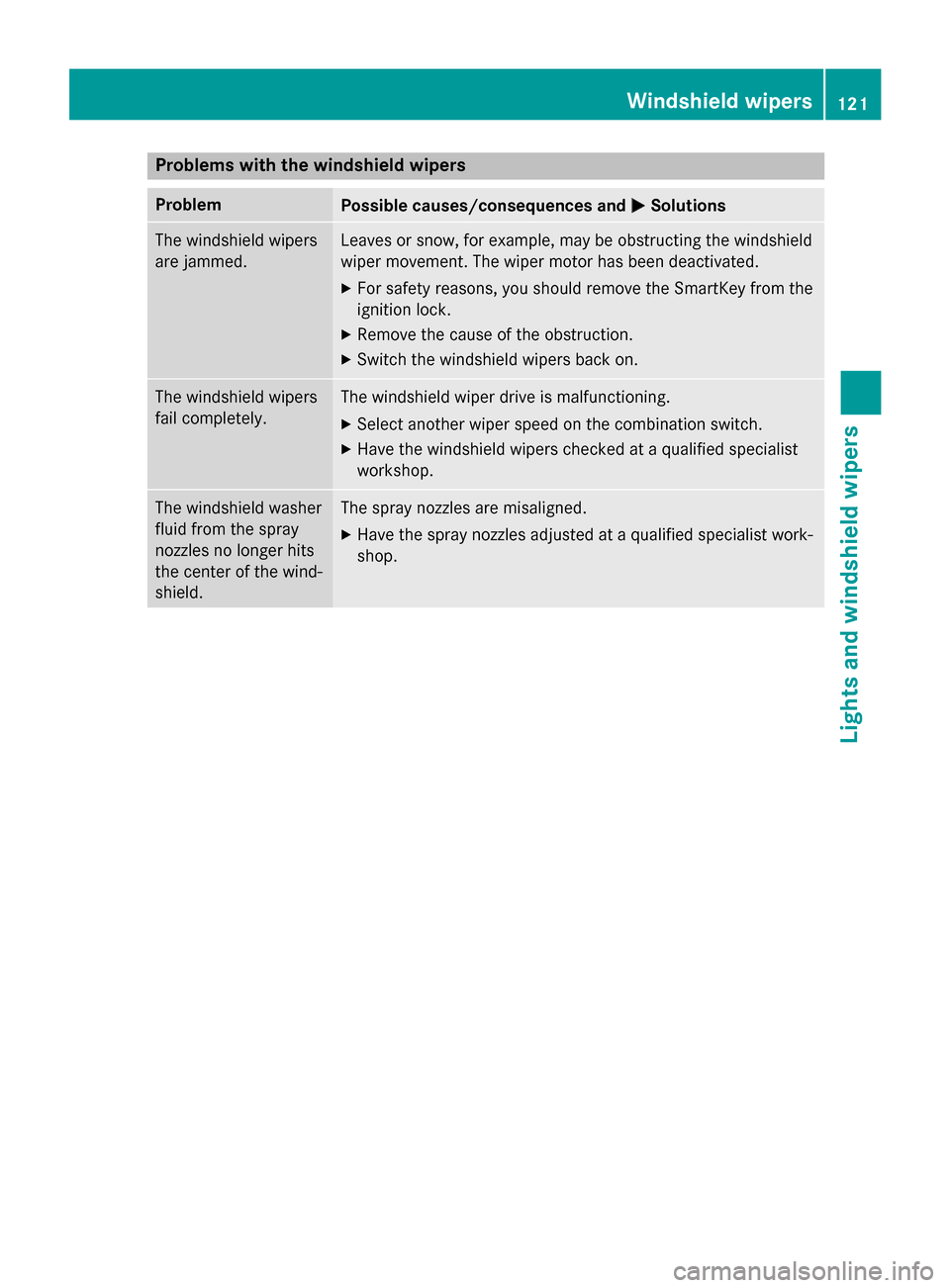

Problems with the windshield wipers
Problem
Possible causes/consequences and
0050
0050Solutions The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. The windshield washer
fluid from the spray
nozzles no longer hits
the center of the wind-
shield. The spray nozzles are misaligned.
X Have the spray nozzles adjusted at a qualified specialist work-
shop. Windshield wipers
121Lights and windshield wipers Z

122

Useful information
............................124
Overview of climate control sys-
tems ................................................... 124
Operating the climate control sys-
tems ................................................... 129
Setting the air vents .........................136 123Climate control

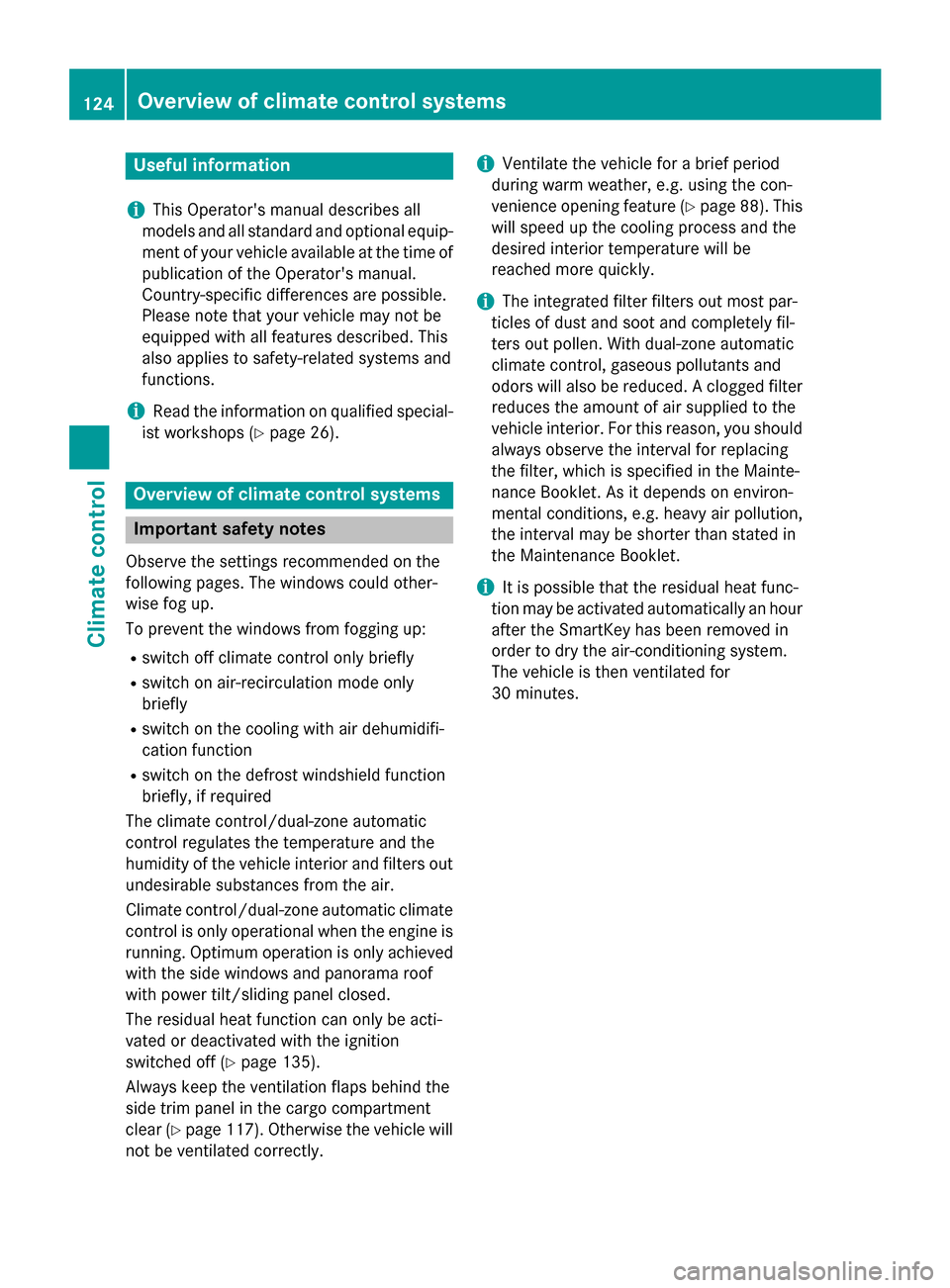

Useful information
i This Operator's manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 26). Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
The climate control/dual-zone automatic
control regulates the temperature and the
humidity of the vehicle interior and filters out undesirable substances from the air.
Climate control/dual-zone automatic climate control is only operational when the engine is
running. Optimum operation is only achieved
with the side windows and panorama roof
with power tilt/sliding panel closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 135).
Always keep the ventilation flaps behind the
side trim panel in the cargo compartment
clear (Y page 117). Otherwise the vehicle will
not be ventilated correctly. i
Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (Y page 88). This
will speed up the cooling process and the
desired interior temperature will be
reached more quickly.
i The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. With dual-zone automatic
climate control, gaseous pollutants and
odors will also be reduced. A clogged filter
reduces the amount of air supplied to the
vehicle interior. For this reason, you should always observe the interval for replacing
the filter, which is specified in the Mainte-
nance Booklet. As it depends on environ-
mental conditions, e.g. heavy air pollution,
the interval may be shorter than stated in
the Maintenance Booklet.
i It is possible that the residual heat func-
tion may be activated automatically an hour
after the SmartKey has been removed in
order to dry the air-conditioning system.
The vehicle is then ventilated for
30 minutes. 124
Overview of climate control systemsClimate control

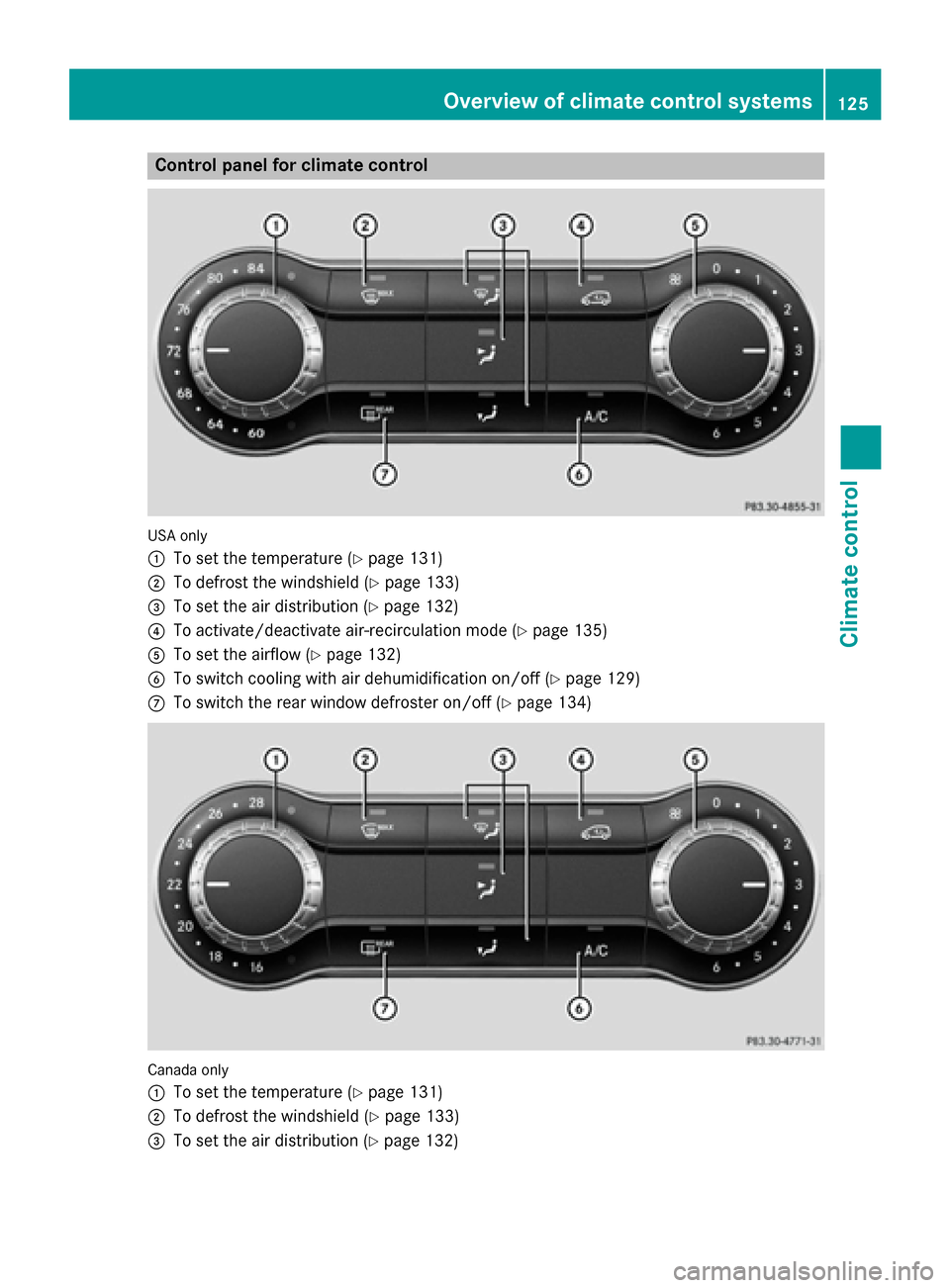

Control panel for climate control
USA only
0043
To set the temperature (Y page 131)
0044 To defrost the windshield (Y page 133)
0087 To set the air distribution (Y page 132)
0085 To activate/deactivate air-recirculation mode (Y page 135)
0083 To set the airflow (Y page 132)
0084 To switch cooling with air dehumidification on/off (Y page 129)
006B To switch the rear window defroster on/off (Y page 134)Canada only
0043
To set the temperature (Y page 131)
0044 To defrost the windshield (Y page 133)
0087 To set the air distribution (Y page 132) Overview of climate control systems
125Climate control

0085
To activate/deactivate air-recirculation mode (Y page 135)
0083 To set the airflow (Y page 132)
0084 To switch cooling with air dehumidification on/off (Y page 129)
006B To switch the rear window defroster on/off (Y page 134)Optimum use of climate control

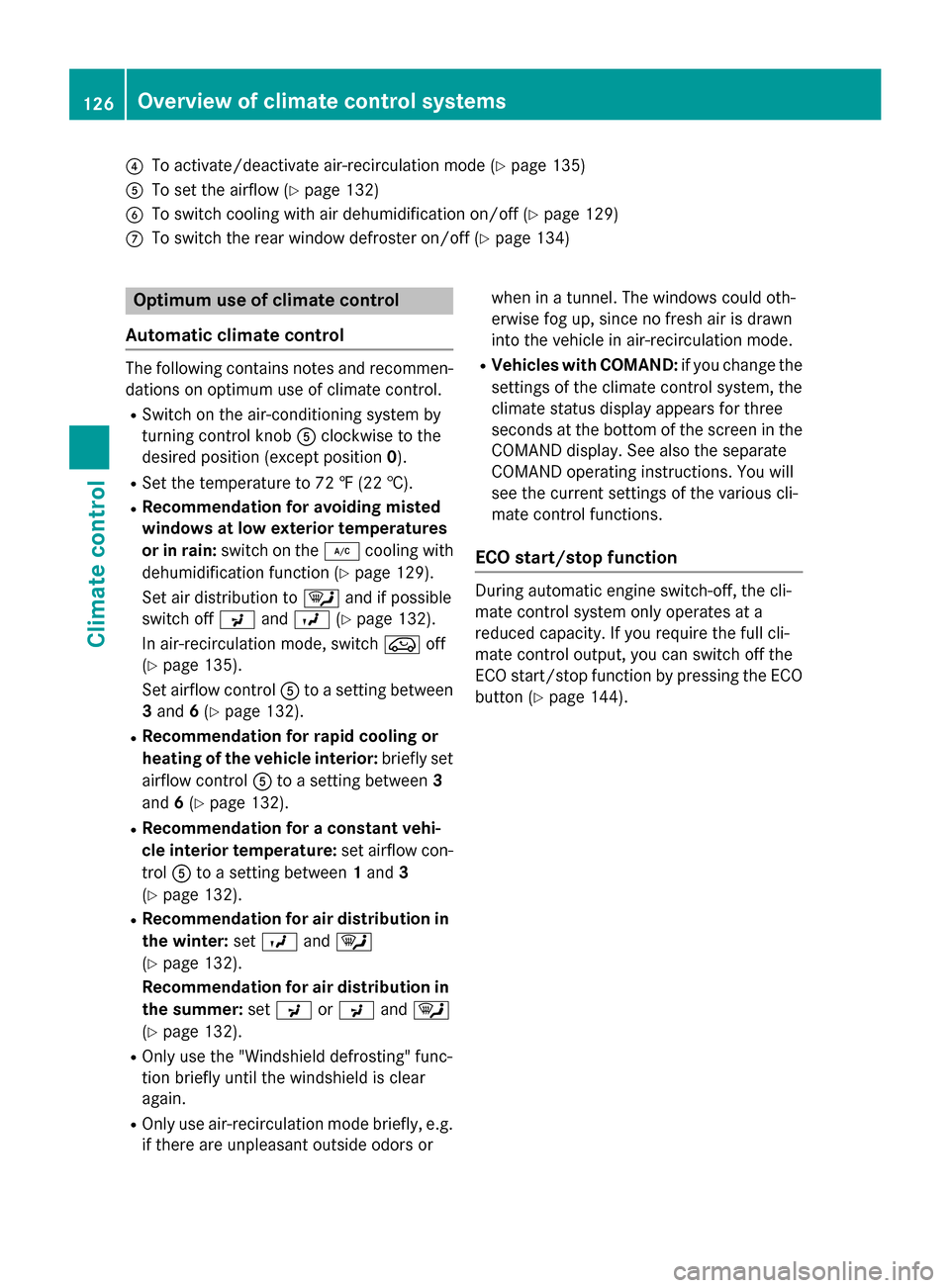

Automatic climate control The following contains notes and recommen-
dations on optimum use of climate control.
R Switch on the air-conditioning system by
turning control knob 0083clockwise to the
desired position (except position 0).
R Set the temperature to 72 ‡ (22 †).
R Recommendation for avoiding misted
windows at low exterior temperatures
or in rain: switch on the 005Acooling with
dehumidification function (Y page 129).
Set air distribution to 0061and if possible
switch off 009Cand009B (Ypage 132).
In air-recirculation mode, switch 008Aoff
(Y page 135).
Set airflow control 0083to a setting between
3 and 6(Y page 132).
R Recommendation for rapid cooling or
heating of the vehicle interior: briefly set
airflow control 0083to a setting between 3
and 6(Y page 132).
R Recommendation for a constant vehi-
cle interior temperature: set airflow con-
trol 0083to a setting between 1and 3
(Y page 132).
R Recommendation for air distribution in
the winter: set009B and0061
(Y page 132).
Recommendation for air distribution in
the summer: set009C or009C and0061
(Y page 132).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Vehicles with COMAND: if you change the
settings of the climate control system, the
climate status display appears for three
seconds at the bottom of the screen in the
COMAND display. See also the separate
COMAND operating instructions. You will
see the current settings of the various cli-
mate control functions.
ECO start/stop function During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 144). 126
Overview of climate control systemsClimate control

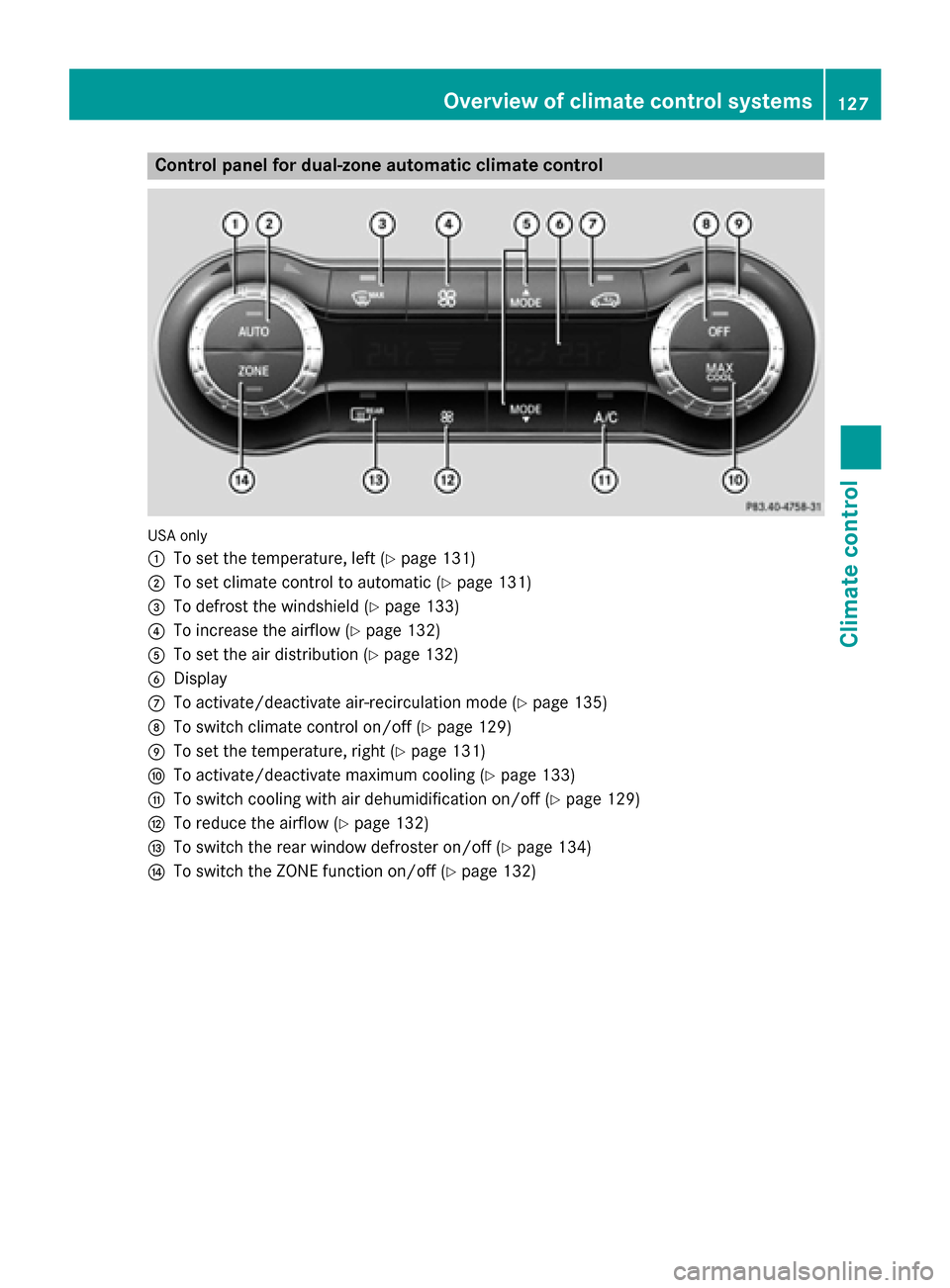

Control panel for dual-zone automatic climate control
USA only
0043
To set the temperature, left (Y page 131)
0044 To set climate control to automatic (Y page 131)
0087 To defrost the windshield (Y page 133)
0085 To increase the airflow (Y page 132)
0083 To set the air distribution (Y page 132)
0084 Display
006B To activate/deactivate air-recirculation mode (Y page 135)
006C To switch climate control on/off (Y page 129)
006D To set the temperature, right (Y page 131)
006E To activate/deactivate maximum cooling (Y page 133)
006F To switch cooling with air dehumidification on/off (Y page 129)
0070 To reduce the airflow (Y page 132)
0071 To switch the rear window defroster on/off (Y page 134)
0072 To switch the ZONE function on/off (Y page 132) Overview of climate control systems
127Climate control

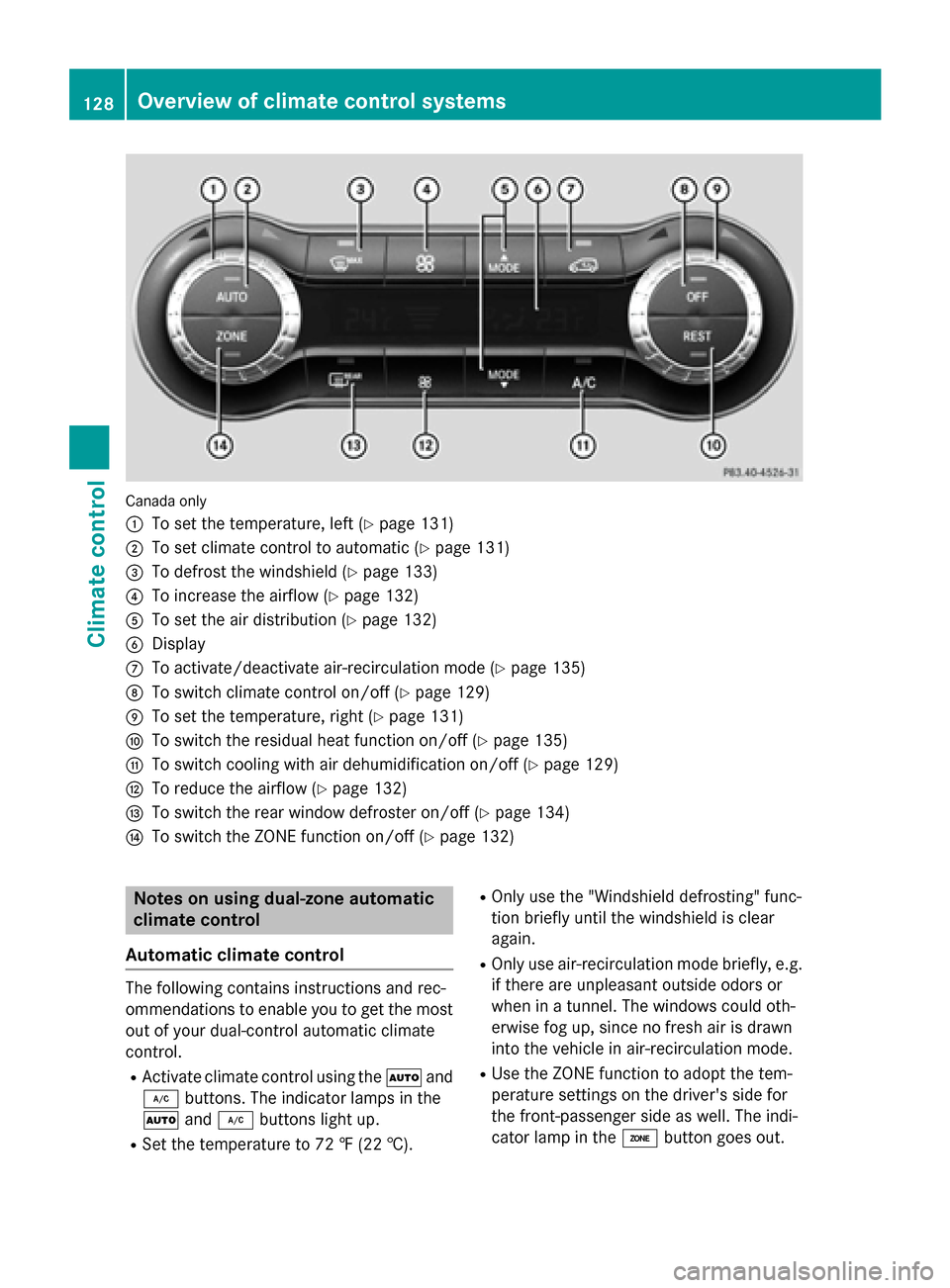

Canada only
0043
To set the temperature, left (Y page 131)
0044 To set climate control to automatic (Y page 131)
0087 To defrost the windshield (Y page 133)
0085 To increase the airflow (Y page 132)
0083 To set the air distribution (Y page 132)
0084 Display
006B To activate/deactivate air-recirculation mode (Y page 135)
006C To switch climate control on/off (Y page 129)
006D To set the temperature, right (Y page 131)
006E To switch the residual heat function on/off (Y page 135)
006F To switch cooling with air dehumidification on/off (Y page 129)
0070 To reduce the airflow (Y page 132)
0071 To switch the rear window defroster on/off (Y page 134)
0072 To switch the ZONE function on/off (Y page 132)Notes on using dual-zone automatic
climate control
Automatic climate control The following contains instructions and rec-
ommendations to enable you to get the most
out of your dual-control automatic climate
control.
R Activate climate control using the 0058and
005A buttons. The indicator lamps in the
0058 and005A buttons light up.
R Set the temperature to 72 ‡ (22 †). R
Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp in the 00D6button goes out. 128
Overview of climate control systemsClimate control
