technical data MERCEDES-BENZ CLA-Class 2015 C117 Owner's Manual

Index
....................................................... 4Introduction
......................................... 20 At a glance
........................................... 29 Safety
................................................... 39 Opening and closing
...........................73 Seats, steering wheel and mirrors
....95 Lights and windshield wipers
..........109 Climate control
................................. 123 Driving and parking
..........................139 On-board computer and displays
....199 Stowage and features
......................261 Maintenance and care
......................285 Roadside Assistance
........................299 Wheels and tires
............................... 317 Technical data
................................... 351 Contents
3

Switching on/of
f........................... 129
Switching residual heat on/off ...... 135
Switching the rear window
defroster on/of f............................ 134
Switching the ZONE function on/
off .................................................. 132
Cockpit
Overview .......................................... 30
COLLISION PREVENTION ASSIST
PLUS
Activating/deactivating ................. 210
Display message ............................ 224
Operation/note s.............................. 64
COMAND display
Cleaning ......................................... 296
Combination switch .......................... 112
Compass
Calibrating ..................................... 283
Calling up ....................................... 283
Magnetic field zone maps .............. 284
Setting ........................................... 283
Consumption statistics (on-board
computer) .......................................... 204
Convenience closing feature .............. 88
Convenience opening feature ............ 87
Coolant (engine)
Checking the level ......................... 289
Display message ............................ 233
Filling capacity ............................... 358
Important safety notes .................. 357
Temperature (on-board computer, AMG vehicles) ................................ 214
Temperature gaug e........................ 200
Warning lamp ................................. 256
Cooling
see Climate control
Copyright ............................................. 27
Cornering light function
Changing bulb s.............................. 119
Display message ............................ 229
Function/note s............................. 113
Crash-responsive emergency light-
ing ....................................................... 116
Cruise control
Activation conditions ..................... 170
Cruise control lever ....................... 170
Deactivating ................................... 171 Display message ............................ 238
Driving system ............................... 169
Function/note s............................. 169
Important safety notes .................. 169
Setting a speed .............................. 170
Storing and maintaining current
speed ............................................. 170

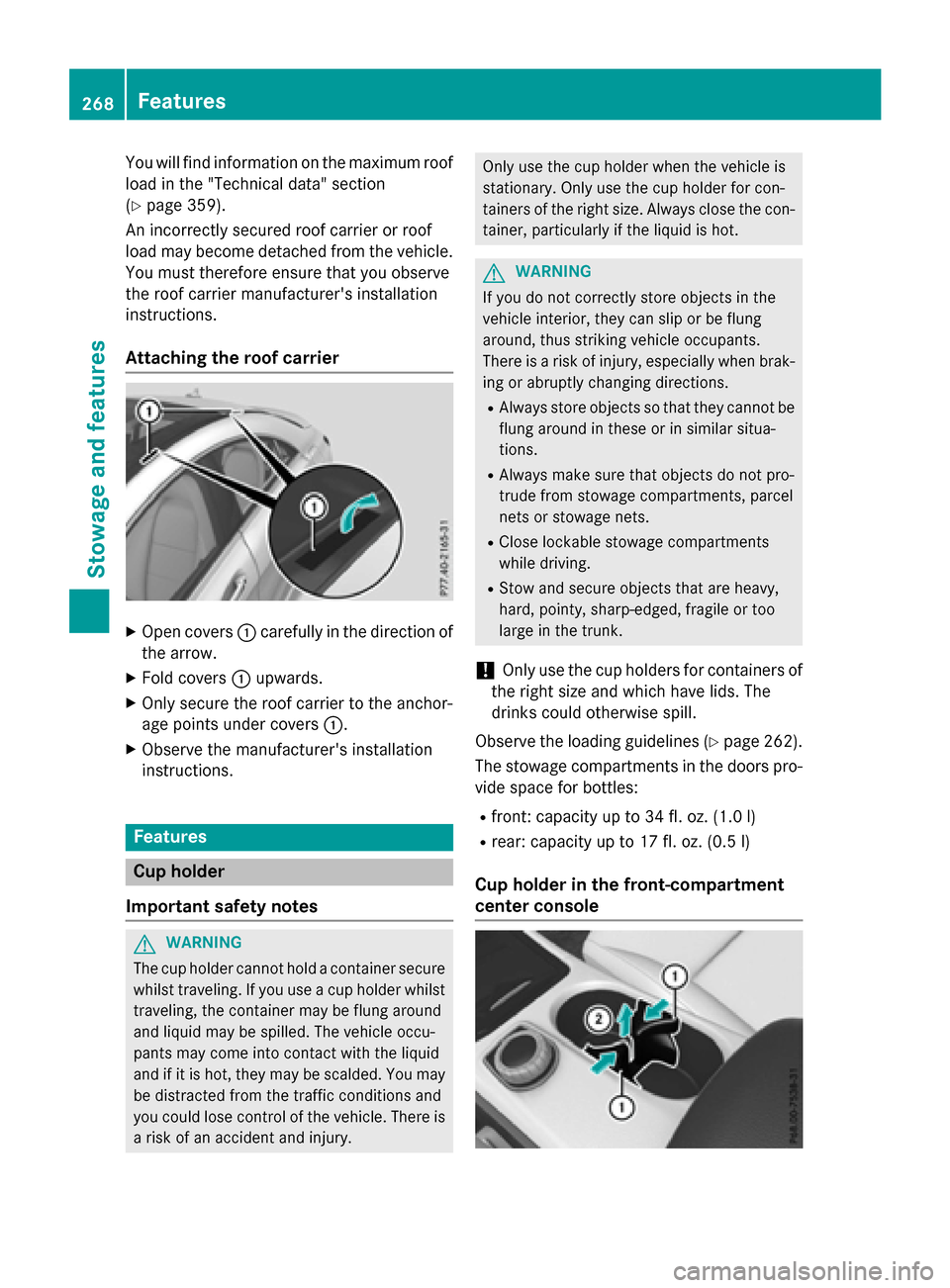

Cup holder
Center console .............................. 268
Important safety notes .................. 268
Rear compartment ......................... 269
Customer Assistance Center
(CAC) ..................................................... 25
Customer Relations Department ....... 25 D
Data see Technical data
Daytime running lamps
Display message ............................ 232
Function/note s............................. 110
Switching on/off (on-board com-
puter) ............................................. 212
Declarations of conformity ................. 24
Diagnostics connection ...................... 24
Digital speedometer ......................... 205
DIRECT SELECT lever
Automatic transmission ................. 148
Display messages
ASSYST PLU S................................ 290
Calling up (on-board computer) ..... 217
Driving system s............................. 235
Engine ............................................ 233
General notes ................................ 217
Hiding (on-board computer) ........... 217
Lights ............................................. 229
Safety systems .............................. 218
SmartKey ....................................... 246
Tires ............................................... 239
Vehicle ........................................... 242
Distance recorder ............................. 203
Distance warning (warning lamp) .... 258
Distance warning function
Function/note s................................ 64
Warning lamp ................................. 258
DISTRONIC PLUS
Activation conditions ..................... 173 Index
7

Sockets
Center console .............................. 271
General notes ................................ 271
Rear compartment .........................2 71
Trunk ............................................. 271
Special seat belt retractor .................. 57
Specialist workshop ............................ 24
Speed, controlling
see Cruise control
Speedometer
Activating/deactivating the addi-
tional speedometer ........................ 212
Digital ............................................ 205
In the Instrument cluster ................. 31
Segments ...................................... 201
Selecting the unit of measure-
ment .............................................. 211
SPORT handling mode
Activating/deactivating (AMG
vehicles) .......................................... 68
Warning lamp ................................. 253
Standing lamps
Display message ............................ 231
Switching on/off ........................... 112
Start/Stop button
Removing ....................................... 143
Starting the engine ........................ 144
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 143
STEER CONTROL .................................. 70
Steering (display message) .............. 245
Steering assistant STEER CON-
TROL
see STEER CONTROL
Steering wheel
Adjusting (manually) ...................... 102
Button overview ............................... 33
Buttons (on-board computer) ......... 201
Cleaning ......................................... 297
Important safety notes .................. 102
Paddle shifters ............................... 154
Steering wheel paddle shifters ........ 154
Stopwatch (RACETIMER) ................... 214
Stowage compartments
Armrest (front) ............................... 264
Armrest (under) ............................. 264 Center console .............................. 263
Center console (rear) ..................... 264
Cup holders ................................... 268
Eyeglasses compartment ............... 263
Glove box ....................................... 263
Important safety information ......... 263
Map pockets .................................. 265
Stowage net ................................... 265
Under driver's seat/front-
passenger sea t.............................. 264
Stowage net ....................................... 265
Stowage well beneath the trunk
floor .................................................... 267
Summer tires ..................................... 320
Sun visor ............................................ 269
Switching air-recirculation mode
on/off ................................................. 135 T
Tachometer ........................................ 201
Tail lamps
Display message ............................ 230
see Lights
Tank content
Fuel gauge ....................................... 31
Technical data
Capacities ...................................... 353
Information .................................... 352
Tires/wheels ................................. 345
Vehicle data ................................... 359
Telephone
Accepting a call (multifunction
steering wheel) .............................. 208
Display message ............................ 245
Introduction ................................... 208
Menu (on-board computer) ............ 208
Number from the phone book ........ 208
Redialing ........................................ 209
Rejecting/ending a call ................. 208
Temperature
Coolant .......................................... 200
Coolant (on-board computer,
AMG vehicles) ................................ 214
Engine oil (on-board computer,
AMG vehicles) ................................ 214
Outside temperature ...................... 201
Setting (climate control )................ 131 16
Index

Observe the notes in the Maintenance Book-
let.
Always have the following work carried out at
an authorized Mercedes-Benz Center:
R work relevant to safety
R service and maintenance work
R repair work
R alterations, installation work and modifica-
tions
R work on electronic components Correct use
If you remove any warning stickers, you or
others could fail to recognize certain dangers.
Leave warning stickers in position.
Observe the following information when driv- ing your vehicle:
R the safety notes in this manual
R the vehicle technical data
R traffic rules and regulations
R laws and safety standards pertaining to
motor vehicles Problems with your vehicle
If you should experience a problem with your
vehicle, particularly one that you believe may affect its safe operation, we urge you to con-
tact an authorized Mercedes-Benz Center
immediately to have the problem diagnosed
and rectified. If the problem is not resolved to
your satisfaction, please discuss the problem
again with a Mercedes-Benz Center or con-
tact us at one of the following addresses.
In the USA
Customer Assistance Center
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada
Customer Relations Department
Mercedes-Benz Canada, Inc. 98 Vanderhoof Avenue
Toronto, Ontario M4G 4C9 Reporting safety defects
USA only:
The following text is published as required of manufacturers under Title 49, Code of U.S.
Federal Regulations, Part 575 pursuant to the
"National Traffic and Motor Vehicle Safety Act of 1966".
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notify-
ing Mercedes-Benz USA, LLC.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your
dealer, or Mercedes-Benz USA, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at
1-888-327-4236(TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh Street,
SW., Washington, DC 20590.
You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov Limited Warranty
! Follow the instructions in this manual
about the proper operation of your vehicle
as well as about possible vehicle damage.
Damage to your vehicle that arises from
culpable contraventions against these
instructions is not covered either by the
Mercedes-Benz Limited Warranty or by the New or Used-Vehicle Warranty. Introduction
25 Z

You will find information on the maximum roof
load in the "Technical data" section
(Y page 359).
An incorrectly secured roof carrier or roof
load may become detached from the vehicle. You must therefore ensure that you observe
the roof carrier manufacturer's installation
instructions.
Attaching the roof carrier X
Open covers :carefully in the direction of
the arrow.
X Fold covers :upwards.
X Only secure the roof carrier to the anchor-
age points under covers :.
X Observe the manufacturer's installation
instructions. Features
Cup holder
Important safety notes G
WARNING
The cup holder cannot hold a container secure whilst traveling. If you use a cup holder whilsttraveling, the container may be flung around
and liquid may be spilled. The vehicle occu-
pants may come into contact with the liquid
and if it is hot, they may be scalded. You may
be distracted from the traffic conditions and
you could lose control of the vehicle. There is a risk of an accident and injury. Only use the cup holder when the vehicle is
stationary. Only use the cup holder for con-
tainers of the right size. Always close the con- tainer, particularly if the liquid is hot. G
WARNING
If you do not correctly store objects in the
vehicle interior, they can slip or be flung
around, thus striking vehicle occupants.
There is a risk of injury, especially when brak- ing or abruptly changing directions.
R Always store objects so that they cannot be
flung around in these or in similar situa-
tions.
R Always make sure that objects do not pro-
trude from stowage compartments, parcel
nets or stowage nets.
R Close lockable stowage compartments
while driving.
R Stow and secure objects that are heavy,
hard, pointy, sharp-edged, fragile or too
large in the trunk.
! Only use the cup holders for containers of
the right size and which have lids. The
drinks could otherwise spill.
Observe the loading guidelines (Y page 262).
The stowage compartments in the doors pro- vide space for bottles:
R front: capacity up to 34 fl. oz. (1.0 l)
R rear: capacity up to 17 fl. oz. (0.5 l)
Cup holder in the front-compartment
center console 268
FeaturesStowage and features

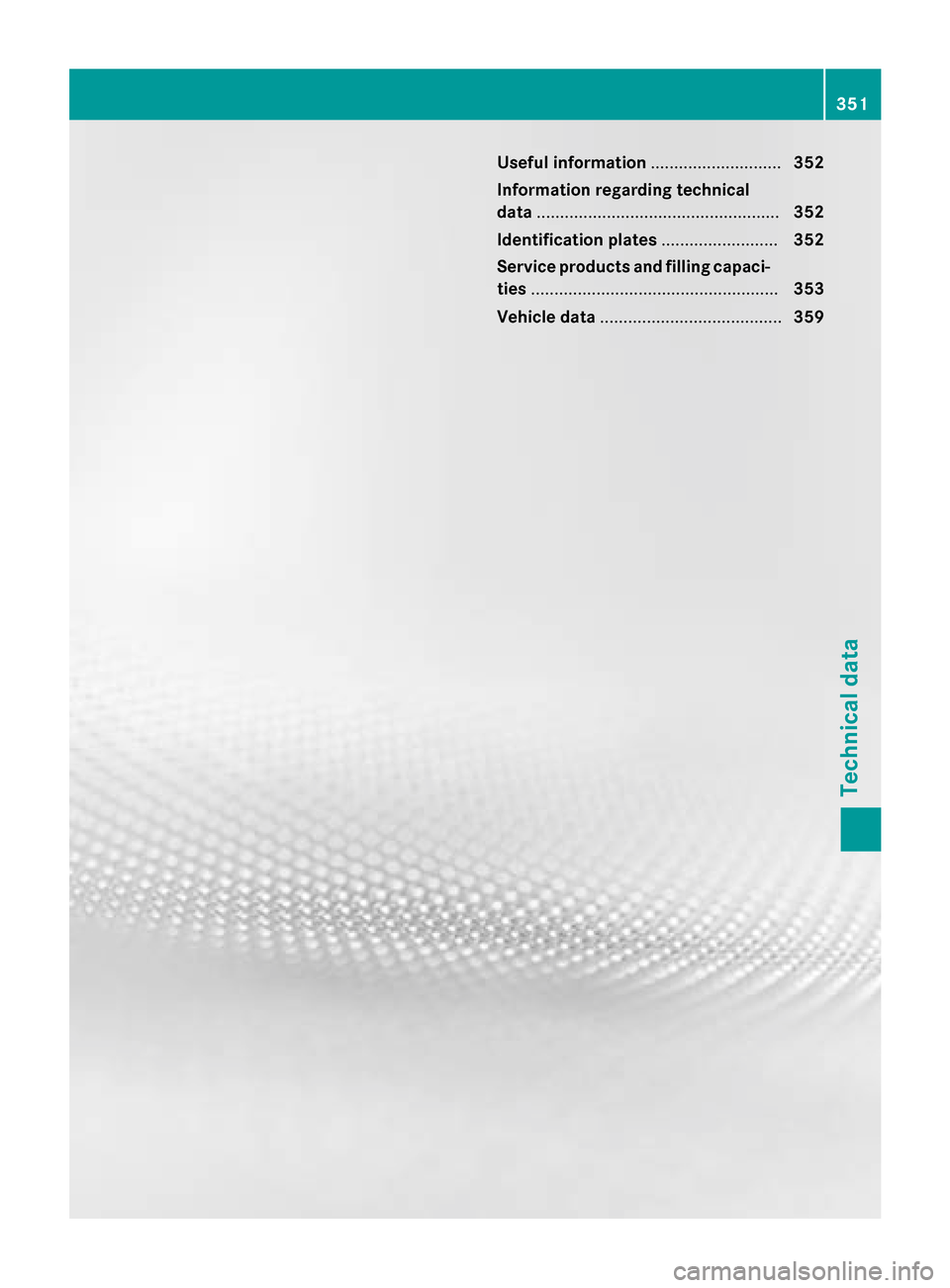

Useful information
............................352
Information regarding technical
data .................................................... 352
Identification plates .........................352
Service products and filling capaci- ties ..................................................... 353
Vehicle data ....................................... 359 351Technical data

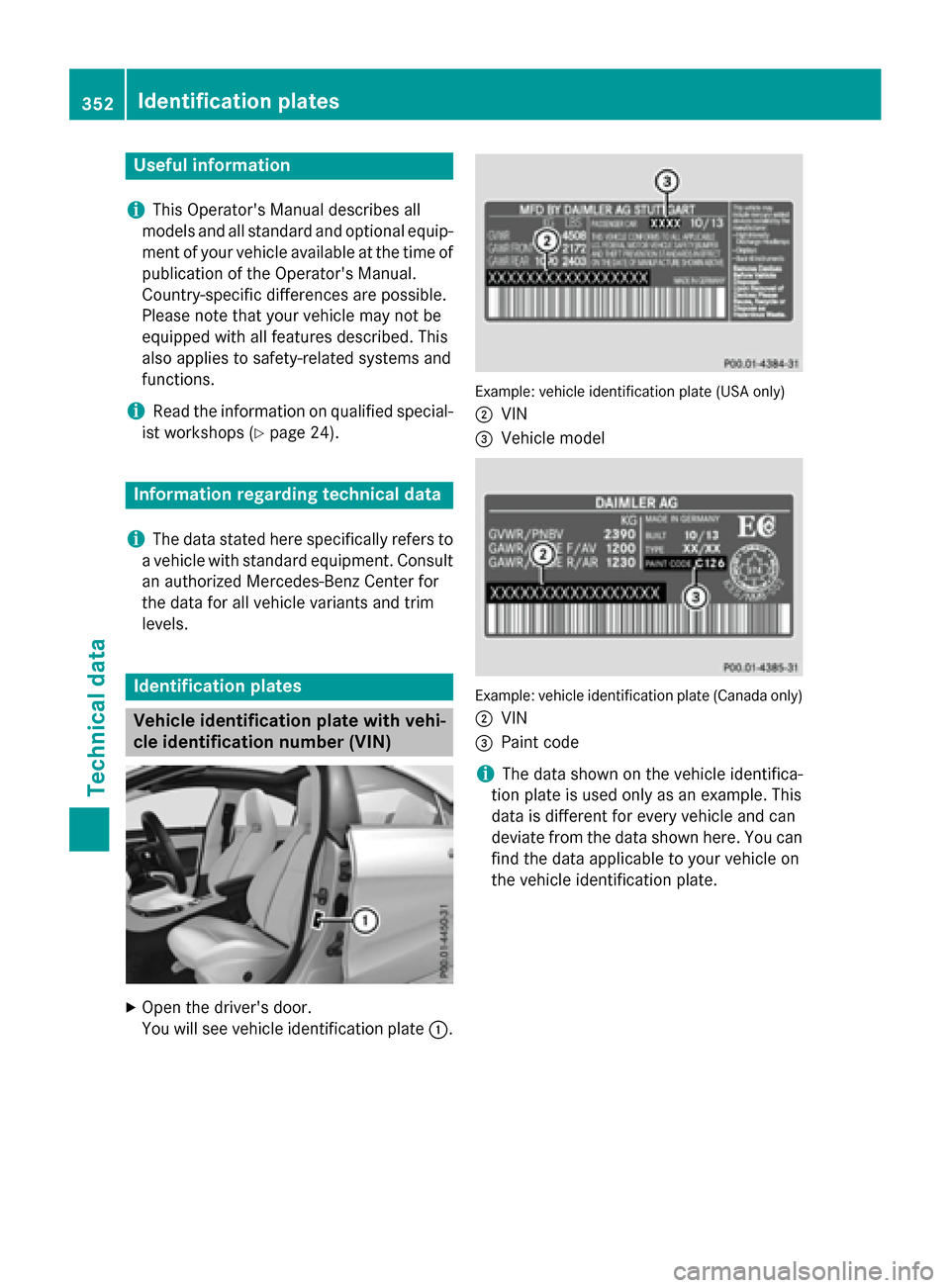

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 24). Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment. Consult an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
X
Open the driver's door.
You will see vehicle identification plate :. Example: vehicle identification plate (USA only)
; VIN
= Vehicle model Example: vehicle identification plate (Canada only)
; VIN
= Paint code
i The data shown on the vehicle identifica-
tion plate is used only as an example. This
data is different for every vehicle and can
deviate from the data shown here. You can
find the data applicable to your vehicle on
the vehicle identification plate. 352
Identification platesTechnical data

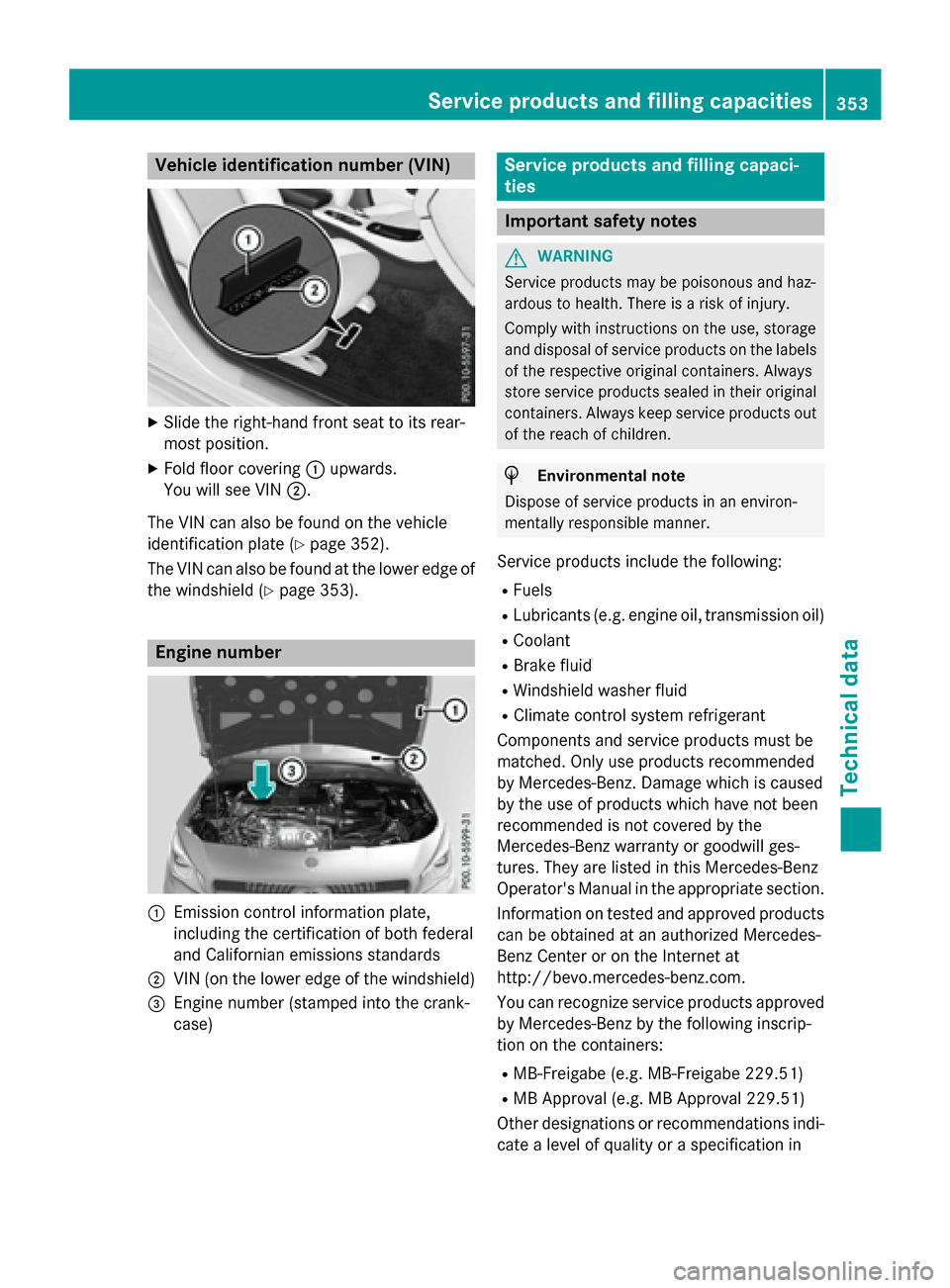

Vehicle identification number (VIN)
X
Slide the right-hand front seat to its rear-
most position.
X Fold floor covering :upwards.
You will see VIN ;.
The VIN can also be found on the vehicle
identification plate (Y page 352).
The VIN can also be found at the lower edge of
the windshield (Y page 353). Engine number
:
Emission control information plate,
including the certification of both federal
and Californian emissions standards
; VIN (on the lower edge of the windshield)
= Engine number (stamped into the crank-
case) Service products and filling capaci-
ties
Important safety notes
G
WARNING
Service products may be poisonous and haz-
ardous to health. There is a risk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels of the respective original containers. Always
store service products sealed in their original containers. Always keep service products out
of the reach of children. H
Environmental note
Dispose of service products in an environ-
mentally responsible manner.
Service products include the following:
R Fuels
R Lubricants (e.g. engine oil, transmission oil)
R Coolant
R Brake fluid
R Windshield washer fluid
R Climate control system refrigerant
Components and service products must be
matched. Only use products recommended
by Mercedes-Benz. Damage which is caused
by the use of products which have not been
recommended is not covered by the
Mercedes-Benz warranty or goodwill ges-
tures. They are listed in this Mercedes-Benz
Operator's Manual in the appropriate section.
Information on tested and approved products can be obtained at an authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com.
You can recognize service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations indi- cate a level of quality or a specification in Service products and filling capacities

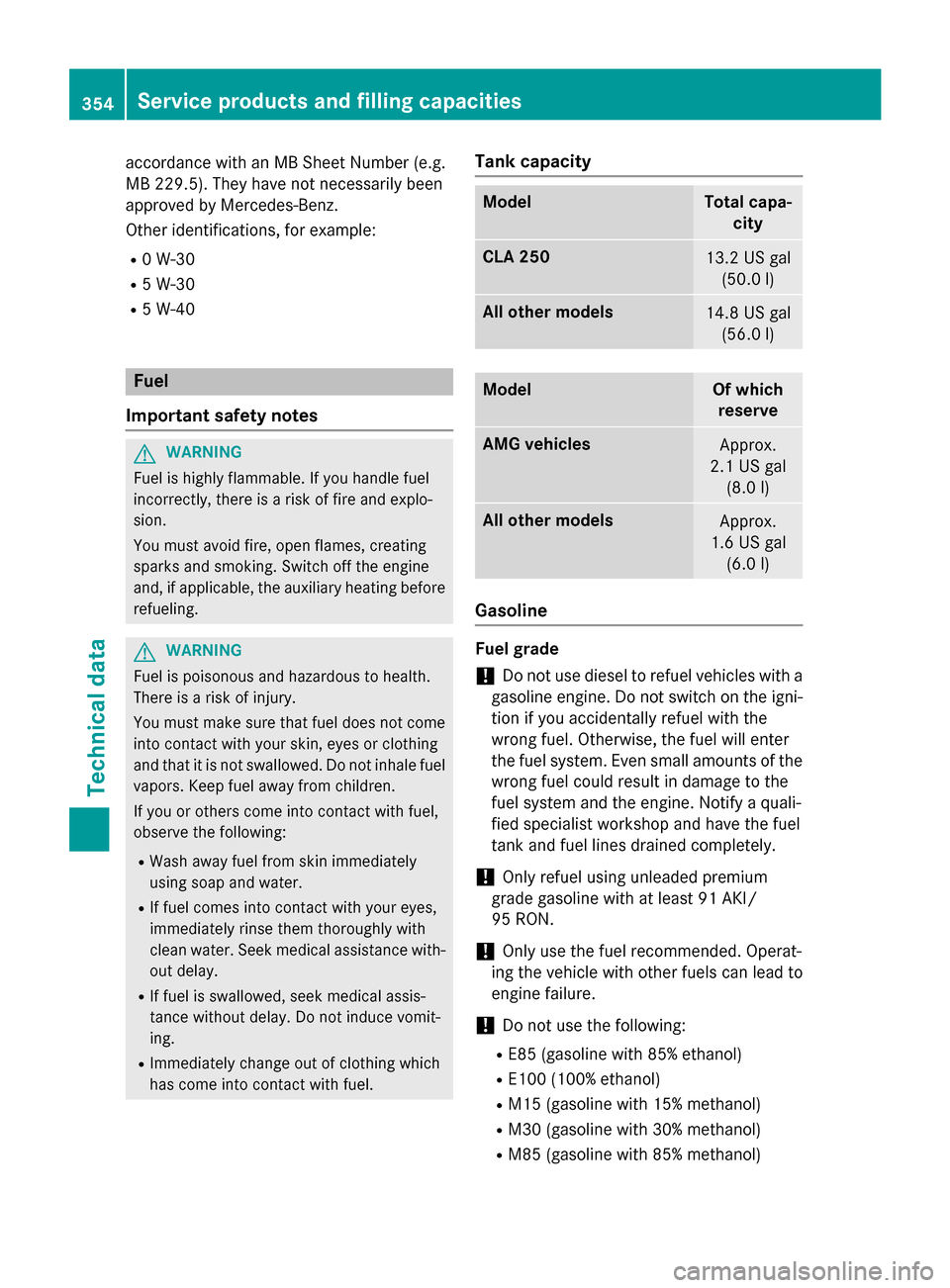

353Technical data Z

accordance with an MB Sheet Number (e.g.
MB 229.5). They have not necessarily been
approved by Mercedes-Benz.
Other identifications, for example:
R 0 W-30
R 5 W-30
R 5 W-40 Fuel
Important safety notes G
WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before refueling. G
WARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
R Wash away fuel from skin immediately
using soap and water.
R If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay.
R If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing.
R Immediately change out of clothing which
has come into contact with fuel. Tank capacity Model Total capa-
city CLA 250
13.2 US gal
(50.0 l) All other models
14.8 US gal
(56.0 l) Model Of which
reserve AMG vehicles
Approx.
2.1 US gal (8.0 l) All other models
Approx.
1.6 US gal (6.0 l) Gasoline
Fuel grade
!
Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni- tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
! Only refuel using unleaded premium
grade gasoline with at least 91 AK I/
95 RON.
! Only use the fuel recommended. Operat-
ing the vehicle with other fuels can lead to
engine failure.
! Do not use the following:
R E85 (gasoline with 85% ethanol)
R E100 (100% ethanol)
R M15 (gasoline with 15% methanol)
R M30 (gasoline with 30% methanol)
R M85 (gasoline with 85% methanol) 354
Service products and filling capacitiesTechnical data

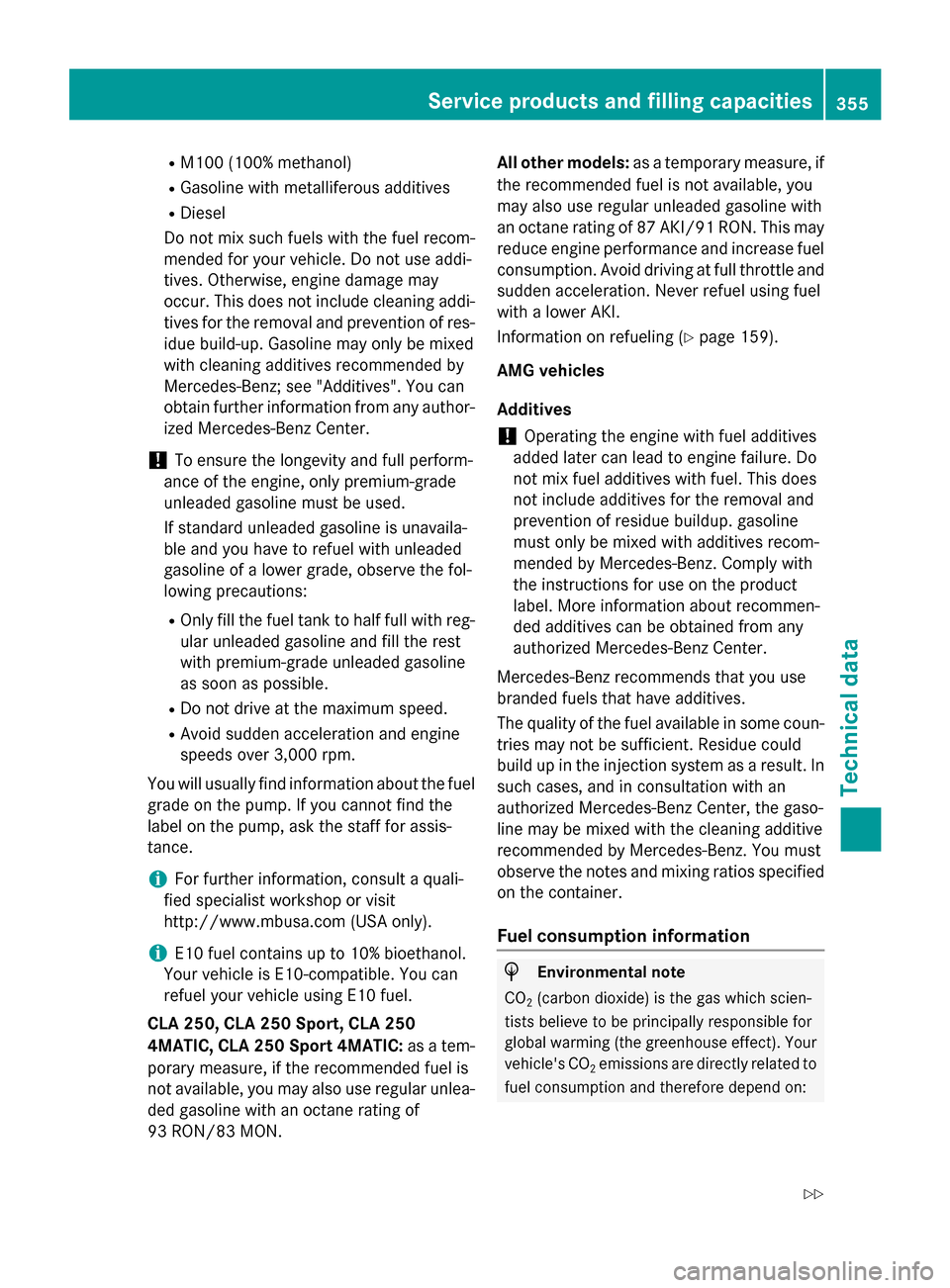

R
M100 (100% methanol)
R Gasoline with metalliferous additives
R Diesel
Do not mix such fuels with the fuel recom-
mended for your vehicle. Do not use addi-
tives. Otherwise, engine damage may
occur. This does not include cleaning addi- tives for the removal and prevention of res-
idue build-up. Gasoline may only be mixed
with cleaning additives recommended by
Mercedes-Benz; see "Additives". You can
obtain further information from any author- ized Mercedes-Benz Center.
! To ensure the longevity and full perform-
ance of the engine, only premium-grade
unleaded gasoline must be used.
If standard unleaded gasoline is unavaila-
ble and you have to refuel with unleaded
gasoline of a lower grade, observe the fol-
lowing precautions:
R Only fill the fuel tank to half full with reg-
ular unleaded gasoline and fill the rest
with premium-grade unleaded gasoline
as soon as possible.
R Do not drive at the maximum speed.
R Avoid sudden acceleration and engine
speeds over 3,000 rpm.
You will usually find information about the fuel
grade on the pump. If you cannot find the
label on the pump, ask the staff for assis-
tance.
i For further information, consult a quali-
fied specialist workshop or visit
http://www.mbusa.com (USA only).
i E10 fuel contains up to 10% bioethanol.
Your vehicle is E10-compatible. You can
refuel your vehicle using E10 fuel.
CLA 250, CLA 250 Sport, CLA 250
4MATIC, CLA 250 Sport 4MATIC: as a tem-
porary measure, if the recommended fuel is
not available, you may also use regular unlea-
ded gasoline with an octane rating of
93 RON/83 MON. All other models:
as a temporary measure, if
the recommended fuel is not available, you
may also use regular unleaded gasoline with
an octane rating of 87 AKI/91 RON. This may
reduce engine performance and increase fuel consumption. Avoid driving at full throttle andsudden acceleration. Never refuel using fuel
with a lower AKI.
Information on refueling (Y page 159).
AMG vehicles
Additives ! Operating the engine with fuel additives
added later can lead to engine failure. Do
not mix fuel additives with fuel. This does
not include additives for the removal and
prevention of residue buildup. gasoline
must only be mixed with additives recom-
mended by Mercedes-Benz. Comply with
the instructions for use on the product
label. More information about recommen-
ded additives can be obtained from any
authorized Mercedes-Benz Center.
Mercedes-Benz recommends that you use
branded fuels that have additives.
The quality of the fuel available in some coun- tries may not be sufficient. Residue could
build up in the injection system as a result. In
such cases, and in consultation with an
authorized Mercedes-Benz Center, the gaso-
line may be mixed with the cleaning additive
recommended by Mercedes-Benz. You must
observe the notes and mixing ratios specified on the container.
Fuel consumption information H
Environmental note
CO 2(carbon dioxide) is the gas which scien-
tists believe to be principally responsible for
global warming (the greenhouse effect). Your vehicle's CO 2emissions are directly related to
fuel consumption and therefore depend on: Service products and filling capacities
355Technical data
Z
