Page 351 of 374

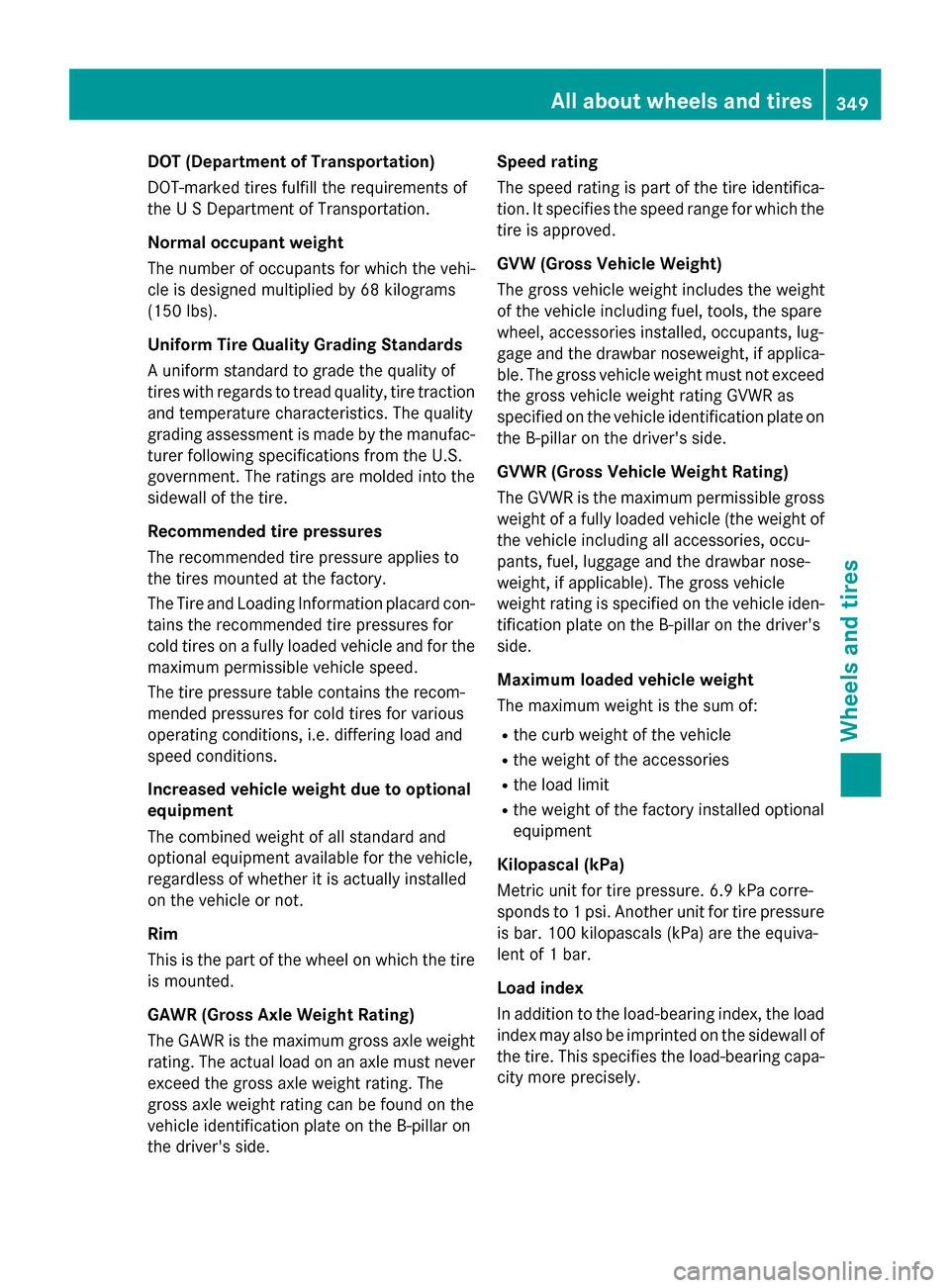

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual DOT (Department of Transportation)
DOT-markedtires fulfill th erequirements of
th e U S Departmen tof Transportation .
Normal occupant weigh t
The number of occupant sfo rwhic hth evehi-
cle is design

Page 352 of 374

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual Curb weight
The weight of a vehicle with standard equip-
ment including the maximum capacity of fuel,
oil and coolant. It also includes the air-condi-
tioning system and optional equipment if
these ar

Page 353 of 374

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual Occupant distribution
The distribution of occupants in a vehicle at
their designated seating positions.
Total load limit
Nominal load and luggage load plus 68 kg
(150 lbs) multiplied by the number of

Page 354 of 374

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual XVehicles without KEYLESS-GO:remove
the SmartKey from the ignition lock.
XVehicles with KEYLESS-GO start-func-
tion or KEYLESS-GO: open the drivers
door.
The on-board electronics now have status
0 .

Page 355 of 374

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual RBefore raising the vehicle, secure it from
rolling away by applying the parking brake
and inserting wheel chocks. Do not disen-
gage the parking brake while the vehicle is
raised.
RThe jack must be p

Page 356 of 374

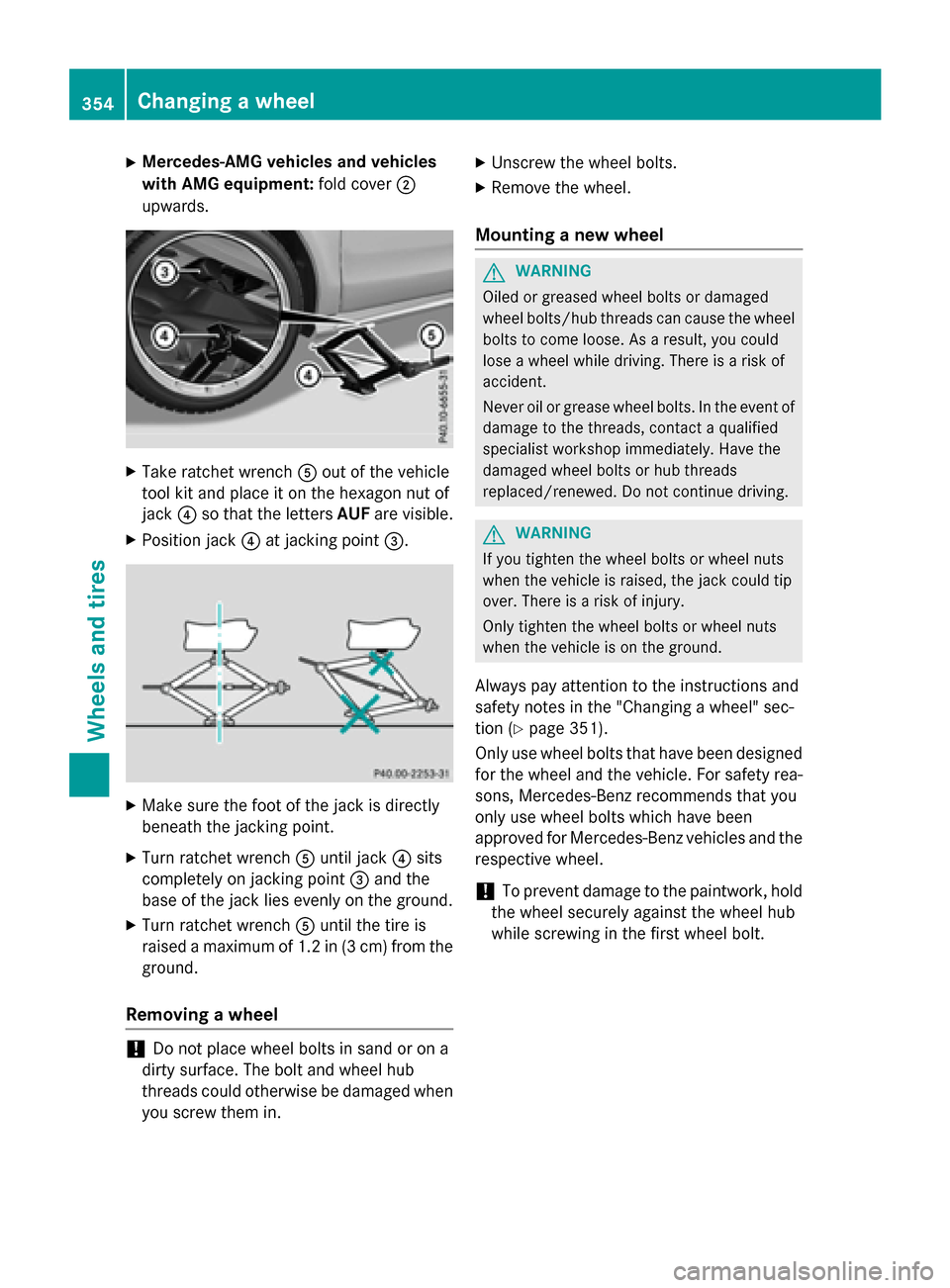

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual XMercedes-AMG vehicles and vehicles
with AMG equipment:fold cover;
upwards.
XTake ratchet wrench Aout of the vehicle
tool kit and place it on the hexagon nut of
jack ?so that the letters AUFare visibl

Page 357 of 374

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual XClean the wheel and wheel hub contact
surfaces.
XPlace the new wheel on the wheel hub andpush iton.
XTighten the wheel bolts unt ilthey are fin-
ger-tight.
Lowering the vehicle
GWARNIN G
The wheels c

Page 358 of 374

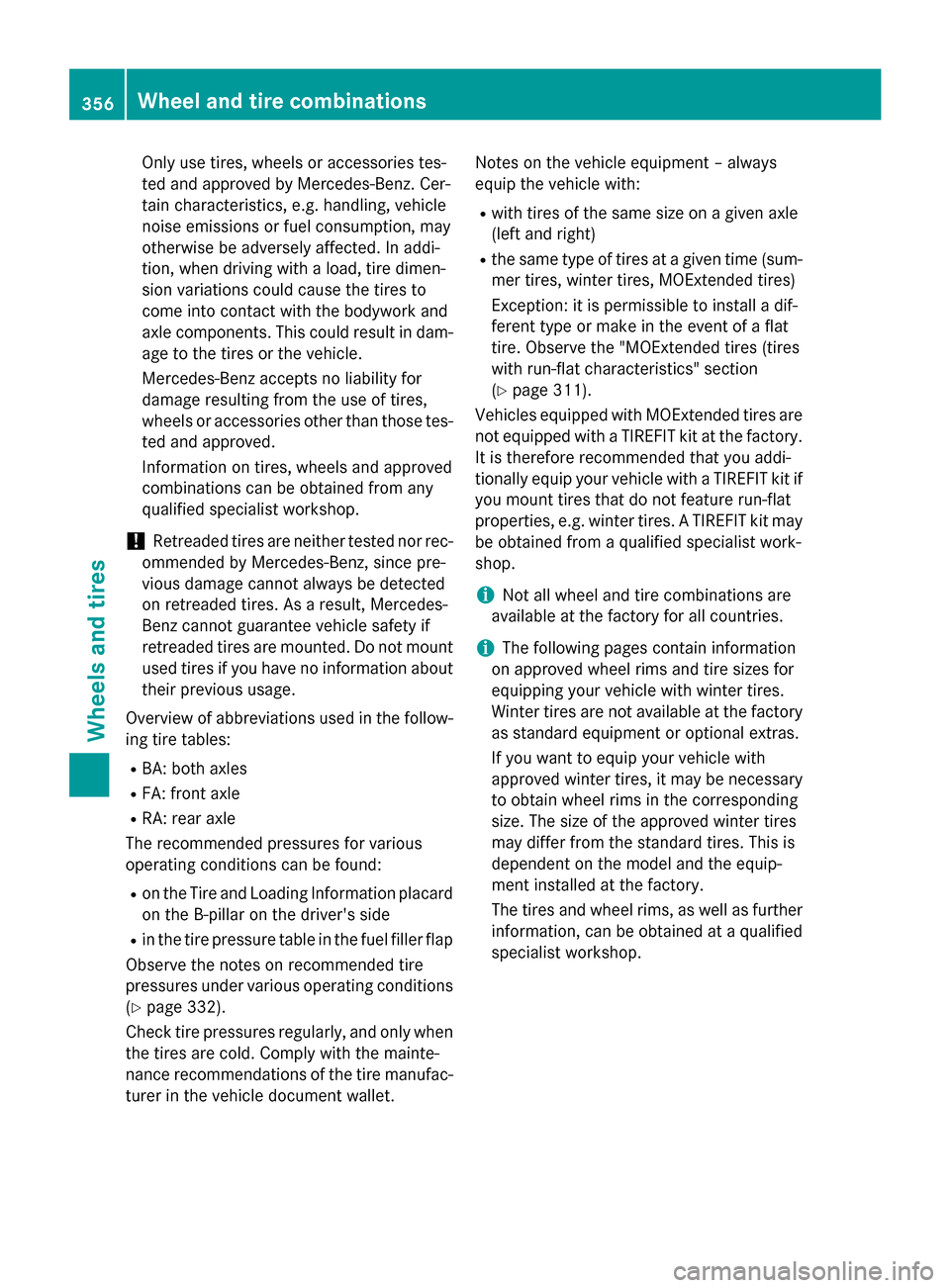

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual Only use tires, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected

Page 359 of 374

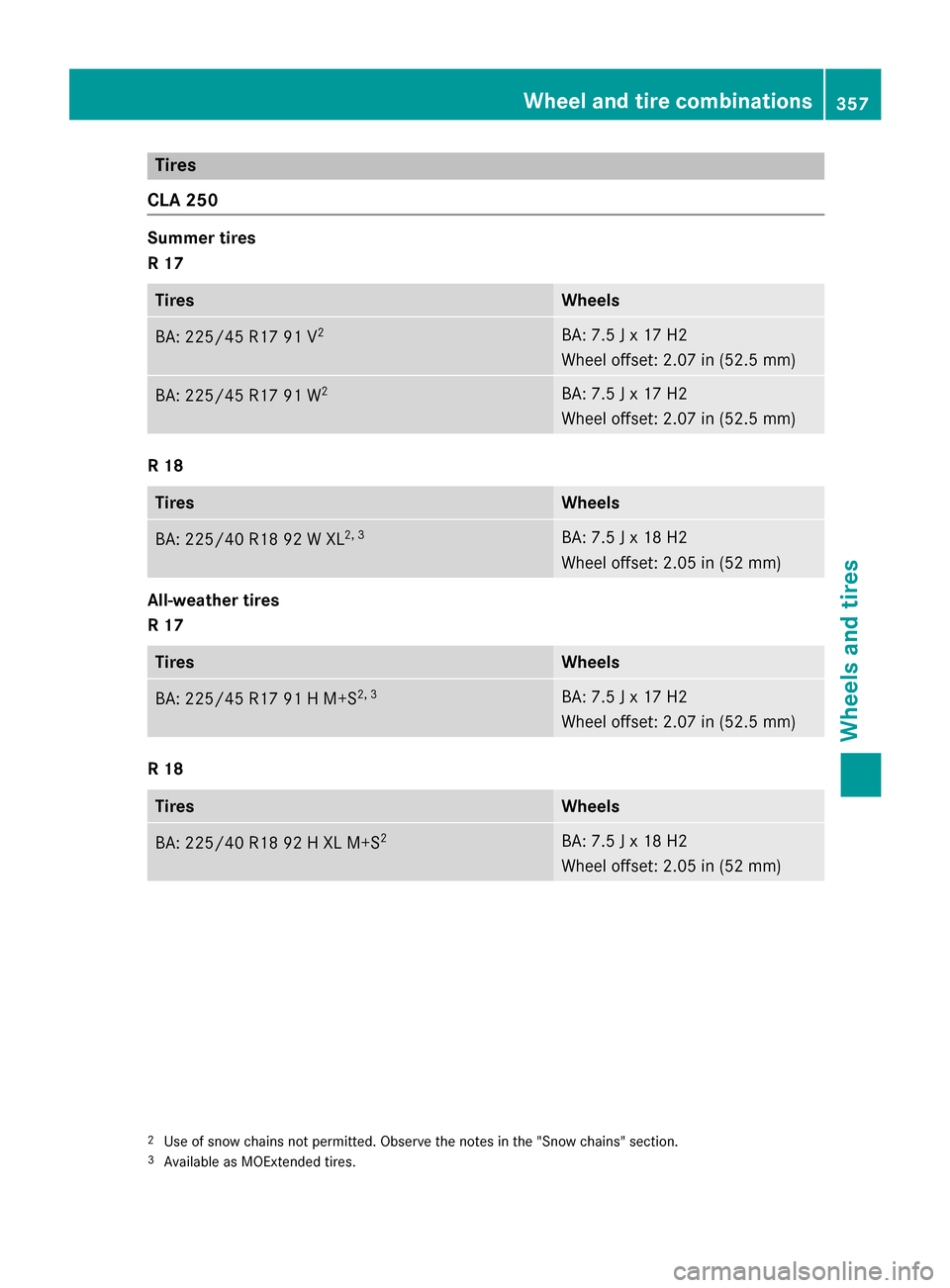

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual Tires
CLA 250
Summer tires
R 17
TiresWheels
BA: 225/45 R1791 V2BA: 7.5 J x 17 H2
Wheel offset: 2.07 in (52.5 mm)
BA: 225/45 R17 91 W2BA: 7.5 J x 17 H2
Wheel offset: 2.07 in (52.5 mm)
R 18
TiresWheels

Page 360 of 374

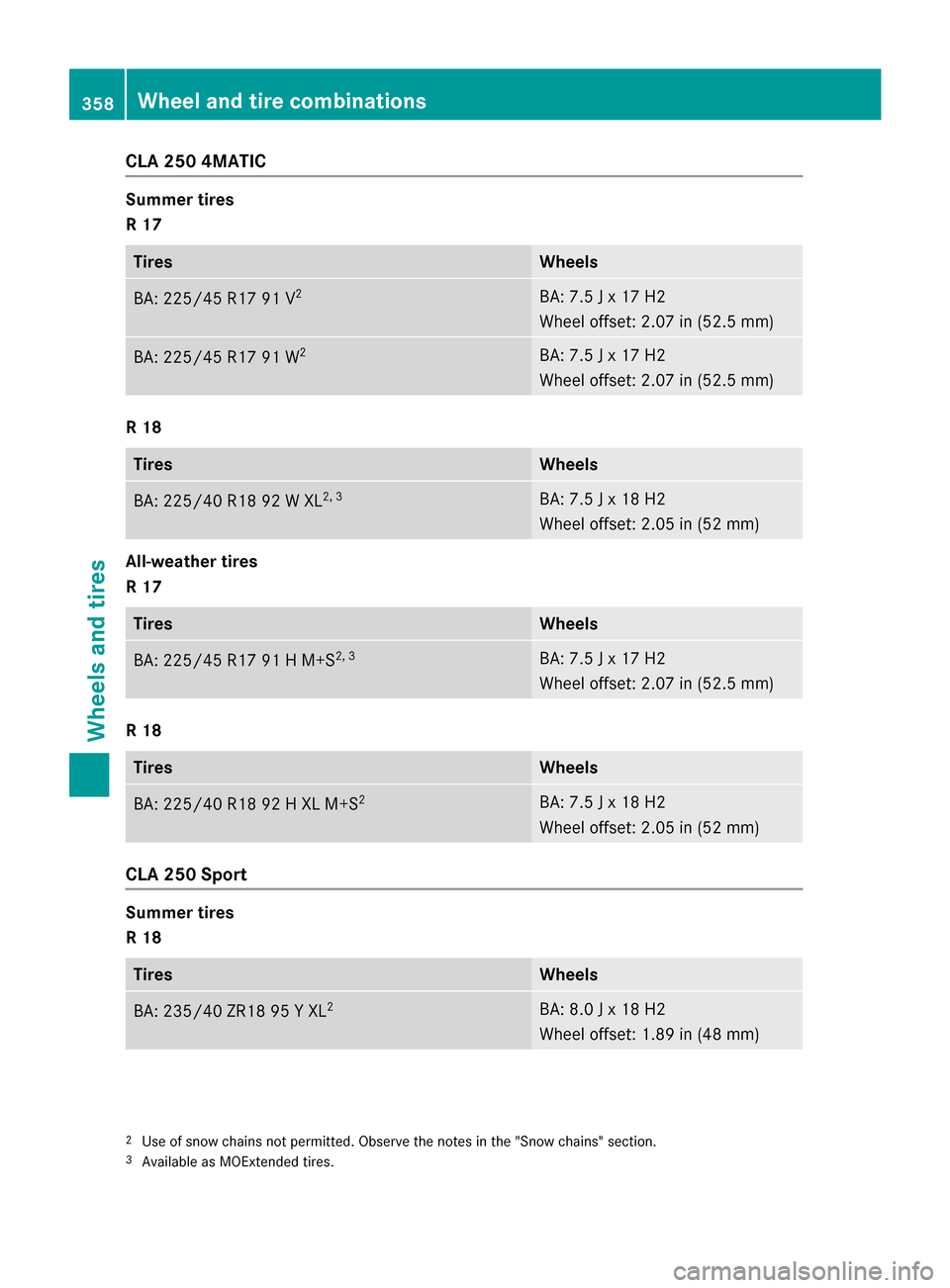

MERCEDES-BENZ CLA-Class 2016 C117 Owners Manual CLA 250 4MATIC
Summer tires
R 17
TiresWheels
BA: 225/45 R17 91 V2BA: 7.5 J x 17 H2
Wheel offset: 2.07 in (52.5 mm)
BA: 225/45 R17 91 W2BA: 7.5 J x 17 H2
Wheel offset: 2.07 in (52.5 mm)
R 18
TiresWheel
