MERCEDES-BENZ CLK CABRIOLET 2000 A208 Owner's Manual

Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

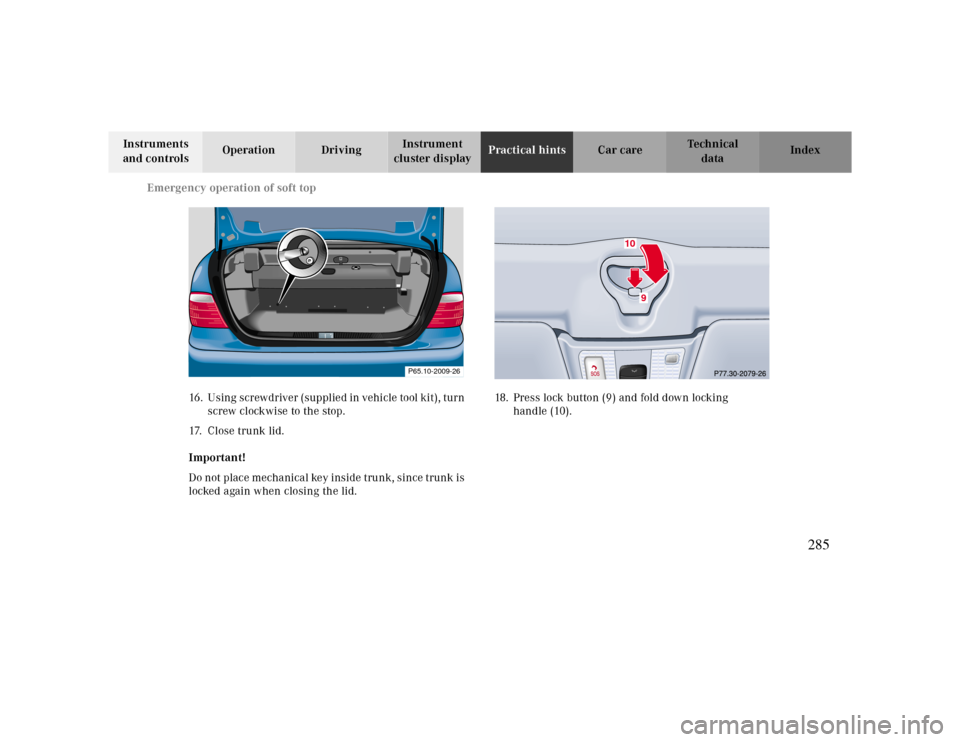

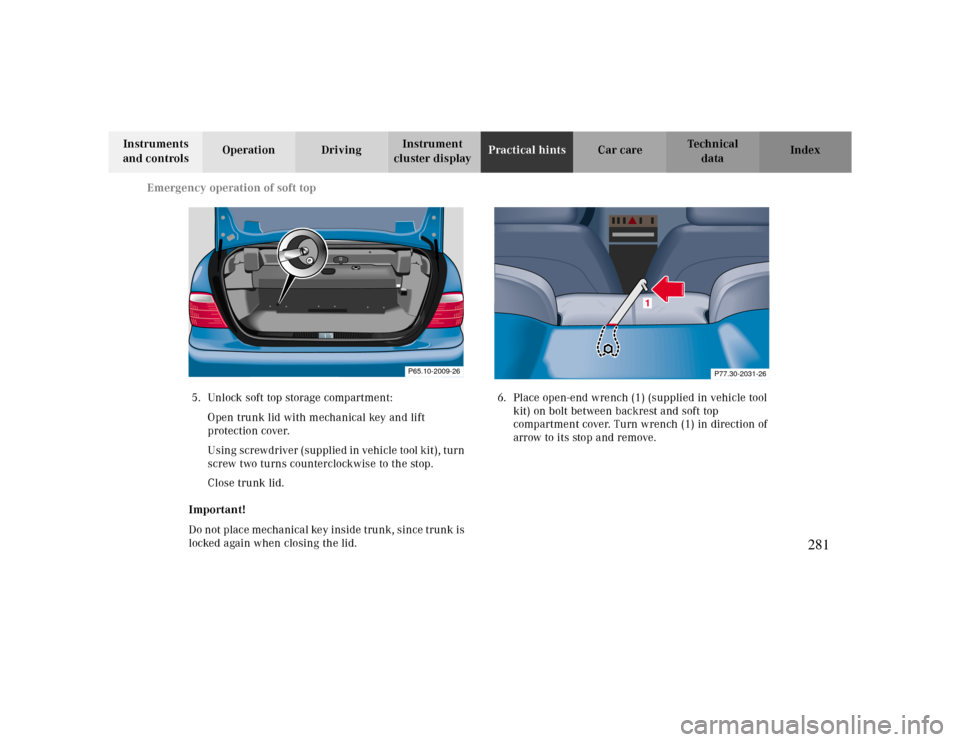

5. Unlock soft top storage compartment:
Open trunk lid with mechanical key and lift
protection cover.
Using screwdriver (supplied in vehicle tool kit), turn
screw two turns counterclockwise to the stop.
Close trunk lid.
Important!
Do not place mechanical key inside trunk, since trunk is
locked again when closing the lid.6. Place open-end wrench (1) (supplied in vehicle tool
kit) on bolt between backrest and soft top
compartment cover. Turn wrench (1) in direction of
arrow to its stop and remove.
P65.10-2009-26
1
P77.30-2031-26
281

Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

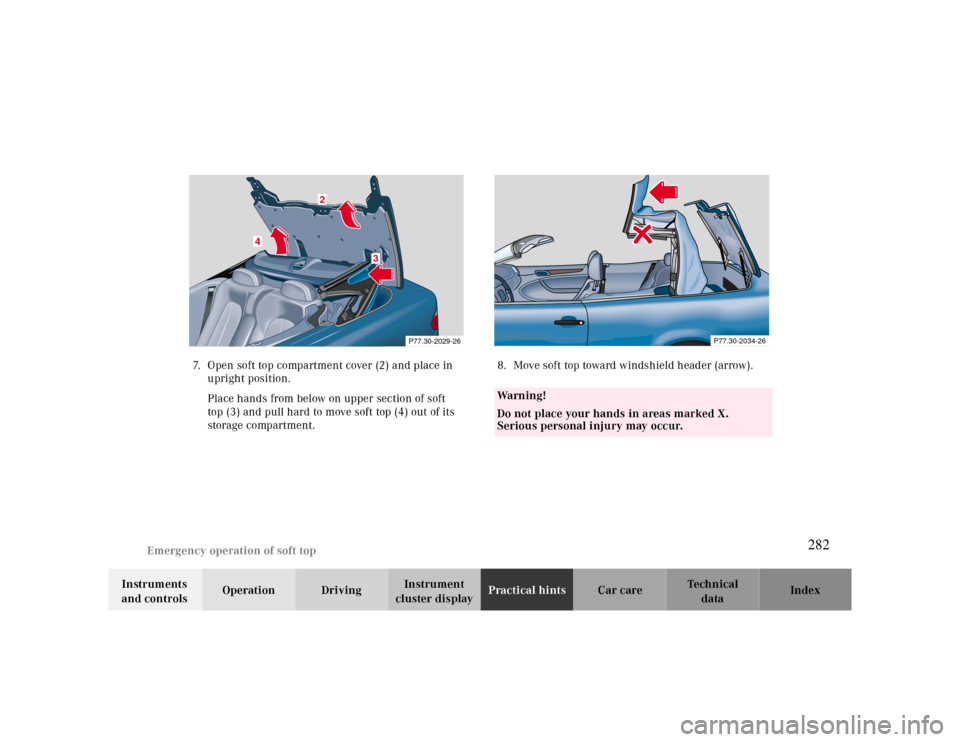

cluster displayPractical hintsCar care Index 7. Open soft top compartment cover (2) and place in
upright position.
Place hands from below on upper section of soft
top (3) and pull hard to move soft top (4) out of its
storage compartment. 8. Move soft top toward windshield header (arrow).
2
4
3
P77.30-2029-26
Wa r n i n g !
Do not place your hands in areas marked X.
Serious personal injury may occur.
P77.30-2034-26
282

Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

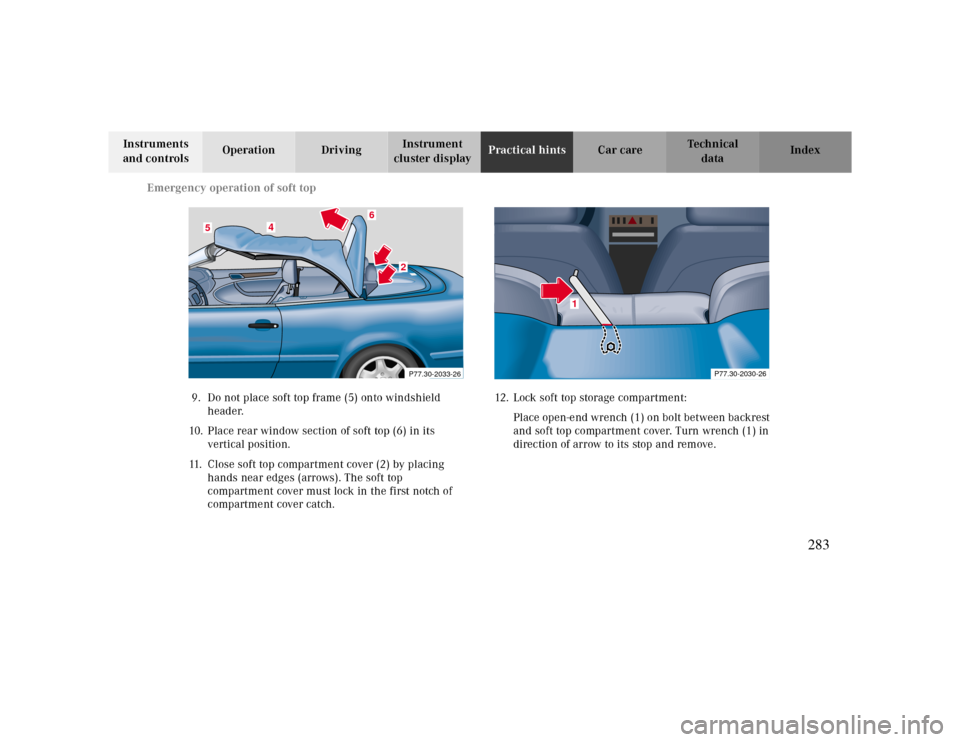

9. Do not place soft top frame (5) onto windshield
header.
10. Place rear window section of soft top (6) in its
vertical position.
11. Close soft top compartment cover (2) by placing
hands near edges (arrows). The soft top
compartment cover must lock in the first notch of
compartment cover catch.12. Lock soft top storage compartment:
Place open-end wrench (1) on bolt between backrest
and soft top compartment cover. Turn wrench (1) in
direction of arrow to its stop and remove.
6
P77.30-2033-26
5
4
2
1
P77.30-2030-26
283

Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

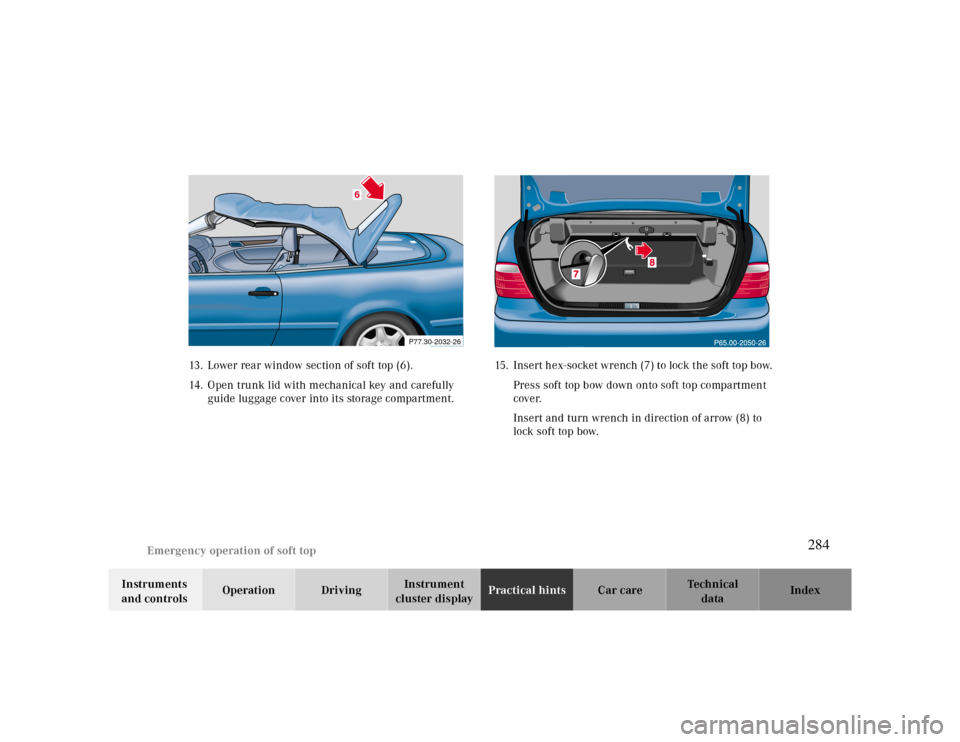

cluster displayPractical hintsCar care Index 13. Lower rear window section of soft top (6).
14. Open trunk lid with mechanical key and carefully
guide luggage cover into its storage compartment.15. Insert hex-socket wrench (7) to lock the soft top bow.
Press soft top bow down onto soft top compartment
cover.
Insert and turn wrench in direction of arrow (8) to
lock soft top bow.
6
P77.30-2032-26
284

Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
16. Using screwdriver (supplied in vehicle tool kit), turn
screw clockwise to the stop.
17. Close trunk lid.
Important!
Do not place mechanical key inside trunk, since trunk is
locked again when closing the lid.18. Press lock button (9) and fold down locking
handle (10).
P65.10-2009-26
9
10
285

Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

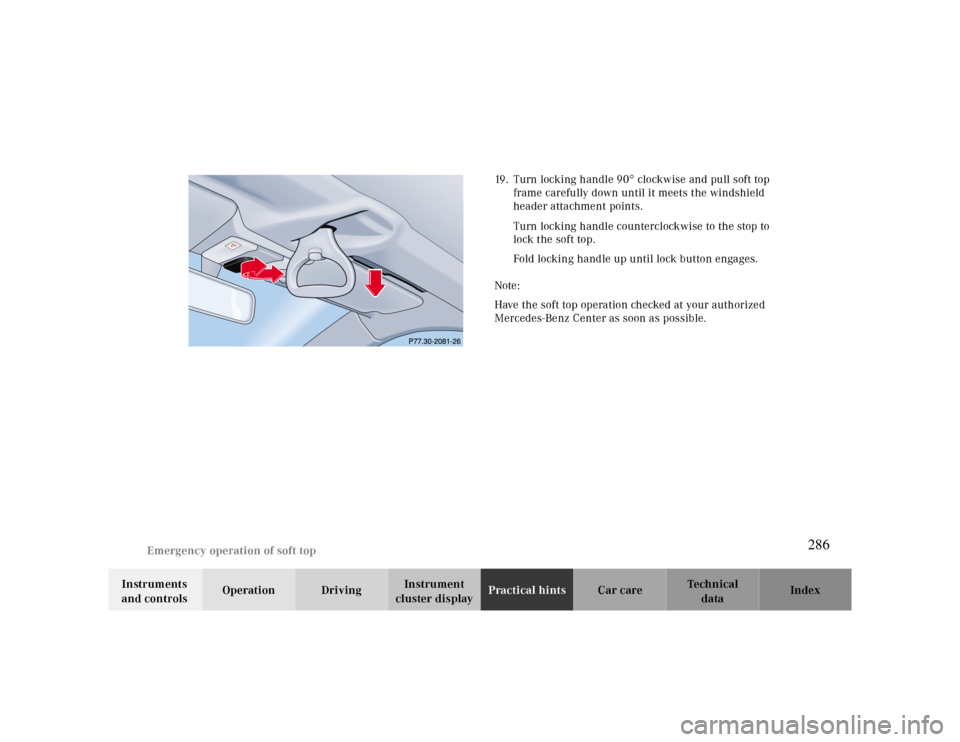

cluster displayPractical hintsCar care Index 19. Turn locking handle 90° clockwise and pull soft top
frame carefully down until it meets the windshield
header attachment points.
Turn locking handle counterclockwise to the stop to
lock the soft top.
Fold locking handle up until lock button engages.
Note:
Have the soft top operation checked at your authorized
Mercedes-Benz Center as soon as possible.
286

Manual release for fuel filler flap
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

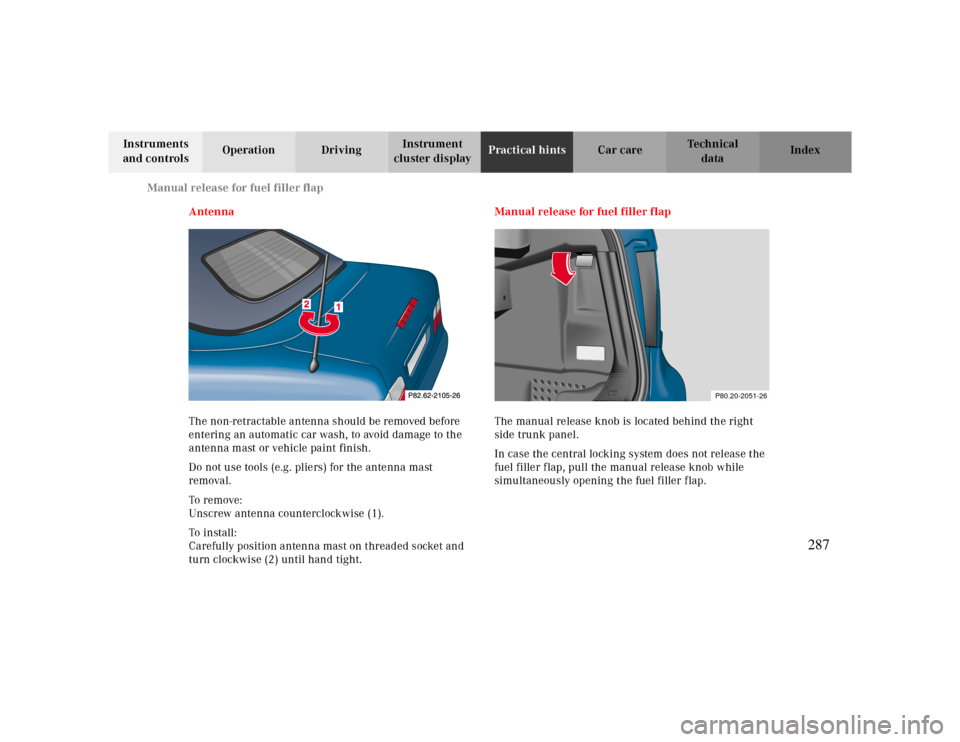

Antenna
The non-retractable antenna should be removed before
entering an automatic car wash, to avoid damage to the
antenna mast or vehicle paint finish.
Do not use tools (e.g. pliers) for the antenna mast
removal.
To remove:
Unscrew antenna counterclockwise (1).
To i n stall :
Carefully position antenna mast on threaded socket and
turn clockwise (2) until hand tight.Manual release for fuel filler flap
The manual release knob is located behind the right
side trunk panel.
In case the central locking system does not release the
fuel filler flap, pull the manual release knob while
simultaneously opening the fuel filler flap.
P80.20-2051-26
287

Trunk lamp
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

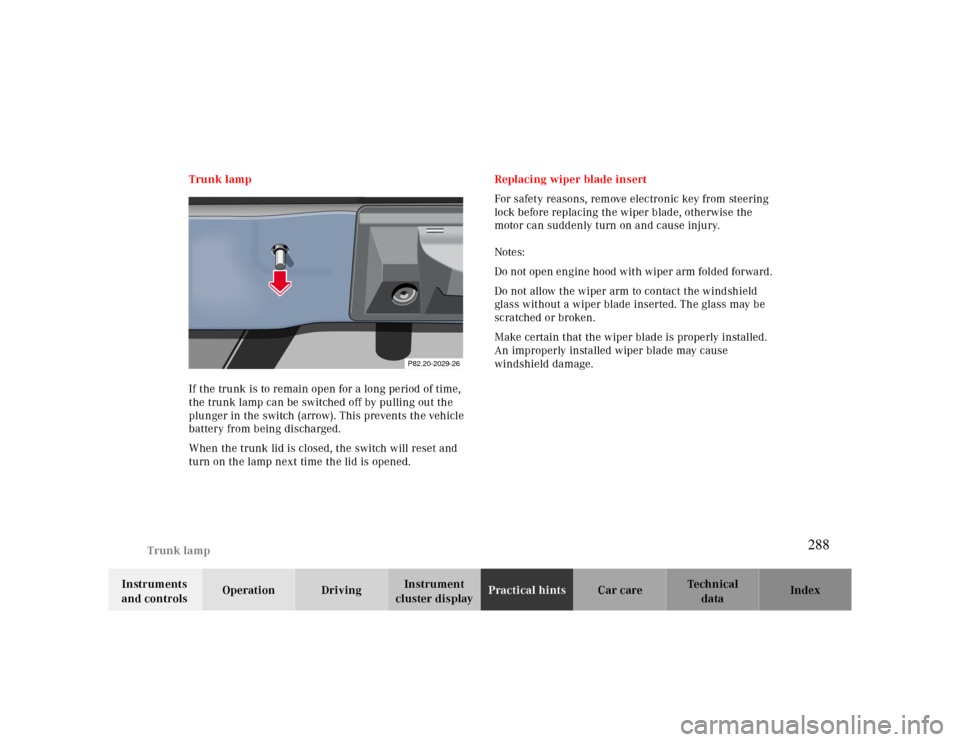

cluster displayPractical hintsCar care Index Trunk lamp
If the trunk is to remain open for a long period of time,
the trunk lamp can be switched off by pulling out the
plunger in the switch (arrow). This prevents the vehicle
battery from being discharged.
When the trunk lid is closed, the switch will reset and
turn on the lamp next time the lid is opened.Replacing wiper blade insert
For safety reasons, remove electronic key from steering
lock before replacing the wiper blade, otherwise the
motor can suddenly turn on and cause injury.
Notes:
Do not open engine hood with wiper arm folded forward.
Do not allow the wiper arm to contact the windshield
glass without a wiper blade inserted. The glass may be
scratched or broken.
Make certain that the wiper blade is properly installed.
An improperly installed wiper blade may cause
windshield damage.
P82.20-2029-26
288

Replacing wiper blade insert
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

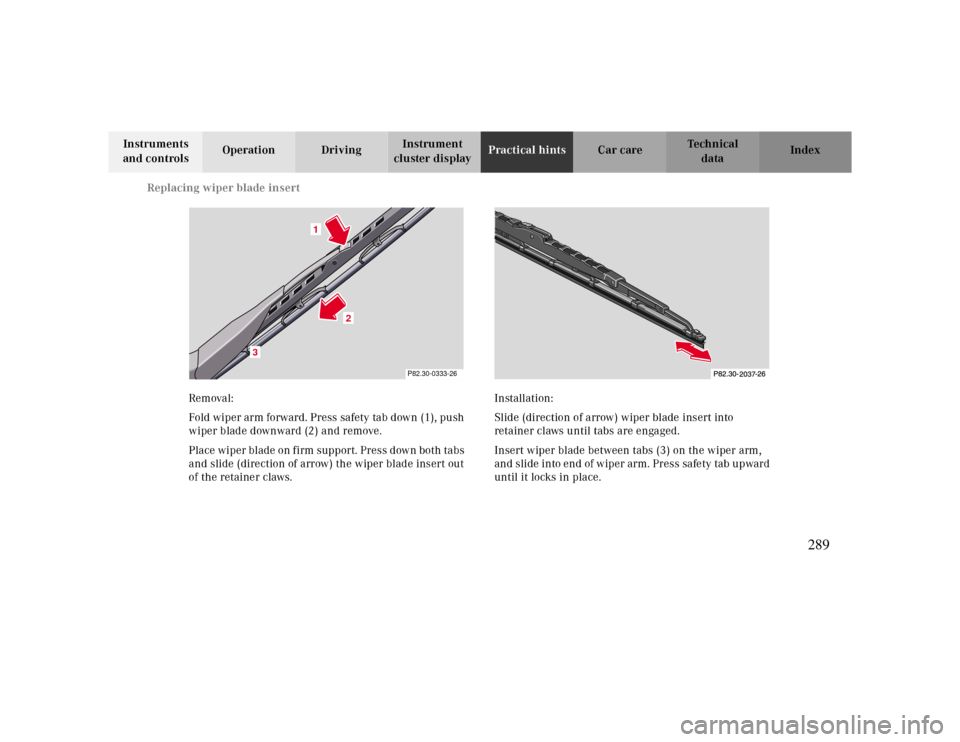

Removal:
Fold wiper arm forward. Press safety tab down (1), push
wiper blade downward (2) and remove.
Place wiper blade on firm support. Press down both tabs
and slide (direction of arrow) the wiper blade insert out
of the retainer claws.Installation:
Slide (direction of arrow) wiper blade insert into
retainer claws until tabs are engaged.
Insert wiper blade between tabs (3) on the wiper arm,
and slide into end of wiper arm. Press safety tab upward
until it locks in place.
3
2
1
P82.30-0333-26
289
