Page 81 of 330
78 Restraint systems
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

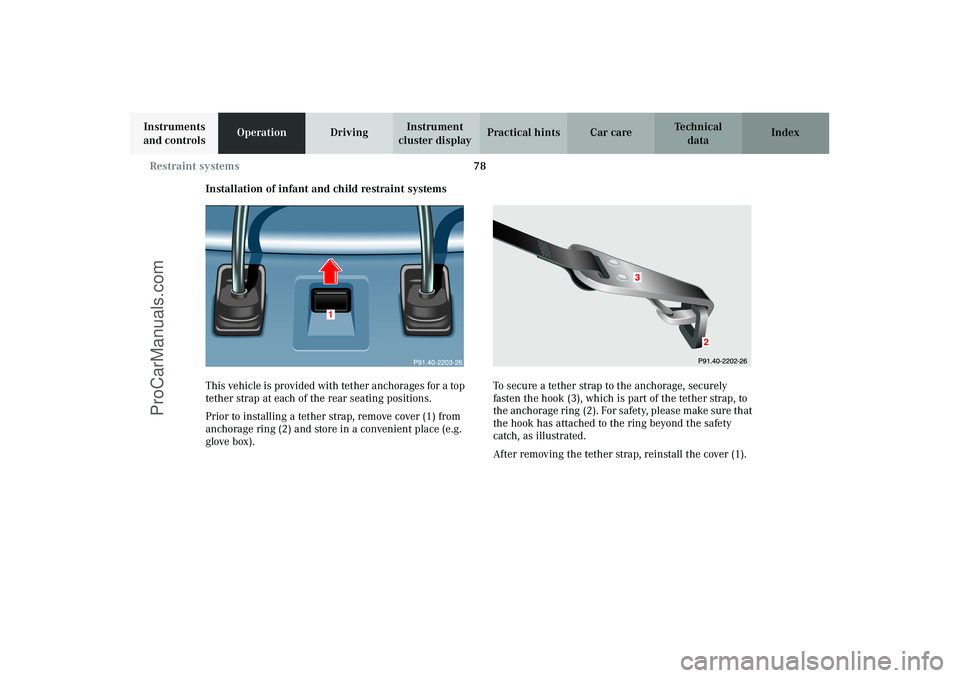

Installation of infant and child restraint systems
This vehicle is provided with tether anchorages for a top
tether strap at each of the rear seating positions.
Prior to installing a tether strap, remove cover (1) from
anchorage ring (2) and store in a convenient place (e.g.
glove box).To secure a tether strap to the anchorage, securely
fasten the hook (3), which is part of the tether strap, to
the anchorage ring (2). For safety, please make sure that
the hook has attached to the ring beyond the safety
catch, as illustrated.
After removing the tether strap, reinstall the cover (1).
1
J_C208_II.book Seite 78 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 82 of 330

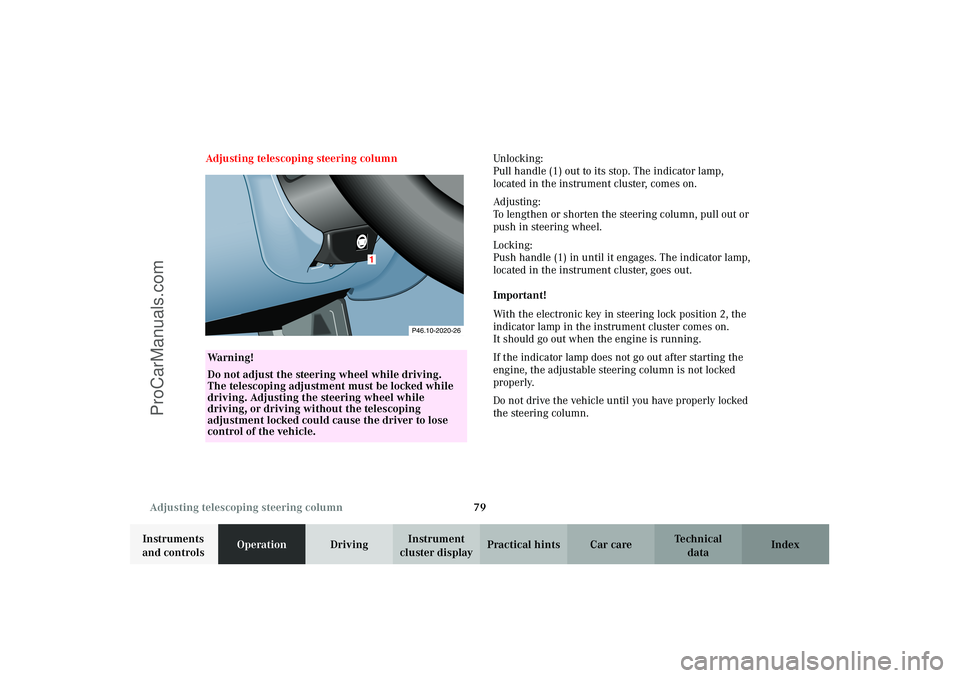

79 Adjusting telescoping steering column
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Adjusting telescoping steering columnUnlocking:
Pull handle (1) out to its stop. The indicator lamp,
located in the instrument cluster, comes on.
Adjusting:
To lengthen or shorten the steering column, pull out or
push in steering wheel.
Locking:
Push handle (1) in until it engages. The indicator lamp,
located in the instrument cluster, goes out.
Important!
With the electronic key in steering lock position 2, the
indicator lamp in the instrument cluster comes on.
It should go out when the engine is running.
If the indicator lamp does not go out after starting the
engine, the adjustable steering column is not locked
properly.
Do not drive the vehicle until you have properly locked
the steering column.
Wa r n i n g !
Do not adjust the steering wheel while driving.
The telescoping adjustment must be locked while
driving. Adjusting the steering wheel while
driving, or driving without the telescoping
adjustment locked could cause the driver to lose
control of the vehicle.
1
P46.10-2020-26
J_C208_II.book Seite 79 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 83 of 330
80 Rear view mirrors
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Inside rear view mirror
Manually adjust the inside mirror.
Use your inside mirror to determine the size and
distance of objects seen in the passenger side convex
mirror.
Antiglare night position
With the electronic key in steering lock position 2, the
mirror reflection brightness responds to changes in
light sensitivity.
With gear selector lever in position “R”, or with the
interior lamp switched on, the mirror brightness does
not respond to changes in light sensitivity.Note:
The automatic antiglare function does not react, if
incoming light is not aimed directly at sensors in the
inside rear view mirror.
The automatic antiglare function will not react for
example, if the rear window sun shade is in the raised
position.
Wa r n i n g !
In the case of an accident liquid electrolyte may
escape the mirror housing when the mirror glass
breaks.Electrolyte has an irritating effect. Do not allow the
liquid to come into contact with eyes, skin,
clothing, or respiratory system. In cases it does,
immediately flush affected area with water, and
seek medical help if necessary.
J_C208_II.book Seite 80 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 84 of 330
81 Rear view mirrors
Technical
data Instruments
and controlsOperationDrivingInstrument

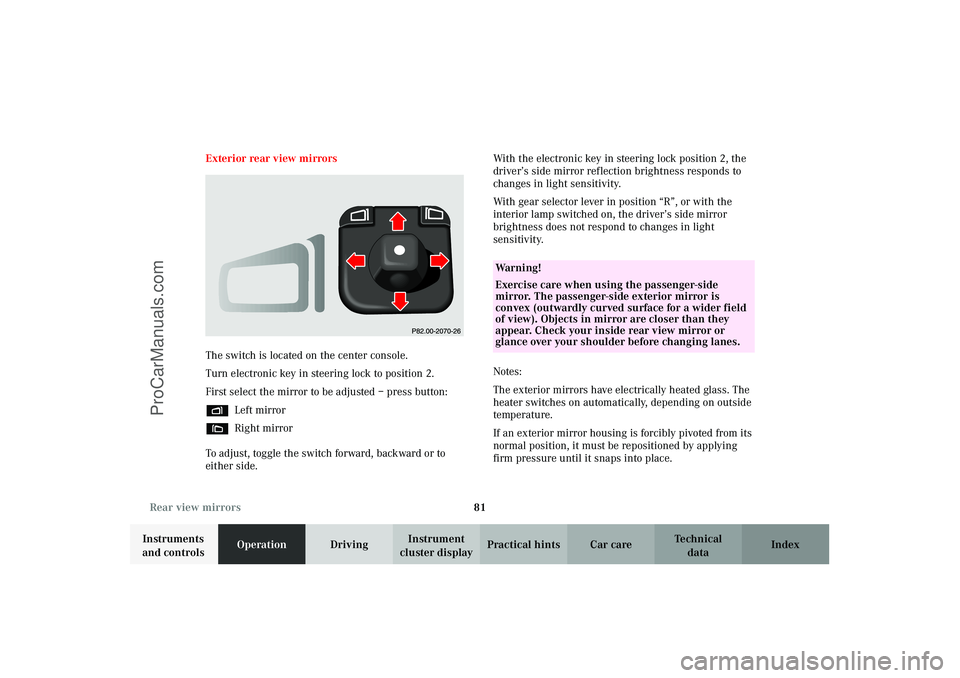

cluster displayPractical hints Car care Index Exterior rear view mirrors
The switch is located on the center console.
Turn electronic key in steering lock to position 2.
First select the mirror to be adjusted – press button:
%Left mirror
&Right mirror
To adjust, toggle the switch forward, backward or to
either side.With the electronic key in steering lock position 2, the
driver’s side mirror reflection brightness responds to
changes in light sensitivity.
With gear selector lever in position “R”, or with the
interior lamp switched on, the driver’s side mirror
brightness does not respond to changes in light
sensitivity.
Notes:
The exterior mirrors have electrically heated glass. The
heater switches on automatically, depending on outside
temperature.
If an exterior mirror housing is forcibly pivoted from its
normal position, it must be repositioned by applying
firm pressure until it snaps into place.
Wa r n i n g !
Exercise care when using the passenger-side
mirror. The passenger-side exterior mirror is
convex (outwardly curved surface for a wider field
of view). Objects in mirror are closer than they
appear. Check your inside rear view mirror or
glance over your shoulder before changing lanes.
J_C208_II.book Seite 81 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 85 of 330
82 Rear view mirrors
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

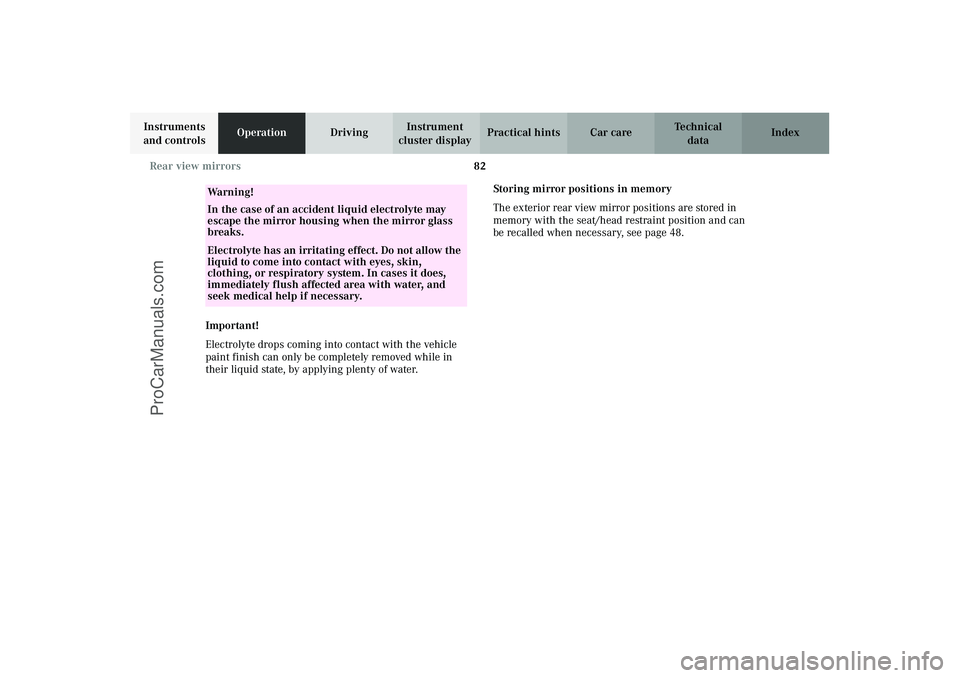

Important!
Electrolyte drops coming into contact with the vehicle
paint finish can only be completely removed while in
their liquid state, by applying plenty of water.Storing mirror positions in memory
The exterior rear view mirror positions are stored in
memory with the seat/head restraint position and can
be recalled when necessary, see page 48.
Wa r n i n g !
In the case of an accident liquid electrolyte may
escape the mirror housing when the mirror glass
breaks.Electrolyte has an irritating effect. Do not allow the
liquid to come into contact with eyes, skin,
clothing, or respiratory system. In cases it does,
immediately flush affected area with water, and
seek medical help if necessary.
J_C208_II.book Seite 82 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 86 of 330
83 Rear view mirrors
Technical
data Instruments
and controlsOperationDrivingInstrument

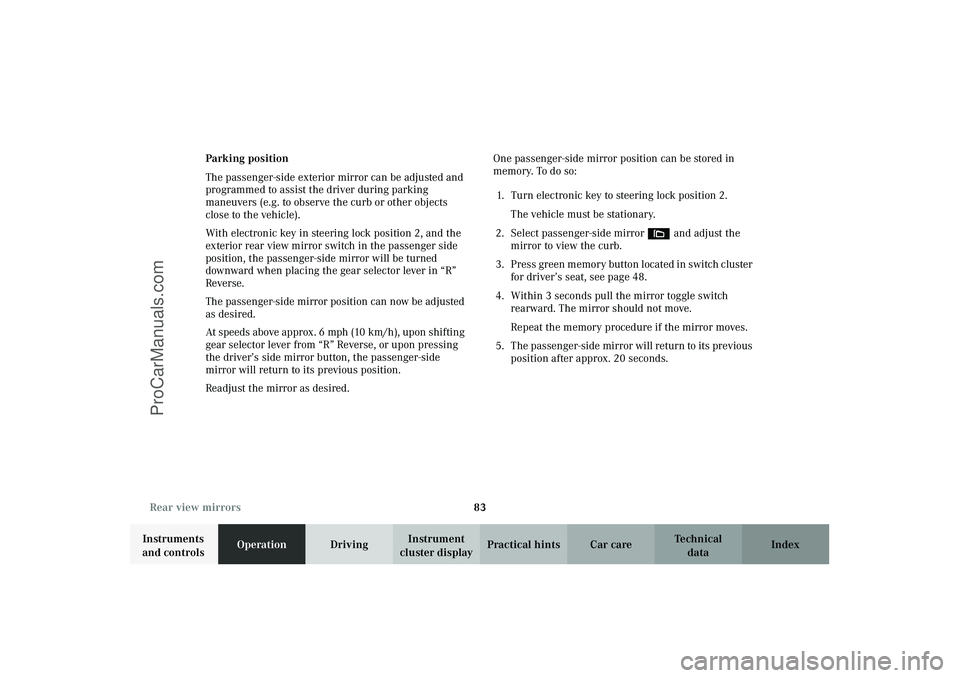

cluster displayPractical hints Car care Index Parking position
The passenger-side exterior mirror can be adjusted and
programmed to assist the driver during parking
maneuvers (e.g. to observe the curb or other objects
close to the vehicle).
With electronic key in steering lock position 2, and the
exterior rear view mirror switch in the passenger side
position, the passenger-side mirror will be turned
downward when placing the gear selector lever in “R”
Reverse.
The passenger-side mirror position can now be adjusted
as desired.
At speeds above approx. 6 mph (10 km/h), upon shifting
gear selector lever from “R” Reverse, or upon pressing
the driver’s side mirror button, the passenger-side
mirror will return to its previous position.
Readjust the mirror as desired.One passenger-side mirror position can be stored in
memory. To do so:
1. Turn electronic key to steering lock position 2.
The vehicle must be stationary.
2. Select passenger-side mirror & and adjust the
mirror to view the curb.
3. Press green memory button located in switch cluster
for driver’s seat, see page 48.
4. Within 3 seconds pull the mirror toggle switch
rearward. The mirror should not move.
Repeat the memory procedure if the mirror moves.
5. The passenger-side mirror will return to its previous
position after approx. 20 seconds.
J_C208_II.book Seite 83 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 87 of 330
84 Instrument cluster
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

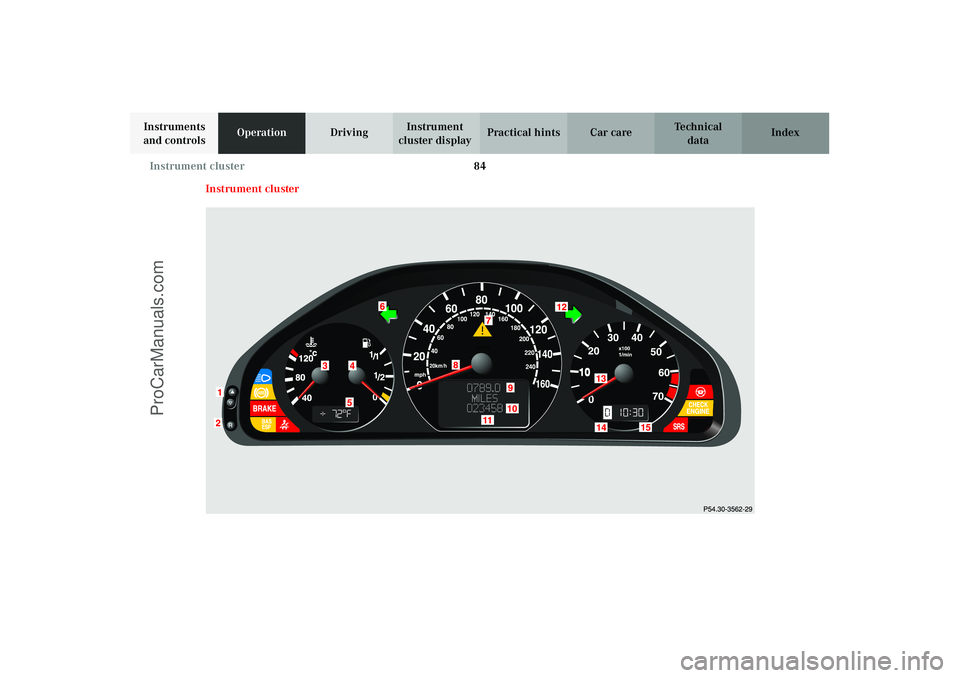

Instrument cluster
J_C208_II.book Seite 84 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 88 of 330
85 Instrument cluster
Technical
data Instruments
and controlsOperationDrivingInstrument

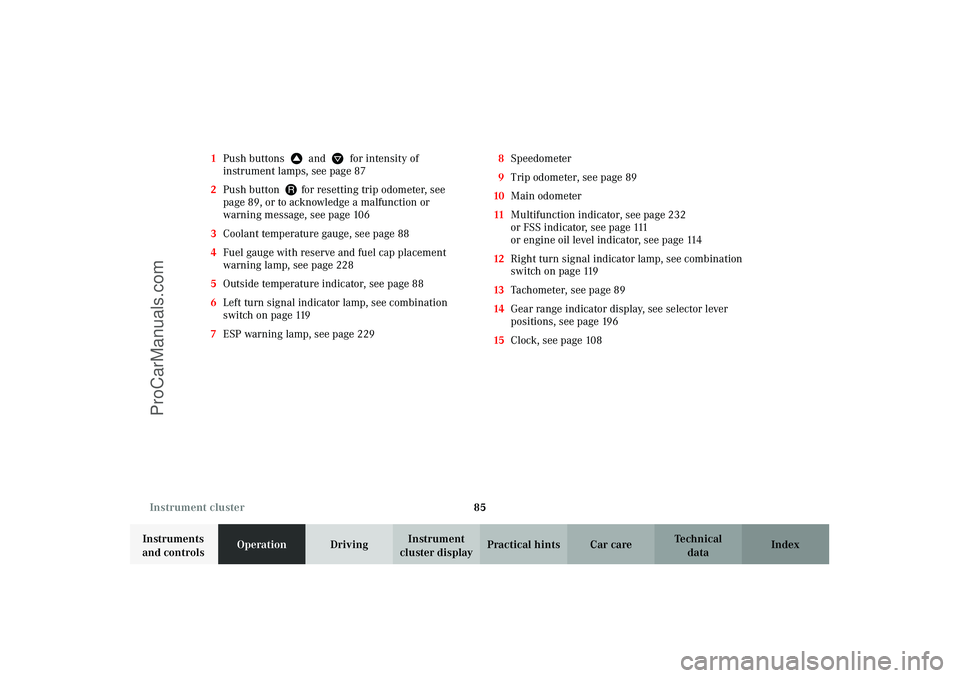

cluster displayPractical hints Car care Index 1Push buttons V and W for intensity of
instrument lamps, see page 87
2Push button Jfor resetting trip odometer, see
page 89, or to acknowledge a malfunction or
warning message, see page 106
3Coolant temperature gauge, see page 88
4Fuel gauge with reserve and fuel cap placement
warning lamp, see page 228
5Outside temperature indicator, see page 88
6Left turn signal indicator lamp, see combination
switch on page 119
7ESP warning lamp, see page 2298Speedometer
9Trip odometer, see page 89
10Main odometer
11Multifunction indicator, see page 232
or FSS indicator, see page 111
or engine oil level indicator, see page 114
12Right turn signal indicator lamp, see combination
switch on page 119
13Tachometer, see page 89
14Gear range indicator display, see selector lever
positions, see page 196
15Clock, see page 108
J_C208_II.book Seite 85 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 89 of 330
86 Instrument cluster
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

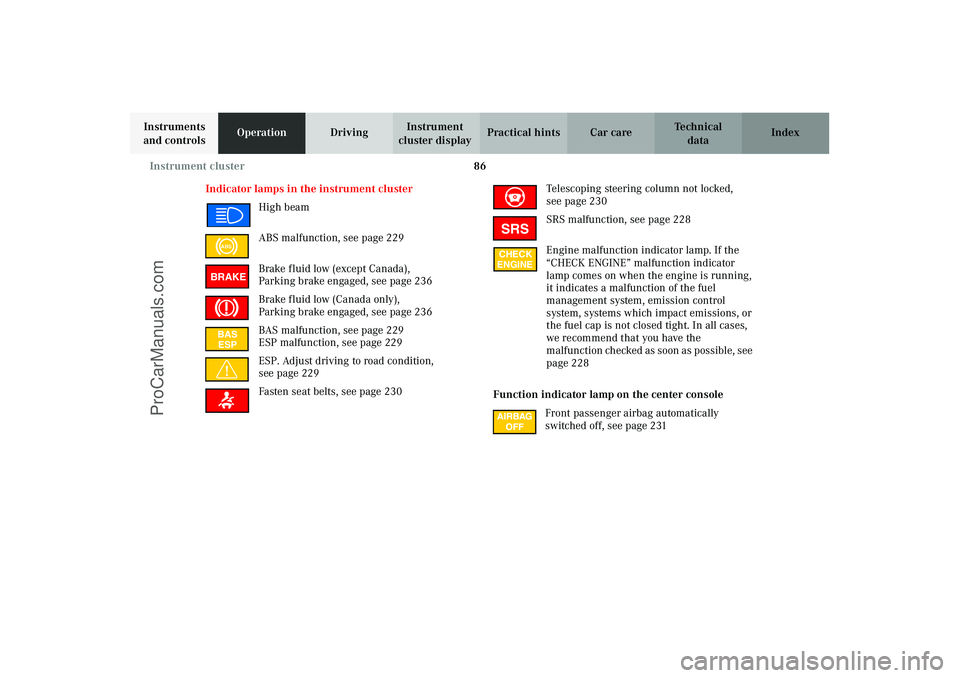

Indicator lamps in the instrument cluster
High beam
ABS malfunction, see page 229
Brake fluid low (except Canada),
Parking brake engaged, see page 236
Brake fluid low (Canada only),
Parking brake engaged, see page 236
BAS malfunction, see page 229
ESP malfunction, see page 229
ESP. Adjust driving to road condition,
see page 229
Fasten seat belts, see page 230Telescoping steering column not locked,
seepage230
SRS malfunction, see page 228
Engine malfunction indicator lamp. If the
“CHECK ENGINE” malfunction indicator
lamp comes on when the engine is running,
it indicates a malfunction of the fuel
management system, emission control
system, systems which impact emissions, or
the fuel cap is not closed tight. In all cases,
we recommend that you have the
m alf unc ti on che cked as s oon as p oss ible, s ee
page 228
Function indicator lamp on the center console
Front passenger airbag automatically
switched off, see page 231
ABSBRAKEBAS
ESP
SRSCHECK
ENGINE
J_C208_II.book Seite 86 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 90 of 330

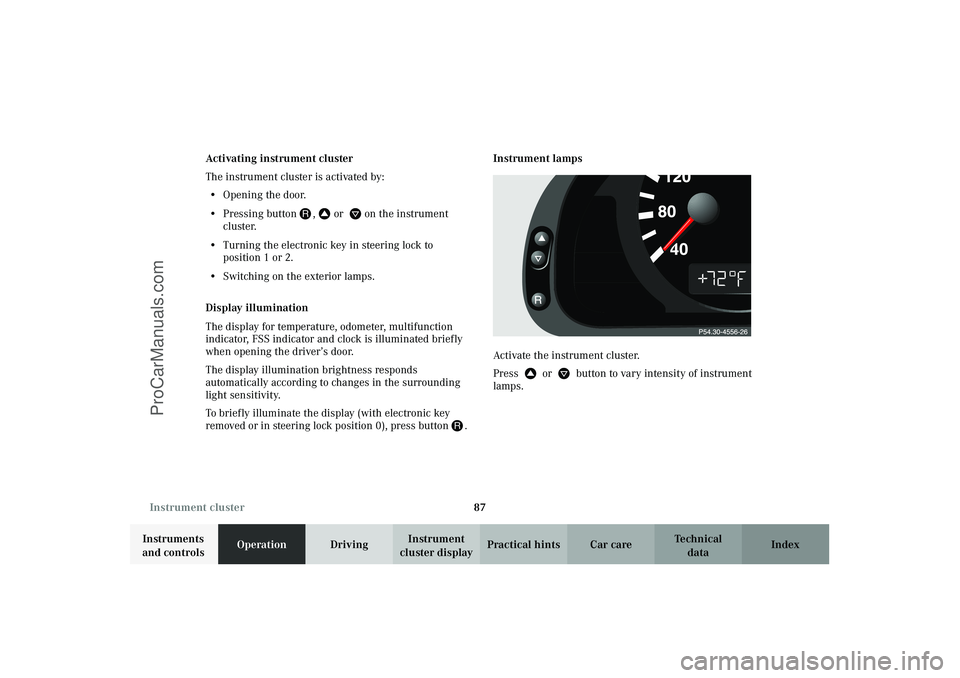

87 Instrument cluster
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Activating instrument cluster
The instrument cluster is activated by:
•Opening the door.
•Pressing buttonJ, Vor Won the instrument
cluster.
•Turning the electronic key in steering lock to
position 1 or 2.
•Switching on the exterior lamps.
Display illumination
The display for temperature, odometer, multifunction
indicator, FSS indicator and clock is illuminated briefly
when opening the driver’s door.
The display illumination brightness responds
automatically according to changes in the surrounding
light sensitivity.
To briefly illuminate the display (with electronic key
removed or in steering lock position 0), press buttonJ.Instrument lamps
Activate the instrument cluster.
Press V or W button to vary intensity of instrument
lamps.
J_C208_II.book Seite 87 Donnerstag, 31. Mai 2001 10:13 10
