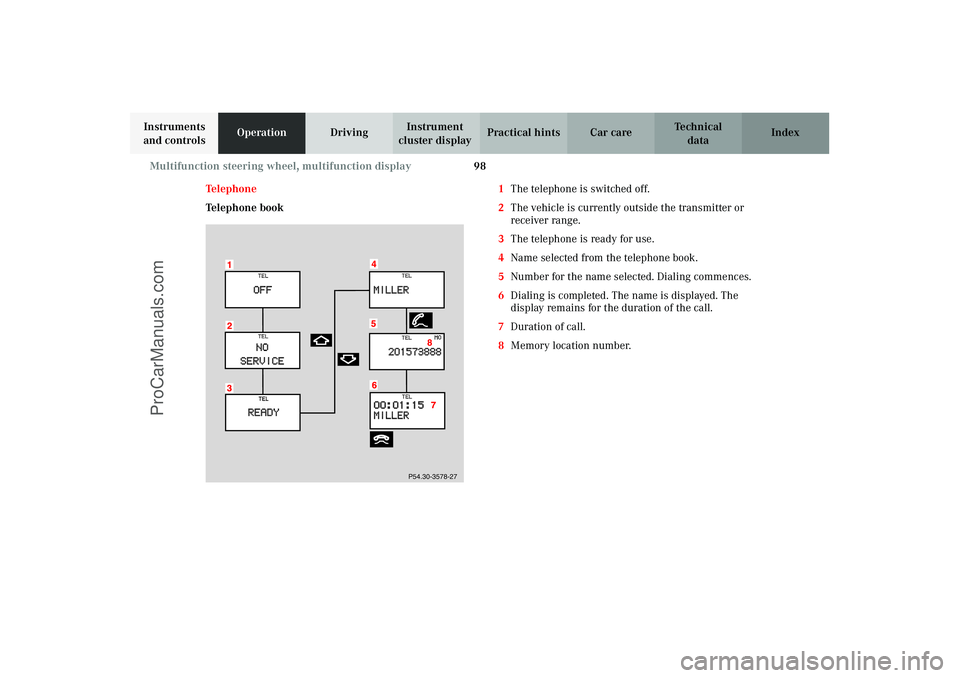

98 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Telephone
Telephone book1The telephone is switched off.
2The vehicle is currently outside the transmitter or
receiver range.
3The telephone is ready for use.
4Name selected from the telephone book.
5Number for the name selected. Dialing commences.
6Dialing is completed. The name is displayed. The
display remains for the duration of the call.
7Duration of call.
8Memory location number.
8
P54.30-3578-27
J_C208_II.book Seite 98 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 102 of 330
99 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument

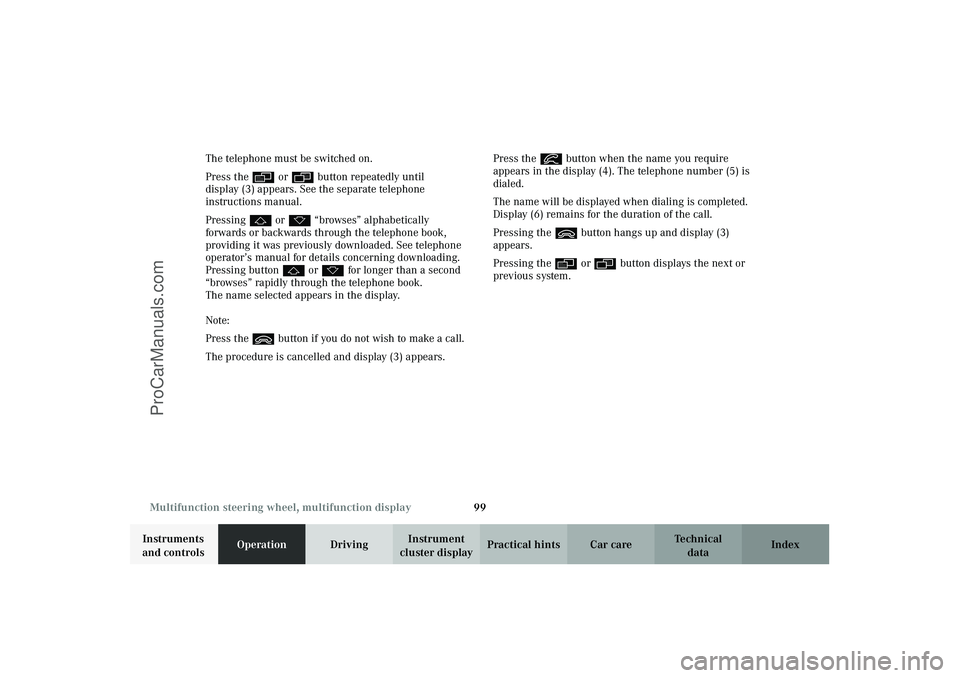

cluster displayPractical hints Car care Index The telephone must be switched on.
Press the è or ÿ button repeatedly until
display (3) appears. See the separate telephone
instructions manual.
Pressing j or k “browses” alphabetically
forwards or backwards through the telephone book,
providing it was previously downloaded. See telephone
operator’s manual for details concerning downloading.
Pressing button j or k for longer than a second
“browses” rapidly through the telephone book.
The name selected appears in the display.
Note:
Press the ì button if you do not wish to make a call.
The procedure is cancelled and display (3) appears.Press the í button when the name you require
appears in the display (4). The telephone number (5) is
dialed.
The name will be displayed when dialing is completed.
Display (6) remains for the duration of the call.
Pressing the ì button hangs up and display (3)
appears.
Pressing the è or ÿ button displays the next or
previous system.
J_C208_II.book Seite 99 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 103 of 330
100 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Redialing1The telephone is ready for use.
2Number or name stored in the redial memory.
3Number in the redial memory – redialing has
commenced.
4Dialing is completed and the name stored in the
telephone book is displayed or the number dialed
will remain displayed if no name has been stored.
The display remains for the duration of the call.
5Duration of call.
6Memory location numbers — the 10 most recently
dialed numbers are stored.
L0, most recently dialed number,
L1 to L9, previously dialed numbers.
P54.30-3580-27
J_C208_II.book Seite 100 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 104 of 330
101 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument

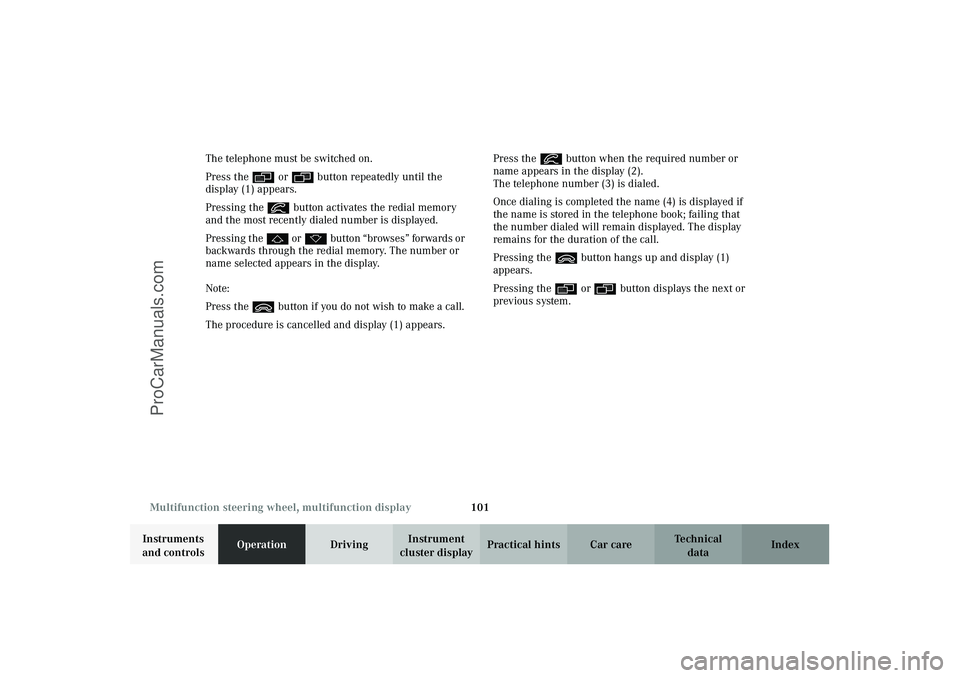

cluster displayPractical hints Car care Index The telephone must be switched on.
Press the è or ÿ button repeatedly until the
display (1) appears.
Pressing the í button activates the redial memory
and the most recently dialed number is displayed.
Pressing the j or k button “browses” forwards or
backwards through the redial memory. The number or
name selected appears in the display.
Note:
Press the ì button if you do not wish to make a call.
The procedure is cancelled and display (1) appears.Press the í button when the required number or
name appears in the display (2).
The telephone number (3) is dialed.
Once dialing is completed the name (4) is displayed if
the name is stored in the telephone book; failing that
the number dialed will remain displayed. The display
remains for the duration of the call.
Pressing the ì button hangs up and display (1)
appears.
Pressing the è or ÿ button displays the next or
previous system.
J_C208_II.book Seite 101 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 105 of 330
102 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

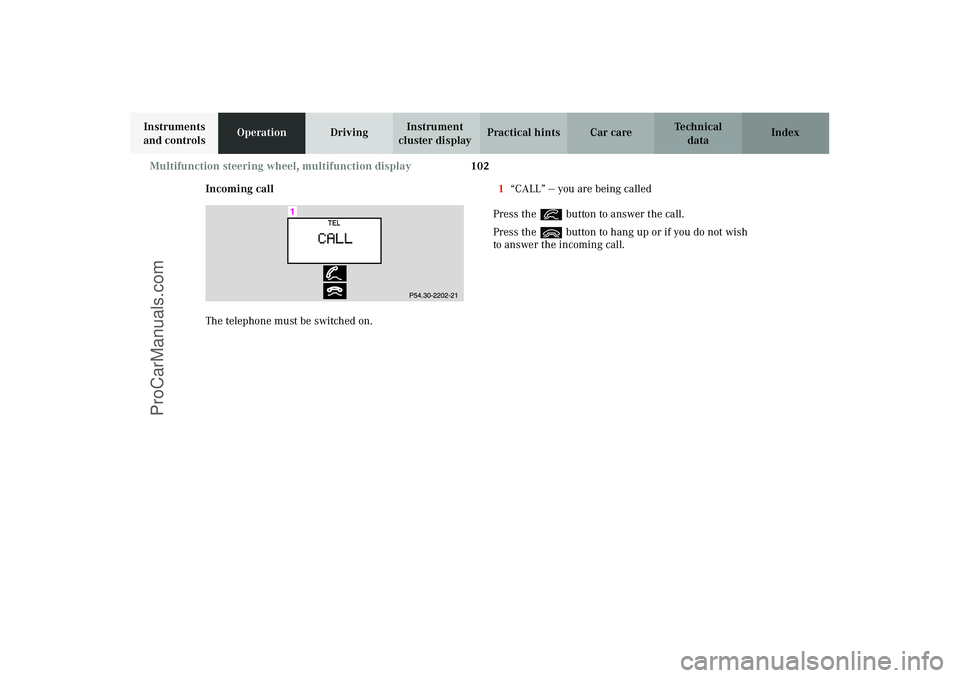

Incoming call
The telephone must be switched on.1“CALL” — you are being called
Press the í button to answer the call.
Press the ì button to hang up or if you do not wish
to answer the incoming call.
J_C208_II.book Seite 102 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 106 of 330
103 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument

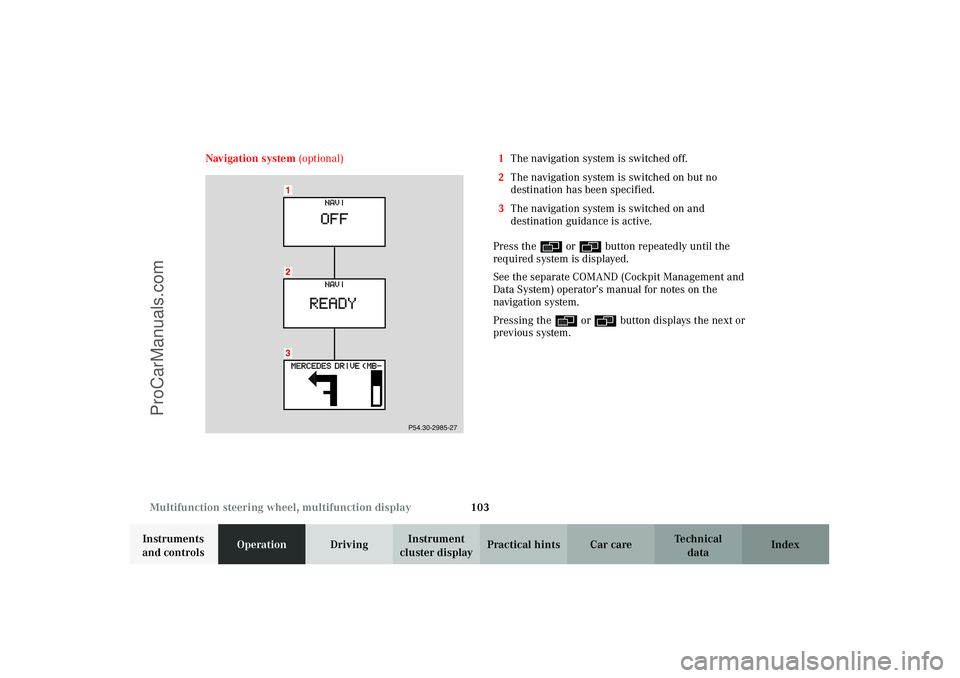

cluster displayPractical hints Car care Index Navigation system (optional)1The navigation system is switched off.
2The navigation system is switched on but no
destination has been specified.
3The navigation system is switched on and
destination guidance is active.
Press the è or ÿ button repeatedly until the
required system is displayed.
See the separate COMAND (Cockpit Management and
Data System) operator’s manual for notes on the
navigation system.
Pressing the è or ÿ button displays the next or
previous system.
P54.30-2985-27
J_C208_II.book Seite 103 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 107 of 330
104 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

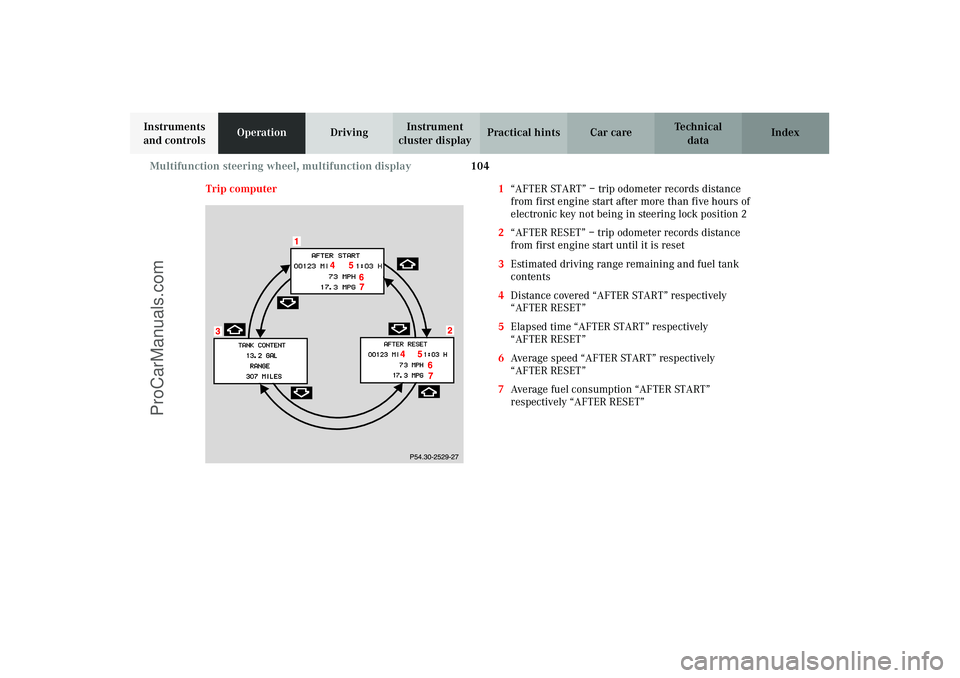

Trip computer 1“AFTER START” – trip odometer records distance
from first engine start after more than five hours of
electronic key not being in steering lock position 2
2“AFTER RESET” – trip odometer records distance
from first engine start until it is reset
3Estimated driving range remaining and fuel tank
contents
4Distance covered “AFTER START” respectively
“AFTER RESET”
5Elapsed time “AFTER START” respectively
“AFTER RESET”
6Average speed “AFTER START” respectively
“AFTER RESET”
7Average fuel consumption “AFTER START”
respectively “AFTER RESET”
J_C208_II.book Seite 104 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 108 of 330
105 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument

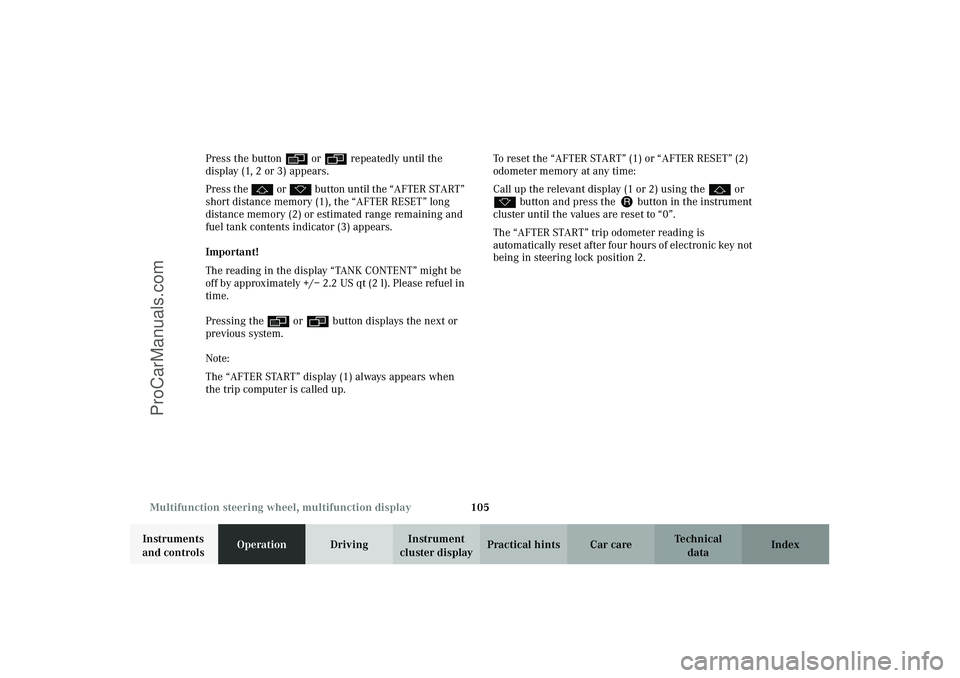

cluster displayPractical hints Car care Index Press the button è or ÿ repeatedly until the
display (1, 2 or 3) appears.
Press the j or k button until the “AFTER START”
short distance memory (1), the “AFTER RESET” long
distance memory (2) or estimated range remaining and
fuel tank contents indicator (3) appears.
Important!
The reading in the display “TANK CONTENT” might be
off by approximately +/– 2.2 US qt (2 l). Please refuel in
time.
Pressing the è or ÿ button displays the next or
previous system.
Note:
The “AFTER START” display (1) always appears when
the trip computer is called up.To reset the “AFTER START” (1) or “AFTER RESET” (2)
odometer memory at any time:
Call up the relevant display (1 or 2) using the j or
k button and press the J button in the instrument
cluster until the values are reset to “0”.
The “AFTER START” trip odometer reading is
automatically reset after four hours of electronic key not
being in steering lock position 2.
J_C208_II.book Seite 105 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 109 of 330
106 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

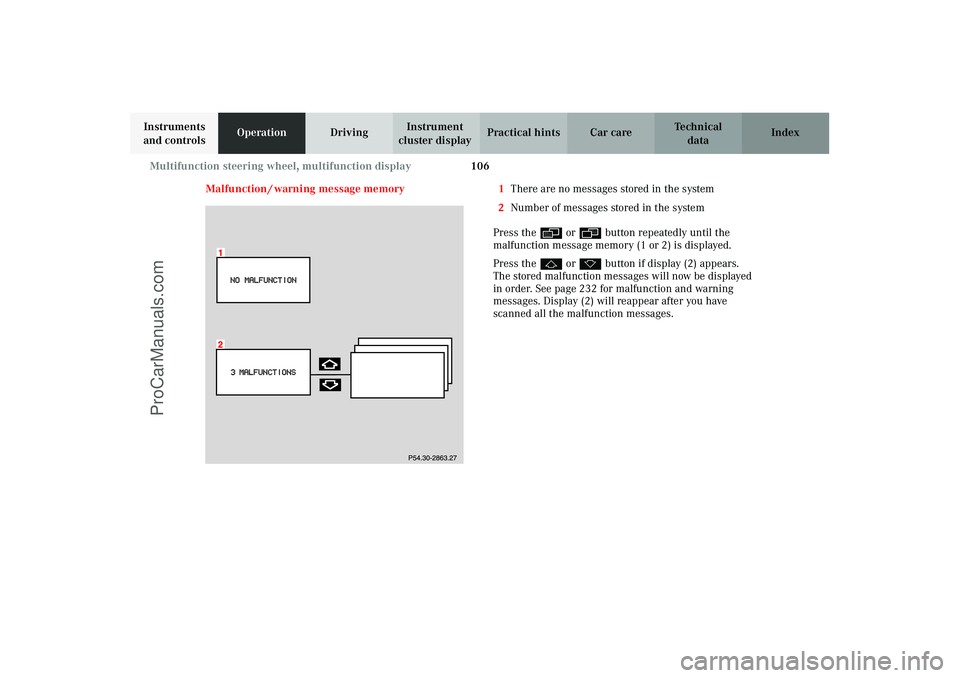

Malfunction / warning message memory 1There are no messages stored in the system
2Number of messages stored in the system
Press the è or ÿ button repeatedly until the
malfunction message memory (1 or 2) is displayed.
Press the j or k button if display (2) appears.
The stored malfunction messages will now be displayed
in order. See page 232 for malfunction and warning
messages. Display (2) will reappear after you have
scanned all the malfunction messages.
J_C208_II.book Seite 106 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com
Page 110 of 330
107 Multifunction steering wheel, multifunction display
Technical
data Instruments
and controlsOperationDrivingInstrument

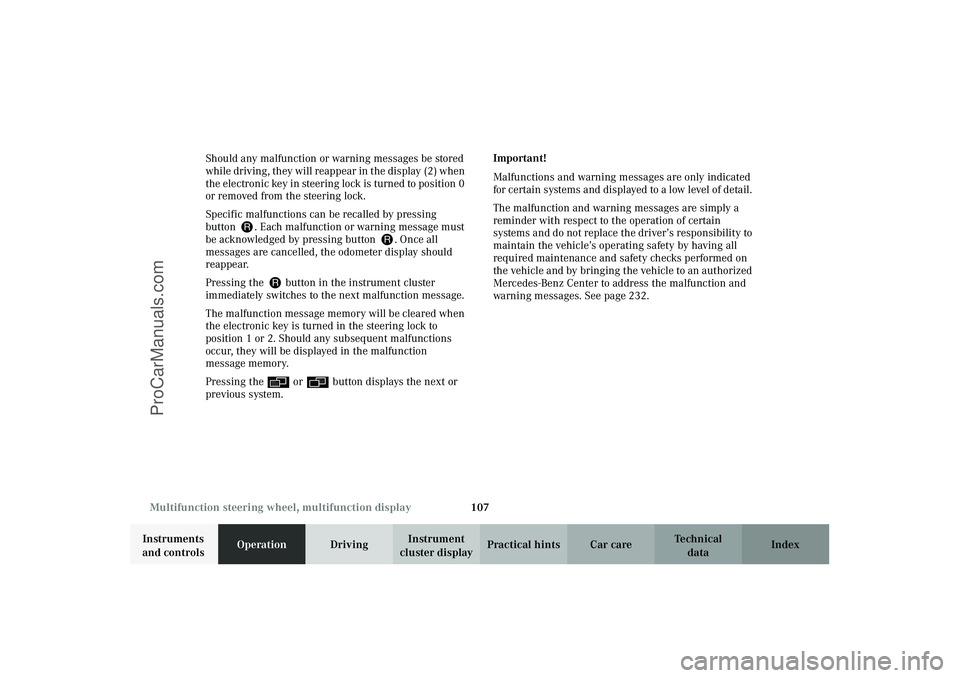

cluster displayPractical hints Car care Index Should any malfunction or warning messages be stored
