MERCEDES-BENZ CLK-CLASS 2004 Owners Manual

201 Controls in detail
Audio system
1CD
2CD changer
3CD tray
4CD magazine
Remove magazine and pull CD tray fully
out.

Place CD in recess of tray, label side
up.

Push tray into magazine in direction of
arrow.

Push magazine into CD changer in di-
rection of arrow and close sliding door.
Playing CDs

Pressi button.CD will appear on the display.
The last CD listened to will then start play-
ing at the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.Selecting CDs

You can select from among the CDs in
the CD magazine using buttons 4
to6.CD a n d t h e m a g a z i n e s l o t n u m b e r o f t h e
s e l e c t e d C D a p p e a r o n t h e d i s p l a y . T h e
number of the current track is dis-
played after
TRACK
.
If there is no CD in the selected maga-
zine slot,
NO CD
appears on the display
with the corresponding slot number.
iCDs which have been inserted improp-
erly or are unreadable will not be
played.
ProCarManuals.com

202 Controls in detailAudio systemSkipping tracks forward/backward

Skipping tracks forward
Pressf button.
The next track will be played.


Skipping tracks backward
Presse button.
If the track has been playing for
more than ten seconds, it will revert
to the start of that track. If it has
been playing for less than ten sec-
onds, it will revert to the preceding
track.
Pressing thef ore button repeat-
edly will result in multiple tracks being
skipped.
Fast forward/reverse


Fast forward
Press and holdd button until
desired point has been reached.


Fast reverse
Press and holdc button until
desired point has been reached.
Scanning


Starting scan
Press2 button.SC appears in the display.
Each track on the current CD will be
played for approx. eight seconds in
ascending order.


Ending scan
Press2, d, c, f or
ebutton.
Random play
The random play function (RDM) plays the
tracks on the current CD in random order.


Switching on random play
Press the
RDM
key.
RDM
is highlighted in the display.


Switching off random play
Press the
RDM
key.
The highlighted RDM
in the display
disappears.
iThe relative time of the track is shown
on the display during the search.
ProCarManuals.com

203 Controls in detail
Audio system
Repeat
The repeat function (RPT) repeats the cur-
rent track.
Switching on repeat:
Press the
RPT
key.
RPT
is highlighted in the display.
Switching off repeat:

Press the
RPT
key.
The highlighted RPT
in the display dis-
appears.Track and time display

Press the
T key.
The number of the track being played
and the elapsed playing time appear in
the display.

Press the
T key.
The total number of tracks and the total
playing time of the CD appear in the
display.
The CD main menu appears again after
eight seconds.
Telephone* operation
Various car telephone* functions and op-
erating steps for the car telephone can be
performed and displayed via the audio sys-
tem.
Further operating instructions not covered
here can be found in the operating
instructions for the multifunction steering
wheel, voice control* and the telephone*.
iThe Random play and Repeat function
cannot be used simultaneously.
ProCarManuals.com

204 Controls in detailAudio systemSwitching on the telephone
Pressh button.
If you have programmed an unlock
code for the telephone, you must enter
the code now.

Enter the desired telephone number
using buttons 4 to M.

If necessary, correct number entered
with the
CLR
key. Press key briefly to
delete the last digit entered; press key
and hold to delete the complete num-
ber.

Press the
OK key after entering correct
code.
The telephone is unlocked. If you have
entered the wrong code, you must re-
peat the entering procedure with the
correct code.Switching off the telephone

Pressh button repeatedly until PHONE OFF
appears in the display.
The receiving symbol in the display
disappears.
Adjusting the volume

Turn control knoba during tele-
phone operation.
The volume increases or decreases de-
pending on the direction in which the
knob is turned.Placing a call
Entering a telephone number and
starting the dialing process

Enter the desired telephone number
using buttons4 to M.
The number can have up to 32 digits,
but only 13 of these are visible on the
display.
If necessary, correct number entered with
the CLR
key.

Press key briefly to delete the last digit
entered.

Press key and hold to delete the com-
plete number.

After correct telephone number has
been entered, press the
SND
key.
iThe volume can be adjusted separately
for the telephone*, voice control sys-
tem* and radio.
ProCarManuals.com

205 Controls in detail
Audio system
Phone book
The numbers stored in the phone book can
be called up either by name or number.
Calling up the phone book
Pressd, c, f or e but-
ton.Switching between name search and
number search

Press the
ABC
key.
The name search is called up.
or

Press the
NUM
key.
The number search is called up.
Searching and calling up phone book en-
tries by name

Press the
ABC
key.
The current name is highlighted on the
display.

Press either thed orc button.
The stored entries are selected accord-
ing to the alphabetical order of the ini-
tial letter.
or

Press either thef ore button.
The stored entries are selected in
increments of four.
or

Press the desired numerical key2 to
9.
The stored entries are selected accord-
ing to the alphabetical order of the ini-
tial letters (e.g. for B -Brown, press
button2 twice).iSeveral characters and symbols cannot
be shown on the display for technical
reasons. They have been replaced with
spaces.
ProCarManuals.com

206 Controls in detailAudio systemSearching and selecting phone book en-
tries by number
Press the
NUM
key.
The current number is marked in the
display.

Press either thed or cbutton.
The stored entries are selected
according to numerical order.
or

Press either thef or ebutton.
The stored entries are selected in
increments of 5 (e.g. Entry
M5, Entry
M10
,etc.)Starting dialing process

Once you have selected a number,
press the
SND
key.
Repeat dialing
If the number dialed is busy, you can again
place calls to the last ten telephone num-
bers dialed using the repeat dialing func-
tion.Manual repeat dialing (redial)

Press the
SND
key.
The last number dialed is shown in the
display.

Select the desired telephone number
usingd, c, f or
ebutton.
The abbreviation
L and the number of
the entry are shown in the top line of
the display.

When you have selected a number,
press the
SND
key.
The call will be made.
ProCarManuals.com

207 Controls in detail
Audio system
Automatic repeat dialing (redial)
If a call cannot be connected, press
the
SND
key.
REDIAL
will appear on the display and re-
peated attempts to place the call will be
made for the next four minutes.
Selecting numbers directly from the
directory

Enter previously selected 3-digit
(1-999) number of the entry using
number keys 4 to M.

Press the
RCL
key.
The telephone number stored under
that entry will be dialed.

Press the
SND
key.
The call will be made.Speed dialing

Input desired entry number using
number keys 4 to M.
A maximum of two digits can be en-
tered.
If necessary, correct the last number
entered with the
CLR
key.

Press the
SND
key.
The telephone number stored under
that entry will be dialed. The number,
L
and the full entry number will be shown
in the display.Quick-dialing

Press one of the desired number
buttons4 toM longer than one
second.
The telephone number saved under
that number will be dialed.!Please be aware that button 4
might already be reserved for an emer-
gency call number.
ProCarManuals.com

208 Controls in detailAudio systemEmergency call
Press button4 longer than one
second.

A call will be placed to the saved num-
ber (e.g. 911).
You can make an emergency call to an
emergency rescue station with a mobile
communications network.
The emergency call will be placed as long
as the corresponding mobile communica-
tions network is available. To do this,
switch the telephone on if this has not al-
ready been done.The call will also be placed even if the un-
lock code is not entered.
Emergency calls may not be possible with
all telephone networks or if certain net-
work services and/or telephone functions
are active. Check with your local network
operation company. It may take some time
to set up an emergency call.
To use this function you must ensure that
the number stored in memory location 1 is
the number to be dialed in case of emer-
gency.
If an emergency call cannot be connected,
the message
SYSTM BUSY
appears.Accepting an incoming call
Accepting an incoming call in telephone
mode
With an incoming call, a ringing tone can
be heard and the caller’s telephone num-
ber, or the name under which this tele-
phone number has been saved in the
telephone book, appears on the display. If
the caller’s number is not transmitted,
CALL
will appear in the display.

Press the
SND
key to accept call.
!Please be aware that the 911 emergen-
cy call system is a public service. Using
it without due cause is a criminal of-
fense.
ProCarManuals.com

209 Controls in detail
Audio system
Accepting an incoming call in cassette,
CD or radio mode
If the telephone is activated in the back-
ground (receiving symbol
S visible on dis-
play), the audio source is muted when a
call is received. The ringing tone is heard
and the caller’s telephone number or the
name under which this telephone number
has been saved in the telephone book ap-
pears on the display. If the caller’s number
is not transmitted,
CALL
appears in the dis-
play.

Press the
SND
key to accept the call.Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.
Mute on

Press the
MUT
key.
Mute off

Press the
MUT
key.
Terminating a call

Press the
END
key.
The current call is terminated.Call waiting
If you receive another call during an al-
ready active call, you can accept the sec-
ond call and switch between the two.
Accepting a second call

Press the
SND
key.
You are connected with the second
caller, the first call is muted.
Switching between the calls

Press the
SND
key.
Terminating the second call

Press the
END
key.
The current call will be terminated. You
are connected with the muted call
again.
ProCarManuals.com

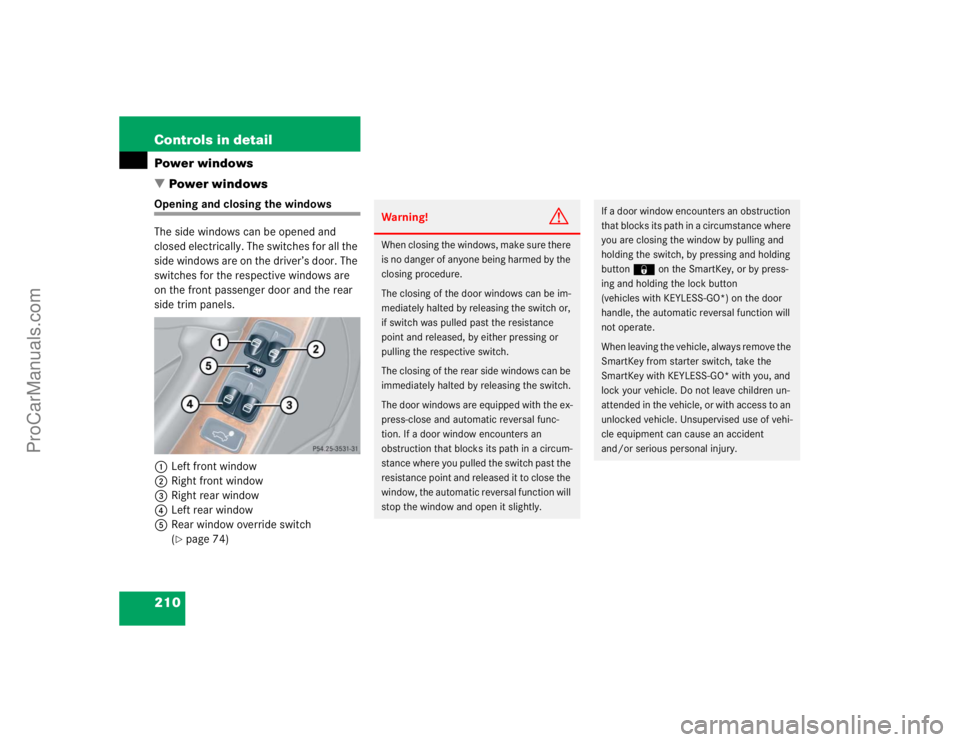

210 Controls in detailPower windows
Power windowsOpening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
side trim panels.
1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 74)
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
The closing of the rear side windows can be
immediately halted by releasing the switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pulled the switch past the
resistance point and released it to close the
window, the automatic reversal function will
stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button ‹ on the SmartKey, or by press-
ing and holding the lock button
(vehicles with KEYLESS-GO*) on the door
handle, the automatic reversal function will
not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.
ProCarManuals.com
