Flat tyre
Your vehicle is equipped with:
!
a spare wheel*
or ! a Minispare emergency spare wheel* Preparing the veh
icle
Prepare the vehicle as described
(= page 363).
6 Turn the spa re-wheel bracket anti-
clockwise.
The bracket loosens.
6 Remove the wheel from the boot.
6 Engage the steering wheel lock. Raisin
gthe vehicle
6 Prevent the vehicle from rolling away
using chocks or similar:
On a level road:
6place the cho cks in front of and be-
hind the wheel diagonally opposite
the wheel to be changed.
On uphill gradients:
6 place chocks behind both wheels
on the other axle.
6 Take the vehicle tool kit and the jack
out of the boot ( =page 276).
1 Wheel wrench Ch
anging a wheel and
fitting the spare wheel* G
Risk of accident Your vehicle's handling characteristics will
change when a "Minispare" emergency
spare wheel is fitted. Adapt your style of
driving accordingly. The same applies where
a spare wheel is
mounted on the rear axle.
You may only use the "Minispare" emergen-
cy spare wheel or the spare wheel for a short
period on the rear axle, and may drive at a
maximum speed of 80 km /h. Have the
"Minispare" emergency spare
wheel or the spare wheel on the rear axle re-
placed with a new wheel at the nearest qual-
ified specialist workshop, e.g. a Mercedes-
Benz Service Centre.
Never drive the vehicle with more than one
"Minispare" emergency spare wheel fitted. P 40.10-2599-31209en_d2.boo Seite
368 Dienstag, 25. Mai 2004 7:26 19

369
Practical advice
Flat tyre
6 Using the wheel wrench, loosen the
wheel bol tson the wheel you wish to
change by about one turn. Do not re-
move them.
The jacking points are located to the rear
of the wheel housings of the front wheels
and in front of the wheel housings of the
rear wheels.
2Jack
3 Jacking point
6 Position jack 2atappropriate jacking
point 3. G
Risk of injury The ja
ckis designed only toraise the vehicle
for a short while when a wheel is changed.
If you intend to work under the vehicle,
place the vehicle on stands.
Prepare the vehic leas described
(= pag
e363).
Make sure that th estanding surface for the
jack is firm, eve nand not slippery. Do not
us eblocks of wood or similar as jacking sup-
po rts, as the jack will not be able to ac hieve
it s load-bearing capacity due to the restrict-
ed height.
Do not start the engine at any time wh ilet he
wheel is being changed.
Do not crawl under the vehicle while itis
supported by the jack. If you do not raise the
vehicle in the way described, it could slip off
the jack (e.g. when the engineis star ted or
the doors orboot lid areop ened or closed). P 40.10-2600-31
==209en_d2.boo Seite
369 Dienstag, 25. Mai 2004 7:26 19

370 Practical advice
Flat tyre
Mak
esure that the base of the jack is di-
rectly below the jacking point.
6 Continue to turn the crank unt ilthe tyre
is raised a maximum of 3cm from the
ground. 4
Centring pin
6 Undo the uppermost wheel bolt com-
pletely.
6 In place of the whee lbolt, screw cen-
tring pin 4fromthe vehicle tool kit
into the thread.
6 Undo the remaining wheel bol ts.
! Do not place wheel bolts in sand or on a dirty
surface. Th is could cau sedamag eto the bolts
and wheel hub threads.
6 Remove the wheel. Fitting a new wheel
i
Vehicle swith "Minispare" emergency spare
wheel:
Onl yuse the wheel bolts provided in the vehicle
tool kit for th e"Minispare" emerge ncyspare
wheel.
6 Clean the wheel and wheel hub contact
surfaces. G
Risk of accident Position the jack on th
eappropriate jacking
point only.
If you do not position th ejack correctly, the
vehicle may topple off the jack. P 40.00-2040-31 P 40.10-2601-31 neu G
Risk of accident Only use the wheel bolts suppli
ed. G
Risk of accident Replace damaged or corrod
edwheel bolts.
Never oil or grease wheel bolts. 209en_d2.boo Seite
370 Dienstag, 25. Mai 2004 7:26 19

371
Practical advice
Flat tyre
Wheel bolts
5 Wheel boltsf or li ght-alloy whee ls
6 Wheel bolts for steel spare wheel 6
Slide the wheel onto the hub with the
aid of the centring pin and push it on. G
Risk of accident If a wheel hub thread
isdamaged, you must
not drive the vehicle any further. Inform a
qualified specialist workshop which has the
necessary specialist knowledge and tools to
carry out the work required. Merced es-Benz
reco mmends that you use a Merce des-Benz
Service Centre for this purpose or contact
"Service 24h" .In particular, work relevant to
safety or on safety-related systems must be
carried out at a qualified specialist work-
shop.
Only use wheel bolts which are intended for
the wheel and the vehicle. Mercedes-Benz
recommends that, for safety reasons, you
only use wheel bolts whic hhave been ap-
proved for Mercedes-Benz .Other bolts
coul dwork loose.
Do not tighten the wheel bolts when the ve-
hicle is jacked up. The vehicle could other-
wise tip over. P 40.10-3299-31 neu
P 40.10-2738-31
==209en_d2.boo Seite
371 Dienstag, 25. Mai 2004 7:26 19

372 Practical advice
Flat tyre
6
Screw in the wheel bolts and tighten
them fin ger-tight.
6 Undo the centring pin and screw in the
last wheel bolt. Inflating th
ecollapsible emergency
spare wheel* with the electric air pump, CL
K55AMG
1 Flap
2 Switch
3 Connector
4 Pressure gauge with pressure release
screw
5 Union nut 6
Remove the electric air pump from the
stowage well under the boo tfloor
(= page 278).
6 Open flap 1on the electric air pump.
6 Pull connector 3and air hose 4out
of the housing along with the pressure
gauge.
6 Make sure that the pressure release
screw onpressure gauge 4is closed.
6 Unscrew the valve cap from the tyre
valve.
6 Screw air hose union nut 5onto the
tyre valve.
6 Insert connector 3into the cigarette
lighter socket ( =page 230).
6 Turn the key to position 1in the igni-
tion lock (
=page 23). P 40.10-2739-31
G
Risk of injury Comply with the manufacturer's safety in-
structions as see
non the sticker on the
electric air pump. P40.10-3298-31_von R171209en_d2.boo Seite
372 Dienstag, 25. Mai 2004 7:26 19

373
Practical advice
Flat tyre
6 Press electr icair pump switch 2toI.
The electric air pump isswitched on.
The tyre ispumped up.
! Do not run the electric air pump for longer
than six minutes without a break, oth erwise it
may overheat.
The air pump can be used again once it has
cooled down.
6 Pum pup the tyre to 2.5 bar (this takes
about fi veminutes).
6 Press the switch on the electric air
pump to 0.
The electric air pump isswitched off.
If a tyre pressure of 2.5 bar is exceeded:
6 Open the pressure release screw on
pressure gauge 4until the tyre pres-
sure is adjusted.
6 Return the air pump to the stowage
well and close it. Lowering the vehicle
6
Lower the vehicle. To do this, turn the
crank anti-clockwise until the vehicle is
once again firmly on the ground.
6 Put the jack to one side.
1 –5 Wheel bo lts
6 Tighten the wheel bolts evenly inthe
sequence indicated. The tightening
torque must be 110 Nm. 6
Turn the jack back to its initial position
and return it and the rest of the vehicle
toolkit to the boot.
You can only use the MOE emergency run-
flat system in conjunction with the tyre
pressure loss warning.
! The maximum distance you may cover in
run-flat mode depends on the vehicle load. It is
50 km if the vehicle is partially laden and 30 km
if it is fully laden.
The maximum distance that may be drive nin run-
flat mode begins from the time the tyre pressure
loss warning appears in the multi-function dis-
play.
Yo u must not exceed a maximum speed of
80 km /h. P 40.10-2740-31 G
Risk of accident The wheel bolts may work loose if they are
not tightene dto a tightening torque of
11 0Nm . For this reason, you should have
the tightening torque checked as soonas
possible after a wheel change. MOE
emergencyrun-fl atsyst em* 209en_d2.boo Seite
373 Dienstag, 25. Mai 2004 7:26 19

374 Practical advice
Flat tyrei
The maxim umdistance can beincreased
co nsiderably by using TIREFIT before starting
ru n-flat mode. Ifthe type of damag eis suc h that
TIREFIT cannot seal the tyre, you can still drive
the maxim um possible distance in run-flat mode. i
Ifyo u are replacing oneor more tyres, make
sure you usetyres with the "MOExtended” mark
and which are the specified size for the vehicle.
If you are replac ing one ormo re rims, make
sure you use rims approved for use with
"MOExtended” tyres and which are the specified
size for the vehicle. G
Risk of accident The handling characteristics of your vehicle
ar e adversely affected in run-flat mode, for
example:
! when cornering
! when braking
! when accelerating suddenly
You should therefor eadapt your driving
style accordingly and avoid making sudden
st eering movem ents, accelerating suddenly
and driving over obstacles (kerbs, pot holes,
off-road). The applies especially ifthe vehi-
cle is heavily laden.
The distance that can be tra velled in run-flat
mode depends la rgely on the loads placed
on the vehicle. Speed, load, sudd enacceler-
ation, road-surf aceco nditions, outside tem-
peratures, etc. can considerably reduce this
distance, whereas a conservative dr iving
st yle may inc reaseit. Run-fla
tmodemust bestopped in the event
of:
! bangi ng noises
! the vehicle shaking
! smoke development accomp anied by
the smell of rubber
! ESP continuously intervening
! tears in the tyre sid ewalls
After driving in run-flat mode, you must have
the rim checked to see if it can still be use d.
For this purpose, visit a qua lified specialist
workshop which has th e necessary special-
ist knowledge and tools to carry out the
work required. The flat tyre must be re-
placed inany case.
Mercedes -Benz recommends that you use a
Mercedes -Benz Service Centre for this pur-
pose. Inparticular, work relevant to safety
or on safety-relate dsystems must be car-
ried out at a qualified specialist workshop. 209en_d2.boo Seite
374 Dienstag, 25. Mai 2004 7:26 19

375
Practical advice
Battery
Your vehicle is equipped with a battery.
The battery must always be sufficiently
charged so that it achieves its intended
service life.
Have the battery charge checked more
frequently if you use the vehicle mainly for
short trips or ifyou do not use it for an ex-
tended period.
To prevent corrosion damage, only replace
the battery with a ba ttery that has acentral
ve ntilation cover. For safety reasons,
Mercedes-Benz recommends that you only
use batteries which have been specially
tested and approved for your vehicle by
Mercedes-Benz.
Consult a Mercedes-Benz Service Centre if
you wish toleave your vehiclepark edup
for an extended period. Batt
ery G
Risk of injury Take safety precautions
and protective
measures when handling batteries. Risk of explosion
Fire, naked flames and smok-
ing are prohibited when han-
dling the battery. Avoid
creating sparks. Battery acid is caustic. Avoid
contact with the ski
n,eye sor
cl oth ing.
Immediately rinse acid splas h-

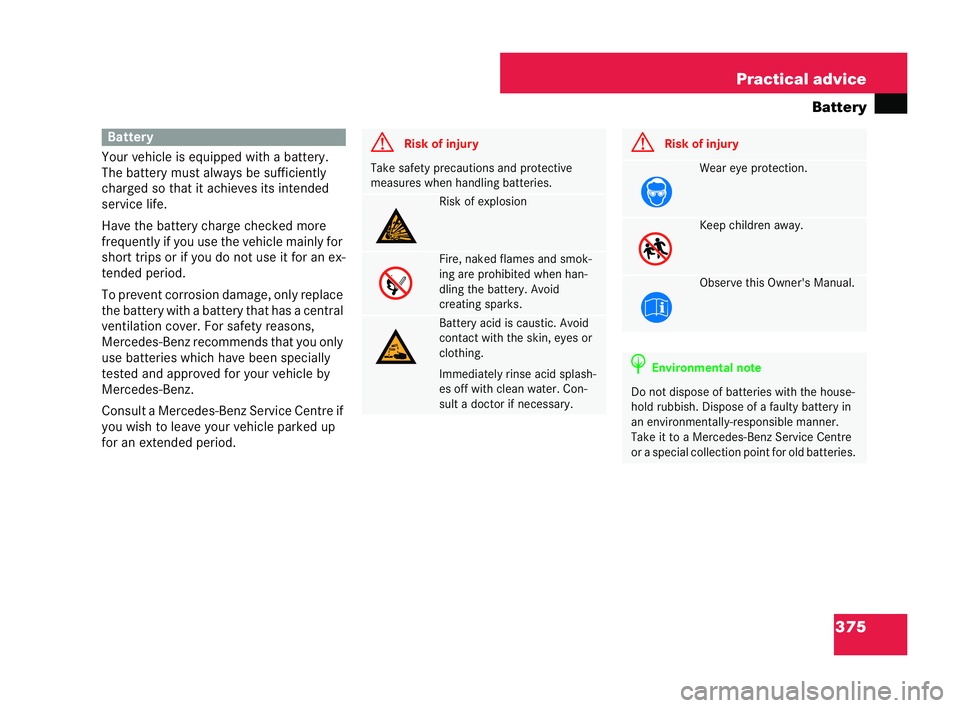

es off with clean water. Con-
sult a doctor if necessary. G
Risk of inju ry Wear eye protection.
Keep children away.
Observe this Owner's
Manual. H
Enviro nment alno te Do
notdispo seof ba tterie swith the hou se-
hold rubbish. Dispose of a faulty battery in
an environmentally-responsible manner.
Take it to a Mercedes-Benz Service Centre
or a special collection poi ntfor old batteries. 209en_d2.boo Seite
375 Dienstag, 25. Mai 2004 7:26 19

376 Practical advice
Battery
!Switch offthe engine and remove thekey
before you loose nor disconnect the terminal
clamps from the batter y.You may otherwise de-
st roy electronic components, e.g. the alternator.
Have the starter batter yche cked and, ifneces-
sary, replaced every two years or at least every
20,000 km ata qualified specialist workshop,
e.g. a Merce des-Be nz Service Centre. The battery
islocated in the engine com-
partment on the right-hand side, when
vi ewed inthe direction of travel, on the
front bulk head and under the fil ter bo x.
En gine compartment battery
1 Negative terminal
2 Positive terminal (under cover) G
Risk of inju ry For safety reasons, Mercedes-Benz recom-
mends that you only use batteries which
have bee
nsp ecially tested and approved for
your vehicl eby Mercedes-Benz. These bat-
teries are more impact-re sistant so that oc-
cup ants do not suffer acid burns if a battery
is damaged in the event of an accident.
To prevent acid burn sand scald ing, you
must obse rve the following safety precau-
tions wh enhandling batteries:
! Do not lean over the battery.
! Do not place any metal objects on the
battery. You could otherwise cause a
short circuit and the highly explosive gas
mixture in the battery could ignite.
! Make sure that you do not become elec-
trostatically charged, e.g. by wearing
synthetic clothing or due to friction be-
tween fabric s.Do not therefore pull or
pu sh the battery over carpete dfloors or
other synthetic materials. !
Do not touch the battery under any ci r-
cums tances. To eliminate any electro-
static charge, first get out of the vehicle
and touch the bodywork.
! Do not rub the batt ery with a cloth. The
battery could explode due to electro-
static charging when you touch the bat-
tery or even by sparks ar cing between
you and the battery.
P 54.00-2290-31209en_d2.boo Seite
376 Dienstag, 25. Mai 2004 7:26 19

377
Practical advice
Battery

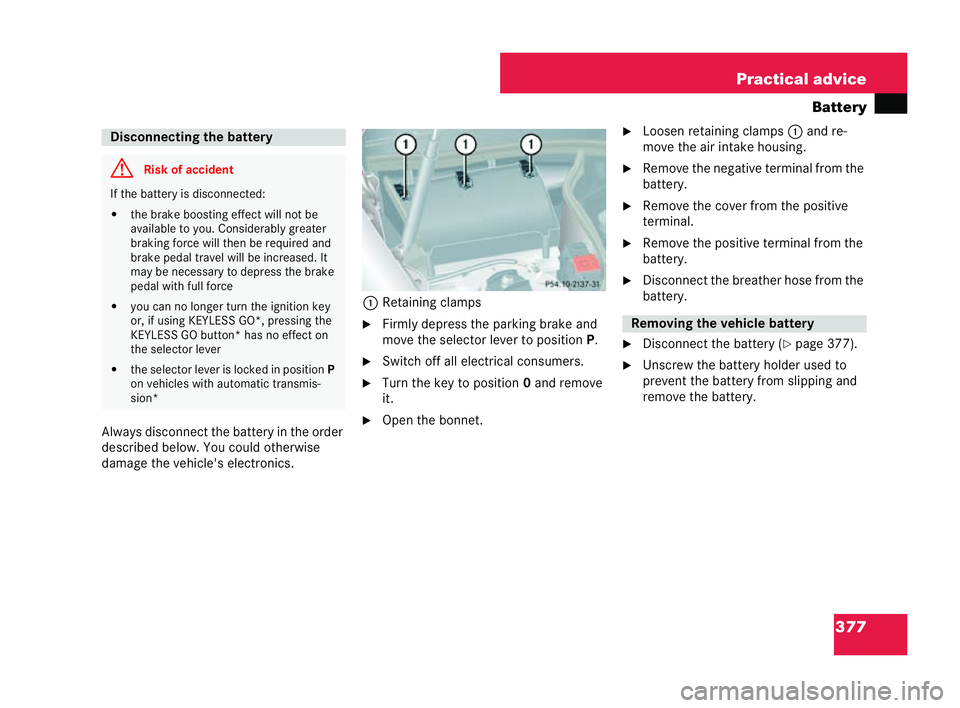

Always disconnect the batte ryin the order
describ edbelow. Youco uld otherwise
damage the vehicle's electronics. 1
Retainin g clamps
6 Firmly depress the parking brak e and
move the selector lever to position P.
6 Switch off all electr ical consumers.
6 Turn the key to position 0and remove
it.
6 Open the bonnet. 6
Loosen retaining clamps 1and re-
move the airint ake housing.
6 Remove the negative terminal from the
battery.
6 Remove the cover from the positive
termi nal.
6 Remove the positive ter minal fromthe
battery.
6 Disconnect the breather hose from the
battery.
6 Disconnect the battery ( =page 377).
6 Unscrew the battery holder used to
prevent the battery from slipping and
remove the battery. Disconnecting the battery
G
Risk of accident If the batt
ery is dis connected:
! thebrake boosting effect will not be
available to you. Considerably greater
braking force will then be required and
brake pedal travel will be increased. It
may be necessary to depress the brake
pedal with full force
! youca n no longer turn the ignitio nkey
or , if using KEYLESS GO*, pressin gthe
KEY LESS GO button* has no effect on
the selector lever
! the selector lever is locked in position P
on vehicles with automatic transmis-
sio n* P
54 .10-2137-31 Removing the
vehicle battery 209en
_d2.boo Seite 377 Dienstag, 25. Mai 2004 7:26 19
