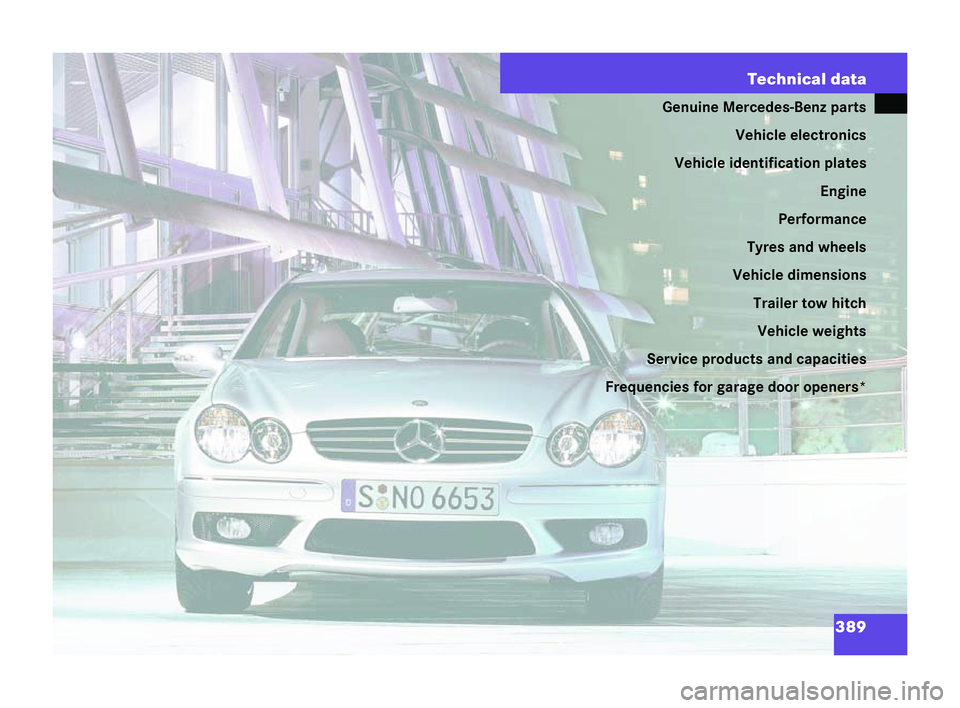

389
Te
chnical data
Genuine Mercedes-Benz parts
Vehicle electronics
Vehicle identification plates Engine
Perfo rmance
Tyres and wheels
Vehicle dimensions Trailer tow hitch
Vehicle weights
Service products and capacities
Frequencies for garage door openers* 209en_d2.
boo Seite 389 Dienstag, 25. Mai 2004 7:26 19

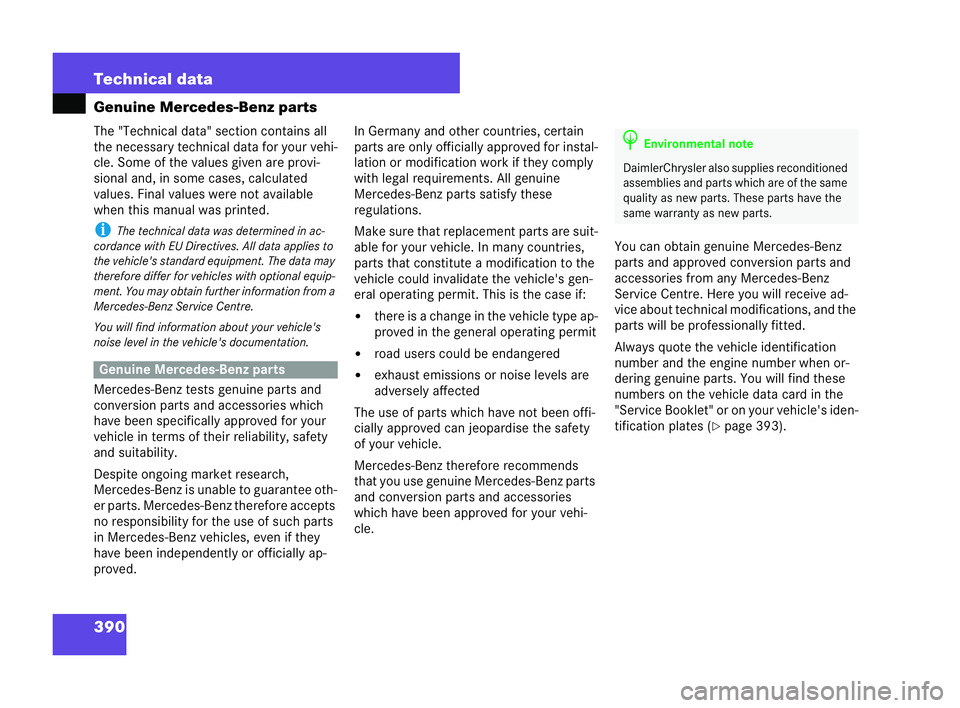

390 Technical data
Genuine Mercedes-Benz parts
The "Technical data" section contains all
the necessary technical data for your vehi-
cle. Some of the values given are provi-
sional and, in some cases, calculated
values. Final
values were not available
when this manual was printed.
i The technical data was determined in ac-
co rdance with EU Directives. All data applies to
the vehicle's standard equipment. The data may
therefore differ for vehicles with optional equip-
me nt. You may obtain further information from a
Me rcede s-Be nz Service Cen tre.
You will find information ab out your vehicle's
noise level in th evehicle 'sdoc umen tation.
Mercedes-Benz tests genuine parts and
con version parts and accessories whi ch
have been speci fically approved for your
veh icle in terms of their reliability, safety
and suitab ility.
Despite ongoing market research,
Mercedes-Benz is unable to guarantee oth-
er parts. Mercedes-Benz therefore accepts
no responsi bility for the use of such parts
in Mercedes-Benz vehicles, even if they
have been independently or officially ap-
proved. In Germany and other countries, certain
parts are only officially approv
edfor instal-
lation or modification work ifthey comply
with legal requirements. All genuine
Mercedes-Benz parts satisfy these
regul ations.
Make sure thatreplacement parts are suit-
able for you rvehicle. In many countries,
parts that constitute a modification tothe
vehicle could invalidate the vehicle's gen-
eral operating permit. This isthe case if:
! ther e is achan gein the vehicle type ap-
proved in the general operating permit
! road users could be endangered
! exhaust emissions or noise levels are
adversely affected
The use of parts wh ich have not been offi-
cially approve dcan jeopardise the safety
of your vehicle.
Mercedes-Benz therefore recommends
that you use genuine Mercedes-Benz parts
and conversion parts and accessories
whi chhave been approved for your vehi-
cle. You can obtain genuine Merce
des-Benz
parts and appro ved conversion parts and
accessories from any Merced es-Benz
Service Centre. Here you will receive ad-
vi ce about technical modifications, and the
parts will be pro fessionally fitted.
Always quote the vehicle identification
number and the engine number when or-
dering genuine parts. You will find these
numbers onthe vehicle data card in the
"Service Booklet" or on your vehicle's iden-
tification plates ( =pa ge 393). Genuine Mercedes
-Benz parts H
Environmental note DaimlerChrysler also supplies reconditioned
assemblies and parts which are of the same
quality as new parts. These parts have the
same warranty as new parts. 209en_d2.boo Seite
390 Dienstag, 25. Mai 2004 7:26 19

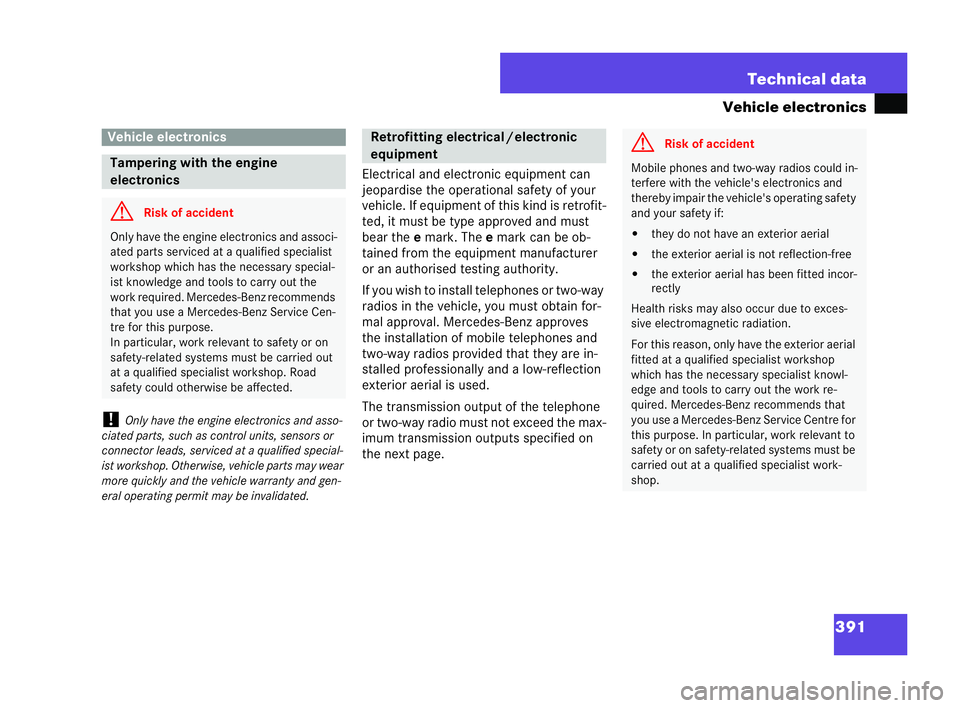

391
Te
chnical data
Ve hicle el ectron ics
! Only have th eengine electronics and asso-
ciated parts, such as control units, sensors or
connec tor leads, serviced at a qualified spe cial-
is tworkshop. Otherwise, vehicle parts may wear
more quickly and the vehicle warranty and gen-
eral operating permit may be invalidated. Electrical and electronic equipment can
jeopardise the operational safety of your
vehicle. If equipment of th iskind is retrofit-
te d, it must be typ eappro vedand must
bear the emark .The emark can be ob-
tained from the equipment manufacturer
or an authorised testing authority.
If you wish to install telephones or two-way
radios in the vehicle, you must obtain for-
mal approval. Mercedes-Benz approves
the installation of mobile telephones and
two-w ayradios provide dthat they are in-
stalled professionally and a low-reflection
exterior aerial is used.
The transmission output of the telephone
or two-way radio must not exceed the max-
imum transmission outputs specif ied on
the next page. Vehicle electronics
Ta
mperi ngwith th eengine
el ectro nics G
Risk of accident On
ly have the engine electronics and ass oci-
ate dparts serviced at aqu alified specialist
workshop which has the neces sary special-
ist knowledge and tools to carry out the
work required. Mercedes -Benz recommends
that you use a Mercedes-Be nzService Cen-
tre for this purpose.
In particular, work rel evan t to safety or on
safe ty-re lated systems mustbe carried out
at a qualified spec ialist workshop. Road
safe ty could otherwise be affected. Re
trofitting electrica l/electronic
equipment G
Risk of accident Mobile phones and two-way radios could in-
terf
erewith the vehicle 'selec tronics and
thereby impair the vehi cle'sopera ting safet y
and your sa fety if:
! they do not have an exterior aerial
! theexterior aerial is not reflection-free
! theexterior aerial has been fitted incor-
rectly
Health risks may also occur due to exces-
sive el ectromagnetic radiation.
For this reason, onl yhave the exterior aerial
fitted at a qualified specia list workshop
whi chhas the necessary specialist knowl-
edge and tools to carry out the work re-
quired. Merc edes-Benz recommends that
you use a Mercedes-Benz Service Centre for
thi spurpose. In particular, work relevant to
safety or on safety-relat ed systems mustbe
carried out at a quali fied specialist work-
sh op. 209en_d2.boo Seite
391 Dienstag, 25. Mai 2004 7:26 19

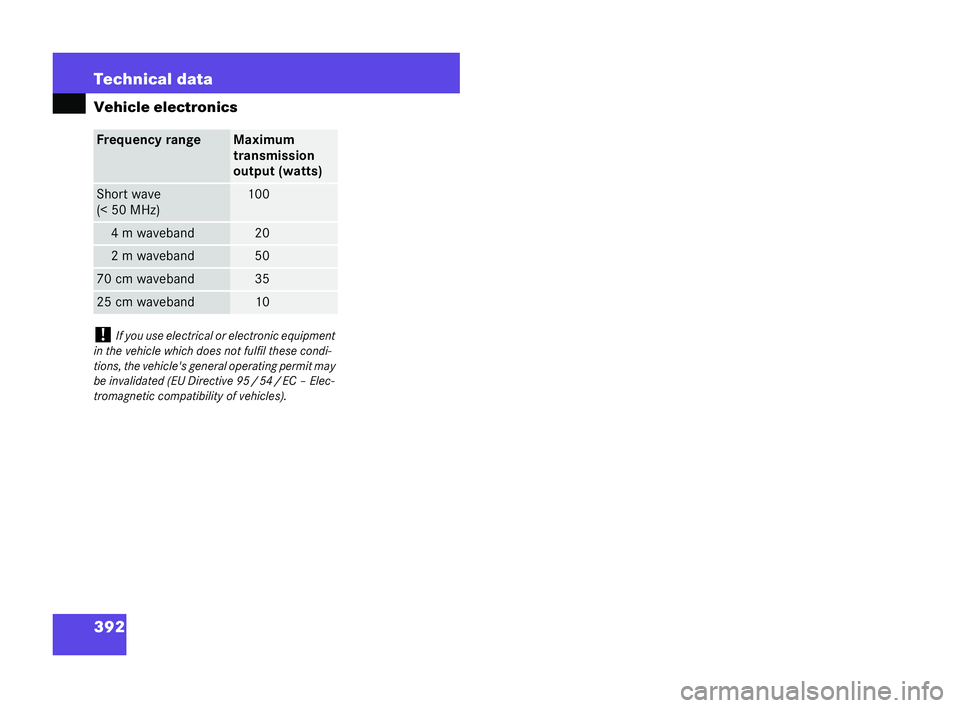

392 Technical data
Ve
hicle el ectron ics
! Ifyou use electrical or electronic equipment
in the vehicle which does not fulfil these condi-
tions ,the vehicle's general operati ngpermit may
be inva lidated (EU Directive 95 /54/ EC – Elec-
tromagneti ccompatibility of vehicle s).Frequency range Maximum
transmission
output (watts)
Short wave
(<
50 MHz) 100
4m
waveb and 20
2m
waveb and 50
70 cm
waveb and 35
25 cm
waveb and 10209en_d2.boo Seite
392 Dienstag, 25. Mai 2004 7:26 19

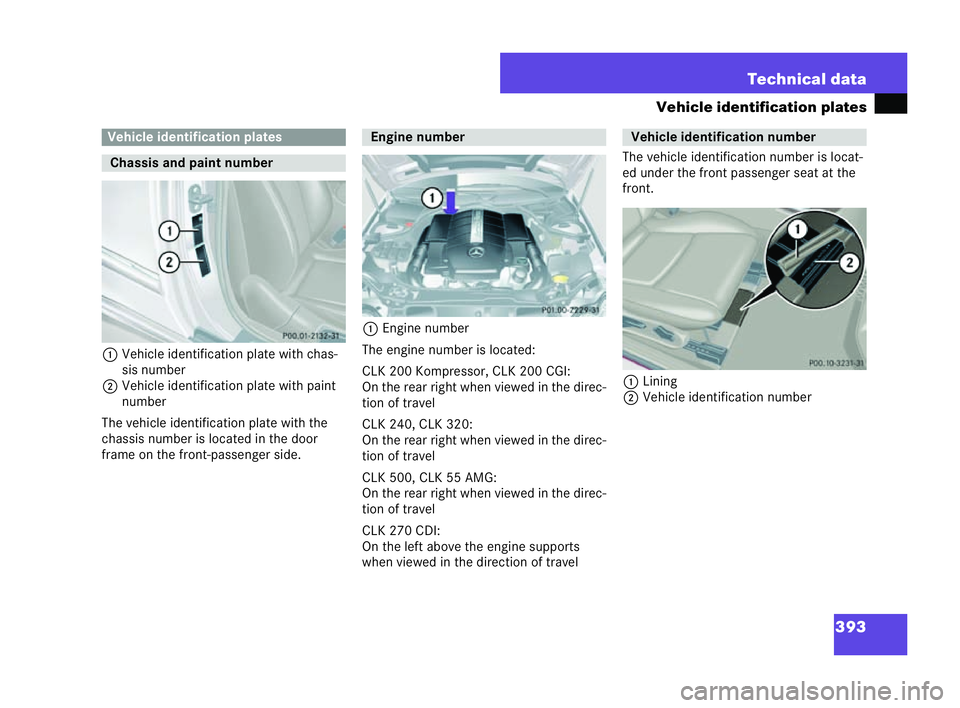

393
Te
chnical data
Vehicle identification plates
1 Vehicle identification plate with chas-
sis number
2 Vehicle identification plate with paint
number
The vehicle identification plate with the
chassis number is located in the door
frame on the front-passenger side. 1
Engi nenumber
The engine number is located:
CLK 200 Kom pressor, CLK 200 CGI:
On the rear right when view ed inthe direc-
tion of travel
CLK 240, CLK 320:
On the rear right when view ed inthe direc-
tion of travel
CLK 500, CLK 55 AMG:
On the rear right when view ed inthe direc-
tion of travel
CLK 270 CDI:
On the left above the engine supports
wh en viewed inthe direction of travel The
vehicle identification number islocat-
ed under the front passenger seat at the
front.
1 Lining
2 Vehicle identification number Vehicle identification plates
Ch
assis and paint num ber P
00 .01-2132-31 neu Engine num
ber P
01 .00-2229-31 neu Vehi
cle iden tificati on nu mber P00.10-3231-31209en_d2.boo Seite
393 Dienstag, 25. Mai 2004 7:26 19

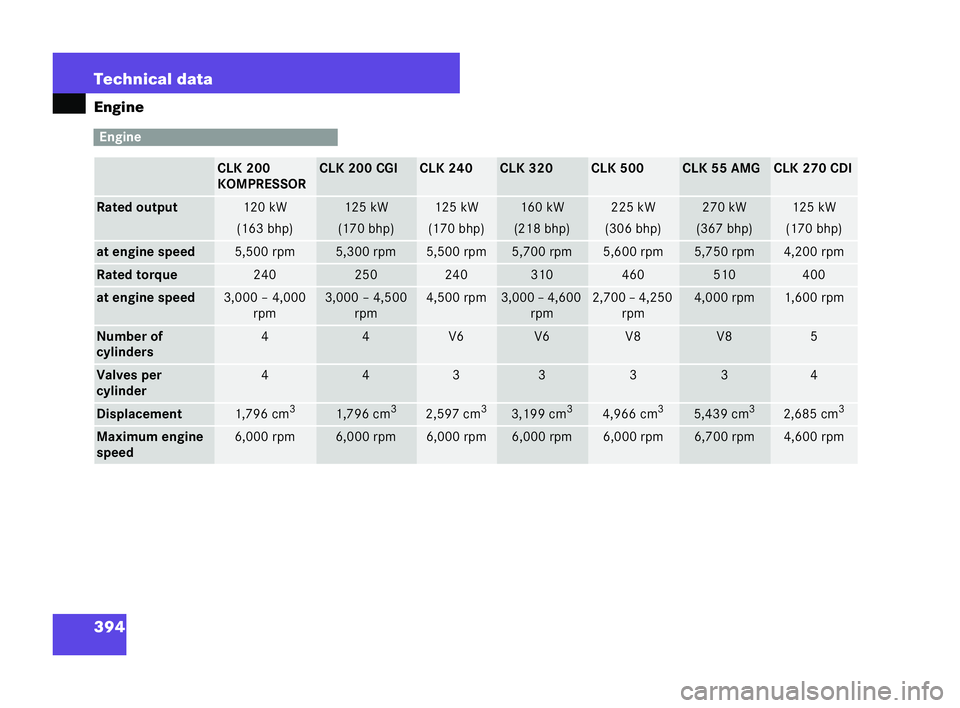

394 Technical data
Engine Engine
CLK 200
KOMPR
ESSOR CLK 200 CGI CLK 240 CLK 320 CLK 500 CLK 55 AMG CLK 270 CDI
Ra
ted outp ut 12
0 kW
(163 bhp) 125 kW
(170 bhp) 12
5 kW
(170 bhp) 160 kW
(2 18 bhp) 225 kW
(306 bhp) 270 kW
(367 bhp) 12
5 kW
(170 bhp) at engine speed 5,500 rpm 5,
300 rpm 5,500 rpm 5,700 rpm 5,600 rpm 5,750 rpm 4,200
rpm Rated torque 240 250 240 310 460 510 400
at engine speed 3,000 – 4,000
rpm 3,000 – 4,500
rpm 4,500 rpm 3,
000 – 4,600
rpm 2,700 – 4,250
rpm 4,000 rpm 1,600 rpm
Numbe
rof
cyl inde rs 4 4 V6 V6 V8 V8 5
Valves
per
cy lind er 4 4 3 3 3 3 4
Displacement 1,796 cm
3 1,796 cm
3 2,597 cm
3 3,
199 cm 3 4,966 cm
3 5,439 cm
3 2,685 cm
3 Maximum engine
speed 6,000 rpm 6,
000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,700 rpm 4,
60 0 rpm 209en_d2.boo Seite
394 Dienstag, 25. Mai 2004 7:26 19

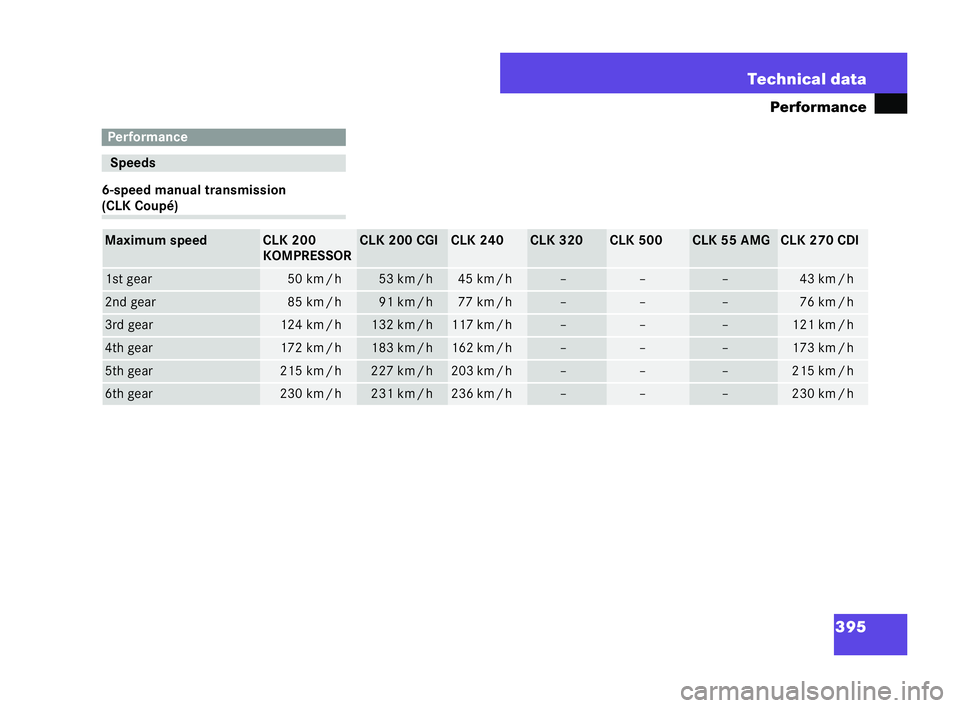

395
Te
chnical data
Performance
6-speed manual transmission (CLK
Coupé) Performance
Speeds
Maximum spe
ed CLK 200
KOMPR
ESSOR CLK 200 CGI CLK 240 CL
K320 CLK 500 CLK 55 AMG CLK 270 CDI
1st gear 50 km
/h 53 km
/h 45 km
/h – – – 43 km
/h 2nd gear 85 km
/h 91 km
/h 77 km
/h – – – 76 km
/h 3rd gear 12
4km /h 132 km
/h 11
7 km /h – – – 121 km
/h 4th gear 172 km
/h 183 km
/h 16
2 km /h – – – 173 km
/h 5th gear 215 km
/h 227 km
/h 20
3 km /h – – – 215 km
/h 6th gear 230 km
/h 231 km
/h 23
6 km /h – – – 230 km
/h 209en_d2.boo Seite
395 Dienstag, 25. Mai 2004 7:26 19

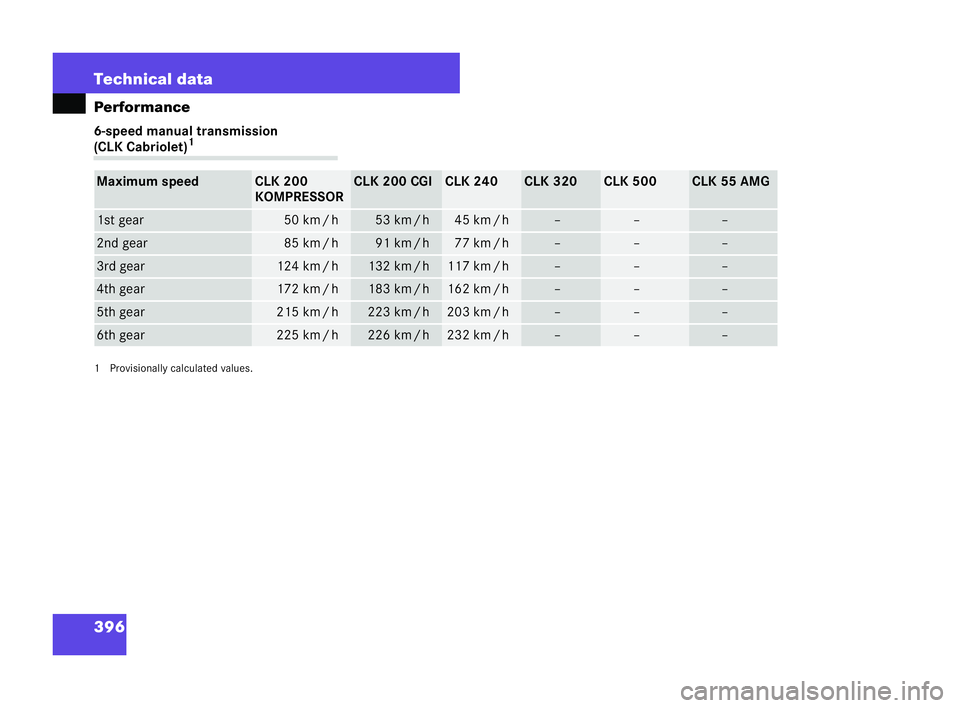

396 Technical data
Pe
rformance
6-s peed manual trans mission (CLK Cabriolet)
1
1P rovisionally calculate dvalues. Maximum speed CLK
200
KO MP RESSOR CLK 200 CGI CLK 240 CLK 320 CLK 500 CL
K55 AMG 1s
t ge ar 50 km
/h 53 km
/h 45 km
/h – – –
2nd gear 85 km
/h 91 km
/h 77 km
/h – – –
3rd
gear 124 km
/h 132 km
/h 117 km
/h – – –
4th gear 172 km
/h 183 km
/h 162 km
/h – – –
5th gear 215 km
/h 223 km
/h 203 km
/h – – –
6th gear 225 km
/h 226 km
/h 232 km
/h – – –209en_d2.boo Seite
396 Dienstag, 25. Mai 2004 7:26 19

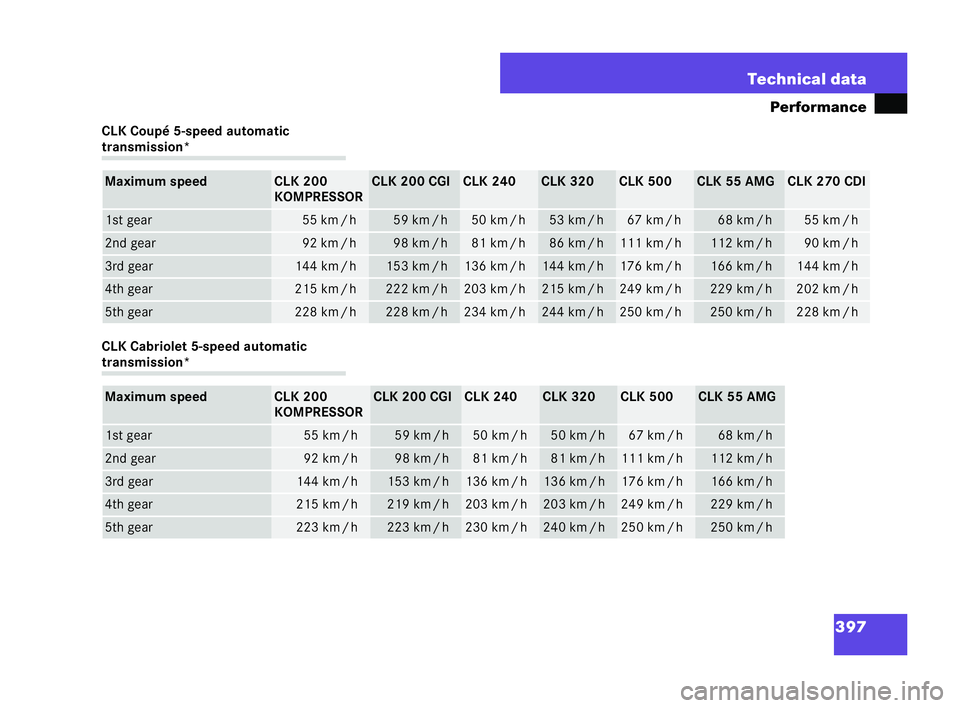

397
Te
chnical data
Performance
CL KCo upé 5-speed autom atic transm
ission*
CL KC abrio let5-spee dautomatic transm
ission* Maximum speed CLK 200
KOMPR
ESSOR CLK
200 CGI CLK 240 CLK 320 CLK 500 CL
K55 AMG CLK 270 CDI
1st gear 55 km
/h 59 km
/h 50 km
/h 53 km
/h 67 km
/h 68 km
/h 55 km
/h 2nd gear 92 km
/h 98 km
/h 81 km
/h 86 km
/h 111 km
/h 11
2 km /h 90 km
/h 3rd gear 144 km
/h 153 km
/h 136 km
/h 144 km
/h 176 km
/h 16
6 km /h 144 km
/h 4th gear 215 km
/h 222 km
/h 203 km
/h 215 km
/h 249 km
/h 22
9 km /h 202 km
/h 5th gear 228 km
/h 228 km
/h 234 km
/h 244 km
/h 250 km
/h 25
0 km /h 228 km
/h Maximum speed CLK 200
KOMPR
ESSOR CLK 200 CGI CLK 240 CLK 320 CLK 500 CLK 55 AMG
1st gear 55 km
/h 59 km
/h 50 km
/h 50 km
/h 67 km
/h 68 km
/h 2nd gear 92 km
/h 98 km
/h 81 km
/h 81 km
/h 111 km
/h 112 km
/h 3rd gear 144 km
/h 15
3 km /h 13
6 km /h 136 km
/h 176 km
/h 166 km
/h 4th gear 215 km
/h 21
9 km /h 20
3 km /h 203 km
/h 249 km
/h 229 km
/h 5th gear 223 km
/h 22
3 km /h 23
0 km /h 240 km
/h 250 km
/h 250 km
/h 209en_d2.boo Seite
397 Dienstag, 25. Mai 2004 7:26 19
