Page 242 of 394

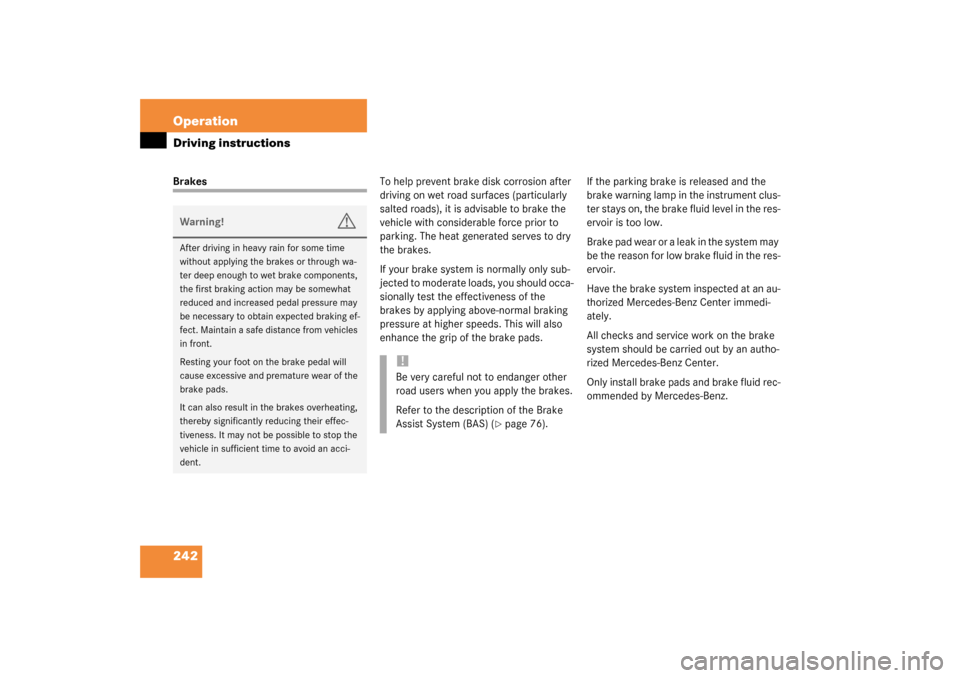

242 OperationDriving instructionsBrakesTo help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on, the brake fluid level in the res-
ervoir is too low.
Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected at an au-
thorized Mercedes-Benz Center immedi-
ately.
All checks and service work on the brake
system should be carried out by an autho-
rized Mercedes-Benz Center.
Only install brake pads and brake fluid rec-
ommended by Mercedes-Benz.Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking ef-
fect. Maintain a safe distance from vehicles
in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.
!Be very careful not to endanger other
road users when you apply the brakes.
Refer to the description of the Brake
Assist System (BAS) (
page 76).
Page 243 of 394

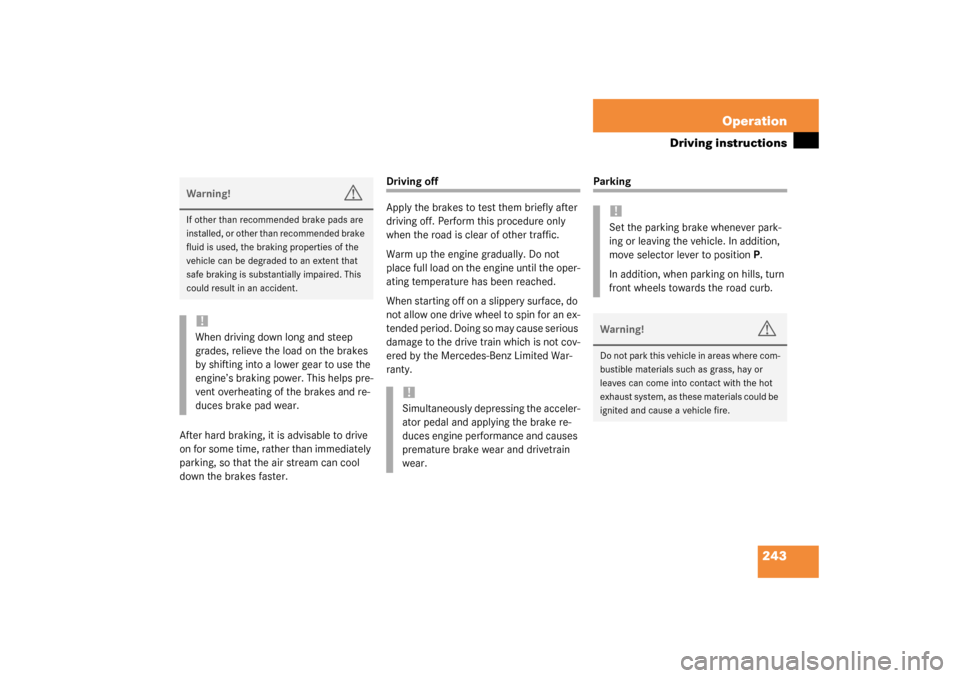

243 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
parking, so that the air stream can cool
down the brakes faster.
Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine gradually. Do not
place full load on the engine until the oper-
ating temperature has been reached.
When starting off on a slippery surface, do
not allow one drive wheel to spin for an ex-
tended period. Doing so may cause serious
damage to the drive train which is not cov-
ered by the Mercedes-Benz Limited War-
ranty.
Parking
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!When driving down long and steep
grades, relieve the load on the brakes
by shifting into a lower gear to use the
engine’s braking power. This helps pre-
vent overheating of the brakes and re-
duces brake pad wear.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake wear and drivetrain
wear.
!Set the parking brake whenever park-
ing or leaving the vehicle. In addition,
move selector lever to positionP.
In addition, when parking on hills, turn
front wheels towards the road curb.Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Page 286 of 394

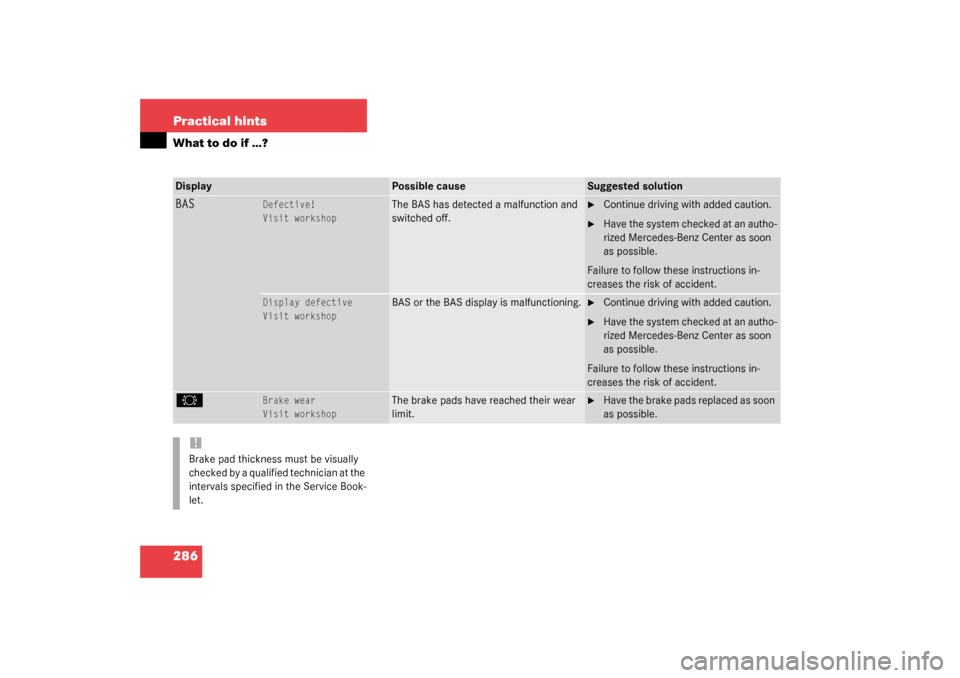

286 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
BAS
Defective!
Visit workshop
The BAS has detected a malfunction and
switched off.
Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of accident.
Display defective
Visit workshop
BAS or the BAS display is malfunctioning.
Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of accident.
2
Brake wear
Visit workshop
The brake pads have reached their wear
limit.
Have the brake pads replaced as soon
as possible.
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Service Book-
let.
Page 369 of 394
369 Index
Automatic lighting control
Activating 109
Deactivating 109
Automatic locking when driving 95
Automatic transmission 141
Accelerator position 146
Activating steering wheel gearshift
control 147
Deactivating steering wheel gearshift
control 148
Emergency operation (Limp Home
Mode) 146
Fluid level 256
Gear ranges 143
Gear selector lever position 144
Gear shifting malfunctions 146
Kickdown 146
Manual shift program, CLK 55 AMG
146
One-touch gearshifting 142
Program mode selector switch 145
Selector lever position 141
Speedshift, CLK 55 AMG 146
Starting the engine 43
Steering wheel gearshift control
(Speedshift), CLK 55 AMG 146Transmission fluid 256
Winter program mode 145, 147
Auxiliary fuse box 338
B
BabySmart
TM
Airbag deactivation system 68
Compatible child seats 68, 361
Self-test 68
BabySmart
TM airbag deactivation system
361
Backrest
Folding forward 216
Folding rearward 217
Backup lamps 317, 322
Bulbs 317
BAS 76, 361
Messages in display 285
Batteries, SmartKey
Changing 312
Check lamp 85
Checking 86
Batteries, SmartKey with KEYLESS-GO*
Changing 312
Checking 86
Battery discharged
Jump starting 332Battery, vehicle 258, 329
Charging 330
Disconnecting 330
Messages in display 303
Reconnecting 331
Reinstalling 330
Removing 330
Bi-Xenon headlamps* 361
Block heater* 265
Blocking
Rear window operation 72
Bolts
For Minispare wheel 309
Brake assist system (BAS) 361
Brake fluid 353
Brake lamp bulbs 317
Brake lamp, high mounted 317
Brake pads
Message in display 286
Brakes 242
Warning lamp 279
Break-in period 240
Page 381 of 394
381 Index
Mirrors
Adjusting 38
Automatic antiglare for rear view mirror
149
Exterior rear view mirror 38
Exterior rear view mirror parking posi-
tion 150
Exterior rear view mirror parking posi-
tions 135
Inside rear view mirror 38
Storing exterior mirror parking position
103
MON 251
MON (Motor Octane Number) 364
Mph or km/h in speedometer 126
Multicontour seat* 100
Multifunction display 114, 364
Selecting language 127
Standard display 118
Multifunction display messages
ABS 284
BAS 285
Battery 303
Brake fluid 287
Brake pads 286
Check engine 280Coolant 290
Coolant level 289
Display 304
Distronic* 292
Doors 292
Engine 280
ESP 293
Fuel reserve tank 296
Hood 296
Key 296
Lamps 296–299
Parking brake 299
Selector lever 292
SmartKey with KEYLESS-GO* 288
Steering gear oil level 300
Tele Aid 301
Telephone* 301
Trunk 301
Washer fluid 301
Multifunction steering wheel 24, 115, 364
Buttons 115N
Navigation system
Operating 121
See separate COMAND* operating in-
structions
Night security illumination 107
O
Occupant safety 56
Airbags 57
Children and airbags 58
Children in the vehicle 66
Fastening the seat belt 40
Infant and child restraint systems 66
LATCH child seat mounts 71
Seat belts 40, 60
Odometer, main 23
Oil
Adding 255
Checking level 254
Consumption 254
Filler neck 255
Viscosity 363
Oil level
Checking 252
