wipers MERCEDES-BENZ CLK320 COUPE 2003 C209 Owner's Manual
[x] Cancel search | Manufacturer: MERCEDES-BENZ, Model Year: 2003, Model line: CLK320 COUPE, Model: MERCEDES-BENZ CLK320 COUPE 2003 C209Pages: 394, PDF Size: 6.6 MB
Page 3 of 394
Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside
the USA or Canada......................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
At a glance.......................................... 19
Cockpit ................................................. 20
Instrument cluster ................................ 22
Multifunction steering wheel ................ 24
Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey ......... 30
Unlocking with KEYLESS-GO*......... 32
Adjusting .............................................. 34
Seats .............................................. 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts ................. 40
Starting the engine ......................... 43
Switching on headlamps ................. 46
Turn signals and high beam ............ 47
Windshield wipers ........................... 47
Problems while driving .................... 49
Parking and locking .............................. 50
Parking brake ................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 51
Page 5 of 394
Contents
Automatic transmission ..................... 141
One-touch gearshifting................. 142
Gear ranges ................................. 143
Gear selector lever position ......... 144
Program mode selector switch..... 145
Accelerator position ..................... 146
Emergency operation
(Limp Home Mode) ...................... 146
Steering wheel gearshift control
(Speedshift) and manual
shift program CLK 55 AMG .......... 146
Good visibility .................................... 149
Rear view mirror........................... 149
Parking position ........................... 150
Windshield wipers ........................ 151
Headlamp cleaning system* ........ 151
Sun visors .................................... 152
Rear window sunshade* .............. 153
Automatic climate control ................. 154
Setting the temperature ............... 157

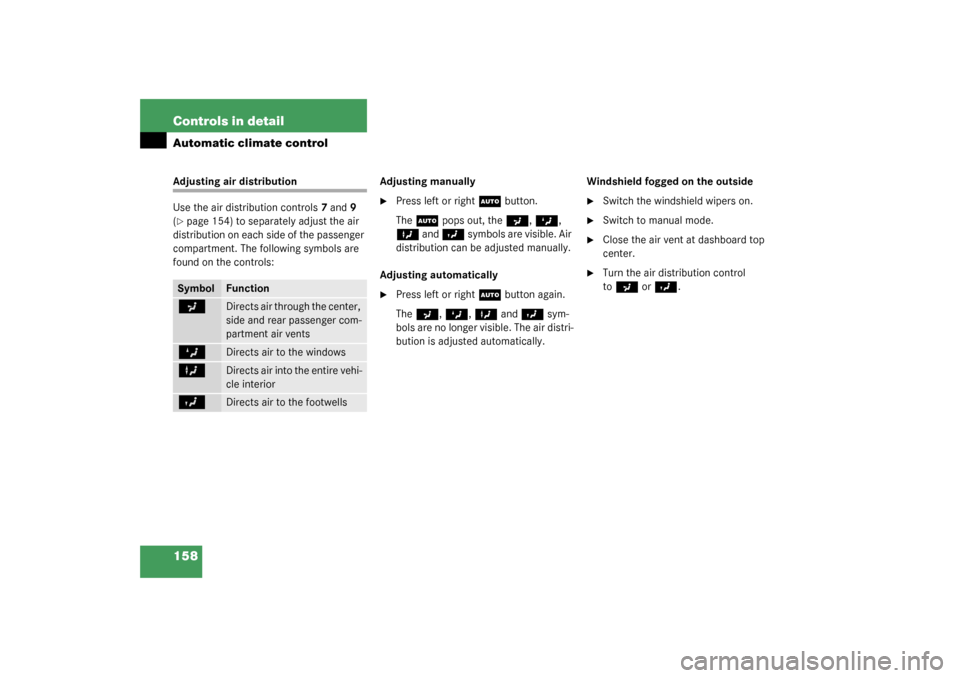

Adjusting air distribution .............. 158
Adjusting air volume .................... 159
Maximum cooling MAXCOOL ....... 159
Defrosting .................................... 159
Air recirculation mode.................. 160
Charcoal filter .............................. 161Rear window defroster .................. 162
Air conditioning............................. 163
Residual heat and ventilation* ...... 163
Rear passenger compartment
adjustable air vents....................... 164
Audio system ...................................... 165
Audio and telephone, operation .... 165
Operating safety ........................... 165
Operating and display elements.... 166
Button and soft key operation....... 168
Operation ...................................... 168
Radio mode................................... 171
Cassette mode.............................. 174
CD changer* operating mode ....... 178
Telephone* operation ................... 182
Power windows .................................. 187
Opening and closing the windows. 187
Synchronizing power windows ...... 189
Sliding/pop-up roof* .......................... 190
Opening and closing the
sliding/pop-up roof....................... 190
Synchronizing the
sliding / pop-up roof ...................... 192
Driving systems .................................. 193
Cruise control ............................... 193
Distronic* ..................................... 196PARKTRONIC system* .................. 208
Loading .............................................. 212
Roof rack ...................................... 212
Ski sack* ...................................... 212
Split rear bench seat .................... 215
Loading instructions ..................... 217
Cargo tie-down rings..................... 218
Useful features ................................... 219
Interior storage spaces ................. 219
Ashtrays........................................ 223
Cigarette lighter ............................ 224
Floormats* ................................... 225
Telephone* ................................... 226
Tele Aid ......................................... 227
Garage door opener ...................... 235
Page 21 of 394
21 At a glance
Cockpit
Item
Page
1
Headlamp washer switch*
151
2
Combination switch
Turn signals
High beam
Windshield wipers
47
47
47
3
Cruise control lever
Cruise control
Distronic*
193
196
4
Multifunction steering
wheel
24,
115
5
Instrument cluster
22,
111
6
Lever for voice control
system*, see separate op-
erating instructions
7
Starter switch
31
8
Front Parktronic* warning
indicator
210
9
Overhead control panel
27
Item
Page
10
Glove box
219
11
Center console
25, 26
12
Hood lock release
253
13
Horn
14
Steering wheel adjustment
stalk
37
15
Parking brake pedal
45
16
Door control panel
28
17
Parking brake release
45
18
Exterior lamp switch
46,
105
19
Exterior rear view mirror
adjustment
38
Page 47 of 394
47 Getting started
Driving
Turn signals and high beam
The combination switch is on the left of the
steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch up1 or
down2.High beam
Push the combination switch forward.
The high beam headlights are switched
on.
The high beam symbol
A
in the
tachometer lights up.
More information can be found in the
"Controls in detail" section (
page 108).
Windshield wipers
The combination switch is on the left of the
steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure that the ignition is switched
on.
iTo signal minor directional changes,
move combination switch to point of
resistance only and release. The turn
signal blinks three times.
Page 48 of 394
48 Getting startedDrivingSwitching on windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
Single wipe
Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.Wiping with windshield washer fluid
Push switch in the direction of arrow1
past the resistance point.
The windshield wiper operates with
washer fluid.
iThe intermittent wiping interval is de-
pendent on wetness of windshield.
Wiping will not occur with a door open.
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Wipers will operate in
the presence of water sprayed on the
windshield, and wipers may be dam-
aged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine started. Dust that accumulates on
the windshield might scratch the glass
when wiping occurs on a dry wind-
shield.
!If leaves, snow, etc. block the wind-
shield wipers, switch off the wipers.
For safety reasons, withdraw key
from starter switch. Remove block-
age.
Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,
Set the combination switch to the
next highest wiper speed.
Have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center.
Page 149 of 394
149 Controls in detail
Good visibility
Good visibility
Information on the windshield wipers
(page 47) and for setting the rear view
mirrors (
page 38) is found in the “Get-
ting started” section.
Rear view mirror
Automatic antiglare rear view mirror
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the inside rear view mirror will respond au-
tomatically to glare when
the ignition is switched on, and
incoming light from headlamps falls on
the sensor in the inside rear view mir-
ror.
The rear view mirror will not react if
reverse gear is engaged
the interior lighting is turned on
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the inside rear view mirror.
The inside rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window sun
shade* is in raised position.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.

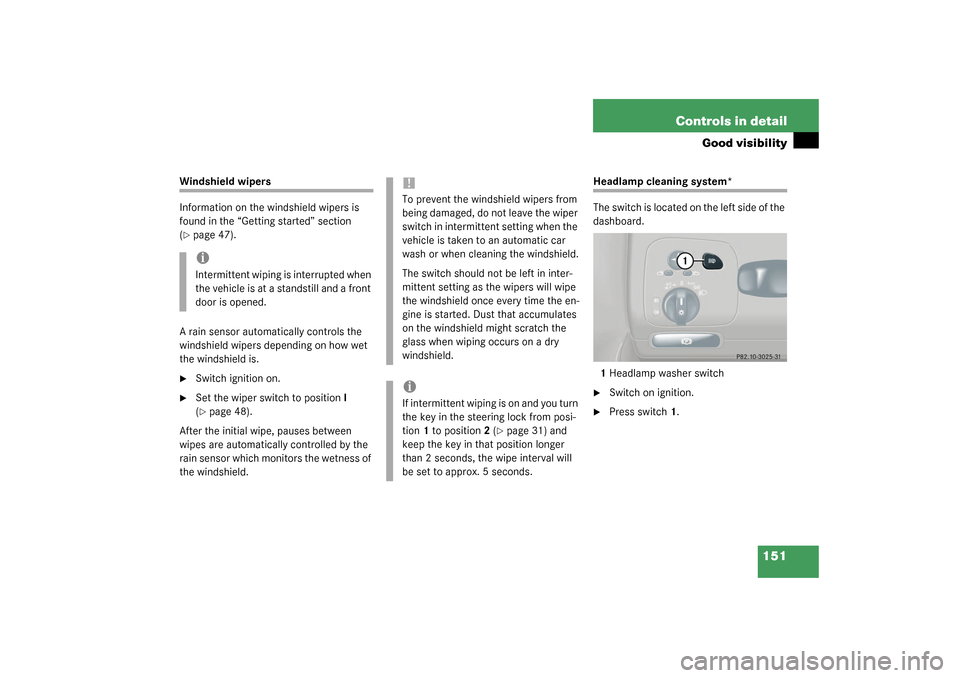

Page 151 of 394
151 Controls in detail
Good visibility
Windshield wipers
Information on the windshield wipers is
found in the “Getting started” section
(page 47).
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.
Switch ignition on.
Set the wiper switch to position I
(page 48).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor which monitors the wetness of
the windshield.
Headlamp cleaning system*
The switch is located on the left side of the
dashboard.
1Headlamp washer switch
Switch on ignition.
Press switch1.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
!To prevent the windshield wipers from
being damaged, do not leave the wiper
switch in intermittent setting when the
vehicle is taken to an automatic car
wash or when cleaning the windshield.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass when wiping occurs on a dry
windshield.iIf intermittent wiping is on and you turn
the key in the steering lock from posi-
tion 1 to position 2 (
page 31) and
keep the key in that position longer
than 2 seconds, the wipe interval will
be set to approx. 5 seconds.
Page 158 of 394
158 Controls in detailAutomatic climate controlAdjusting air distribution
Use the air distribution controls7 and 9
(page 154) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:Adjusting manually
Press left or right
U
button.
The
U
pops out, the
a
, Z
,
X
and
Y
symbols are visible. Air
distribution can be adjusted manually.
Adjusting automatically
Press left or right
U
button again.
The
a
, Z
, X
and
Y
sym-
bols are no longer visible. The air distri-
bution is adjusted automatically.Windshield fogged on the outside
Switch the windshield wipers on.
Switch to manual mode.
Close the air vent at dashboard top
center.
Turn the air distribution control
to
a
or
Y
.
Symbol
Function
a
Directs air through the center,
side and rear passenger com-
partment air vents
Z
Directs air to the windows
X
Directs air into the entire vehi-
cle interior
Y
Directs air to the footwells
Page 272 of 394
272 OperationVehicle careCleaning the Parktronic* system
sensors
1Parktronic* sensors
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo
with plenty of water.
When using a steam cleaner or power
washer, aim nozzle only briefly from a min-
imum distance of 4 in. (10 cm) at
sensors1.
To prevent scratches, never apply strong
force and only use a soft, non-scratchy
cloth when cleaning the sensor. Do not at-
tempt to wipe dirty sensors with a dry cloth
or sponge.Wiper blades
Clean the wiper blade inserts with a clean
cloth and detergent solution.
Window cleaning
Use a window cleaning solution on all glass
surfaces. An automotive glass cleaner is
recommended.Light alloy wheels
Mercedes-Benz approved Wheel Care
should be used for regular cleaning of the
light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, us-
ing a soft bristle brush and a strong spray
of water.
Follow instructions on container.
iFor safety reasons, switch off wipers
and remove key from starter switch be-
fore cleaning the wiper blades, other-
wise the wiper motor can suddenly turn
on and cause injury.!Fold the windshield wiper arms back
onto the windshield before turning the
key in the starter switch.
iFor safety reasons, switch off wipers
and remove key from starter switch be-
fore cleaning the windshield, otherwise
the wiper motor can suddenly turn on
and cause injury.iOnly use acid-free cleaning materials.
Acid could lead to corrosion.
Page 367 of 394
367 Index
A
ABS 23, 74, 361
ABS control 75
Malfunction indicator lamp 277
Messages in display 284
Warning lamp 277
Accelerator position, automatic transmis-
sion 146
Accident
In case of 49
Activating
Air conditioning (cooling) 163
Air recirculation mode 160
Anti-theft alarm system 80
Automatic climate control 155
Central locking (control system) 133
Charcoal filter 161
Distance warning function* 205
Distronic* 201
Easy-entry/exit feature 133
ESP 78
Exterior headlamps 46
Exterior lamps 106
Front and rear fog lamp 106
Hazard warning flasher 108
Headlamps 46High beams 108
Ignition 31
Ignition with KEYLESS-GO* start/stop
button 33
Immobilizer 51, 79
Rear window defroster 162
Residual heat 163
Seat heater* 101
Tow-away alarm 81
Windshield wipers 48
Activating steering wheel gearshift control
147
Downshifting 148
Upshifting 147
Adding
Coolant 257
Engine oil 255
Additional turn signals 317
Adjustable air vents, rear passenger com-
partment 164Adjusting 34
Air distribution 158
Air volume 159
Backrest tilt 36
Exterior rear view mirror 38
Head restraint height 36
Head restraint tilt 36
Inside rear view mirror 38
Instrument cluster illumination 111
Mirrors 38
Multicontour seat* 100
Seat cushion depth 100
Seat cushion tilt 36
Seat fore and aft adjustment 35
Seat height 35
Seats 34
Steering column height 38
Steering column length 38
Steering wheel 37
Air conditioning (cooling)
Turning off 163
Turning on 163
Air conditioning refrigerant 353
Air distribution
Adjusting 158
