Page 261 of 394

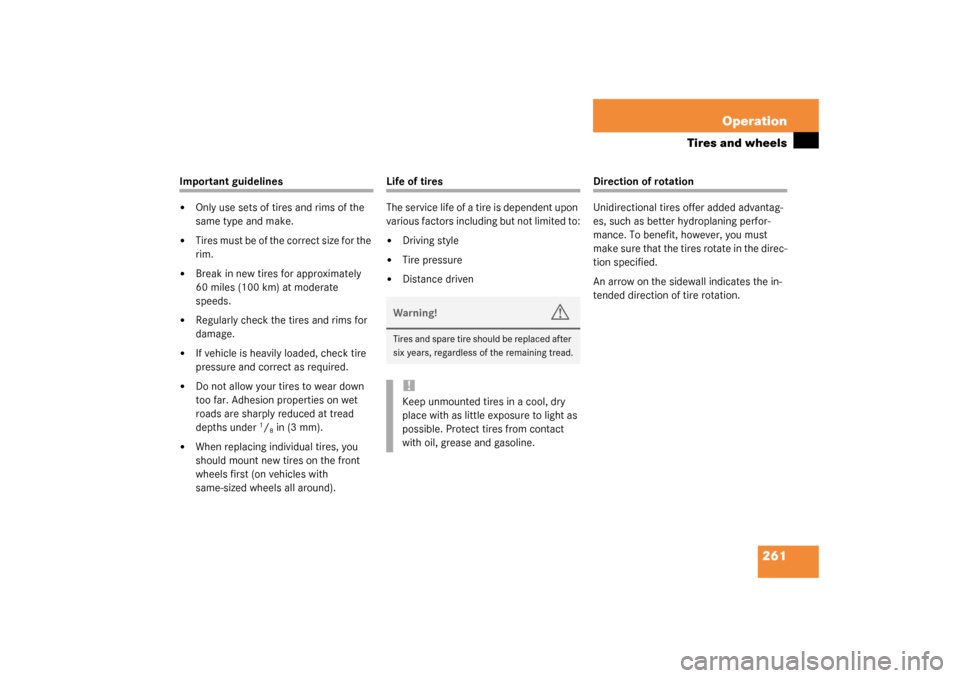

261 Operation
Tires and wheels
Important guidelines
Only use sets of tires and rims of the
same type and make.
Tires must be of the correct size for the
rim.
Break in new tires for approximately
60 miles (100 km) at moderate
speeds.
Regularly check the tires and rims for
damage.
If vehicle is heavily loaded, check tire
pressure and correct as required.
Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).
When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Life of tires
The service life of a tire is dependent upon
various factors including but not limited to:
Driving style
Tire pressure
Distance driven
Direction of rotation
Unidirectional tires offer added advantag-
es, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure that the tires rotate in the direc-
tion specified.
An arrow on the sidewall indicates the in-
tended direction of tire rotation.
Warning!
G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.
Page 318 of 394

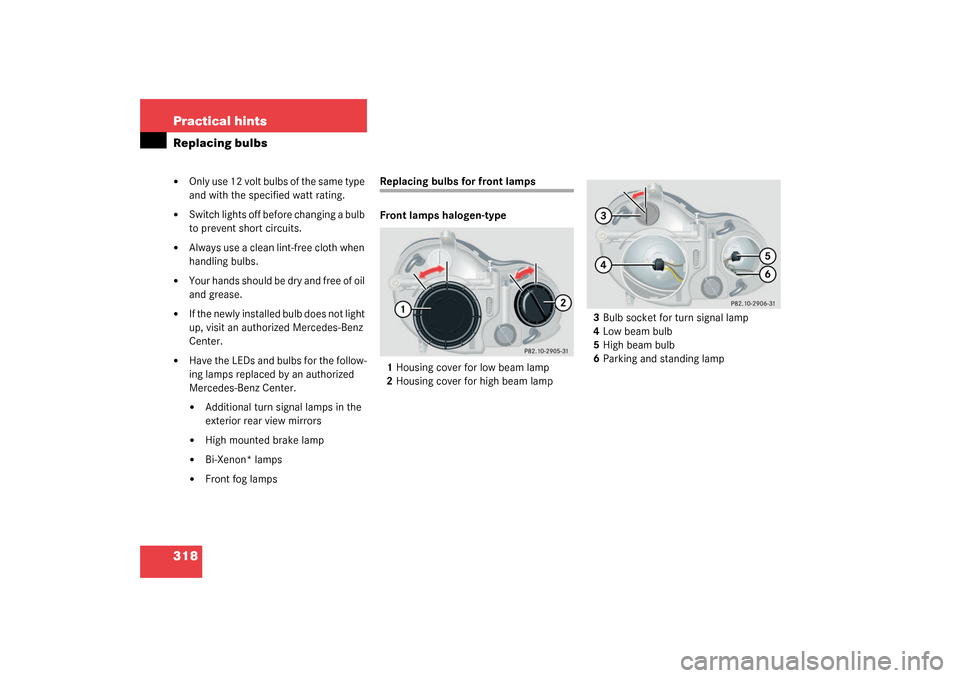

318 Practical hintsReplacing bulbs
Only use 12 volt bulbs of the same type
and with the specified watt rating.
Switch lights off before changing a bulb
to prevent short circuits.
Always use a clean lint-free cloth when
handling bulbs.
Your hands should be dry and free of oil
and grease.
If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.
Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center.
Additional turn signal lamps in the
exterior rear view mirrors
High mounted brake lamp
Bi-Xenon* lamps
Front fog lamps
Replacing bulbs for front lamps
Front lamps halogen-type
1Housing cover for low beam lamp
2Housing cover for high beam lamp3Bulb socket for turn signal lamp
4Low beam bulb
5High beam bulb
6Parking and standing lamp
