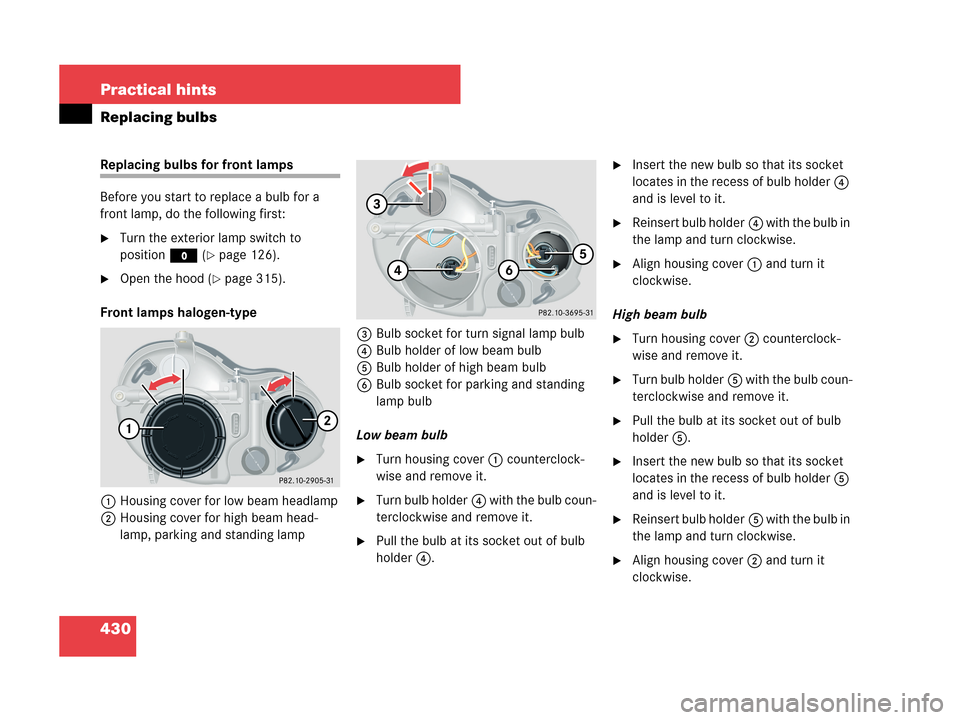

Page 431 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 430 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page

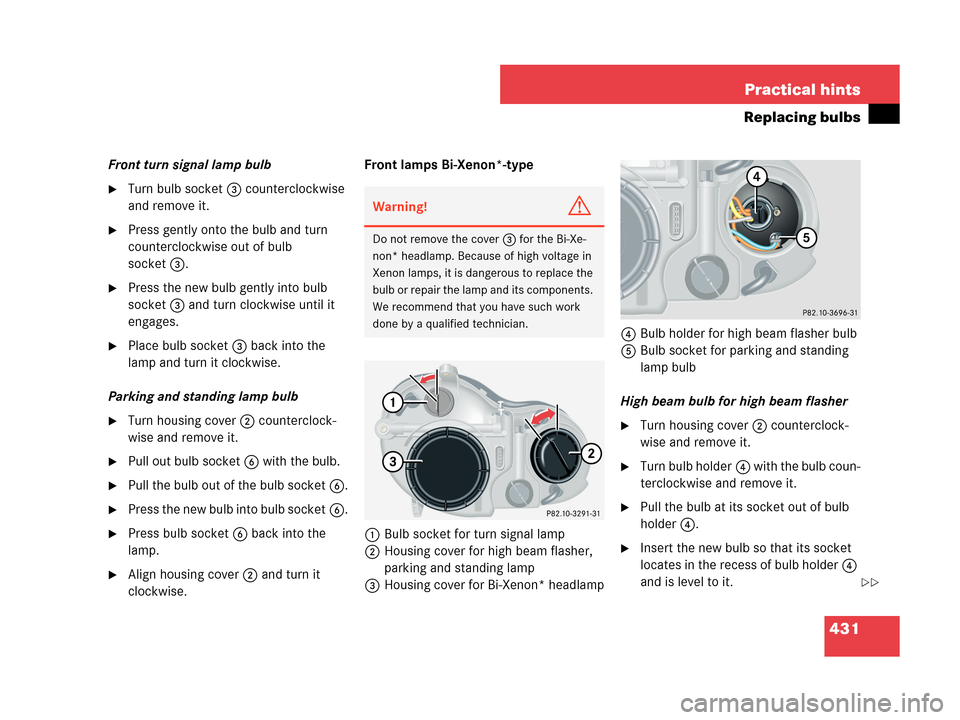

Page 432 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 431 Practical hints
Replacing bulbs
Front turn signal lamp bulb
Turn bulb socket3 counterclockwise
and remove it.
Press gently onto the bulb and turn
counterclockwise out of bulb
socket3.
Press

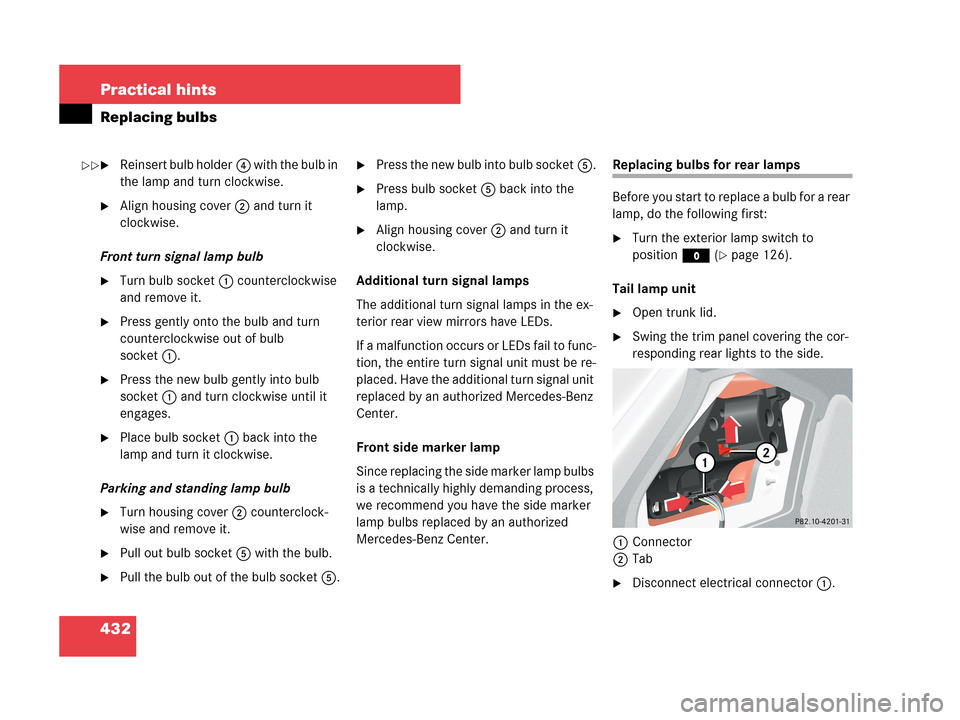

Page 433 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 432 Practical hints
Replacing bulbs
Reinsert bulb holder4 with the bulb in
the lamp and turn clockwise.
Align housing cover2 and turn it
clockwise.
Front turn signal lamp bulb
Turn bulb socket1 c

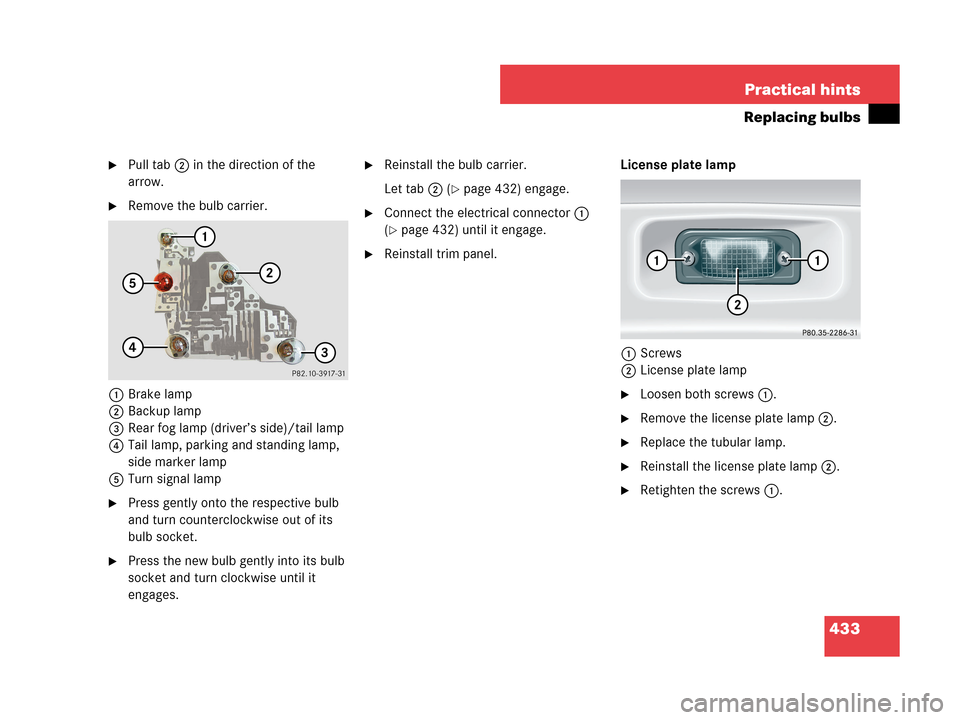

Page 434 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 433 Practical hints
Replacing bulbs
Pull tab2 in the direction of the
arrow.
Remove the bulb carrier.
1Brake lamp
2Backup lamp
3Rear fog lamp (driver’s side)/tail lamp
4Tail lamp, parking and sta

Page 435 of 505

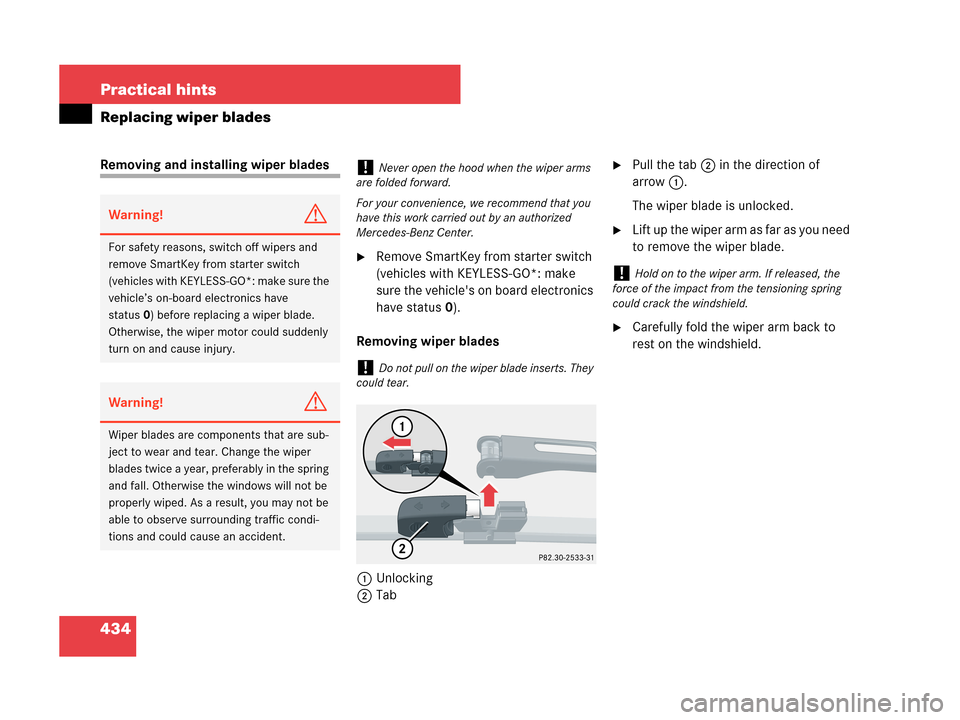

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 434 Practical hints
Replacing wiper blades
Removing and installing wiper blades
Remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: make
sure the vehicles on board electronics
have st

Page 436 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 435 Practical hints
Replacing wiper blades
Installing wiper blades
1Recess
2Tab
3Locking
4Taper piece
5Square recessLift up the wiper arm as far as you need
to position the wiper blade under the
wi

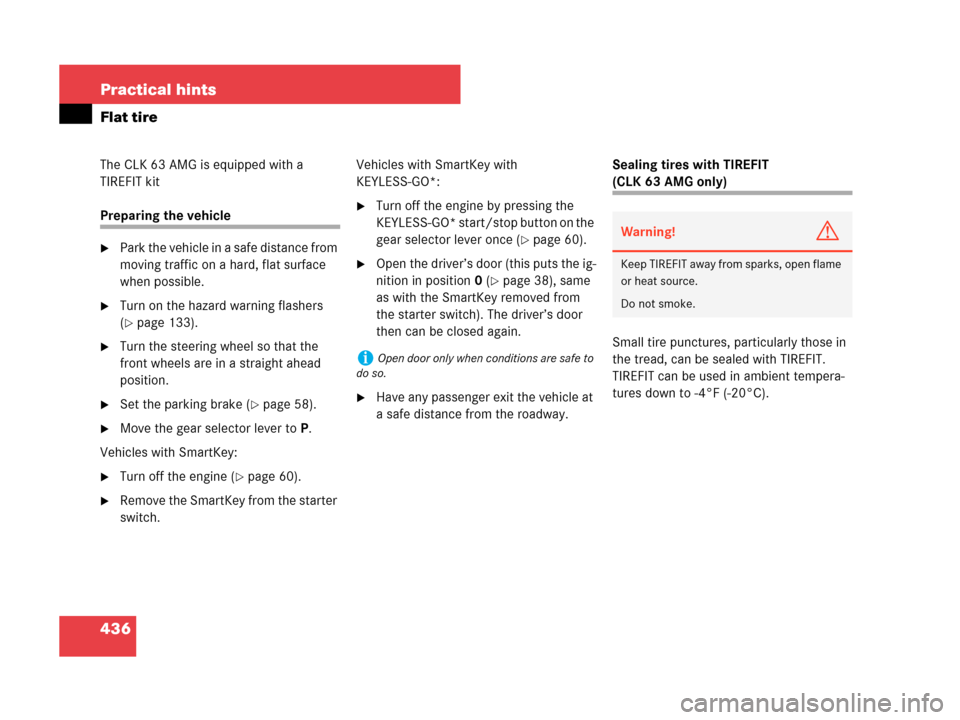

Page 437 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 436 Practical hints
Flat tire
The CLK 63 AMG is equipped with a
TIREFIT kit
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.
Tu

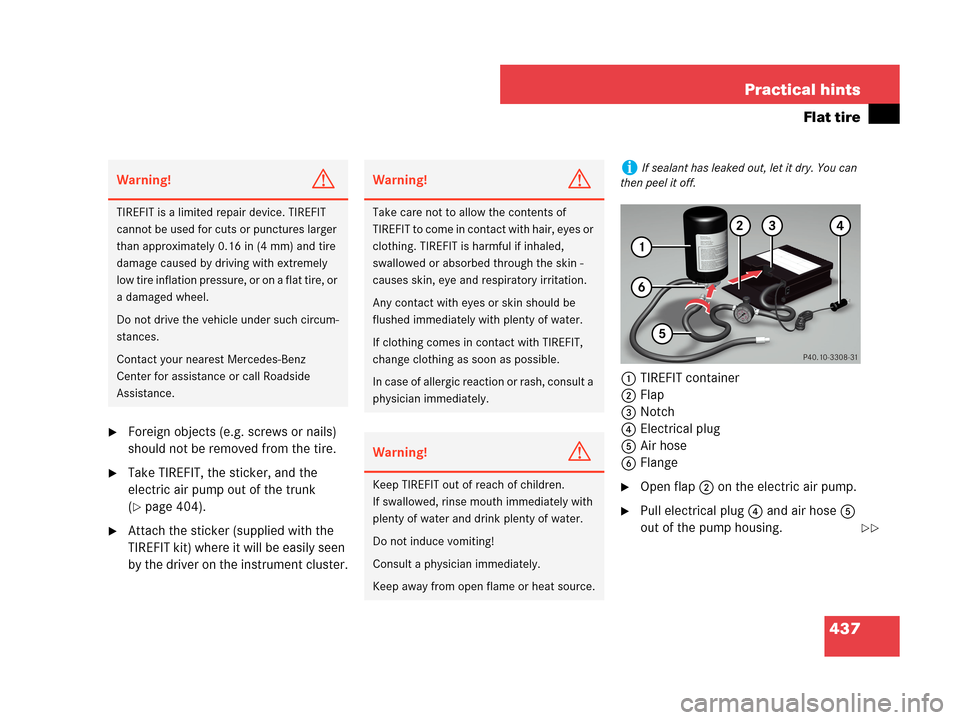

Page 438 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 437 Practical hints
Flat tire
Foreign objects (e.g. screws or nails)
should not be removed from the tire.
Take TIREFIT, the sticker, and the
electric air pump out of the trunk
(
page 404).
Atta

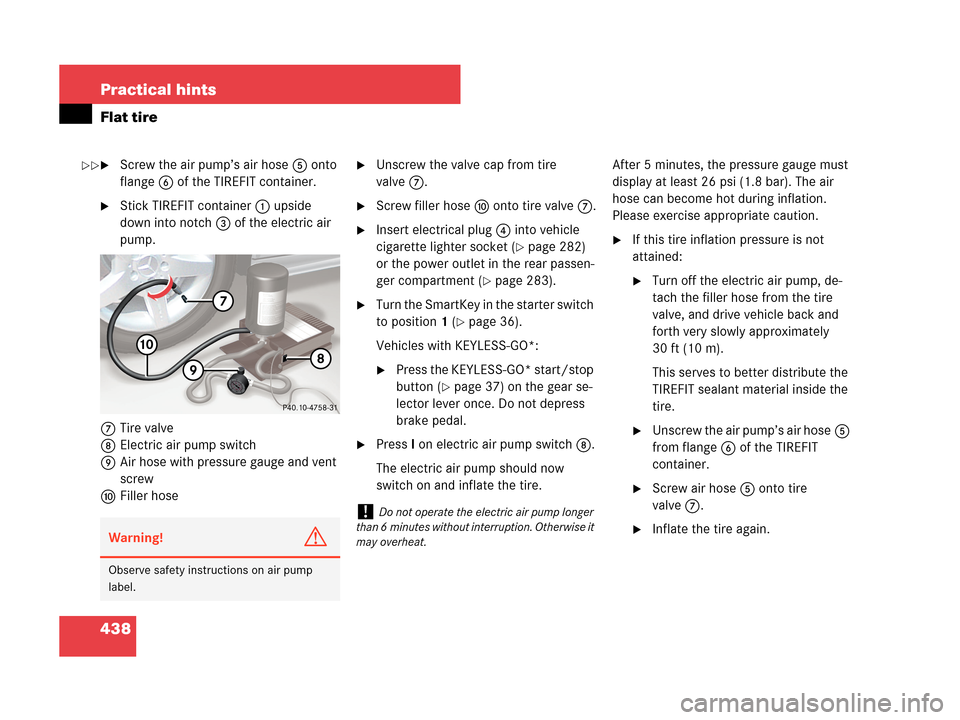

Page 439 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 438 Practical hints
Flat tire
Screw the air pump’s air hose5 onto
flange6 of the TIREFIT container.
Stick TIREFIT container1 upside
down into notch3 of the electric air
pump.
7Tire valve
8Elect

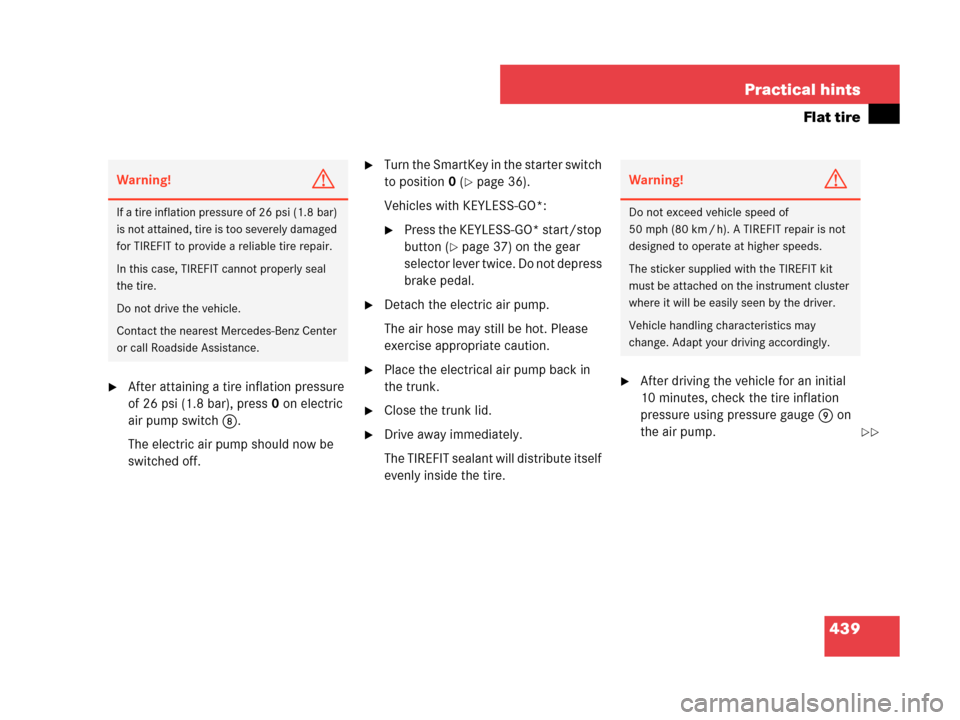

Page 440 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 439 Practical hints
Flat tire
After attaining a tire inflation pressure
of 26 psi (1.8 bar), press0 on electric
air pump switch8.
The electric air pump should now be
switched off.
Turn the SmartK
