MERCEDES-BENZ CLK350 2007 A209 Owner's Manual

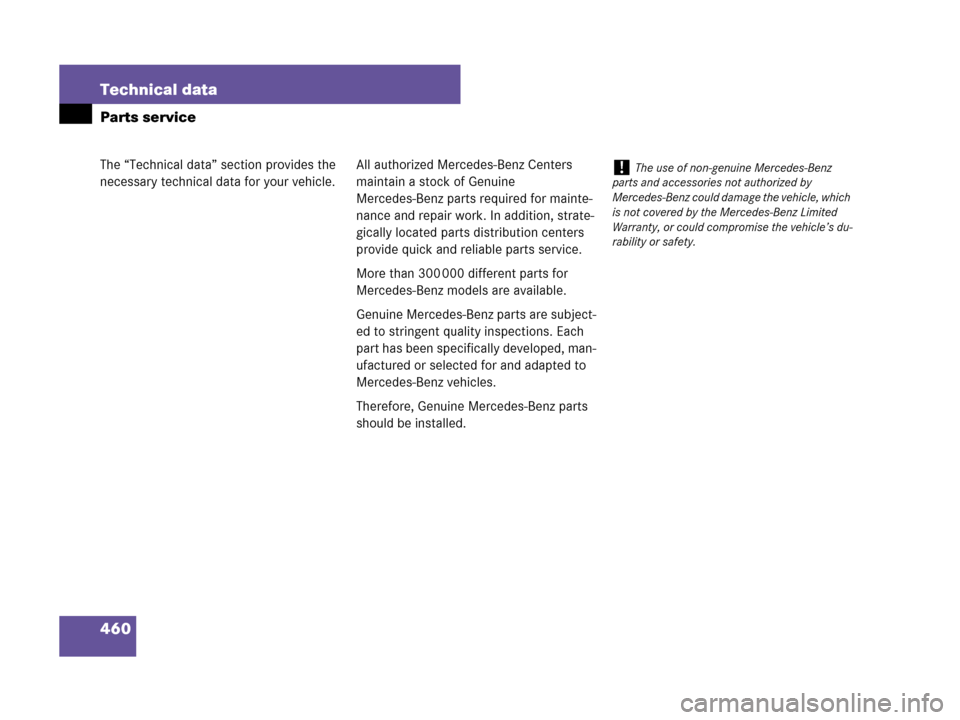

460 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.

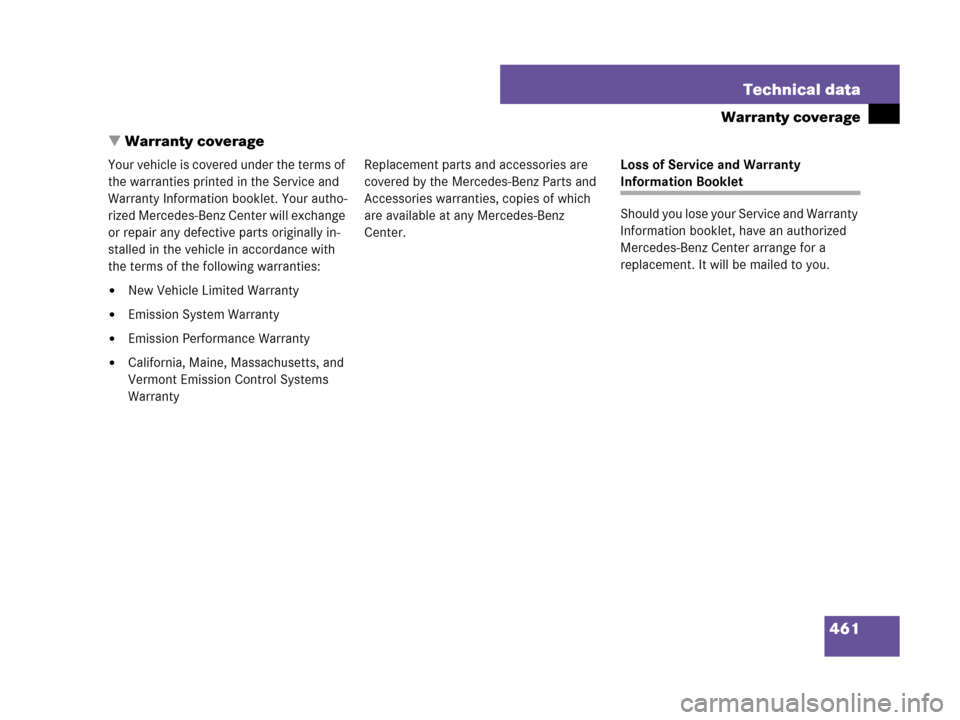

461 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally in-
stalled in the vehicle in accordance with
the terms of the following warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.

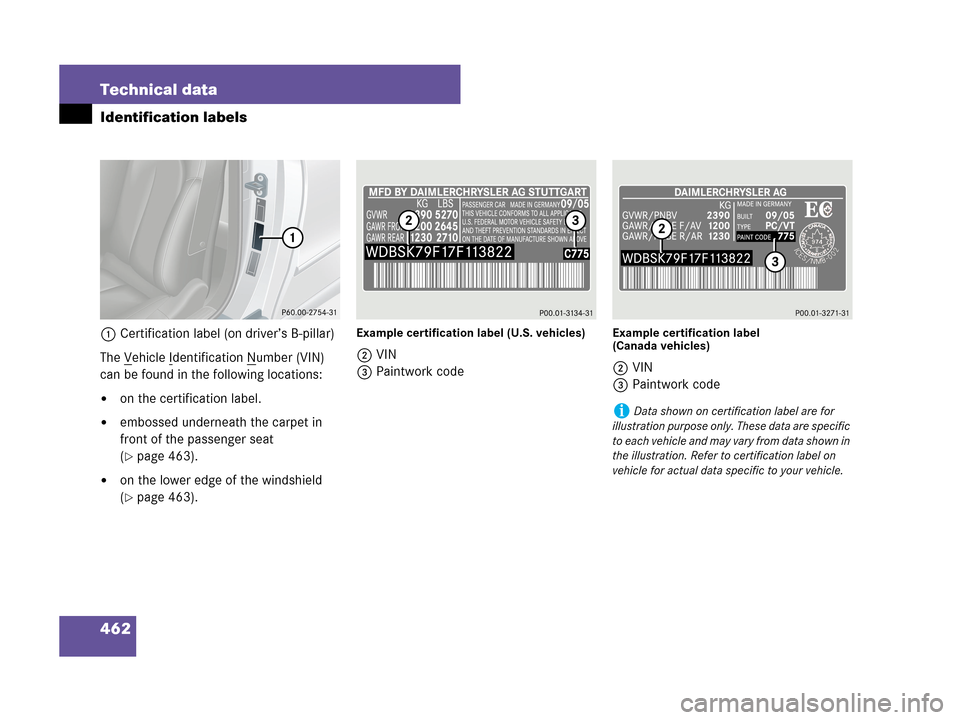

462 Technical data
Identification labels
1Certification label (on driver’s B-pillar)
The V
ehicle Identification Number (VIN)
can be found in the following locations:

on the certification label.

embossed underneath the carpet in
front of the passenger seat
(
page 463).

on the lower edge of the windshield
(
page 463).
Example certification label (U.S. vehicles)
2VIN
3Paintwork code
Example certification label
(Canada vehicles)
2VIN
3Paintwork code
iData shown on certification label are for
illustration purpose only. These data are specific
to each vehicle and may vary from data shown in
the illustration. Refer to certification label on
vehicle for actual data specific to your vehicle.

463 Technical data
Identification labels
4Carpet
5VIN
Move the passenger seat to the rear as
far as possible.
Fold carpet4 in direction of arrow.
VIN5 is visible.6Emission control information label,
includes both federal and California
certification exhaust emission
standards
7Vacuum line routing diagram label
8VIN (lower edge of windshield)
9Engine number (engraved on engine)
iWhen ordering parts, please specify vehicle
identification and engine numbers.

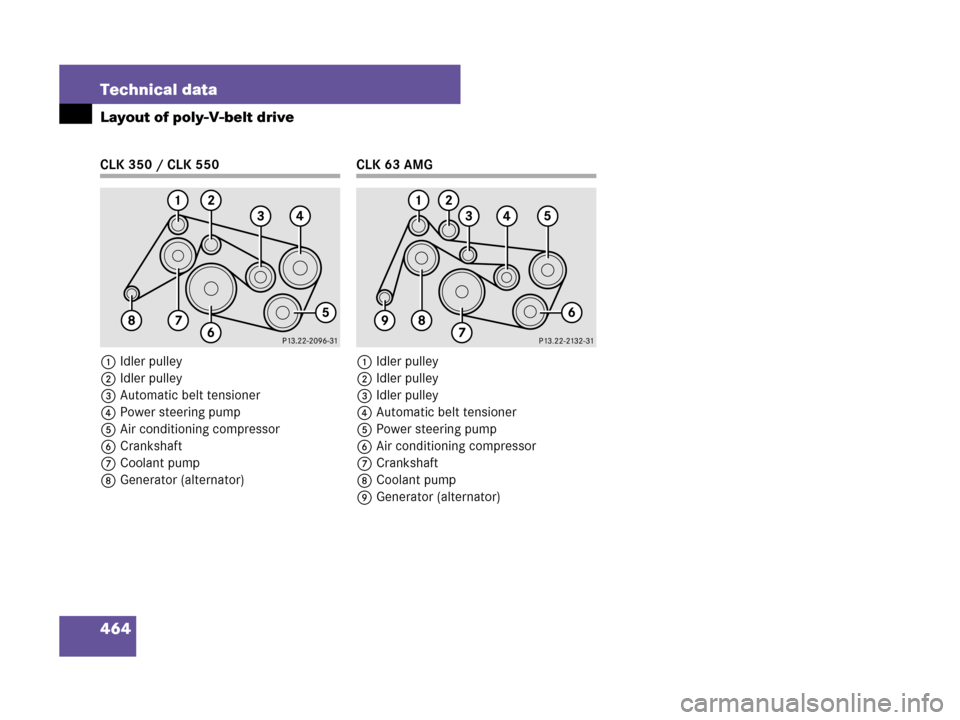

464 Technical data
Layout of poly-V-belt drive
CLK 350 / CLK 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)CLK 63 AMG
1Idler pulley
2Idler pulley
3Idler pulley
4Automatic belt tensioner
5Power steering pump
6Air conditioning compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

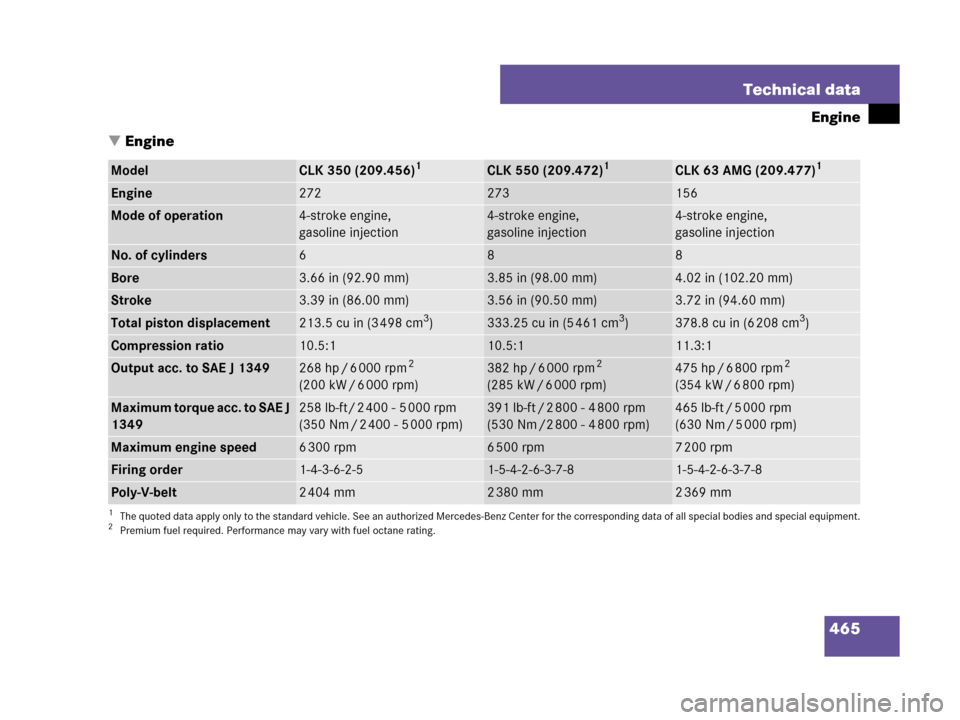

465 Technical data
Engine
Engine
ModelCLK 350 (209.456)1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 550 (209.472)1CLK 63 AMG (209.477)1
Engine272273156
Mode of operation4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection
No. of cylinders688
Bore3.66 in (92.90 mm)3.85 in (98.00 mm)4.02 in (102.20 mm)
Stroke3.39 in (86.00 mm)3.56 in (90.50 mm)3.72 in (94.60 mm)
Total piston displacement213.5 cu in (3 498 cm3)333.25 cu in (5 461 cm3)378.8 cu in (6 208 cm3)
Compression ratio10.5:110.5:111.3:1
Output acc. to SAE J 1349268 hp / 6 000 rpm2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
382 hp / 6 000 rpm2
(285 kW / 6 000 rpm)
475 hp / 6 800 rpm2
(354 kW / 6 800 rpm)
Maximum torque acc. to SAE J
1349258 lb-ft/ 2 400 - 5 000 rpm
(350 Nm / 2 400 - 5 000 rpm)391 lb-ft / 2 800 - 4 800 rpm
(530 Nm /2 800 - 4 800 rpm)465 lb-ft / 5 000 rpm
(630 Nm / 5 000 rpm)
Maximum engine speed6300 rpm6500 rpm7200 rpm
Firing order1-4-3-6-2-51-5-4-2-6-3-7-81-5-4-2-6-3-7-8
Poly-V-belt2404 mm2380 mm2369 mm

466 Technical data
Rims and tires
!Only use tires which have been tested and
approved by Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to provide best
possible performance in conjunction with the
driving safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed for your
vehicle and tested and approved by Mer-
cedes-Benz can be identified by finding the fol-
lowing on the tire’s sidewall:

MO = Mercedes-Benz Original equipment
tires
AMG vehicles:
Does not apply to all approved tires on AMG
vehicles. For information on tested and ap-
proved tires for AMG vehicles, contact an au-
thorized Mercedes-Benz Center.

MOE = Mercedes-Benz Original Extended
(tires with limited run-flat characteristics)
original equipment tires. Using tires other
than those approved by Mercedes-Benz may
result in damage that is not covered by the
Mercedes-Benz Limited Warranty.
iFor information on driving with MOExtended
tires, see “MOExtended system*” (
page 336).
!Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as

poor handling characteristics

increased noise

increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
Damage to the tires or the vehicle may be the
result.
iFurther information on tires and rims is
available at any authorized Mercedes-Benz Cen-
ter. A placard with the recommended tire infla-
tion pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire inflation pressure information for driving at
high speeds (
page 332) or for vehicle loads
less than the maximum loaded vehicle condition
(
page 331).If such information is provided, it can be found
on the placard located on the inside of the fuel
filler flap. The tire inflation pressure should be
checked regularly and should only be adjusted
on cold tires. Follow tire manufacturer’s mainte-
nance recommendation included with vehicle.
iThe following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Appearance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. See an authorized Mercedes-Benz
Center for more information.

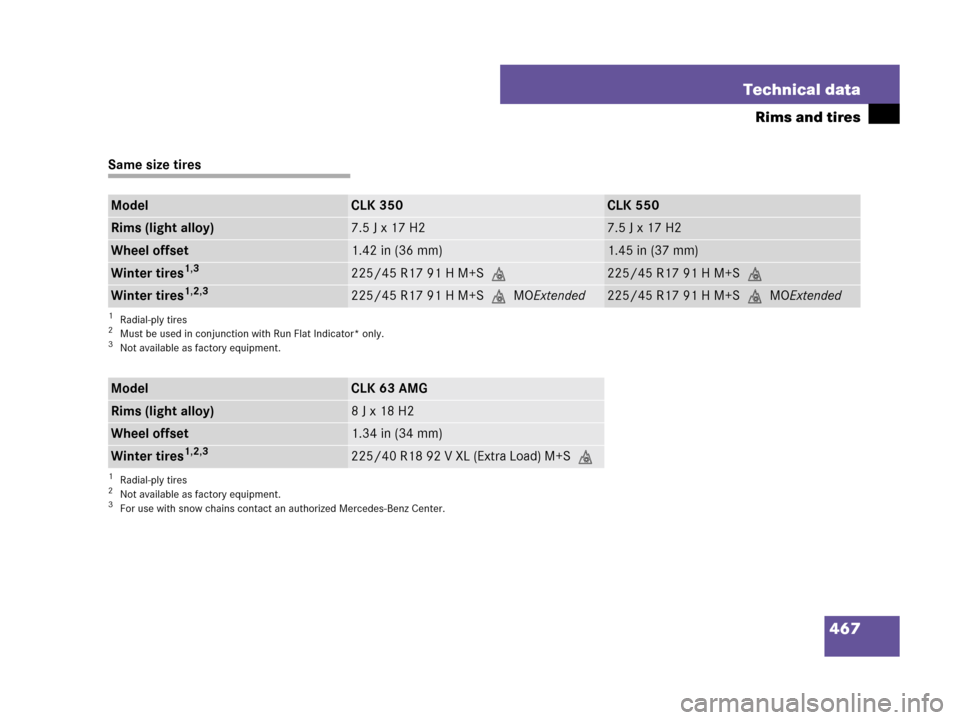

467 Technical data
Rims and tires
Same size tires
ModelCLK 350CLK 550
Rims (light alloy)7.5 J x 17 H27.5 J x 17 H2
Wheel offset1.42 in (36 mm)1.45 in (37 mm)
Winter tires1,3
1Radial-ply tires
225/45 R17 91 H M+S.225/45 R17 91 H M+S.
Winter tires1,2,3
2Must be used in conjunction with Run Flat Indicator* only. 3Not available as factory equipment.
225/45 R17 91 H M+S.MOExtended225/45 R17 91 H M+S.MOExtended
ModelCLK 63 AMG
Rims (light alloy)8 J x 18 H2
Wheel offset1.34 in (34 mm)
Winter tires1,2,3225/40 R18 92 V XL (Extra Load) M+S.
1Radial-ply tires2Not available as factory equipment.3For use with snow chains contact an authorized Mercedes-Benz Center.

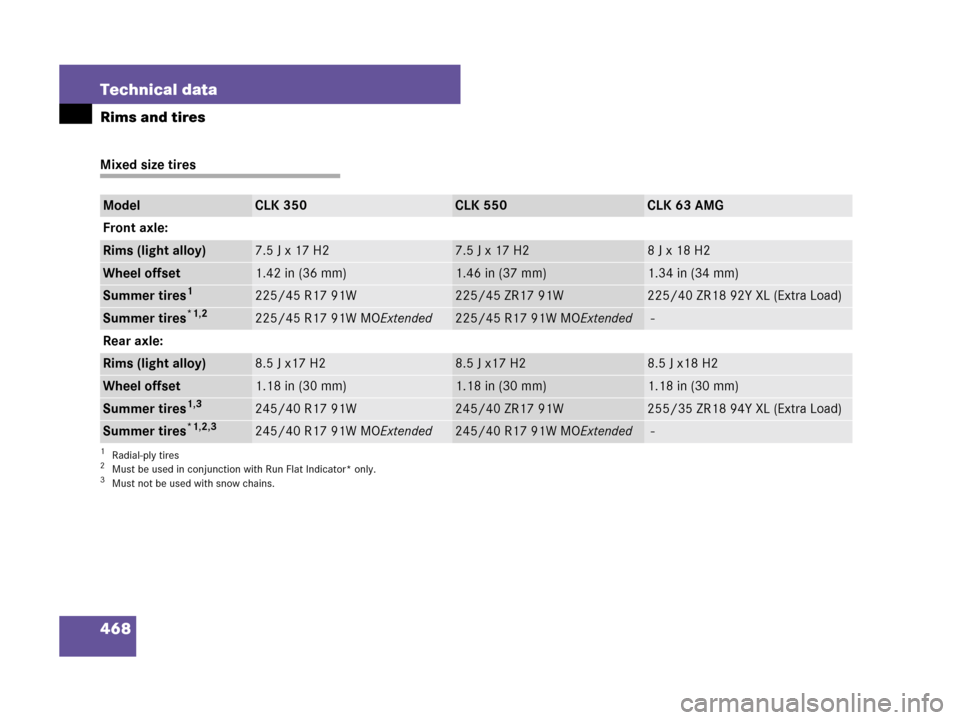

468 Technical data
Rims and tires
Mixed size tires
ModelCLK 350CLK 550CLK 63 AMG
Front axle:
Rims (light alloy)7.5 J x 17 H27.5 J x 17 H28 J x 18 H2
Wheel offset1.42 in (36 mm)1.46 in (37 mm)1.34 in (34 mm)
Summer tires1
1Radial-ply tires
225/45 R17 91W225/45 ZR17 91W225/40 ZR18 92Y XL (Extra Load)
Summer tires*1,2
2Must be used in conjunction with Run Flat Indicator* only.
225/45 R17 91W MOExtended225/45 R17 91W MOExtended -
Rear axle:
Rims (light alloy)8.5 J x17 H28.5 J x17 H28.5 J x18 H2
Wheel offset1.18 in (30 mm)1.18 in (30 mm)1.18 in (30 mm)
Summer tires1,3
3Must not be used with snow chains.
245/40 R17 91W245/40 ZR17 91W255/35 ZR18 94Y XL (Extra Load)
Summer tires*1,2,3245/40 R17 91W MOExtended245/40 R17 91W MOExtended -

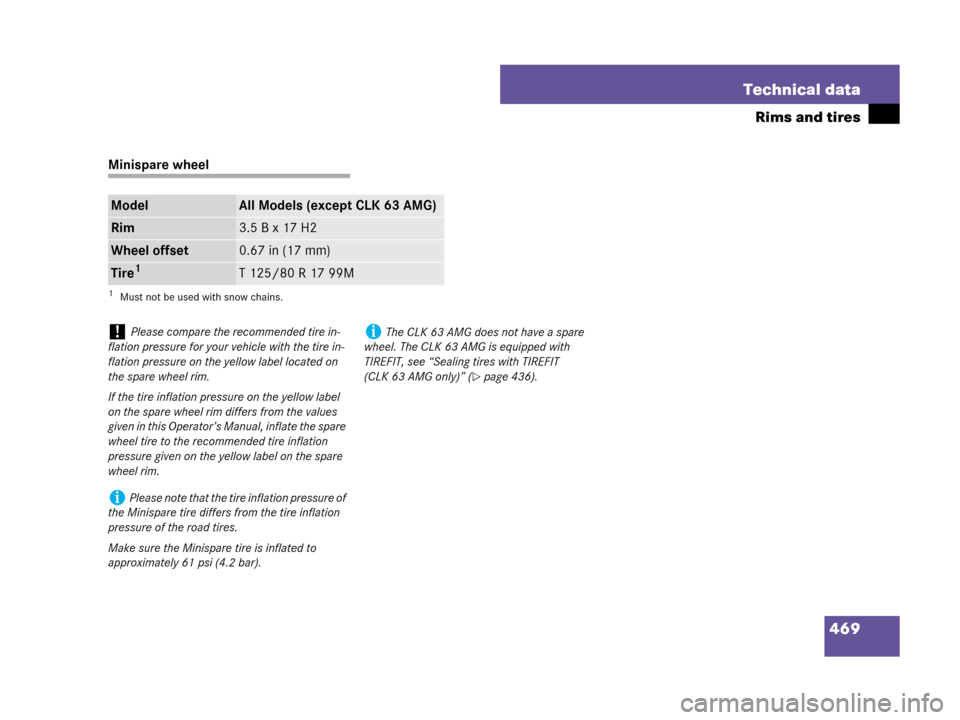

469 Technical data
Rims and tires
Minispare wheel
ModelAll Models (except CLK 63 AMG)
Rim3.5 B x 17 H2
Wheel offset0.67 in (17 mm)
Tire1
1Must not be used with snow chains.
T 125/80 R 17 99M
!Please compare the recommended tire in-
flation pressure for your vehicle with the tire in-
flation pressure on the yellow label located on
the spare wheel rim.
If the tire inflation pressure on the yellow label
on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the spare
wheel tire to the recommended tire inflation
pressure given on the yellow label on the spare
wheel rim.
iPlease note that the tire inflation pressure of
the Minispare tire differs from the tire inflation
pressure of the road tires.
Make sure the Minispare tire is inflated to
approximately 61 psi (4.2 bar).
iThe CLK 63 AMG does not have a spare
wheel. The CLK 63 AMG is equipped with
TIREFIT, see “Sealing tires with TIREFIT
(CLK 63 AMG only)” (
page 436).
