MERCEDES-BENZ CLK350 2008 C209 Owner's Guide

30 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display141
Operating control system142
2Selecting the submenu or
setting the volume:
Press button
æup / to increase
çdown / to decrease
3Telephone*:
Press button
sto take a call
to dial a call170
170
tto end a call
to reject an incoming
call170
170
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display

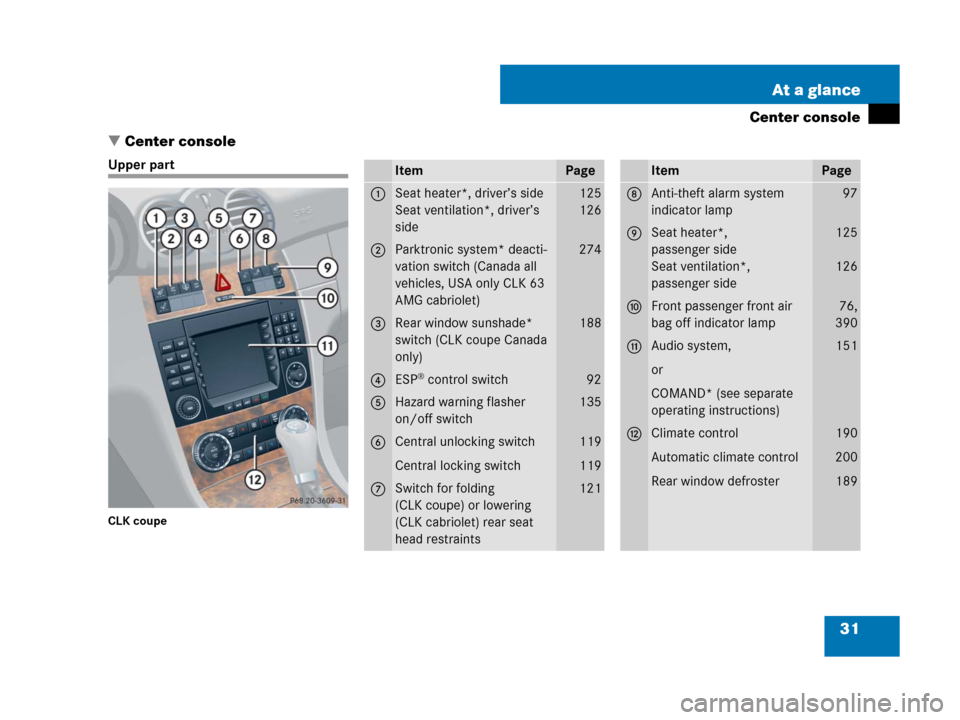

31 At a glance
Center console
Center console
Upper part
CLK coupe
ItemPage
1Seat heater*, driver’s side
Seat ventilation*, driver’s
side125
126
2Parktronic system* deacti-
vation switch (Canada all
vehicles, USA only CLK 63
AMG cabriolet)274
3Rear window sunshade*
switch (CLK coupe Canada
only)188
4ESP® control switch92
5Hazard warning flasher
on/off switch135
6Central unlocking switch
Central locking switch119
119
7Switch for folding
(CLK coupe) or lowering
(CLK cabriolet) rear seat
head restraints121
ItemPage
8Anti-theft alarm system
indicator lamp97
9Seat heater*,
passenger side
Seat ventilation*,
passenger side125
126
aFront passenger front air
bag off indicator lamp 76,
390
bAudio system,
or
COMAND* (see separate
operating instructions)151
cClimate control
Automatic climate control
Rear window defroster 190
200
189

32 At a glance

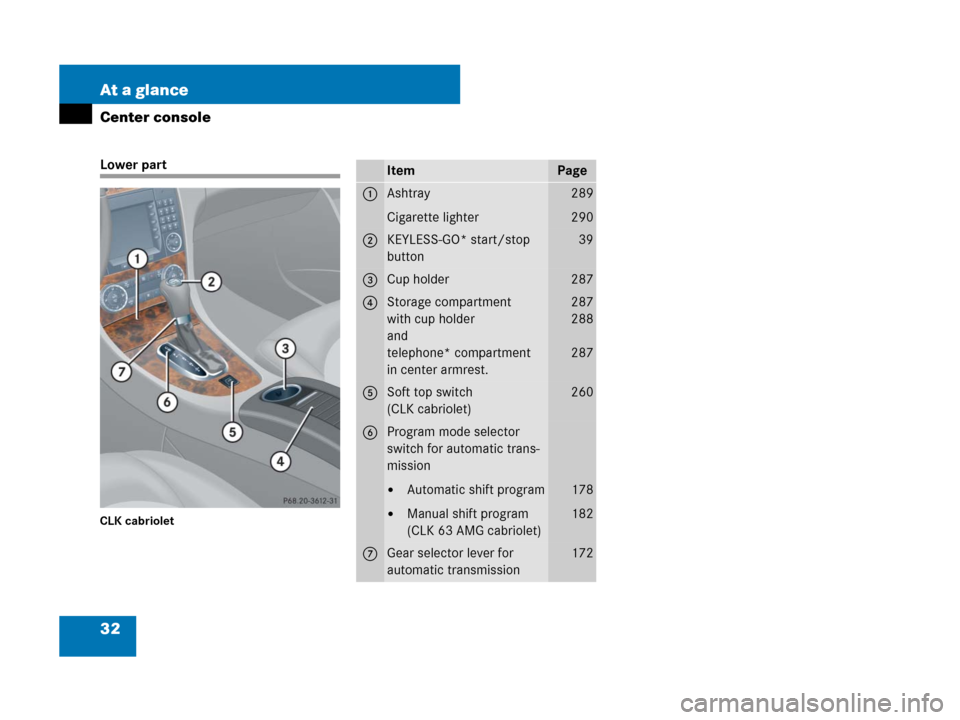

Center console
Lower part
CLK cabriolet
ItemPage
1Ashtray
Cigarette lighter289
290
2KEYLESS-GO* start/stop
button39
3Cup holder287
4Storage compartment
with cup holder
and
telephone* compartment
in center armrest.287
288
287
5Soft top switch
(CLK cabriolet)260
6Program mode selector
switch for automatic trans-
mission

Automatic shift program

Manual shift program
(CLK 63 AMG cabriolet)
178
182
7Gear selector lever for
automatic transmission172

33 At a glance

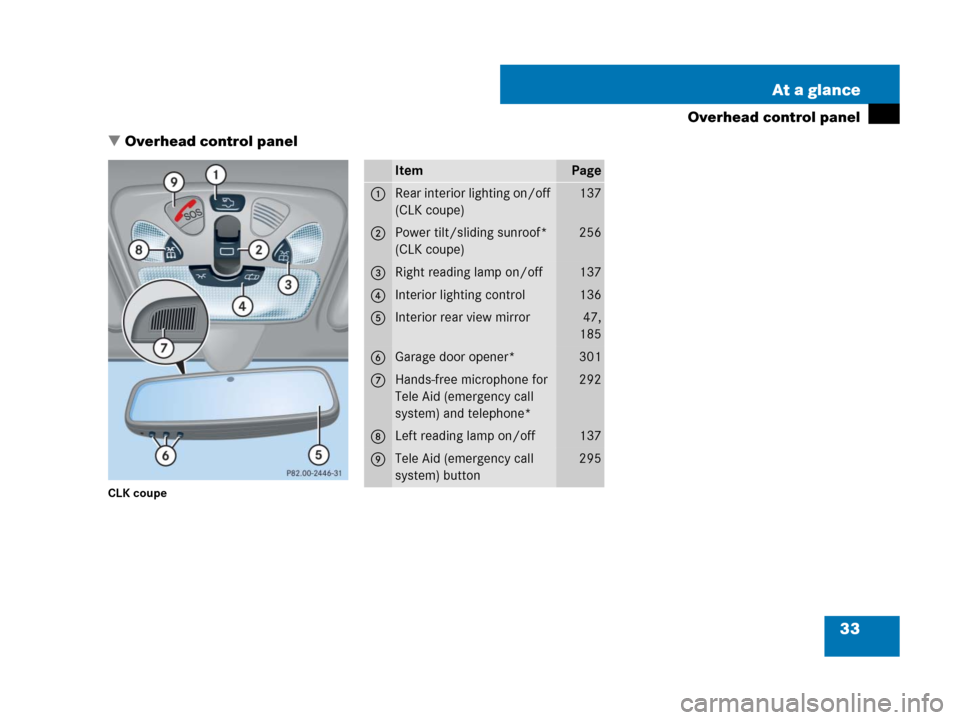

Overhead control panel
Overhead control panel
CLK coupe
ItemPage
1Rear interior lighting on/off
(CLK coupe)137
2Power tilt/sliding sunroof*
(CLK coupe)256
3Right reading lamp on/off137
4Interior lighting control136
5Interior rear view mirror47,
185
6Garage door opener*301
7Hands-free microphone for
Tele Aid (emergency call
system) and telephone*292
8Left reading lamp on/off137
9Tele Aid (emergency call
system) button295

34 At a glance

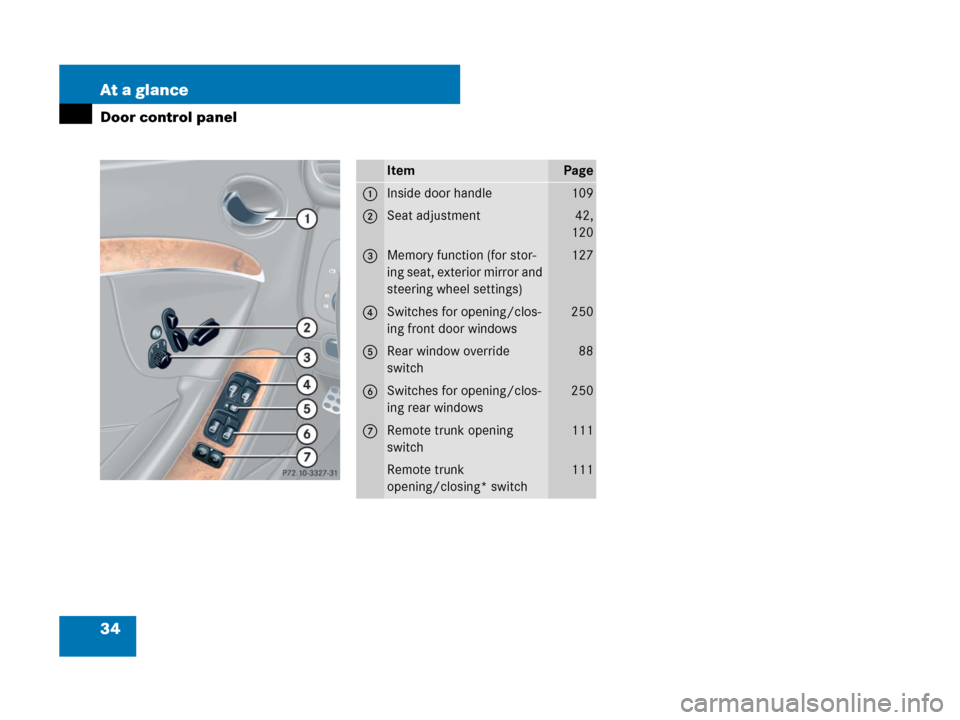

Door control panel
ItemPage
1Inside door handle109
2Seat adjustment42,
120
3Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)127
4Switches for opening/clos-
ing front door windows250
5Rear window override
switch88
6Switches for opening/clos-
ing rear windows250
7Remote trunk opening
switch111
Remote trunk
opening/closing* switch111

35 Getting started
Unlocking
Adjusting
Driving
Parking and locking

36 Getting started
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.
Unlocking
Unlocking with the SmartKey
SmartKey with remote control
1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic button (
page 89)
Press unlock button Πon the
SmartKey.

All turn signal lamps flash once.

An acoustic signal sounds once.
For more information, see “Factory
setting” (
page 106).

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
Enter the vehicle and insert the
SmartKey in the starter switch.

37 Getting started
Unlocking
For more information, see “SmartKey”
(
page 100).
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.Pull an outside door handle.

All turn signal lamps flash once.

An acoustic signal sounds once.
For more information, see “Factory
setting” (
page 106).

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
Enter the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 103).
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
iOpening a door causes the windows on that
side of the car to open slightly. They will return to
the up position when the door is closed.
iTo unlock the vehicle, the SmartKey with
KEYLESS-GO must be outside the vehicle, no fur-
ther than approximately 3 feet (1 meter) away
from the door to be opened.
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an acci-
dent and/or serious personal injury.
iOpening a door causes the windows on that
side of the car to open slightly. They will return to
the up position when the door is closed.

38 Getting started
Unlocking
Starter switch positions
SmartKey
Starter switch
0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch.
1Power supply for some electrical
consumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
All lamps (except low beam headlamp
indicator lamp, high beam headlamp in-
dicator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 378).
3Starting position
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
iWhen you switch on the ignition, the
indicator and warning lamps (except low beam
headlamp indicator lamp, high beam headlamp
indicator lamp, and turn signal indicator lamps
unless activated) in the instrument cluster come
on. The indicator and warning lamps (except low
beam headlamp indicator lamp, high beam head-
lamp indicator lamp, and turn signal indicator
lamps if activated) will go out when the engine is
running. This indicates that the respective sys-
tems are operational.
iThe SmartKey can only be removed from the
starter switch with the gear selector lever in
positionP.
iIf the SmartKey is left in starter switch
position0 for an extended period of time, it can
no longer be turned in the switch. In this case,
the steering is locked. To unlock, remove
SmartKey from starter switch and reinsert.

39 Getting started
Unlocking
For more information, see “SmartKey”
(
page 100).
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 52).SmartKey with KEYLESS-GO*
Pressing the KEYLESS-GO start/stop but-
ton on the gear selector lever corresponds
to turning the SmartKey to the various
starter positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey.
KEYLESS-GO start/stop button
1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.

Check the battery and charge it if necessary
(
page 464).

Get a jump start (page 467).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.
iThe function of the SmartKey overrules the
KEYLESS-GO function.
