MERCEDES-BENZ CLK350 COUPE 2007 C209 Owner's Manual

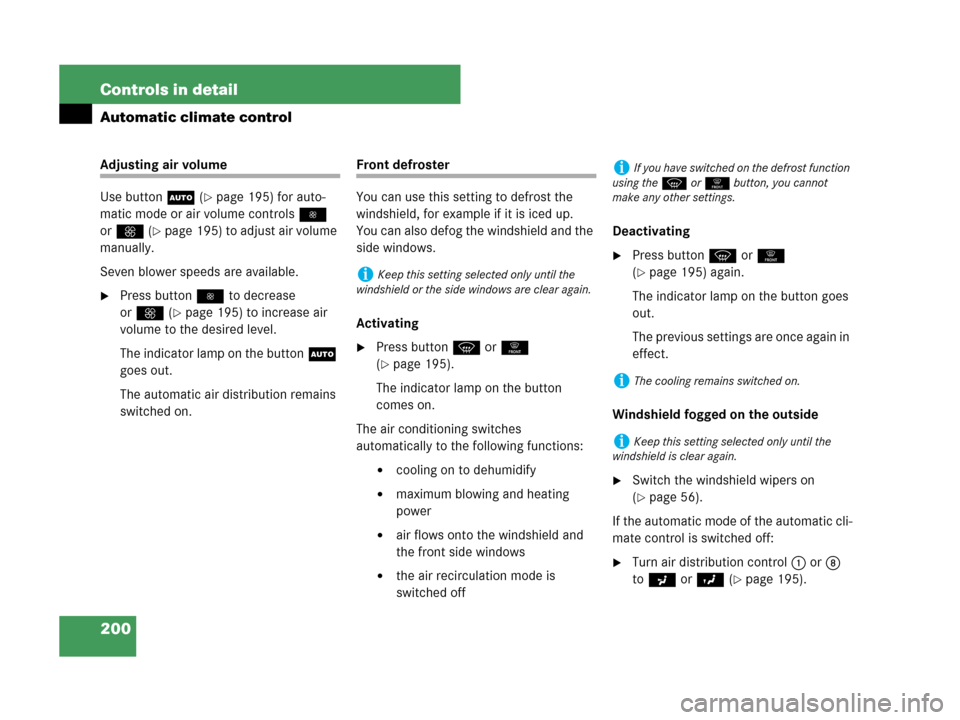

200 Controls in detail
Automatic climate control
Adjusting air volume
Use buttonU (
page 195) for auto-
matic mode or air volume controls

orQ (
page 195) to adjust air volume
manually.
Seven blower speeds are available.
Press button
to decrease
orQ (
page 195) to increase air
volume to the desired level.
The indicator lamp on the buttonU
goes out.
The automatic air distribution remains
switched on.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.
Activating
Press buttonP or0
(
page 195).
The indicator lamp on the button
comes on.
The air conditioning switches
automatically to the following functions:

cooling on to dehumidify

maximum blowing and heating
power

air flows onto the windshield and
the front side windows

the air recirculation mode is
switched offDeactivating
Press buttonP or0
(
page 195) again.
The indicator lamp on the button goes
out.
The previous settings are once again in
effect.
Windshield fogged on the outside
Switch the windshield wipers on
(
page 56).
If the automatic mode of the automatic cli-
mate control is switched off:
Turn air distribution control1 or8
toa orY (
page 195).
iKeep this setting selected only until the
windshield or the side windows are clear again.
iIf you have switched on the defrost function
using thePor0 button, you cannot
make any other settings.
iThe cooling remains switched on.
iKeep this setting selected only until the
windshield is clear again.

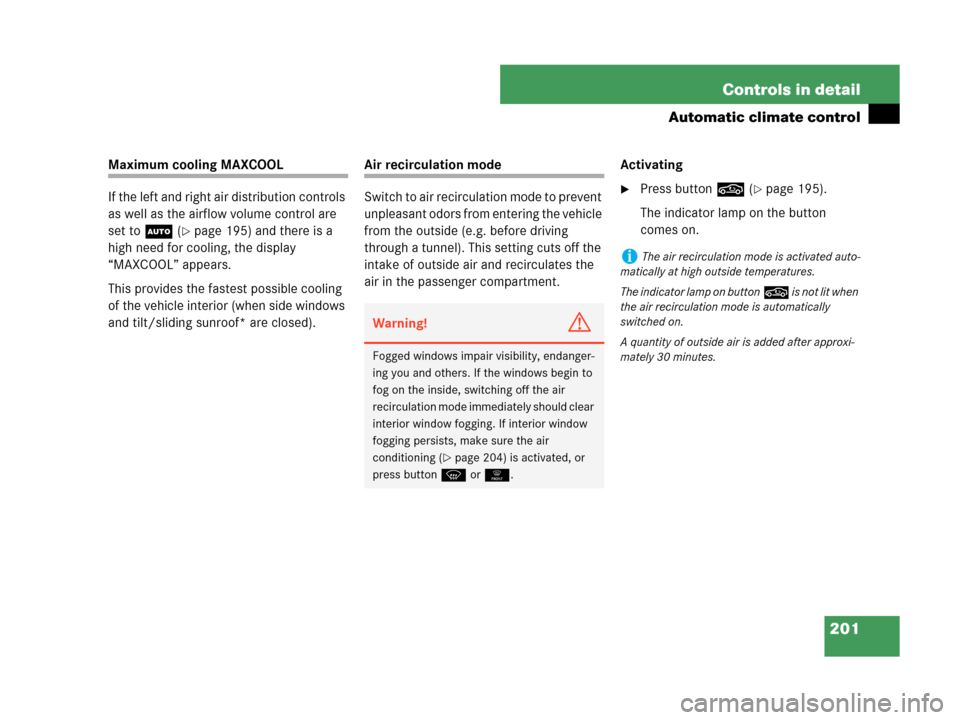

201 Controls in detail
Automatic climate control
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set toU (
page 195) and there is a
high need for cooling, the display
“MAXCOOL” appears.
This provides the fastest possible cooling
of the vehicle interior (when side windows
and tilt/sliding sunroof* are closed).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating
Press button, (page 195).
The indicator lamp on the button
comes on.
Warning!G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 204) is activated, or
press buttonP or 0.
iThe air recirculation mode is activated auto-
matically at high outside temperatures.
The indicator lamp on button, is not lit when
the air recirculation mode is automatically
switched on.
A quantity of outside air is added after approxi-
mately 30 minutes.

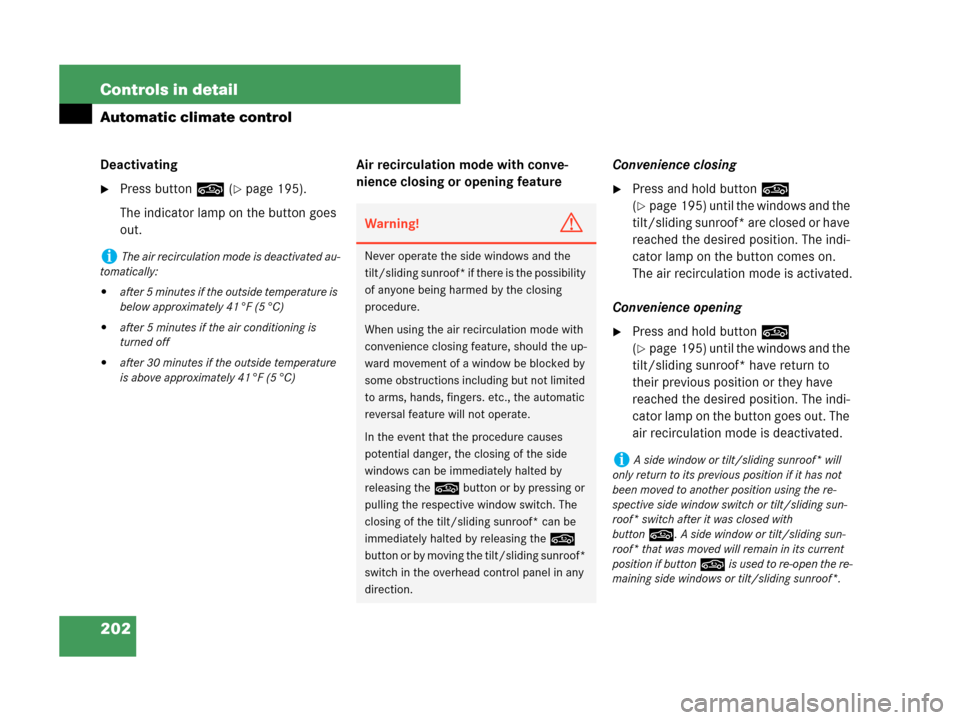

202 Controls in detail
Automatic climate control
Deactivating
Press button, (page 195).
The indicator lamp on the button goes
out.Air recirculation mode with conve-
nience closing or opening featureConvenience closingPress and hold button,
(
page 195) until the windows and the
tilt/sliding sunroof* are closed or have
reached the desired position. The indi-
cator lamp on the button comes on.
The air recirculation mode is activated.
Convenience opening
Press and hold button,
(
page 195) until the windows and the
tilt/sliding sunroof* have return to
their previous position or they have
reached the desired position. The indi-
cator lamp on the button goes out. The
air recirculation mode is deactivated.
iThe air recirculation mode is deactivated au-
tomatically:

after 5 minutes if the outside temperature is
below approximately 41°F (5 °C)

after 5 minutes if the air conditioning is
turned off

after 30 minutes if the outside temperature
is above approximately 41°F (5 °C)
Warning!G
Never operate the side windows and the
tilt/sliding sunroof* if there is the possibility
of anyone being harmed by the closing
procedure.
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstructions including but not limited
to arms, hands, fingers. etc., the automatic
reversal feature will not operate.
In the event that the procedure causes
potential danger, the closing of the side
windows can be immediately halted by
releasing the, button or by pressing or
pulling the respective window switch. The
closing of the tilt/sliding sunroof* can be
immediately halted by releasing the,
button or by moving the tilt/sliding sunroof*
switch in the overhead control panel in any
direction.
iA side window or tilt/sliding sunroof* will
only return to its previous position if it has not
been moved to another position using the re-
spective side window switch or tilt/sliding sun-
roof* switch after it was closed with
button,. A side window or tilt/sliding sun-
roof* that was moved will remain in its current
position if button, is used to re-open the re-
maining side windows or tilt/sliding sunroof*.

203 Controls in detail
Automatic climate control
Charcoal filter
An activated charcoal filter markedly
reduces bad odors and removes pollutants
from air entering the passenger compart-
ment. The charcoal filter can be activated
or deactivated.
The system switches automatically to the
air recirculation mode, if the

charcoal filter is switched on

carbon monoxide (CO) or nitrogen
oxide (NO
X) concentration of the out-
side air increases beyond a predeter-
mined level
Activating
Press buttone (page 195).
The indicator lamp on the button
comes on.Deactivating
Press buttone (page 195).
The indicator lamp on the button goes
out.
iThe automatic air recirculation mode does
not function if theA/C (indicator lamp on
button2 or 9 not lit) mode is deactivat-
ed, or if the outside temperature has fallen
below 41°F (5°C).
iIf you press and hold buttone, the side
windows and tilt/sliding sunroof* will close.
iThe activated charcoal filter should be
switched off when windows fog up on the inside,
or if the passenger compartment needs to be
quickly heated or cooled down.
Warning!G
Never operate the side windows and the
tilt/sliding sunroof* if there is the possibility
of anyone being harmed by the closing
procedure.
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstructions including but not limited
to arms, hands, fingers. etc., the automatic
reversal feature will not operate.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by
releasing thee button or by pressing or
pulling the respective window switch. The
closing of the tilt/sliding sunroof* can be
immediately halted by releasing thee
button or by moving the tilt/sliding sunroof*
switch in the overhead control panel in any
direction.
iIf you press and hold buttone, the side
windows and tilt/sliding sunroof* will return to
their previous position.
A side window or tilt/sliding sunroof* will only
return to its previous position if it has not been
moved to another position using the respective
side window switch or tilt/sliding sunroof*
switch after it was closed with buttone.
A side window or tilt/sliding sunroof* that was
moved will remain in its current position if
buttone is used to re-open the remaining
side windows or tilt/sliding sunroof*.

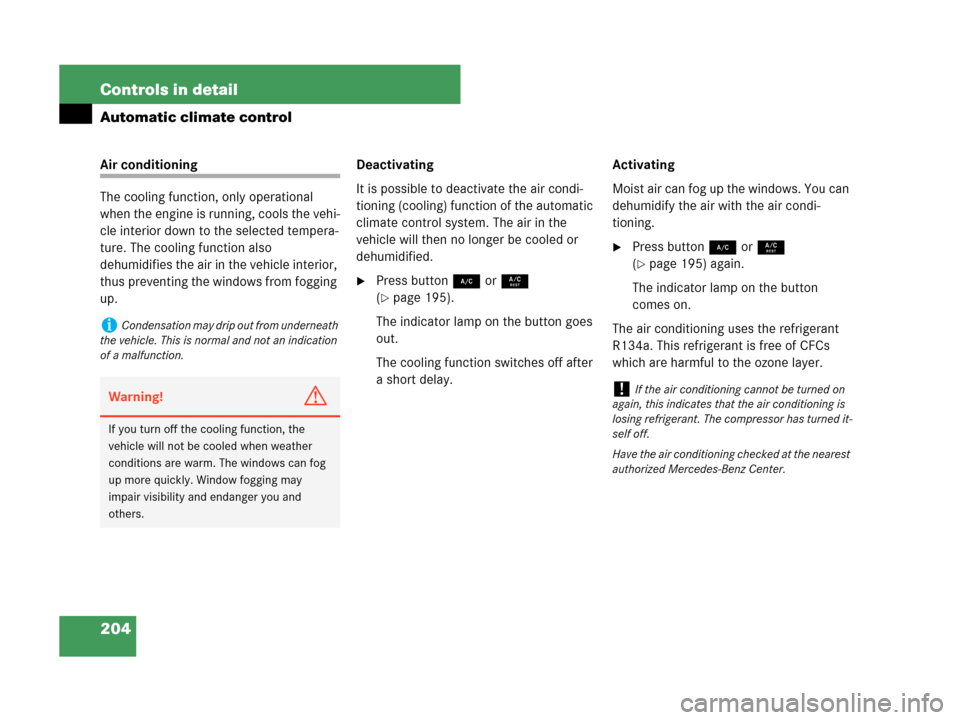

204 Controls in detail
Automatic climate control
Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the
vehicle will then no longer be cooled or
dehumidified.
Press button2or9
(
page 195).
The indicator lamp on the button goes
out.
The cooling function switches off after
a short delay.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condi-
tioning.
Press button2or9
(
page 195) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip out from underneath
the vehicle. This is normal and not an indication
of a malfunction.
Warning!G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.
!If the air conditioning cannot be turned on
again, this indicates that the air conditioning is
losing refrigerant. The compressor has turned it-
self off.
Have the air conditioning checked at the nearest
authorized Mercedes-Benz Center.

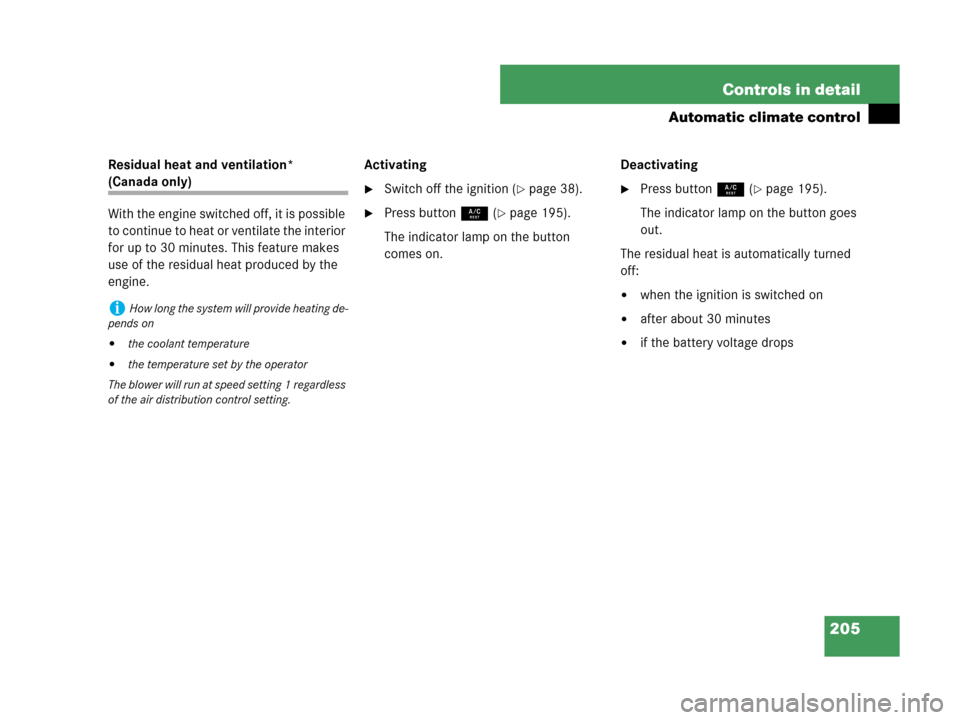

205 Controls in detail
Automatic climate control
Residual heat and ventilation*
(Canada only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.ActivatingSwitch off the ignition (page 38).
Press button9 (page 195).
The indicator lamp on the button
comes on.Deactivating
Press button9 (page 195).
The indicator lamp on the button goes
out.
The residual heat is automatically turned
off:

when the ignition is switched on

after about 30 minutes

if the battery voltage drops
iHow long the system will provide heating de-
pends on

the coolant temperature

the temperature set by the operator
The blower will run at speed setting 1 regardless
of the air distribution control setting.

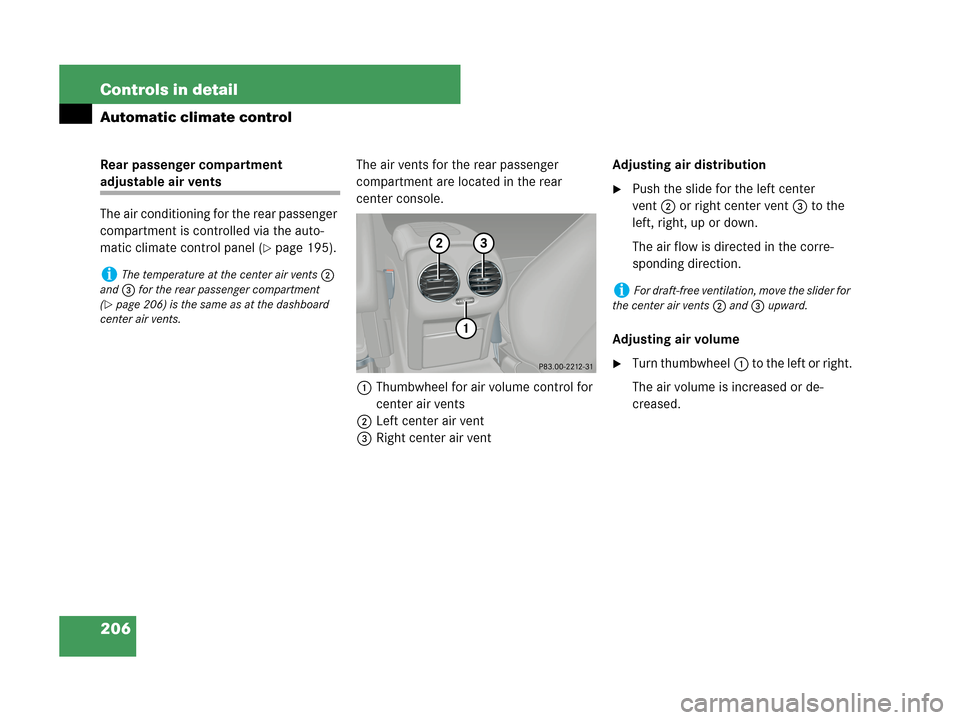

206 Controls in detail
Automatic climate control
Rear passenger compartment
adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 195).The air vents for the rear passenger
compartment are located in the rear
center console.
1Thumbwheel for air volume control for
center air vents
2Left center air vent
3Right center air ventAdjusting air distribution
Push the slide for the left center
vent2 or right center vent3 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume
Turn thumbwheel1 to the left or right.
The air volume is increased or de-
creased.
iThe temperature at the center air vents2
and3 for the rear passenger compartment
(
page 206) is the same as at the dashboard
center air vents.iFor draft-free ventilation, move the slider for
the center air vents2 and3 upward.

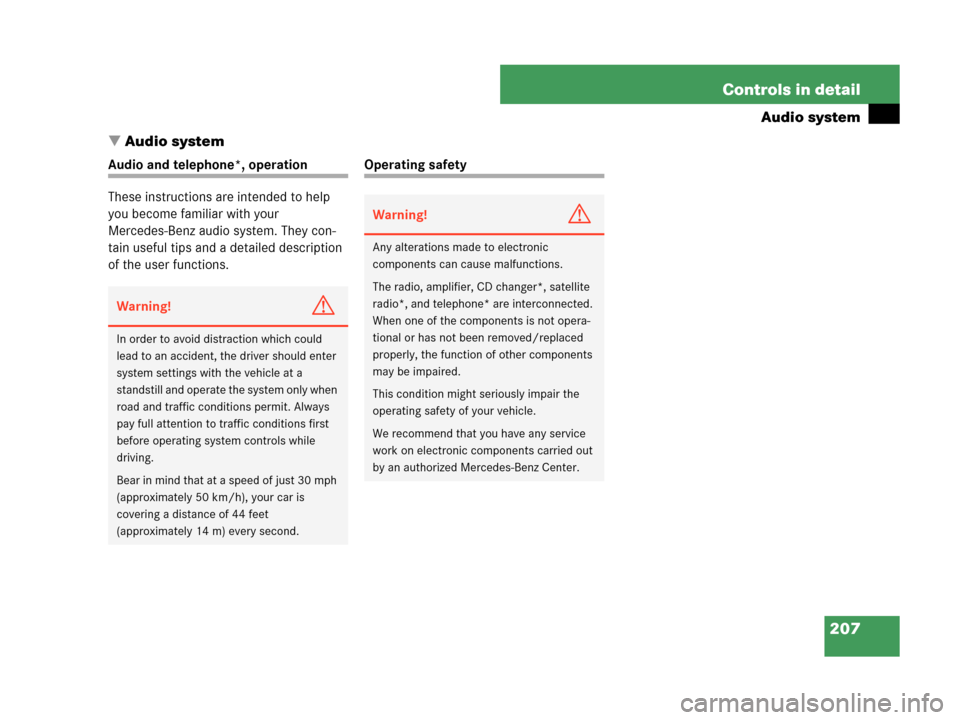

207 Controls in detail
Audio system
Audio system
Audio and telephone*, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.Operating safety
Warning!G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
Warning!G
Any alterations made to electronic
components can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio*, and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.

208 Controls in detail
Audio system

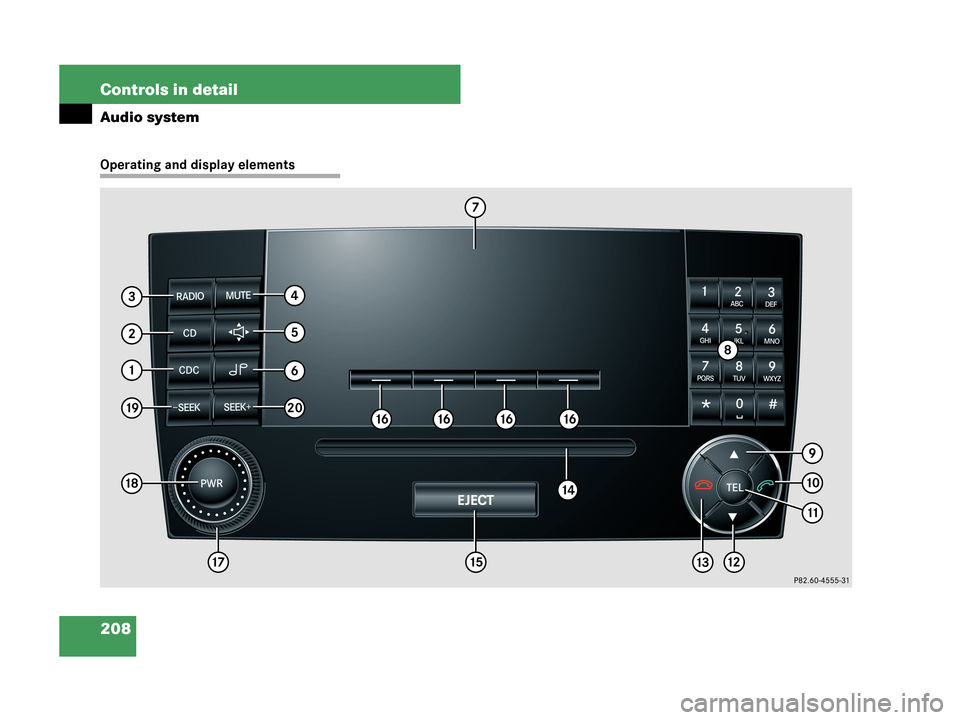

Operating and display elements

209 Controls in detail
Audio system

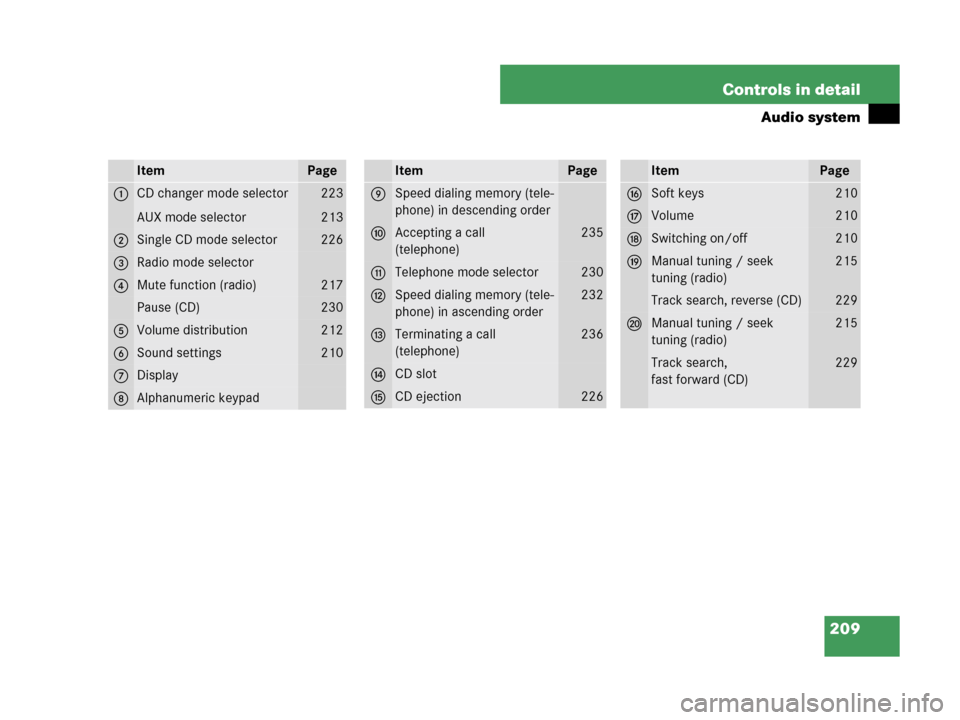

ItemPage
1CD changer mode selector
AUX mode selector223
213
2Single CD mode selector 226
3Radio mode selector
4Mute function (radio)217
Pause (CD)230
5Volume distribution212
6Sound settings210
7Display
8Alphanumeric keypad
ItemPage
9Speed dialing memory (tele-
phone) in descending order
aAccepting a call
(telephone)235
bTelephone mode selector230
cSpeed dialing memory (tele-
phone) in ascending order232
dTerminating a call
(telephone)236
eCD slot
fCD ejection226
ItemPage
gSoft keys210
hVolume210
jSwitching on/off210
kManual tuning / seek
tuning (radio)215
Track search, reverse (CD)229
lManual tuning / seek
tuning (radio)215
Track search,
fast forward (CD)229
