MERCEDES-BENZ CLK350 COUPE 2007 C209 Owner's Manual

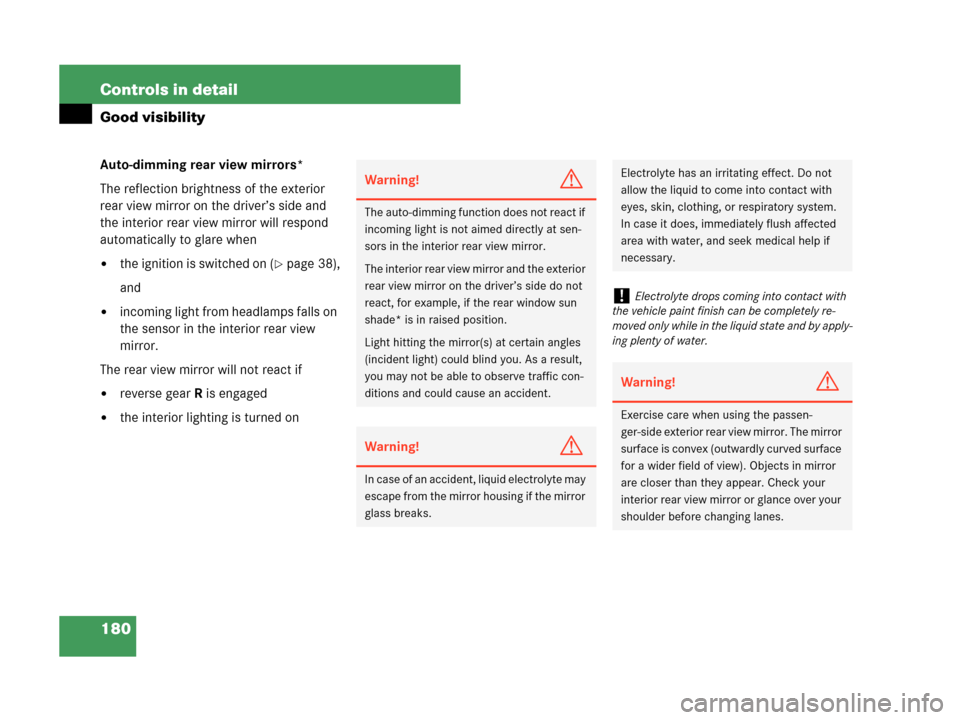

180 Controls in detail
Good visibility
Auto-dimming rear view mirrors*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when

the ignition is switched on (page 38),
and

incoming light from headlamps falls on
the sensor in the interior rear view
mirror.
The rear view mirror will not react if

reverse gearR is engaged

the interior lighting is turned on
Warning!G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window sun
shade* is in raised position.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic con-
ditions and could cause an accident.
Warning!G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact with
the vehicle paint finish can be completely re-
moved only while in the liquid state and by apply-
ing plenty of water.
Warning!G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.

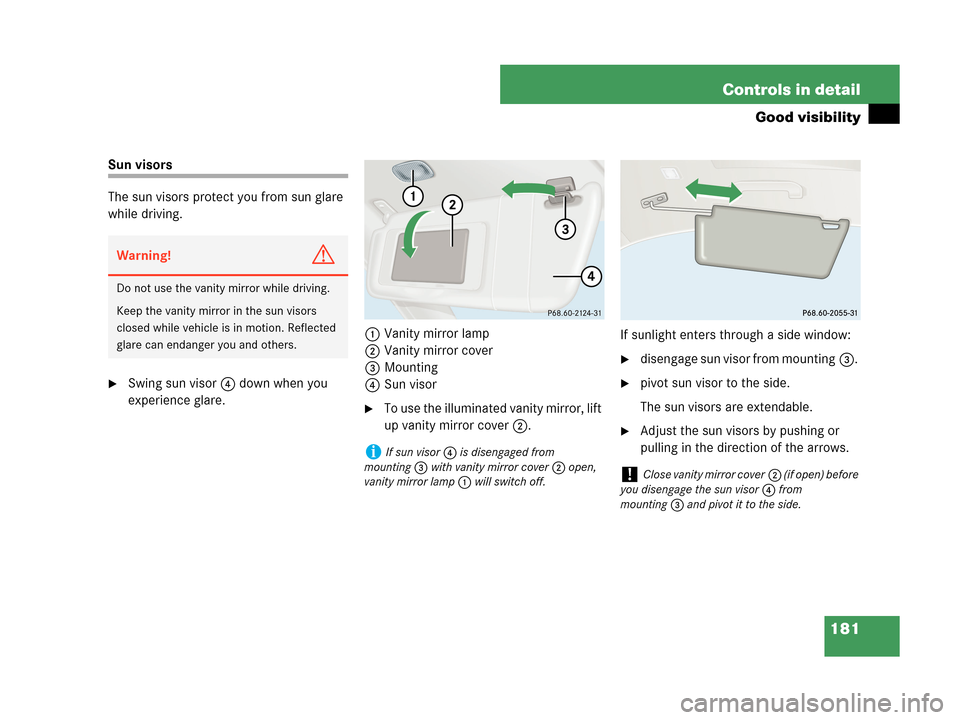

181 Controls in detail
Good visibility
Sun visors
The sun visors protect you from sun glare
while driving.
Swing sun visor4 down when you
experience glare.1Vanity mirror lamp
2Vanity mirror cover
3Mounting
4Sun visor
To use the illuminated vanity mirror, lift
up vanity mirror cover2.If sunlight enters through a side window:
disengage sun visor from mounting3.
pivot sun visor to the side.
The sun visors are extendable.
Adjust the sun visors by pushing or
pulling in the direction of the arrows.
Warning!G
Do not use the vanity mirror while driving.
Keep the vanity mirror in the sun visors
closed while vehicle is in motion. Reflected
glare can endanger you and others.
iIf sun visor4 is disengaged from
mounting3 with vanity mirror cover2 open,
vanity mirror lamp1 will switch off.
!Close vanity mirror cover2 (if open) before
you disengage the sun visor4 from
mounting3 and pivot it to the side.

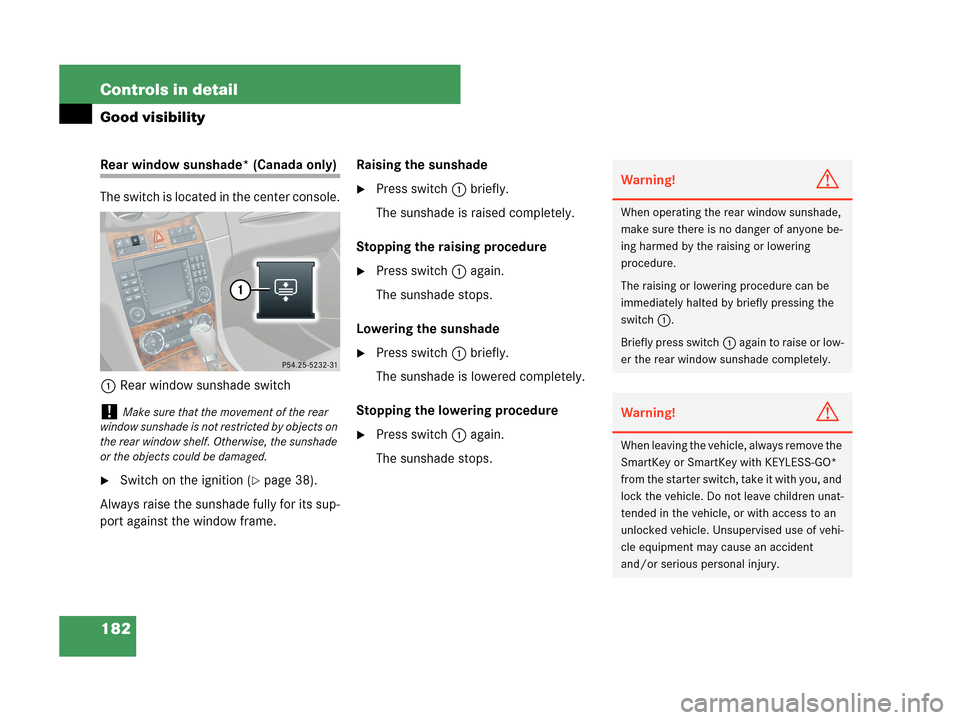

182 Controls in detail
Good visibility
Rear window sunshade* (Canada only)
The switch is located in the center console.
1Rear window sunshade switch
Switch on the ignition (page 38).
Always raise the sunshade fully for its sup-
port against the window frame.Raising the sunshade
Press switch1 briefly.
The sunshade is raised completely.
Stopping the raising procedure
Press switch1 again.
The sunshade stops.
Lowering the sunshade
Press switch1 briefly.
The sunshade is lowered completely.
Stopping the lowering procedure
Press switch1 again.
The sunshade stops.
!Make sure that the movement of the rear
window sunshade is not restricted by objects on
the rear window shelf. Otherwise, the sunshade
or the objects could be damaged.
Warning!G
When operating the rear window sunshade,
make sure there is no danger of anyone be-
ing harmed by the raising or lowering
procedure.
The raising or lowering procedure can be
immediately halted by briefly pressing the
switch1.
Briefly press switch1 again to raise or low-
er the rear window sunshade completely.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

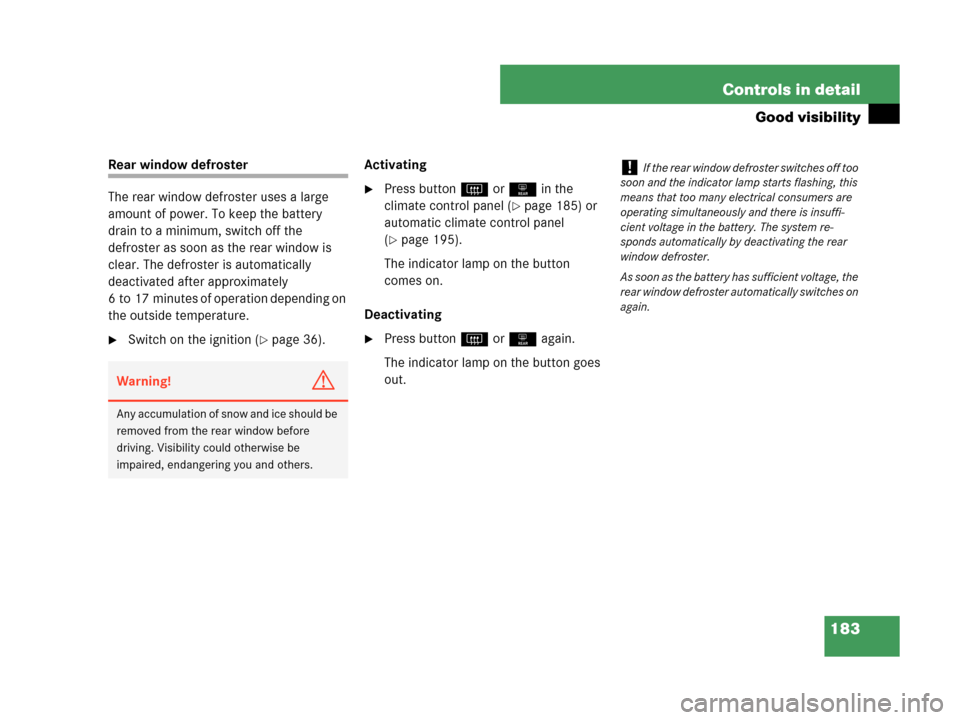

183 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the
defroster as soon as the rear window is
clear. The defroster is automatically
deactivated after approximately
6 to 17 minutes of operation depending on
the outside temperature.
Switch on the ignition (page 36).Activating
Press buttonF or1 in the
climate control panel (
page 185) or
automatic climate control panel
(
page 195).
The indicator lamp on the button
comes on.
Deactivating
Press buttonF or1 again.
The indicator lamp on the button goes
out.
Warning!G
Any accumulation of snow and ice should be
removed from the rear window before
driving. Visibility could otherwise be
impaired, endangering you and others.
!If the rear window defroster switches off too
soon and the indicator lamp starts flashing, this
means that too many electrical consumers are
operating simultaneously and there is insuffi-
cient voltage in the battery. The system re-
sponds automatically by deactivating the rear
window defroster.
As soon as the battery has sufficient voltage, the
rear window defroster automatically switches on
again.

184 Controls in detail
Climate control

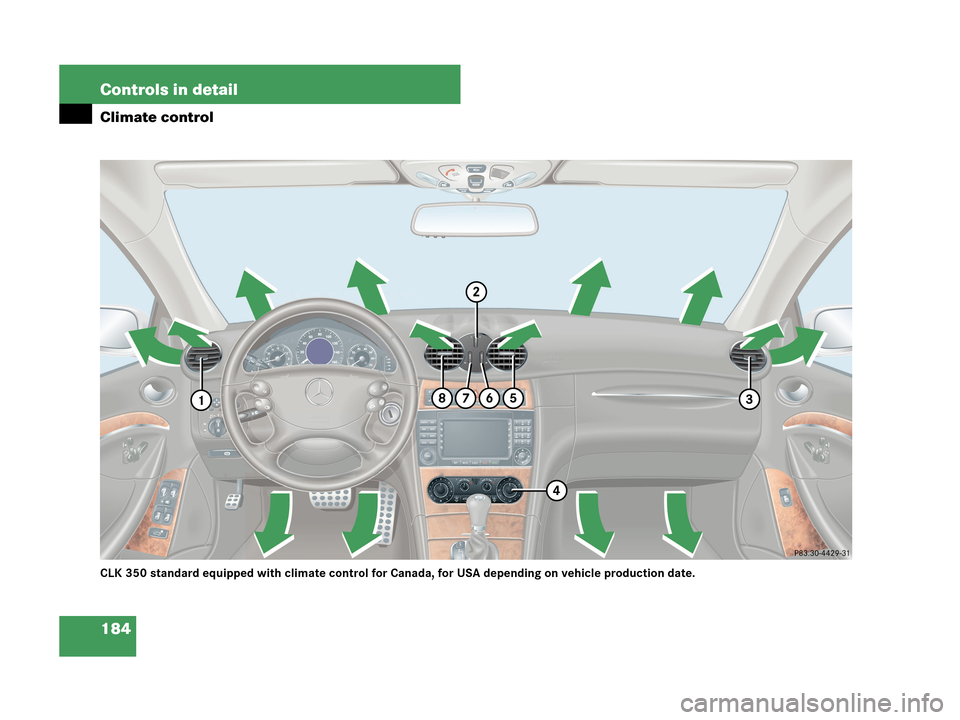

CLK 350 standard equipped with climate control for Canada, for USA depending on vehicle production date.

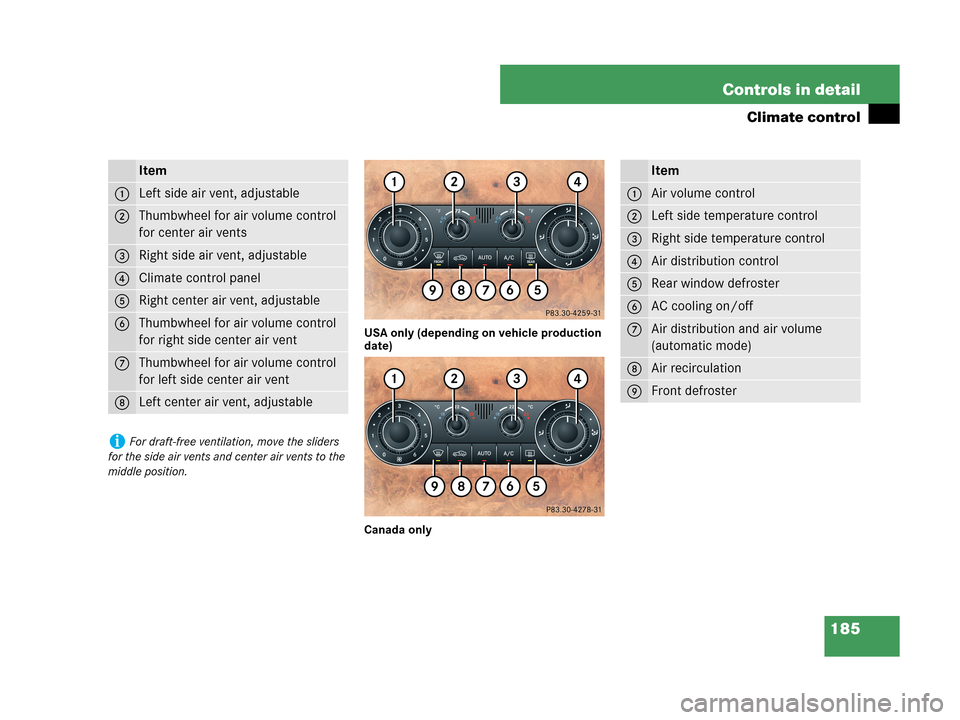

185 Controls in detail
Climate control
USA only (depending on vehicle production
date)
Canada only
Item
1Left side air vent, adjustable
2Thumbwheel for air volume control
for center air vents
3Right side air vent, adjustable
4Climate control panel
5Right center air vent, adjustable
6Thumbwheel for air volume control
for right side center air vent
7Thumbwheel for air volume control
for left side center air vent
8Left center air vent, adjustable
iFor draft-free ventilation, move the sliders
for the side air vents and center air vents to the
middle position.
Item
1Air volume control
2Left side temperature control
3Right side temperature control
4Air distribution control
5Rear window defroster
6AC cooling on/off
7Air distribution and air volume
(automatic mode)
8Air recirculation
9Front defroster

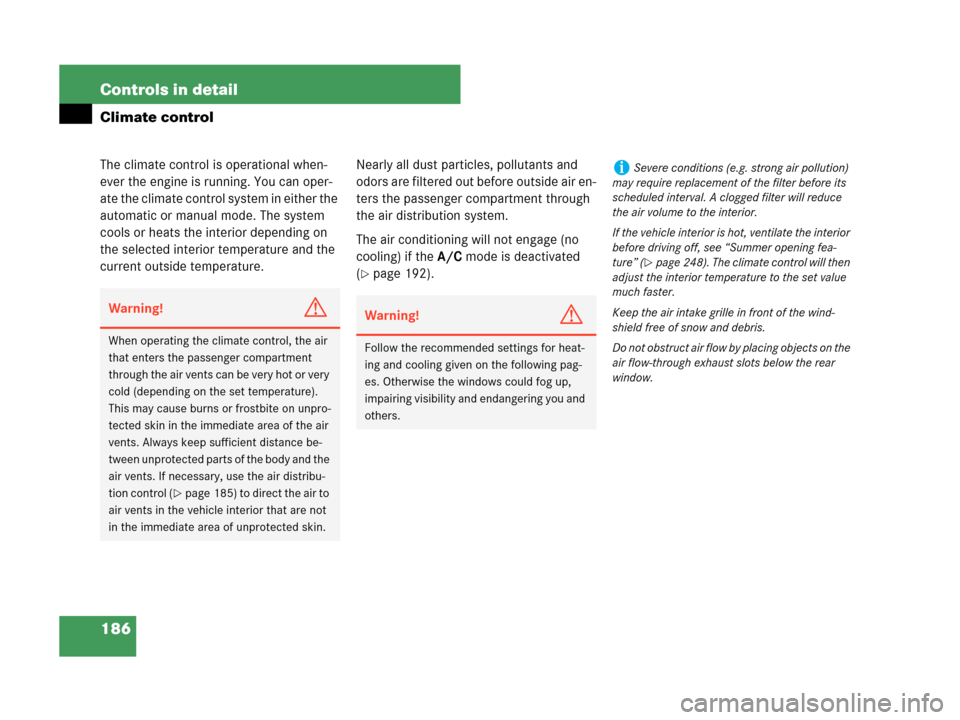

186 Controls in detail
Climate control
The climate control is operational when-
ever the engine is running. You can oper-
ate the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 192).
Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite on unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance be-
tween unprotected parts of the body and the
air vents. If necessary, use the air distribu-
tion control (
page 185) to direct the air to
air vents in the vehicle interior that are not
in the immediate area of unprotected skin.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (
page 248). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
Do not obstruct air flow by placing objects on the
air flow-through exhaust slots below the rear
window.

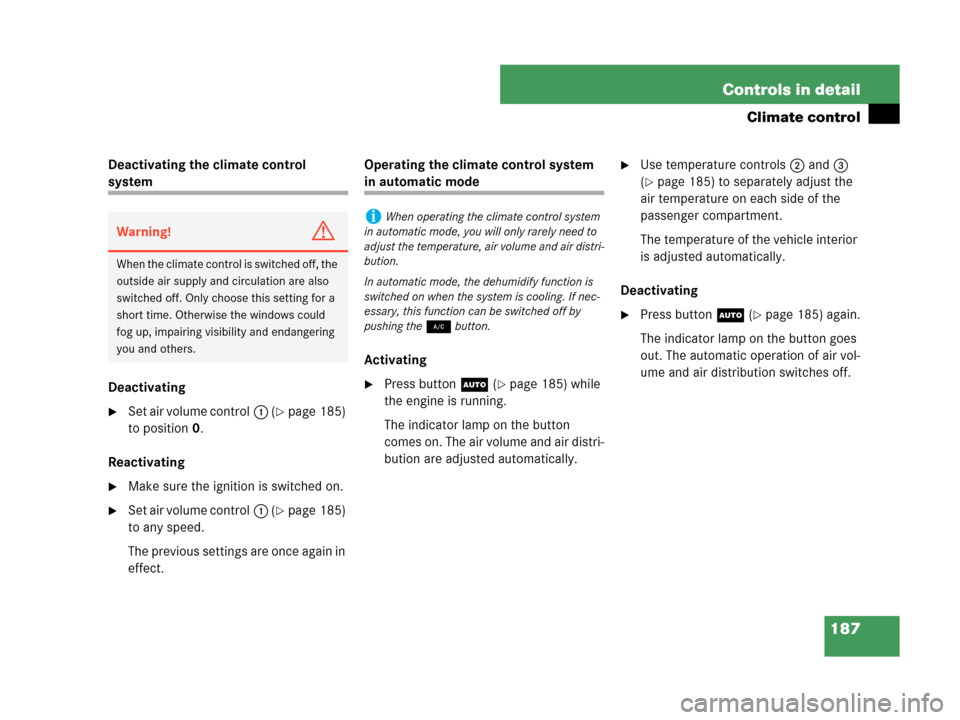

187 Controls in detail
Climate control
Deactivating the climate control
system
Deactivating
Set air volume control1 (page 185)
to position0.
Reactivating
Make sure the ignition is switched on.
Set air volume control1 (page 185)
to any speed.
The previous settings are once again in
effect.Operating the climate control system
in automatic mode
Activating
Press buttonU (page 185) while
the engine is running.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.
Use temperature controls2 and3
(
page 185) to separately adjust the
air temperature on each side of the
passenger compartment.
The temperature of the vehicle interior
is adjusted automatically.
Deactivating
Press buttonU (page 185) again.
The indicator lamp on the button goes
out. The automatic operation of air vol-
ume and air distribution switches off.
Warning!G
When the climate control is switched off, the
outside air supply and circulation are also
switched off. Only choose this setting for a
short time. Otherwise the windows could
fog up, impairing visibility and endangering
you and others.
iWhen operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, the dehumidify function is
switched on when the system is cooling. If nec-
essary, this function can be switched off by
pushing the2 button.

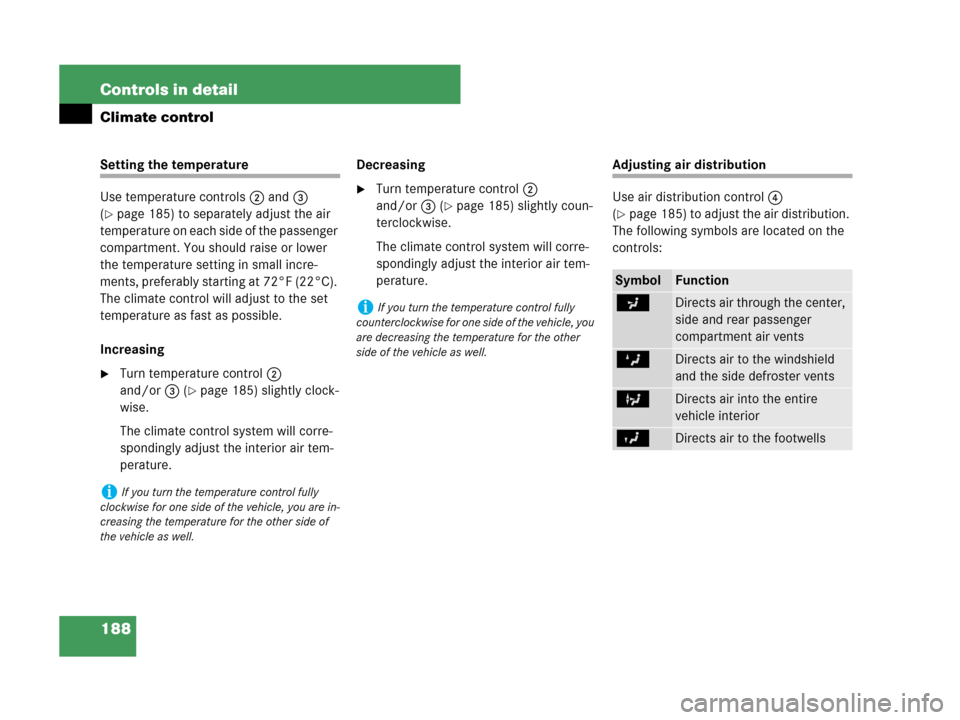

188 Controls in detail
Climate control
Setting the temperature
Use temperature controls2 and3
(
page 185) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing
Turn temperature control2
and/or3 (
page 185) slightly clock-
wise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.Decreasing
Turn temperature control2
and/or3 (
page 185) slightly coun-
terclockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Adjusting air distribution
Use air distribution control4
(
page 185) to adjust the air distribution.
The following symbols are located on the
controls:
iIf you turn the temperature control fully
clockwise for one side of the vehicle, you are in-
creasing the temperature for the other side of
the vehicle as well.
iIf you turn the temperature control fully
counterclockwise for one side of the vehicle, you
are decreasing the temperature for the other
side of the vehicle as well.
SymbolFunction
aDirects air through the center,
side and rear passenger
compartment air vents
ZDirects air to the windshield
and the side defroster vents
bDirects air into the entire
vehicle interior
YDirects air to the footwells

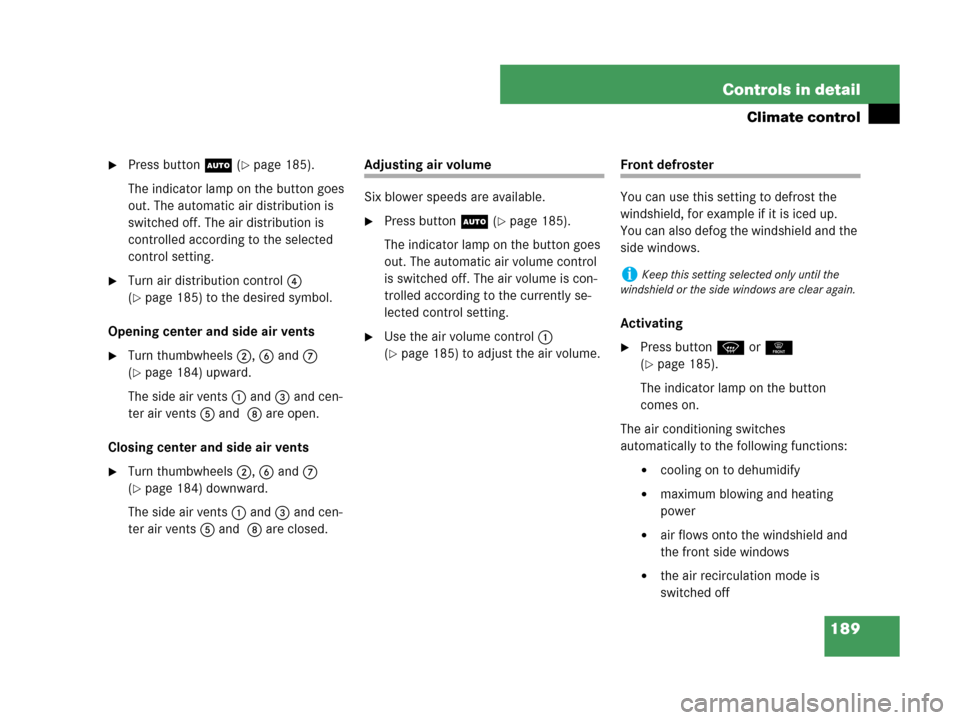

189 Controls in detail
Climate control
Press buttonU (page 185).
The indicator lamp on the button goes
out. The automatic air distribution is
switched off. The air distribution is
controlled according to the selected
control setting.
Turn air distribution control 4
(
page 185) to the desired symbol.
Opening center and side air vents
Turn thumbwheels 2, 6and7
(
page 184) upward.
The side air vents1 and3 and cen-
ter air vents5 and 8 are open.
Closing center and side air vents
Turn thumbwheels 2, 6and7
(
page 184) downward.
The side air vents1 and3 and cen-
ter air vents5 and 8 are closed.
Adjusting air volume
Six blower speeds are available.
Press buttonU (page 185).
The indicator lamp on the button goes
out. The automatic air volume control
is switched off. The air volume is con-
trolled according to the currently se-
lected control setting.
Use the air volume control1
(
page 185) to adjust the air volume.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.
Activating
Press buttonPor0
(
page 185).
The indicator lamp on the button
comes on.
The air conditioning switches
automatically to the following functions:

cooling on to dehumidify

maximum blowing and heating
power

air flows onto the windshield and
the front side windows

the air recirculation mode is
switched off
iKeep this setting selected only until the
windshield or the side windows are clear again.
