MERCEDES-BENZ CLK500 2006 C209 Owner's Guide

20

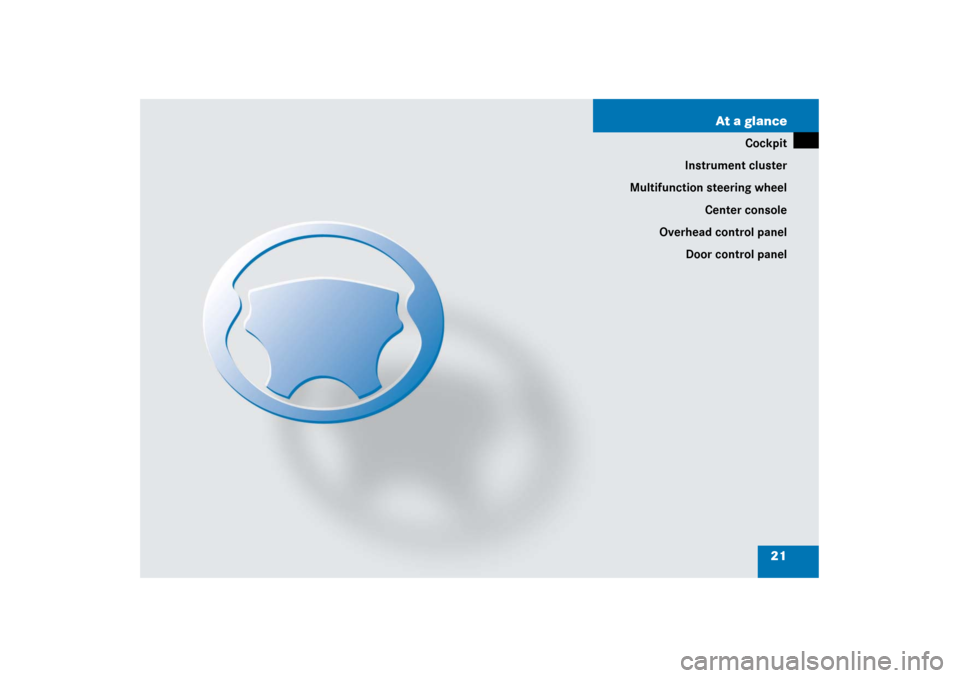

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

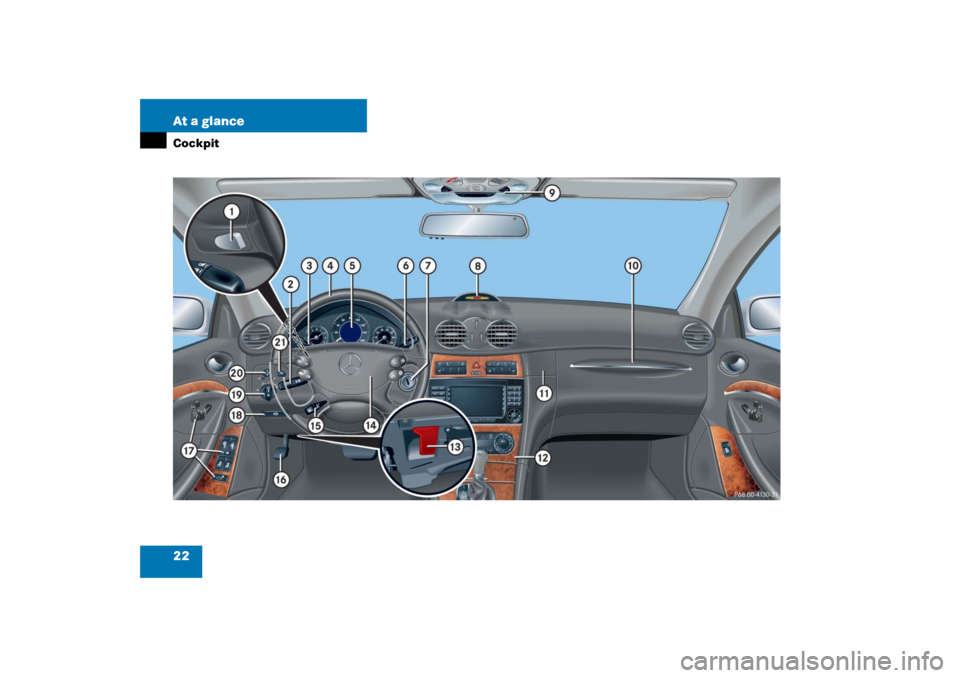

22 At a glanceCockpit

23 At a glance
Cockpit
Item
Page
1
Steering wheel gearshift
buttons
CLK 500
CLK 55 AMG
175
176
2
Combination switch

Turn signals


Windshield wipers


High beam
53
53
52
3
Cruise control lever
265
4
Multifunction steering
wheel
26,
140
5
Instrument cluster
24,
136
6
Lever for voice control
system*, see separate
operating instructions
7
Starter switch
34
8
Front Parktronic* warning
indicator (Canada only)
269
Item
Page
9
Overhead control panel
29
a
Glove box
278
b
Cup holder
283
c
Center console
27, 28
d
Hood lock release
321
e
Horn
f
Steering wheel adjustment
stalk
41
g
Parking brake pedal
50
h
Door control panel
30
j
Parking brake release
50
k
Exterior lamp switch
52,
127
l
Exterior rear view mirror ad-
justment
43
m
Headlamp washer switch*
181

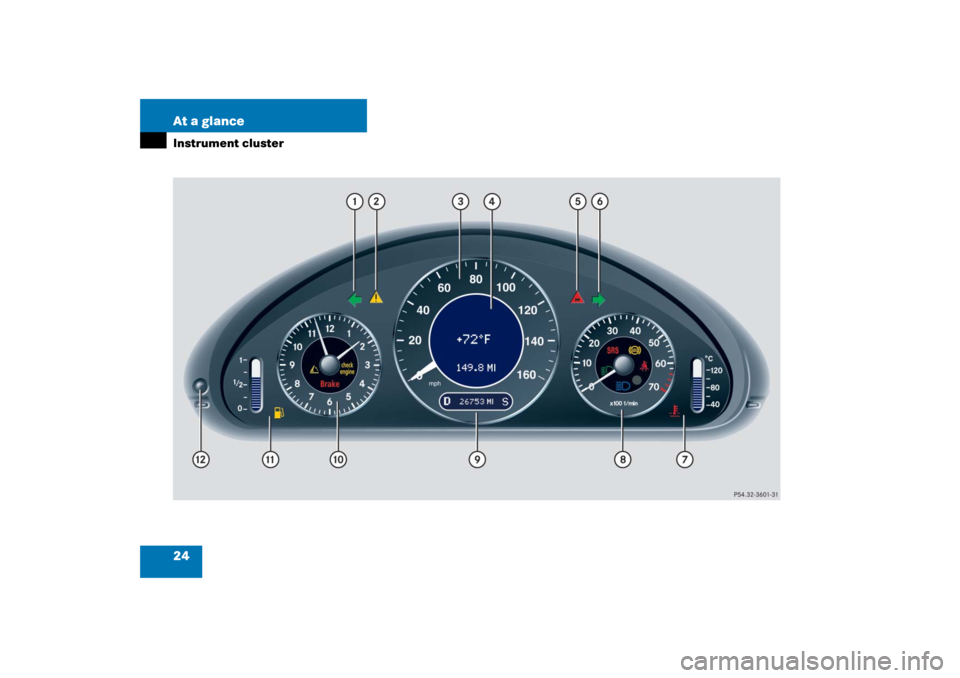

24 At a glanceInstrument cluster

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal indica-
tor lamp
53
2
vESP
® warning lamp
378
3
Speedometer
4
Multifunction display
140
5
lDistance warning
lamp
Warning lamp without func-
tion. It illuminates with the ig-
nition on. It should go out
when the engine is running.
6
KRight turn signal indi-
cator lamp
53
7
Coolant temperature indi-
cator with:
137
•Coolant temperature
warning lamp
377,
398
Item
Page
8
Tachometer with:
138
1Supplemental
Restraint System
(SRS) indicator lamp
380,
409
-Antilock Brake Sys-
tem (ABS) indicator
lamp
374
71,
379
BLow beam headlamp
indicator lamp
131
AHigh beam headlamp
indicator lamp
131
9
Main odometer with:

Gear selector lever
position
140


Program mode
140
Item
Page
a
Clock with:
153
;Brake warning lamp,
USA only
375
3Brake warning lamp,
Canada onlyúEngine malfunction in-
dicator lamp,
USA only
376
±Engine malfunction in-
dicator lamp,
Canada only
376
CRoll bar warning lamp
b
Fuel display with:AFuel reserve warning
lamp
379
c
Reset button for:

Resetting trip odometer
136


Adjusting instrument
cluster illumination
136


Confirming new time set-
tings
153

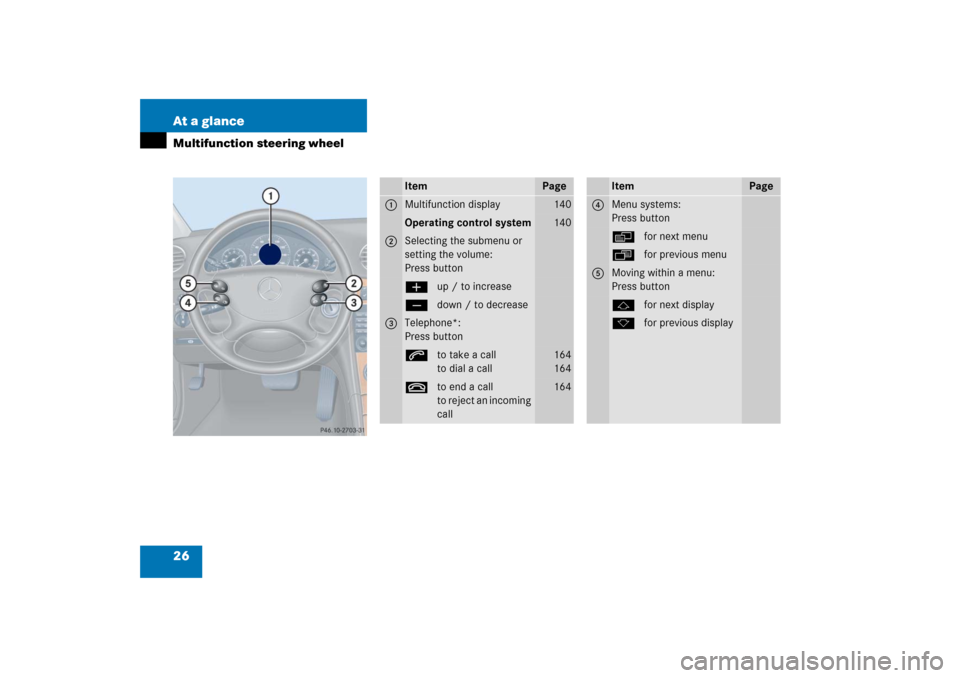

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
140
Operating control system
140
2
Selecting the submenu or
setting the volume:
Press buttonæup / to increaseçdown / to decrease
3
Telephone*:
Press buttonsto take a call
to dial a call
164
164
tto end a call
to reject an incoming
call
164
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
Seat ventilation*, driver’s
side
122
123
2
Parktronic system* deacti-
vation switch (Canada only)
272
3
ESP
® control switch
89
4
Hazard warning flasher
switch - switching on/off
133
5
Central unlocking switch
Central locking switch
118
118
6
Switch for lowering rear
seat head restraints
120
7
Tow-away alarm switch
Anti-theft alarm system
indicator lamp
94
94
Item
Page
8
Seat heater*,
passenger side
Seat ventilation*,
passenger side
122
123
9
Front passenger front air
bag off indicator lamp
81,
381
a
Audio system,
or
COMAND* (see separate
operating instructions)
145
b
Climate control (CLK 350)
Automatic climate control
(CLK 500/CLK 55 AMG)
Rear window defroster
186
196,
185

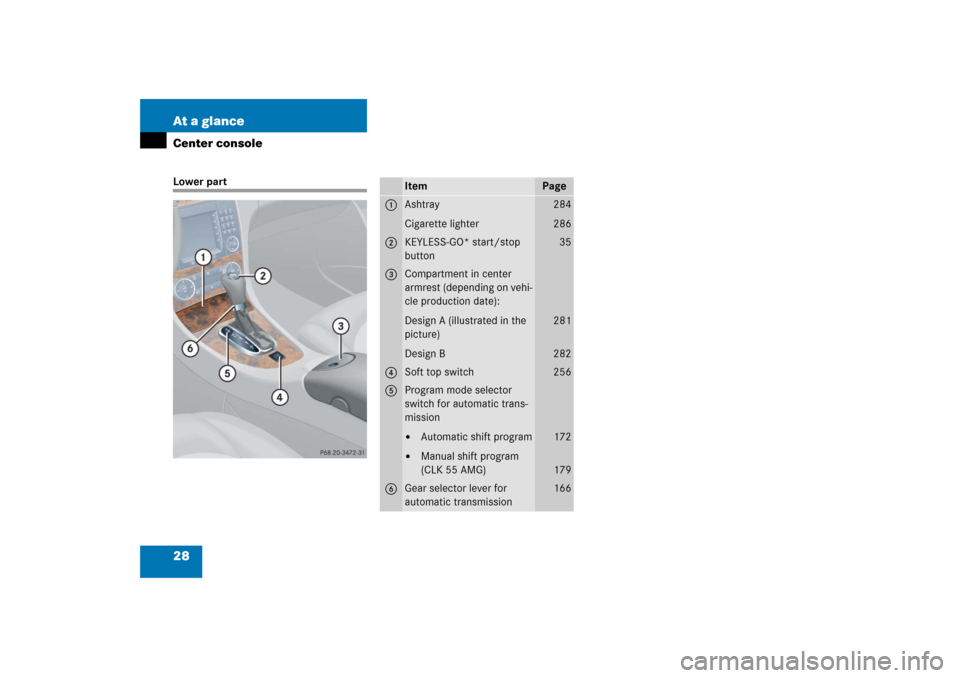

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
Cigarette lighter
284
286
2
KEYLESS-GO* start/stop
button
35
3
Compartment in center
armrest (depending on vehi-
cle production date):
Design A (illustrated in the
picture)
Design B
281
282
4
Soft top switch
256
5
Program mode selector
switch for automatic trans-
mission

Automatic shift program


Manual shift program
(CLK 55 AMG)
172
179
6
Gear selector lever for
automatic transmission
166

29 At a glance

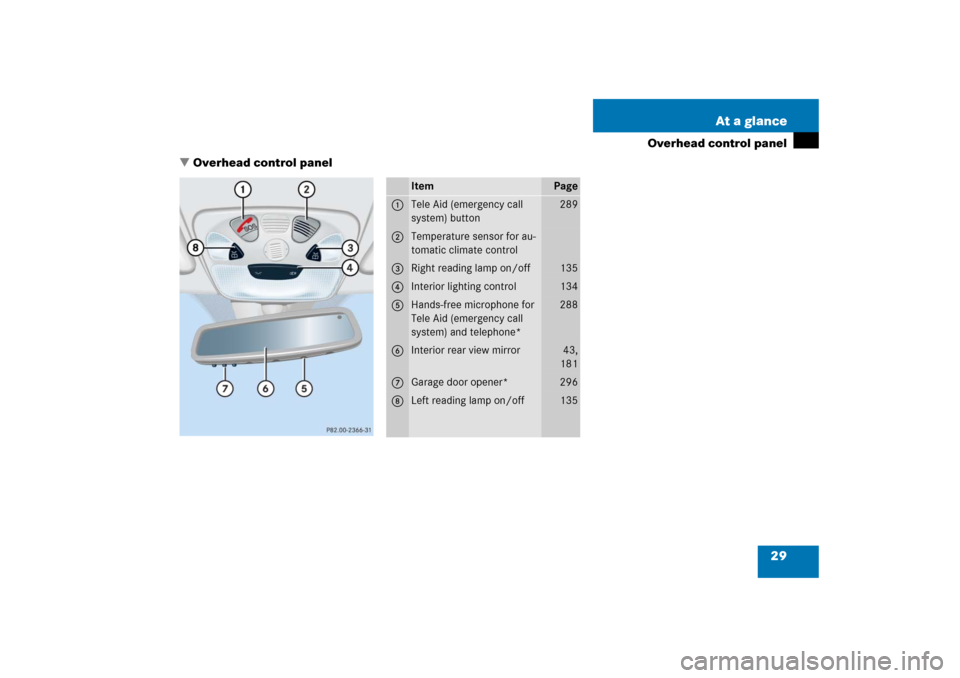

Overhead control panel
Overhead control panel
Item
Page
1
Tele Aid (emergency call
system) button
289
2
Temperature sensor for au-
tomatic climate control
3
Right reading lamp on/off
135
4
Interior lighting control
134
5
Hands-free microphone for
Tele Aid (emergency call
system) and telephone*
288
6
Interior rear view mirror
43,
181
7
Garage door opener*
296
8
Left reading lamp on/off
135
