60 Getting startedParking and locking

Exit the vehicle, take the SmartKey or
the SmartKey with KEYLESS-GO* with
you, and close all doors and the trunk
lid.
Locking with the SmartKey

Press lock button‹on the
SmartKey (
page 32).
With the trunk and both doors closed,
all turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
For more information, see “SmartKey”
(
page 96).Locking with KEYLESS-GO*
1Lock button

Press lock button1 on an outside
door handle or on the trunk lid
(page 106).
With the trunk and both doors closed,
all turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 100).
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.iA warning sounds and the message Turn off lamps
appears in the multi-
function display if the vehicle’s exterior
lamps are not switched off


with the SmartKey removed from
the starter switch and the driver’s
door open


with the engine turned off using the
KEYLESS-GO* start/stop button
and the driver’s door open (same as
SmartKey removed from starter
switch)
Switch off the exterior lamps.

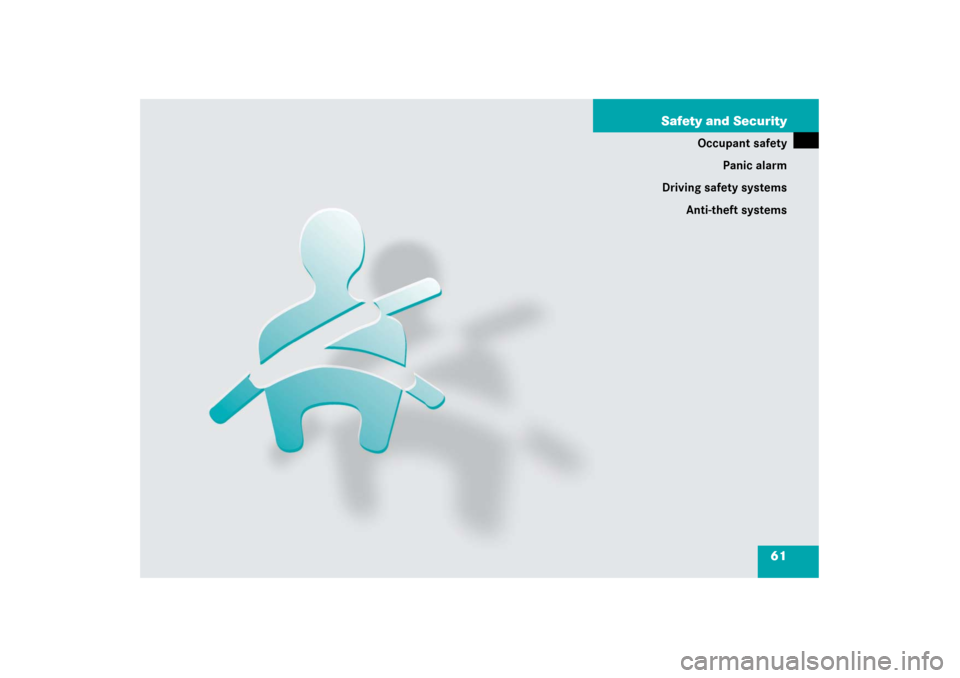

61 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

62 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint system
components of the vehicle.

Seat belts (
page 69)


Child restraints (
page 75)


Lower anchors and tethers for children
(LATCH) (
page 83)
Supplemental Restraint System (SRS) with


Air bags (
page 63)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD) for
seat belts (
page 72)Air bag system components with


Front passenger front air bag off
indicator lamp (
page 81)


Front passenger seat with Occupant
Classification System (OCS)
(page 78)
As independent systems, their protective
functions work in conjunction with each
other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The
1
indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the
1
indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1
indicator lamp:


fails to go out after approximately four
seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 75).

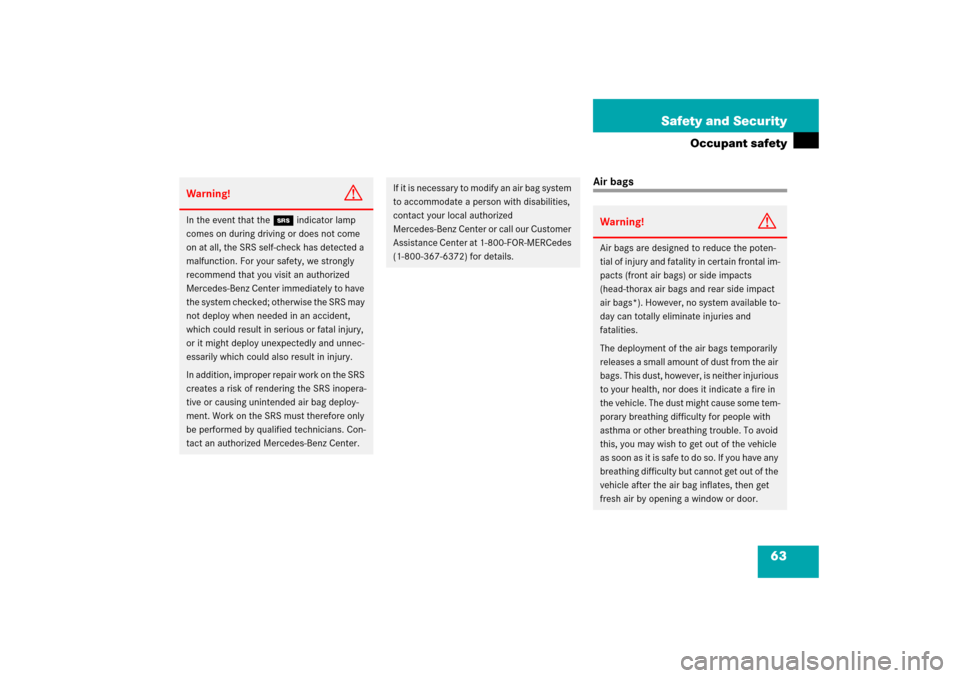

63 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags) or side impacts
(head-thorax air bags and rear side impact
air bags*). However, no system available to-
day can totally eliminate injuries and
fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.

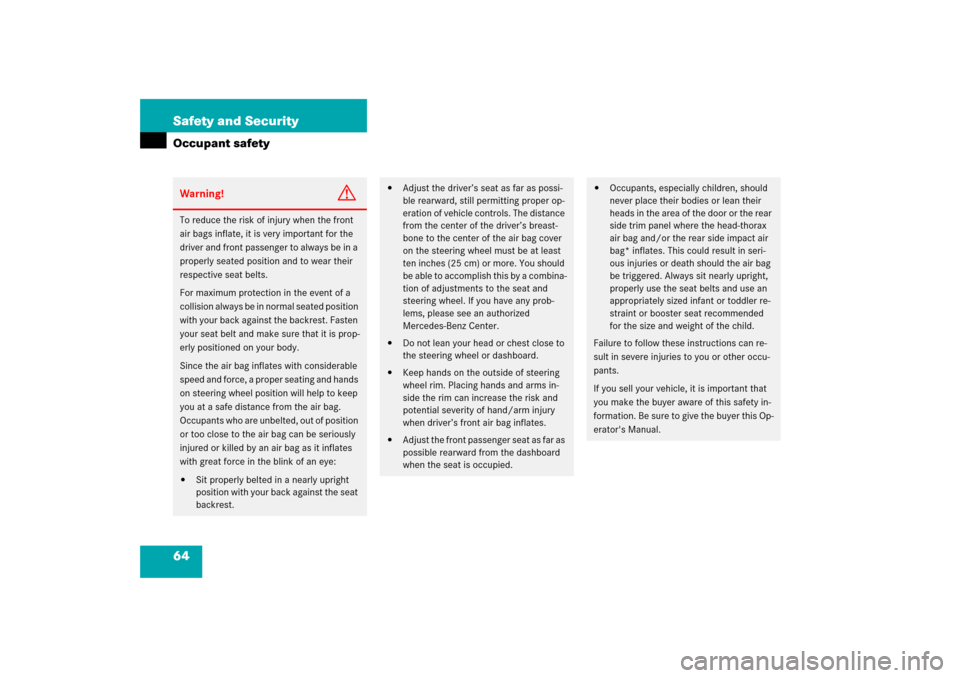

64 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
ten inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the head-thorax
air bag and/or the rear side impact air
bag* inflates. This could result in seri-
ous injuries or death should the air bag
be triggered. Always sit nearly upright,
properly use the seat belts and use an
appropriately sized infant or toddler re-
straint or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this Op-
erator's Manual.

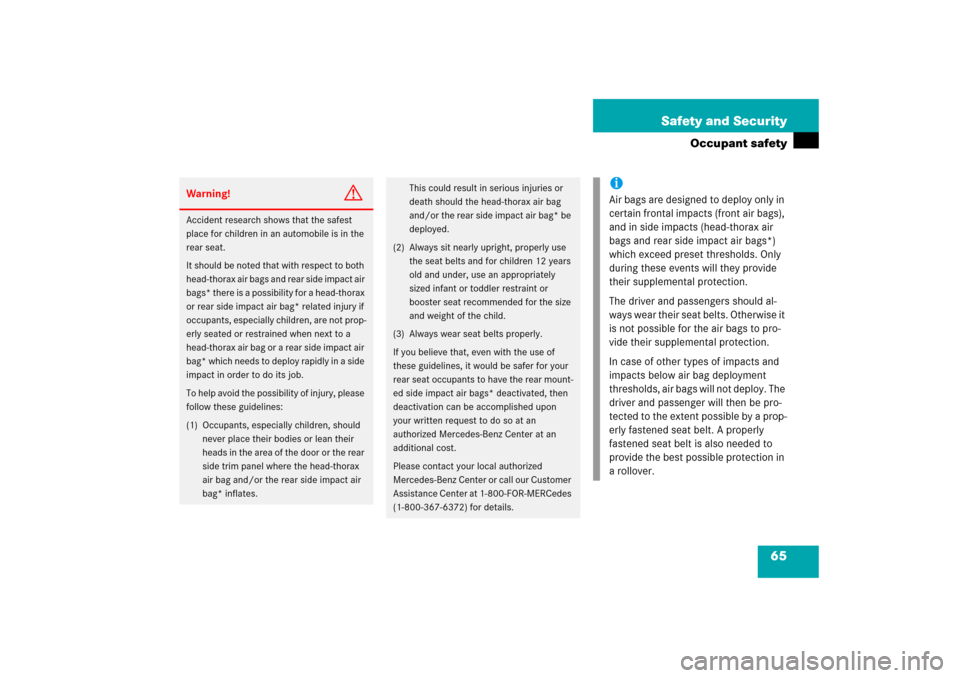

65 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
head-thorax air bags and rear side impact air
bags* there is a possibility for a head-thorax
or rear side impact air bag* related injury if
occupants, especially children, are not prop-
erly seated or restrained when next to a
head-thorax air bag or a rear side impact air
bag* which needs to deploy rapidly in a side
impact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the head-thorax
air bag and/or the rear side impact air
bag* inflates.
This could result in serious injuries or
death should the head-thorax air bag
and/or the rear side impact air bag* be
deployed.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or
booster seat recommended for the size
and weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags* deactivated, then
deactivation can be accomplished upon
your written request to do so at an
authorized Mercedes-Benz Center at an
additional cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags),
and in side impacts (head-thorax air
bags and rear side impact air bags*)
which exceed preset thresholds. Only
during these events will they provide
their supplemental protection.
The driver and passengers should al-
ways wear their seat belts. Otherwise it
is not possible for the air bags to pro-
vide their supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, air bags will not deploy. The
driver and passenger will then be pro-
tected to the extent possible by a prop-
erly fastened seat belt. A properly
fastened seat belt is also needed to
provide the best possible protection in
a rollover.

66 Safety and SecurityOccupant safetySafety guidelines for the seat belt,
emergency tensioning device and
air bagWe caution you not to rely on the pres-
ence of the air bags in order to avoid
wearing your seat belt.
It is important to your safety and that of
your passengers that you replace de-
ployed air bags and repair any malfunc-
tioning air bags to make sure that the
vehicle will continue to provide supple-
mental crash protection for occupants.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Air bags and emergency tensioning de-
vices (ETDs) are designed to function on
a one-time-only basis. An air bag or ETD
that is deployed must be replaced.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, seat covers, badges, etc. over
the steering wheel hub, front passenger
front air bag cover, outboard sides of the
front seat backrests, door frame trims,
or rear side trim panels, and installation
of additional electrical/electronic
equipment on or near SRS components
and wiring. Keep area between air bags
and occupants free from objects (e.g.
packages, purses, umbrellas, etc.).


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.

67 Safety and Security
Occupant safety
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
Driver and front passenger front air bags
are deployed:


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the head-thorax air
bags and/or rear side impact air bags*The air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other more significant injuries resulting
from air bag deployment.
Warning!
G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the
deployment of the head-thorax air bags.
Contact your authorized Mercedes-Benz
Center for availability.
iThe front air bags in this vehicle have
been designed to inflate in two stages.
This allows the air bag to have different
rates of inflation that are based on the
rate of relevant vehicle deceleration as
assessed by the air bag control unit.
On the front passenger side, the front
air bag deployment is additionally influ-
enced by the passenger’s weight cate-
gory as identified by the Occupant
Classification System (OCS)
(page 78).
The lighter the front passenger side oc-
cupant, the higher the vehicle deceler-
ation rate required for the second
stage inflation of the air bag.

68 Safety and SecurityOccupant safetyThe front passenger front air bag will only
be deployed if:

the system, based on OCS weight sen-
sor readings, senses that the front pas-
senger seat is occupied


the56 indicator lamp in the
center console is not lit (
page 81)


the impact exceeds a preset deploy-
ment threshold
Head-thorax air bags
1Head-thorax air bagThe head-thorax air bags1 in the drivers
and front passenger seat are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front air bags
The head-thorax air bags1 are not de-
ployed in impacts which do not exceed the
system’s deployment threshold.Rear side impact air bags*
1Rear side impact air bag*
The rear side impact air bags*1 are
deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front air bags
The rear side impact air bags*1 are not
deployed in impacts which do not exceed
the system’s deployment threshold.
Warning!
G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the
deployment of the head-thorax air bags.
Contact your authorized Mercedes-Benz
Center for availability.

69 Safety and Security
Occupant safety
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts
fastened whenever the vehicle is in
motion.
For more information, see “Fastening the
seat belts” (
page 45).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 75).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is
correctly restrained with a separate seat
belt. Never use a seat belt for more than one
person at a time.
