440 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 127).

Open the hood (
page 321).

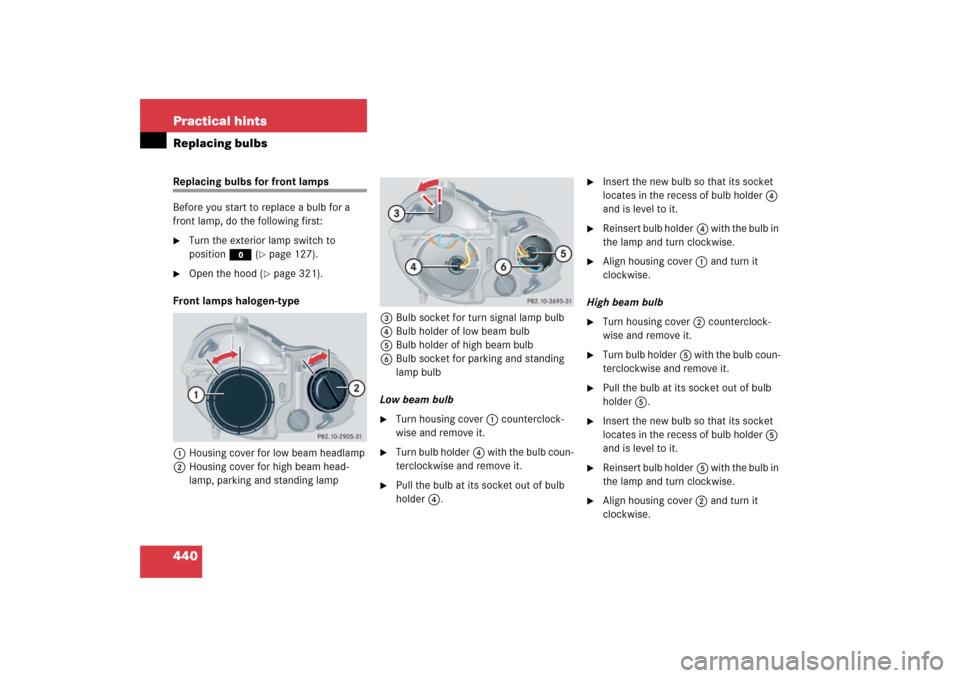

Front lamps halogen-type
1Housing cover for low beam headlamp
2Housing cover for high beam head-
lamp, parking and standing lamp3Bulb socket for turn signal lamp bulb
4Bulb holder of low beam bulb
5Bulb holder of high beam bulb
6Bulb socket for parking and standing
lamp bulb
Low beam bulb

Turn housing cover1 counterclock-
wise and remove it.

Turn bulb holder4 with the bulb coun-
terclockwise and remove it.

Pull the bulb at its socket out of bulb
holder4.

Insert the new bulb so that its socket
locates in the recess of bulb holder4
and is level to it.

Reinsert bulb holder4 with the bulb in
the lamp and turn clockwise.

Align housing cover1 and turn it
clockwise.
High beam bulb

Turn housing cover2 counterclock-
wise and remove it.

Turn bulb holder5 with the bulb coun-
terclockwise and remove it.

Pull the bulb at its socket out of bulb
holder5.

Insert the new bulb so that its socket
locates in the recess of bulb holder5
and is level to it.

Reinsert bulb holder5 with the bulb in
the lamp and turn clockwise.

Align housing cover2 and turn it
clockwise.

441 Practical hints
Replacing bulbs
Front turn signal lamp bulb
Turn bulb socket3 counterclockwise
and remove it.

Press gently onto the bulb and turn
counterclockwise out of bulb
socket3.

Press the new bulb gently into bulb
socket3 and turn clockwise until it
engages.

Place bulb socket3 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb

Turn housing cover2 counterclock-
wise and remove it.

Pull out bulb socket6 with the bulb.

Pull the bulb out of the bulb socket6.

Press the new bulb into bulb socket6.

Press bulb socket6 back into the
lamp.

Align housing cover2 and turn it

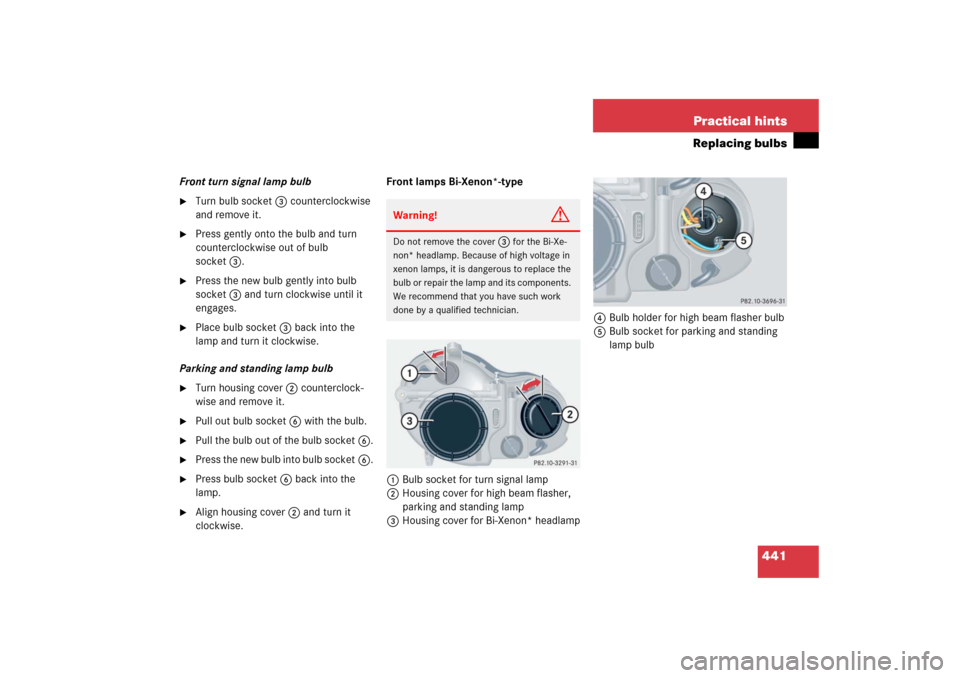

clockwise.Front lamps Bi-Xenon*-type
1Bulb socket for turn signal lamp
2Housing cover for high beam flasher,
parking and standing lamp
3Housing cover for Bi-Xenon* headlamp4Bulb holder for high beam flasher bulb
5Bulb socket for parking and standing
lamp bulb
Warning!
G
Do not remove the cover
3
for the Bi-Xe-
non* headlamp. Because of high voltage in
xenon lamps, it is dangerous to replace the
bulb or repair the lamp and its components.
We recommend that you have such work
done by a qualified technician.

442 Practical hintsReplacing bulbsHigh beam bulb for high beam flasher
Turn housing cover2 counterclock-
wise and remove it.

Turn bulb holder4 with the bulb coun-
terclockwise and remove it.

Pull the bulb at its socket out of bulb
holder4.

Insert the new bulb so that its socket
locates in the recess of bulb holder4
and is level to it.

Reinsert bulb holder4 with the bulb in
the lamp and turn clockwise.

Align housing cover2 and turn it
clockwise.Front turn signal lamp bulb

Turn bulb socket1 counterclockwise
and remove it.

Press gently onto the bulb and turn
counterclockwise out of bulb
socket1.

Press the new bulb gently into bulb
socket1 and turn clockwise until it
engages.

Place bulb socket1 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb

Turn housing cover2 counterclock-
wise and remove it.

Pull out bulb socket5 with the bulb.

Pull the bulb out of the bulb socket5.

Press the new bulb into bulb socket5.

Press bulb socket5 back into the
lamp.

Align housing cover2 and turn it
clockwise.Additional turn signal lamps
The additional turn signal lamps in the ex-
terior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the additional turn signal unit
replaced by an authorized Mercedes-Benz
Center.
Front side marker lamp
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.

443 Practical hints
Replacing bulbs
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 127).

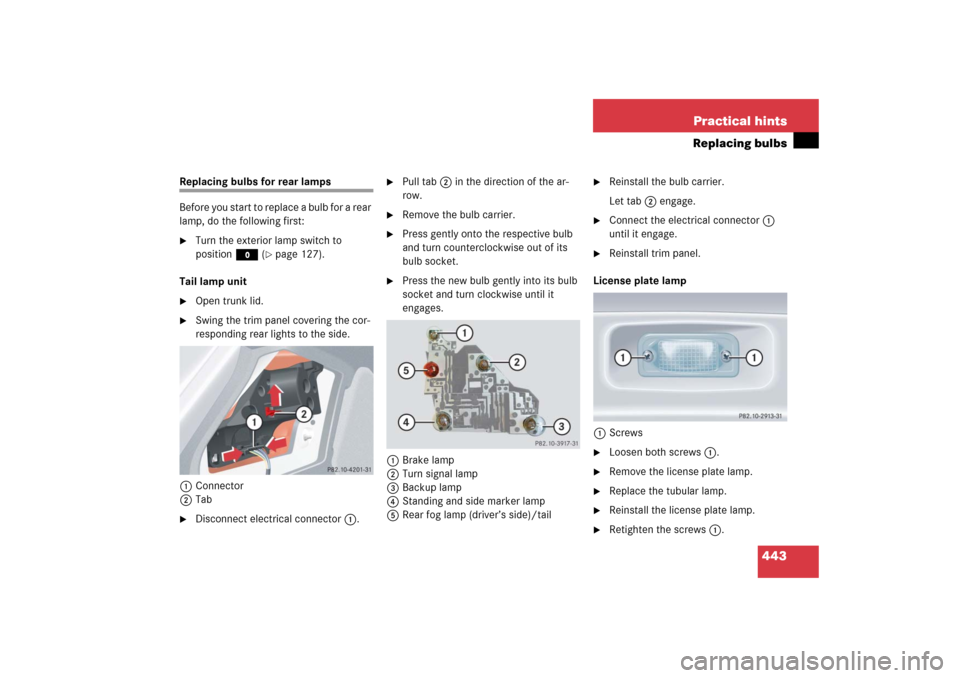

Tail lamp unit

Open trunk lid.

Swing the trim panel covering the cor-
responding rear lights to the side.
1Connector
2Tab

Disconnect electrical connector1.

Pull tab2 in the direction of the ar-
row.

Remove the bulb carrier.

Press gently onto the respective bulb
and turn counterclockwise out of its
bulb socket.

Press the new bulb gently into its bulb
socket and turn clockwise until it
engages.
1Brake lamp
2Turn signal lamp
3Backup lamp
4Standing and side marker lamp
5Rear fog lamp (driver’s side)/tail

Reinstall the bulb carrier.
Let tab2 engage.

Connect the electrical connector1
until it engage.

Reinstall trim panel.
License plate lamp
1Screws

Loosen both screws1.

Remove the license plate lamp.

Replace the tubular lamp.

Reinstall the license plate lamp.

Retighten the screws1.

444 Practical hintsReplacing wiper bladesRemoving and installing wiper blades

Remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: make
sure the vehicle's on board electronics
have status 0).

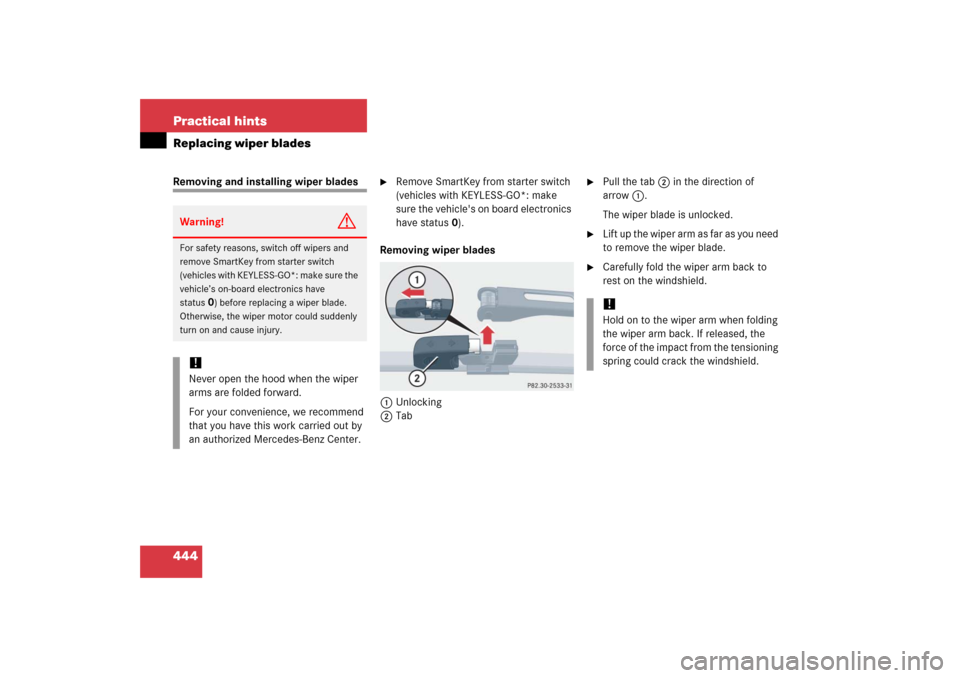

Removing wiper blades
1Unlocking
2Tab

Pull the tab2 in the direction of
arrow1.
The wiper blade is unlocked.

Lift up the wiper arm as far as you need
to remove the wiper blade.

Carefully fold the wiper arm back to
rest on the windshield.
Warning!
G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise, the wiper motor could suddenly
turn on and cause injury.
!Never open the hood when the wiper
arms are folded forward.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.
!Hold on to the wiper arm when folding
the wiper arm back. If released, the
force of the impact from the tensioning
spring could crack the windshield.

445 Practical hints
Replacing wiper blades

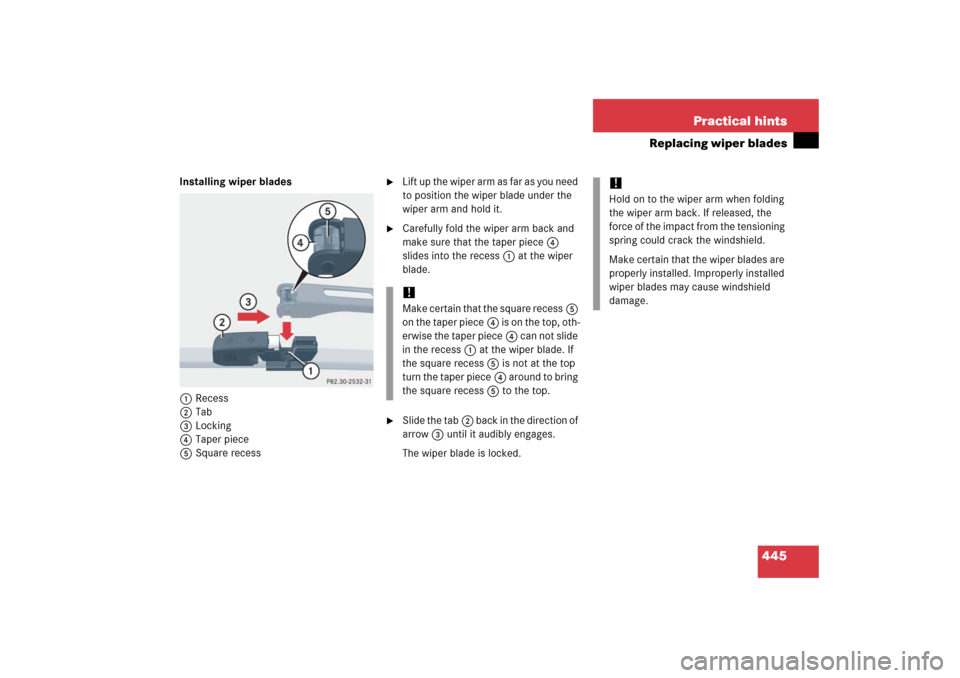

Installing wiper blades
1Recess
2Tab
3Locking
4Taper piece
5Square recess

Lift up the wiper arm as far as you need
to position the wiper blade under the
wiper arm and hold it.

Carefully fold the wiper arm back and
make sure that the taper piece4
slides into the recess1 at the wiper
blade.

Slide the tab2 back in the direction of
arrow3 until it audibly engages.
The wiper blade is locked.!Make certain that the square recess5
on the taper piece4 is on the top, oth-
erwise the taper piece4 can not slide
in the recess1 at the wiper blade. If
the square recess5 is not at the top
turn the taper piece4 around to bring
the square recess5 to the top.
!Hold on to the wiper arm when folding
the wiper arm back. If released, the
force of the impact from the tensioning
spring could crack the windshield.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.

446 Practical hintsFlat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.

Turn on the hazard warning flashers
(page 133).

Turn the steering wheel so that the
front wheels are in a straight ahead
position.

Set the parking brake (
page 57).

Move the gear selector lever toP.
Vehicles with SmartKey:

Turn off the engine (
page 58).

Remove the SmartKey from the starter
switch.Vehicles with SmartKey with
KEYLESS-GO*:

Turn off the engine by pressing the
KEYLESS-GO* start/stop button on the
gear selector lever once (
page 59).

Open the driver’s door (this puts the ig-
nition in position0 (
page 36), same
as with the SmartKey removed from
the starter switch). The driver’s door
then can be closed again.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted. Adapt your driving style
accordingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted,
ensure proper tire inflation pressure and do
not exceed a vehicle speed of 50 mph
(80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one Minispare wheel mounted.
Do not switch off the ESP
® when a Minis-
pare wheel is mounted.
iOpen door only when conditions are
safe to do so.

447 Practical hints
Flat tire
Mounting the Minispare wheel
Preparing the vehicle
Prepare the vehicle as described on
(page 446).

Take the wheel wrench and the jack
out of the trunk (
page 416).

Take the Minispare wheel and wheel
bolts out of the trunk (
page 416).Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.
One wheel chock is included with the
vehicle tool kit (
page 413).
When changing wheel on a level surface:

Place the wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Always try lifting the vehicle using the jack
on a level surface. However, should cir-
cumstances require you to do so on a hill,
place the wheel chock and the other size-
able object as follows:

Place the wheel chock and another
sizeable object on the downhill side
blocking both wheels of the axle not
being worked on.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

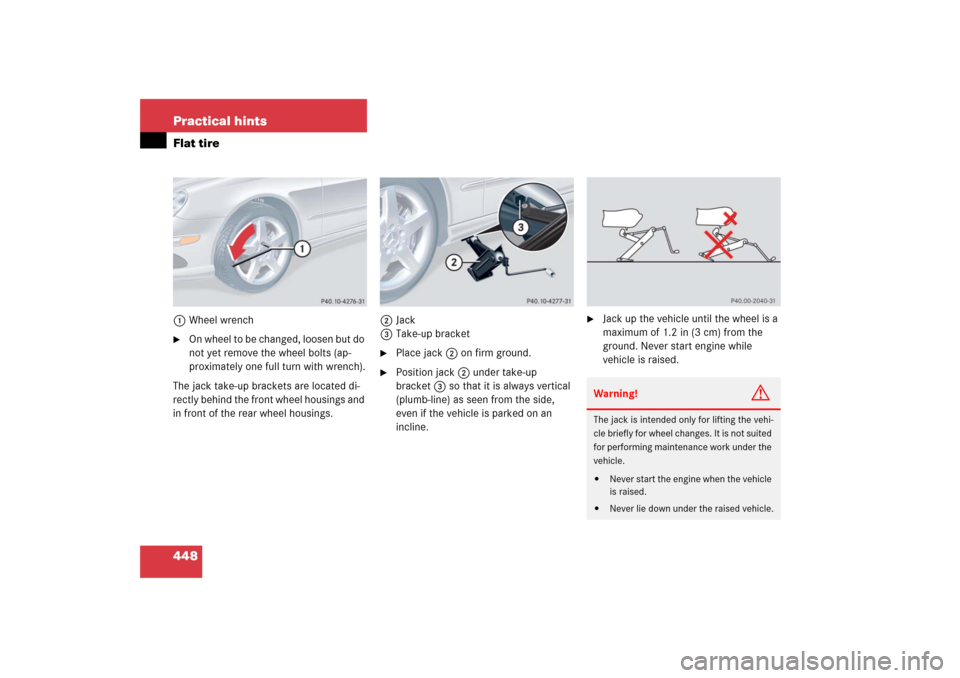

448 Practical hintsFlat tire1Wheel wrench
On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.2Jack
3Take-up bracket

Place jack 2 on firm ground.

Position jack2 under take-up
bracket3 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.

Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.Warning!
G
The jack is intended only for lifting the vehi-
cle briefly for wheel changes. It is not suited
for performing maintenance work under the
vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.

449 Practical hints
Flat tire

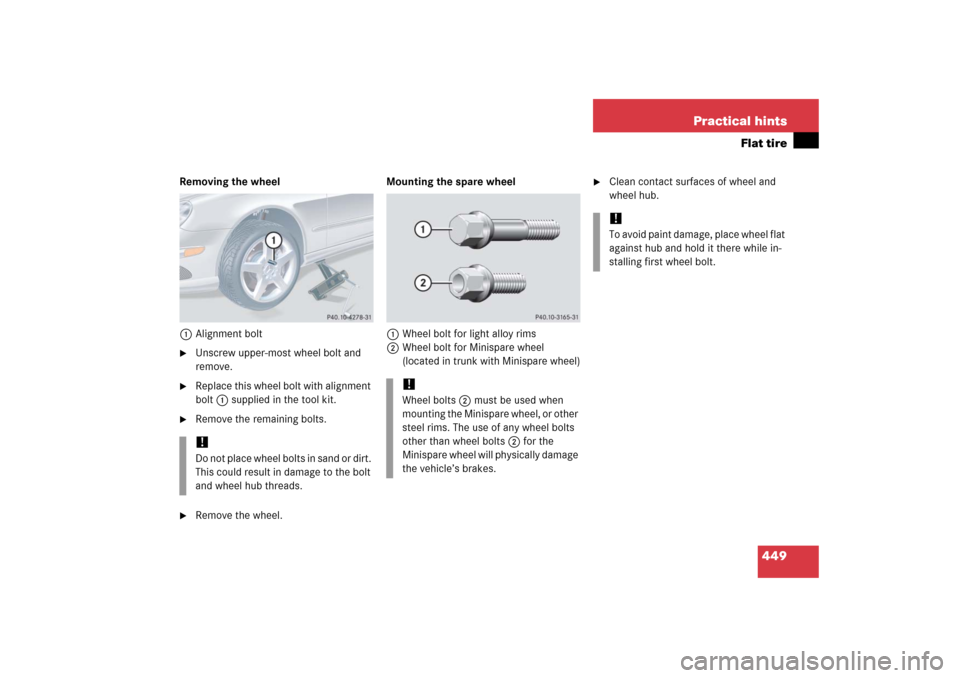

Removing the wheel
1Alignment bolt
Unscrew upper-most wheel bolt and
remove.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remaining bolts.

Remove the wheel.Mounting the spare wheel
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel
(located in trunk with Minispare wheel)

Clean contact surfaces of wheel and
wheel hub.
!Do not place wheel bolts in sand or dirt.
This could result in damage to the bolt
and wheel hub threads.
!Wheel bolts2 must be used when
mounting the Minispare wheel, or other
steel rims. The use of any wheel bolts
other than wheel bolts2 for the
Minispare wheel will physically damage
the vehicle’s brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while in-
stalling first wheel bolt.
