470 Technical dataEngineModel

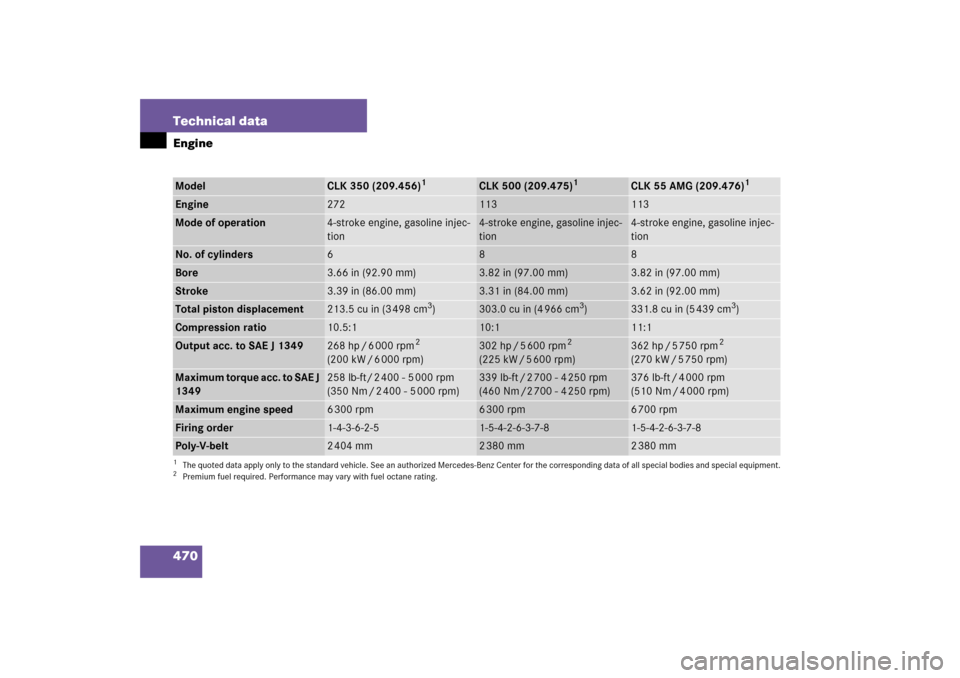

CLK 350 (209.456)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 500 (209.475)
1
CLK 55 AMG (209.476)
1
Engine
272
113
113
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
6
8
8
Bore
3.66 in (92.90 mm)
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.39 in (86.00 mm)
3.31 in (84.00 mm)
3.62 in (92.00 mm)
Total piston displacement
213.5cuin (3498cm
3)
303.0 cu in (4 966 cm
3)
331.8 cu in (5 439 cm
3)
Compression ratio
10.5:1
10:1
11:1
Output acc. to SAE J 1349
268 hp / 6 000 rpm
2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp / 5 600 rpm
2
(225 kW / 5 600 rpm)
362 hp / 5 750 rpm
2
(270 kW / 5 750 rpm)
Maximum torque acc. to SAE J
1349
258lb-ft/2400-5000rpm
(350 Nm / 2 400 - 5 000 rpm)
339 lb-ft / 2 700 - 4 250 rpm
(460 Nm /2 700 - 4 250 rpm)
376lb-ft/4000rpm
(510 Nm / 4 000 rpm)
Maximum engine speed
6 300 rpm
6 300 rpm
6 700 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2 404 mm
2 380 mm
2 380 mm

471 Technical data
Rims and tires
Rims and tires
!
Only use tires which have been tested
and approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are devel-
oped to provide best possible perfor-
mance in conjunction with the driving
safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed
for your vehicle and tested and ap-
proved by Mercedes-Benz can be iden-
tified by finding the following on the
tire’s sidewall:


MO = M
ercedes-Benz O
riginal
equipment tires
AMG vehicles:
Does not apply to all approved tires
on AMG vehicles. For information
on tested and approved tires for
AMG vehicles, contact an autho-
rized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal
E
xtended (tires with limited run-flat
characteristics) original equipment
tires
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.iFor information on driving with
MOExtended tires, see
“MOExtendedsystem*” (
page 345).
!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.

472 Technical dataRims and tires
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar. Some vehicles may have sup-
plemental tire inflation pressure infor-
mation for driving at high speeds
(page 340) or for vehicle loads less
than the maximum loaded vehicle con-
dition (
page 339). If such information
is provided, it can be found on the plac-
ard located on the inside of the fuel fill-
er flap. The tire inflation pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Appearance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your
vehicle model may also require the
purchase of two or four wheel rims of
the recommended size for use with
these winter tires. See an authorized
Mercedes-Benz Center for more
information.

473 Technical data
Rims and tires
Same size tires

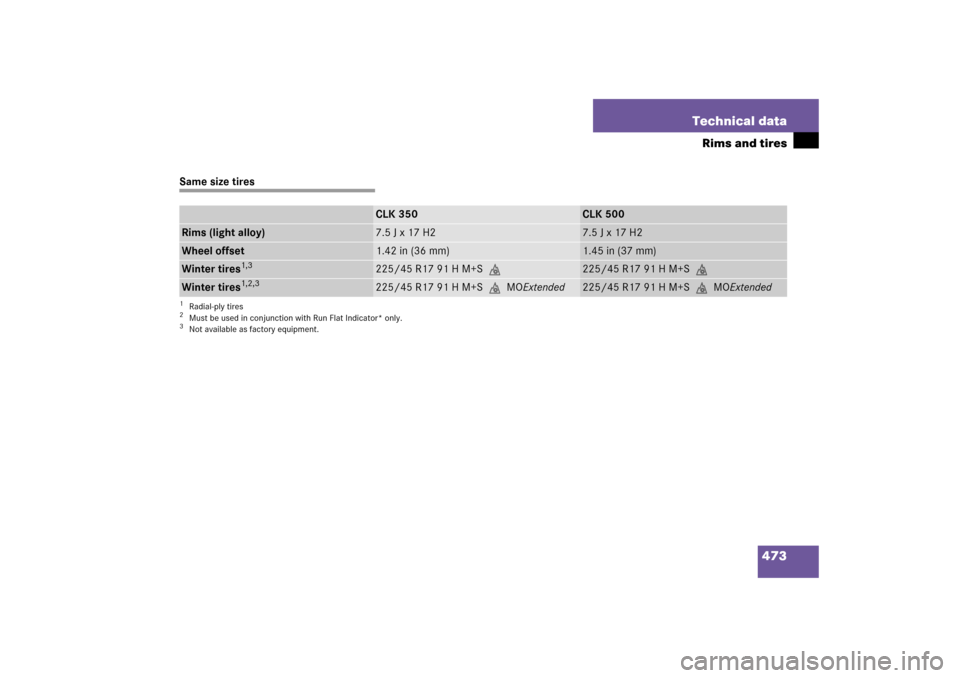

CLK 350
CLK 500
Rims (light alloy)
7.5 J x 17 H2
7.5 J x 17 H2
Wheel offset
1.42 in (36 mm)
1.45 in (37 mm)
Winter tires
1,3
1Radial-ply tires
225/45 R17 91 H M+S.
225/45 R17 91 H M+S.
Winter tires
1,2,3
2Must be used in conjunction with Run Flat Indicator* only. 3Not available as factory equipment.
225/45 R17 91 H M+S.MOExtended
225/45 R17 91 H M+S.MOExtended

474 Technical dataRims and tires

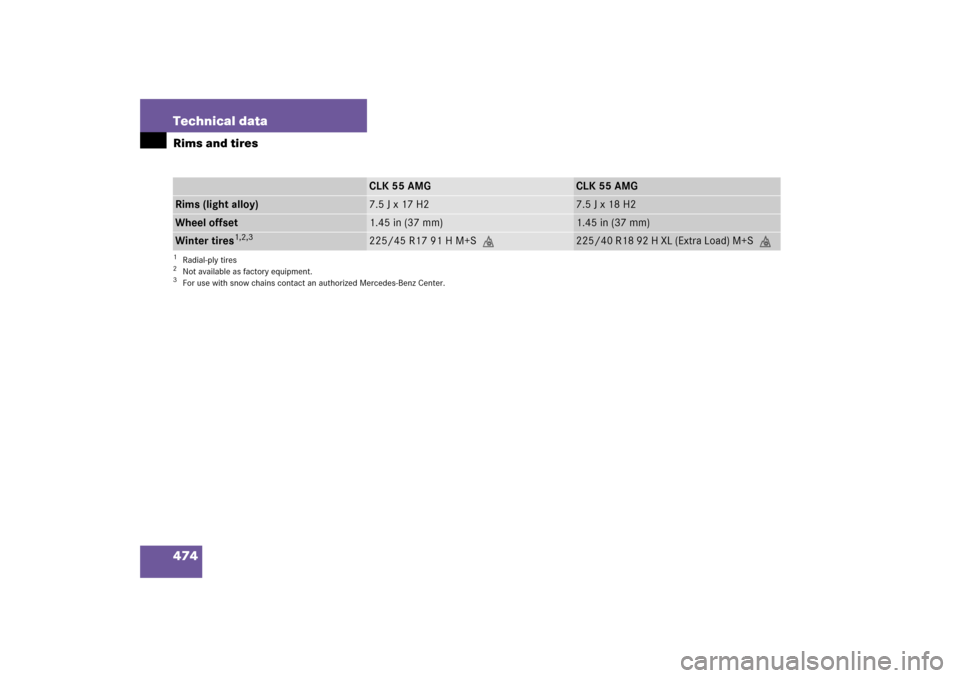

CLK 55 AMG
CLK 55 AMG
Rims (light alloy)
7.5 J x 17 H2
7.5 J x 18 H2
Wheel offset
1.45 in (37 mm)
1.45 in (37 mm)
Winter tires
1,2,3
225/45 R17 91 H M+S.
225/40 R18 92 H XL (Extra Load) M+S.
1Radial-ply tires2Not available as factory equipment.3For use with snow chains contact an authorized Mercedes-Benz Center.

475 Technical data
Rims and tires
Mixed size tires

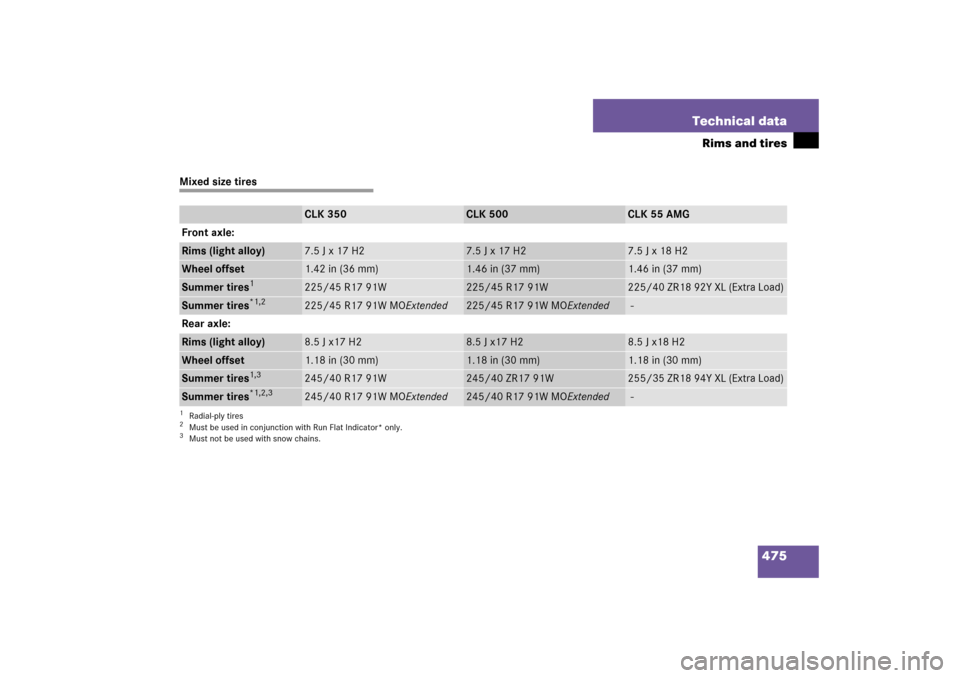

CLK 350
CLK 500
CLK 55 AMG
Front axle:
Rims (light alloy)
7.5 J x 17 H2
7.5 J x 17 H2
7.5 J x 18 H2
Wheel offset
1.42 in (36 mm)
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires
1
1Radial-ply tires
225/45 R17 91W
225/45 R17 91W
225/40 ZR18 92Y XL (Extra Load)
Summer tires
*1,2
2Must be used in conjunction with Run Flat Indicator* only.
225/45 R17 91W MOExtended
225/45 R17 91W MOExtended
-
Rear axle:
Rims (light alloy)
8.5 J x17 H2
8.5 J x17 H2
8.5 J x18 H2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
1,3
3Must not be used with snow chains.
245/40 R17 91W
245/40 ZR17 91W
255/35 ZR18 94Y XL (Extra Load)
Summer tires
*1,2,3
245/40 R17 91W MOExtended
245/40 R17 91W MOExtended
-

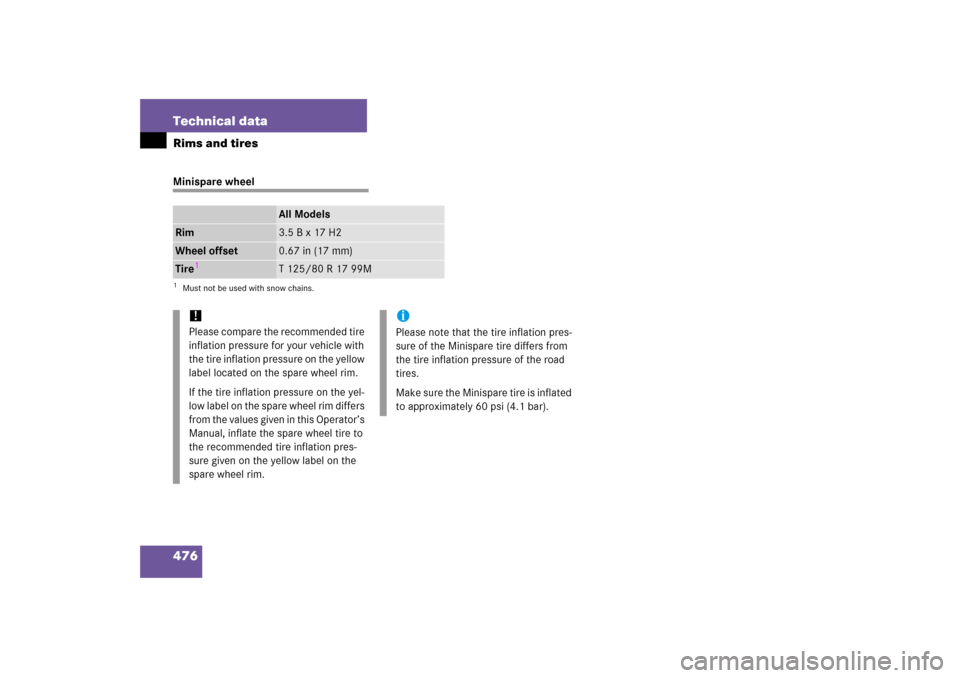

476 Technical dataRims and tiresMinispare wheel
All Models
Rim
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
Tire
1
1Must not be used with snow chains.
T 125/80 R 17 99M
!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the spare wheel rim.
If the tire inflation pressure on the yel-
low label on the spare wheel rim differs
from the values given in this Operator’s
Manual, inflate the spare wheel tire to
the recommended tire inflation pres-
sure given on the yellow label on the
spare wheel rim.
iPlease note that the tire inflation pres-
sure of the Minispare tire differs from
the tire inflation pressure of the road
tires.
Make sure the Minispare tire is inflated
to approximately 60 psi (4.1 bar).

477 Technical data
Electrical system
Electrical system

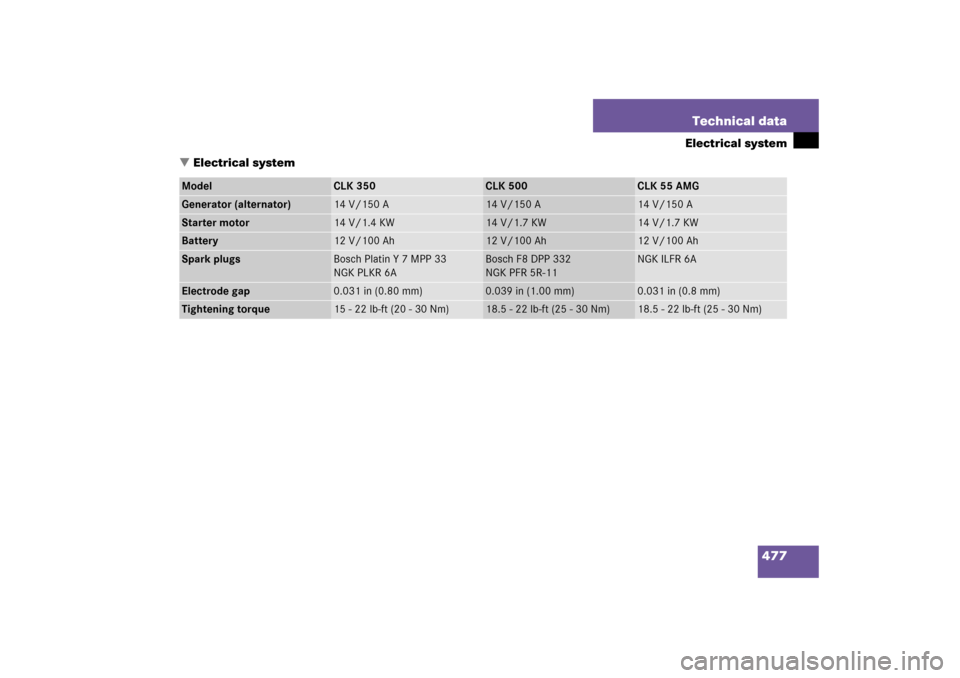

Model
CLK 350
CLK 500
CLK 55 AMG
Generator (alternator)
14 V/150 A
14 V/150 A
14 V/150 A
Starter motor
14 V/1.4 KW
14 V/1.7 KW
14 V/1.7 KW
Battery
12 V/100 Ah
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch Platin Y 7 MPP 33
NGK PLKR 6A
Bosch F8 DPP 332
NGK PFR 5R-11
NGK ILFR 6A
Electrode gap
0.031 in (0.80 mm)
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
15 - 22 lb-ft (20 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)

478 Technical dataMain dimensions and weightsMain dimensionsWeightsModel

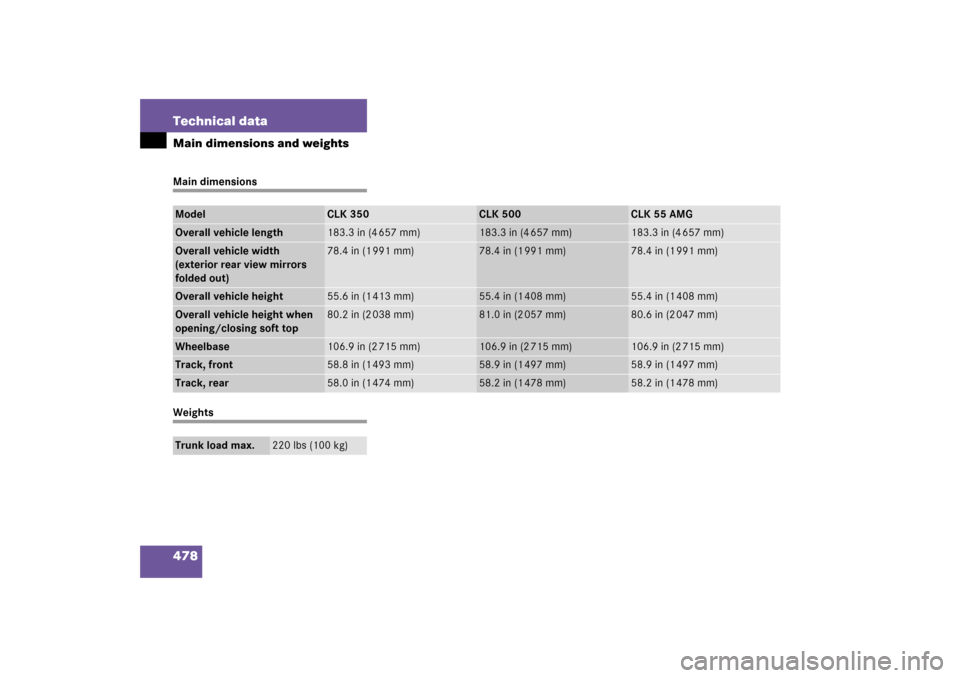

CLK 350
CLK 500
CLK 55 AMG
Overall vehicle length
183.3 in (4 657 mm)
183.3 in (4 657 mm)
183.3 in (4 657 mm)
Overall vehicle width
(exterior rear view mirrors
folded out)
78.4 in (1 991 mm)
78.4 in (1 991 mm)
78.4 in (1 991 mm)
Overall vehicle height
55.6 in (1 413 mm)
55.4 in (1 408 mm)
55.4 in (1 408 mm)
Overall vehicle height when
opening/closing soft top
80.2 in (2 038 mm)
81.0 in (2 057 mm)
80.6 in (2 047 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.9 in (1 497 mm)
58.9 in (1 497 mm)
Track, rear
58.0 in (1 474 mm)
58.2 in (1 478 mm)
58.2 in (1 478 mm)
Trunk load max.
220 lbs (100 kg)

479 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.

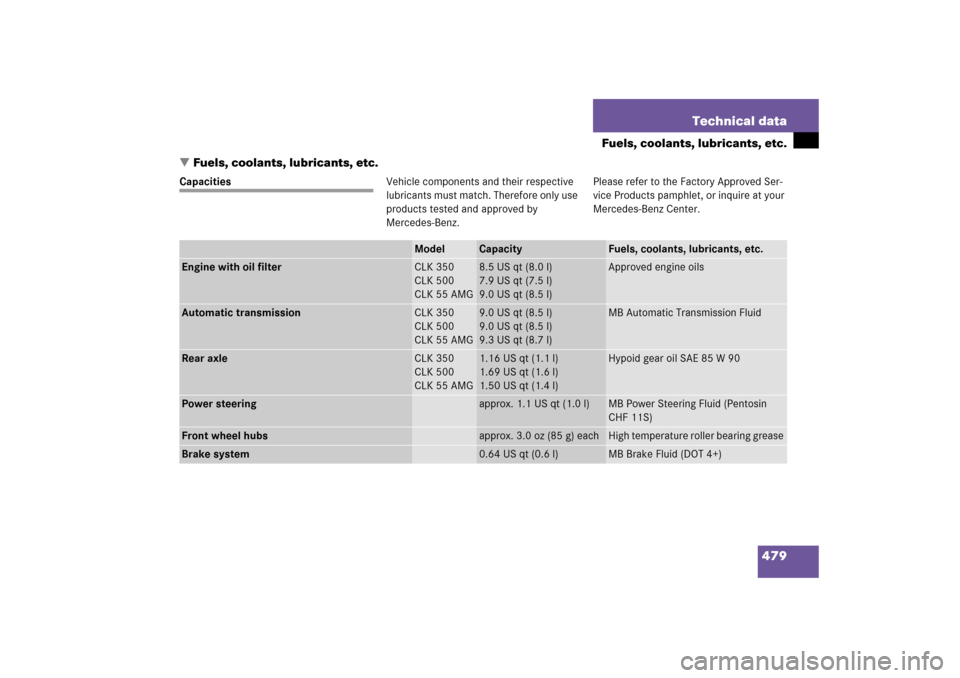

CapacitiesVehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CLK 350
CLK 500
CLK 55 AMG
8.5 US qt (8.0 l)
7.9 US qt (7.5 l)
9.0 US qt (8.5 l)
Approved engine oils
Automatic transmission
CLK 350
CLK 500
CLK 55 AMG
9.0 US qt (8.5 l)
9.0 US qt (8.5 l)
9.3 US qt (8.7 l)
MB Automatic Transmission Fluid
Rear axle
CLK 350
CLK 500
CLK 55 AMG
1.16 US qt (1.1 l)
1.69 US qt (1.6 l)
1.50 US qt (1.4 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
0.64 US qt (0.6 l)
MB Brake Fluid (DOT 4+)
